Model Broan Nutone GLA1 Broan-30-Inch Under Cabinet Range Hood, 350 Max Blower CFM, Stainless Steel – Common Parts & Diagrams

Common parts from model Broan Nutone GLA1 Broan-30-Inch Under Cabinet Range Hood, 350 Max Blower CFM, Stainless Steel

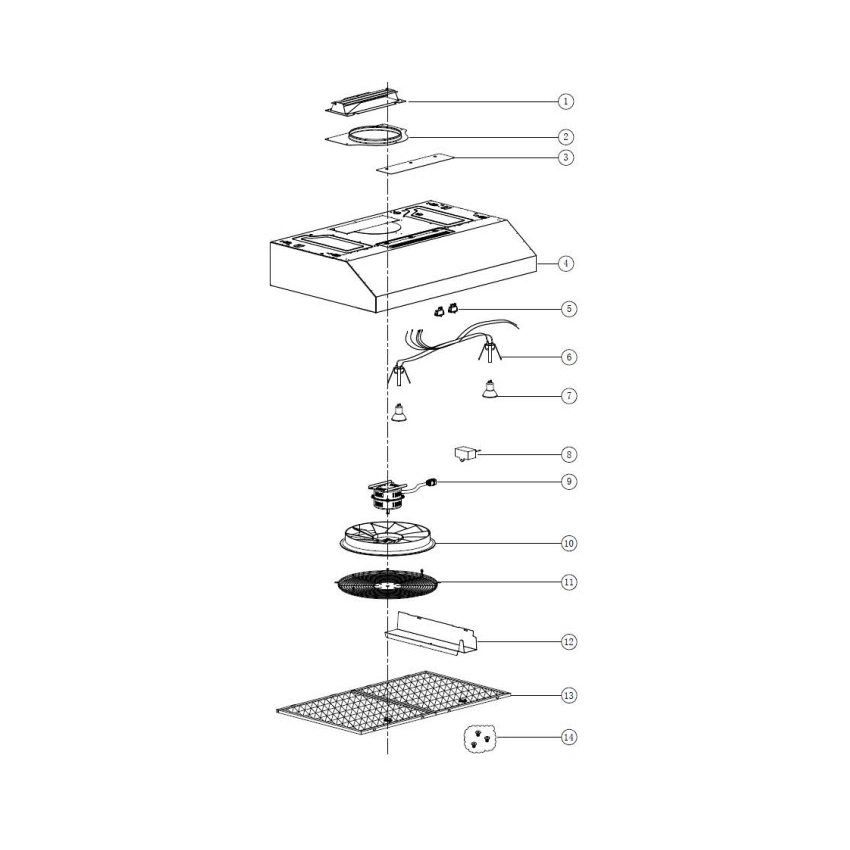

Exploded View

Print

• This Diagram
• All Diagrams

1

S97020534 Broan Range Damper Adapter Backorder BRN S97020534 View Details $43.20

View on Model

2

SR680508 Broan Range Plate Backorder BRN SR680508 View Details $49.76

View on Model

3

Recirculation Cover Plate - Black Stainless S BRN S1115690 Contact Us For Availability

View on Model

5

Switch Kit - Grey - Includes Fan & Light Swit BRN S99030379 Contact Us For Availability

View on Model

5

Switch Kit - White - Includes 2 Rocker Switch BRN S1115672 Contact Us For Availability

View on Model

5

Switch Kit - Black - Includes 2 Rocker Switch BRN S1115673 Contact Us For Availability

View on Model

6

Lamp Socket Assembly - Includes Switch Wire H BRN S1115671 Contact Us For Availability

View on Model

7

S1110531 Broan LED Bulb In Stock BRN S1110531 View Details $41.00

View on Model

8

Capacitor - 5.5uF BRN S1115679 Contact Us For Availability

View on Model

9

Motor BRN S1115680 Contact Us For Availability

View on Model

10

Blower Wheel - Includes Clip BRN S1115681 Contact Us For Availability

View on Model

11

Blower Wheel Guard - Includes Mounting Screws BRN S1115682 Contact Us For Availability

View on Model

12

Wiring Cover - Includes Mounting Screws BRN S1115683 Contact Us For Availability

View on Model

13

S99010434-002 Broan Range Filters Backorder BRN S99010434-002 View Details $108.00

View on Model

14

Parts Bag - Includes EZ1 Mounting Brackets BRN S1115686 Contact Us For Availability

View on Model

×
