Model Whirlpool GJC3655RB00 36`` ELECTRIC BUILT-IN CERAN COOKTOP – Common Parts & Diagrams

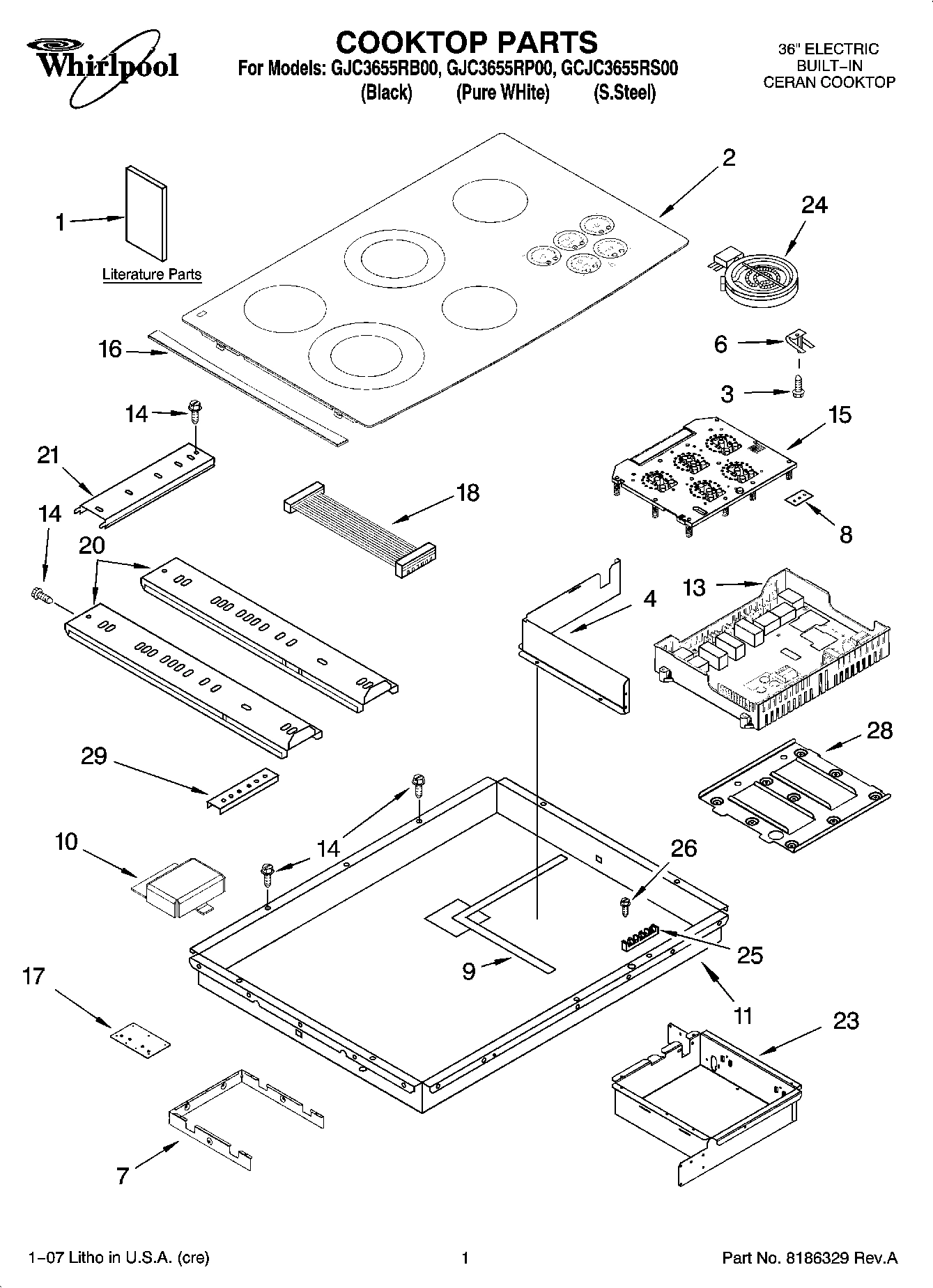

01 - COOKTOP PARTS, OPTIONAL PARTS
Common parts from model Whirlpool GJC3655RB00 36`` ELECTRIC BUILT-IN CERAN COOKTOP
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
Bra WPL 3192408 Contact Us For Availability
WPL 8285952 WPL 8285952 Contact Us For Availability
WPL 8286379 WPL 8286379 Contact Us For Availability
WPL 8286382 WPL 8286382 Contact Us For Availability
WPL ARI66481A2 WPL ARI66481A2 Contact Us For Availability
WPL ARI66482A7 WPL ARI66482A7 Contact Us For Availability
WPL ARI66483A6 WPL ARI66483A6 Contact Us For Availability
WPL ARI66484A4 WPL ARI66484A4 Contact Us For Availability
WPL ARI66485A8 WPL ARI66485A8 Contact Us For Availability
WPL FE02313 WPL FE02313 Contact Us For Availability
1
Safe Cooking Tips WPL 3191638 Contact Us For Availability
1
Wiring Diagram WPL 8285425 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8286066 Contact Us For Availability
1
Tech Sheet WPL 8286286 Contact Us For Availability
1
Use & Care Guide WPL 8286288 Contact Us For Availability
1
SAFECOOKING TIPS WPL 9759133 Contact Us For Availability
2
Cooktop, Glass (Black) WPL 8285977 Contact Us For Availability
2
Cooktop, Glass (White) WPL 8286006 Contact Us For Availability
2
Cooktop, Glass (Stainless Steel) WPL 8286008 Contact Us For Availability
4
Wall, Inside WPL 8285982 Contact Us For Availability
7
Shield, Heat WPL 8285817 Contact Us For Availability
9
Seal, Heat Shield WPL 8285242 Contact Us For Availability
11
Box, Burner WPL 8286555 Contact Us For Availability
13
Board, Power WPL 8285918 Contact Us For Availability
15
Board, Control WPL 8286135 Contact Us For Availability
16
Trim, Cooktop (S.Steel Mdl Only) (LH) WPL 8285990 Contact Us For Availability
17
Bracket, Bottom WPL 8286535 Contact Us For Availability
18
Cable Ass`y WPL 8285323 Contact Us For Availability
20
Rail, Element (2) WPL 9756813 Contact Us For Availability
21
Rail, Element (1) WPL 8286081 Contact Us For Availability
23
Box, Touch Control WPL 8286053 Contact Us For Availability
24
Element, Surface (2500/1200W LF) WPL 8285845 Contact Us For Availability
24
Element, Surface (2000/1000W CR) WPL 8285938 Contact Us For Availability
28
Support, Module WPL 4456922 Contact Us For Availability
× ![]()
