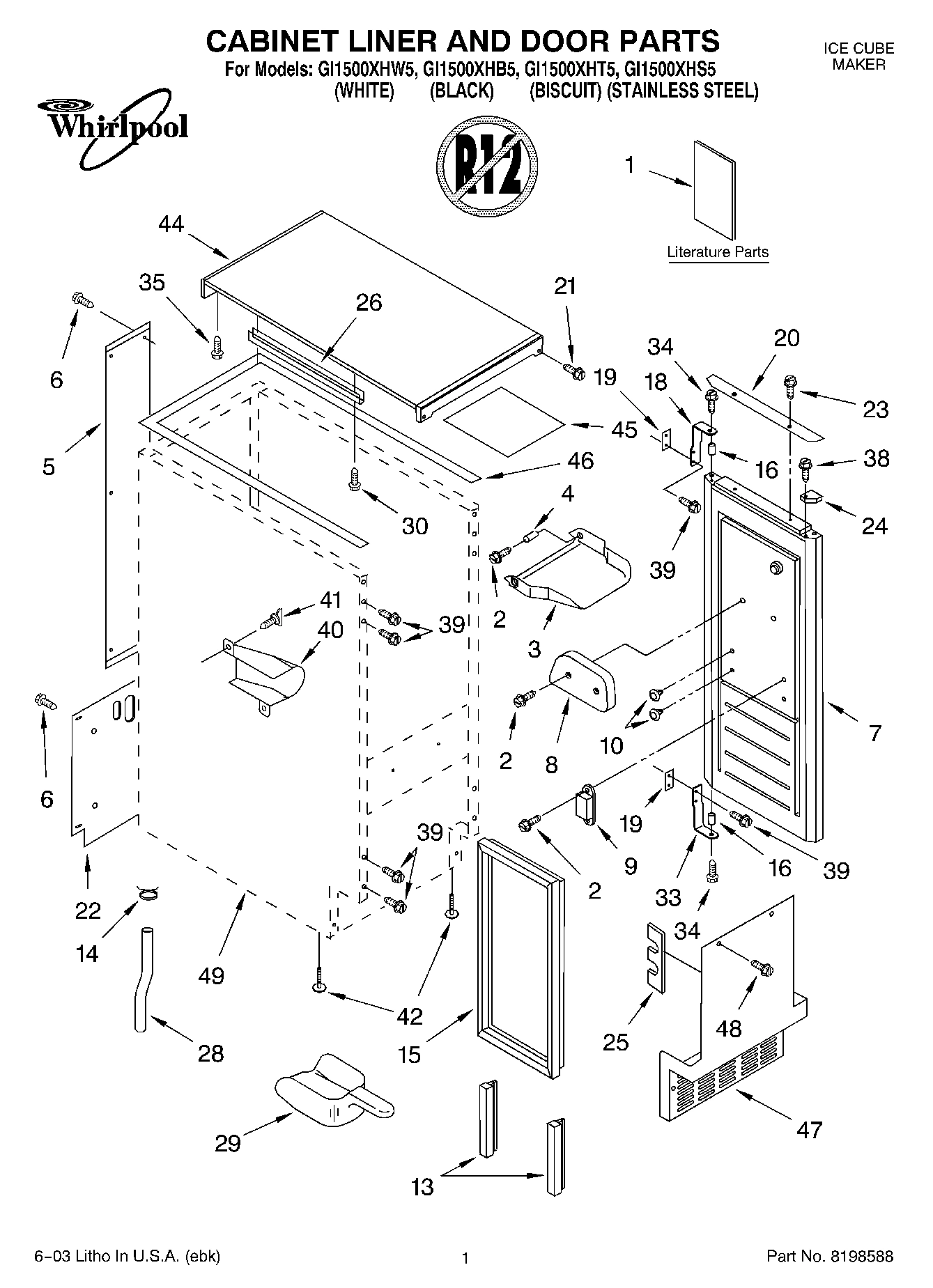

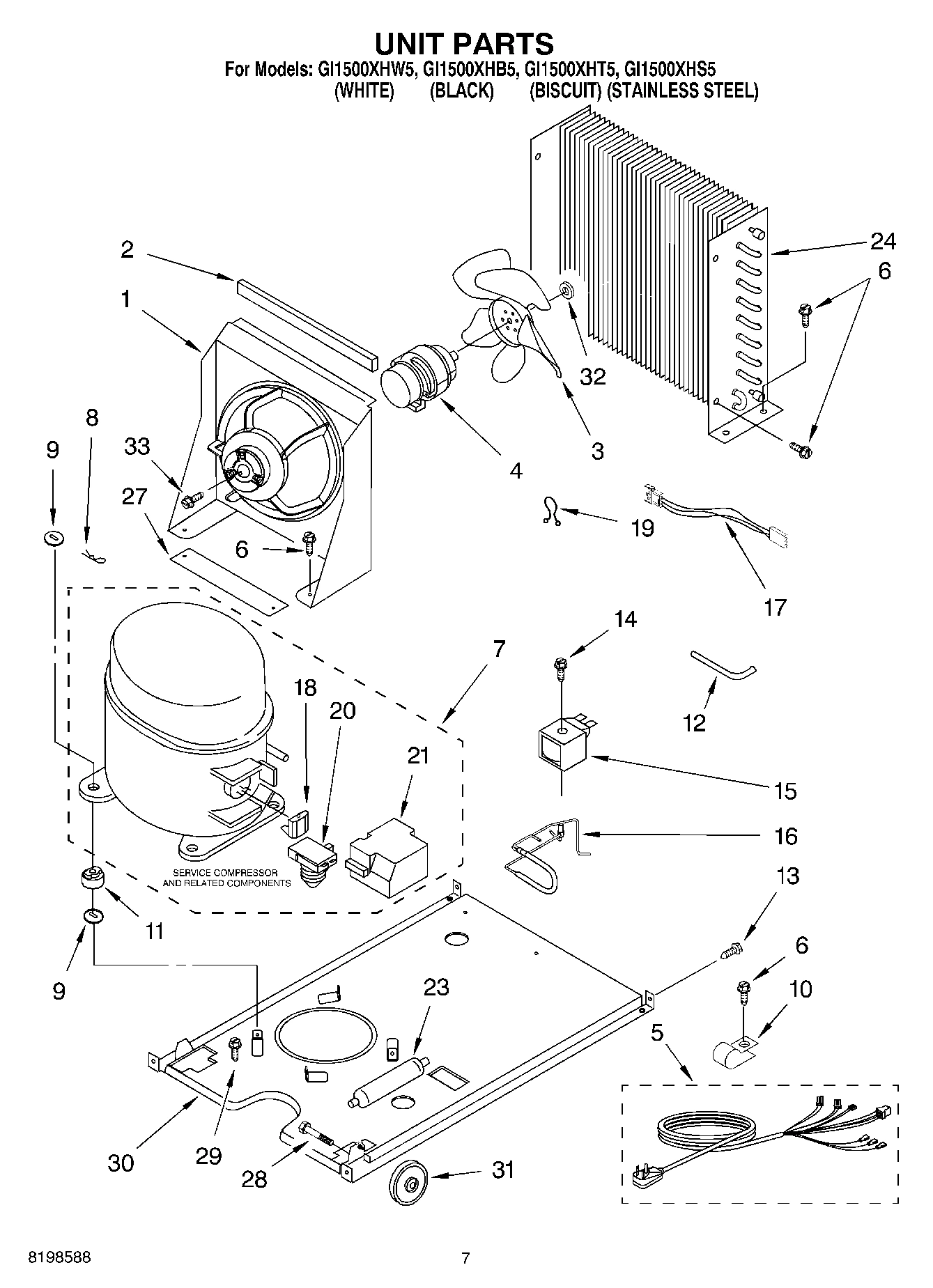

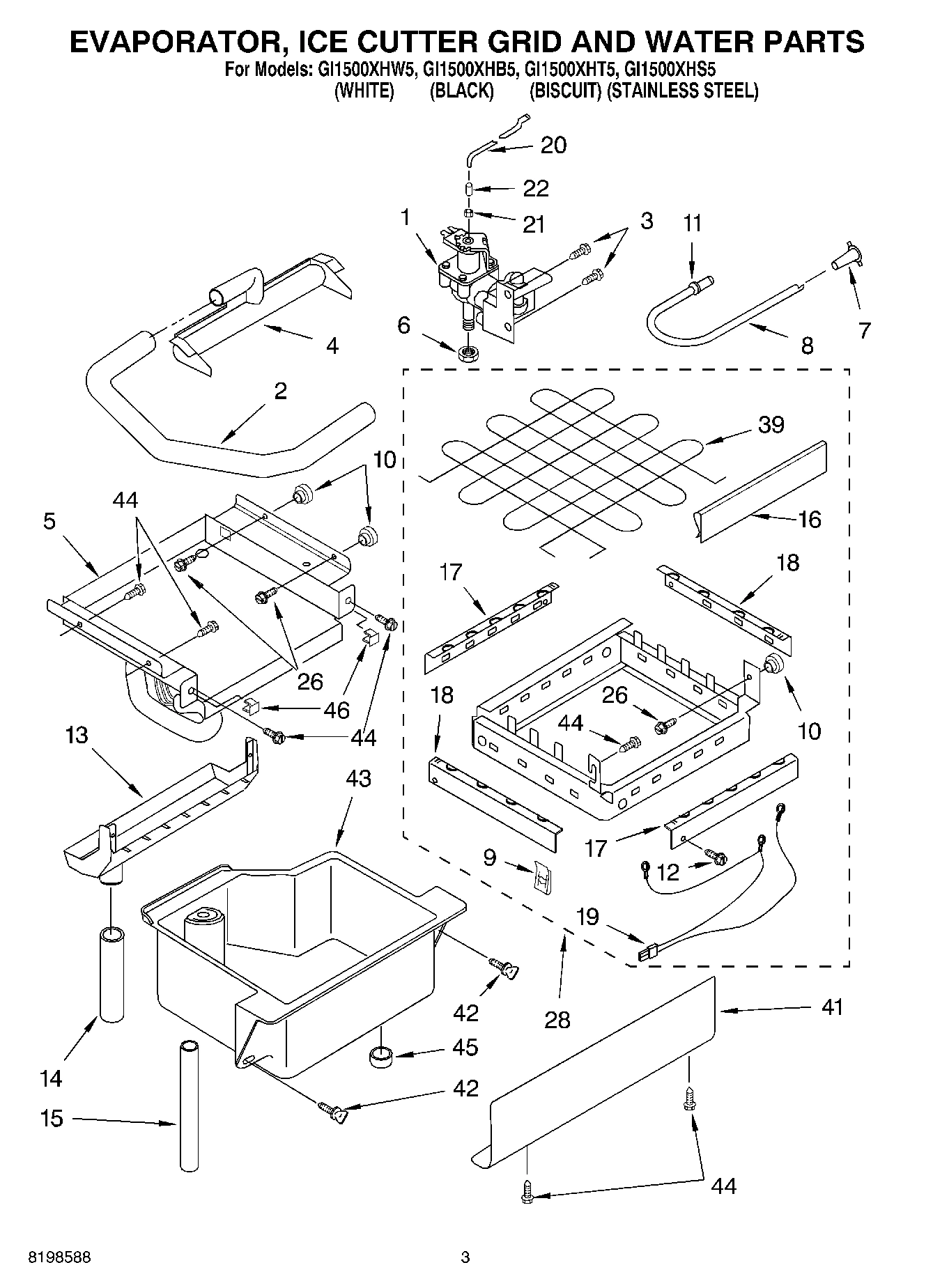

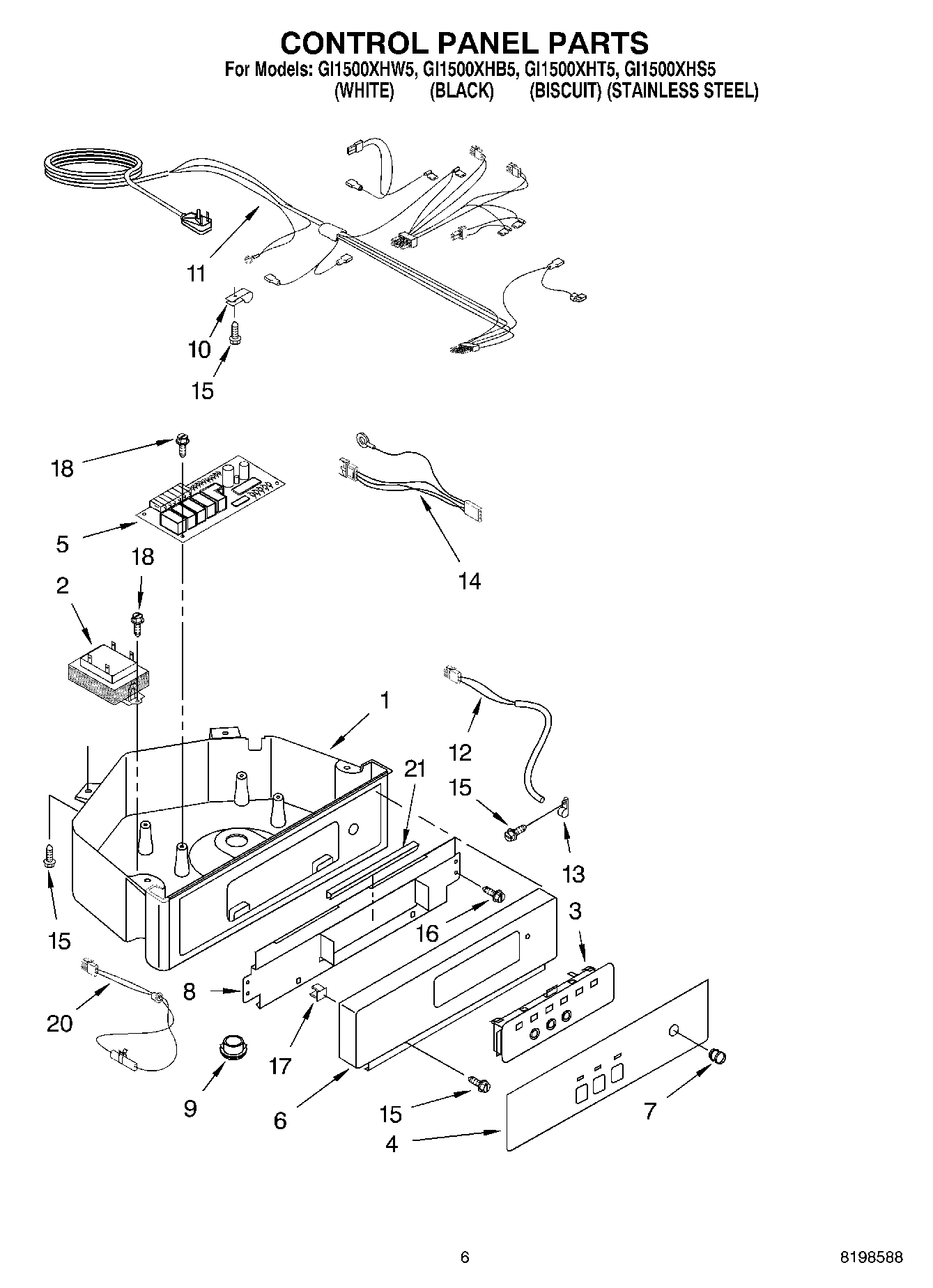

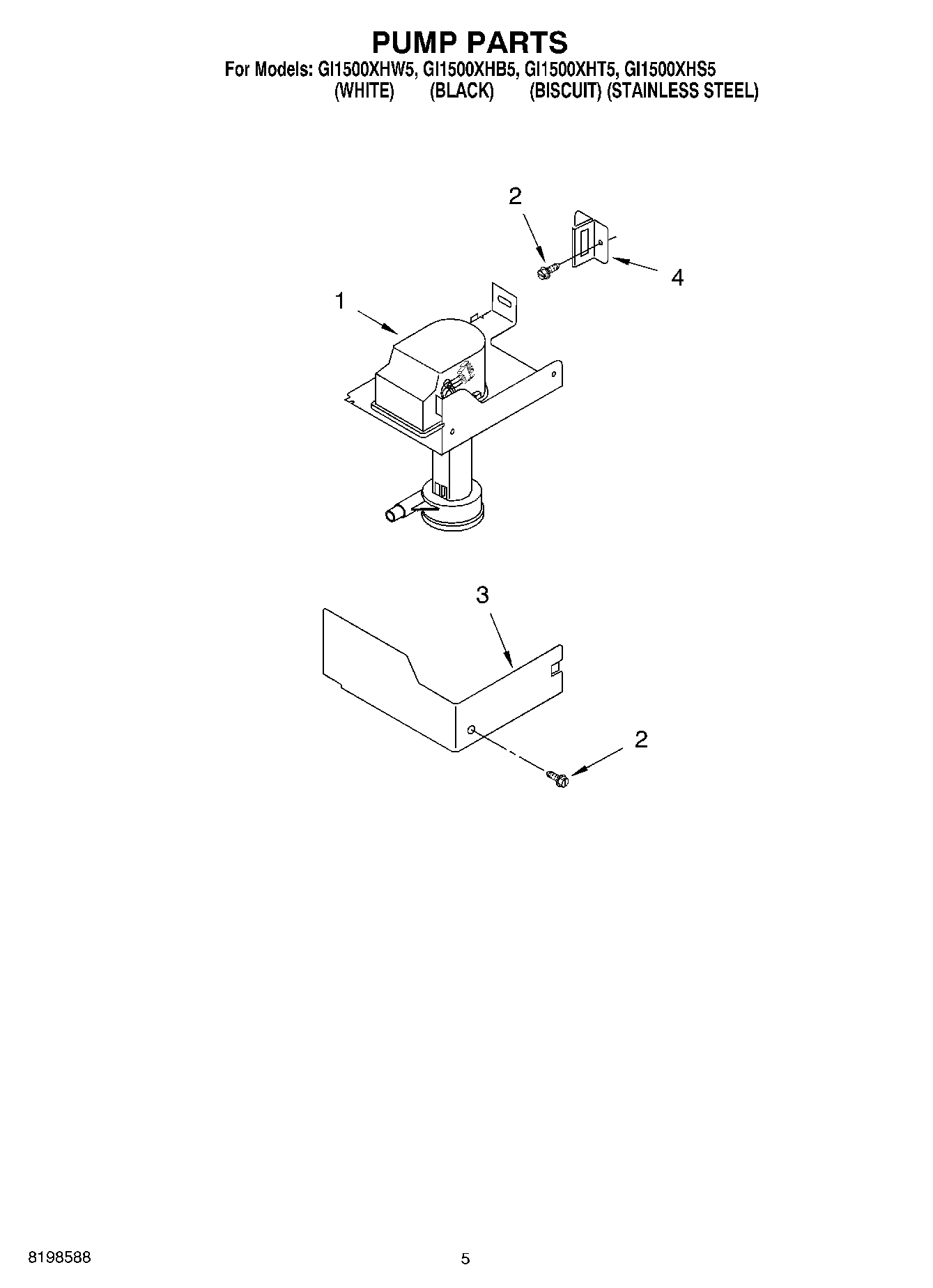

Model Whirlpool GI1500XHW5 ICE CUBE MAKER – Common Parts &amp; Diagrams

1

WP2217220 Whirlpool Recirculation Pump Assemb In Stock WPL WP2217220 $174.64

2

2185675 Whirlpool Refrigerator Foam Pad Backorder WPL 2185675 $4.78

2

Transformer WPL 2185657 Contact Us For Availability

3

2185677 Whirlpool Refrigerator Pump Cover Backorder WPL 2185677 $28.80

3

Blade, Fan WPL 2190685 Contact Us For Availability

3

Assembly, Switch (ALSO ORDER 4) WPL 2185592 Contact Us For Availability

4

2185678 Whirlpool Refrigerator Spacer Backorder WPL 2185678 $4.65

4

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

4

W10863947 Whirlpool Refrigerator Tube In Stock WPL W10863947 $29.43

5

WPW10218037 Whirlpool Refrigerator Evaporator In Stock WPL WPW10218037 $379.51

5

Wiring Harness, Complete Unit (See 11 On Cont WPL ARI65795A8 Contact Us For Availability

6

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

6

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

7

W11735041 Whirlpool Compressor In Stock WPL W11735041 $355.36

7

Door (White) WPL 2932804W Contact Us For Availability

8

2185695 Whirlpool Refrigerator Door Cam Backorder WPL 2185695 $28.80

8

A201435 Whirlpool Refrigerator Clip Backorder WPL A201435 $5.65

9

A201441 Whirlpool Refrigerator Shim Backorder WPL A201441 $5.65

9

W11223751 Whirlpool Refrigerator Catch Assemb Backorder WPL W11223751 $32.23

10

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

10

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

10

CLAMP, POWER CORD WPL 2185960 Contact Us For Availability

11

2185965 Whirlpool Refrigerator Grommet Backorder WPL 2185965 $14.31

12

W10528572 Whirlpool Refrigerator Tube In Stock WPL W10528572 $14.26

12

WPW10503764 Whirlpool Refrigerator Thermistor In Stock WPL WPW10503764 $39.60

13

2217367 Whirlpool Refrigerator Door Gasket Backorder WPL 2217367 $29.43

13

WP2185625 Whirlpool Refrigerator Water Pan Backorder WPL WP2185625 $61.00

13

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

14

WP2185626 Whirlpool Refrigerator Hose Backorder WPL WP2185626 $37.64

14

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $4.81

14

Screw WPL 489472 Contact Us For Availability

15

Coil, Solenoid WPL 759112 Contact Us For Availability

15

Gasket, Door WPL 2217291 Contact Us For Availability

16

2185640 Whirlpool Refrigerator Sleeve Backorder WPL 2185640 $26.77

16

W10724988 Whirlpool Refrigerator Gas Valve Backorder WPL W10724988 $175.79

17

Wiring Harness, Condenser Fan WPL 2187267 Contact Us For Availability

18

2185710 Whirlpool Refrigerator Hinge Backorder WPL 2185710 $28.80

18

WP2217223 Whirlpool Refrigerator Overload Rel Backorder WPL WP2217223 $47.10

19

2185681 Whirlpool Refrigerator Harness Backorder WPL 2185681 $42.04

19

2185709 Whirlpool Refrigerator Shim Backorder WPL 2185709 $7.21

19

Twist Loc WPL 2217322 Contact Us For Availability

WP2208493B Whirlpool Refrigerator Handle In Stock WPL WP2208493B $63.73

WP2208493W Whirlpool Refrigerator Handle Backorder WPL WP2208493W $64.56

WP2217224 Whirlpool Refrigerator Start Relay In Stock WPL WP2217224 $36.64

Handle, Door (Biscuit) WPL 2208493T Contact Us For Availability

21

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

21

Screw 8-18 X 1/2 WPL 8281184 Contact Us For Availability

22

WPW10136199 Whirlpool Refrigerator Unit Cover Backorder WPL WPW10136199 $48.18

8281188 Whirlpool Refrigerator M Screw Backorder WPL 8281188 $4.45

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Screw, Handle (Black) WPL 8281186 Contact Us For Availability

SCREW, HANDLE (BISCUIT) WPL 8281187 Contact Us For Availability

2185656B Whirlpool Floor Endcap Backorder WPL 2185656B $7.80

8201810 Whirlpool Refrigerator Condenser Backorder WPL 8201810 $194.16

Filler, Endcap Left Side (Black) WPL 2185655B Contact Us For Availability

Filler, Endcap Left Side (Biscuit) WPL 2185655T Contact Us For Availability

Filler, Endcap Left Side (White) WPL 2185655W Contact Us For Availability

(Filler, Endcap Right Side) (Biscuit) WPL 2185656T Contact Us For Availability

FILLER, ENDCAP RIGHT SIDE (WHITE) WPL 2185656W Contact Us For Availability

25

W10532250 Whirlpool Refrigerator Foam Pad Backorder WPL W10532250 $7.43

26

2185691 Whirlpool Refrigerator Channel Backorder WPL 2185691 $9.50

27

2217397 Whirlpool Foam Pad Backorder WPL 2217397 $29.19

28

WP2185989 Whirlpool Refrigerator Tube Backorder WPL WP2185989 $38.74

28

Screw 10-32X15/16 WPL 3370389 Contact Us For Availability

29

W11420408 Whirlpool Refrigerator Ice Scoop In Stock WPL W11420408 $7.27

29

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

30

Base, Unit WPL 2185511 Contact Us For Availability

31

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

32

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

33

2185711 Whirlpool Refrigerator Hinge Backorder WPL 2185711 $29.43

33

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

33

REFRIGERANT CHARGE 6.5 OZ. (R134A) WPL ARI65796A7 Contact Us For Availability

34

2185712 Whirlpool Refrigerator Hinge Pin Backorder WPL 2185712 $29.06

35

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

38

Screw 8-18 X 3/4 WPL 348689 Contact Us For Availability

40

2185927 Whirlpool Refrigerator Holder Backorder WPL 2185927 $30.85

41

2185570 Whirlpool Refrigerator Panel Backorder WPL 2185570 $40.68

41

Thumbscrew WPL 8281228 Contact Us For Availability

42

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

WP3400884 Whirlpool Refrigerator Screw Backorder WPL WP3400884 $2.51

Top (Black) WPL 2929700B Contact Us For Availability

Top (Biscuit) WPL 2929700T Contact Us For Availability

Top (White) WPL 2929700W Contact Us For Availability

45

2185690 Whirlpool Shield Assembly Backorder WPL 2185690 $9.15

45

WP2185696 Whirlpool Cap In Stock WPL WP2185696 $15.72

46

W11624957 Whirlpool Refrigerator Top Gasket Backorder WPL W11624957 $54.88

47

WP2185571B Whirlpool Refrigerator Grille Backorder WPL WP2185571B $80.13

47

WP2185571W Whirlpool Refrigerator Grille Backorder WPL WP2185571W $69.20

47

Grill, Front (Biscuit) WPL 2185571T Contact Us For Availability

48

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

WPL ARI65793A8 WPL ARI65793A8 Contact Us For Availability

WPL ARI65794A7 WPL ARI65794A7 Contact Us For Availability
