Model Whirlpool GH9185XLT0 MICROWAVE OVEN – Common Parts & Diagrams

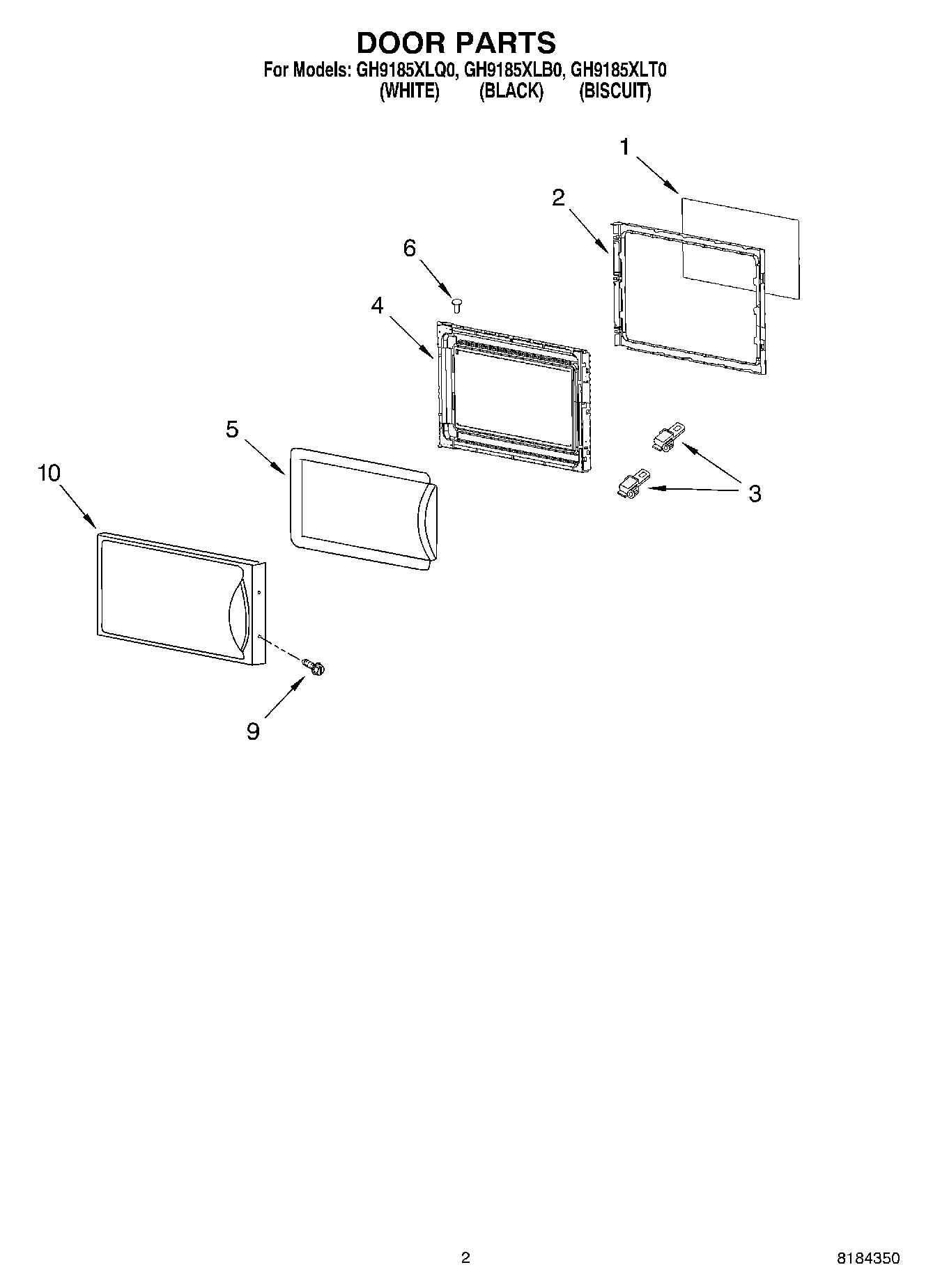

02 - DOOR

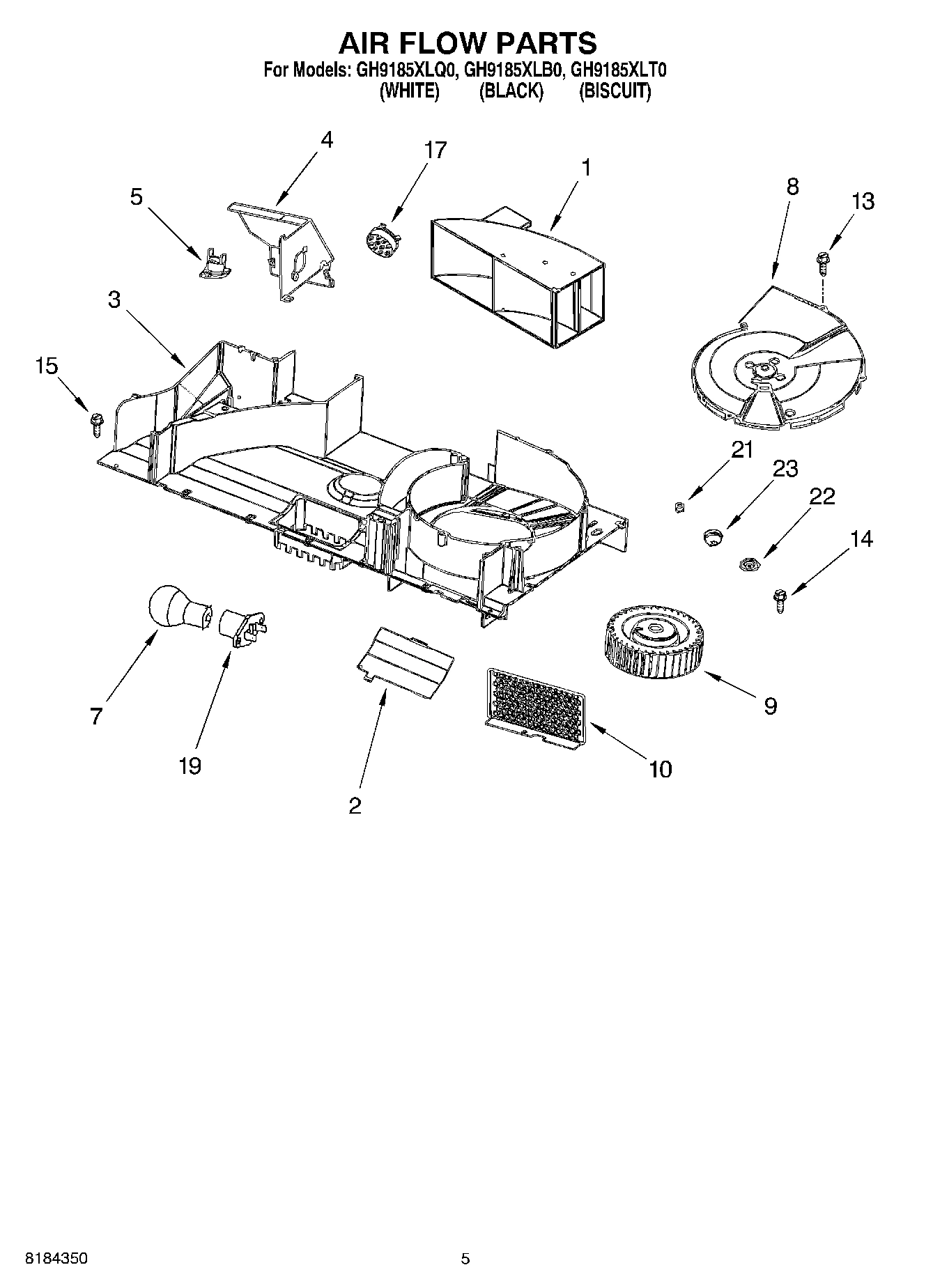

04 - AIR FLOW

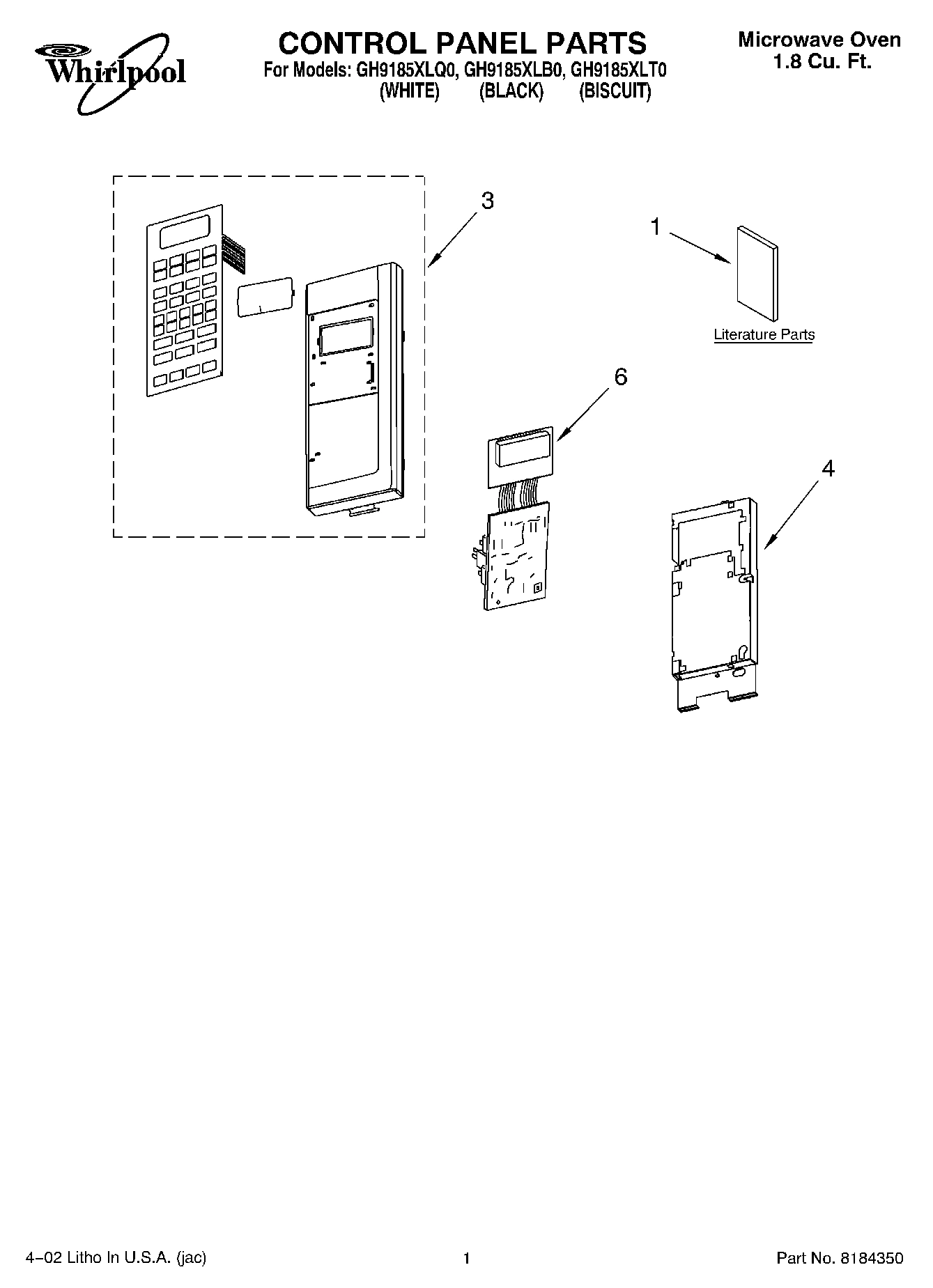

01 - CONTROL PANEL, LITERATURE

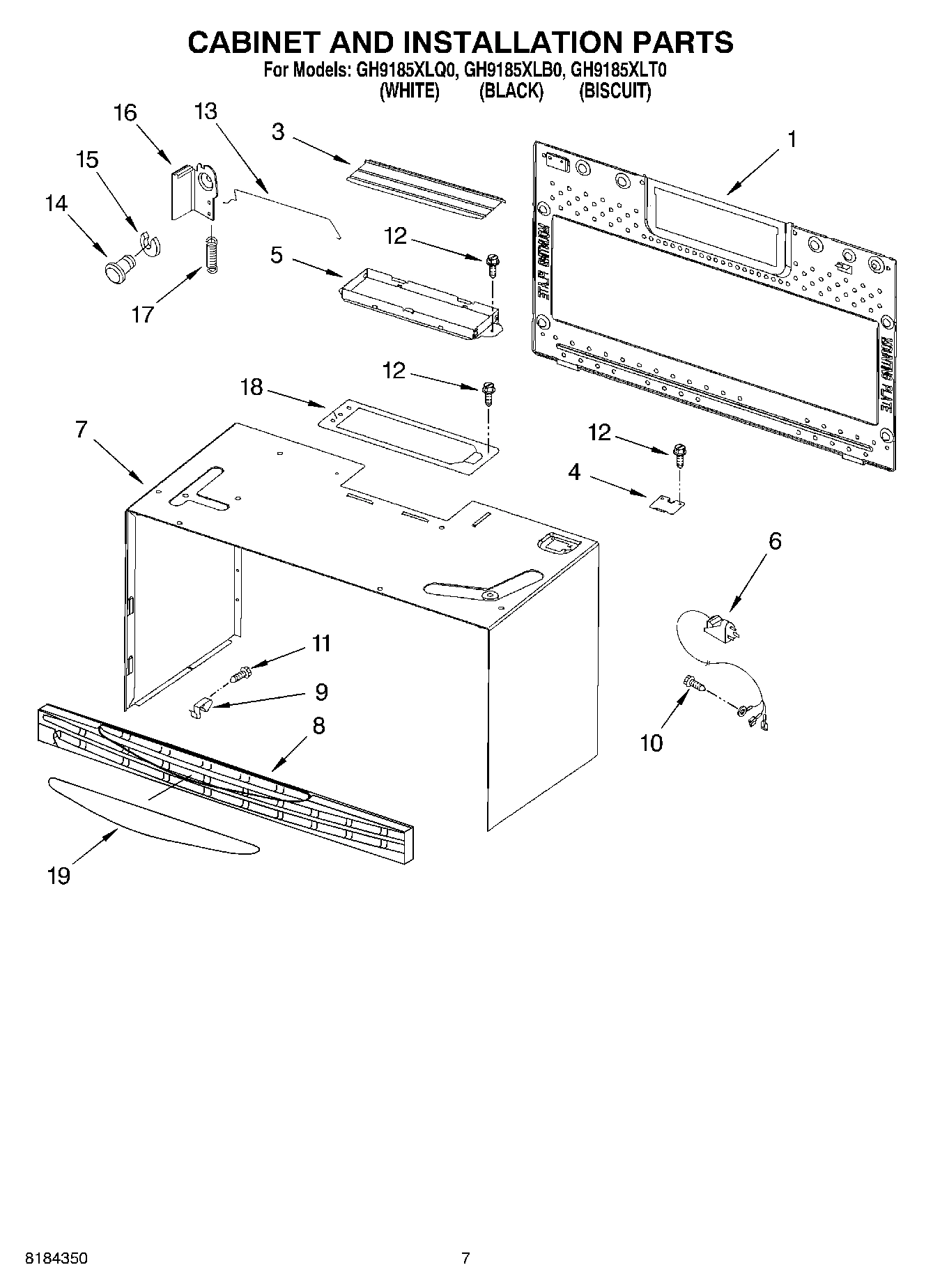

06 - CABINET AND INSTALLATION

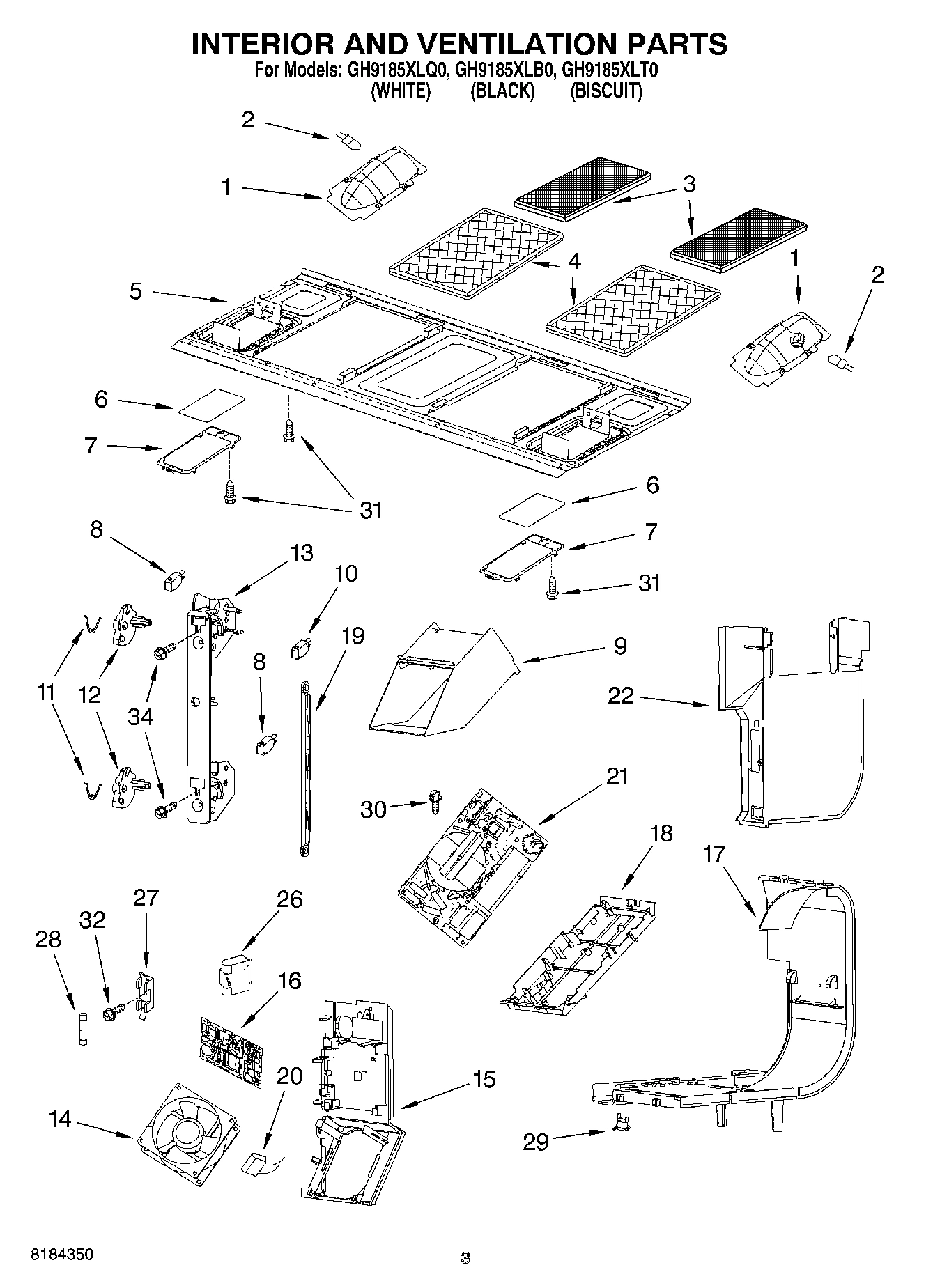

03 - INTERIOR AND VENTILATION

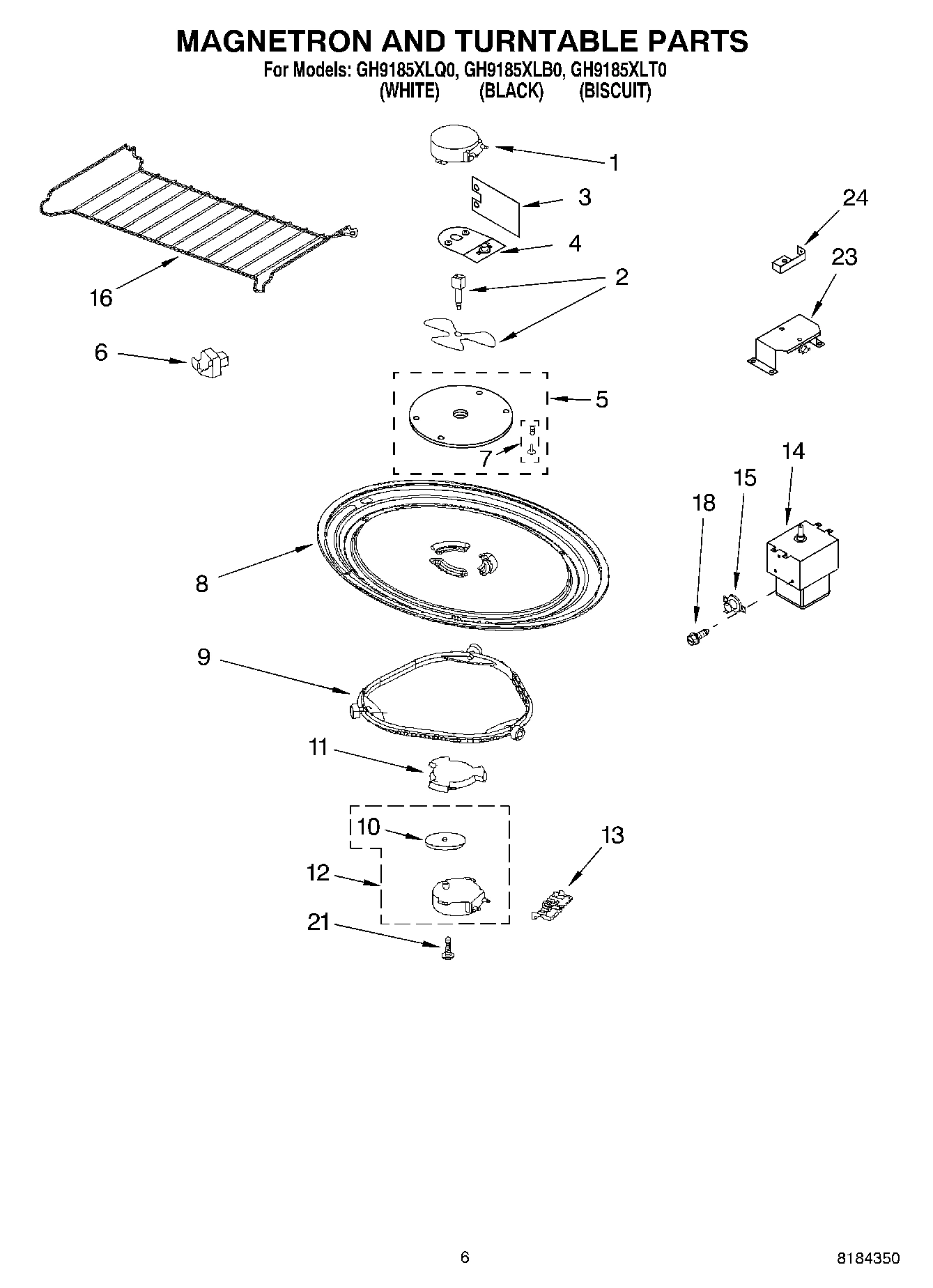

05 - MAGNETRON AND TURNTABLE
Common parts from model Whirlpool GH9185XLT0 MICROWAVE OVEN
1
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
1
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
1
Literature (Instructn, Install) WPL LIT8184059 Contact Us For Availability
1
Literature (Tech Sheet) WPL LIT8184635 Contact Us For Availability
1
Plate, Mounting WPL 8184106 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184108 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8184680 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8184681 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8184682 Contact Us For Availability
3
Shield, Nomex WPL 8184485 Contact Us For Availability
4
Bracket, Control WPL 8184131 Contact Us For Availability
4
Lid, Power Cord WPL 8184195 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Plate, Bottom WPL 8184193 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8184477 Contact Us For Availability
6
Microcomputer WPL 8184683 Contact Us For Availability
6
Cord, Power WPL 8184101 Contact Us For Availability
6
Glass, Lamp WPL 8184141 Contact Us For Availability
7
Case, Outer (White) WPL 8184159 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8184161 Contact Us For Availability
7
Case, Outer (Black) WPL 8184162 Contact Us For Availability
7
Holder, Glass WPL 8184107 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Grille, Vent (White) WPL 8184671 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8184672 Contact Us For Availability
8
Grille, Vent (Black) WPL 8184673 Contact Us For Availability
9
Cover, Inverter WPL 8184124 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
12
Plate, Cam WPL 8184121 Contact Us For Availability
13
Rod WPL 8184135 Contact Us For Availability
13
Support, Interlock WPL 8184115 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184138 Contact Us For Availability
15
Thermostat WPL 8183994 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
15
Housing, Fan WPL 8184116 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
16
Inverter 40 W WPL 8184090 Contact Us For Availability
16
Rack WPL 8184052 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Bracket, Holder WPL 8184301 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Holder, Inverter WPL 8184670 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Holder, Lamp WPL 8169539 Contact Us For Availability
19
Plate, Grille (Installation, Hardware) WPL 8169659 Contact Us For Availability
19
Plate, Grille (Template, Upper) WPL 8183985 Contact Us For Availability
19
Plate, Grille (Template, Wall) WPL 8183987 Contact Us For Availability
19
Plate, Grille (White) WPL 8184674 Contact Us For Availability
19
Plate, Grille (Biscuit Miscellaneous) WPL 8184675 Contact Us For Availability
19
Plate, Grille (Black) WPL 8184676 Contact Us For Availability
19
Rod-Locking Link WPL 8184122 Contact Us For Availability
20
Capacitor, 125 V WPL 8184093 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Side WPL 8184125 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 4393538 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
× ![]()
