Model Whirlpool GH9184XLQ1 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

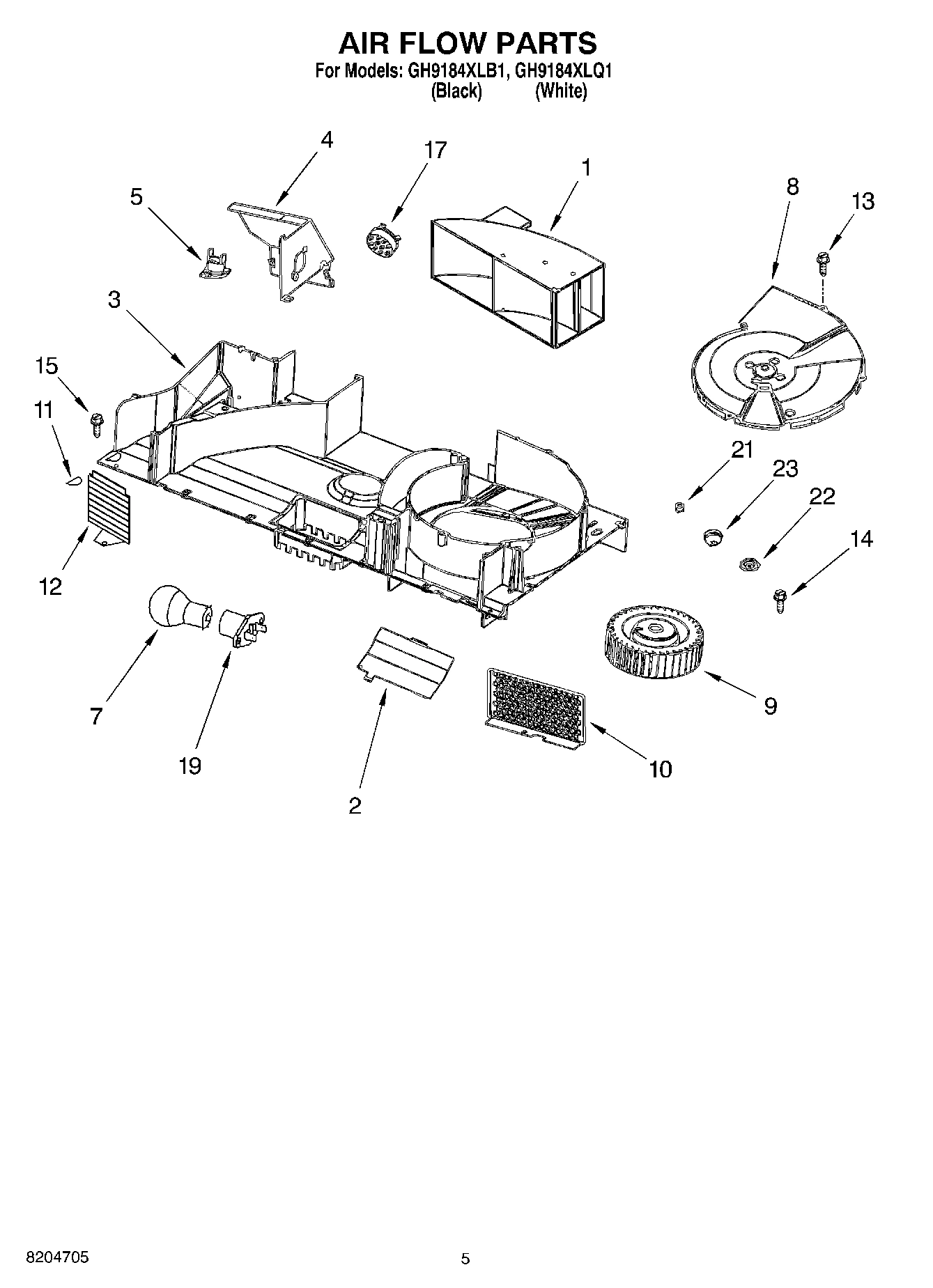

04 - AIR FLOW PARTS

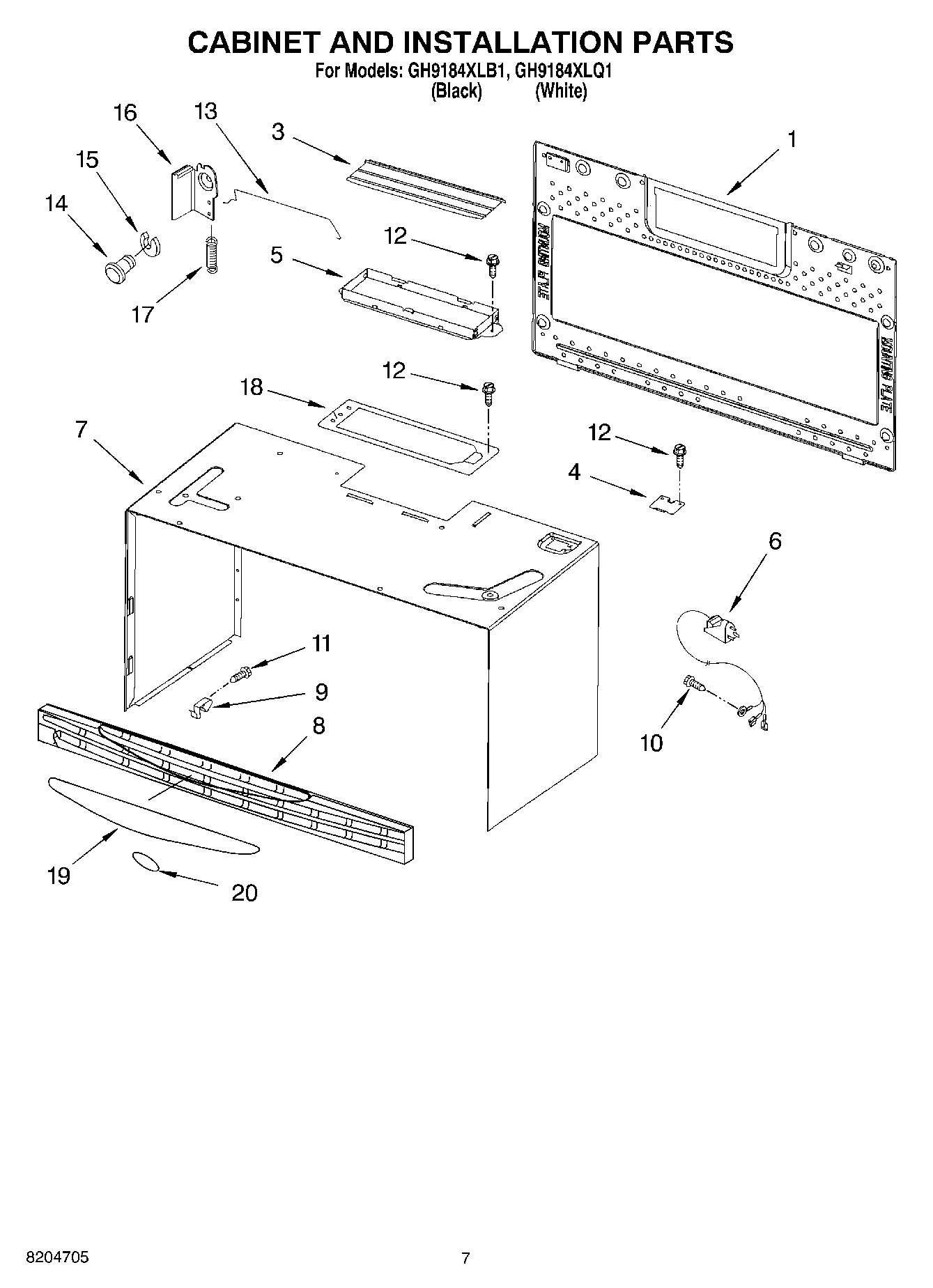

06 - CABINET AND INSTALLATION PARTS

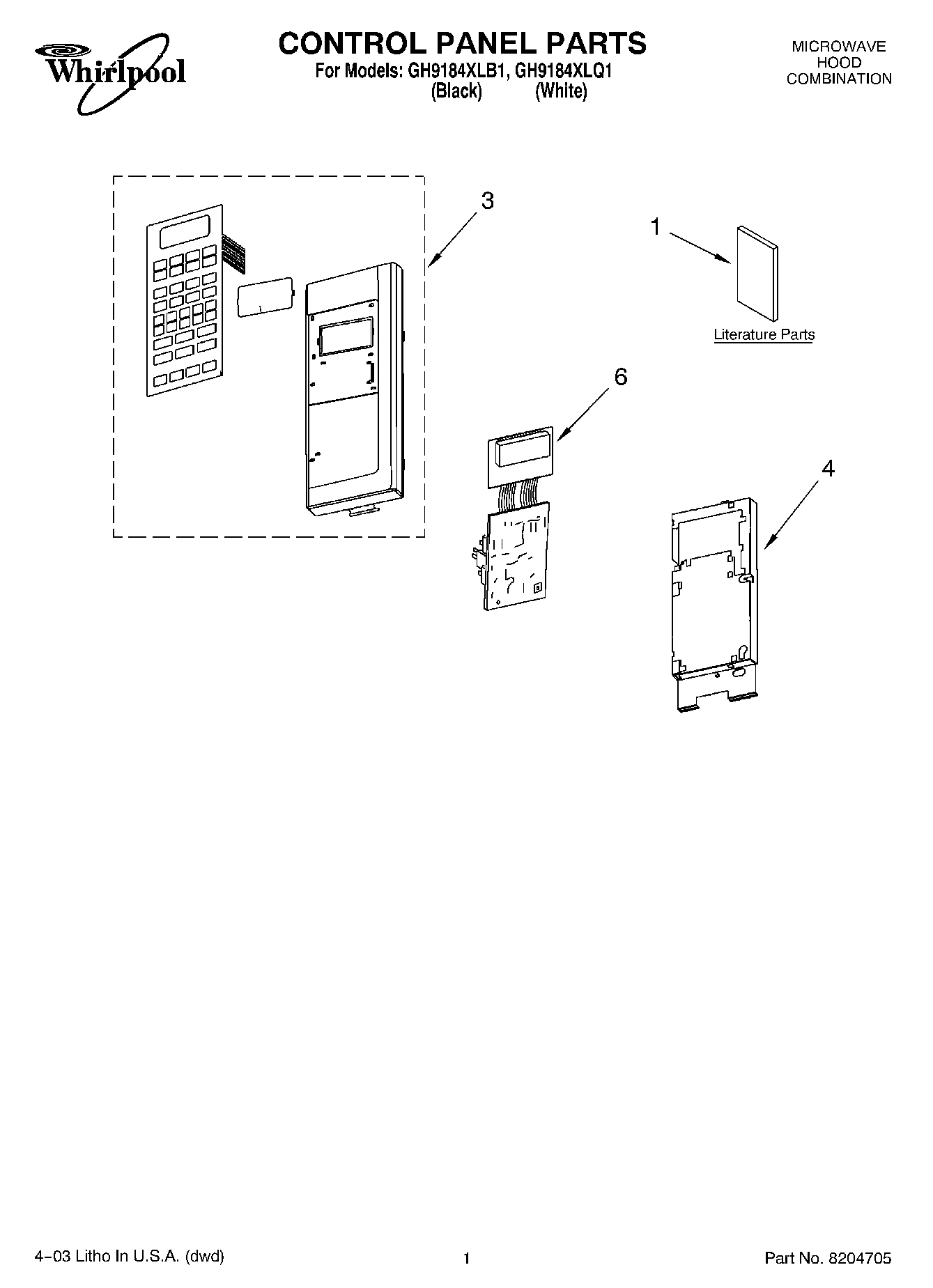

01 - CONTROL PANEL PARTS

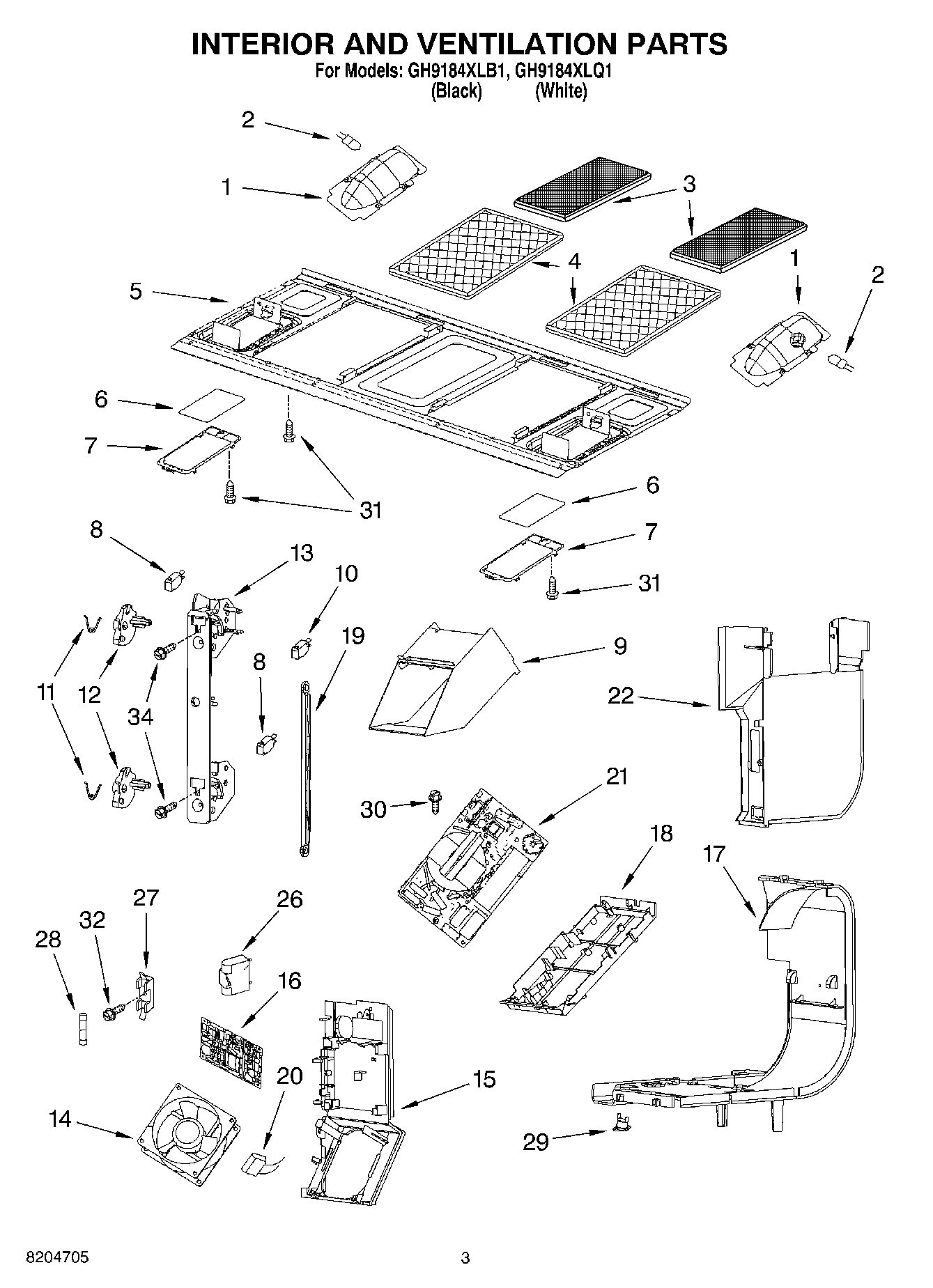

03 - INTERIOR AND VENTILATION PARTS

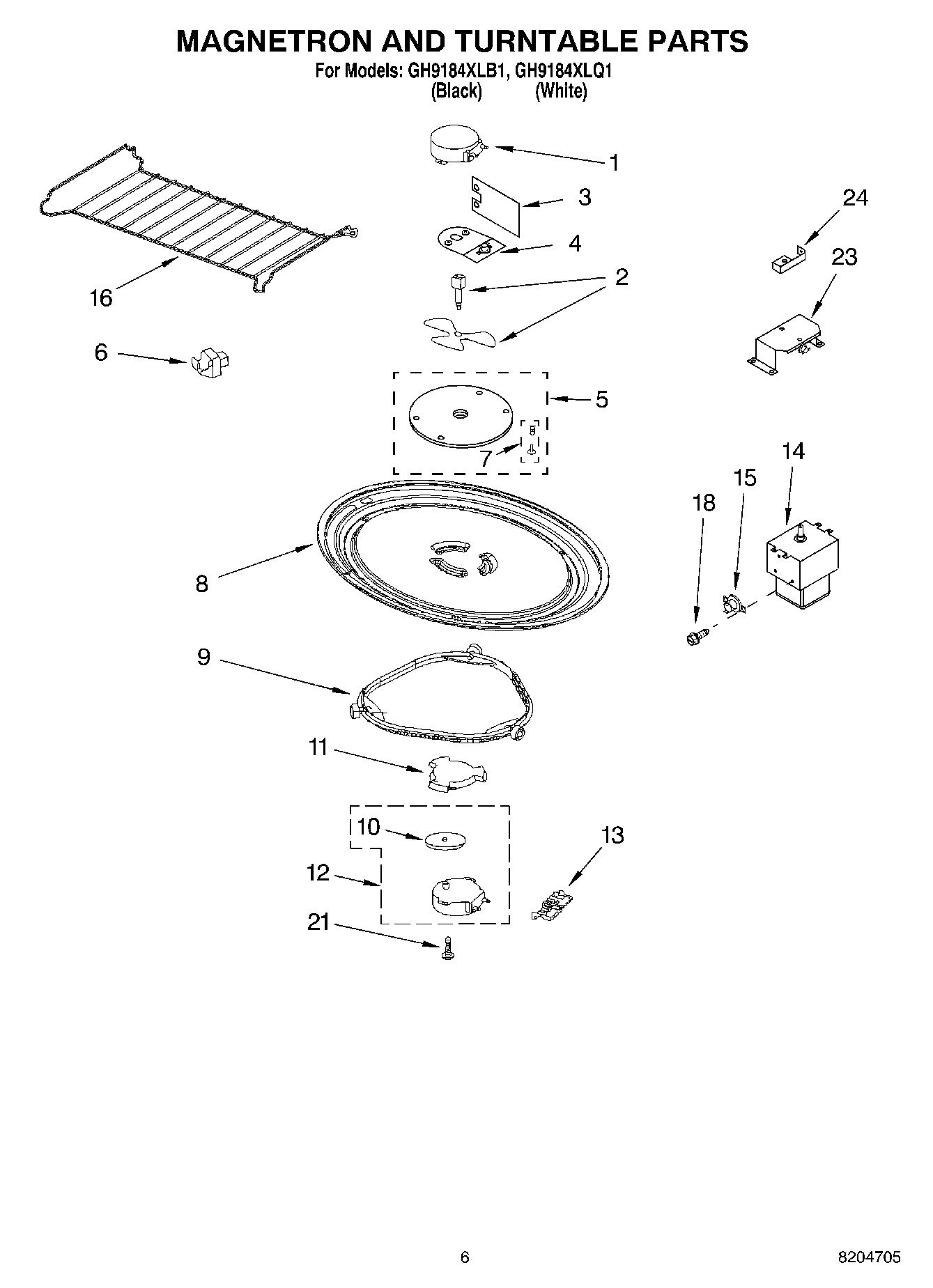

05 - MAGNETRON AND TURNTABLE PARTS

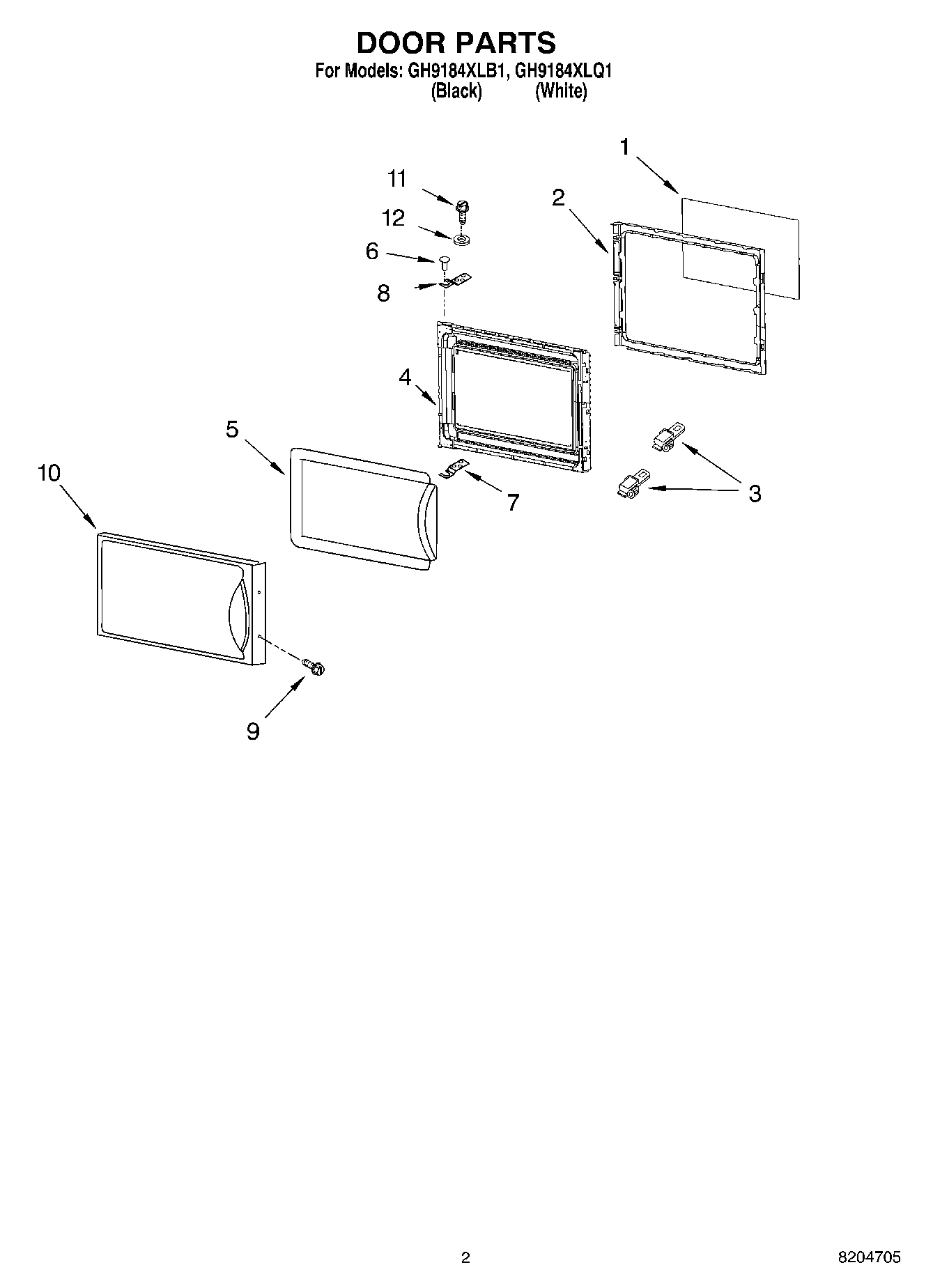

02 - DOOR PARTS
Common parts from model Whirlpool GH9184XLQ1 MICROWAVE HOOD COMBINATION
1
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
1
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
1
Literature Parts (Instructn, Install) WPL LIT8184059 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8184636 Contact Us For Availability
1
Literature Parts (U & C Guide) WPL LIT8184733 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8185064 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Film, Back Included with 4 WPL ARI65426A6 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184108 Contact Us For Availability
2
Frame, Inner WPL 8184921 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204706 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204707 Contact Us For Availability
3
Shield, Nomex WPL 8184485 Contact Us For Availability
3
Latch, Door WPL 8184113 Contact Us For Availability
4
Bracket, Control WPL 8184920 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
4
Body Asy, Door Includes 1 (White) WPL 8184239 Contact Us For Availability
4
Body Asy, Door Includes 1 (Black) WPL 8184242 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Plate, Bottom WPL 8204677 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8184476 Contact Us For Availability
5
Glass, Outer Plast Included with 10 WPL ARI65427A7 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Microcomputer WPL 8184248 Contact Us For Availability
6
Glass, Lamp WPL 8184141 Contact Us For Availability
7
Holder, Glass WPL 8184889 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Lower Hinge WPL 8204678 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Upper Hinge WPL 8204679 Contact Us For Availability
9
Cover, Inverter WPL 8184124 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (White) WPL 8184677 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Black) WPL 8184679 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
12
Plate, Cam WPL 8184121 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
15
Thermostat WPL 8183994 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Housing, Fan WPL 8184894 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
16
Inverter 40 W WPL 8184874 Contact Us For Availability
16
Rack WPL 8184052 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Bracket, Holder WPL 8185032 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Holder, Inverter WPL 8184670 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Plate, Grille (White) WPL 8185073 Contact Us For Availability
19
Plate, Grille (Black) WPL 8185074 Contact Us For Availability
20
Installation, Hardware WPL 8169659 Contact Us For Availability
20
Template, Upper WPL 8183985 Contact Us For Availability
20
Template, Wall WPL 8183987 Contact Us For Availability
20
Plate, Name WPL 8185076 Contact Us For Availability
20
Miscellaneous WPL ARI65428A2 Contact Us For Availability
20
Capacitor, 125 V WPL 8184093 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
22
Plate, Side WPL 8185031 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
26
Capacitor WPL 8184204 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
× ![]()
