Model Whirlpool GH9177XLB1 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams
03 - INTERIOR AND VENTILATION PARTS
04 - AIR FLOW PARTS

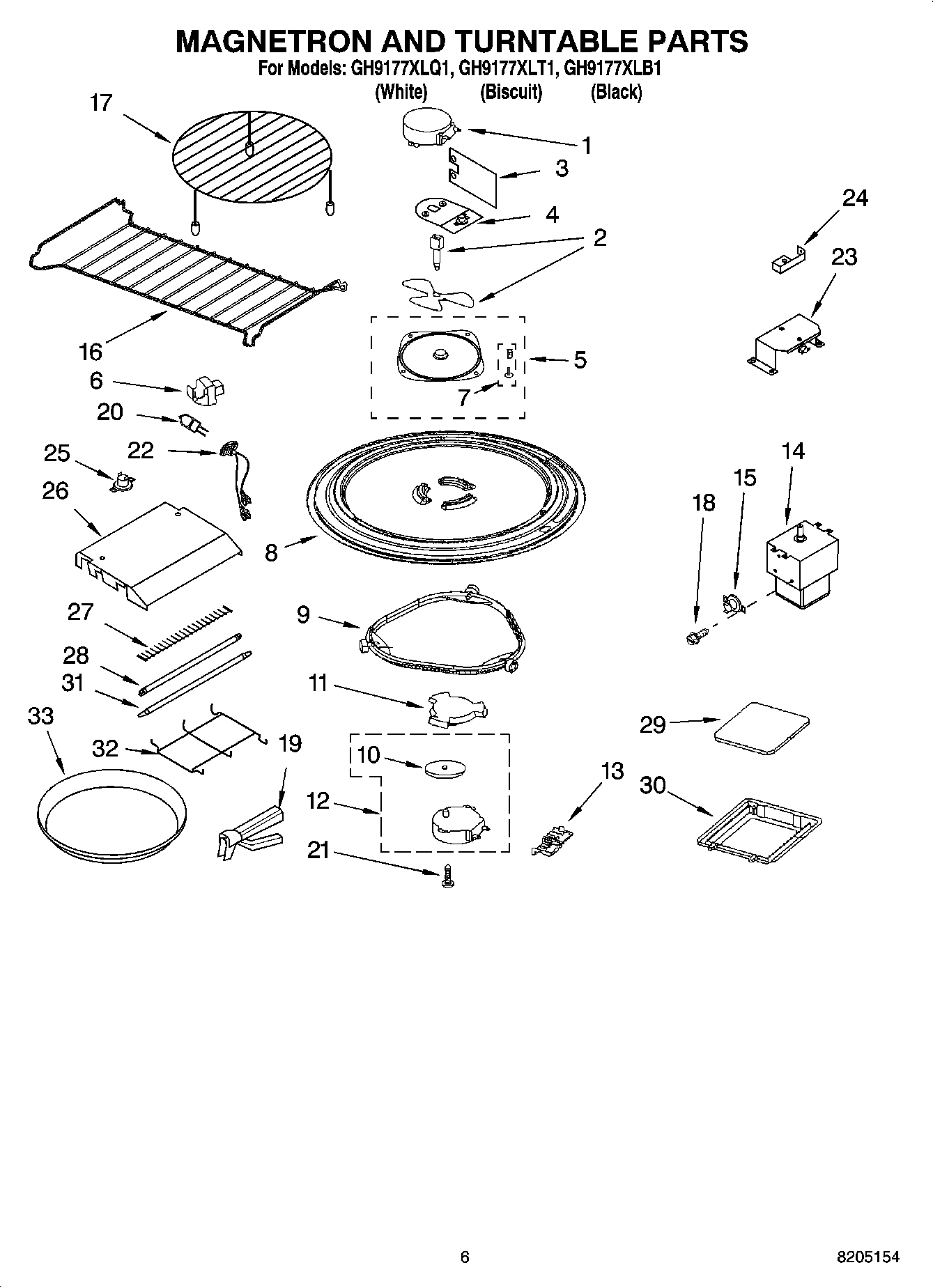

05 - MAGNETRON AND TURNTABLE PARTS

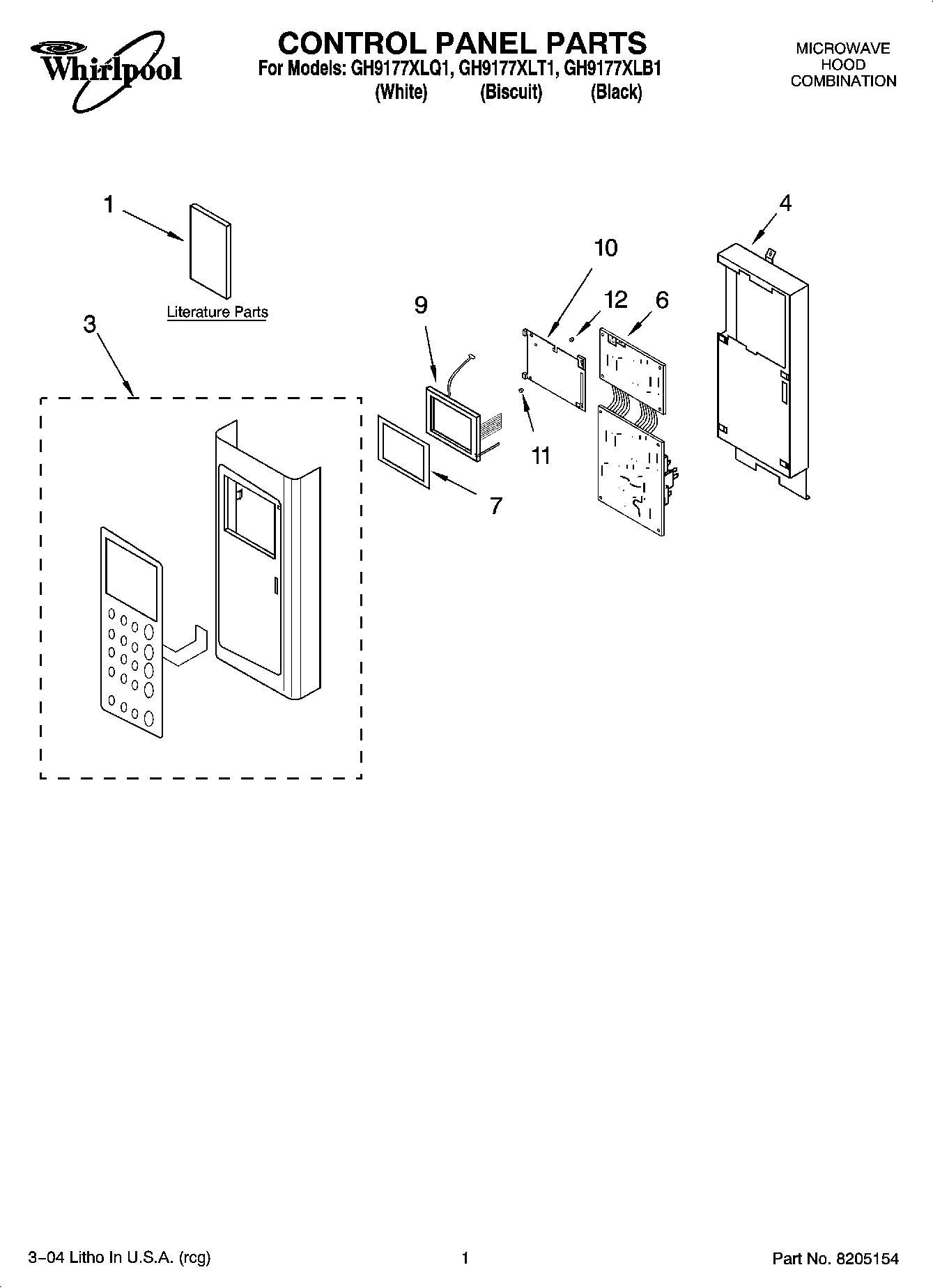

01 - CONTROL PANEL PARTS

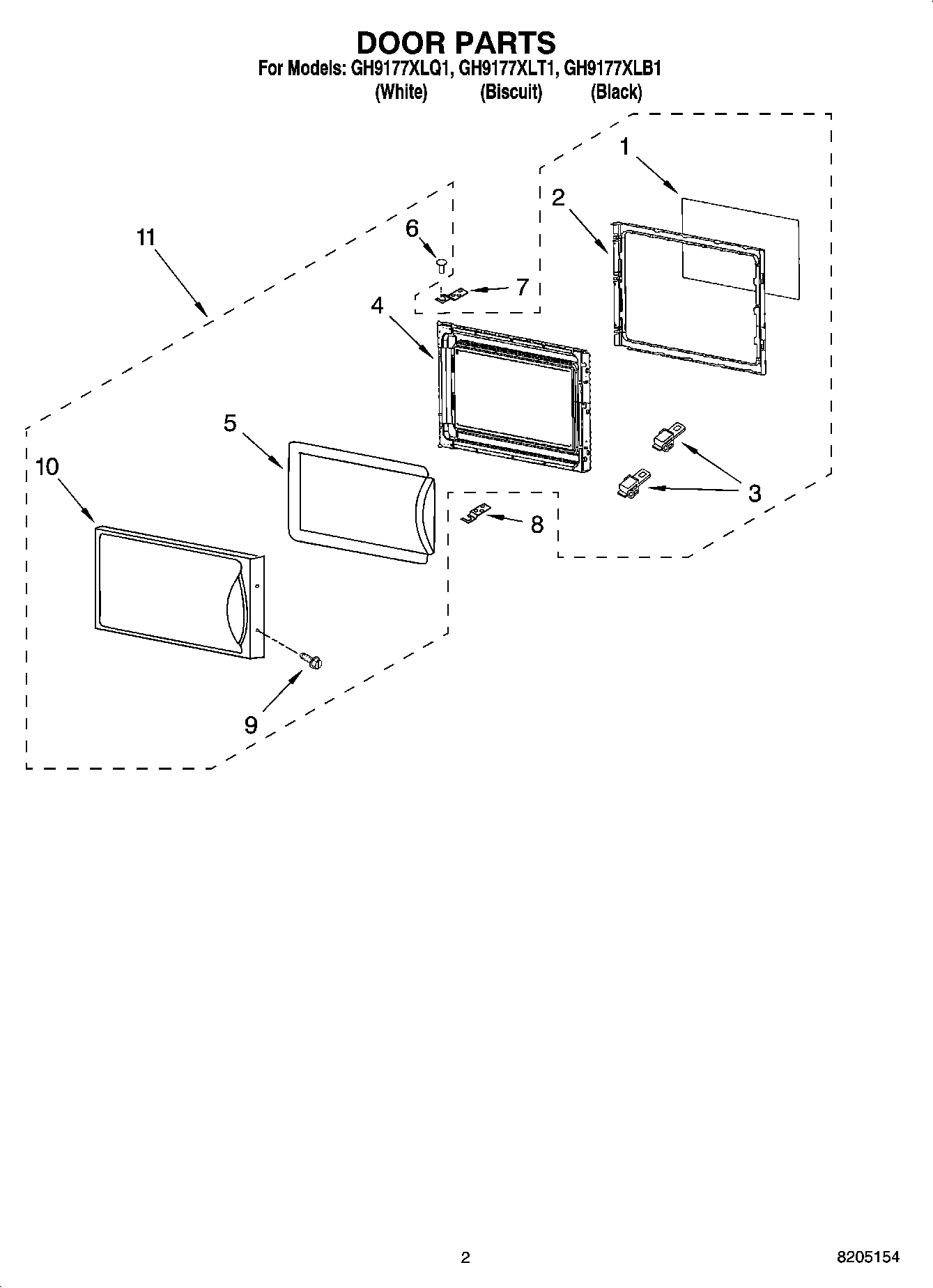

02 - DOOR PARTS

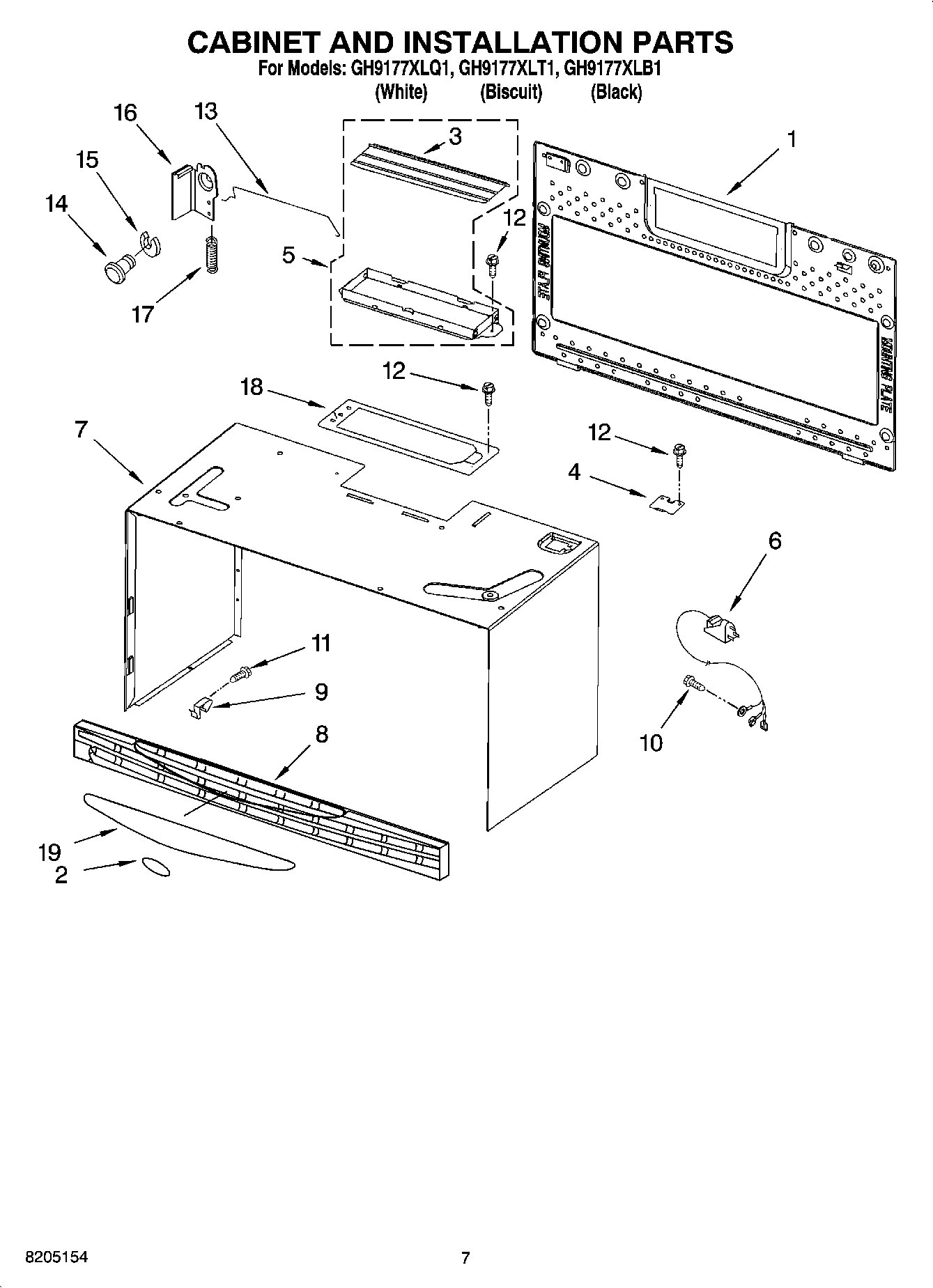

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool GH9177XLB1 MICROWAVE HOOD COMBINATION
1
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
1
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
1
Deflector, Air WPL 8184667 Contact Us For Availability
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8184059 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8184721 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8184722 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8184891 Contact Us For Availability
1
Literature Parts (Cook Book) WPL LIT8204711 Contact Us For Availability
1
Film, Back Included with 4 WPL ARI65401A7 Contact Us For Availability
1
Plate, Mounting WPL 8184895 Contact Us For Availability
2
Cover, Lamp WPL 8184885 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184108 Contact Us For Availability
2
Frame, Inner WPL 8204680 Contact Us For Availability
2
NAMEPLATE WPL 8185076 Contact Us For Availability
3
Duct, Air WPL 8184886 Contact Us For Availability
3
Shield, Nomex WPL 8184485 Contact Us For Availability
3
Control Panel Assembly (White) WPL 8185080 Contact Us For Availability
3
Control Panel Assembly (Black) WPL 8185081 Contact Us For Availability
3
Control Panel Assembly (Biscuit) WPL 8185082 Contact Us For Availability
3
Latch, Door WPL 8184113 Contact Us For Availability
4
Bracket, Thermostat WPL 8204789 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
4
Bracket, Control WPL 8184917 Contact Us For Availability
4
Body Asy, Door Includes 1 (White) WPL 8185035 Contact Us For Availability
4
Body Asy, Door Includes 1 (Biscuit) WPL 8185037 Contact Us For Availability
4
Body Asy, Door Includes 1 (Black) WPL 8185038 Contact Us For Availability
4
Lid, Power Cord WPL 8184897 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8185059 Contact Us For Availability
5
Glass, Outer Plast Included with 10 WPL ARI65402A8 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Air Guide Cover WPL 8204676 Contact Us For Availability
6
Microcomputer WPL 8184916 Contact Us For Availability
6
Cord, Power WPL 8184898 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Ring, Rubber WPL 8184913 Contact Us For Availability
7
Hinge, Upper WPL 8204679 Contact Us For Availability
7
Case, Outer (White) WPL 8184899 Contact Us For Availability
7
Case, Outer (Black) WPL 8184900 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8184901 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Cover, Fan WPL 8184884 Contact Us For Availability
8
Hinge, Lower WPL 8204678 Contact Us For Availability
8
Grille, Vent (White) WPL 8184671 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8184672 Contact Us For Availability
8
Grille, Vent (Black) WPL 8184673 Contact Us For Availability
9
Motor, Fan Assy WPL 8184876 Contact Us For Availability
9
LCD Assembly WPL 8184914 Contact Us For Availability
10
Bracket, LCD WPL 8184915 Contact Us For Availability
10
Shield WPL 8184130 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (White) WPL 8205068 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Black) WPL 8205069 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Biscuit) WPL 8205070 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Spring WPL 8169647 Contact Us For Availability
11
Bushing, Rubber WPL 8185058 Contact Us For Availability
11
Complete Door (White) WPL 8185077 Contact Us For Availability
11
Complete Door (Black) WPL 8185078 Contact Us For Availability
11
Complete Door (Biscuit) WPL 8185079 Contact Us For Availability
12
Shield WPL 8204790 Contact Us For Availability
12
Sensor, Light Lens WPL 8184919 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
13
Rod WPL 8184135 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
SCREW WPL 8184198 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Thermostat WPL 8184951 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Catch WPL 8185033 Contact Us For Availability
17
Grill WPL 8184862 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Plate, Damper WPL 8184902 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Plate, Grill Miscellaneous (Installation, Har WPL 8169659 Contact Us For Availability
19
Plate, Grill Miscellaneous (Template, Wall) WPL 8183987 Contact Us For Availability
19
Plate, Grill Miscellaneous (Wire Harness (Inc WPL 8184603 Contact Us For Availability
19
Plate, Grill Miscellaneous (Template, Upper) WPL 8184781 Contact Us For Availability
19
Plate, Grill (White) WPL 8185073 Contact Us For Availability
19
Plate, Grill (Black) WPL 8185074 Contact Us For Availability
19
Plate, Grill (Biscuit) WPL 8185075 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
22
Socket, Halogen Light WPL 8204669 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
25
Thermostat WPL 8204995 Contact Us For Availability
26
Grill, Insulation Plate WPL 8185060 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
29
Glass, Lamp WPL 8169499 Contact Us For Availability
30
Frame, Glass WPL 8169646 Contact Us For Availability
32
Cover, Protector WPL 8185061 Contact Us For Availability
35
Ribbon Cable (P27 To CN153 On 40 W Inverter) WPL 8205021 Contact Us For Availability
36
Ribbon Cable (P4 To CN151 On 40 W Inverter) WPL 8205022 Contact Us For Availability
× ![]()
