Model Whirlpool GH9177XLB0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams
01 - CONTROL PANEL PARTS
04 - AIR FLOW PARTS

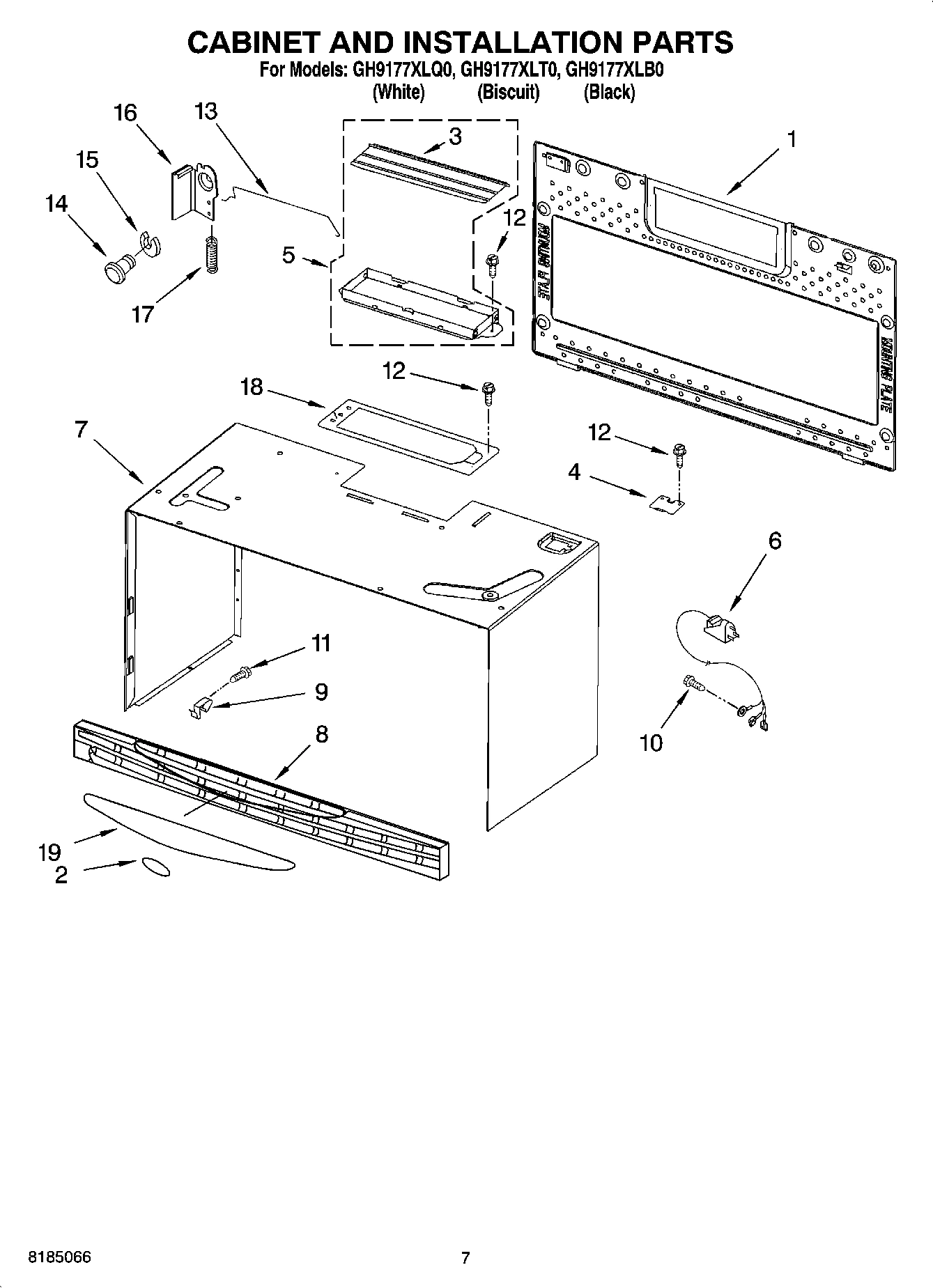

06 - CABINET AND INSTALLATION PARTS

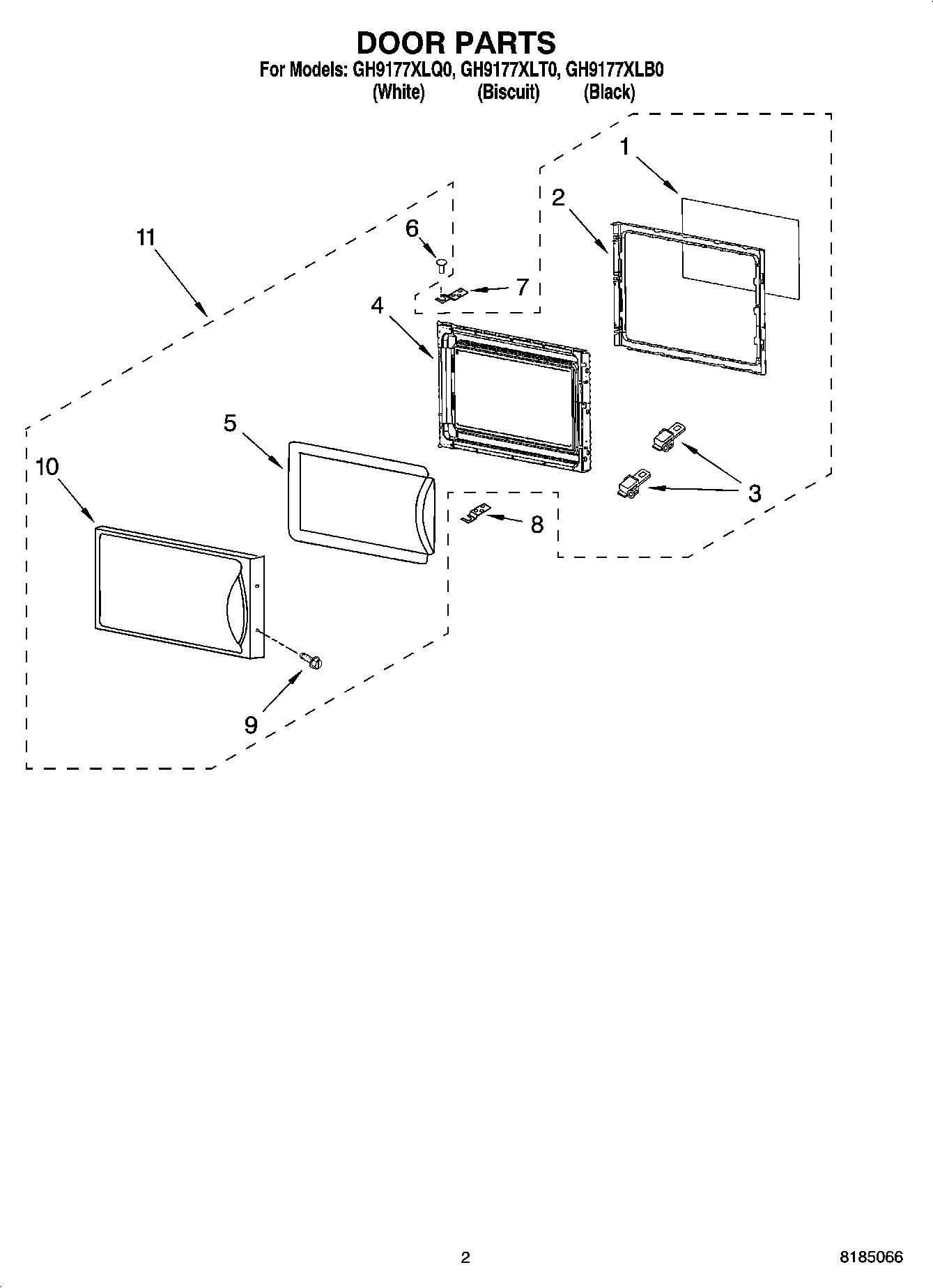

02 - DOOR PARTS

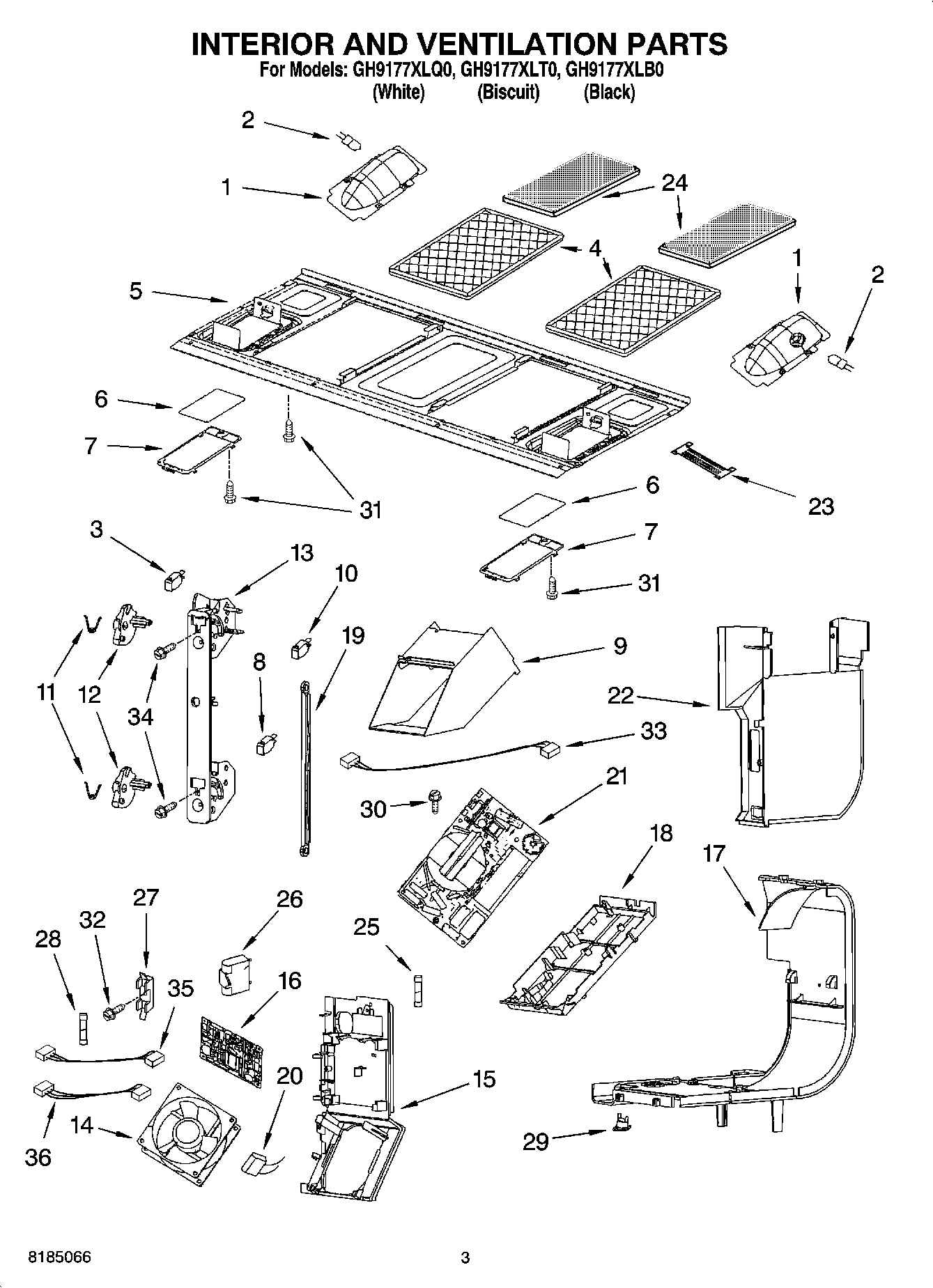

03 - INTERIOR AND VENTILATION PARTS

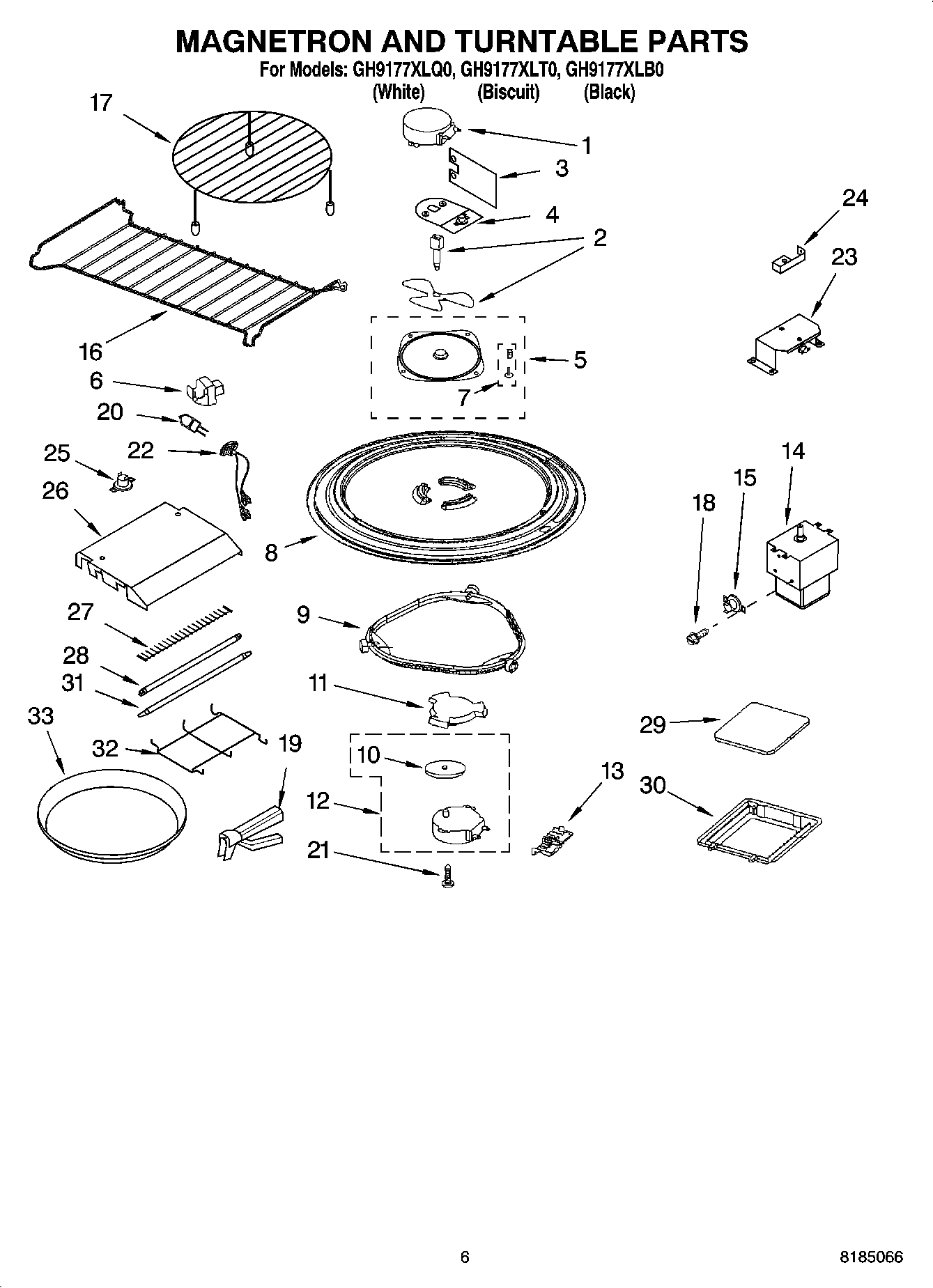

05 - MAGNETRON AND TURNTABLE PARTS
Common parts from model Whirlpool GH9177XLB0 MICROWAVE HOOD COMBINATION
1
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
1
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
1
Plate, Mounting WPL 8184895 Contact Us For Availability
1
Film, Back Included with 4 WPL ARI65399A1 Contact Us For Availability
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
2
NAMEPLATE WPL 8185076 Contact Us For Availability
2
Frame, Inner WPL 8204680 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184108 Contact Us For Availability
3
Latch, Door WPL 8184113 Contact Us For Availability
3
Shield, Nomex WPL 8184485 Contact Us For Availability
4
Lid, Power Cord WPL 8184897 Contact Us For Availability
4
Body Asy, Door Includes 1 (White) WPL 8185035 Contact Us For Availability
4
Body Asy, Door Includes 1 (Biscuit) WPL 8185037 Contact Us For Availability
4
Body Asy, Door Includes 1 (Black) WPL 8185038 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Glass, Outer Plast Included with 10 WPL ARI65400A1 Contact Us For Availability
5
Plate, Bottom WPL 8184890 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8185059 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Cord, Power WPL 8184898 Contact Us For Availability
6
Glass, Lamp WPL 8184141 Contact Us For Availability
7
Case, Outer (White) WPL 8184899 Contact Us For Availability
7
Case, Outer (Black) WPL 8184900 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8184901 Contact Us For Availability
7
Hinge, Upper WPL 8204679 Contact Us For Availability
7
Holder, Glass WPL 8184889 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Grille, Vent (White) WPL 8184671 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8184672 Contact Us For Availability
8
Grille, Vent (Black) WPL 8184673 Contact Us For Availability
8
Hinge, Lower WPL 8204678 Contact Us For Availability
9
Cover, Inverter WPL 8184124 Contact Us For Availability
10
Bracket, LCD WPL 8184915 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (White) WPL 8205068 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Black) WPL 8205069 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Biscuit) WPL 8205070 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Complete Door (White) WPL 8185077 Contact Us For Availability
11
Complete Door (Black) WPL 8185078 Contact Us For Availability
11
Complete Door (Biscuit) WPL 8185079 Contact Us For Availability
12
Plate, Cam WPL 8184121 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Rod WPL 8184135 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
15
Housing, Fan WPL 8184894 Contact Us For Availability
15
Thermostat WPL 8184951 Contact Us For Availability
16
Catch WPL 8185033 Contact Us For Availability
16
Inverter 40 W WPL 8204989 Contact Us For Availability
17
Grill WPL 8184862 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Bracket, Holder WPL 8185032 Contact Us For Availability
18
Plate, Damper WPL 8184902 Contact Us For Availability
18
Holder, Inverter WPL 8184670 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Plate, Grill Miscellaneous (Installation, Har WPL 8169659 Contact Us For Availability
19
Plate, Grill Miscellaneous (Template, Wall) WPL 8183987 Contact Us For Availability
19
Plate, Grill Miscellaneous (Wire Harness (Inc WPL 8184603 Contact Us For Availability
19
Plate, Grill Miscellaneous (Template, Upper) WPL 8184781 Contact Us For Availability
19
Plate, Grill (White) WPL 8185073 Contact Us For Availability
19
Plate, Grill (Black) WPL 8185074 Contact Us For Availability
19
Plate, Grill (Biscuit) WPL 8185075 Contact Us For Availability
20
Capacitor, 125 V WPL 8184093 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
22
Socket, Halogen Light WPL 8204669 Contact Us For Availability
22
Plate, Side WPL 8185031 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Cable WPL 8184887 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
25
Fuse (2) 4 Amp/250 Volt WPL 8184579 Contact Us For Availability
25
Thermostat WPL 8204995 Contact Us For Availability
26
Capacitor WPL 8184204 Contact Us For Availability
26
Grill, Insulation Plate WPL 8185060 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
29
Glass, Lamp WPL 8169499 Contact Us For Availability
30
Frame, Glass WPL 8169646 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
32
Cover, Protector WPL 8185061 Contact Us For Availability
35
Ribbon Cable (P27 To CN153 On 40 W Inverter) WPL 8205021 Contact Us For Availability
36
Ribbon Cable (P4 To CN151 On 40 W Inverter) WPL 8205022 Contact Us For Availability
× ![]()
