Model Whirlpool GH9176XMS0 Microwave Oven 1.8 Cu. Ft. – Common Parts & Diagrams
06 - CABINET AND INSTALLATION PARTS
01 - CONTROL PANEL PARTS

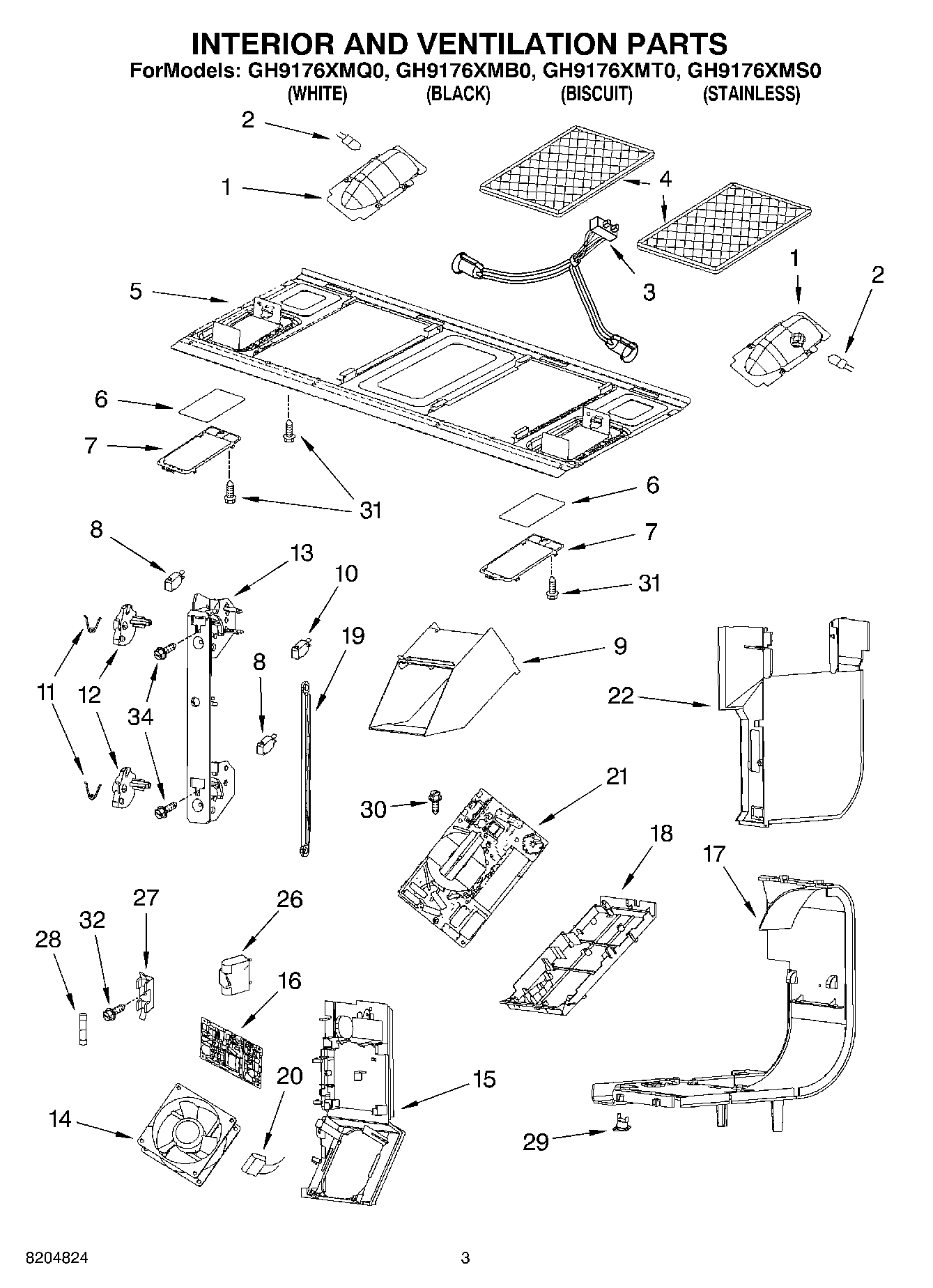

03 - INTERIOR AND VENTILATION PARTS

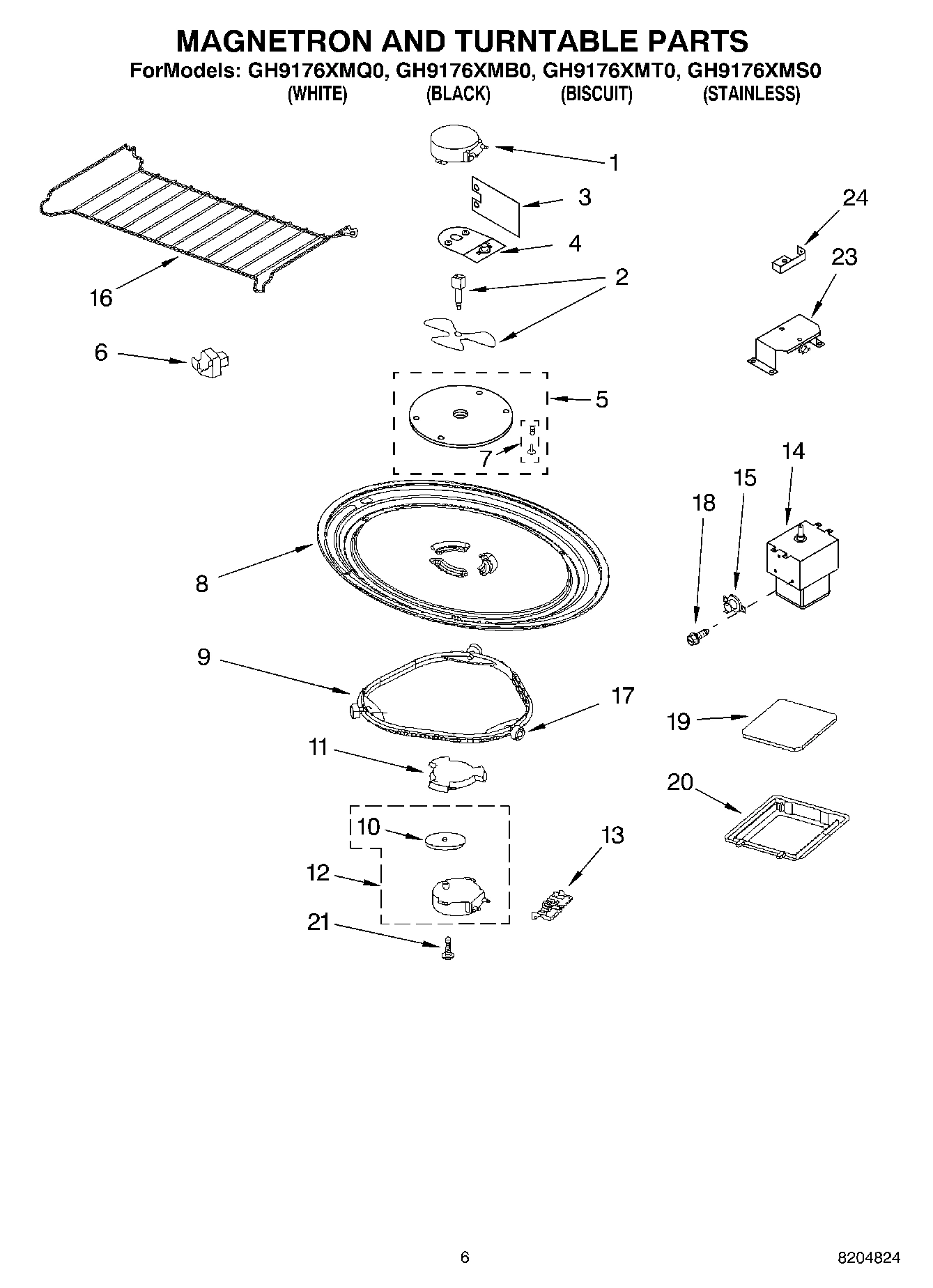

05 - MAGNETRON AND TURNTABLE PARTS

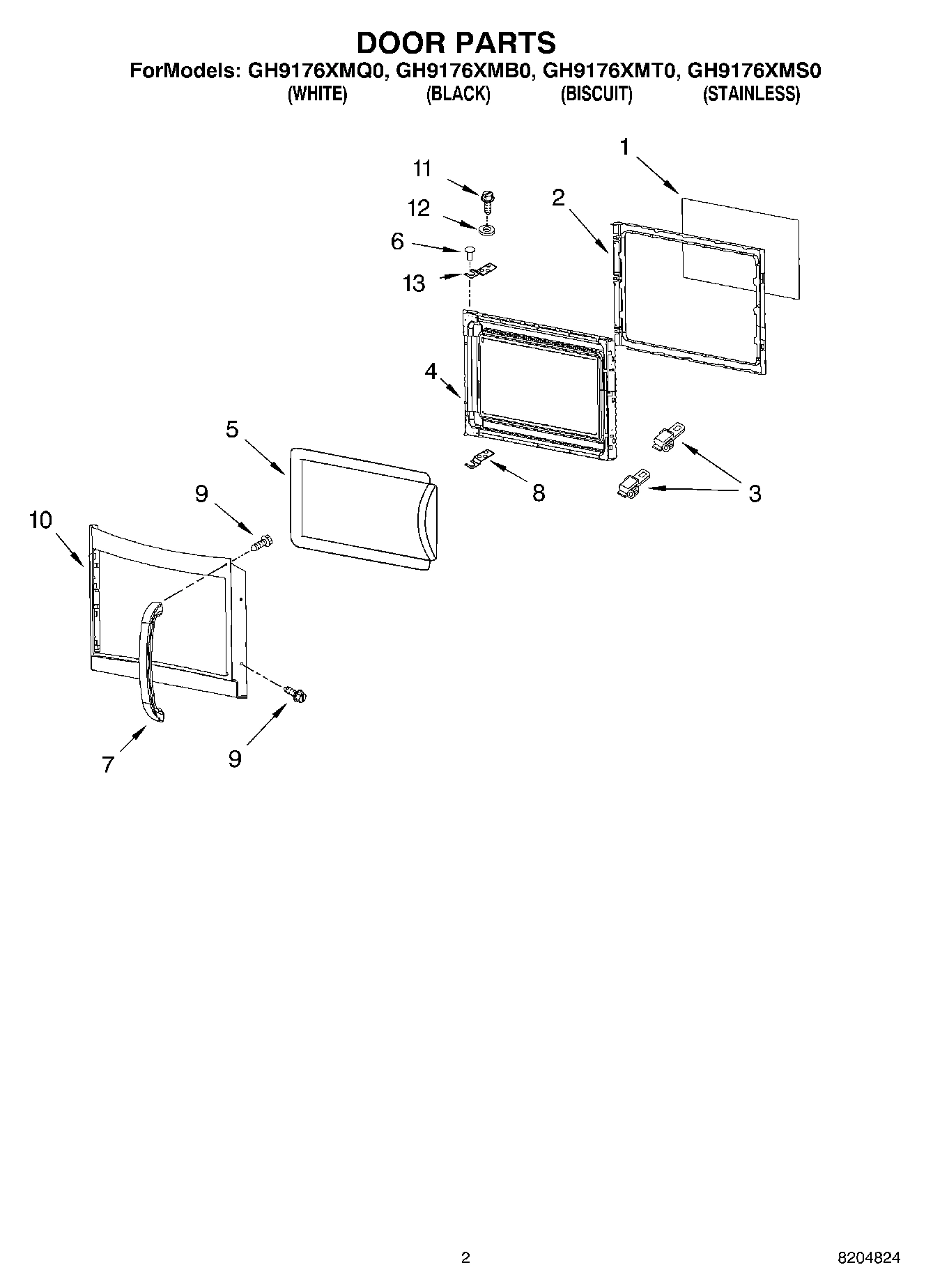

02 - DOOR PARTS

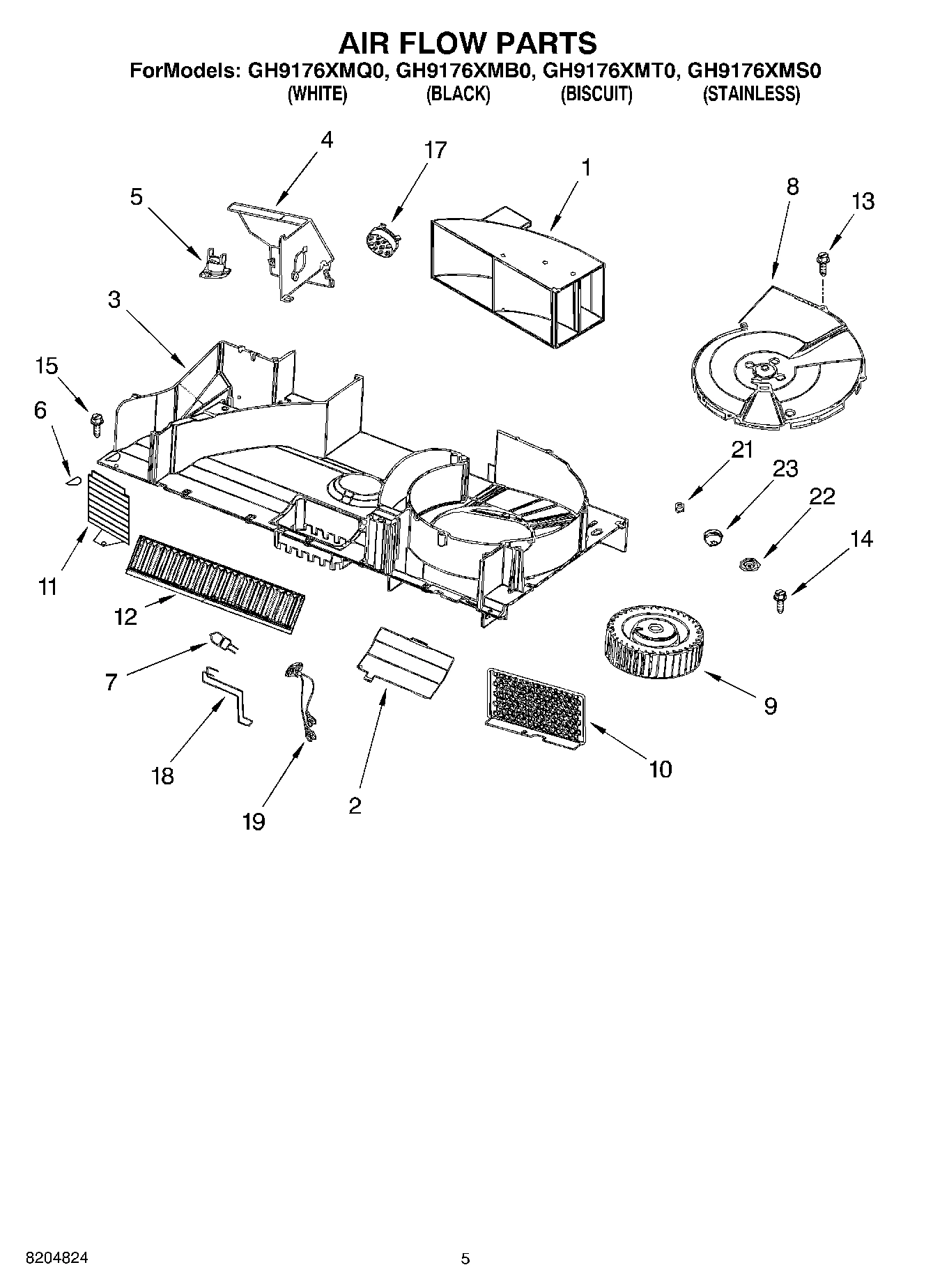

04 - AIR FLOW PARTS
Common parts from model Whirlpool GH9176XMS0 Microwave Oven 1.8 Cu. Ft.
1
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
1
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Film, Back Included with 4 WPL ARI65387A2 Contact Us For Availability
1
Deflector, Air WPL 8184667 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184633 Contact Us For Availability
2
Frame, Inner WPL 8204680 Contact Us For Availability
2
Cover, Lamp WPL 8184925 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204821 Contact Us For Availability
3
Wire Assy WPL 8204826 Contact Us For Availability
3
Shield, Nomex WPL 8184485 Contact Us For Availability
3
Latch, Door WPL 8184113 Contact Us For Availability
3
Duct, Air WPL 8185350 Contact Us For Availability
4
Bracket, Control WPL 8184920 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
4
Body Asy, Door Includes 1 (White) WPL 8204807 Contact Us For Availability
4
Body Asy, Door Includes 1 (Black/Stainless) WPL 8204808 Contact Us For Availability
4
Body Asy, Door Includes 1 (Biscuit) WPL 8204809 Contact Us For Availability
4
Bracket, Thermostat WPL 8204789 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Keyboard Assy WPL 8204823 Contact Us For Availability
5
Plate, Bottom WPL 8204686 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8185059 Contact Us For Availability
5
Glass, Outer Plast Included with 10 WPL ARI65388A3 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Microcomputer WPL 8204825 Contact Us For Availability
6
Glass, Lamp WPL 8184141 Contact Us For Availability
6
Cover WPL 8204676 Contact Us For Availability
7
Holder, Glass WPL 8184889 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Handle, Door (White) WPL 8185187 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8185438 Contact Us For Availability
7
Handle, Door (Stainless) WPL 8204796 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Grille, Vent (White) WPL 8184118 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8184170 Contact Us For Availability
8
Grille, Vent (Black) WPL 8184171 Contact Us For Availability
8
Lower Hinge WPL 8204678 Contact Us For Availability
8
Cover, Fan WPL 8184884 Contact Us For Availability
9
Cover, Inverter WPL 8184124 Contact Us For Availability
9
Motor, Fan Assy WPL 8184876 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (White) WPL 8204810 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Stainless) WPL 8204811 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Biscuit) WPL 8204812 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Black) WPL 8204813 Contact Us For Availability
10
Shield WPL 8184130 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Shield WPL 8204790 Contact Us For Availability
12
Plate, Cam WPL 8184121 Contact Us For Availability
12
Filter, Fan Hood WPL 8190268 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
13
Upper Hinge WPL 8204679 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
SCREW WPL 8184198 Contact Us For Availability
15
Thermostat WPL 8183994 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Housing, Fan WPL 8184894 Contact Us For Availability
16
Inverter 40 W WPL 8184874 Contact Us For Availability
17
Wheel (3) WPL 4393861 Contact Us For Availability
17
Bracket, Holder WPL 8185032 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
18
Holder, Inverter WPL 8184670 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Spring WPL 8169647 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Glass, Lamp WPL 8169499 Contact Us For Availability
19
Holder, Lamp WPL 8204669 Contact Us For Availability
20
Frame, Glass WPL 8169646 Contact Us For Availability
20
Capacitor, 125 V WPL 8184093 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
22
Plate, Side WPL 8185031 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
26
Capacitor WPL 8184092 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
× ![]()
