Model Whirlpool GH9115XEB1 OVER THE RANGE MICROWAVE (GOLD LINE) – Common Parts & Diagrams

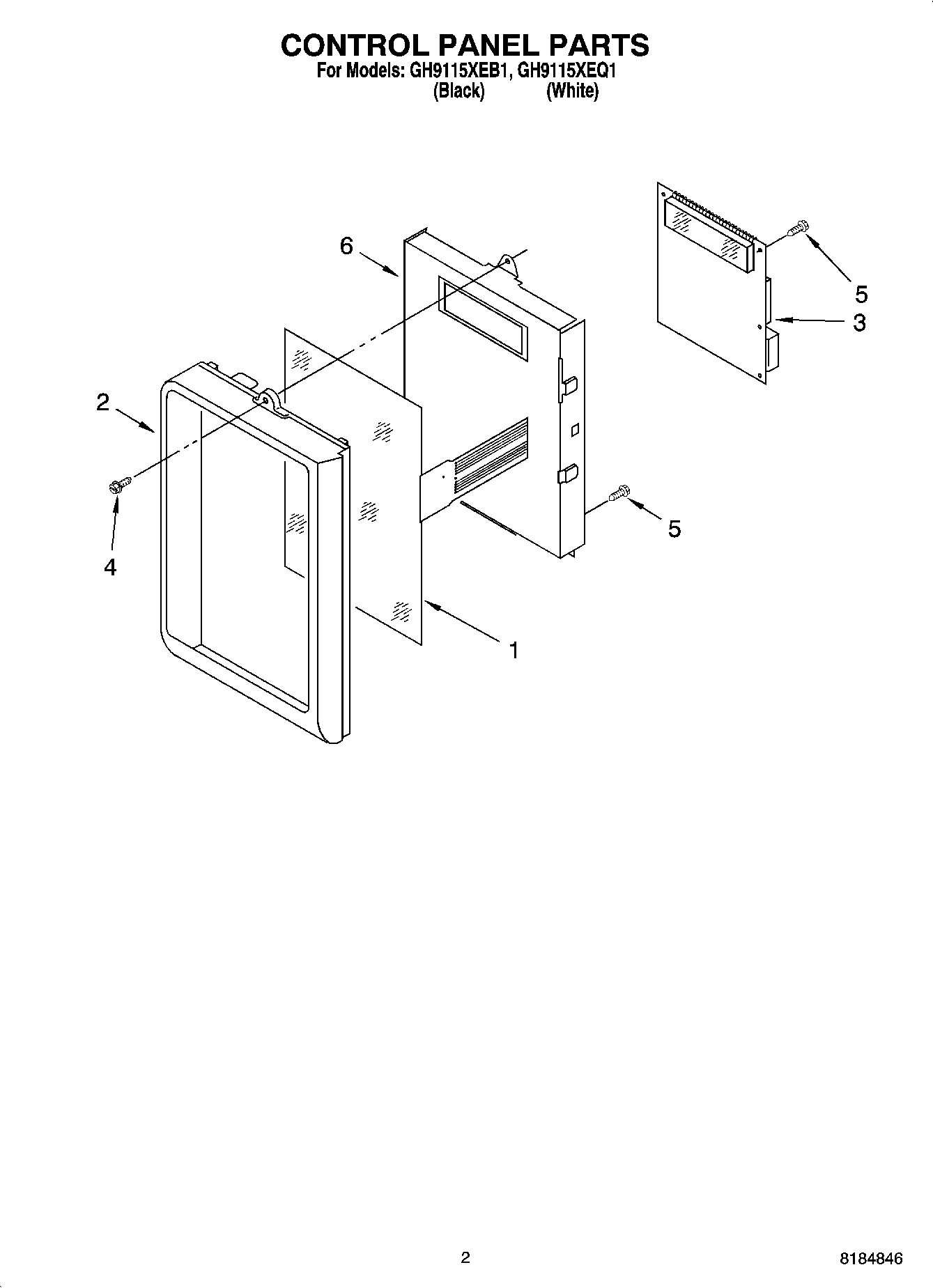

02 - CONTROL PANEL PARTS

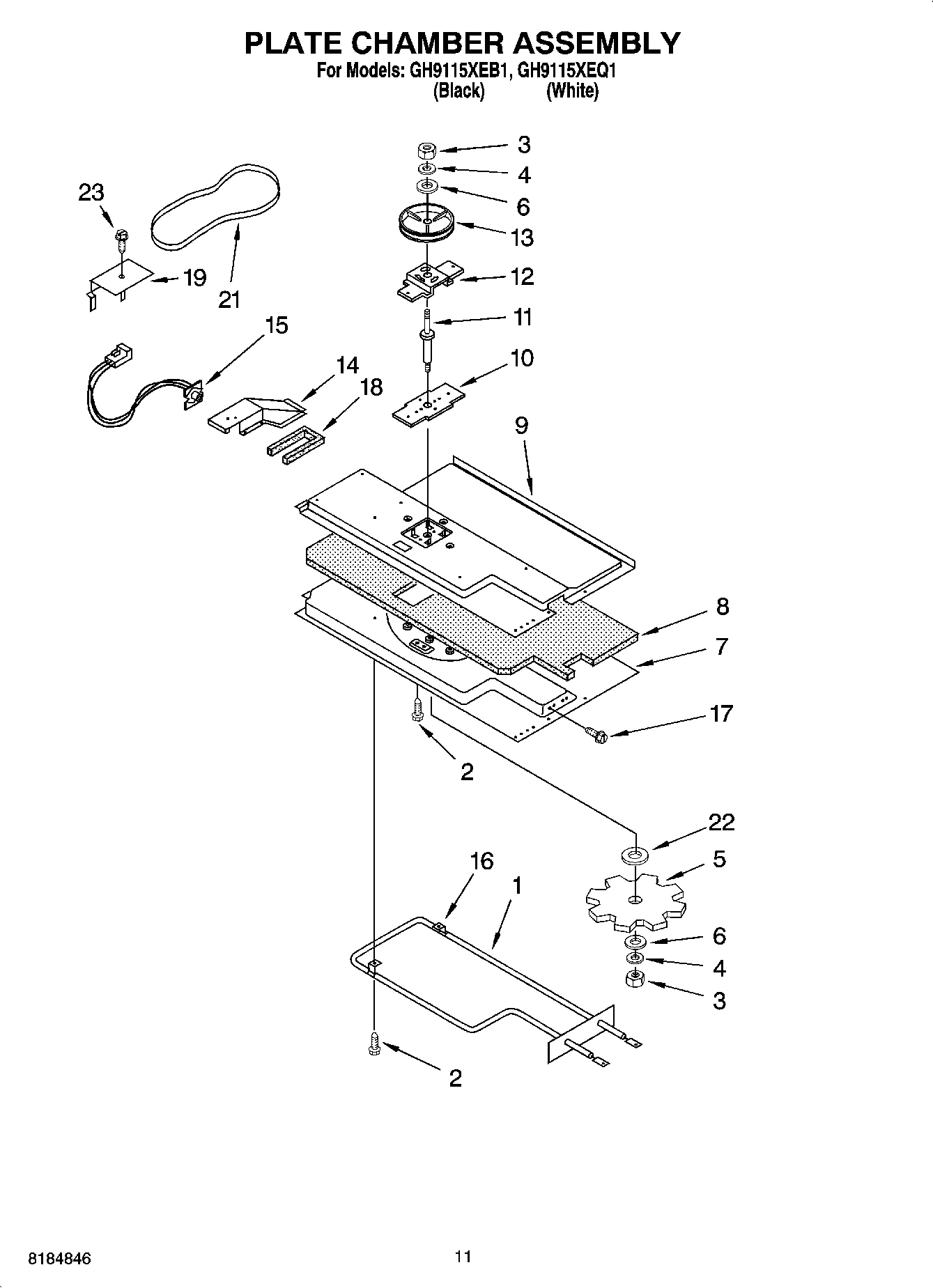

08 - PLATE CHAMBER ASSEMBLY

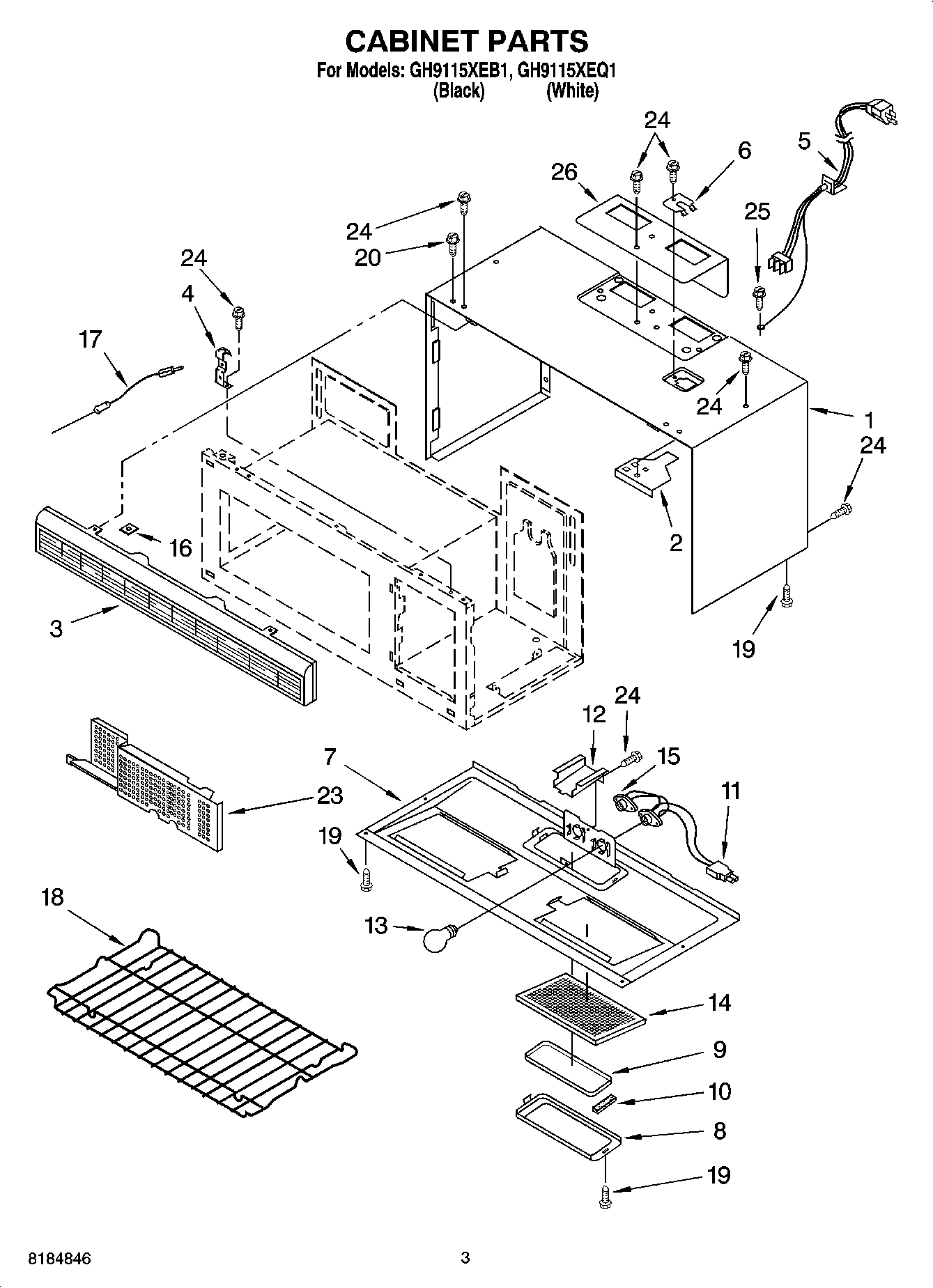

03 - CABINET PARTS

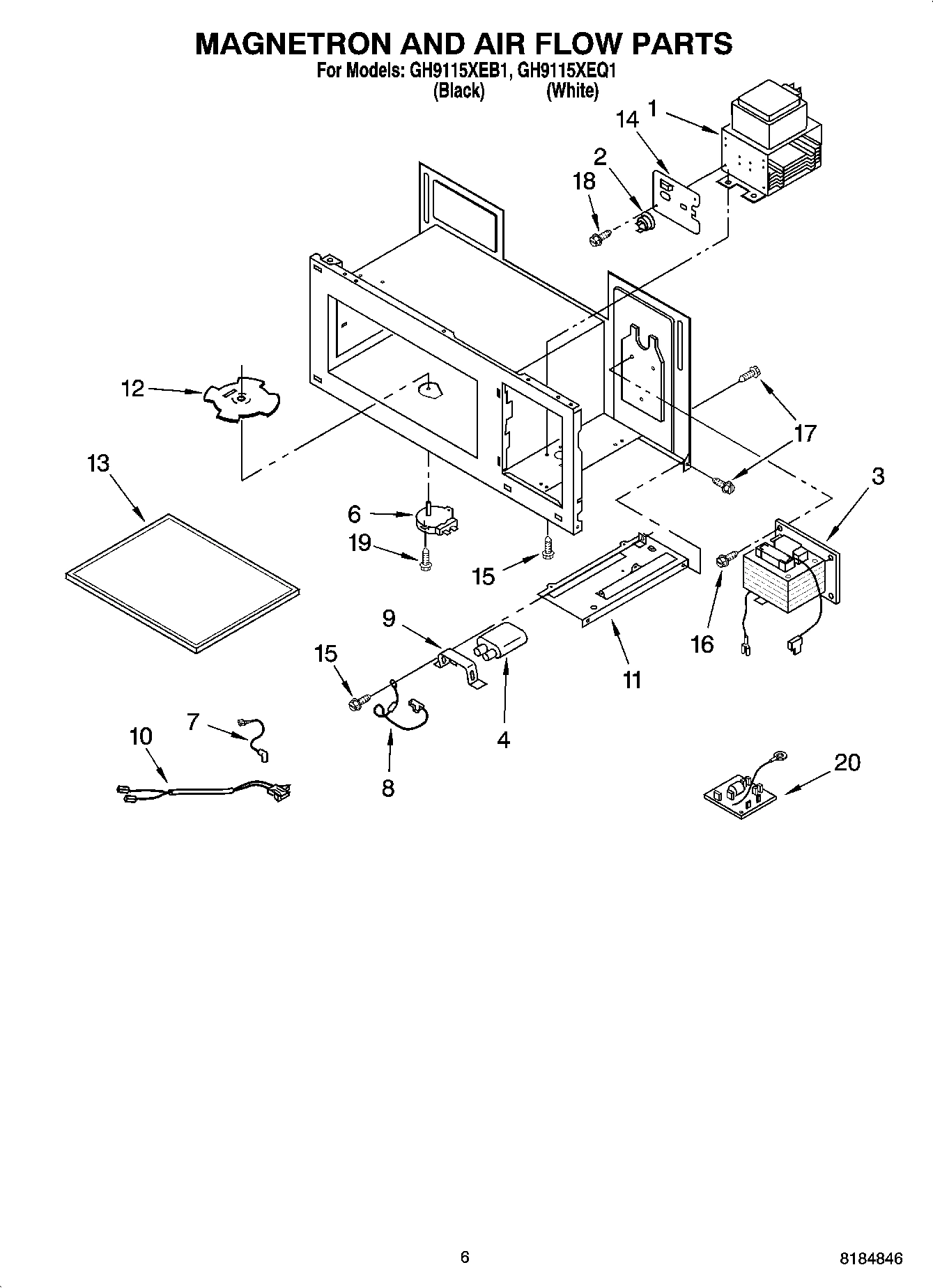

05 - MAGNETRON AND AIR FLOW PARTS

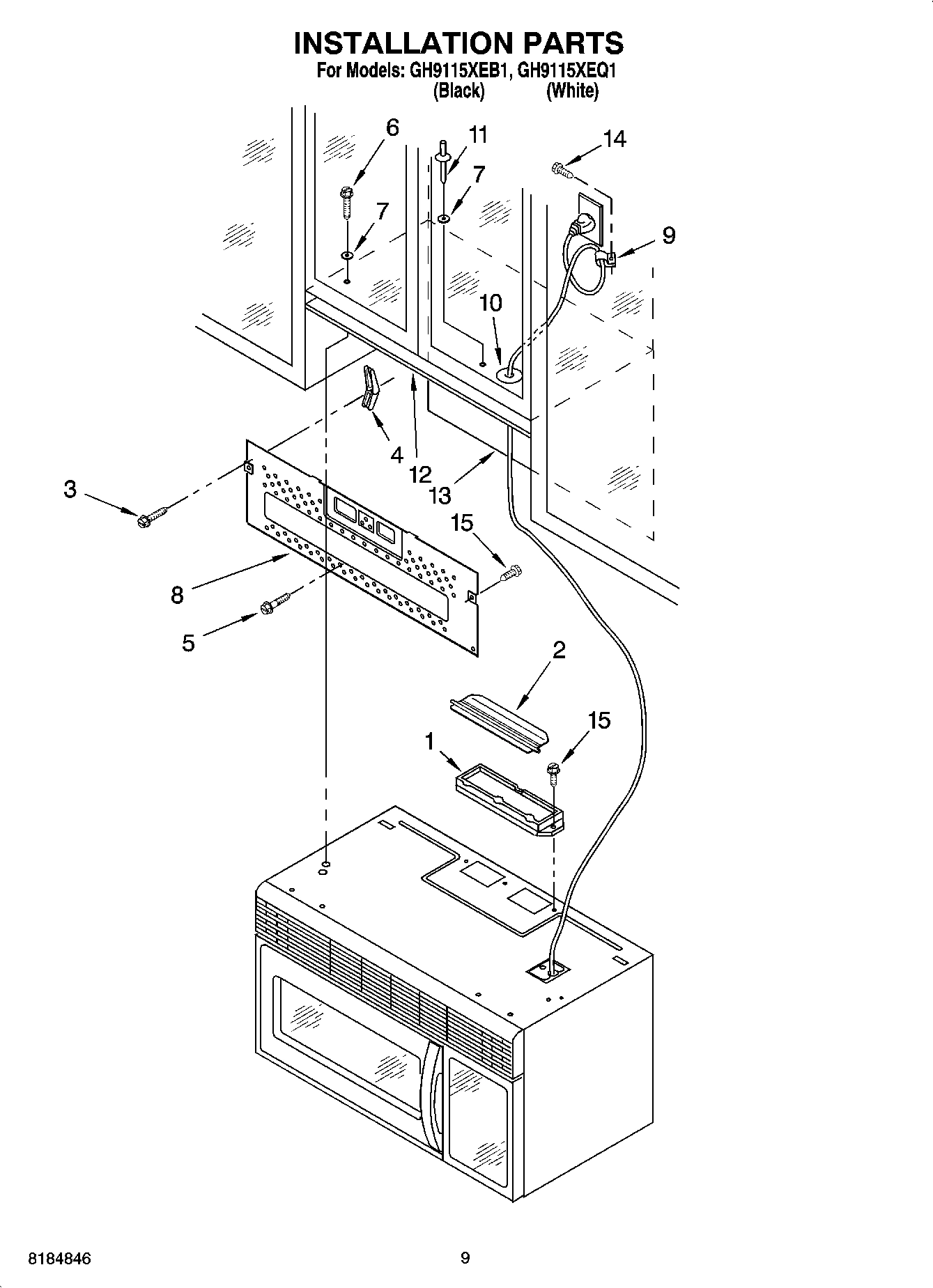

07 - INSTALLATION PARTS

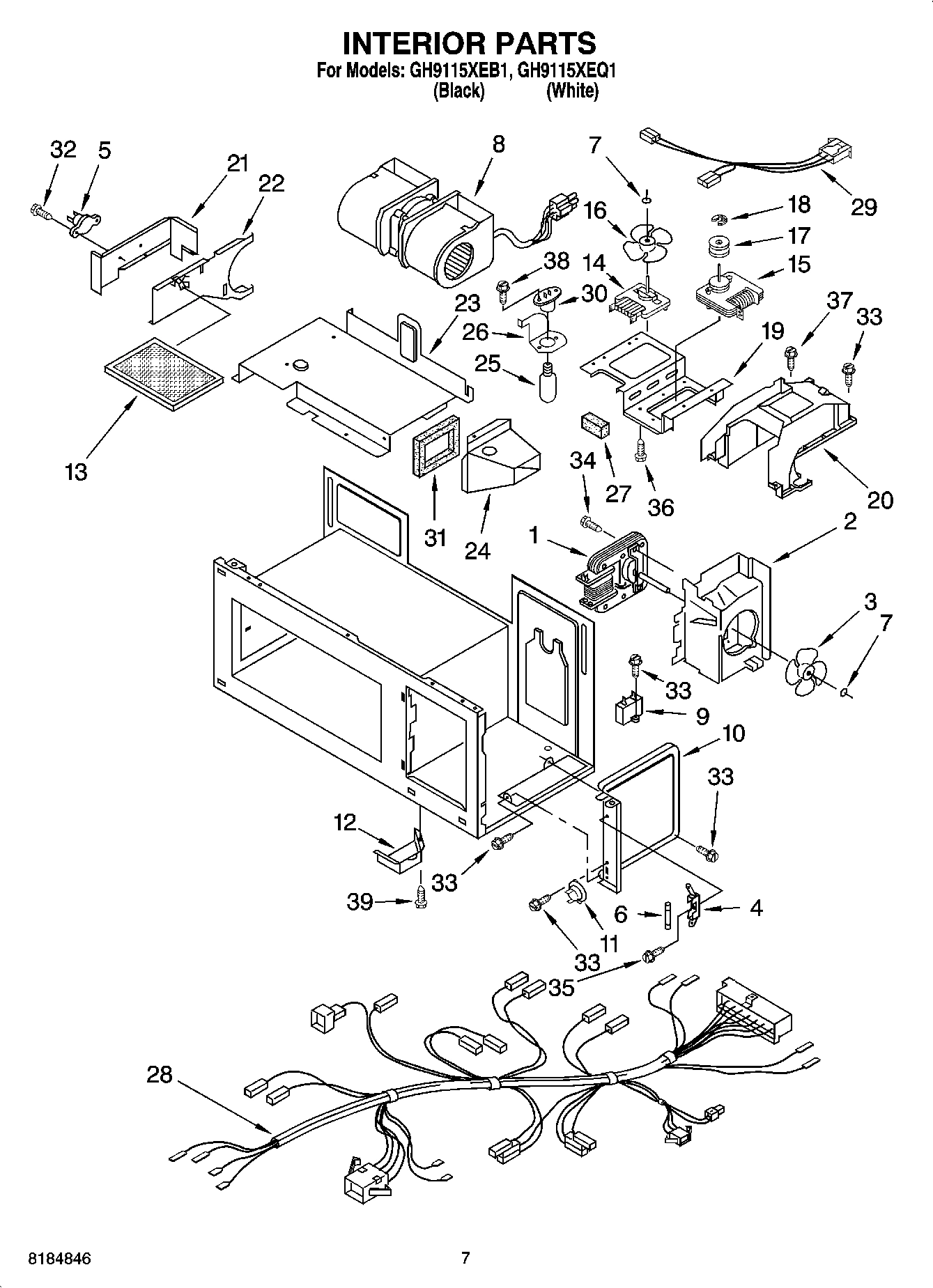

06 - INTERIOR PARTS

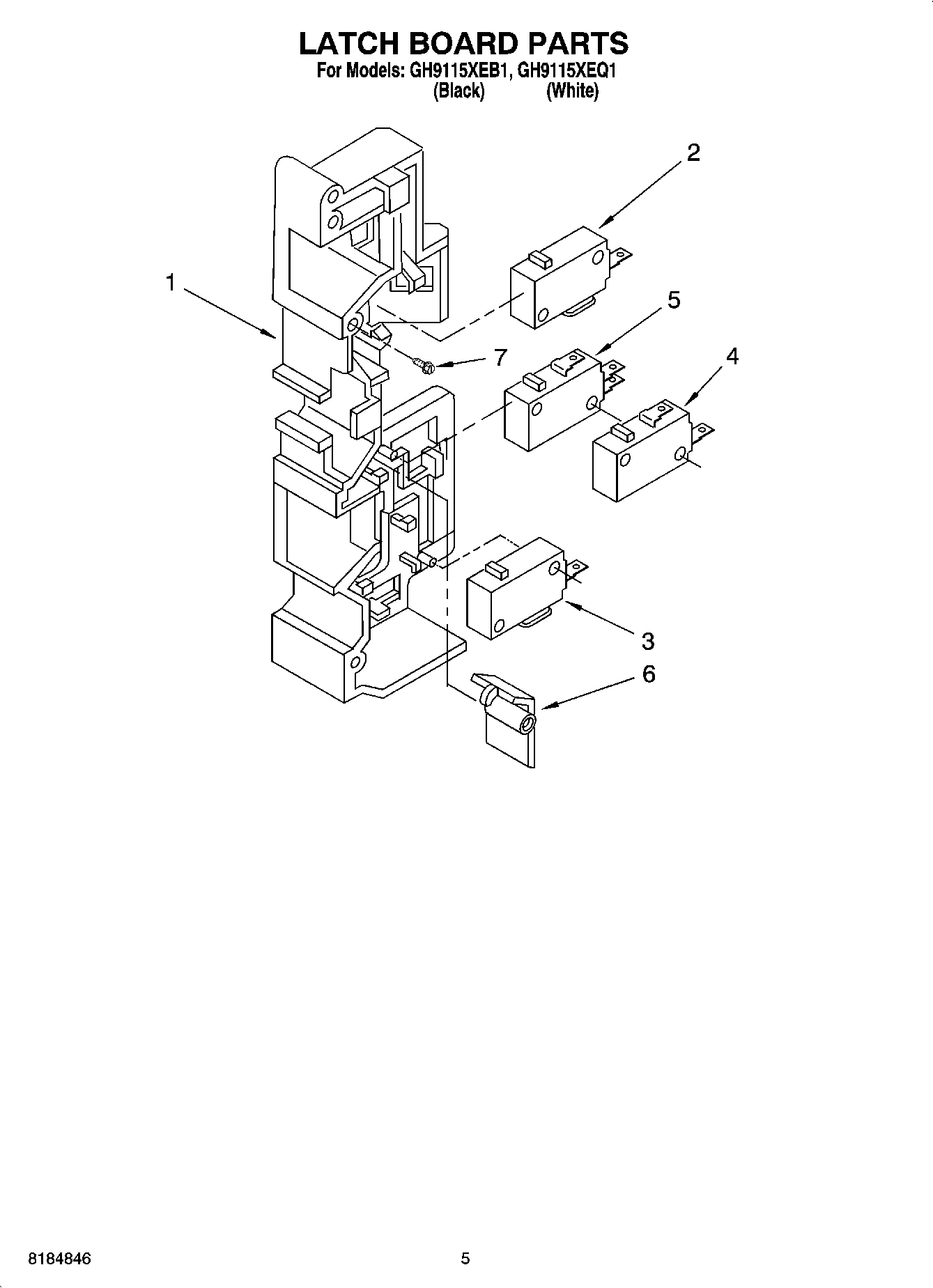

04 - LATCH BOARD PARTS

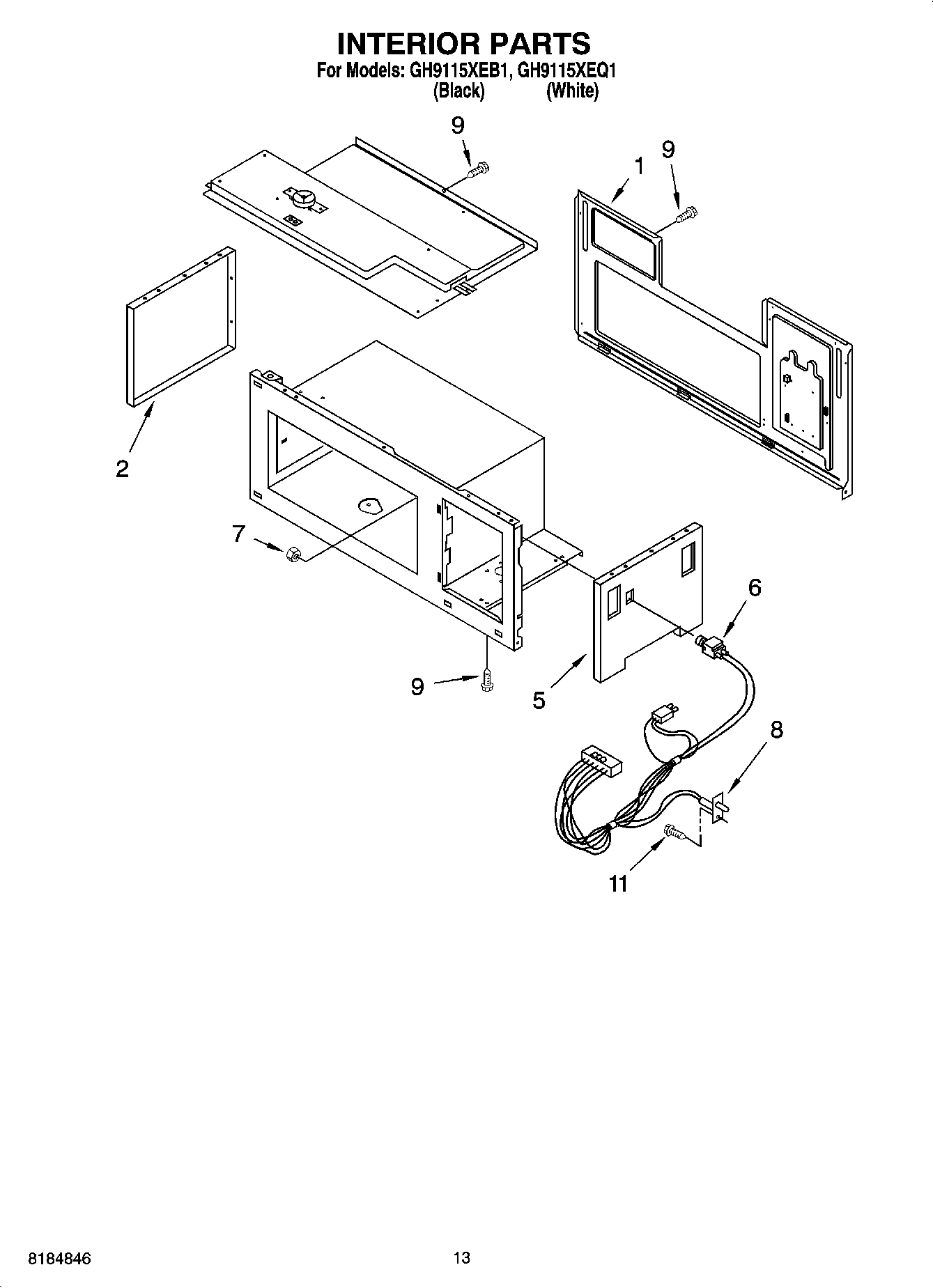

09 - INTERIOR PARTS

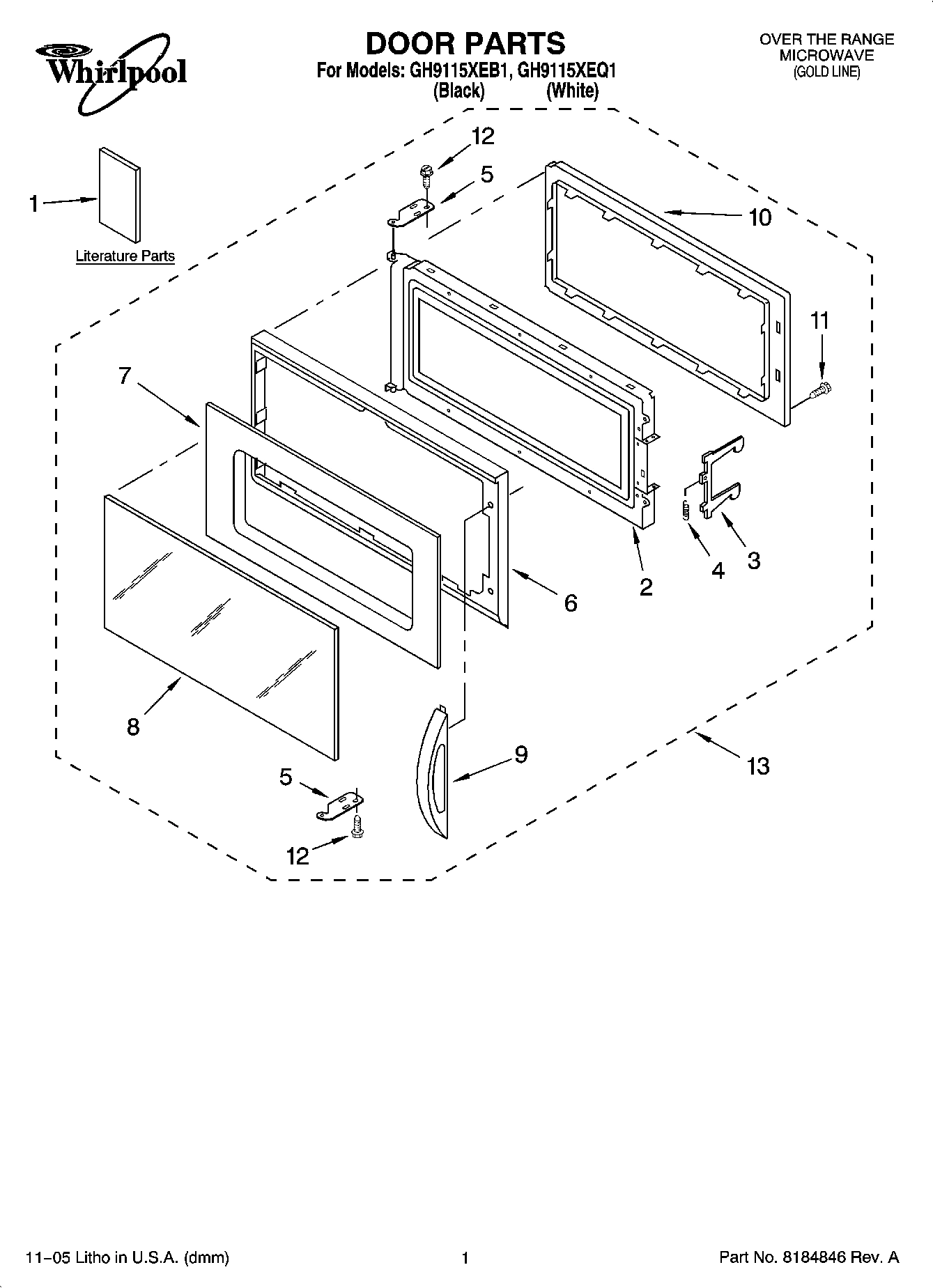

01 - DOOR PARTS
Common parts from model Whirlpool GH9115XEB1 OVER THE RANGE MICROWAVE (GOLD LINE)
1
Motor, Fan WPL 4358784 Contact Us For Availability
1
Outer Case (White) WPL 4358925 Contact Us For Availability
1
Outer Case (Black) WPL 4358926 Contact Us For Availability
1
Magnetron WPL 4359002 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
1
Cover, Back WPL 4358924 Contact Us For Availability
1
Board, Latch WPL 4358794 Contact Us For Availability
1
Tech Sheet WPL 4358518 Contact Us For Availability
1
Cook Book WPL 4358713 Contact Us For Availability
1
Instructions, Installation WPL 4359330 Contact Us For Availability
1
Cook Guide Label WPL 4359458 Contact Us For Availability
1
Use & Care Guide WPL 4359575 Contact Us For Availability
2
Control Panel (White) WPL 4358551 Contact Us For Availability
2
Bracket Mount WPL 4358928 Contact Us For Availability
2
Thermostat WPL 8183694 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
2
Guide Suction WPL 4358564 Contact Us For Availability
2
Cover, Insulation WPL 4358974 Contact Us For Availability
2
Door Frame WPL 4358937 Contact Us For Availability
3
Nut WPL 4358476 Contact Us For Availability
3
Grille Vent (White) WPL 4358952 Contact Us For Availability
3
Grille Vent (Black) WPL 4358998 Contact Us For Availability
3
Transformer WPL 4358774 Contact Us For Availability
3
Latch WPL 4359860 Contact Us For Availability
4
Bracket, Front WPL 4358759 Contact Us For Availability
4
Capacitor WPL 8183884 Contact Us For Availability
4
Toggle Bolt WPL 4158326 Contact Us For Availability
4
Fuse Holder WPL 4358785 Contact Us For Availability
4
Spring, Latch WPL 8183882 Contact Us For Availability
5
Fan WPL 4358959 Contact Us For Availability
5
Power Cord WPL 4358760 Contact Us For Availability
5
Lag Screw WPL 4158323 Contact Us For Availability
5
Thermostat WPL 4358443 Contact Us For Availability
5
Cover, Insulation WPL 4358978 Contact Us For Availability
5
Plate, Hinge WPL 4358820 Contact Us For Availability
6
Washer WPL 4358478 Contact Us For Availability
6
Cover, Power Cord WPL 4358761 Contact Us For Availability
6
Motor, Synchronous WPL 4358777 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
6
Fuse WPL 4358704 Contact Us For Availability
6
Harness, Probe WPL 4358979 Contact Us For Availability
6
Lever WPL 4358795 Contact Us For Availability
6
Panel, Door (White) WPL 4358566 Contact Us For Availability
6
Panel, Door (Black) WPL 4358567 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Push Nut WPL 4358055 Contact Us For Availability
7
Plate, Chamber WPL 4358985 Contact Us For Availability
7
Base Plate WPL 4358929 Contact Us For Availability
7
H.V. Cable WPL 4359421 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
7
Nut WPL 4158212 Contact Us For Availability
7
Baffle, Door WPL 4358938 Contact Us For Availability
8
Insulation WPL 4358986 Contact Us For Availability
8
Cover, Glass (White) WPL 4358533 Contact Us For Availability
8
Cover, Glass (Black) WPL 4358765 Contact Us For Availability
8
H.V. Diode-Cable WPL 4359422 Contact Us For Availability
8
Motor, Ventilation WPL 4358960 Contact Us For Availability
8
Thermistor WPL 4359004 Contact Us For Availability
8
Glass, Door (White) WPL 4358939 Contact Us For Availability
8
Glass, Door (Black) WPL 4358942 Contact Us For Availability
9
Plate, Outer WPL 4358987 Contact Us For Availability
9
Screw WPL 4358381 Contact Us For Availability
9
Glass, Lamp WPL 4358953 Contact Us For Availability
9
Bracket, H.V.C. WPL 4358778 Contact Us For Availability
9
Motor Condenser WPL 4158376 Contact Us For Availability
9
Handle, Door (White) WPL 4358548 Contact Us For Availability
9
Handle, Door (Black) WPL 4358549 Contact Us For Availability
10
Plate, Bearing WPL 4358988 Contact Us For Availability
10
Cushion, Glass WPL 4358767 Contact Us For Availability
10
Lead Wire WPL 4358780 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
10
Guide Air WPL 4358536 Contact Us For Availability
10
Choke Cover WPL 4358943 Contact Us For Availability
11
Base Thermostat WPL 4158368 Contact Us For Availability
11
Safety Rod WPL 4358933 Contact Us For Availability
11
Bearing Assembly WPL 4358989 Contact Us For Availability
11
Plate, Bottom WPL 4358781 Contact Us For Availability
11
Screw (White) WPL 4358479 Contact Us For Availability
12
Holder, Bearing WPL 4358990 Contact Us For Availability
12
Cover, Wire WPL 4358769 Contact Us For Availability
12
Stirrer Fan, Disc WPL 4359447 Contact Us For Availability
12
Template, Cabinet WPL 4359012 Contact Us For Availability
12
Cover, Connector WPL 4358791 Contact Us For Availability
12
Screw WPL 4358067 Contact Us For Availability
13
Charcoal Filter WPL 4359331 Contact Us For Availability
13
Pulley WPL 4358991 Contact Us For Availability
13
Ceramic Plate WPL 4158731 Contact Us For Availability
13
Template, Wall WPL 4359011 Contact Us For Availability
13
Door Assembly (White) WPL 4358936 Contact Us For Availability
13
Door Assembly (Black) WPL 4358940 Contact Us For Availability
14
Air Tunnel WPL 8184849 Contact Us For Availability
14
Thermo-Bracket WPL 4358060 Contact Us For Availability
14
Motor, Tower WPL 4358961 Contact Us For Availability
15
Sensor WPL 4358993 Contact Us For Availability
15
Motor, Circulation WPL 4358962 Contact Us For Availability
16
Propeller WPL 4158758 Contact Us For Availability
16
Hanger, Element WPL 4358994 Contact Us For Availability
16
Bracket, Grille WPL 4358816 Contact Us For Availability
17
Temperature Probe WPL 4358430 Contact Us For Availability
17
Pulley, Motor WPL 4358963 Contact Us For Availability
18
Cushion WPL 4358660 Contact Us For Availability
18
Shelf Assembly WPL 8184847 Contact Us For Availability
18
Screw WPL 4358376 Contact Us For Availability
18
E-Ring WPL 4358964 Contact Us For Availability
19
Bracket, Sensor WPL 4359026 Contact Us For Availability
19
Screw (Black) WPL 4358829 Contact Us For Availability
19
Screw WPL 4358188 Contact Us For Availability
19
Bracket, C-Motor WPL 4358965 Contact Us For Availability
20
Screw (Black) WPL 4358762 Contact Us For Availability
20
Screw (White) WPL 4359009 Contact Us For Availability
20
Filter, Noise WPL 4359200 Contact Us For Availability
20
Air Duct WPL 4358966 Contact Us For Availability
21
Belt WPL 4358995 Contact Us For Availability
21
Guide, Chamber-A WPL 4359003 Contact Us For Availability
22
Plate, Fan WPL 4359027 Contact Us For Availability
22
Guide, Chamber-B WPL 4358968 Contact Us For Availability
23
Bracket, Inlet WPL 4358958 Contact Us For Availability
23
Guide, Chamber WPL 4358969 Contact Us For Availability
24
Guide, Air Duct WPL 4358970 Contact Us For Availability
26
Mount, Cabinet WPL 4359377 Contact Us For Availability
26
Cover, Oven Lamp WPL 4358972 Contact Us For Availability
27
Cushion WPL 4158864 Contact Us For Availability
29
Lead Wire WPL 4358980 Contact Us For Availability
30
Lamp Holder WPL 4358790 Contact Us For Availability
31
Cushion WPL 4358981 Contact Us For Availability
32
Screw WPL 4358450 Contact Us For Availability
34
Screw WPL 4358190 Contact Us For Availability
38
Screw WPL 4358191 Contact Us For Availability
× ![]()
