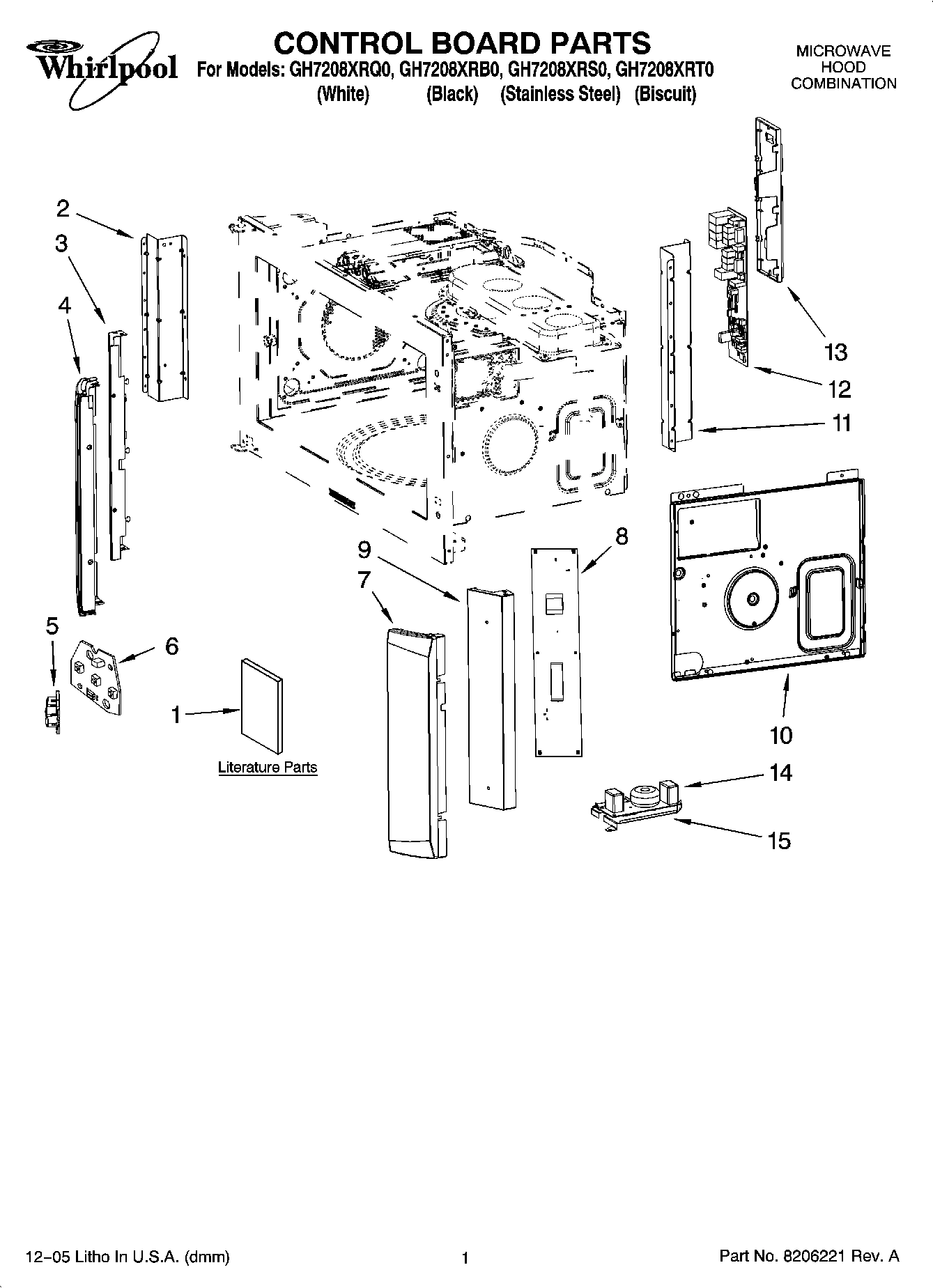

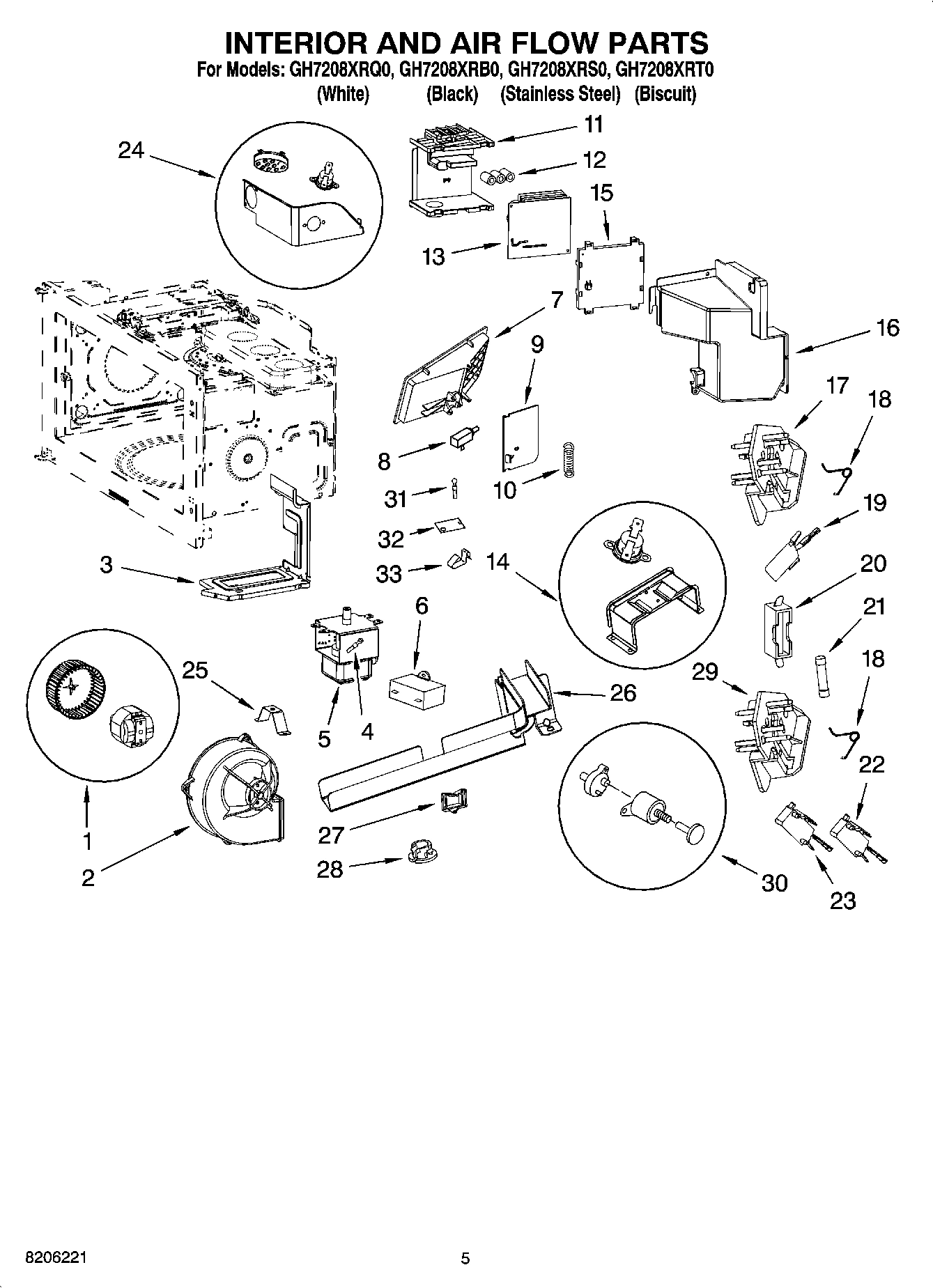

Model Whirlpool GH7208XRS0 MICROWAVE HOOD COMBINATION – Common Parts &amp; Diagrams

1

W10599629 Whirlpool Microwave Thermostat Fix Backorder WPL W10599629 $11.95

1

Handle (Universal Silver) WPL 8206123 Contact Us For Availability

1

Housing, Blower (Left) WPL 8206092 Contact Us For Availability

1

Handle (Black) WPL 8206121 Contact Us For Availability

1

Case, Outer (White) WPL 8206027 Contact Us For Availability

1

Case, Outer (Black) WPL 8206028 Contact Us For Availability

1

Case, Outer (Apollo Grey) WPL 8206030 Contact Us For Availability

1

Handle (White) WPL 8206120 Contact Us For Availability

1

Handle (Biscuit) WPL 8206122 Contact Us For Availability

1

Rack, Grill WPL 8206264 Contact Us For Availability

2

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $44.05

2

Trim, Door (White) WPL 8206144 Contact Us For Availability

2

Trim, Door (Black) WPL 8206145 Contact Us For Availability

2

Trim, Door (Biscuit) WPL 8206146 Contact Us For Availability

2

Trim, Door (Stainless Steel) WPL 8206147 Contact Us For Availability

2

Reflector, Lamp (Left) WPL 8206211 Contact Us For Availability

2

Rack WPL 8206117 Contact Us For Availability

2

Impeller Assy WPL 8206069 Contact Us For Availability

3

W10315274 Whirlpool Microwave Meal Rack Backorder WPL W10315274 $19.22

3

Door Control Assy (Black/Stainless) WPL 8206149 Contact Us For Availability

3

Door Control Assy (White) WPL 8206148 Contact Us For Availability

3

Lid, Power Cord WPL 8184897 Contact Us For Availability

3

Door Control Assy (Biscuit) WPL 8206150 Contact Us For Availability

3

Bracket, Motor WPL 8206070 Contact Us For Availability

4

8204670 Whirlpool Microwave Halogen Lamp 10W In Stock WPL 8204670 $10.07

4

W10143958 Whirlpool Microwave Light Socket Ho Backorder WPL W10143958 $3.70

4

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $9.86

4

Heater Assembly WPL 8206071 Contact Us For Availability

5

8206079 Whirlpool Microwave Magnetron Backorder WPL 8206079 $148.65

5

Vent Screen (Middle) WPL 8206017 Contact Us For Availability

5

Outer Door Frame (White) WPL 8206157 Contact Us For Availability

5

Outer Door Frame (Black) WPL 8206158 Contact Us For Availability

5

Outer Door Frame (Biscuit) WPL 8206159 Contact Us For Availability

5

Outer Door Frame (Stainless Steel) WPL 8206160 Contact Us For Availability

5

Glass, Lamp (2) WPL 8206094 Contact Us For Availability

5

Holder, Lamp WPL 8206208 Contact Us For Availability

5

Washer WPL 8206073 Contact Us For Availability

6

W11553234 Whirlpool Microwave Magnetron Therm Backorder WPL W11553234 $16.05

6

Motor, Capacitor WPL 8206080 Contact Us For Availability

6

Support, Vent Screen (White) WPL 8206011 Contact Us For Availability

6

Support, Vent Screen (Universal Silver) WPL 8206016 Contact Us For Availability

6

Support, Vent Screen (Black) WPL 8206012 Contact Us For Availability

6

Frame, Glass (Left) WPL 8206095 Contact Us For Availability

6

Fan Wheel WPL 8206074 Contact Us For Availability

7

Vent Screen (Left) WPL 8206207 Contact Us For Availability

7

Board, User (Interface) WPL 8206161 Contact Us For Availability

7

Frame, Glass (Right) WPL 8206096 Contact Us For Availability

7

Cover, Insulation (Grill) WPL 8206024 Contact Us For Availability

7

Plate, Spring Lock WPL 8206225 Contact Us For Availability

8

WP8184837 Whirlpool Microwave Element Backorder WPL WP8184837 $162.57

8

Plate, Back WPL 8206051 Contact Us For Availability

8

LCD Module WPL 8206162 Contact Us For Availability

8

Plate, Separator (Left) WPL 8206097 Contact Us For Availability

9

W10510202 Whirlpool Microwave Light Bulb In Stock WPL W10510202 $13.87

9

Plate, Mounting WPL 8206052 Contact Us For Availability

9

Deflector, Air Guide WPL 8206163 Contact Us For Availability

9

Plate, Bottom WPL 8206098 Contact Us For Availability

WPW10510203 Whirlpool Microwave Heater In Stock WPL WPW10510203 $100.31

Cord, Power WPL 8206182 Contact Us For Availability

Air Guide WPL 8206164 Contact Us For Availability

Plate, Insulation (Bottom) WPL 8206099 Contact Us For Availability

4393836 Whirlpool Microwave Screw Backorder WPL 4393836 $2.73

Cable Cover, Door WPL 8206165 Contact Us For Availability

Reflector, Lamp (Right) WPL 8206213 Contact Us For Availability

Cover, Protector WPL 8205239 Contact Us For Availability

W10748097 Whirlpool Microwave Crisp Pan In Stock WPL W10748097 $31.42

Inner Door WPL 8206139 Contact Us For Availability

Board, Relay WPL 8206063 Contact Us For Availability

Vent Screen WPL 8206206 Contact Us For Availability

Cover, Terminal WPL 8206103 Contact Us For Availability

8205992 Whirlpool Microwave Cook Tray Backorder WPL 8205992 $43.48

8206185 Whirlpool Microwave Wire Harness Backorder WPL 8206185 $31.93

W10470173 Whirlpool Microwave Wire Harness Backorder WPL W10470173 $8.02

Installation, Hardware WPL 8205979 Contact Us For Availability

Template, Upper WPL 8205274 Contact Us For Availability

Insulation Assy. (Right) WPL 8206050 Contact Us For Availability

H.V. Wire Assy WPL 8206186 Contact Us For Availability

Lights, Fan, & Turntable Harness WPL 8206187 Contact Us For Availability

Main Harness WPL 8206188 Contact Us For Availability

Miscellaneous WPL ARI65334A9 Contact Us For Availability

Gasket (2) WPL 8206166 Contact Us For Availability

Diffuser WPL 8206104 Contact Us For Availability

8206035 Whirlpool Microwave Thermostat In Stock WPL 8206035 $43.39

Screw (2) WPL 8206167 Contact Us For Availability

Cover, Duct WPL 8206105 Contact Us For Availability

Ring, Turntable WPL 8205993 Contact Us For Availability

8205994 Whirlpool Microwave Support In Stock WPL 8205994 $11.93

8206168 Whirlpool Washer Backorder WPL 8206168 $4.85

Holder, Filter WPL 8206060 Contact Us For Availability

Holder, Inverter WPL 8206089 Contact Us For Availability

Connector, Duct WPL 8206106 Contact Us For Availability

16

W10851464 Whirlpool Microwave Handle Panel In Stock WPL W10851464 $8.45

16

Screw (3) WPL 8206169 Contact Us For Availability

16

Holder, Duct WPL 8206107 Contact Us For Availability

17

Spacer, Side (6) WPL 8206170 Contact Us For Availability

17

Shield WPL 8206108 Contact Us For Availability

17

Clip, Cavity Lamp WPL 8206034 Contact Us For Availability

18

8184109 Whirlpool Microwave Spacer In Stock WPL 8184109 $3.70

18

Spring, Interlock WPL 8206091 Contact Us For Availability

18

Support & Base Thermostat Assy WPL 8206212 Contact Us For Availability

19

W11661547 Whirlpool Turntable Motor In Stock WPL W11661547 $44.76

19

Connector Shaft WPL 8206263 Contact Us For Availability

19

Spacer, Bottom (2) WPL 8206178 Contact Us For Availability

20

4393832 Whirlpool Microwave Screw Backorder WPL 4393832 $9.59

20

8206179 Whirlpool Microwave Screw Backorder WPL 8206179 $4.61

21

8205262RB Whirlpool Refrigerator Crusher Blad Backorder WPL 8205262RB $28.58

21

Housing, Blower (Right) WPL 8206112 Contact Us For Availability

21

Screw (2) WPL 8169478 Contact Us For Availability

8206180 Whirlpool Microwave Screw Backorder WPL 8206180 $9.59

W10120840A Whirlpool Oven Range Vent Hood Cha In Stock WPL W10120840A $9.99

W10269458 Whirlpool Microwave Door Switch In Stock WPL W10269458 $15.87

Frame, Glass WPL 8169646 Contact Us For Availability

W10120839A Whirlpool Oven Microwave Range Ven In Stock WPL W10120839A $11.99

W10211974 Whirlpool Microwave Door Interlock In Stock WPL W10211974 $24.34

Hinge Screw WPL 8206181 Contact Us For Availability

Spacer WPL 8206116 Contact Us For Availability

24

Humidity Sensor & Thermostat Assy WPL 8206026 Contact Us For Availability

24

Spring, Hook WPL 8206214 Contact Us For Availability

24

Cover, Inlet WPL 8206066 Contact Us For Availability

25

Support, Air Guide WPL 8206031 Contact Us For Availability

25

Air Guide, Center Hood WPL 8206020 Contact Us For Availability

25

Lid, Lamp WPL 8206032 Contact Us For Availability

26

W10596040 Whirlpool Microwave Nut In Stock WPL W10596040 $2.85

26

Protector, Wire WPL 8206036 Contact Us For Availability

26

Glass, Lamp WPL 8169499 Contact Us For Availability

27

Rack, Convection WPL 8205995 Contact Us For Availability

27

Clip, Saddle WPL 8206037 Contact Us For Availability

27

Plate, Insulation (Top) WPL 8206007 Contact Us For Availability

28

8206038 Whirlpool Clip Assembly Backorder WPL 8206038 $6.30

29

8206209 Whirlpool Microwave Interlock Switch Backorder WPL 8206209 $3.70

30

Piston Assembly WPL 8206210 Contact Us For Availability

31

Sensor, Temperature WPL 8206023 Contact Us For Availability

32

Cover WPL 8206224 Contact Us For Availability

33

8206223 Whirlpool Clip Backorder WPL 8206223 $37.73
