Model Whirlpool GH7208XRQ2 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

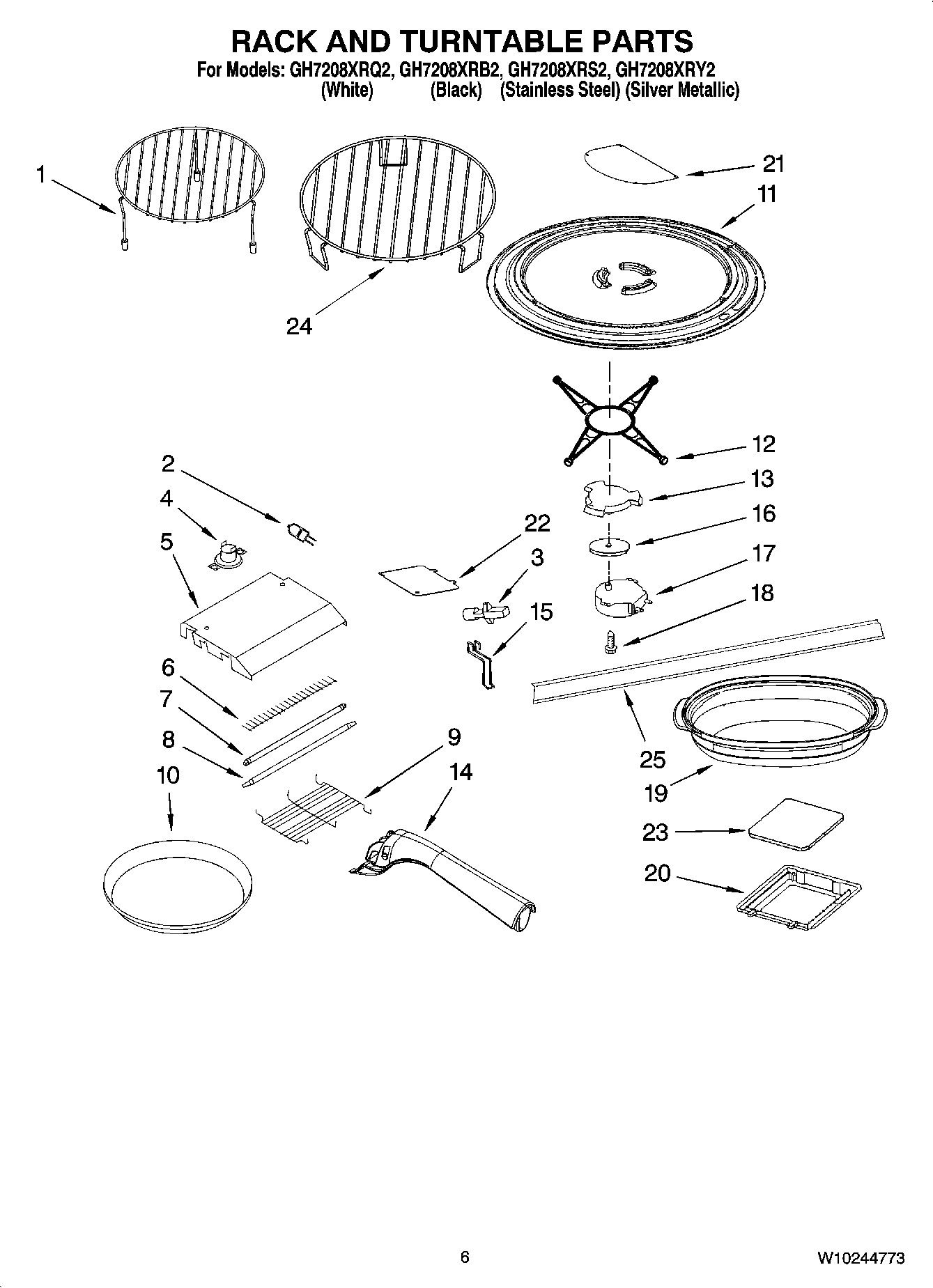

05 - RACK AND TURNTABLE PARTS

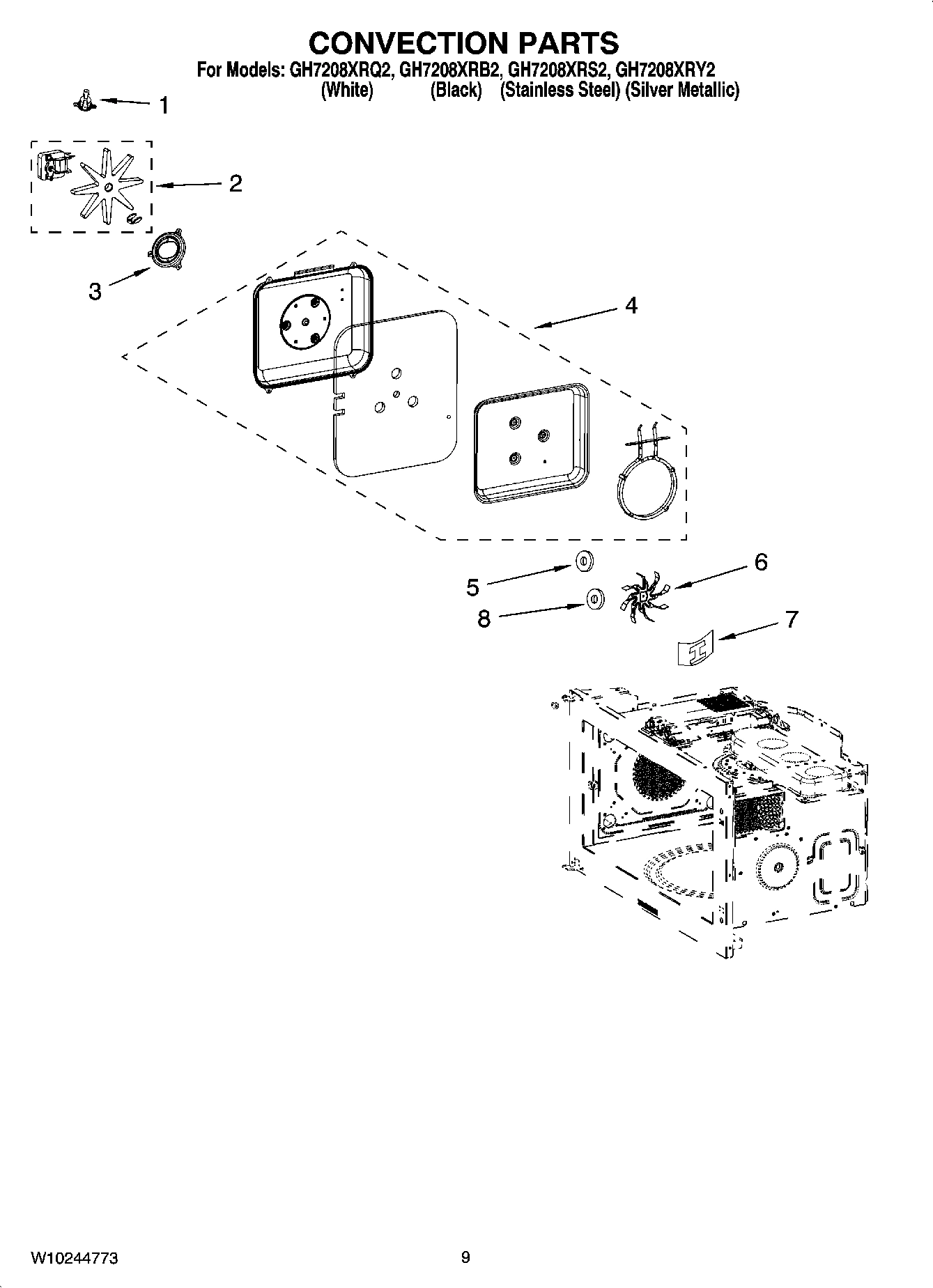

07 - CONVECTION PARTS
02 - DOOR PARTS
04 - INTERIOR AND AIR FLOW PARTS
06 - CABINET AND INSTALLATION PARTS
01 - CONTROL BOARD PARTS
03 - VENTILATION PARTS
Common parts from model Whirlpool GH7208XRQ2 MICROWAVE HOOD COMBINATION
Installation, Hardware WPL 8205979 Contact Us For Availability
1
Handle (Universal Silver) WPL 8206123 Contact Us For Availability
1
Housing, Blower (Left) WPL 8206092 Contact Us For Availability
1
Handle (White) WPL W10244764 Contact Us For Availability
1
Handle (Black) WPL 8206121 Contact Us For Availability
1
Case, Outer (Universal Silver) WPL W10244756 Contact Us For Availability
1
Installation Instructions WPL 8205272 Contact Us For Availability
1
Tech Sheet WPL 8205293 Contact Us For Availability
1
Quick Reference WPL 8206637 Contact Us For Availability
1
Use & Care Guide WPL W10170439 Contact Us For Availability
2
Trim, Door (White) WPL 8206144 Contact Us For Availability
2
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
2
Support, Cavity (Left) WPL 8206039 Contact Us For Availability
3
Door Control Assy (Black/Stainless) WPL 8206149 Contact Us For Availability
3
Door Control Assy (White) WPL 8206148 Contact Us For Availability
3
Door Control Assy (Universal Silver) WPL W10115584 Contact Us For Availability
3
Holder, Lamp WPL W10113781 Contact Us For Availability
3
Lid, Power Cord WPL 8184897 Contact Us For Availability
3
Plate, Protection (Left) WPL 8206040 Contact Us For Availability
4
Heater Assembly WPL 8206071 Contact Us For Availability
4
Outer Door Frame (White) WPL W10115585 Contact Us For Availability
4
Side Panel, Left (White) WPL 8206041 Contact Us For Availability
4
Side Panel, Left (Black) WPL 8206042 Contact Us For Availability
4
Side Panel, Left (Stainless Steel) WPL 8206044 Contact Us For Availability
5
Vent Screen (Middle) WPL 8206475 Contact Us For Availability
5
Button (White) WPL 8206045 Contact Us For Availability
5
Button (Black) WPL 8206046 Contact Us For Availability
5
Button (Universal Silver) WPL 8206048 Contact Us For Availability
6
Motor, Capacitor WPL 8206080 Contact Us For Availability
6
Support, Vent Screen (White) WPL 8206011 Contact Us For Availability
6
Support, Vent Screen (Universal Silver) WPL 8206016 Contact Us For Availability
6
Support, Vent Screen (Black) WPL W10115568 Contact Us For Availability
6
Hood/Light Switch Board WPL 8206049 Contact Us For Availability
6
Frame, Glass (Left) WPL W10115578 Contact Us For Availability
7
Vent Screen (Left) WPL 8206207 Contact Us For Availability
7
Side Panel, Right (White) WPL 8206056 Contact Us For Availability
7
Side Panel, Right (Stainless Steel) WPL 8206059 Contact Us For Availability
7
Side Panel, Right (Black) WPL W10115571 Contact Us For Availability
7
Frame, Glass (Right) WPL W10115581 Contact Us For Availability
8
Control Board, (Relay) WPL 8206602 Contact Us For Availability
8
Plate, Back WPL 8206051 Contact Us For Availability
8
Plate, Separator (Left) WPL 8206097 Contact Us For Availability
9
Plate, Bottom WPL W10222517 Contact Us For Availability
9
Plate, Mounting WPL 8206319 Contact Us For Availability
9
Plate, Protection (Right) WPL 8206061 Contact Us For Availability
10
Inner Door WPL 8206139 Contact Us For Availability
10
Cord, Power WPL 8206182 Contact Us For Availability
10
Plate, Chassis WPL W10113785 Contact Us For Availability
10
Plate, Insulation (Bottom) WPL 8206099 Contact Us For Availability
11
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
11
Support, Cavity (Right) WPL 8206065 Contact Us For Availability
12
Board, Relay WPL 8206603 Contact Us For Availability
12
Ring, Turntable WPL 8206222 Contact Us For Availability
12
Vent Screen WPL 8206206 Contact Us For Availability
12
Cover, Terminal WPL 8206103 Contact Us For Availability
13
Insulation Assy. (Right) WPL W10115570 Contact Us For Availability
13
Holder, Microcomputer WPL 8206053 Contact Us For Availability
13
Diffuser WPL W10244735 Contact Us For Availability
14
AC Line Filter WPL 8206062 Contact Us For Availability
14
Cover, Duct WPL 8206105 Contact Us For Availability
15
Holder, Filter WPL 8206060 Contact Us For Availability
15
Holder, Inverter WPL 8206089 Contact Us For Availability
15
Connector, Duct WPL 8206106 Contact Us For Availability
16
Resistor (50W) WPL W10113782 Contact Us For Availability
16
Air Guide, Magnetron WPL 8206494 Contact Us For Availability
16
Holder, Duct WPL 8206107 Contact Us For Availability
17
Motor, Turntable WPL W10143959 Contact Us For Availability
17
Spacer, Bottom (2) WPL 8206178 Contact Us For Availability
17
SHIELD WPL W10244761 Contact Us For Availability
18
Spring, Interlock WPL 8206091 Contact Us For Availability
18
Support & Base Thermostat Assy WPL 8206212 Contact Us For Availability
18
Spacer (6) WPL W10113784 Contact Us For Availability
19
Connector Shaft WPL 8206263 Contact Us For Availability
20
Holder, Fuse WPL W10117908 Contact Us For Availability
20
Spring (4) WPL 8206499 Contact Us For Availability
20
Frame, Glass WPL 8169646 Contact Us For Availability
21
Housing, Blower (Right) WPL 8206112 Contact Us For Availability
22
Lid, Lamp WPL 8206476 Contact Us For Availability
24
Humidity Sensor & Thermostat Assy WPL 8206026 No Longer Available
24
Spring, Hook WPL W10113792 Contact Us For Availability
24
Rack, Convection WPL 8205995 Contact Us For Availability
25
Deflector, Air WPL 8205980 Contact Us For Availability
25
Air Guide, Center Hood WPL W10143951 Contact Us For Availability
27
Plate, Insulation (Top) WPL 8206007 Contact Us For Availability
30
Piston Assembly WPL 8206210 Contact Us For Availability
31
Sensor, Temperature WPL 8206023 Contact Us For Availability
34
CAM PLATE, UPPER WPL W10113786 Contact Us For Availability
35
CAM PLATE, LOWER WPL W10244759 Contact Us For Availability
× ![]()
