Model Whirlpool GH7208XRB1 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams
04 - INTERIOR AND AIR FLOW PARTS
05 - RACK AND TURNTABLE PARTS

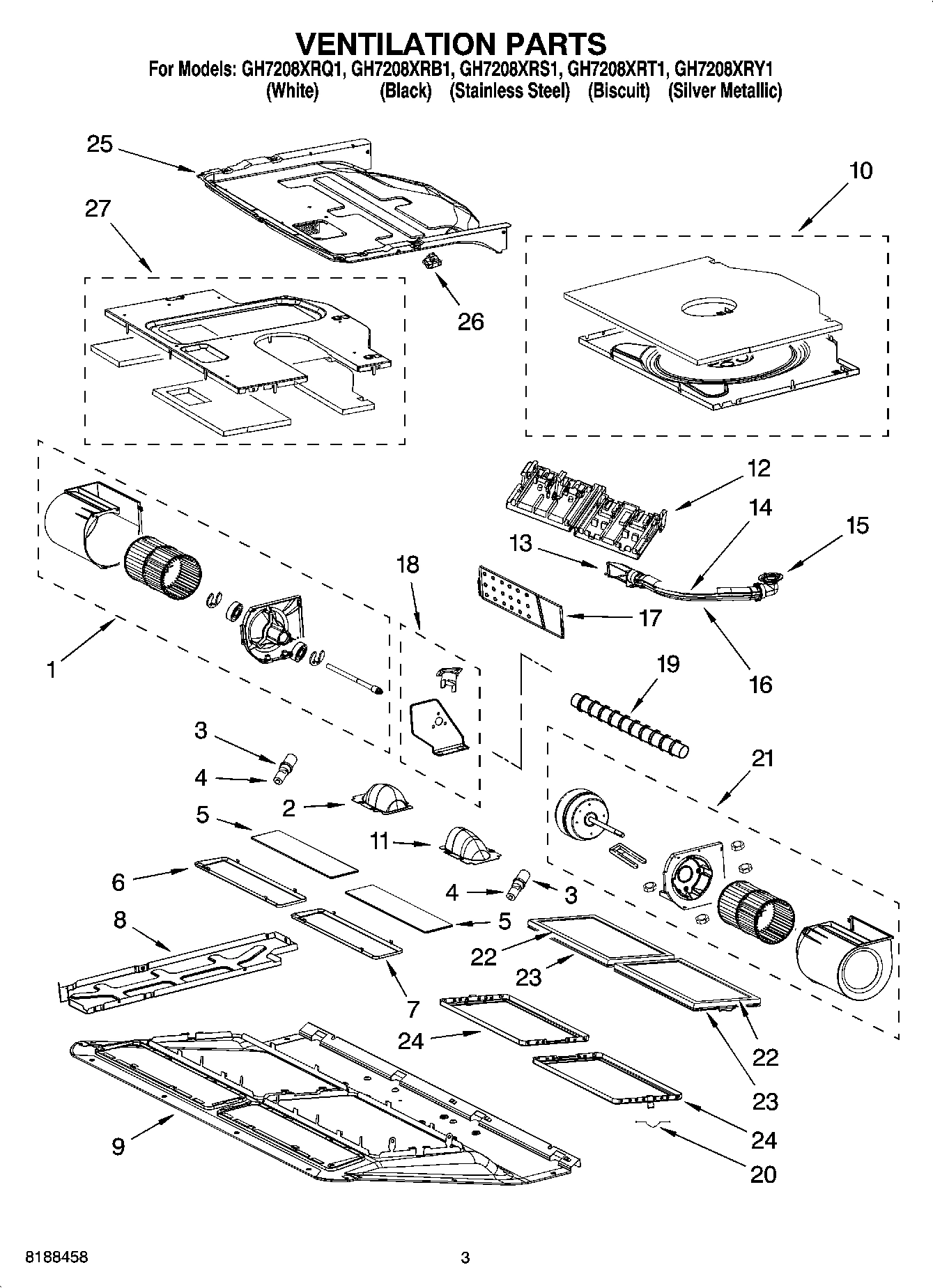

03 - VENTILATION PARTS

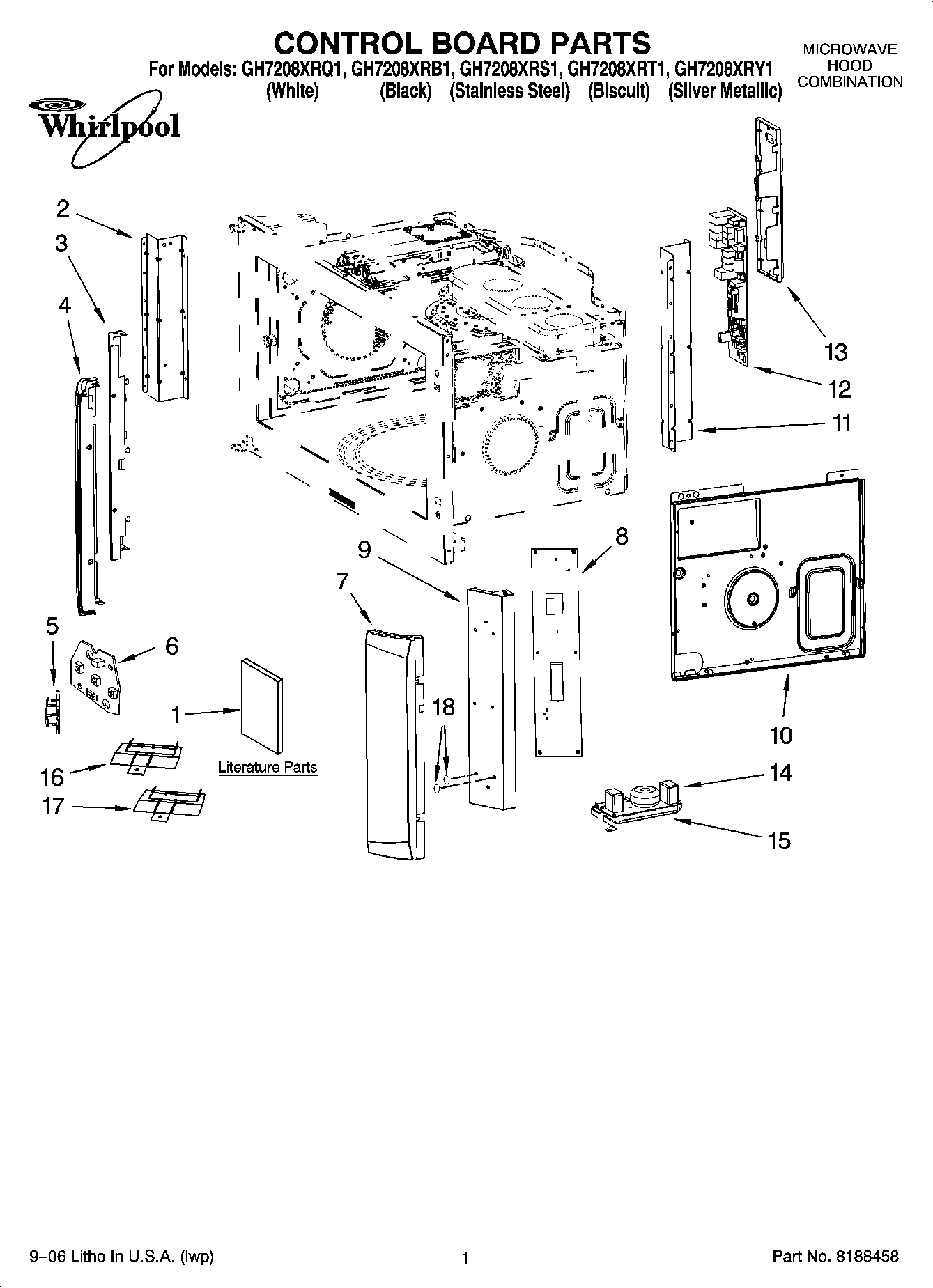

01 - CONTROL BOARD PARTS

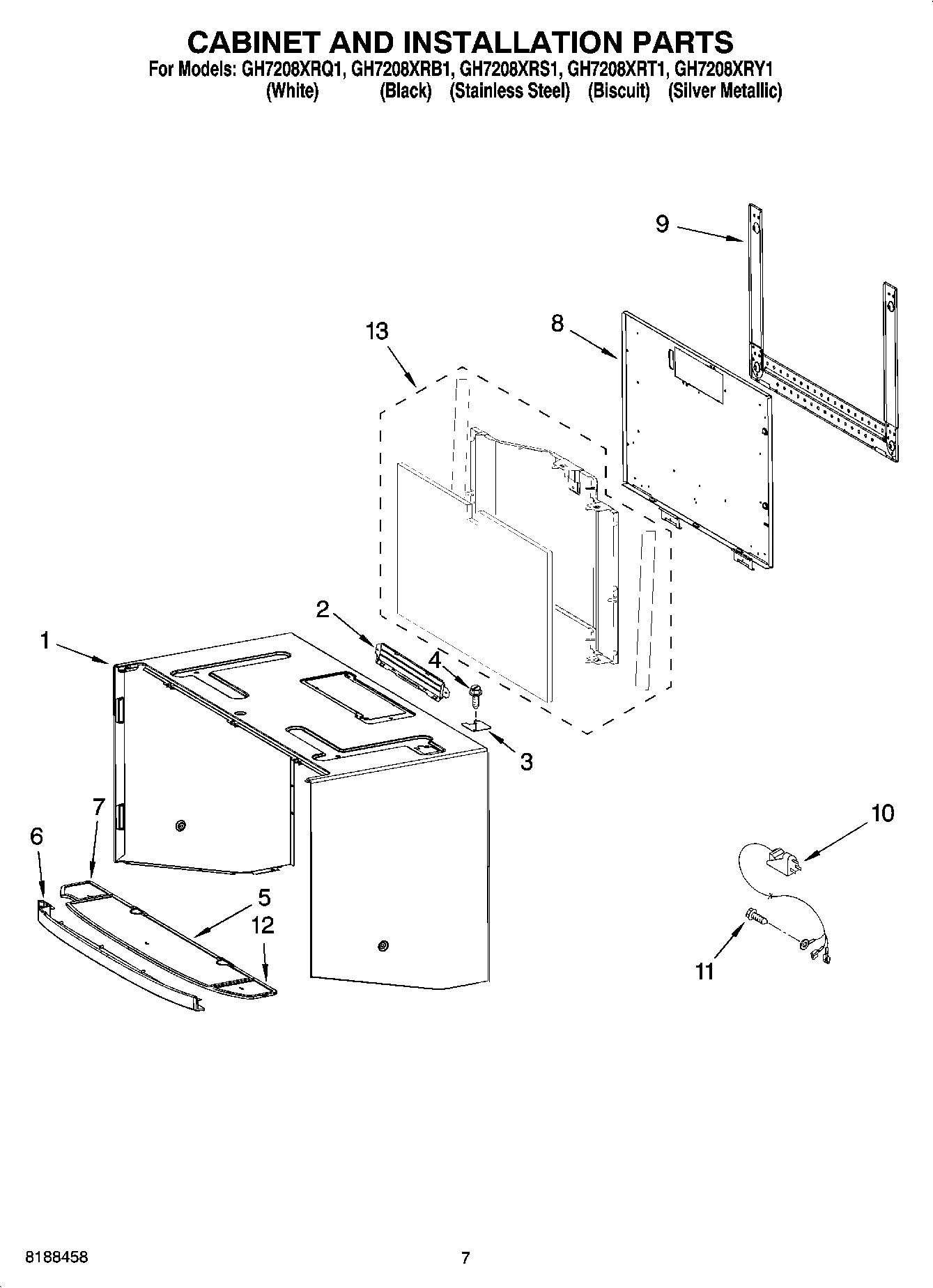

06 - CABINET AND INSTALLATION PARTS

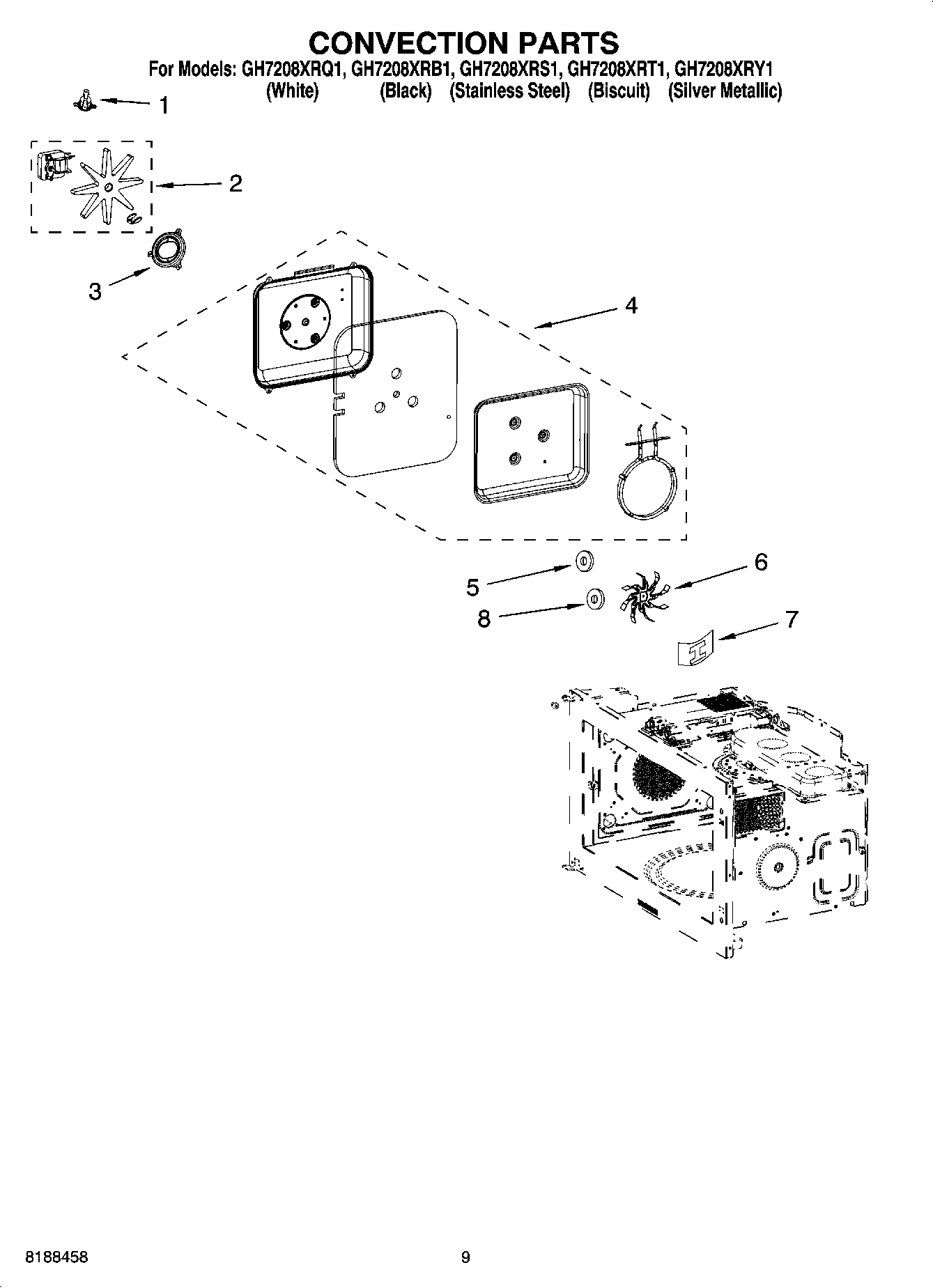

07 - CONVECTION PARTS

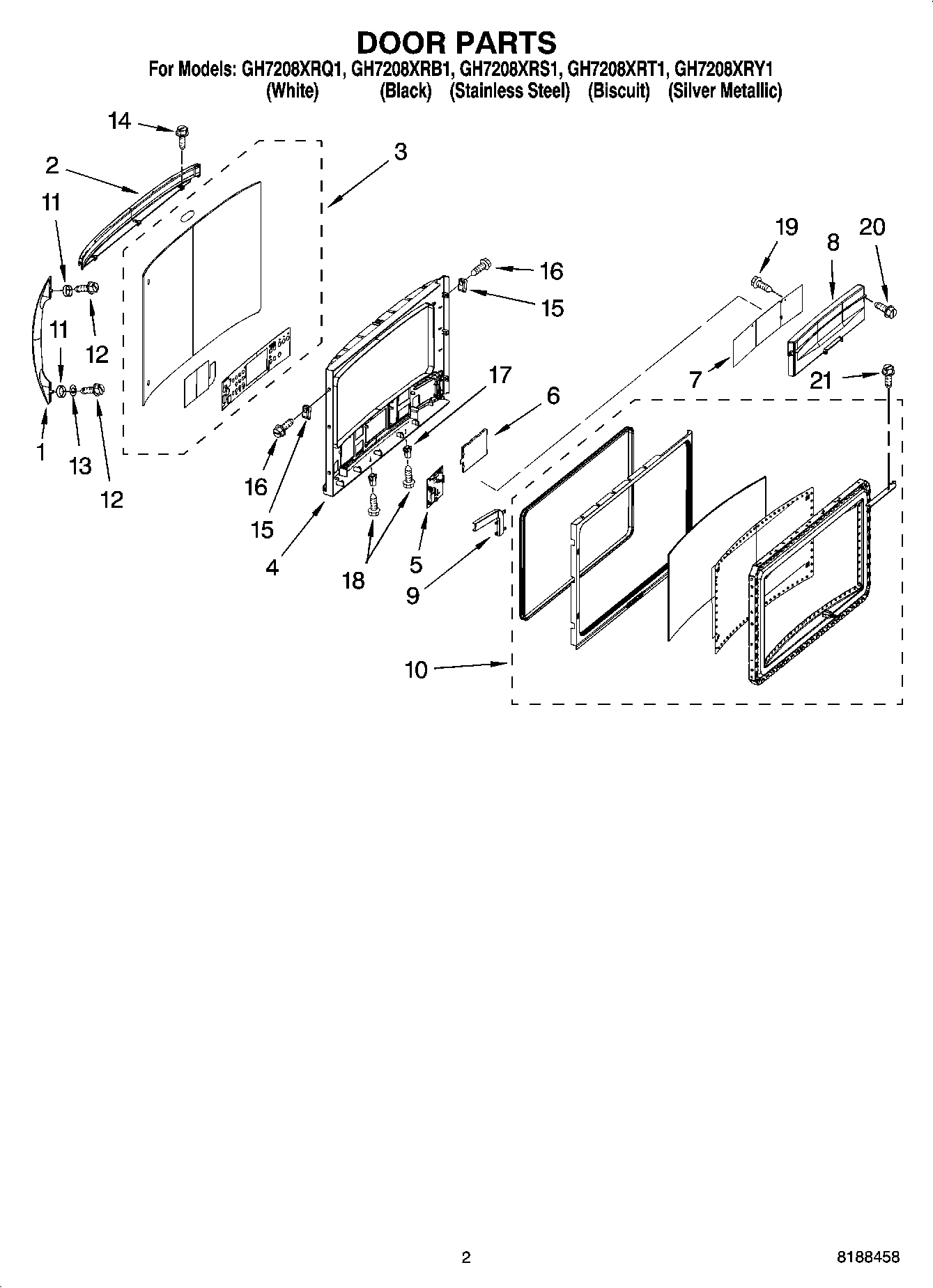

02 - DOOR PARTS
Common parts from model Whirlpool GH7208XRB1 MICROWAVE HOOD COMBINATION
1
Handle (Universal Silver) WPL 8206123 Contact Us For Availability
1
Housing, Blower (Left) WPL 8206092 Contact Us For Availability
1
Handle (Black) WPL 8206121 Contact Us For Availability
1
Installation Instructions WPL 8205272 Contact Us For Availability
1
Cook Guide Label WPL 8205279 Contact Us For Availability
1
Use & Care Guide WPL 8205283 Contact Us For Availability
1
Tech Sheet WPL 8205293 Contact Us For Availability
1
Quick Reference WPL 8205745 Contact Us For Availability
1
Case, Outer (White) WPL 8206027 Contact Us For Availability
1
Case, Outer (Black) WPL 8206028 Contact Us For Availability
1
Case, Outer (Biscuit) WPL 8206029 Contact Us For Availability
1
Case, Outer (Universal Silver) WPL W10115569 Contact Us For Availability
1
Handle (White) WPL 8206120 Contact Us For Availability
1
Handle (Biscuit) WPL 8206122 Contact Us For Availability
2
Trim, Door (White) WPL 8206144 Contact Us For Availability
2
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
2
Support, Cavity (Left) WPL 8206039 Contact Us For Availability
2
Impeller Assy WPL 8206069 Contact Us For Availability
2
Trim, Door (Biscuit) WPL 8206146 Contact Us For Availability
2
Trim, Door (Stainless Steel) WPL 8206147 Contact Us For Availability
2
Trim, Door (Black) WPL W10115583 Contact Us For Availability
3
Door Control Assy (Black/Stainless) WPL 8206149 Contact Us For Availability
3
Door Control Assy (White) WPL 8206148 Contact Us For Availability
3
Holder, Lamp WPL W10113781 Contact Us For Availability
3
Lid, Power Cord WPL 8184897 Contact Us For Availability
3
Bracket, Motor WPL W10115572 Contact Us For Availability
3
Door Control Assy (Biscuit) WPL 8206150 Contact Us For Availability
4
Heater Assembly WPL 8206071 Contact Us For Availability
4
Outer Door Frame (White) WPL W10115585 Contact Us For Availability
4
Side Panel, Left (White) WPL 8206041 Contact Us For Availability
4
Side Panel, Left (Black) WPL 8206042 Contact Us For Availability
4
Side Panel, Left (Biscuit) WPL 8206043 Contact Us For Availability
4
Side Panel, Left (Stainless Steel) WPL 8206044 Contact Us For Availability
4
Outer Door Frame (Stainless Steel) WPL 8206160 Contact Us For Availability
4
Outer Door Frame (Black) WPL W10115586 Contact Us For Availability
4
Outer Door Frame (Biscuit) WPL W10115587 Contact Us For Availability
5
Button (White) WPL 8206045 Contact Us For Availability
5
Button (Black) WPL 8206046 Contact Us For Availability
5
Button (Biscuit) WPL 8206047 Contact Us For Availability
5
Button (Universal Silver) WPL 8206048 Contact Us For Availability
5
Vent Screen (Middle) WPL 8206475 Contact Us For Availability
5
Washer WPL 8206073 Contact Us For Availability
5
Board, User (Interface) WPL W10115588 Contact Us For Availability
6
Motor, Capacitor WPL 8206080 Contact Us For Availability
6
Support, Vent Screen (White) WPL 8206011 Contact Us For Availability
6
Support, Vent Screen (Universal Silver) WPL 8206016 Contact Us For Availability
6
LCD Module WPL W10115589 Contact Us For Availability
6
Hood/Light Switch Board WPL 8206049 Contact Us For Availability
6
Support, Vent Screen (Biscuit) WPL 8206015 Contact Us For Availability
6
Support, Vent Screen (Black) WPL W10115568 Contact Us For Availability
6
Fan Wheel WPL 8206074 Contact Us For Availability
7
Vent Screen (Left) WPL 8206207 Contact Us For Availability
7
Side Panel, Right (White) WPL 8206056 Contact Us For Availability
7
Side Panel, Right (Biscuit) WPL 8206058 Contact Us For Availability
7
Side Panel, Right (Stainless Steel) WPL 8206059 Contact Us For Availability
7
Side Panel, Right (Black) WPL W10115571 Contact Us For Availability
7
Plate, Spring Lock WPL W10115575 Contact Us For Availability
7
Deflector, Air Guide WPL 8206163 Contact Us For Availability
8
Control Board, (Relay) WPL 8206602 Contact Us For Availability
8
Plate, Back WPL 8206051 Contact Us For Availability
8
Washer, Adjustable WPL W10115573 Contact Us For Availability
8
Air Guide WPL W10115590 Contact Us For Availability
9
Plate, Protection (Right) WPL 8206061 Contact Us For Availability
9
Plate, Mounting WPL 8206319 Contact Us For Availability
9
Cable Cover, Door WPL W10115591 Contact Us For Availability
10
Plate, Chassis WPL W10113785 Contact Us For Availability
10
Cord, Power WPL 8206182 Contact Us For Availability
10
Inner Door WPL W10115592 Contact Us For Availability
11
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
11
Support, Cavity (Right) WPL 8206065 Contact Us For Availability
11
Gasket (2) WPL 8206166 Contact Us For Availability
12
Board, Relay WPL 8206603 Contact Us For Availability
12
Ring, Turntable WPL 8206222 Contact Us For Availability
12
Vent Screen WPL 8206206 Contact Us For Availability
12
Screw (2) WPL 8206167 Contact Us For Availability
13
Installation, Hardware WPL 8205979 Contact Us For Availability
13
Holder, Microcomputer WPL 8206053 Contact Us For Availability
13
Template, Upper WPL 8205274 Contact Us For Availability
13
H.V. Wire Assy WPL 8206186 Contact Us For Availability
13
Miscellaneous WPL ARI65329A2 Contact Us For Availability
13
Harns-Wire, Control Invertor WPL W10113777 Contact Us For Availability
13
Harns-Wire, RCB to UIB P64 WPL W10113779 Contact Us For Availability
13
Harns-Wire, RCB to UIB P64 WPL W10113780 Contact Us For Availability
13
Insulation Assy. (Right) WPL W10115570 Contact Us For Availability
13
Harns-Wire, RCB P56-P66 WPL W10115595 Contact Us For Availability
14
AC Line Filter WPL 8206062 Contact Us For Availability
14
Screw (3) WPL W10115593 Contact Us For Availability
15
Holder, Filter WPL 8206060 Contact Us For Availability
15
Holder, Inverter WPL 8206089 Contact Us For Availability
15
Spacer, Side (6) WPL 8206170 Contact Us For Availability
16
Resistor (50W) WPL W10113782 Contact Us For Availability
16
Air Guide, Magnetron WPL 8206494 Contact Us For Availability
17
Spacer, Bottom (2) WPL 8206178 Contact Us For Availability
18
Spring, Interlock WPL 8206091 Contact Us For Availability
18
Support & Base Thermostat Assy WPL 8206212 Contact Us For Availability
18
Spacer (6) WPL W10113784 Contact Us For Availability
19
Connector Shaft WPL 8206263 Contact Us For Availability
19
Screw (2) WPL 8169478 Contact Us For Availability
20
Spring (4) WPL 8206499 Contact Us For Availability
20
Frame, Glass WPL 8169646 Contact Us For Availability
21
Housing, Blower (Right) WPL 8206112 Contact Us For Availability
21
Hinge Screw WPL 8206181 Contact Us For Availability
22
Lid, Lamp WPL 8206476 Contact Us For Availability
24
Humidity Sensor & Thermostat Assy WPL 8206026 Contact Us For Availability
24
Rack, Convection WPL 8205995 Contact Us For Availability
30
Piston Assembly WPL 8206210 Contact Us For Availability
31
Sensor, Temperature WPL 8206023 Contact Us For Availability
34
CAM PLATE, UPPER WPL W10113786 Contact Us For Availability
× ![]()
