Model Whirlpool GH7155XHS0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

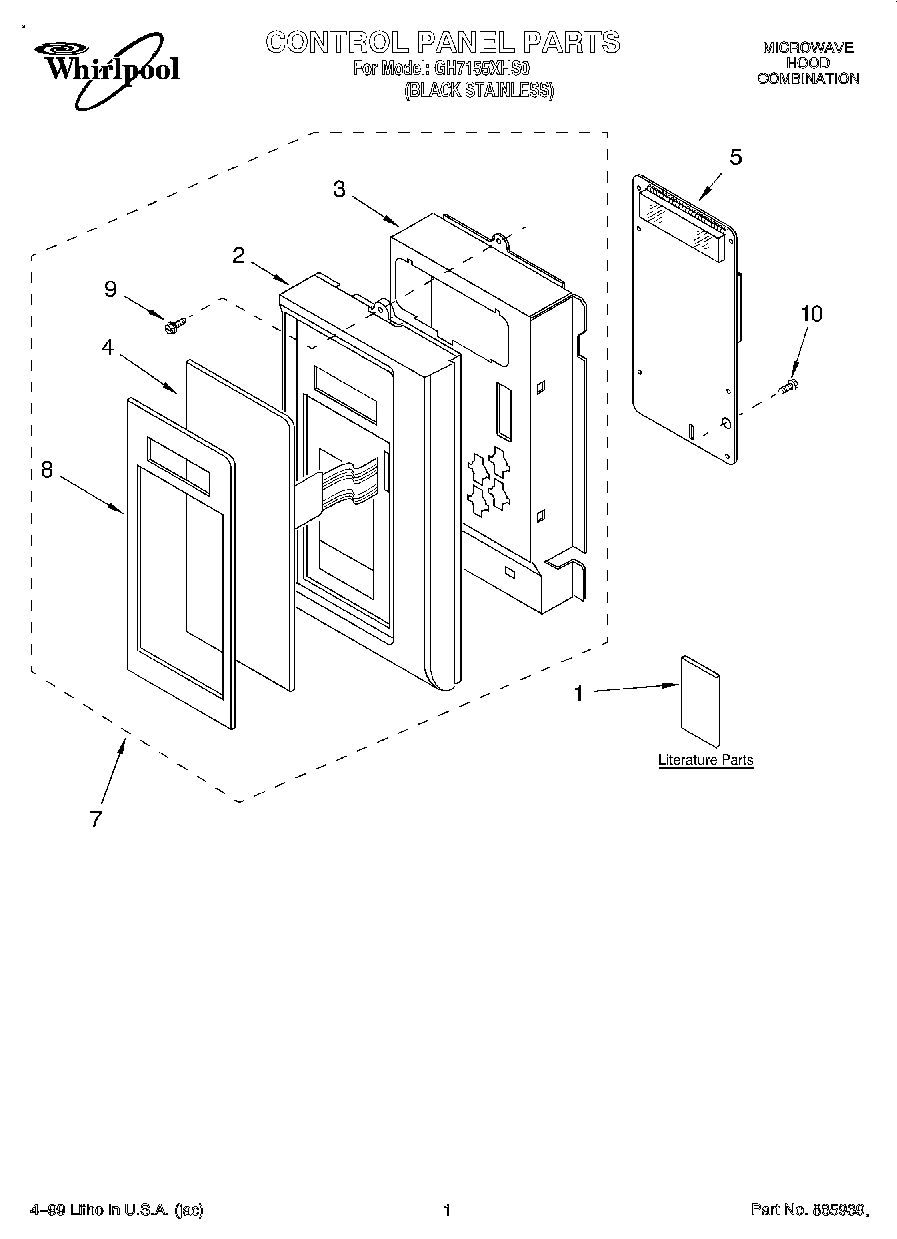

01 - CONTROL PANEL, LITERATURE

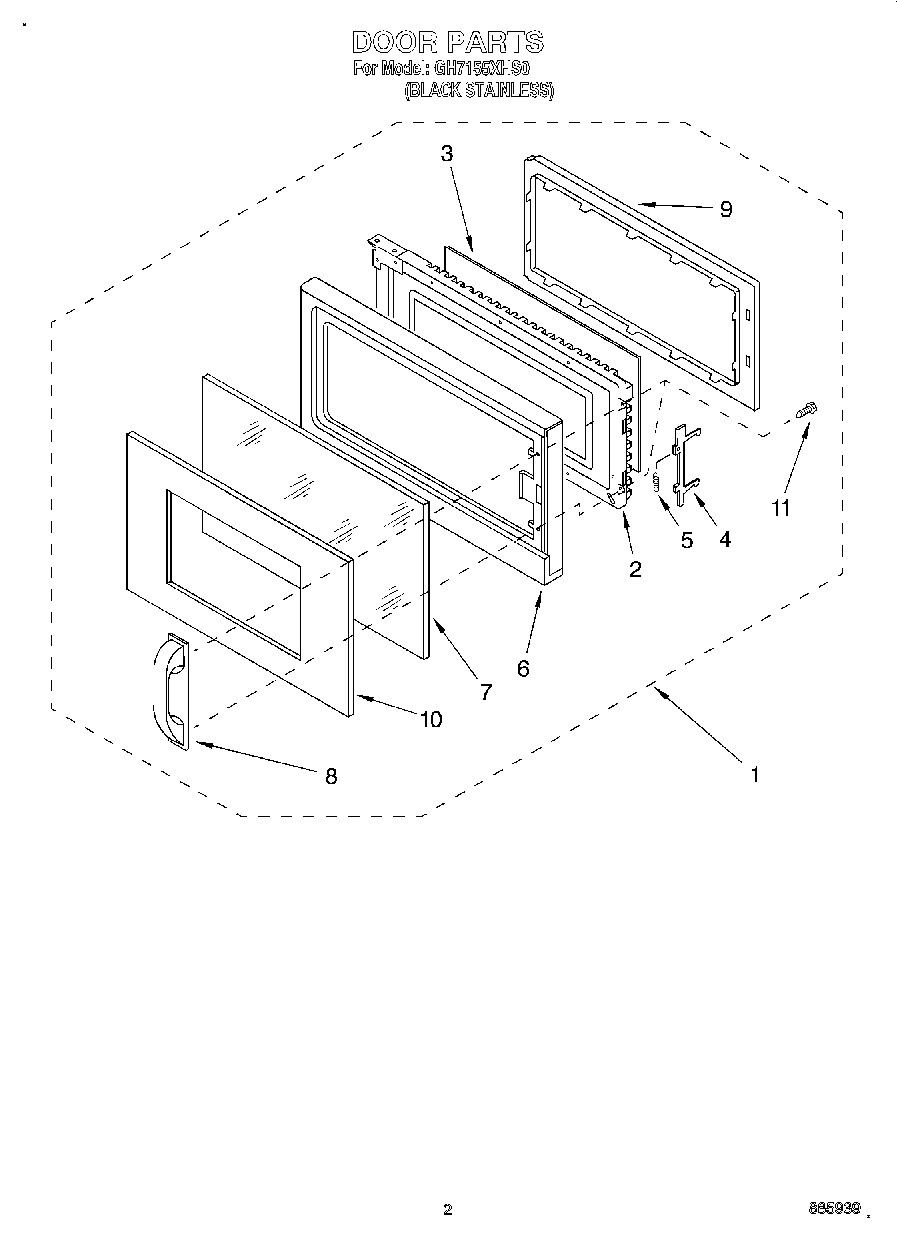

02 - DOOR
06 - LATCH BOARD
08 - INSTALLATION
07 - VENTILATION
05 - INTERIOR
03 - CABINET
04 - MAGNETRON AND AIR FLOW
Common parts from model Whirlpool GH7155XHS0 MICROWAVE HOOD COMBINATION
1
Door Assembly WPL 8171847 Contact Us For Availability
1
Board, Latch WPL 8171866 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
1
Base Plate WPL 8171881 Contact Us For Availability
1
Motor, Fan WPL 4359511 Contact Us For Availability
1
Outer Case WPL 8171859 Contact Us For Availability
1
Magnetron WPL 8171874 Contact Us For Availability
2
Frame, Door WPL 8171843 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
2
Bracket WPL 4359532 Contact Us For Availability
2
Air Duct WPL 8171871 Contact Us For Availability
2
Mounting Bracket WPL 4358928 Contact Us For Availability
2
H.V. Transformer WPL 8171873 Contact Us For Availability
3
Glass, Cooktop Lamp WPL 4359528 Contact Us For Availability
3
Cavity Assembly (Not Serviceable) WPL ARI65323A3 Contact Us For Availability
3
Bracket, H.V. WPL 4359497 Contact Us For Availability
4
Push Nut WPL 4358055 Contact Us For Availability
4
Latch WPL 8171850 Contact Us For Availability
4
Lever Monitor WPL 4358795 Contact Us For Availability
4
Toggle Wing WPL 4158326 Contact Us For Availability
4
Lead Wire Assy WPL 4359529 Contact Us For Availability
4
Grille Vent WPL 8171861 Contact Us For Availability
4
Capacitor, H.V. WPL 4359115 Contact Us For Availability
5
Base Thermostat WPL 4158368 Contact Us For Availability
5
Spring, Latch WPL 4358607 Contact Us For Availability
5
Screw WPL 4358051 Contact Us For Availability
5
Screw WPL 4158323 Contact Us For Availability
6
Panel, Door WPL 8171849 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
6
Motor, Synchronous WPL 4359515 Contact Us For Availability
6
Motor, Turntable WPL 4359932 Contact Us For Availability
7
Glass, Door WPL 8171851 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
7
Cover, Power Cord WPL 4359616 Contact Us For Availability
7
Plate WPL 8171868 Contact Us For Availability
8
Handle, Door WPL 8171848 Contact Us For Availability
8
Plate, Mounting Wing WPL 4358924 Contact Us For Availability
8
Shelf Holder WPL 4358383 Contact Us For Availability
8
Seal, Water WPL 8171805 Contact Us For Availability
9
Choke, Cover WPL 8171846 Contact Us For Availability
9
Cover WPL 4359964 Contact Us For Availability
9
Plate, Mount WPL 4359318 Contact Us For Availability
10
Cover, Front WPL 8171845 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
10
Lamp Holder WPL 4359518 Contact Us For Availability
10
Screw WPL 4358829 Contact Us For Availability
10
Rack, Grill WPL 8171865 Contact Us For Availability
10
Lead Wire WPL 4359503 Contact Us For Availability
11
Sheet-Top Cabinet Template WPL 4359560 Contact Us For Availability
11
Guide WPL 8171864 Contact Us For Availability
12
Sheet-Wall Template WPL 4359011 Contact Us For Availability
12
Screw WPL 4358381 Contact Us For Availability
12
Motor, Ventilation WPL 8171860 Contact Us For Availability
12
Cover WPL 8171869 Contact Us For Availability
13
Screw WPL 4359009 Contact Us For Availability
13
Lead, Wire WPL 8171880 Contact Us For Availability
13
Holder WPL 8171870 Contact Us For Availability
14
Stirrer Fan WPL 8171872 Contact Us For Availability
15
Fuse Cap WPL 4358659 Contact Us For Availability
15
Thermostat WPL 4358772 Contact Us For Availability
16
Pin, Locking WPL 4358933 Contact Us For Availability
16
Power Cord WPL 8171875 Contact Us For Availability
17
Rotating Ring WPL 4359509 Contact Us For Availability
18
Shaft, Turntable WPL 8171863 Contact Us For Availability
18
Sensor Assy. WPL 8171878 Contact Us For Availability
20
Charcoal Filter WPL 4359331 Contact Us For Availability
20
Resistor, Cement WPL 8171858 Contact Us For Availability
22
Screw WPL 4358376 Contact Us For Availability
22
Screw WPL 8171882 Contact Us For Availability
24
Screw WPL 4358883 Contact Us For Availability
25
Installation Hardware WPL 4158491 Contact Us For Availability
× ![]()
