Model Whirlpool GH6178XPS1 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

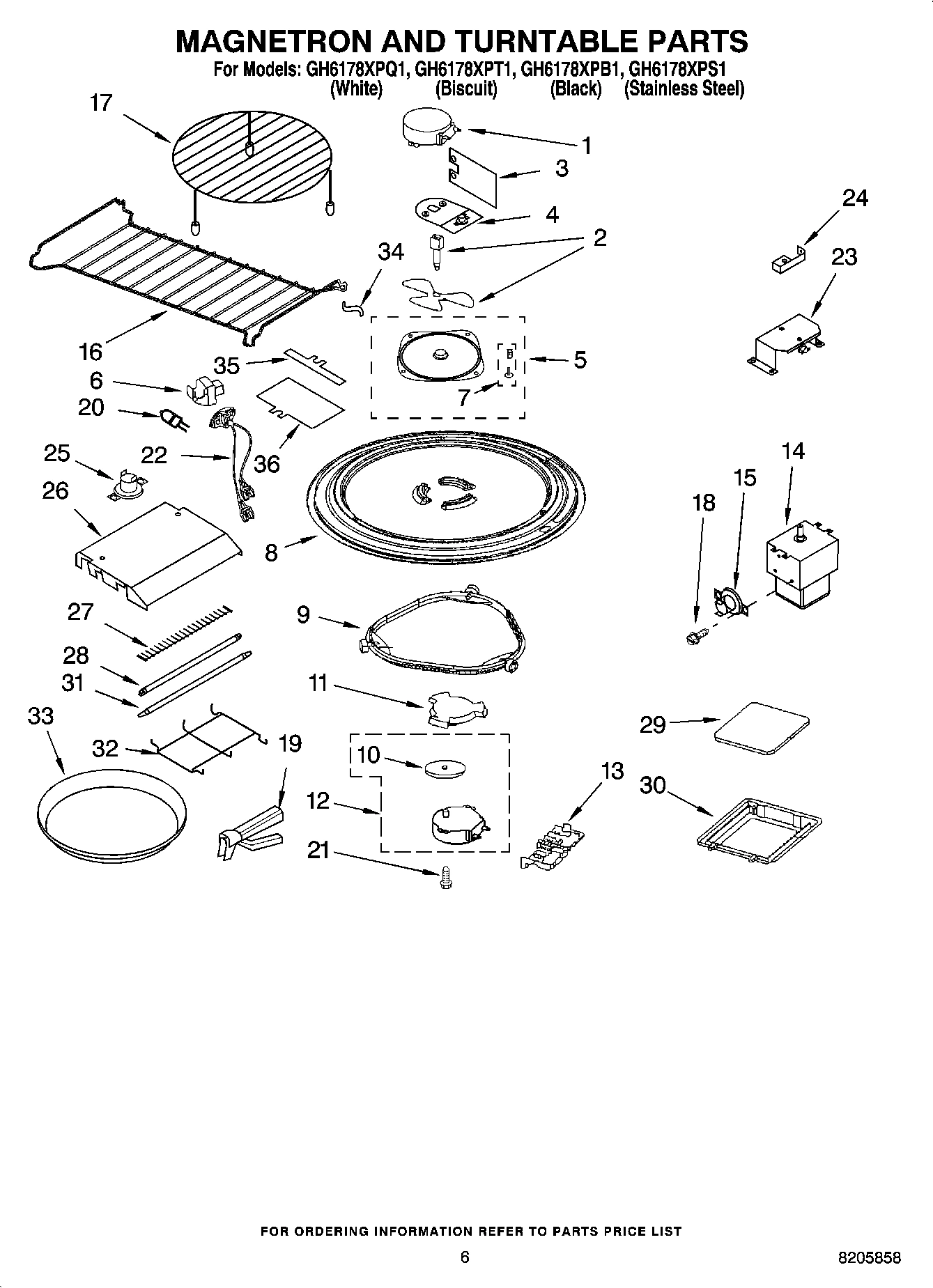

05 - MAGNETRON AND TURNTABLE PARTS

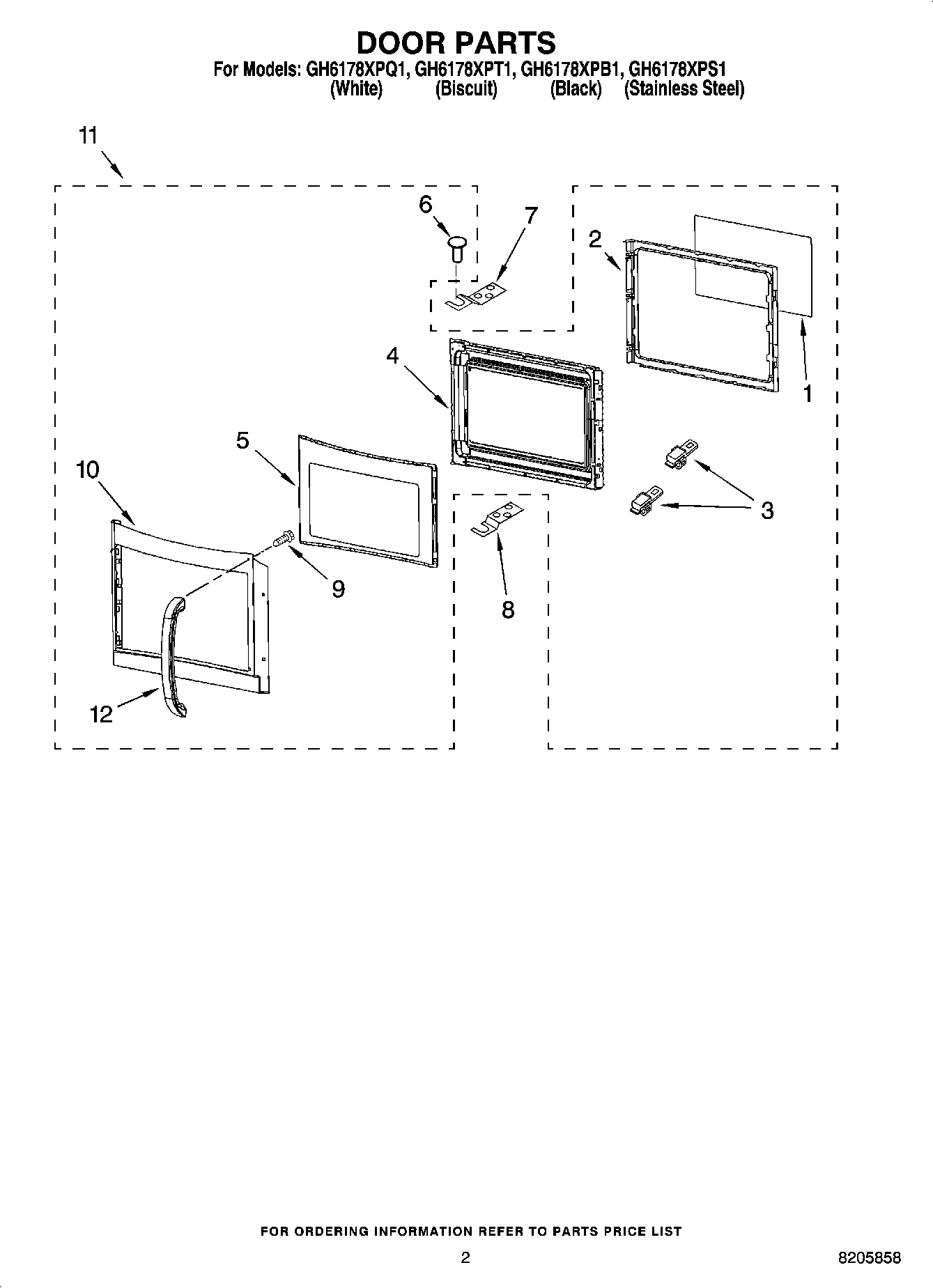

02 - DOOR PARTS
04 - AIR FLOW PARTS
03 - INTERIOR AND VENTILATION PARTS
01 - CONTROL PANEL PARTS
06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool GH6178XPS1 MICROWAVE HOOD COMBINATION
1
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
1
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
1
Deflector, Air WPL 8184667 Contact Us For Availability
1
Installation Instructions WPL 8184059 Contact Us For Availability
1
Cook Guide Label WPL 8184891 Contact Us For Availability
1
Cook Book WPL 8204711 Contact Us For Availability
1
Use & Care Guide WPL 8204914 Contact Us For Availability
1
Tech Sheet WPL 8205620 Contact Us For Availability
1
Plate, Mounting WPL 8184895 Contact Us For Availability
2
Cover, Lamp WPL 8184191 Contact Us For Availability
3
Duct, Air WPL 8184886 Contact Us For Availability
3
Control Panel Assembly (White) WPL 8205257 Contact Us For Availability
3
Control Panel Assembly (Stainless Steel) WPL 8205258 Contact Us For Availability
3
Control Panel Assembly (Biscuit) WPL 8205259 Contact Us For Availability
3
Control Panel Assembly (Black) WPL 8205260 Contact Us For Availability
4
Body Asy, Door Includes 1 (White) WPL 8185035 Contact Us For Availability
4
Body Asy, Door Includes 1 (Biscuit) WPL 8185037 Contact Us For Availability
4
Body Asy, Door Includes 1 (Black) WPL 8185038 Contact Us For Availability
4
Bracket, Thermostat WPL 8204789 Contact Us For Availability
4
Bracket, Control WPL 8185057 Contact Us For Availability
4
Lid, Power Cord WPL 8184897 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Glass, Outer Plast Included with 10 WPL ARI65296A2 Contact Us For Availability
5
Plate, Bottom WPL 8204677 Contact Us For Availability
5
Keyboard Assy. WPL 8205077 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Air Guide Cover WPL 8204676 Contact Us For Availability
6
Glass, Lamp WPL 8184141 Contact Us For Availability
6
Microcomputer WPL 8205261 Contact Us For Availability
6
Cord, Power WPL 8184898 Contact Us For Availability
7
Hinge, Upper WPL 8204679 Contact Us For Availability
7
Holder, Glass WPL 8184889 Contact Us For Availability
7
Ring, Rubber WPL 8184913 Contact Us For Availability
7
Case, Outer (White) WPL 8205207 Contact Us For Availability
7
Case, Outer (Black) WPL 8205212 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8205213 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Grille, Vent (White) WPL 8205245 Contact Us For Availability
8
Grille, Vent (Black) WPL 8205248 Contact Us For Availability
8
Hinge, Lower WPL 8204678 Contact Us For Availability
8
Cover, Fan WPL 8184884 Contact Us For Availability
8
Button, Control (White) WPL 8184110 Contact Us For Availability
8
Button, Control (Biscuit) WPL 8184182 Contact Us For Availability
8
Button, Control (Black) WPL 8184183 Contact Us For Availability
8
Grille, Vent (Stainless Steel) WPL 8205246 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8205247 Contact Us For Availability
9
LCD Assembly WPL 8204689 Contact Us For Availability
9
Motor, Fan Assy WPL 8184876 Contact Us For Availability
9
Cover, Inverter WPL 8184124 Contact Us For Availability
10
Bracket, LCD WPL 8184915 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (White) WPL 8205249 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Stainless Steel) WPL 8205250 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Biscuit) WPL 8205251 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Black) WPL 8205252 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Complete Door (White) WPL 8205253 Contact Us For Availability
11
Complete Door (Stainless Steel) WPL 8205254 Contact Us For Availability
11
Complete Door (Biscuit) WPL 8205255 Contact Us For Availability
11
Complete Door (Black) WPL 8205256 Contact Us For Availability
11
Spring WPL 8169647 Contact Us For Availability
11
Bushing, Rubber WPL 8185058 Contact Us For Availability
12
Handle (Stainless Steel) WPL 8204796 Contact Us For Availability
12
Handle (White) WPL 8205027 Contact Us For Availability
12
Handle (Biscuit) WPL 8205063 Contact Us For Availability
12
Shield WPL 8204790 Contact Us For Availability
12
Plate, Cam WPL 8205211 Contact Us For Availability
12
Sensor, Light Lens WPL 8184919 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Rod WPL 8184135 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
SCREW WPL 8184198 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Housing, Fan WPL 8184894 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Filter, Fan Hood WPL 8190268 Contact Us For Availability
16
Inverter 40 W WPL 8204989 Contact Us For Availability
16
Catch WPL 8185033 Contact Us For Availability
17
Grill WPL 8184862 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
17
Bracket, Holder WPL 8185032 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
18
Filter WPL 8205853 Contact Us For Availability
18
Holder, Inverter WPL 8184670 Contact Us For Availability
18
Installation, Hardware WPL 8169659 Contact Us For Availability
18
Template, Wall WPL 8183987 Contact Us For Availability
18
Wire Harness (Includes Light Sockets) WPL 8184603 Contact Us For Availability
18
Template, Upper WPL 8184781 Contact Us For Availability
18
Plate, Damper WPL 8184902 Contact Us For Availability
18
Miscellaneous WPL ARI65297A8 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Holder, Lamp WPL 8204669 Contact Us For Availability
20
Capacitor, 125 V WPL 8184093 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
22
Plate, Side WPL 8185031 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Cable WPL 8184887 Contact Us For Availability
25
Fuse (2) 4 Amp/250 Volt WPL 8184579 Contact Us For Availability
26
Capacitor WPL 8184092 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
30
Frame, Glass WPL 8169646 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
35
Ribbon Cable (P27 To CN153 On 40 W Inverter) WPL 8205021 Contact Us For Availability
36
Ribbon Cable (P4 To CN151 On 40 W Inverter) WPL 8205022 Contact Us For Availability
× ![]()
