Model Whirlpool GH6178XPQ1 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

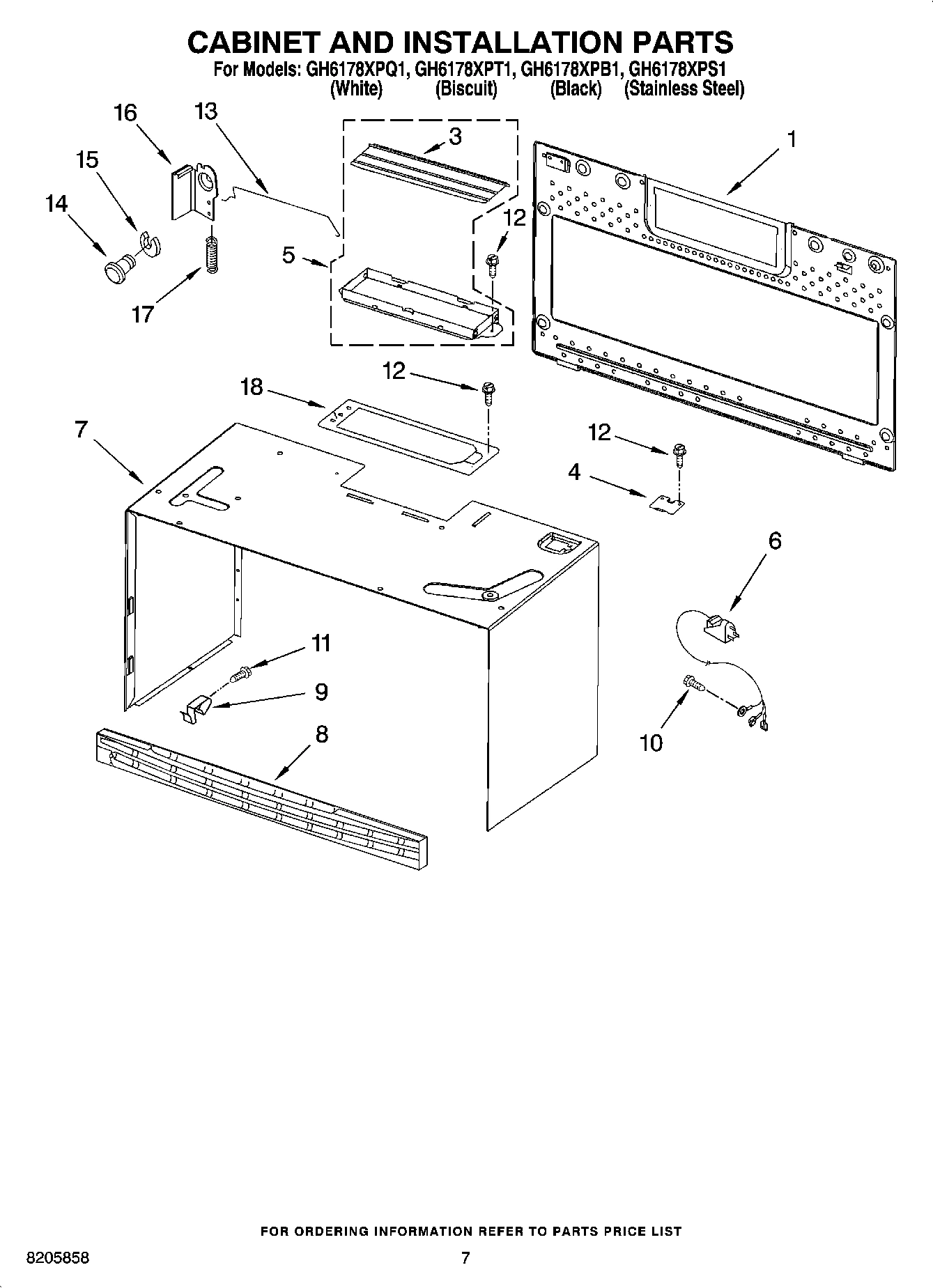

06 - CABINET AND INSTALLATION PARTS

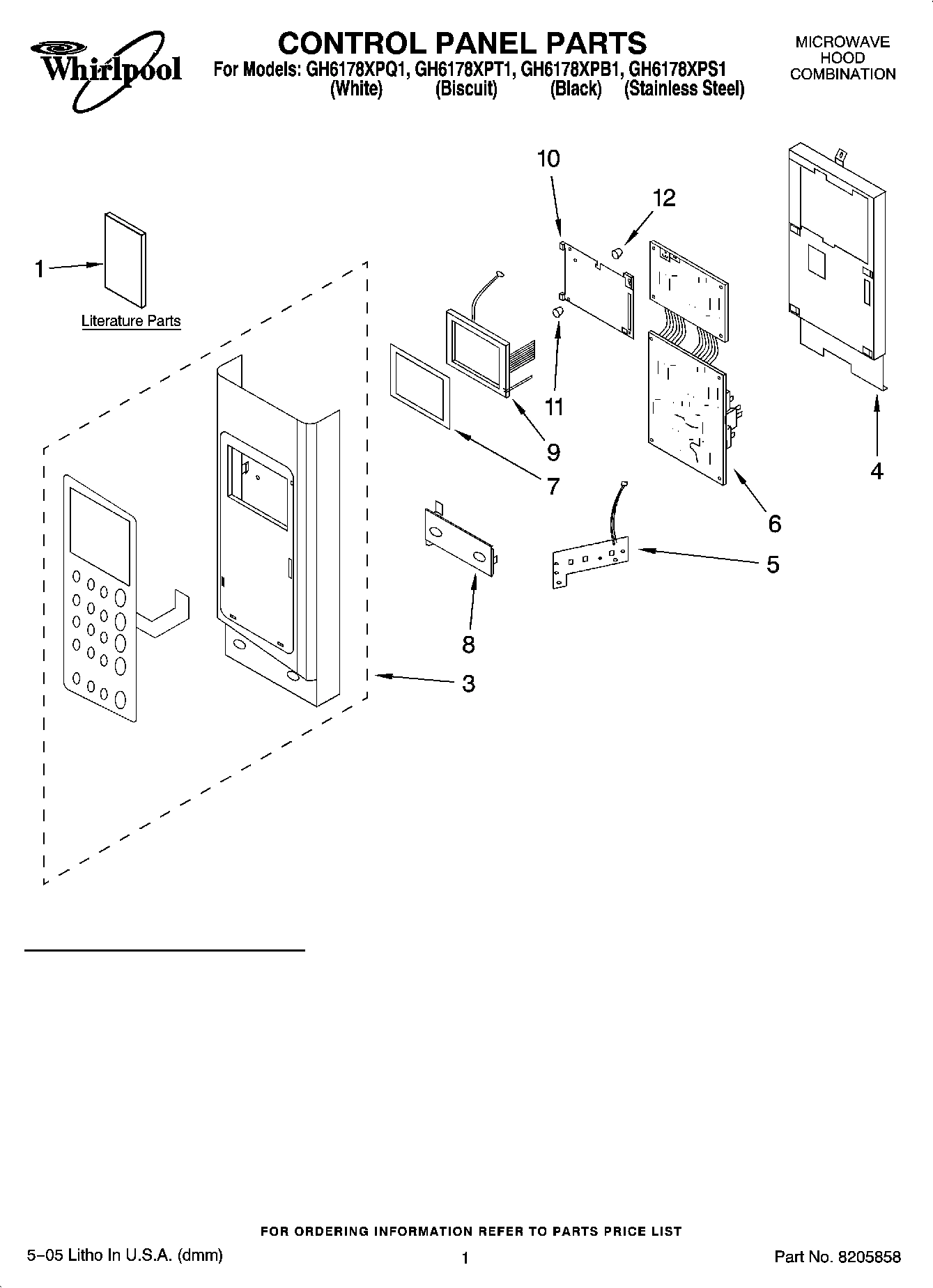

01 - CONTROL PANEL PARTS
03 - INTERIOR AND VENTILATION PARTS
05 - MAGNETRON AND TURNTABLE PARTS
02 - DOOR PARTS
04 - AIR FLOW PARTS
Common parts from model Whirlpool GH6178XPQ1 MICROWAVE HOOD COMBINATION
1
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
1
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
1
Film, Back Included with 4 WPL ARI65285A6 Contact Us For Availability
1
Deflector, Air WPL 8184667 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8205202 Contact Us For Availability
2
Frame, Inner WPL 8204680 Contact Us For Availability
2
Cover, Lamp WPL 8184191 Contact Us For Availability
3
Control Panel Assembly (Biscuit) WPL 8205259 Contact Us For Availability
3
Control Panel Assembly (Black) WPL 8205260 Contact Us For Availability
3
Shield, Nomex WPL 8184485 Contact Us For Availability
3
Latch, Door WPL 8184113 Contact Us For Availability
3
Duct, Air WPL 8184886 Contact Us For Availability
4
Bracket, Control WPL 8185057 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
4
Body Asy, Door Includes 1 (White) WPL 8185035 Contact Us For Availability
4
Body Asy, Door Includes 1 (Biscuit) WPL 8185037 Contact Us For Availability
4
Body Asy, Door Includes 1 (Black) WPL 8185038 Contact Us For Availability
4
Bracket, Thermostat WPL 8204789 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Keyboard Assy. WPL 8205077 Contact Us For Availability
5
Plate, Bottom WPL 8204677 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8185059 Contact Us For Availability
5
Glass, Outer Plast Included with 10 WPL ARI65286A4 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Microcomputer WPL 8205261 Contact Us For Availability
6
Glass, Lamp WPL 8184141 Contact Us For Availability
6
Air Guide Cover WPL 8204676 Contact Us For Availability
7
Ring, Rubber WPL 8184913 Contact Us For Availability
7
Holder, Glass WPL 8184889 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Hinge, Upper WPL 8204679 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Grille, Vent (White) WPL 8205245 Contact Us For Availability
8
Grille, Vent (Black) WPL 8205248 Contact Us For Availability
8
Button, Control (White) WPL 8184110 Contact Us For Availability
8
Button, Control (Biscuit) WPL 8184182 Contact Us For Availability
8
Button, Control (Black) WPL 8184183 Contact Us For Availability
8
Hinge, Lower WPL 8204678 Contact Us For Availability
8
Cover, Fan WPL 8184884 Contact Us For Availability
9
LCD Assembly WPL 8204689 Contact Us For Availability
9
Cover, Inverter WPL 8184124 Contact Us For Availability
9
Motor, Fan Assy WPL 8184876 Contact Us For Availability
10
Bracket, LCD WPL 8184915 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (White) WPL 8205249 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Stainless Steel) WPL 8205250 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Biscuit) WPL 8205251 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Black) WPL 8205252 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Bushing, Rubber WPL 8185058 Contact Us For Availability
11
Complete Door (White) WPL 8205253 Contact Us For Availability
11
Complete Door (Stainless Steel) WPL 8205254 Contact Us For Availability
11
Complete Door (Biscuit) WPL 8205255 Contact Us For Availability
11
Complete Door (Black) WPL 8205256 Contact Us For Availability
11
Spring WPL 8169647 Contact Us For Availability
12
Sensor, Light Lens WPL 8184919 Contact Us For Availability
12
Plate, Cam WPL 8205211 Contact Us For Availability
12
Handle (Stainless Steel) WPL 8204796 Contact Us For Availability
12
Handle (White) WPL 8205027 Contact Us For Availability
12
Handle (Biscuit) WPL 8205063 Contact Us For Availability
12
Shield WPL 8204790 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
SCREW WPL 8184198 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Housing, Fan WPL 8184894 Contact Us For Availability
15
Thermostat WPL 8184951 Contact Us For Availability
16
Inverter 40 W WPL 8204989 Contact Us For Availability
16
Filter, Fan Hood WPL 8190268 Contact Us For Availability
17
Grill WPL 8184862 Contact Us For Availability
17
Bracket, Holder WPL 8185032 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
18
Holder, Inverter WPL 8184670 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Filter WPL 8205853 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Holder, Lamp WPL 8204669 Contact Us For Availability
20
Capacitor, 125 V WPL 8184093 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
22
Plate, Side WPL 8185031 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Cable WPL 8184887 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
25
Fuse (2) 4 Amp/250 Volt WPL 8184579 Contact Us For Availability
25
Thermostat WPL 8204995 Contact Us For Availability
26
Capacitor WPL 8184092 Contact Us For Availability
26
Grill, Insulation Plate WPL 8185060 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
29
Glass, Lamp WPL 8169499 Contact Us For Availability
30
Frame, Glass WPL 8169646 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
32
Cover, Protector WPL 8205239 Contact Us For Availability
35
Ribbon Cable (P27 To CN153 On 40 W Inverter) WPL 8205021 Contact Us For Availability
35
Shield, Front WPL 8185175 Contact Us For Availability
36
Ribbon Cable (P4 To CN151 On 40 W Inverter) WPL 8205022 Contact Us For Availability
36
Shield, Rear WPL 8185176 Contact Us For Availability
× ![]()
