Model Whirlpool GH5184XPS4 Microwave Oven 1.8 Cu. Ft. – Common Parts & Diagrams
05 - MAGNETRON AND TURNTABLE PARTS
03 - INTERIOR AND VENTILATION PARTS

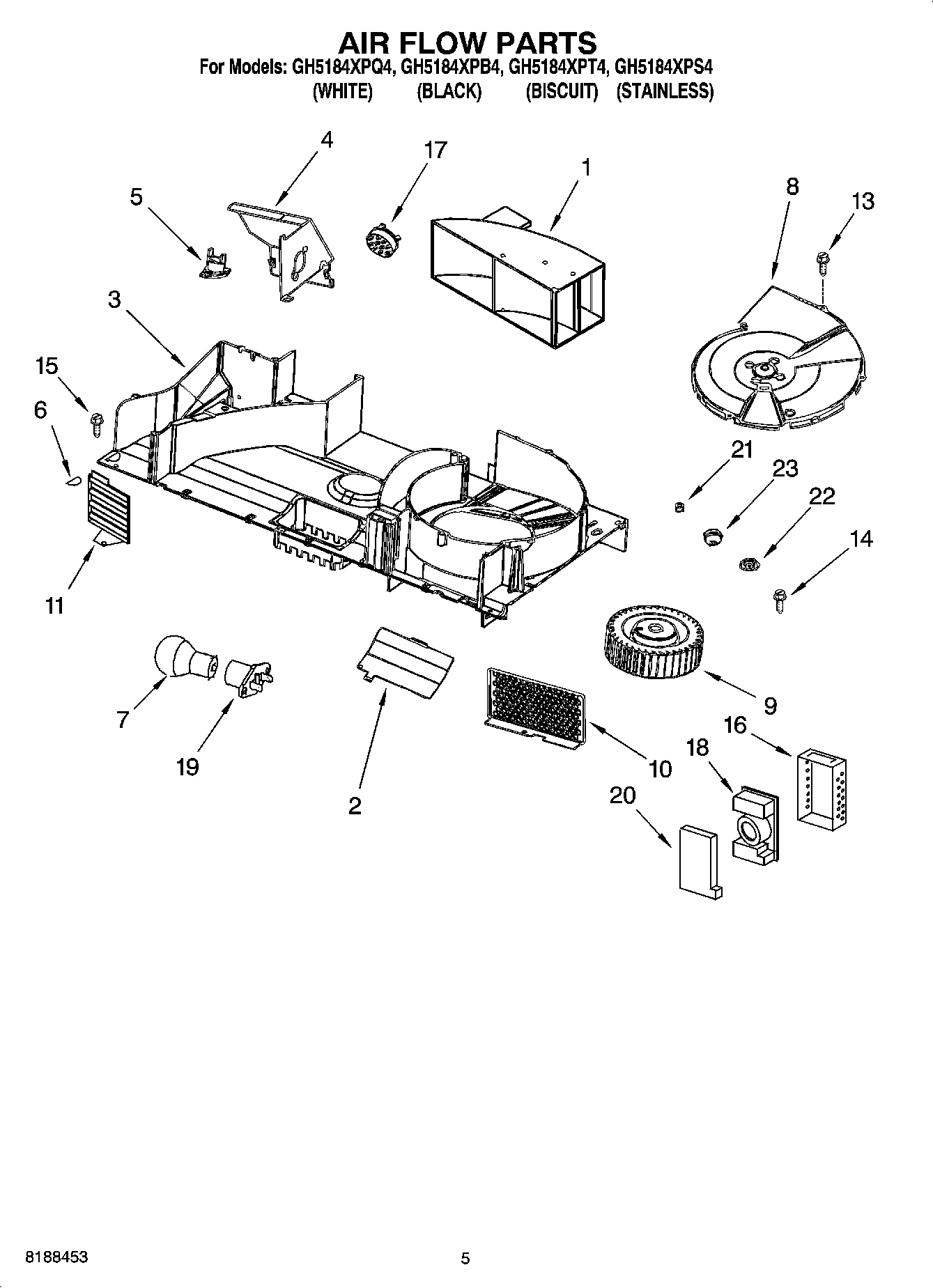

04 - AIR FLOW PARTS

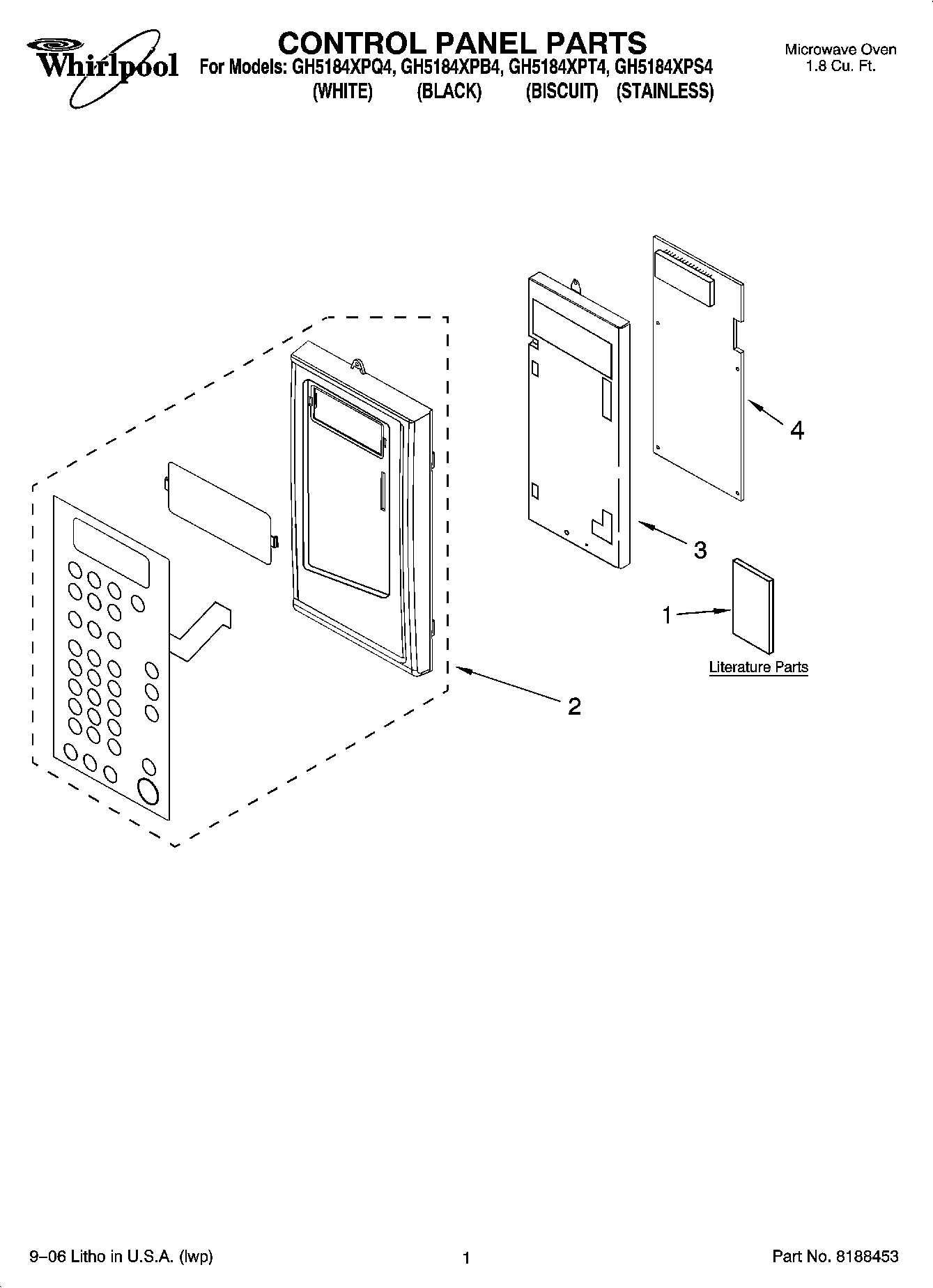

01 - CONTROL PANEL PARTS

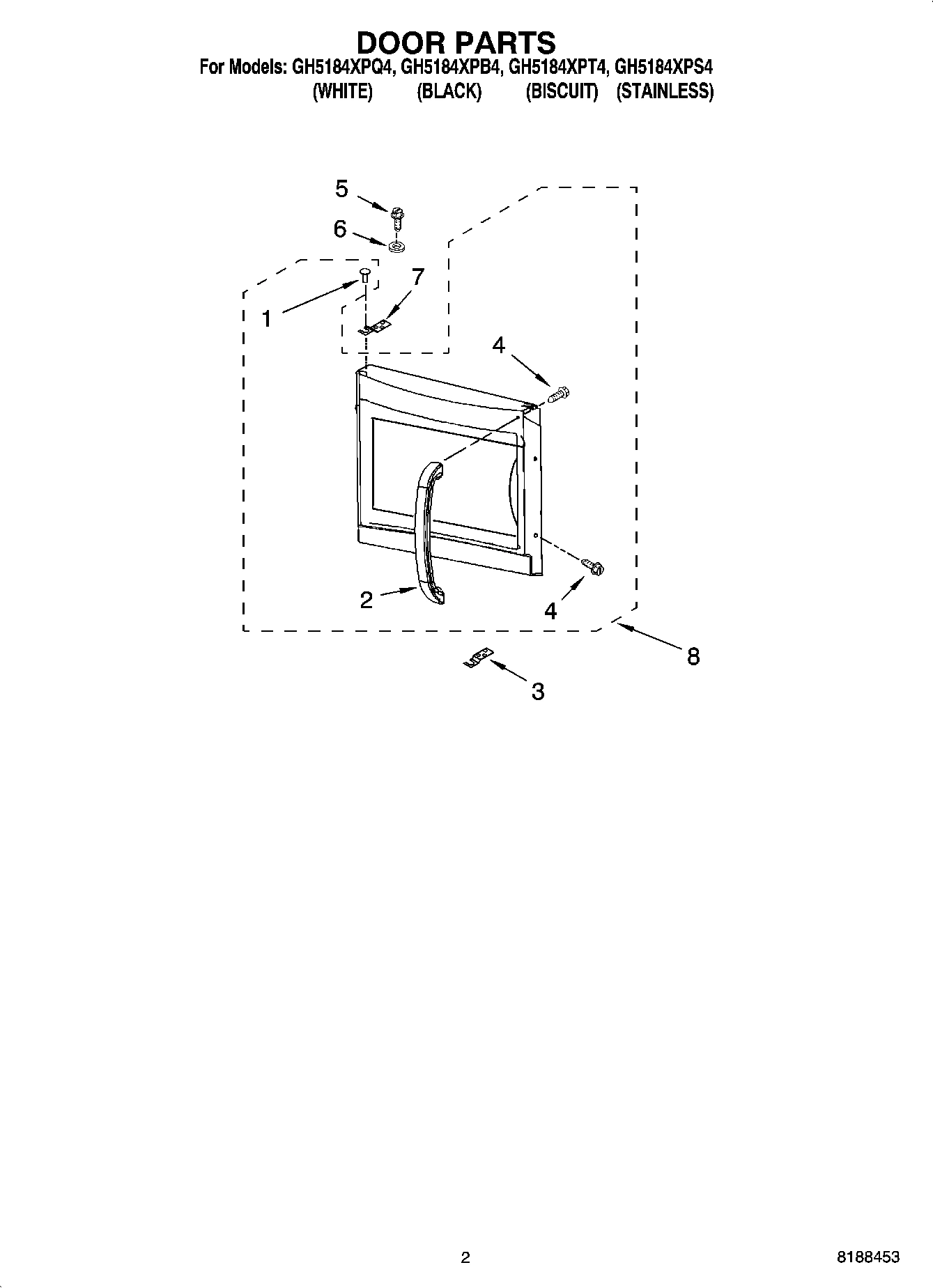

02 - DOOR PARTS

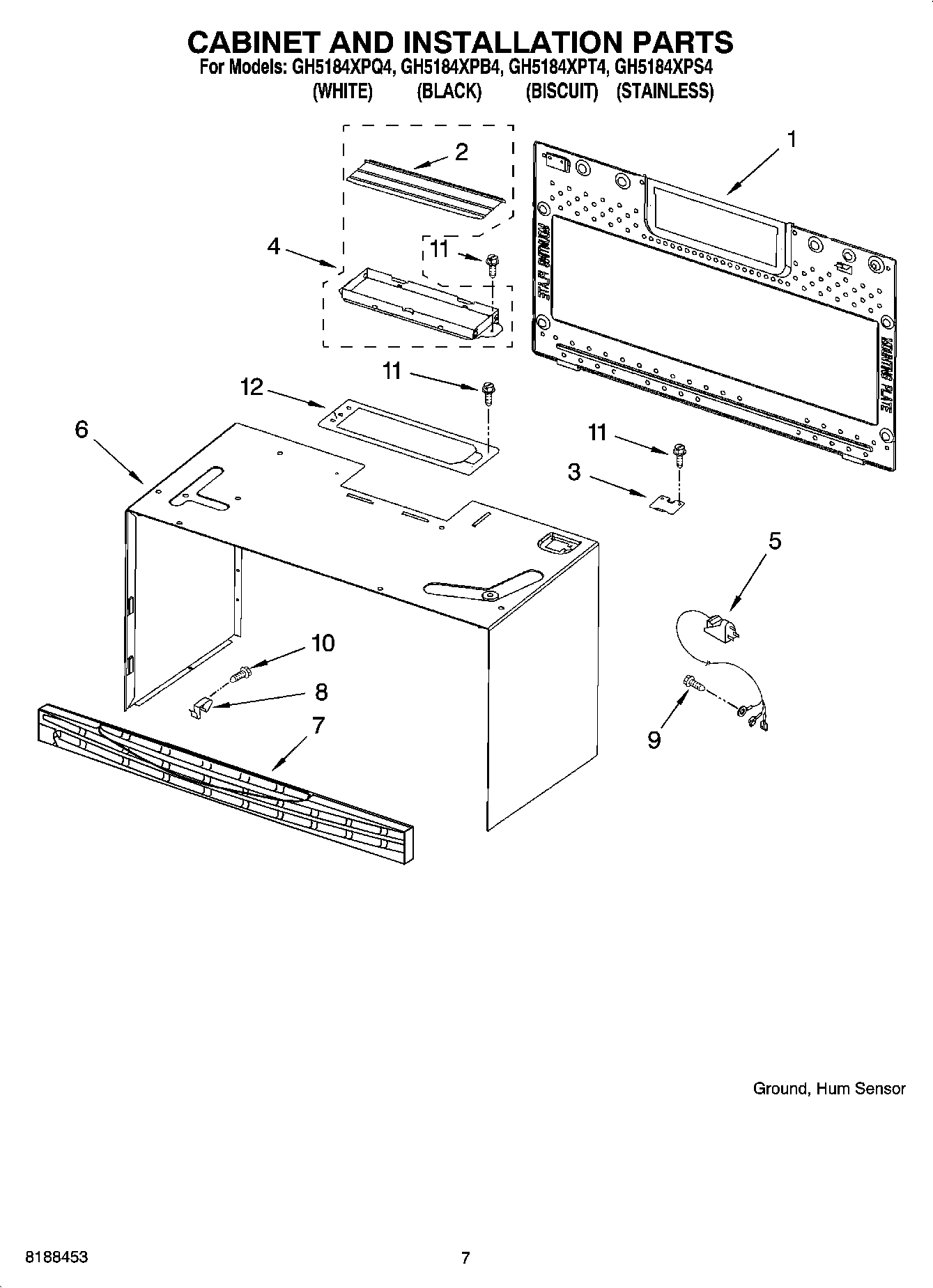

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool GH5184XPS4 Microwave Oven 1.8 Cu. Ft.
1
Pivot, Door WPL 8184922 Contact Us For Availability
1
Deflector, Air WPL 8184667 Contact Us For Availability
1
Cook Guide Label WPL 8204933 Contact Us For Availability
1
Tech Sheet WPL 8205609 Contact Us For Availability
1
U & C Guide WPL 8205973 Contact Us For Availability
1
Instrctn, Instlltn WPL 8206579 Contact Us For Availability
2
Cover, Lamp WPL W10110593 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL 8205417 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL 8205418 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL 8205419 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL 8205923 Contact Us For Availability
2
Handle, Door (White) WPL 8205224 Contact Us For Availability
2
Handle, Door (Biscuit) WPL 8205225 Contact Us For Availability
2
Handle, Door (Stainless) WPL 8205227 Contact Us For Availability
3
Duct, Air WPL 8185350 Contact Us For Availability
3
Bracket, Control WPL W10114256 Contact Us For Availability
3
Lower Hinge WPL W10114254 Contact Us For Availability
3
Lid, Power Cord WPL 8184897 Contact Us For Availability
4
Bracket, Thermostat WPL 8204789 Contact Us For Availability
4
Microcomputer WPL 8205421 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Screw WPL 8205438 Contact Us For Availability
5
Cord, Power WPL 8205640 Contact Us For Availability
6
Cover WPL 8204676 Contact Us For Availability
6
Case, Outer (White) WPL 8205397 Contact Us For Availability
6
Case, Outer (Black) WPL 8205398 Contact Us For Availability
6
Case, Outer (Biscuit) WPL 8205399 Contact Us For Availability
7
Upper Hinge WPL W10114255 Contact Us For Availability
7
Grille, Vent (Biscuit) WPL 8205216 Contact Us For Availability
7
Grille, Vent (Stainless) WPL 8205217 Contact Us For Availability
8
Complete Door (Black) WPL 8205414 Contact Us For Availability
8
Complete Door (Biscuit) WPL 8205415 Contact Us For Availability
8
Cover, Fan WPL 8184884 Contact Us For Availability
8
Complete Door (White) WPL 8205413 Contact Us For Availability
8
Complete Door (Stainless) WPL 8205416 Contact Us For Availability
9
Motor, Fan Assy WPL W10114253 Contact Us For Availability
10
Screw WPL 8169475 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
SHIELD WPL 8206460 Contact Us For Availability
12
Installation, Hardware WPL 8205947 Contact Us For Availability
12
Template, Upper WPL 8184781 Contact Us For Availability
12
Miscellaneous WPL ARI148871A Contact Us For Availability
12
Plate, Damper WPL W10110597 Contact Us For Availability
12
Harns-Wire Magnetron WPL W10110600 Contact Us For Availability
12
Harns-Wire Ground, Main WPL W10110601 Contact Us For Availability
12
Harns-Wire Filter Capacitor WPL W10110602 Contact Us For Availability
12
Harns-Wire Ground, Hum Sensor WPL W10111830 Contact Us For Availability
12
Harns-Wire AC Line Filter WPL W10114260 Contact Us For Availability
12
Harns-Wire, Main WPL W10114261 Contact Us For Availability
12
Harns-Wire Lamp/TT WPL W10114262 Contact Us For Availability
12
Harns-Wire Ground, Inverter WPL W10114263 Contact Us For Availability
12
Harns-Wire Cavity Therm 1-2 WPL W10114264 Contact Us For Availability
12
Harns-Wire Cavity Therm 2-3 WPL W10114265 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
Thermostat WPL 8183994 Contact Us For Availability
14
SCREW WPL 8184198 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
16
Wheel (3) WPL 4393861 Contact Us For Availability
16
Holder-Noise Fltr WPL W1011258 Contact Us For Availability
17
Humidity, Sensor WPL 8206446 Contact Us For Availability
18
Filter WPL 8205853 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Holder, Lamp WPL 8184926 Contact Us For Availability
20
Cvr Plt-NoiseFltr WPL W10114259 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
22
Plate, Side WPL 8185031 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
24
Cable WPL 8184887 Contact Us For Availability
25
Cover, Terminal WPL 8184202 Contact Us For Availability
26
Capacitor WPL 8184204 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
35
Foil, Lamp WPL 8184203 Contact Us For Availability
36
Brkt-Support Ferrite Holder WPL W10114257 Contact Us For Availability
37
Ferrite Ring WPL 8206086 Contact Us For Availability
× ![]()
