Model Whirlpool GH4184XSB0 Microwave Oven 1.8 Cu. Ft. – Common Parts & Diagrams

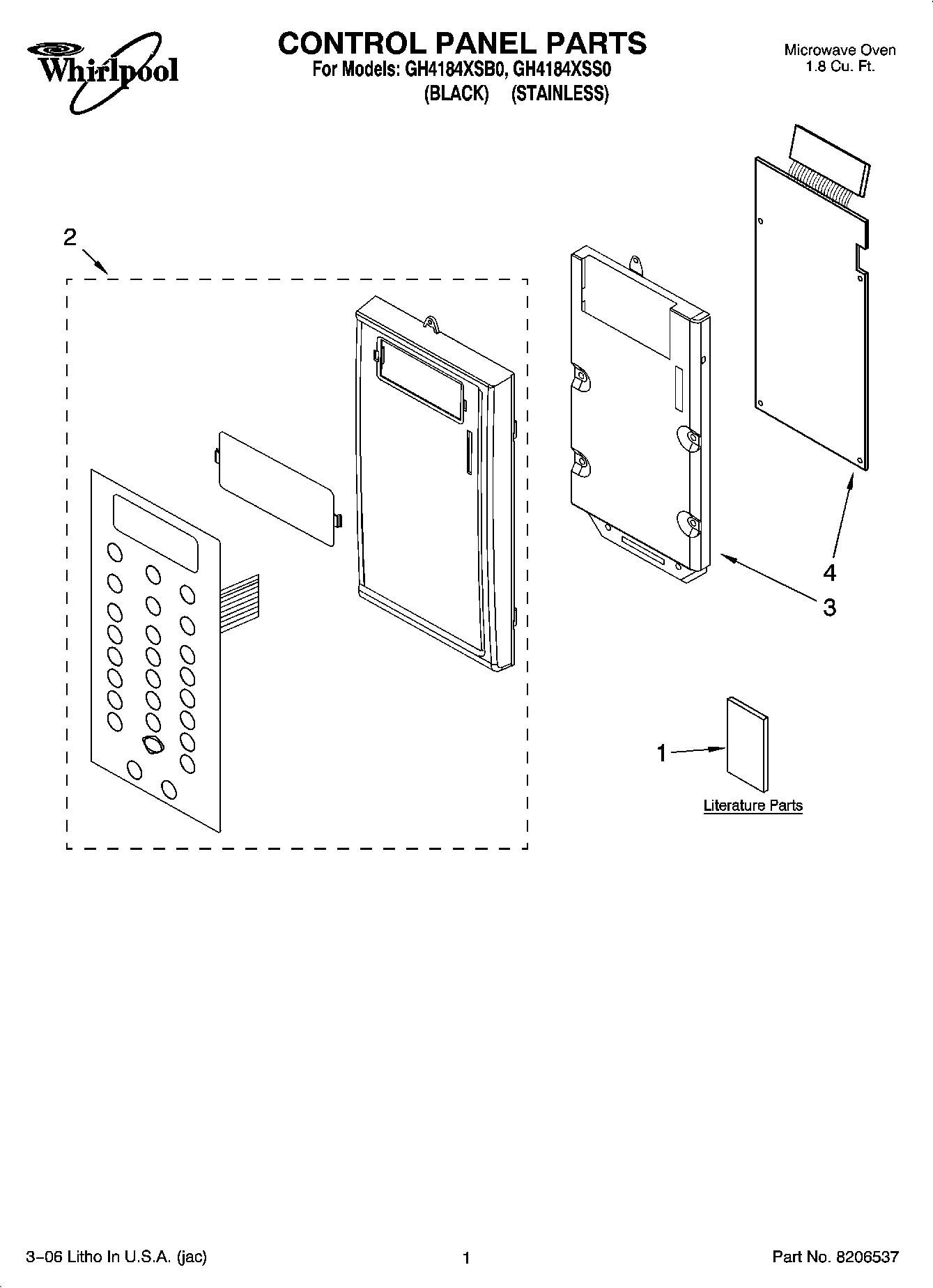

01 - CONTROL PANEL PARTS

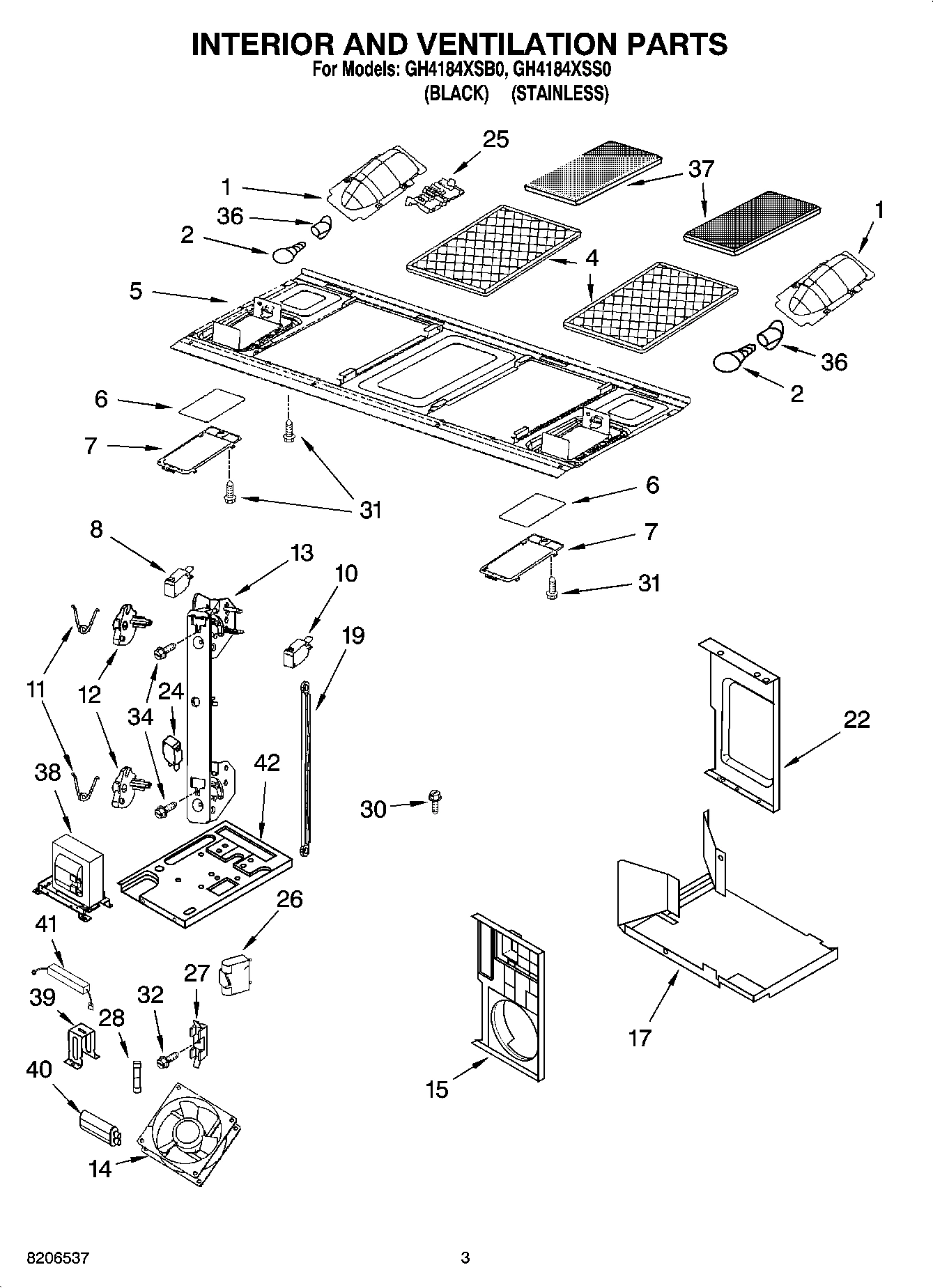

03 - INTERIOR AND VENTILATION PARTS
06 - CABINET AND INSTALLATION PARTS
02 - DOOR PARTS
04 - AIR FLOW PARTS
05 - MAGNETRON AND TURNTABLE PARTS
Common parts from model Whirlpool GH4184XSB0 Microwave Oven 1.8 Cu. Ft.
1
Pivot, Door WPL 8184922 Contact Us For Availability
1
Plate, Mounting WPL 8206172 Contact Us For Availability
1
Deflector, Air WPL 8205350 Contact Us For Availability
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL 8206463 Contact Us For Availability
2
Handle, Door (Stainless) WPL 8206176 Contact Us For Availability
2
Cover, Lamp WPL 8206453 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8205202 Contact Us For Availability
3
Lower Hinge WPL 8204678 Contact Us For Availability
3
Duct, Air WPL 8205368 Contact Us For Availability
3
Shield, Nomex WPL 8205369 Contact Us For Availability
4
Lid, Power Cord WPL 8184897 Contact Us For Availability
4
Thermostat/Bracket WPL 8206454 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8184604 Contact Us For Availability
5
Thermostat WPL 8183703 Contact Us For Availability
6
Cover WPL 8204676 Contact Us For Availability
7
Case, Outer WPL 8205348 Contact Us For Availability
7
Upper Hinge WPL 8204679 Contact Us For Availability
7
Nails/Bushings (4 of each) WPL 8184549 Contact Us For Availability
8
Grille, Vent (Stainless) WPL 8205217 Contact Us For Availability
8
Complete Door (Black) WPL 8206461 Contact Us For Availability
8
Complete Door (Stainless) WPL 8206462 Contact Us For Availability
8
Air Guide, Back WPL 8205354 Contact Us For Availability
8
Turntable WPL 8206226 Contact Us For Availability
9
Motor, Fan Assy WPL 8206175 Contact Us For Availability
10
Shield WPL 8205355 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
SHIELD WPL 8206460 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Thermostat WPL 8184951 Contact Us For Availability
16
Air Guide (Right) WPL 8205352 Contact Us For Availability
16
Air Guide (Left) WPL 8205367 Contact Us For Availability
16
Rack WPL 8205549 Contact Us For Availability
17
Humidity, Sensor WPL 8206446 Contact Us For Availability
18
Template, Upper WPL 8184731 Contact Us For Availability
18
H.V. Wire Assembly WPL 8205693 Contact Us For Availability
18
Plate, Damper WPL 8206452 Contact Us For Availability
18
FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous WPL ARI148853A Contact Us For Availability
18
Filter WPL 8169561 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
20
Base Plate, Air Guide WPL 8205351 Contact Us For Availability
24
Socket, Motor Wire WPL 8185097 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
38
Transformer, H.V. WPL 8206456 Contact Us For Availability
39
Bracket, Capacitor WPL 8206457 Contact Us For Availability
40
Capacitor, H.V. WPL 8206458 Contact Us For Availability
42
Chassis WPL 8206459 Contact Us For Availability
× ![]()
