Model Whirlpool GH4155XPS2 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

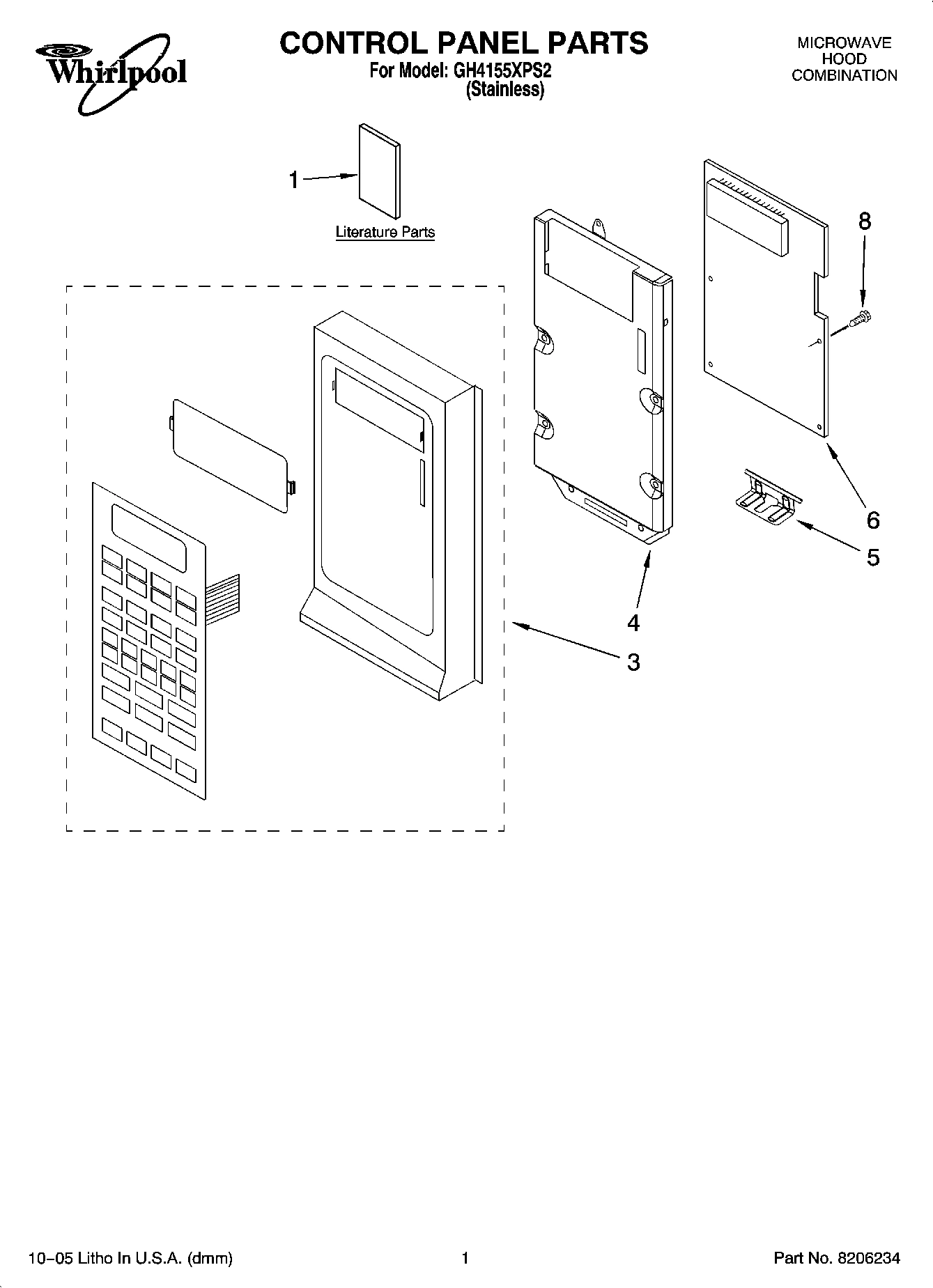

01 - CONTROL PANEL PARTS

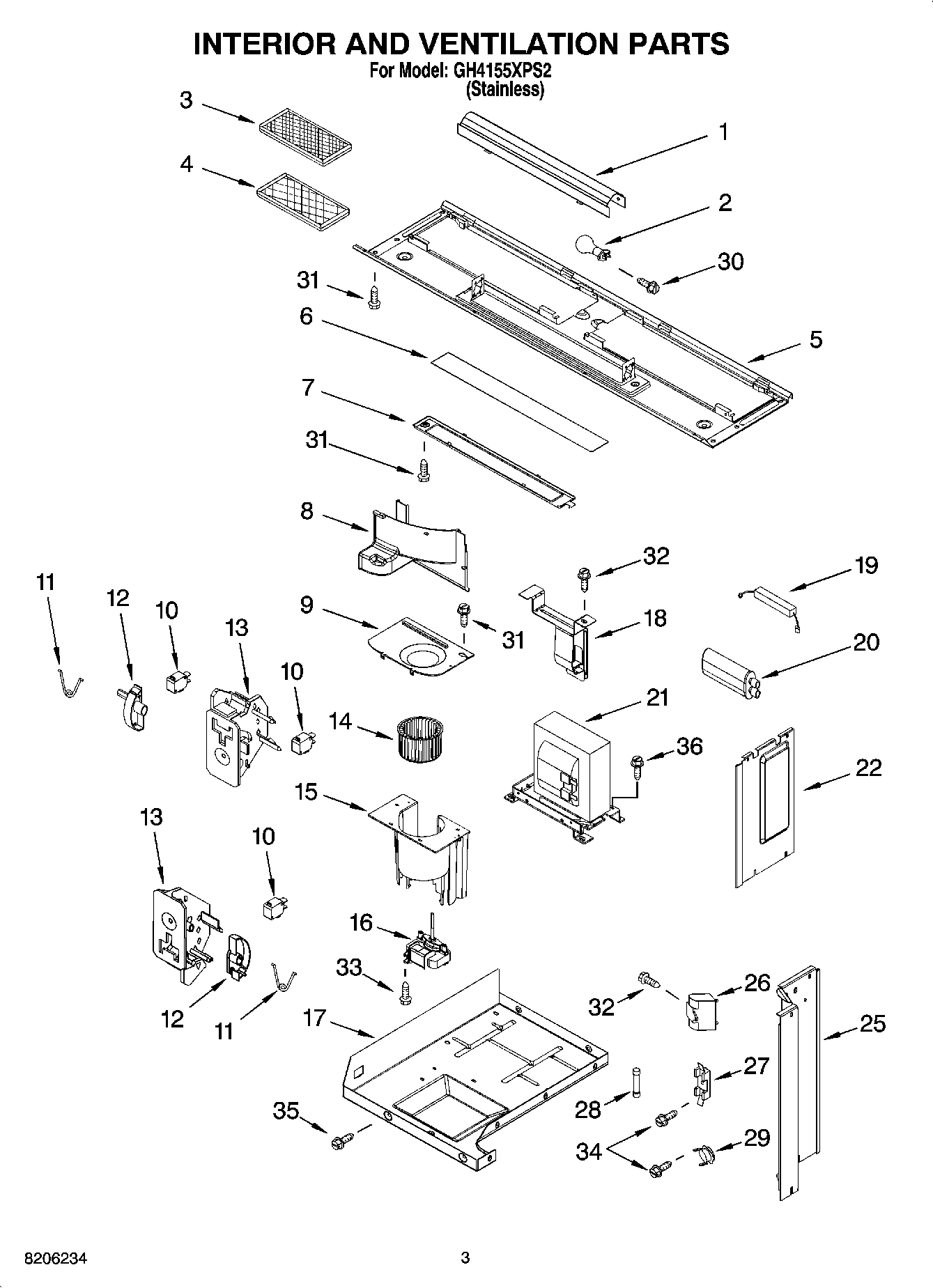

03 - INTERIOR AND VENTILATION PARTS

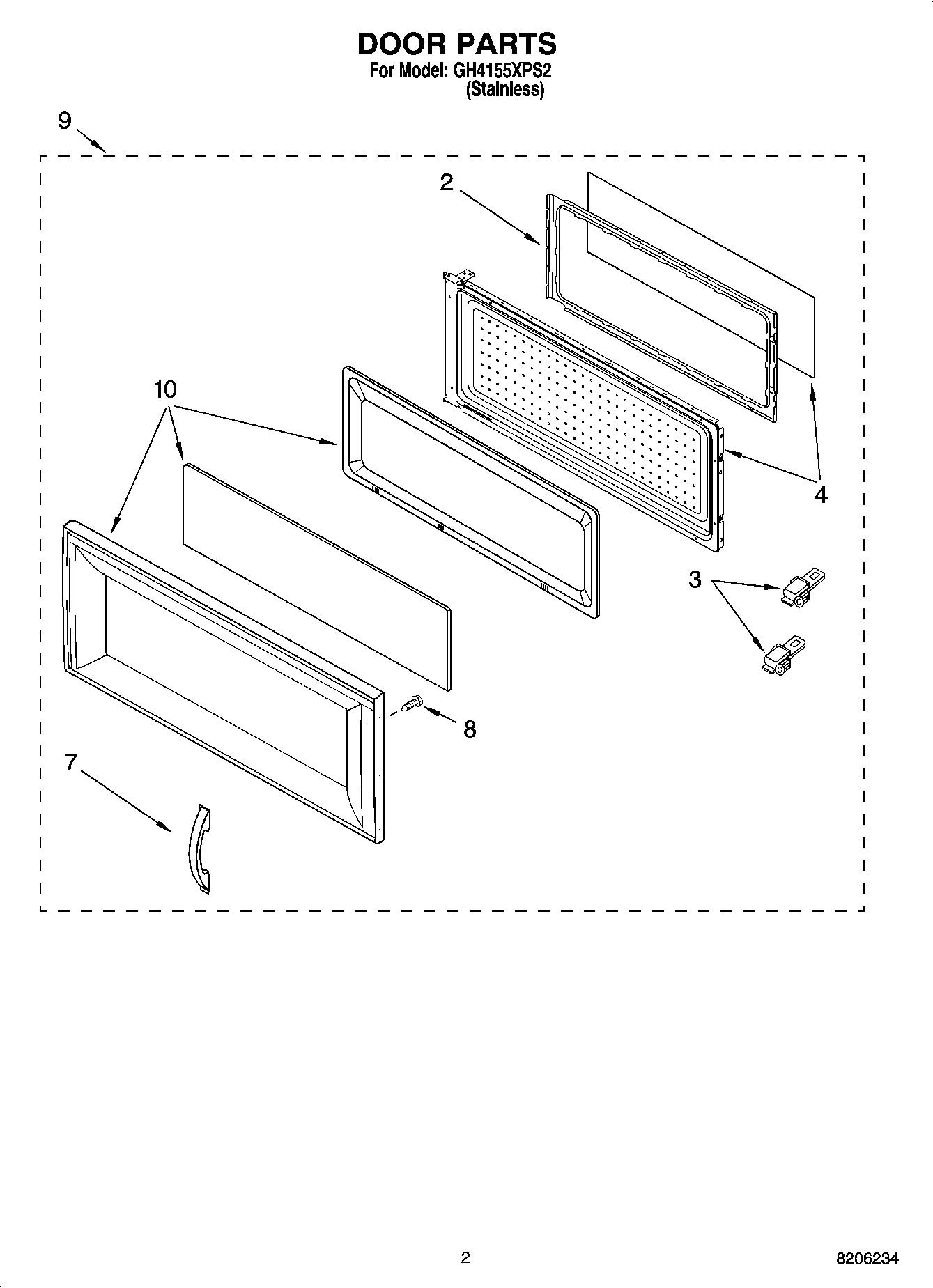

02 - DOOR PARTS

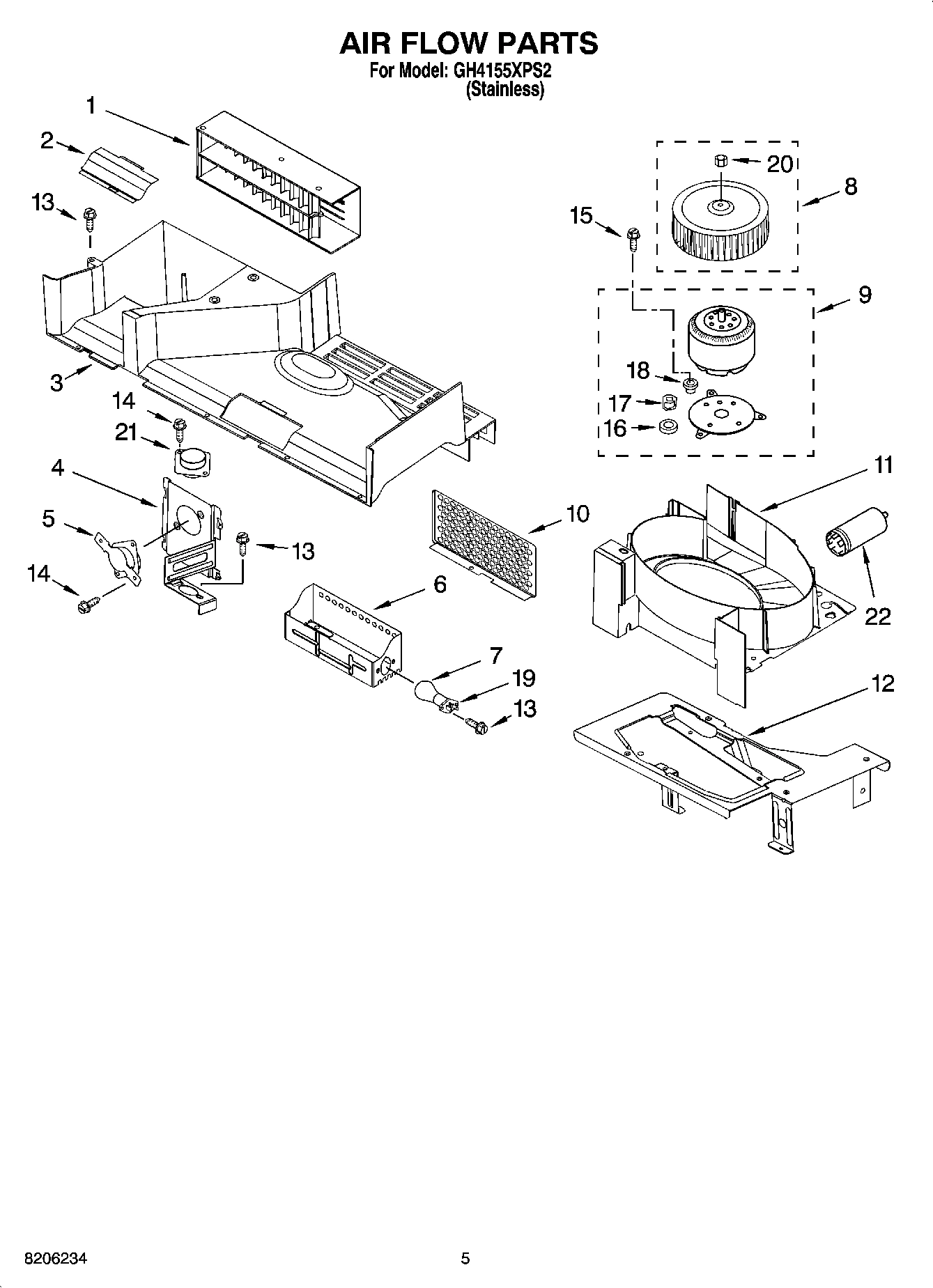

04 - AIR FLOW PARTS
05 - MAGNETRON AND TURNTABLE PARTS

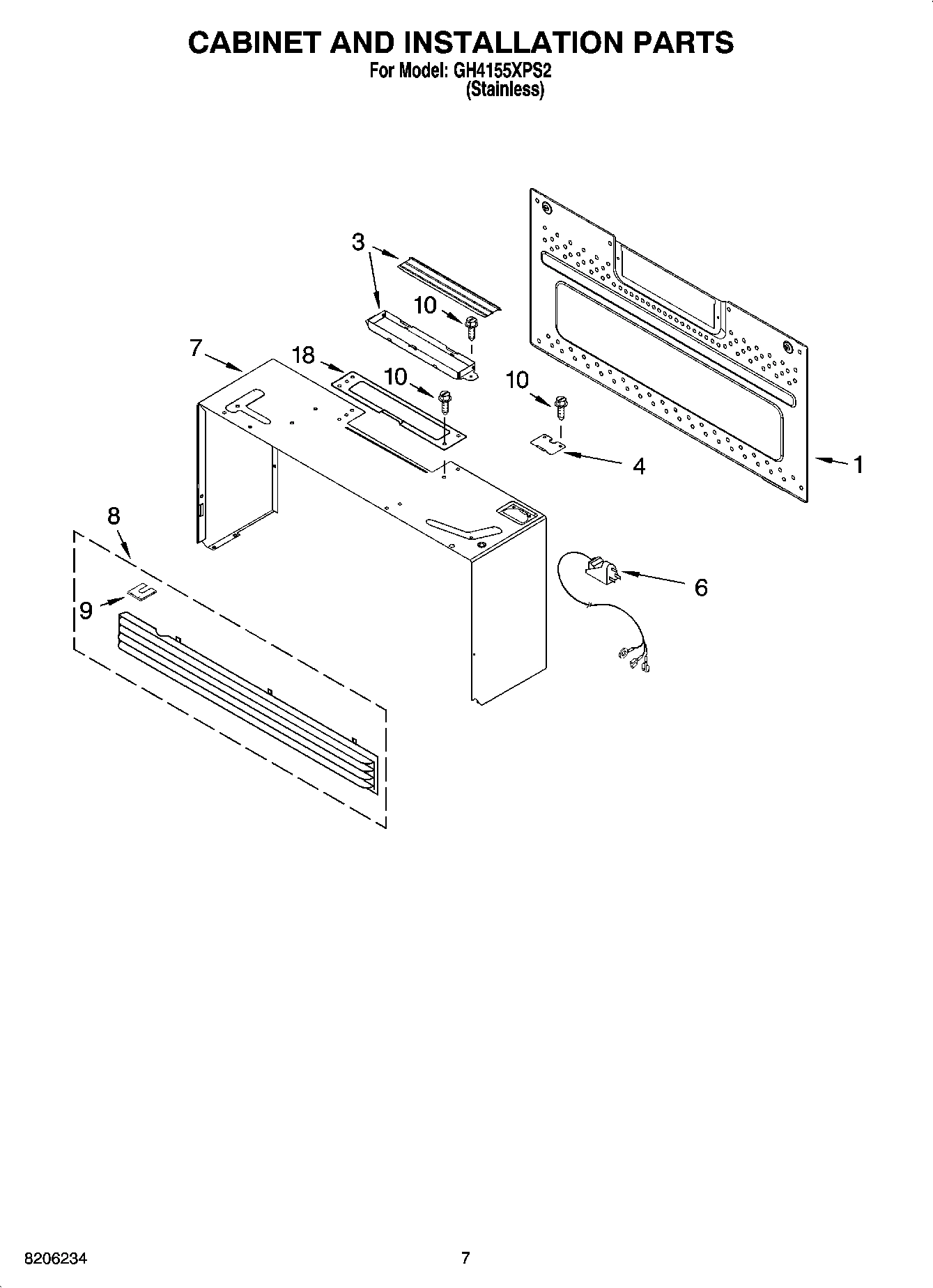

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool GH4155XPS2 MICROWAVE HOOD COMBINATION
1
Deflector, Air WPL 8184638 Contact Us For Availability
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8205315 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Duct, Air WPL 8185083 Contact Us For Availability
4
Body, Door WPL 8185109 Contact Us For Availability
4
Bracket, Thermostat WPL 8204653 Contact Us For Availability
4
Lid, Power Cord WPL 8184313 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Cover, Inlet WPL 8184476 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Housing, Lamp WPL 8184745 Contact Us For Availability
6
Cord, Power WPL 8184898 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Case, Outer WPL 8169661 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Screw WPL 4393833 Contact Us For Availability
8
Wheel, Fan WPL 8204694 Contact Us For Availability
9
Door, Complete WPL 8205322 Contact Us For Availability
9
Motor, Fan WPL 8204751 Contact Us For Availability
10
Frame, Outer WPL 8205321 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8184624 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
12
Bracket, Fan (Not Serviced) WPL ARI65170A6 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Screw WPL 8169478 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
16
Plate, Damper WPL 4393874 Contact Us For Availability
16
Holder, Connector (L) WPL 8205792 Contact Us For Availability
17
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
18
Cushion, Mtr WPL 8169635 Contact Us For Availability
18
Filler Kit (Black) WPL 8171337 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Hardware, Installation WPL 8169659 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Upper Template WPL 8184781 Contact Us For Availability
18
Rack WPL 8204725 Contact Us For Availability
18
Cavity Light Wire Assembly WPL 8205843 Contact Us For Availability
18
Fan Motor Wire Assembly WPL 8205844 Contact Us For Availability
18
Stirrer Motor Wire Assembly WPL 8205845 Contact Us For Availability
18
Hood Light Wire Assembly WPL 8205846 Contact Us For Availability
18
H.V. Wire Assy WPL 8205847 Contact Us For Availability
18
Ground Wire Assy WPL 8205848 Contact Us For Availability
18
ACCESSORY PARTS WPL ARI65171A5 Contact Us For Availability
18
Miscellaneous WPL ARI65172A1 Contact Us For Availability
20
Nut WPL 8184404 Contact Us For Availability
21
Transformer, H.V. WPL 8206250 Contact Us For Availability
21
Sensor, Humidity WPL 4393808 Contact Us For Availability
22
Plate, Side (R) WPL 8204657 Contact Us For Availability
22
Filter WPL 8169561 Contact Us For Availability
24
Thermostat And Bracket WPL 8184585 Contact Us For Availability
25
Plate, Side (L) WPL 8204658 Contact Us For Availability
26
Hinge, Upper WPL 8183741 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
27
Hinge, Lower WPL 8183742 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
30
Screw WPL 8169474 Contact Us For Availability
36
Screw WPL 4393839 Contact Us For Availability
× ![]()
