Model Electrolux GGF353SADB RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BURNER

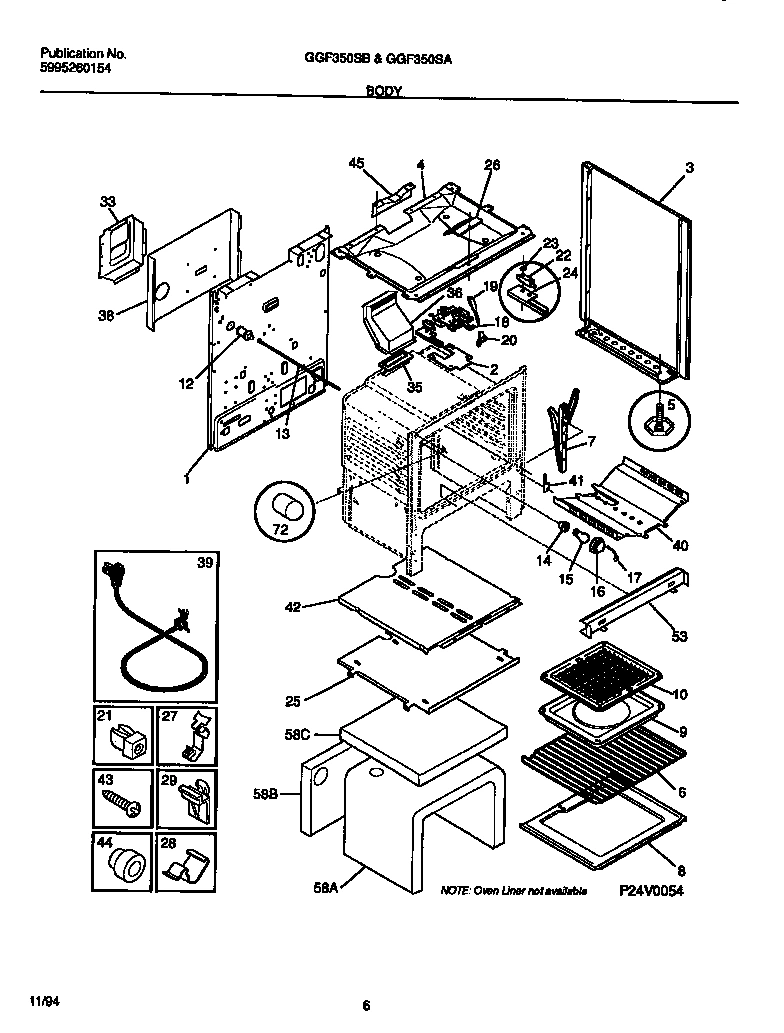

04 - BODY

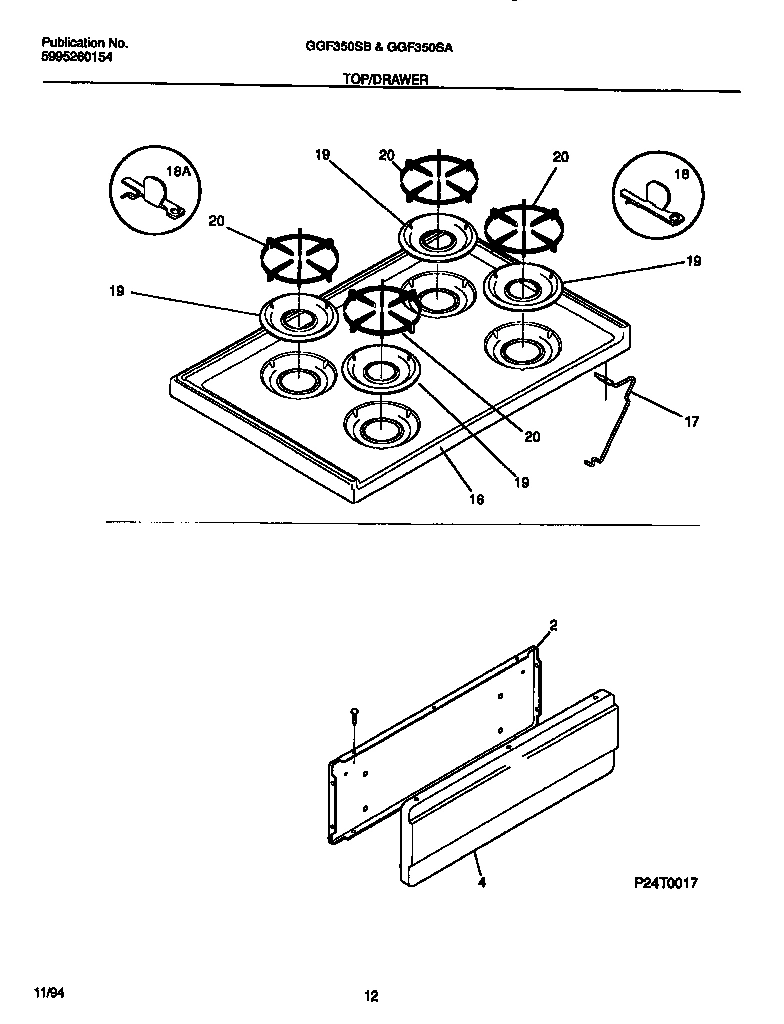

06 - TOP/DRAWER

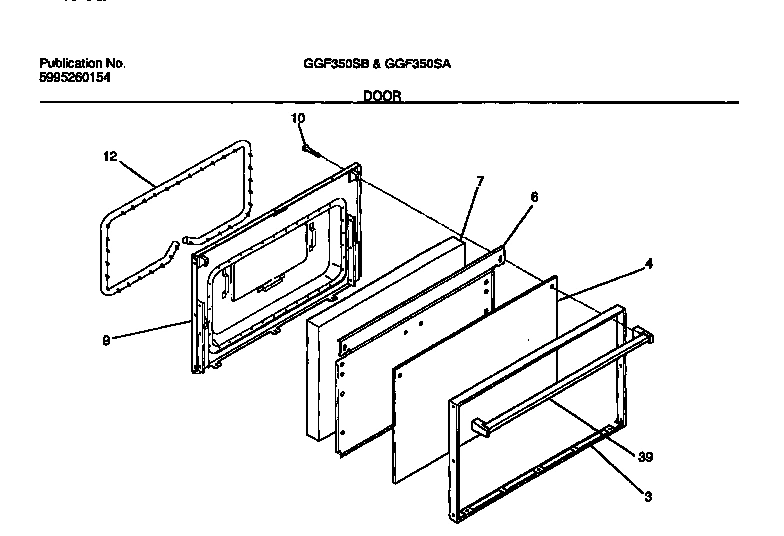

07 - DOOR

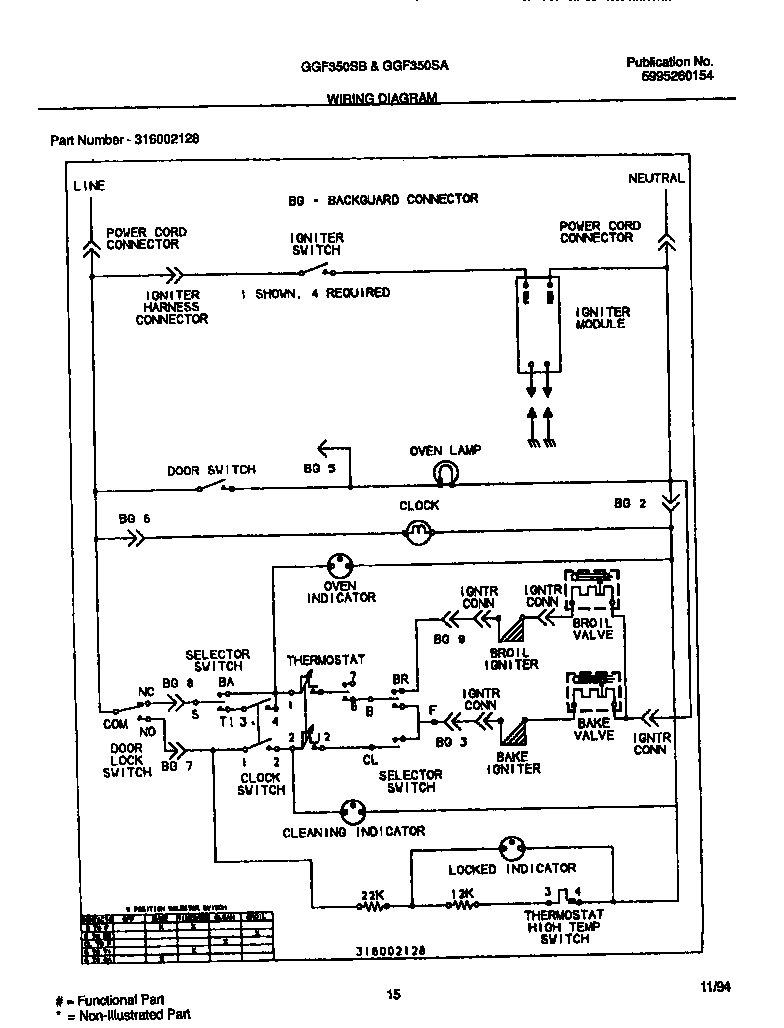

08 - WIRING DIAGRAM
Common parts from model Electrolux GGF353SADB RANGE
*71124
WCI 3200846 WCI 3200846 Contact Us For Availability
*71125
WCI 08067961 WCI 08067961 Contact Us For Availability
*71128
FOIL-ALUMINUM WCI 3017527 Contact Us For Availability
*71131
Plug-button,glide ,(4) WCI 3018702 Contact Us For Availability
*71132
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*71133
WCI 316065300 WCI 316065300 Contact Us For Availability
*71134
RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability
*71135
WCI 5303212671 WCI 5303212671 Contact Us For Availability
*71136
WCI 5303269859 WCI 5303269859 Contact Us For Availability
*71137
WCI 5303280311 WCI 5303280311 Contact Us For Availability
1
WCI 316029405 WCI 316029405 Contact Us For Availability
2
WCI 3131314 WCI 3131314 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 316032001 WCI 316032001 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
3A
PANEL-BODYSIDE, WHITE, LH (NON-ILLUSTRATED) WCI 5303269519 Contact Us For Availability
3B
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
3C
SHIELD-INSULATION, GALV STEEL (NON-ILLUSTRATE WCI 08067992 Contact Us For Availability
4
WCI 3011597 WCI 3011597 Contact Us For Availability
4
PANEL-DUMMY, WHITE WCI 3051201 Contact Us For Availability
4
GLASS-OVEN DOOR, SOLID BLACK, OUTER WCI 5303051153 Contact Us For Availability
4A
SPACER, PANEL/SHIELD (NON-ILLUSTRATED) WCI 3200612 Contact Us For Availability
4B
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934058 Contact Us For Availability
5B
WCI 5303288460 WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION, BLACK WCI 5303209317 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
WCI 3013279 WCI 3013279 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066602 WCI 316066602 Contact Us For Availability
10
WCI 316057100 WCI 316057100 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
10
WCI 316073900 WCI 316073900 Contact Us For Availability
11
IGNITER-TOP BURNER, BASE, (2) WCI 3200276 Contact Us For Availability
12
WCI 316027702 WCI 316027702 Contact Us For Availability
13
TUBE, ALUMINUM, RGLTR TO MANF, W/FITTINGS WCI 316065005 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
16
WCI 316065003 WCI 316065003 Contact Us For Availability
16
WCI 3200657 WCI 3200657 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
18
WCI 5303015453 WCI 5303015453 Contact Us For Availability
18
WCI 3131290 WCI 3131290 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18A
SHIELD-LATCH, TOP (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
19
WCI 5303131115 No Longer Available
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
20
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
20
WCI 3203218 WCI 3203218 Contact Us For Availability
20A
WCI 08013188 WCI 08013188 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
SWITCH-LATCH WCI 5303269499 Contact Us For Availability
22A
WCI 08067978 WCI 08067978 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
24
WCI 316070400 WCI 316070400 Contact Us For Availability
24
SHIELD-LATCH WCI 3051413 Contact Us For Availability
25
BAFFLE-BROILER WCI 5303210379 Contact Us For Availability
25
WCI 3131313 WCI 3131313 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
33
BRACKET BURNER MTG WCI 3200277 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 3131931 WCI 3131931 Contact Us For Availability
38
WCI 316014301 WCI 316014301 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303273127 Contact Us For Availability
39A
WCI 5303292880 WCI 5303292880 Contact Us For Availability
40
WCI 3200836 WCI 3200836 Contact Us For Availability
40A
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303270104 WCI 5303270104 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
53
WCI 5303271047 WCI 5303271047 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
58B
WCI 316054200 WCI 316054200 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
× ![]()
