Model Electrolux GG32NW3 RANGE – Common Parts & Diagrams

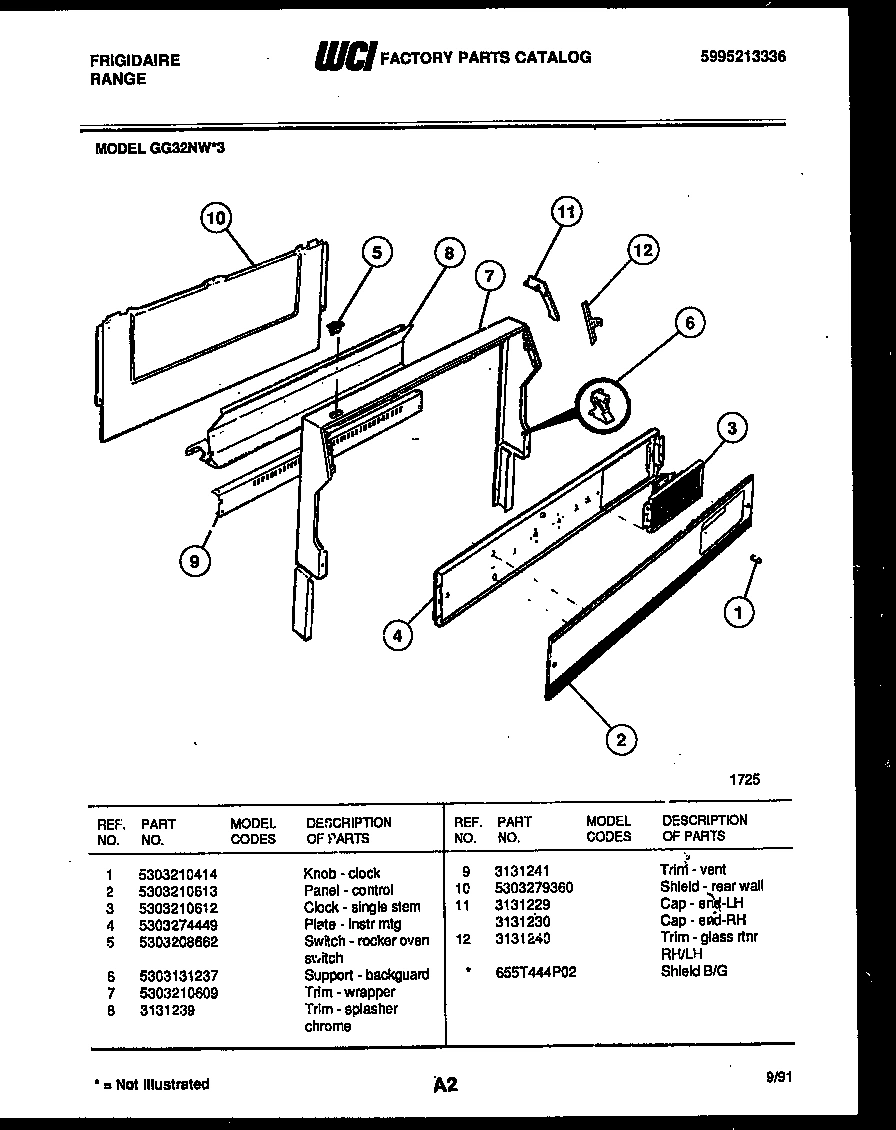

02 - BACKGUARD

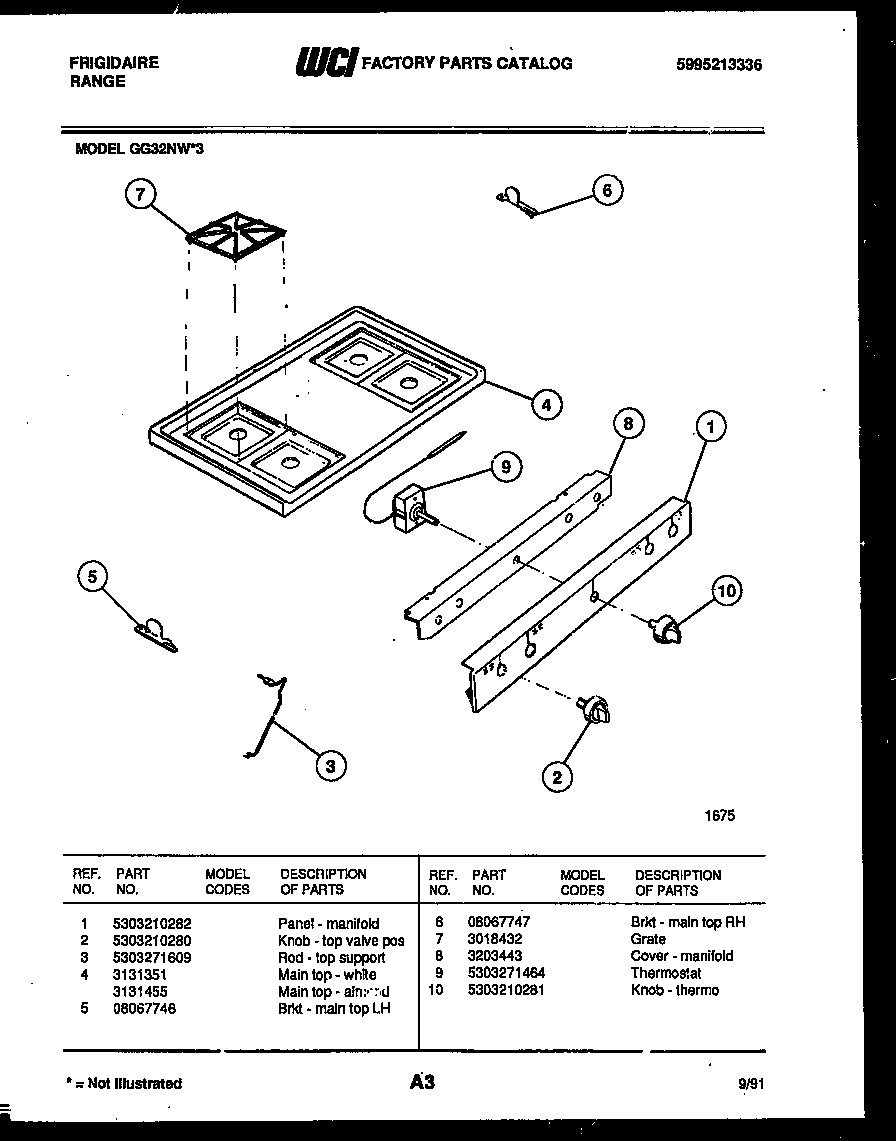

03 - COOKTOP PARTS

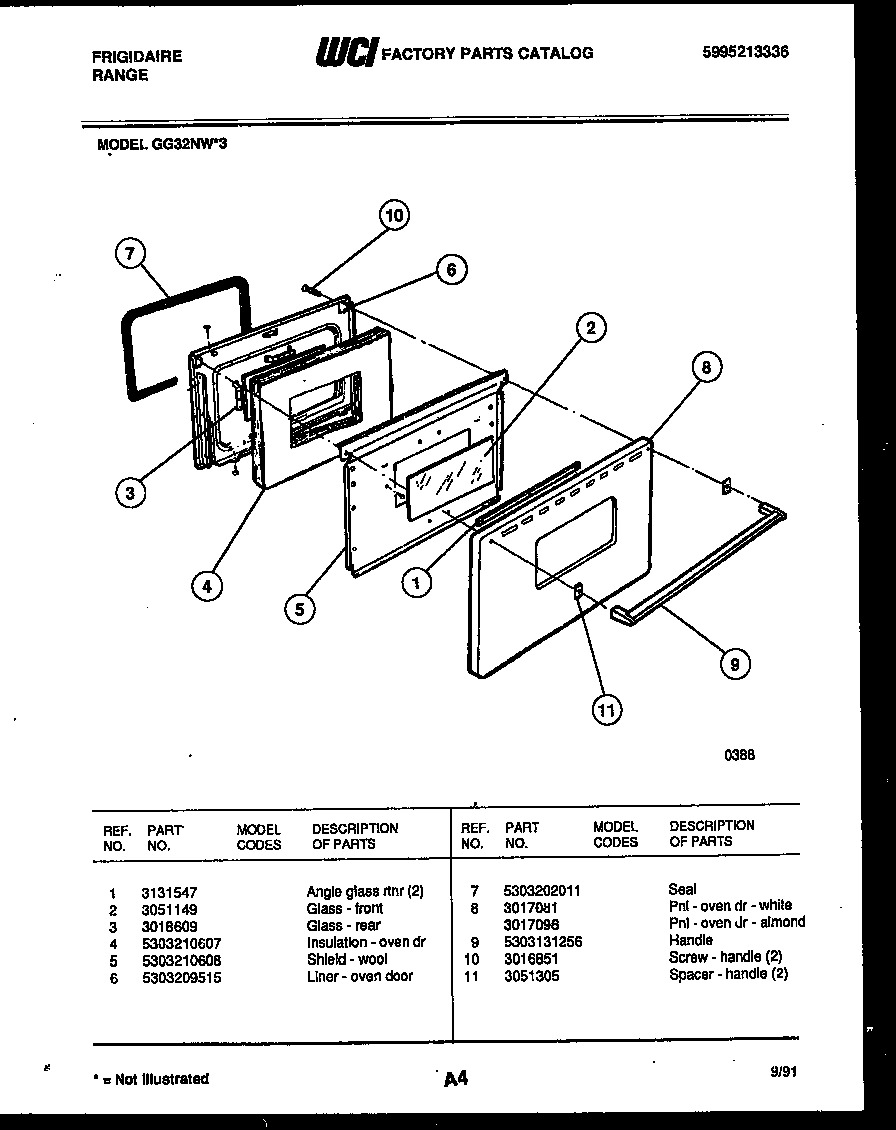

04 - DOOR PARTS

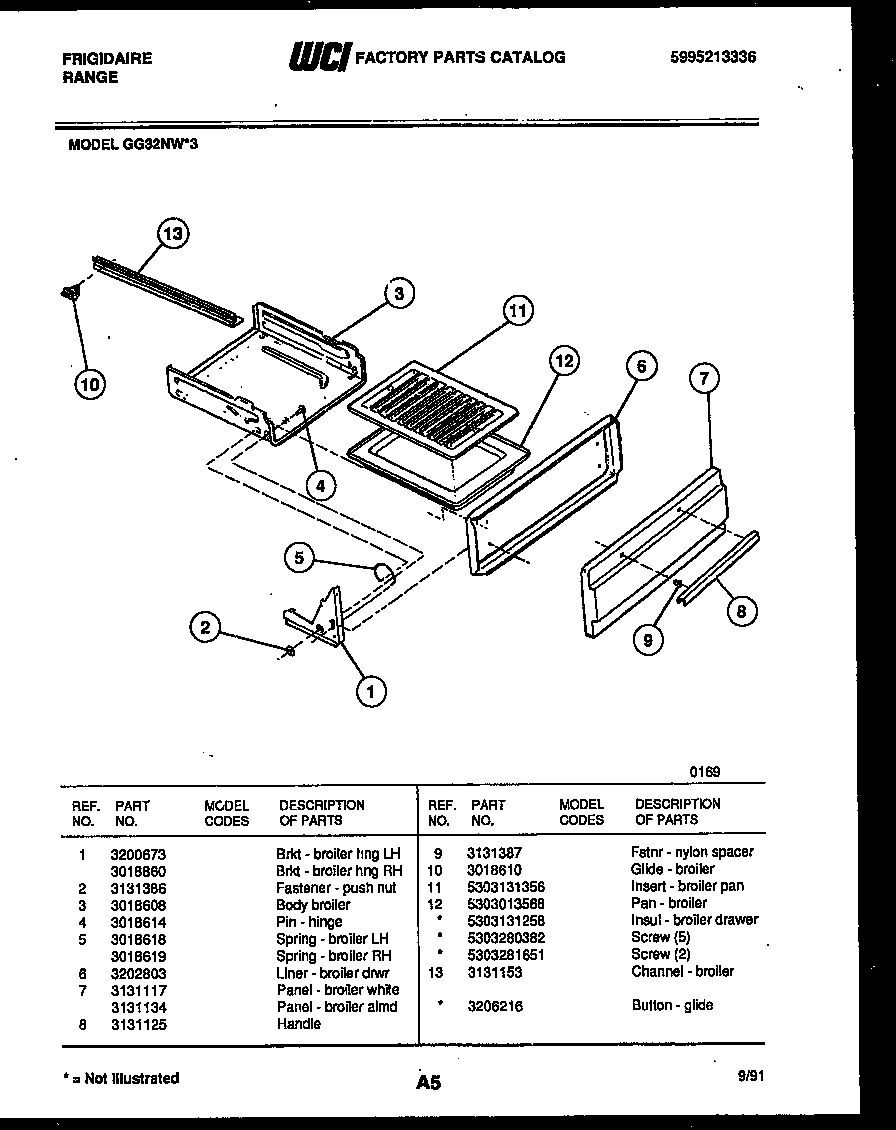

05 - BROILER DRAWER PARTS

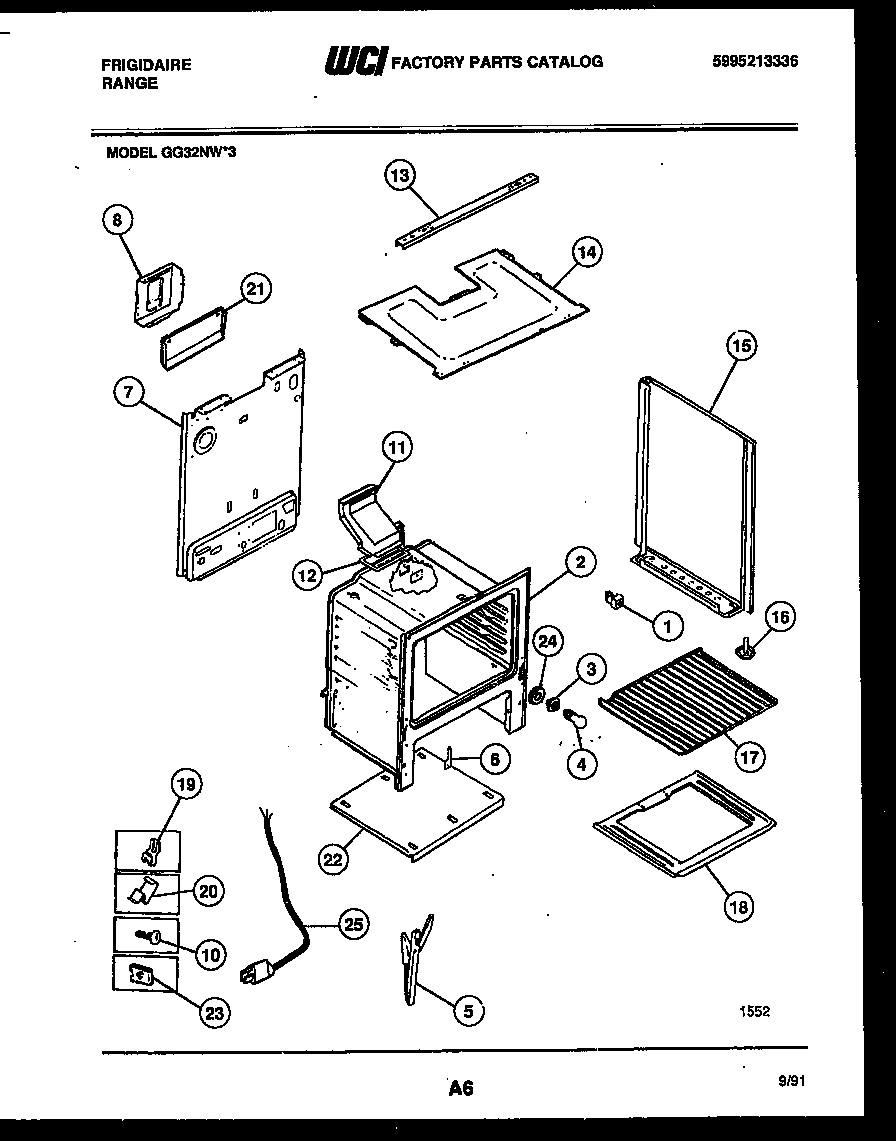

06 - BODY PARTS

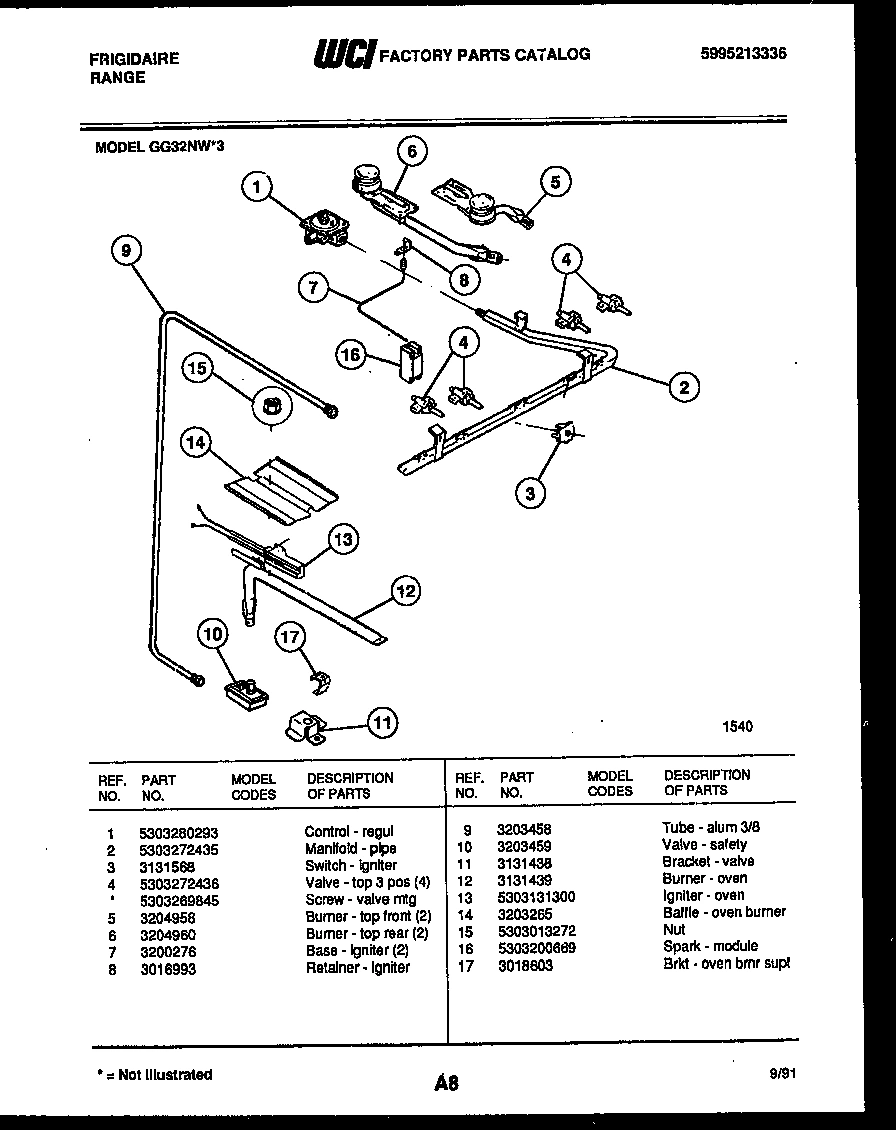

07 - BURNER, MANIFOLD AND GAS CONTROL
Common parts from model Electrolux GG32NW3 RANGE
*53257
WCI 3206216 WCI 3206216 Contact Us For Availability
*53263
WIRING DIAGRAM-NOT FOR PURCHASE WCI 19100180225 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
ANGLE GLASS RTNR (2) WCI 3131547 Contact Us For Availability
1
BRKT-BROILER HNG (LH) WCI 3200673 Contact Us For Availability
1
CONTROL - REGUL WCI 5303280293 Contact Us For Availability
1A
BRKT-BROILER HNG (RH) WCI 3018860 Contact Us For Availability
2
KNOB - TOP VALVE POS WCI 5303210280 Contact Us For Availability
2
WCI 3051149 WCI 3051149 Contact Us For Availability
2
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 5303272435 WCI 5303272435 Contact Us For Availability
3
WCI 3018609 WCI 3018609 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
WCI 3131568 WCI 3131568 Contact Us For Availability
4
WCI 3131351 WCI 3131351 Contact Us For Availability
4
INSULATION-OVEN DR WCI 5303210607 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
VALVE - TOP 3 POS (4) WCI 5303272436 Contact Us For Availability
5
BRKT, MAIN TOP (LH) WCI 08067746 Contact Us For Availability
5
WCI 5303210608 WCI 5303210608 Contact Us For Availability
5
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
5A
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
6
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
BRKT, MAIN TOP (RH) WCI 08067747 Contact Us For Availability
6
WCI 5303209515 WCI 5303209515 Contact Us For Availability
6
LINER - BROILER DRWR WCI 3202803 Contact Us For Availability
7
WCI 3018432 WCI 3018432 Contact Us For Availability
7
PANEL - BROILER WHITE WCI 3131117 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
7
WCI 3200276 WCI 3200276 Contact Us For Availability
8
WCI 3203443 WCI 3203443 Contact Us For Availability
8
WCI 3017081 WCI 3017081 Contact Us For Availability
8
WCI 3131125 WCI 3131125 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
9
HANDLE WCI 5303131256 Contact Us For Availability
9
FSTNR - NYLON SPACER WCI 3131387 Contact Us For Availability
9
WCI 3203458 WCI 3203458 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 No Longer Available
10
KNOB, THERMO WCI 5303210281 Contact Us For Availability
10
SCREW, HANDLE (2) WCI 3016851 Contact Us For Availability
11
WCI 3051305 WCI 3051305 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3131904 WCI 3131904 Contact Us For Availability
11
WCI 3131438 WCI 3131438 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12A
INSUL - BROILER DRAWER (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12C
SCREW (2) (NON-ILLUSTRATED) WCI 5303281651 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
CHANNEL BURNER WCI 3203441 Contact Us For Availability
14
WCI 3204962 WCI 3204962 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
15
PNL B/S - WHITE RH WCI 5303269518 Contact Us For Availability
15A
PNL B/S - WHITE LH WCI 5303269519 Contact Us For Availability
16
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
16A
TEENUT-LEVELER LEG (NON-ILLUSTRATED) WCI 241T017P10 Contact Us For Availability
17
BRKT - OVEN BRNR SUPT WCI 3018603 Contact Us For Availability
18
WCI 5303212540 WCI 5303212540 Contact Us For Availability
18A
INSUL - OVEN WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
18B
INSUL - OVEN BACK (NON-ILLUSTRATED) WCI 3203541 Contact Us For Availability
19
CLIP - THERMO WCI 145T025P03 Contact Us For Availability
19A
WCI 08067961 WCI 08067961 Contact Us For Availability
21
WCI 3202799 WCI 3202799 Contact Us For Availability
22
WCI 5303270160 WCI 5303270160 Contact Us For Availability
22A
COVER-PLATE (NON-ILLUSTRATED) WCI 3018607 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23A
COVER, FRONT MAIN (NON-ILLUSTRATED) WCI 5303015372 Contact Us For Availability
24
WCI 5303271606 WCI 5303271606 Contact Us For Availability
24A
SHIELD-TOP (NON-ILLUSTRATED) WCI 3203455 Contact Us For Availability
24B
SHIELD - FLUE (NON-ILLUSTRATED) WCI 3131348 Contact Us For Availability
24C
ANTI, TIP BRACKET (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
× ![]()
