Model Electrolux GG32CW2 RANGE – Common Parts & Diagrams

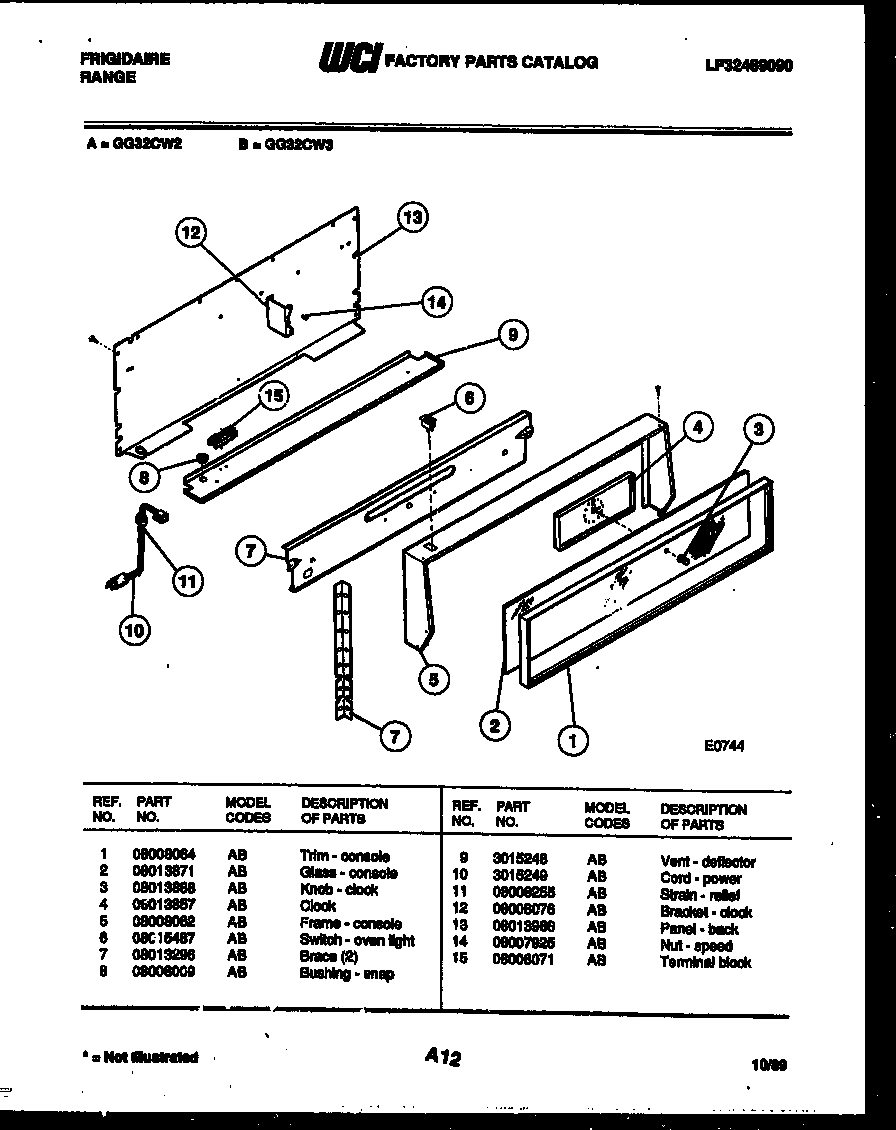

02 - CONTROL PANEL

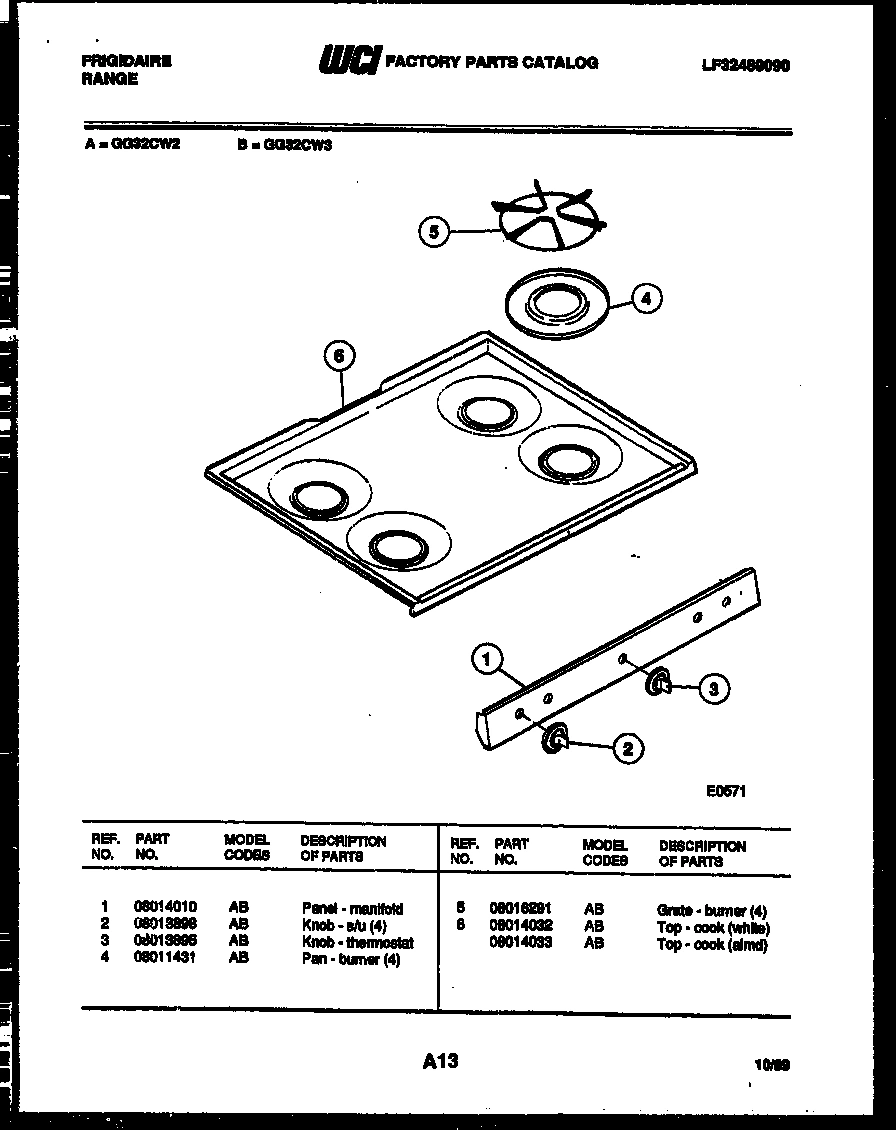

03 - COOKTOP PARTS

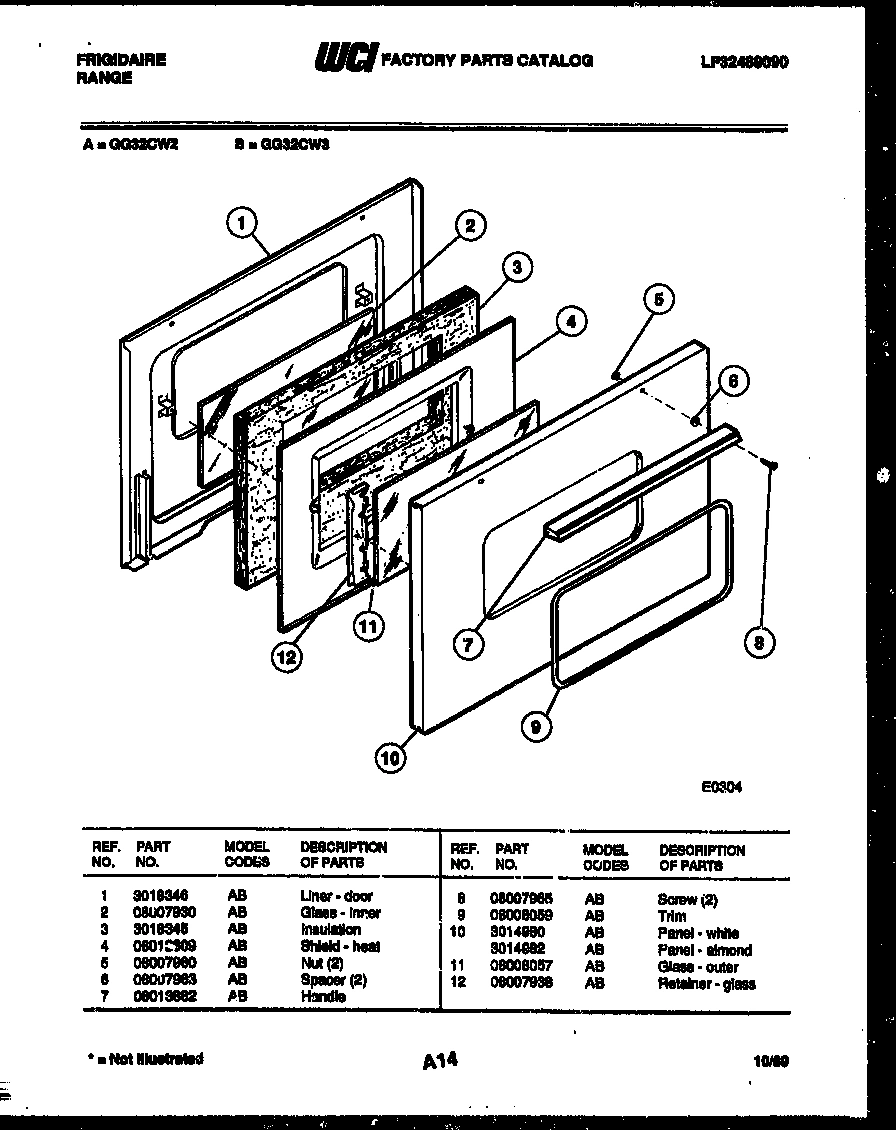

04 - DOOR PARTS

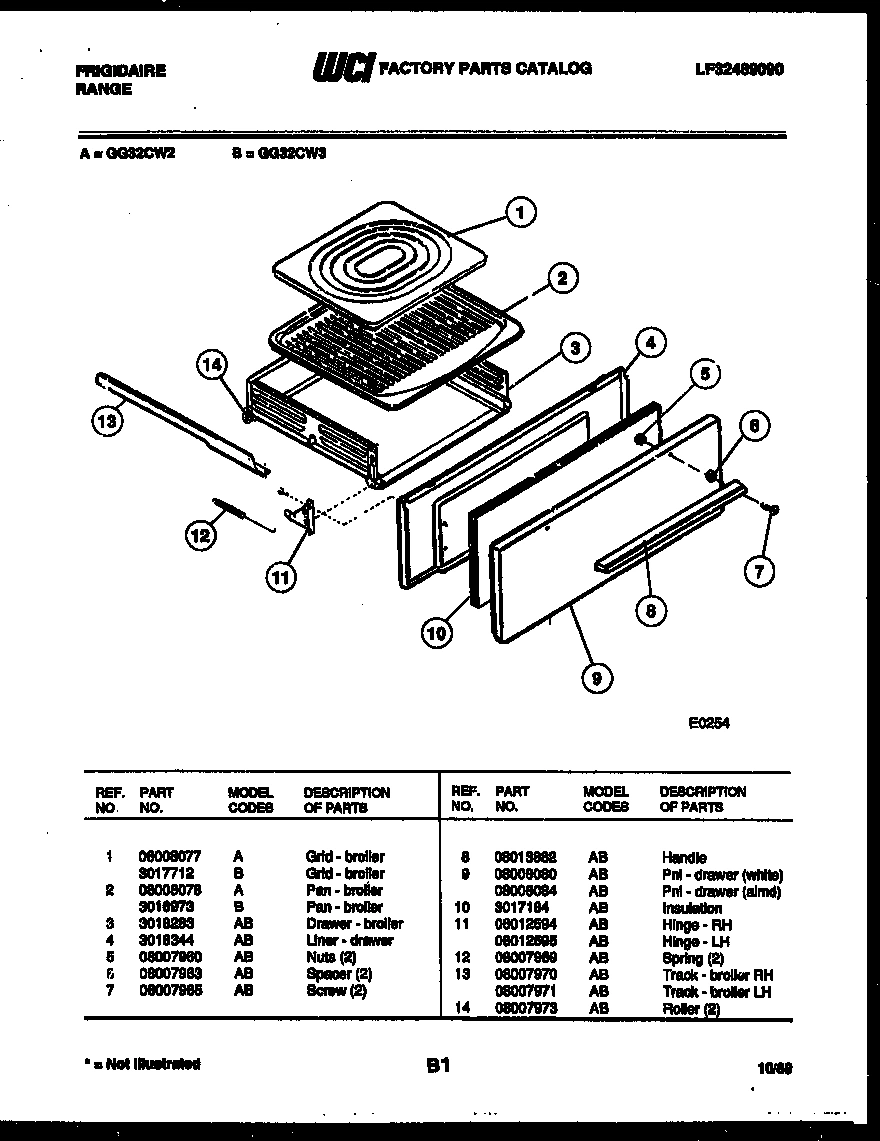

05 - BROILER DRAWER PARTS

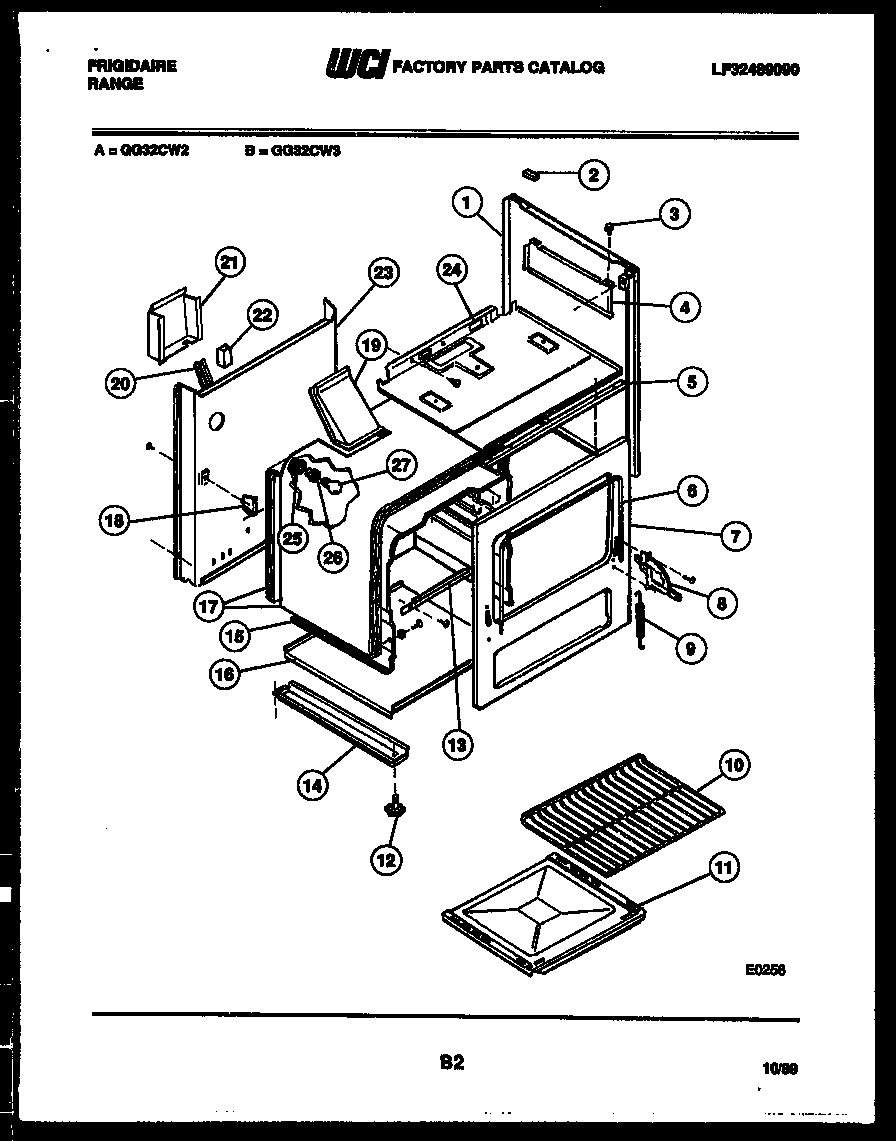

06 - BODY PARTS

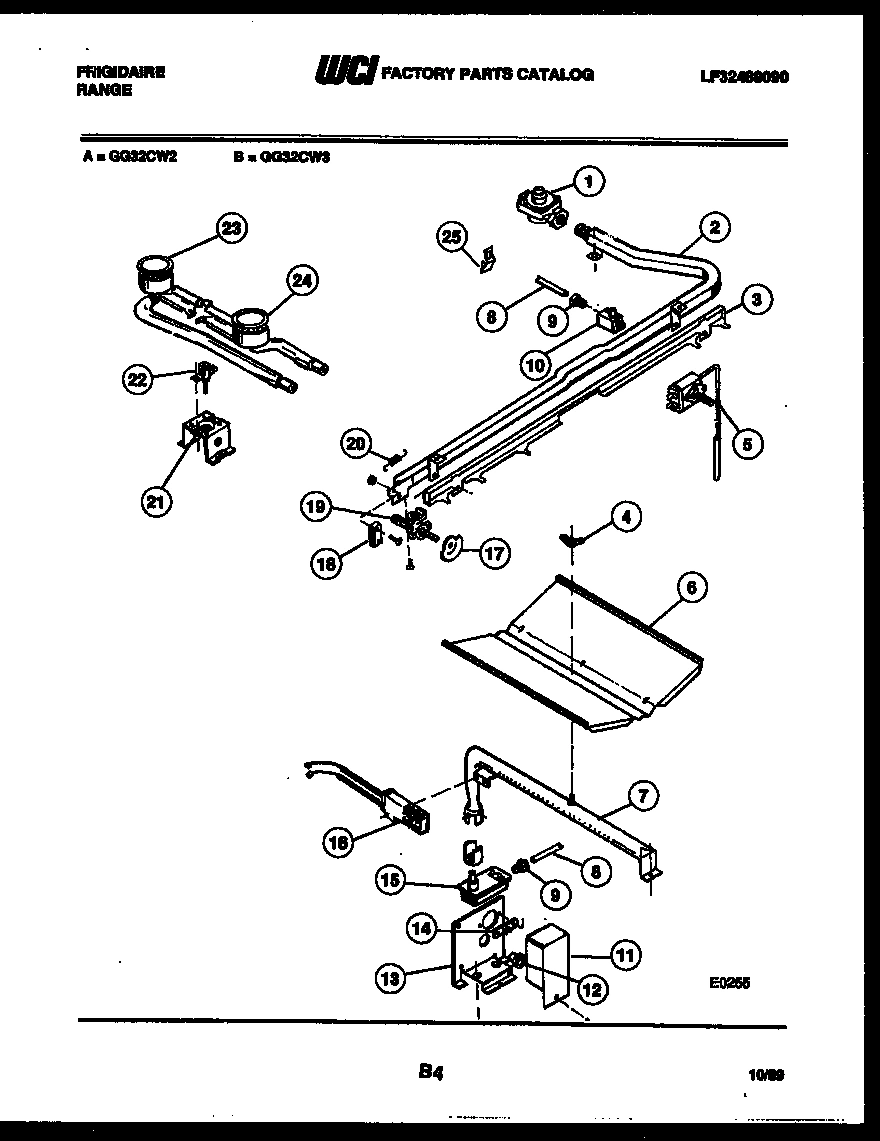

07 - BURNER, MANIFOLD AND GAS CONTROL
Common parts from model Electrolux GG32CW2 RANGE
*14390
WCI 3934059 WCI 3934059 Contact Us For Availability
1
TRIM - CONSOLE WCI 08008064 Contact Us For Availability
1
WCI 08014010 WCI 08014010 Contact Us For Availability
1
WCI 3018346 WCI 3018346 Contact Us For Availability
1
GRID-BROILER WCI 08008077 Contact Us For Availability
1
WCI 08014018 WCI 08014018 Contact Us For Availability
2
WCI 08013871 WCI 08013871 Contact Us For Availability
2
KNOB - S/U (4) WCI 08013898 Contact Us For Availability
2
WCI 08007930 WCI 08007930 Contact Us For Availability
2
WCI 08008078 WCI 08008078 Contact Us For Availability
2
WCI 08068052 WCI 08068052 Contact Us For Availability
2
WCI 08013906 WCI 08013906 Contact Us For Availability
3
WCI 08013888 WCI 08013888 Contact Us For Availability
3
WCI 08013895 WCI 08013895 Contact Us For Availability
3
WCI 3018345 WCI 3018345 Contact Us For Availability
3
WCI 08008012 WCI 08008012 Contact Us For Availability
3
WCI 08014021 WCI 08014021 Contact Us For Availability
4
WCI 08013857 WCI 08013857 Contact Us For Availability
4
PAN-BURNER (4) WCI 08011431 Contact Us For Availability
4
WCI 08012609 WCI 08012609 Contact Us For Availability
4
LINER-DRAWER WCI 3018344 Contact Us For Availability
4
WCI 08008018 WCI 08008018 Contact Us For Availability
4
NUT - WING WCI 08007979 Contact Us For Availability
4A
SHIELD-BURNER BOX LH WCI 08011552 Contact Us For Availability
5
WCI 08008062 WCI 08008062 Contact Us For Availability
5
GRATE-BURNER (4) WCI 08016291 Contact Us For Availability
5
WCI 08014027 WCI 08014027 Contact Us For Availability
5
THERMOSTAT WCI 08013926 Contact Us For Availability
6
TOP-COOK (WHITE) WCI 08014032 Contact Us For Availability
6
SPACER (2) WCI 08007963 Contact Us For Availability
6
SEAL-OVEN DOOR WCI 08008022 Contact Us For Availability
6
WCI 08007980 WCI 08007980 Contact Us For Availability
7
WCI 08013296 WCI 08013296 Contact Us For Availability
7
FRAME - FRONT WCI 3017790 Contact Us For Availability
7
FRAME - FRONT WCI 3205578 Contact Us For Availability
7
WCI 08009418 WCI 08009418 Contact Us For Availability
8
WCI 08008009 WCI 08008009 Contact Us For Availability
8
HANDLE WCI 08013882 Contact Us For Availability
8
HINGE - DOOR RH WCI 08008023 Contact Us For Availability
8
TUBE FEED WCI 3131085 Contact Us For Availability
9
WCI 3015248 WCI 3015248 Contact Us For Availability
9
WCI 08008059 WCI 08008059 Contact Us For Availability
9
WCI 08008080 WCI 08008080 Contact Us For Availability
9
SPRING-DOOR (2) WCI 08008028 Contact Us For Availability
9
LOXIT - NUT (2) WCI 08008363 Contact Us For Availability
10
CORD - POWER WCI 3015249 Contact Us For Availability
10
WCI 3014980 WCI 3014980 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
10
SHELF-RACK (2) WCI 08068027 Contact Us For Availability
10
WCI 08008006 WCI 08008006 Contact Us For Availability
11
WCI 08008255 WCI 08008255 Contact Us For Availability
11
WCI 08012594 WCI 08012594 Contact Us For Availability
11
WCI 08008057 WCI 08008057 Contact Us For Availability
11
LINER-OVEN-BOTTOM WCI 3018282 Contact Us For Availability
11
COVER - OVEN VALVE WCI 08007986 Contact Us For Availability
11A
WCI 08012595 WCI 08012595 Contact Us For Availability
12
WCI 08008076 WCI 08008076 Contact Us For Availability
12
RETAINER - GLASS WCI 08007938 Contact Us For Availability
12
WCI 08007969 WCI 08007969 Contact Us For Availability
12
SCREW - LEVELING (4) WCI 08068019 Contact Us For Availability
12
WCI 08008051 WCI 08008051 Contact Us For Availability
13
PANEL - BACK WCI 08013966 Contact Us For Availability
13
WCI 08007970 WCI 08007970 Contact Us For Availability
13
WCI 08008036 WCI 08008036 Contact Us For Availability
13
WCI 08007987 WCI 08007987 Contact Us For Availability
13A
TRACK - BROILER LH WCI 08007971 Contact Us For Availability
14
WCI 08007925 WCI 08007925 Contact Us For Availability
14
WCI 08007973 WCI 08007973 Contact Us For Availability
14
RAIL - BASE (2) WCI 3051081 Contact Us For Availability
14
TERMINAL BOARD WCI 08007985 Contact Us For Availability
15
WCI 08008071 WCI 08008071 Contact Us For Availability
15
WCI 3018284 WCI 3018284 Contact Us For Availability
15
VALVE - OVEN SAFETY WCI 08009419 Contact Us For Availability
15A
WCI 3018285 WCI 3018285 Contact Us For Availability
15B
WCI 3018347 WCI 3018347 Contact Us For Availability
15C
WCI 3018286 WCI 3018286 Contact Us For Availability
16
RETAINER-INSULATION WCI 08011515 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
17
WCI 08008002 WCI 08008002 Contact Us For Availability
17A
WCI 3017172 WCI 3017172 Contact Us For Availability
18
SUPPORT - REAR (2) WCI 08008042 Contact Us For Availability
18
WCI 08013925 WCI 08013925 Contact Us For Availability
19
WCI 3017173 WCI 3017173 Contact Us For Availability
19
VALVE - TOP BURNER (4) WCI 08013940 Contact Us For Availability
20
WCI 08011650 WCI 08011650 Contact Us For Availability
20
WCI 08013921 WCI 08013921 Contact Us For Availability
21
WCI 08008357 WCI 08008357 Contact Us For Availability
21
SUPT - TOP BURNER (2) WCI 3016870 Contact Us For Availability
21
SUPT - TOP BURNER (2) WCI 3203964 Contact Us For Availability
22
IGNITER - TOP (2) WCI 3015196 Contact Us For Availability
22
IGNITER - TOP (2) WCI 3203970 Contact Us For Availability
23
WCI 08012600 WCI 08012600 Contact Us For Availability
23
WCI 08013853 WCI 08013853 Contact Us For Availability
24
BURNER BOX BOTTOM WCI 3017174 Contact Us For Availability
24
WCI 08013852 WCI 08013852 Contact Us For Availability
25
CUP - OVEN LIGHT WCI 08011088 Contact Us For Availability
25
WCI 08013856 WCI 08013856 Contact Us For Availability
× ![]()
