Model Electrolux GG26CW3 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

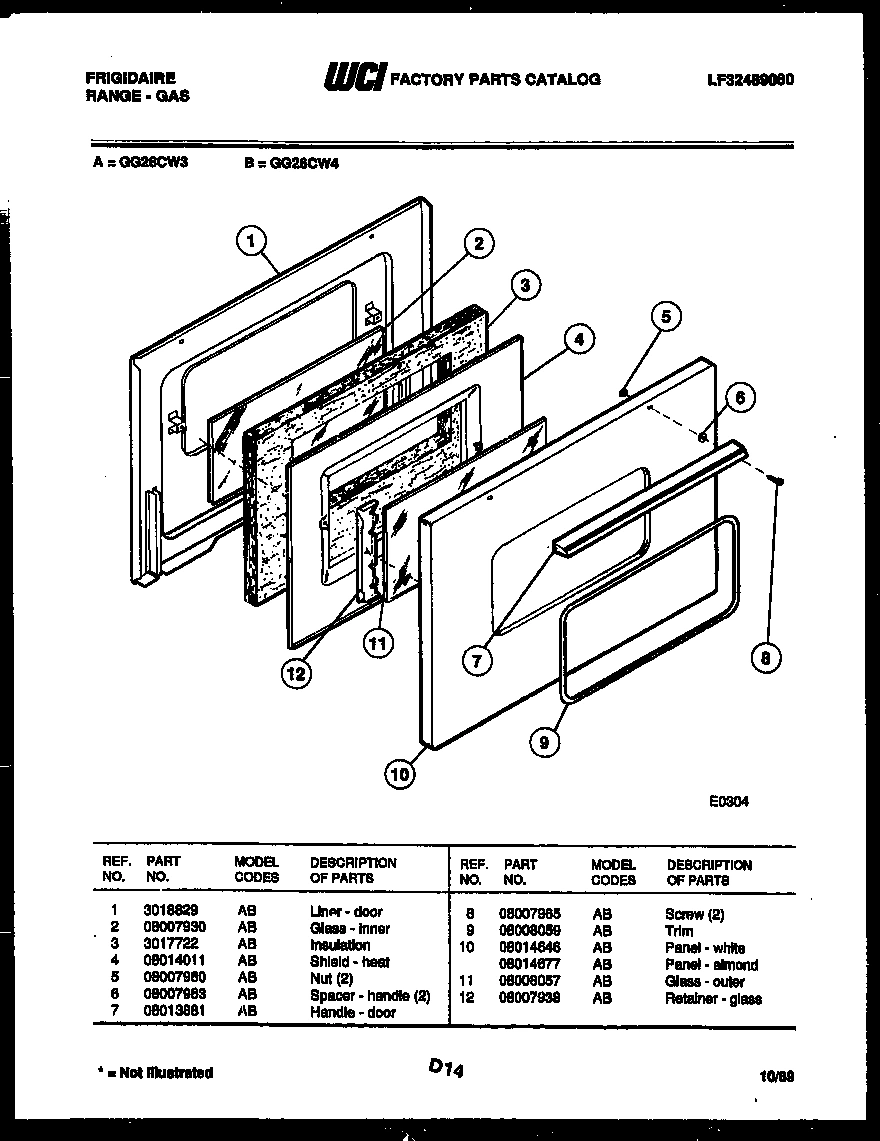

04 - DOOR PARTS

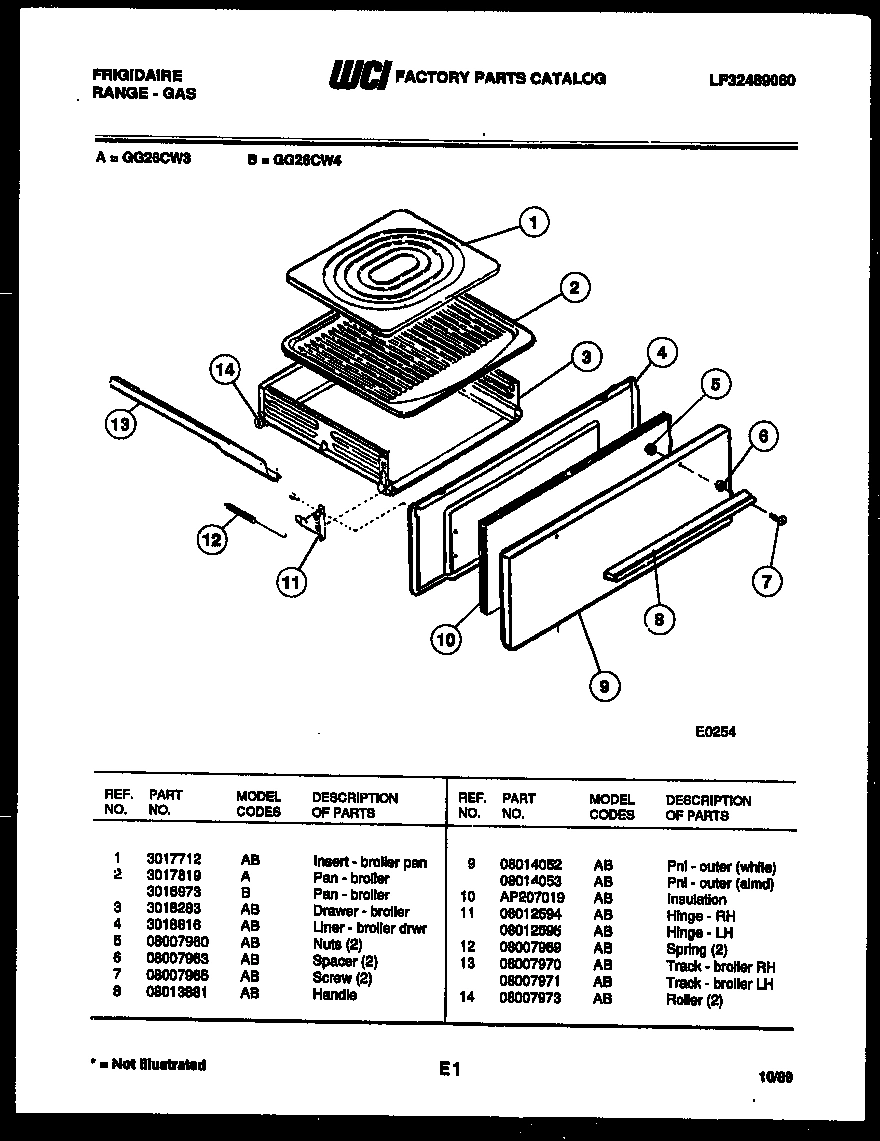

05 - BROILER DRAWER PARTS

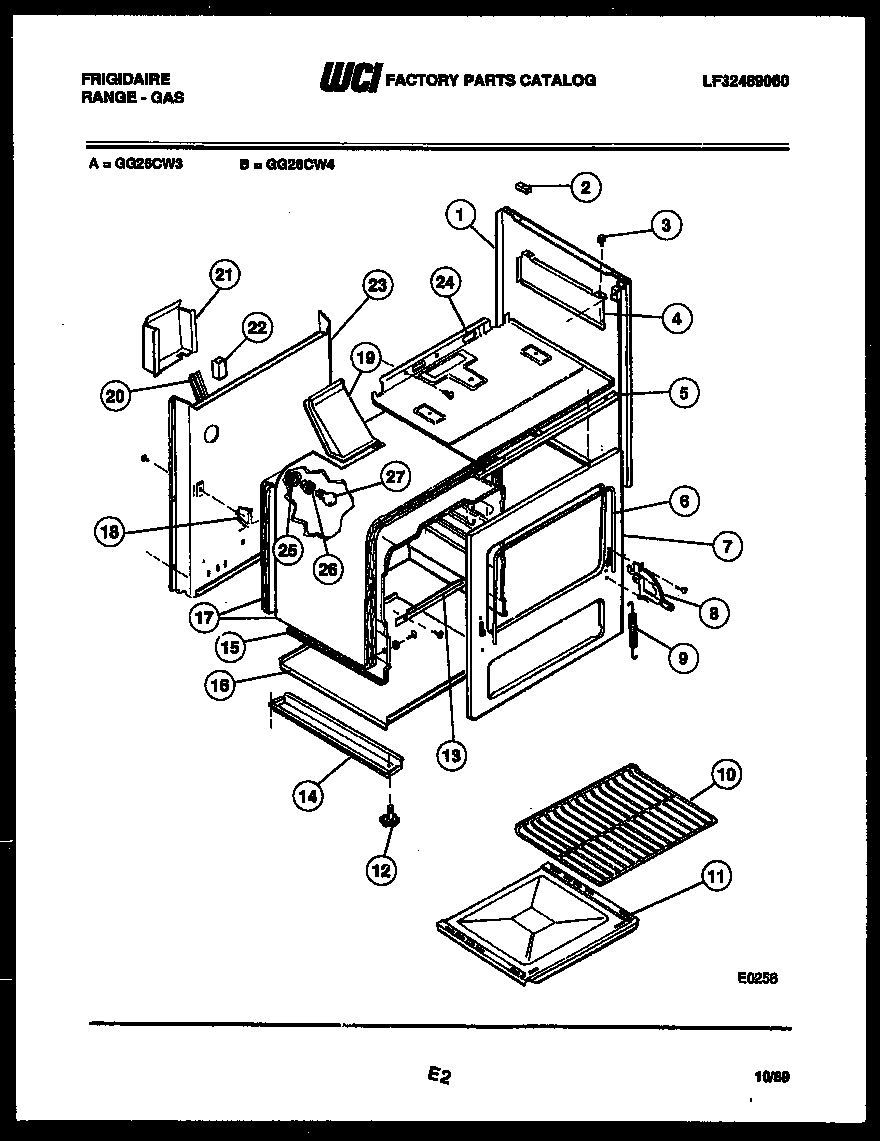

06 - BODY PARTS

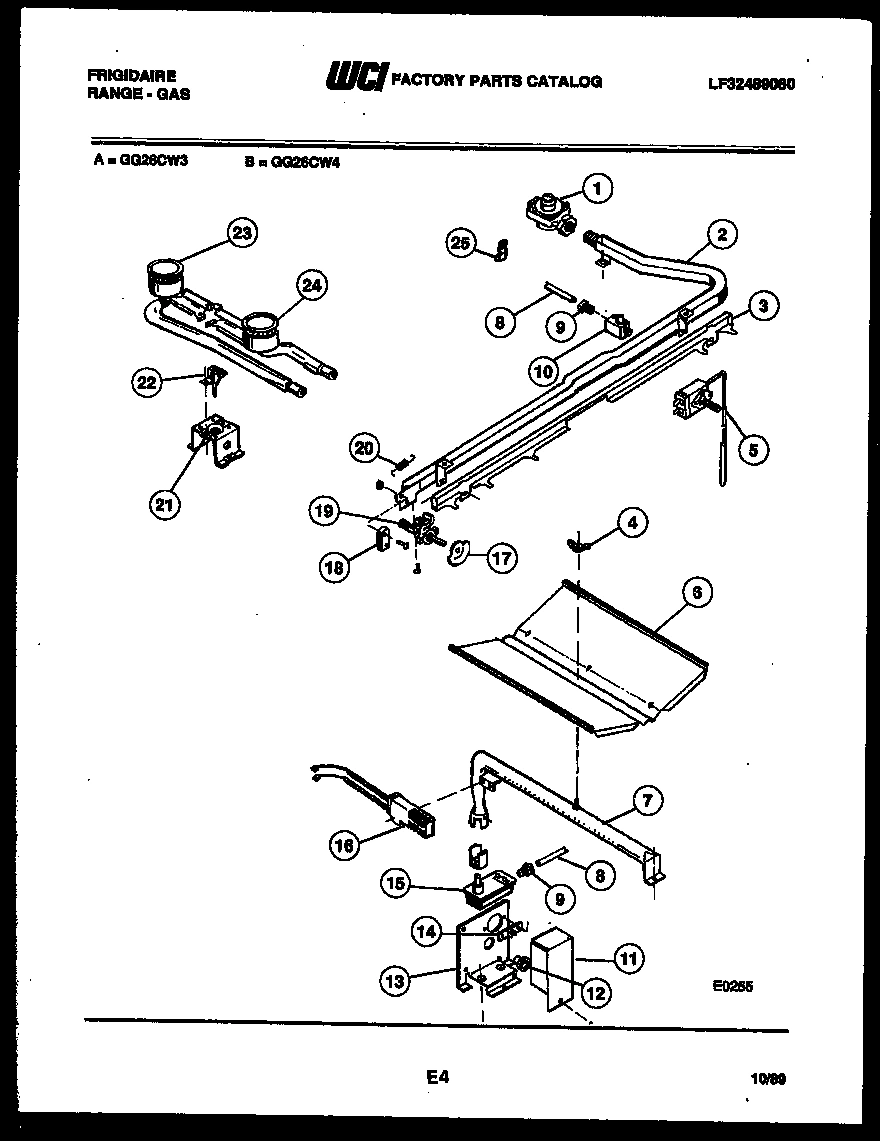

07 - BURNER, MANIFOLD AND GAS CONTROL
Common parts from model Electrolux GG26CW3 RANGE
1
WCI 08014139 WCI 08014139 Contact Us For Availability
1
TOP - COOK (WHITE) WCI 08014030 Contact Us For Availability
1
WCI 3018829 WCI 3018829 Contact Us For Availability
1
INSERT-BROILER PAN WCI 3017712 Contact Us For Availability
1
WCI 08014018 WCI 08014018 Contact Us For Availability
2
BRACKET CLOCK MTG WCI 08008076 Contact Us For Availability
2
PAN - DRIP (4) WCI 08011431 Contact Us For Availability
2
WCI 08007930 WCI 08007930 Contact Us For Availability
2
WCI 3017819 WCI 3017819 Contact Us For Availability
2
WCI 08068052 WCI 08068052 Contact Us For Availability
2
WCI 08013905 WCI 08013905 Contact Us For Availability
3
GROMMET-STRAIN RELIEF WCI 08008255 Contact Us For Availability
3
GRATE - TOP (4) WCI 08016291 Contact Us For Availability
3
WCI 3017722 WCI 3017722 Contact Us For Availability
3
WCI 08008012 WCI 08008012 Contact Us For Availability
3
WCI 08014020 WCI 08014020 Contact Us For Availability
4
CORD - POWER WCI 3015249 Contact Us For Availability
4
WCI 08013895 WCI 08013895 Contact Us For Availability
4
WCI 08014011 WCI 08014011 Contact Us For Availability
4
LINER - BROILER DRWR WCI 3018816 Contact Us For Availability
4
SHIELD - HEAT RH WCI 08008018 Contact Us For Availability
4
NUT - WING WCI 08007979 Contact Us For Availability
4A
WCI 08011552 WCI 08011552 Contact Us For Availability
5
WCI 08008009 WCI 08008009 Contact Us For Availability
5
KNOB - S/U (4) WCI 08013898 Contact Us For Availability
5
WCI 08014024 WCI 08014024 Contact Us For Availability
5
THERMOSTAT WCI 08013926 Contact Us For Availability
6
BLOCK TERMINAL WCI 08008071 Contact Us For Availability
6
WCI 08013997 WCI 08013997 Contact Us For Availability
6
SPACER (2) WCI 08007963 Contact Us For Availability
6
SEAL - DOOR WCI 08013916 Contact Us For Availability
6
WCI 08007980 WCI 08007980 Contact Us For Availability
7
PLATE - FLUE WCI 3017721 Contact Us For Availability
7
WCI 3017601 WCI 3017601 Contact Us For Availability
7
WCI 08009418 WCI 08009418 Contact Us For Availability
8
WCI 08014070 WCI 08014070 Contact Us For Availability
8
WCI 08013881 WCI 08013881 Contact Us For Availability
8
HINGE - DOOR RH WCI 08008023 Contact Us For Availability
8
TUBE FEED WCI 3131085 Contact Us For Availability
9
BRACE SUPPORT (2) WCI 08013296 Contact Us For Availability
9
WCI 08008059 WCI 08008059 Contact Us For Availability
9
PNL - OUTER (WHITE) WCI 08014052 Contact Us For Availability
9
WCI 08011485 WCI 08011485 Contact Us For Availability
9
LOXIT - NUT (2) WCI 08008363 Contact Us For Availability
10
WCI 08014083 WCI 08014083 Contact Us For Availability
10
WCI 08014646 WCI 08014646 Contact Us For Availability
10
INSULATION WCI AP207019 Contact Us For Availability
10
RACK (2) WCI 3016128 Contact Us For Availability
10
WCI 08008006 WCI 08008006 Contact Us For Availability
11
WCI 08014080 WCI 08014080 Contact Us For Availability
11
WCI 08008057 WCI 08008057 Contact Us For Availability
11
WCI 08012594 WCI 08012594 Contact Us For Availability
11
PANEL-BOTTOM WCI 3018815 Contact Us For Availability
11
COVER - OVEN VALVE WCI 08007986 Contact Us For Availability
11A
WCI 08012595 WCI 08012595 Contact Us For Availability
12
TRIM-BACKGUARD GLASS WCI 08014081 Contact Us For Availability
12
RETAINER - GLASS WCI 08007938 Contact Us For Availability
12
WCI 08007969 WCI 08007969 Contact Us For Availability
12
SCREW - LEVELING (4) WCI 08068019 Contact Us For Availability
12
WCI 08008051 WCI 08008051 Contact Us For Availability
13
WCI 08014086 WCI 08014086 Contact Us For Availability
13
WCI 08007970 WCI 08007970 Contact Us For Availability
13
WCI 08008036 WCI 08008036 Contact Us For Availability
13
WCI 08007987 WCI 08007987 Contact Us For Availability
13A
TRACK - BROILER LH WCI 08007971 Contact Us For Availability
14
WCI 08013888 WCI 08013888 Contact Us For Availability
14
WCI 08007973 WCI 08007973 Contact Us For Availability
14
RAIL - BASE (2) WCI 3051081 Contact Us For Availability
14
TERMINAL BOARD WCI 08007985 Contact Us For Availability
15
WCI 08013857 WCI 08013857 Contact Us For Availability
15
WCI 3018284 WCI 3018284 Contact Us For Availability
15
VALVE - OVEN SAFETY WCI 08009419 Contact Us For Availability
15A
WCI 3018285 WCI 3018285 Contact Us For Availability
15B
WCI 3018818 WCI 3018818 Contact Us For Availability
15C
WCI 3018830 WCI 3018830 Contact Us For Availability
16
WCI 08013989 WCI 08013989 Contact Us For Availability
17
FRAME - BOTTOM WCI 08014082 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
17
WCI 08008002 WCI 08008002 Contact Us For Availability
17A
WCI 3017172 WCI 3017172 Contact Us For Availability
18
WCI 08007925 WCI 08007925 Contact Us For Availability
18
SUPPORT - REAR (2) WCI 08008042 Contact Us For Availability
18
WCI 08013925 WCI 08013925 Contact Us For Availability
19
WCI 3017173 WCI 3017173 Contact Us For Availability
19
VALVE - TOP BURNER (4) WCI 08013940 Contact Us For Availability
20
WCI 08011650 WCI 08011650 Contact Us For Availability
20
WCI 08013921 WCI 08013921 Contact Us For Availability
21
WCI 08011522 WCI 08011522 Contact Us For Availability
21
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
22
IGNITER - TOP (2) WCI 3015196 Contact Us For Availability
23
BACK-MAIN WCI 3017449 Contact Us For Availability
23
WCI 08013853 WCI 08013853 Contact Us For Availability
24
BURNER - BOX BOTTOM WCI 3017450 Contact Us For Availability
24
WCI 08013852 WCI 08013852 Contact Us For Availability
25
CUP - OVEN LIGHT WCI 08011088 Contact Us For Availability
25
WCI 08013856 WCI 08013856 Contact Us For Availability
× ![]()
