Model GE GFWS3600L0WW – Common Parts & Diagrams

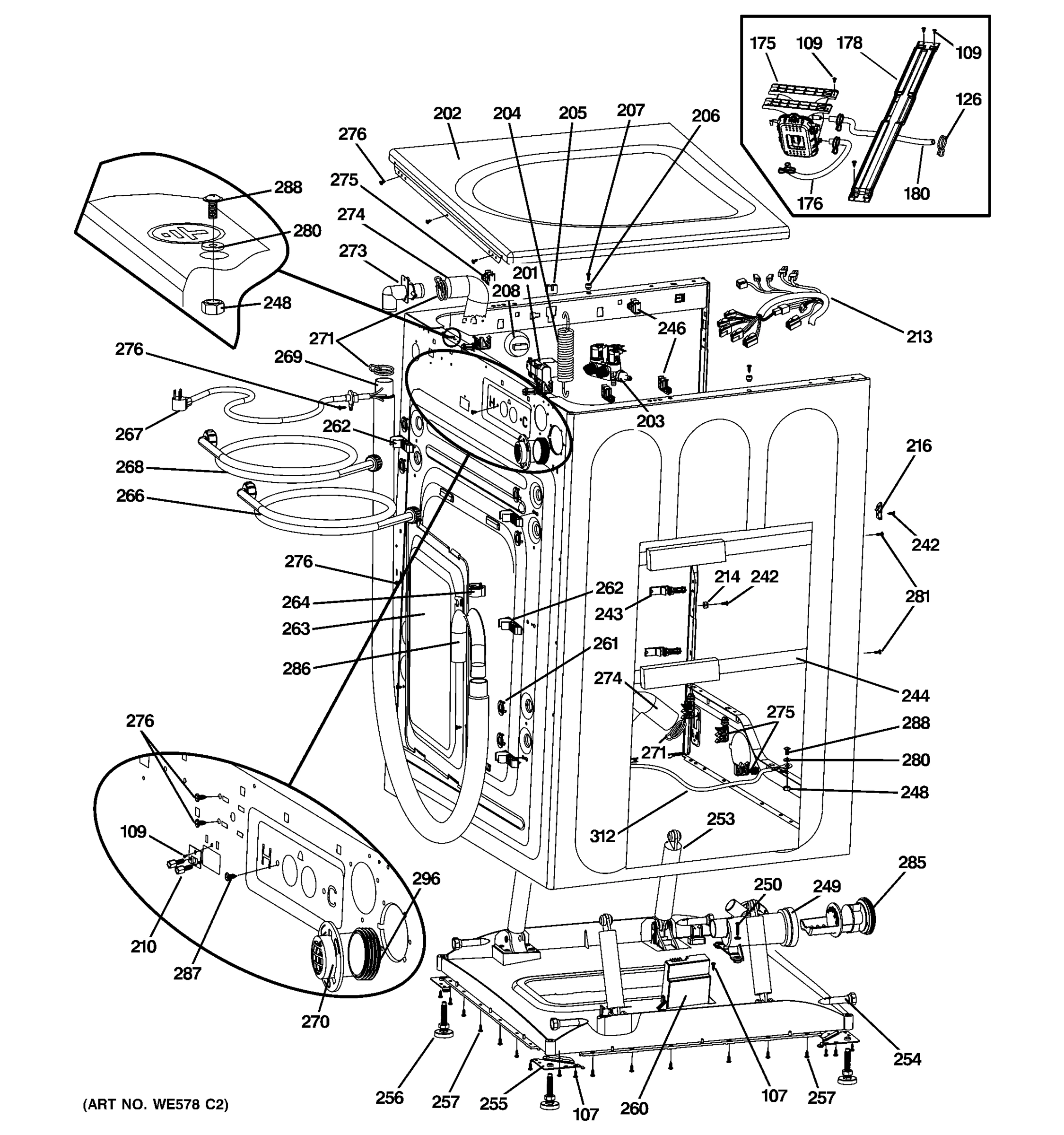

CABINET & TOP PANEL

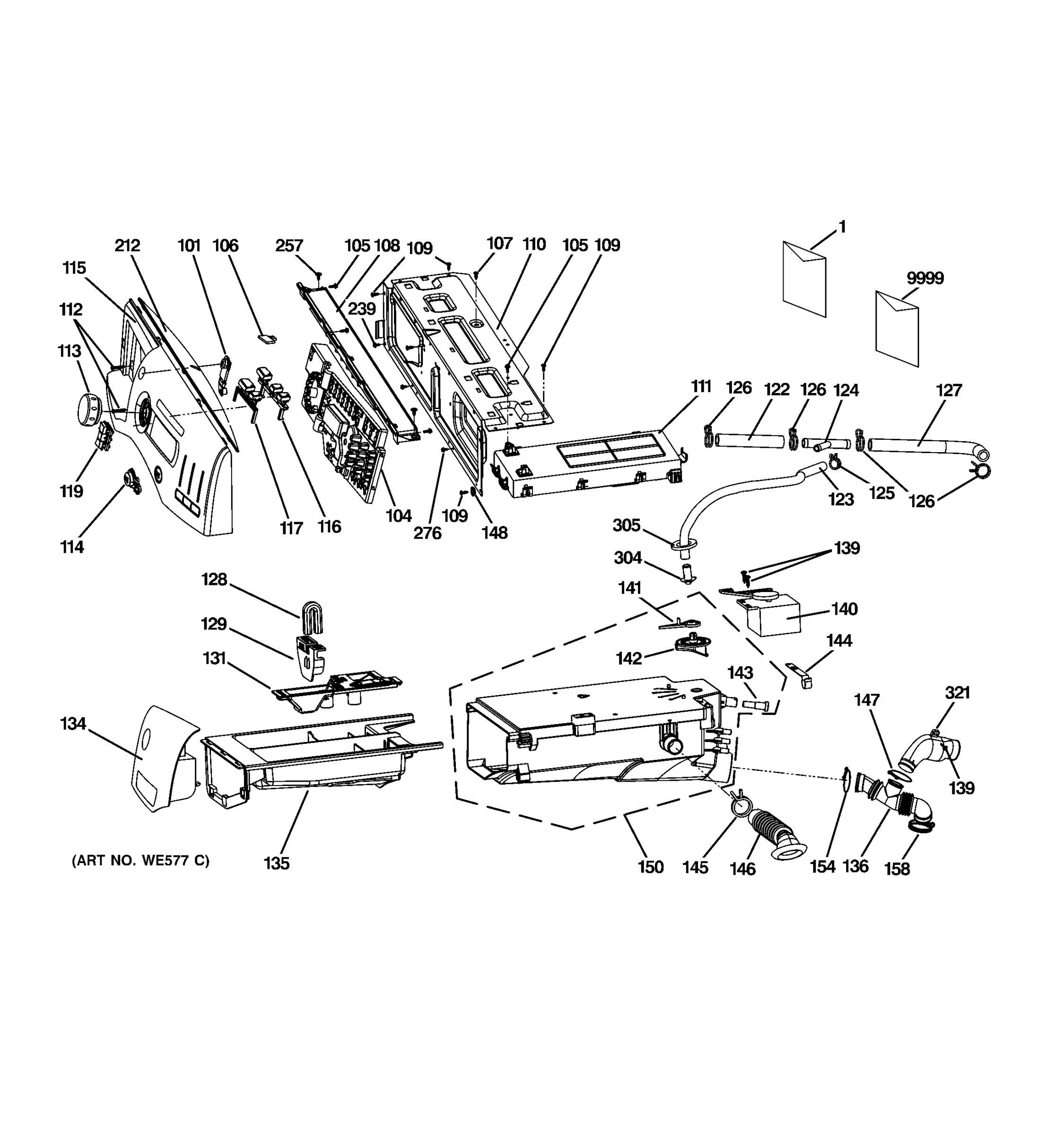

CONTROLS & DISPENSER
FRONT PANEL & DOOR
TUB & MOTOR
Common parts from model GE GFWS3600L0WW
4
SCREW ST4*16 GEN WH02X10222 Contact Us For Availability
101
GEN WH01X10565 GEN WH01X10565 Contact Us For Availability
104
GEN WH12X10485 GEN WH12X10485 Contact Us For Availability
105
SCREW_ST3.5 X 11 GEN WH02X10181 Contact Us For Availability
107
GEN WH02X10183 GEN WH02X10183 Contact Us For Availability
111
GEN WH12X10484 GEN WH12X10484 Contact Us For Availability
112
GEN WH02X10185 GEN WH02X10185 Contact Us For Availability
114
GEN WH01X10570 GEN WH01X10570 Contact Us For Availability
123
GEN WH41X10109 GEN WH41X10109 Contact Us For Availability
127
GEN WH41X10111 GEN WH41X10111 Contact Us For Availability
128
GEN WH41X10179 GEN WH41X10179 Contact Us For Availability
131
GEN WH41X10181 GEN WH41X10181 Contact Us For Availability
135
GEN WH41X10185 GEN WH41X10185 Contact Us For Availability
136
GEN WH41X10257 GEN WH41X10257 Contact Us For Availability
141
GEN WH01X10247 GEN WH01X10247 Contact Us For Availability
142
GEN WH01X10376 GEN WH01X10376 Contact Us For Availability
146
GEN WH41X10122 GEN WH41X10122 Contact Us For Availability
150
GEN WH41X10204 GEN WH41X10204 Contact Us For Availability
204
GEN WH05X10012 GEN WH05X10012 Contact Us For Availability
205
GEN WH01X10251 GEN WH01X10251 Contact Us For Availability
208
GEN WH12X10390 GEN WH12X10390 Contact Us For Availability
209
GEN WH01X10562 GEN WH01X10562 Contact Us For Availability
211
GEN WH02X10188 GEN WH02X10188 Contact Us For Availability
212
GEN WH01X10558 GEN WH01X10558 Contact Us For Availability
217
GEN WH10X10006 GEN WH10X10006 Contact Us For Availability
219
GEN WH02X10189 GEN WH02X10189 Contact Us For Availability
220
GEN WH01X10560 GEN WH01X10560 Contact Us For Availability
222
GEN WH02X10191 GEN WH02X10191 Contact Us For Availability
223
GEN WH01X10356 GEN WH01X10356 Contact Us For Availability
234
GEN WH02X10270 GEN WH02X10270 Contact Us For Availability
235
GEN WH02X10194 GEN WH02X10194 Contact Us For Availability
236
GEN WH44X10248 GEN WH44X10248 Contact Us For Availability
241
GEN WH01X10559 GEN WH01X10559 Contact Us For Availability
247
GEN WH46X10252 GEN WH46X10252 Contact Us For Availability
247
GEN WH46X10253 GEN WH46X10253 Contact Us For Availability
247
GEN WH46X10254 GEN WH46X10254 Contact Us For Availability
247
GEN WH46X10255 GEN WH46X10255 Contact Us For Availability
247
GEN WH46X10256 GEN WH46X10256 Contact Us For Availability
253
GEN WH01X10385 GEN WH01X10385 Contact Us For Availability
254
GEN WH01X10261 GEN WH01X10261 Contact Us For Availability
256
GEN WH46X10243 GEN WH46X10243 Contact Us For Availability
260
GEN WH12X10470 GEN WH12X10470 Contact Us For Availability
261
GEN WH44X10206 GEN WH44X10206 Contact Us For Availability
262
GEN WH01X10262 GEN WH01X10262 Contact Us For Availability
263
GEN WH46X10237 GEN WH46X10237 Contact Us For Availability
264
GEN WH01X10263 GEN WH01X10263 Contact Us For Availability
267
GEN WH19X10071 GEN WH19X10071 Contact Us For Availability
269
GEN WH41X10126 GEN WH41X10126 Contact Us For Availability
271
GEN WH01X10265 GEN WH01X10265 Contact Us For Availability
273
GEN WH01X10266 GEN WH01X10266 Contact Us For Availability
274
GEN WH41X10127 GEN WH41X10127 Contact Us For Availability
276
GEN WH02X10203 GEN WH02X10203 Contact Us For Availability
277
GEN WH01X10567 GEN WH01X10567 Contact Us For Availability
278
GEN WH01X10568 GEN WH01X10568 Contact Us For Availability
279
GEN WH01X10566 GEN WH01X10566 Contact Us For Availability
279
GEN WH01X10575 GEN WH01X10575 Contact Us For Availability
279
GEN WH01X10576 GEN WH01X10576 Contact Us For Availability
279
GEN WH01X10577 GEN WH01X10577 Contact Us For Availability
279
GEN WH01X10578 GEN WH01X10578 Contact Us For Availability
281
GEN WH02X10219 GEN WH02X10219 Contact Us For Availability
282
GEN WH46X10257 GEN WH46X10257 Contact Us For Availability
283
GEN WH46X10258 GEN WH46X10258 Contact Us For Availability
284
GEN WH46X10259 GEN WH46X10259 Contact Us For Availability
286
GEN WH41X10133 GEN WH41X10133 Contact Us For Availability
288
GEN WH02X10234 GEN WH02X10234 Contact Us For Availability
289
GEN WH01X10561 GEN WH01X10561 Contact Us For Availability
301
GEN WH02X10204 GEN WH02X10204 Contact Us For Availability
302
GEN WH02X10205 GEN WH02X10205 Contact Us For Availability
303
GEN WH01X10556 GEN WH01X10556 Contact Us For Availability
304
GEN WH08X10021 GEN WH08X10021 Contact Us For Availability
305
GEN WH02X10206 GEN WH02X10206 Contact Us For Availability
306
GEN WH08X10059 GEN WH08X10059 Contact Us For Availability
307
GEN WH02X10207 GEN WH02X10207 Contact Us For Availability
308
GEN WH45X10097 GEN WH45X10097 Contact Us For Availability
310
GEN WH16X10128 GEN WH16X10128 Contact Us For Availability
311
GEN WH45X10095 GEN WH45X10095 Contact Us For Availability
311
GEN WH45X10100 GEN WH45X10100 Contact Us For Availability
313
GEN WH08X10054 GEN WH08X10054 Contact Us For Availability
315
GEN WH45X10096 GEN WH45X10096 Contact Us For Availability
316
GEN WH01X10521 GEN WH01X10521 Contact Us For Availability
322
GEN WH07X10022 GEN WH07X10022 Contact Us For Availability
326
GEN WH08X10050 GEN WH08X10050 Contact Us For Availability
327
GEN WH02X10212 GEN WH02X10212 Contact Us For Availability
328
GEN WH16X10131 GEN WH16X10131 Contact Us For Availability
330
GEN WH02X10213 GEN WH02X10213 Contact Us For Availability
333
GEN WH20X10078 GEN WH20X10078 Contact Us For Availability
334
GEN WH01X10396 GEN WH01X10396 Contact Us For Availability
335
GEN WH01X10397 GEN WH01X10397 Contact Us For Availability
337
GEN WH01X10273 GEN WH01X10273 Contact Us For Availability
339
GEN WH41X10190 GEN WH41X10190 Contact Us For Availability
340
GEN WH41X10250 GEN WH41X10250 Contact Us For Availability
341
GEN WH01X10275 GEN WH01X10275 Contact Us For Availability
342
GEN WH01X10276 GEN WH01X10276 Contact Us For Availability
343
GEN WH16X10081 GEN WH16X10081 Contact Us For Availability
345
GEN WH12X10309 GEN WH12X10309 Contact Us For Availability
347
GEN WH08X10055 GEN WH08X10055 Contact Us For Availability
348
GEN WH01X10519 GEN WH01X10519 Contact Us For Availability
349
GEN WH08X10056 GEN WH08X10056 Contact Us For Availability
362
GEN WH19X10070 GEN WH19X10070 Contact Us For Availability
365
GEN WH01X10427 GEN WH01X10427 Contact Us For Availability
366
GEN WH02X10337 GEN WH02X10337 Contact Us For Availability
367
GEN WH02X10334 GEN WH02X10334 Contact Us For Availability
368
GEN WH02X10333 GEN WH02X10333 Contact Us For Availability
9999
GEN WE25X10028 GEN WE25X10028 Contact Us For Availability
× ![]()
