GE GFWN1100L3WW Washer | Part Advantage

101

POWER BUTTON GEN WH01X10239 Contact Us For Availability

View on Model

102

START PAUSE BUTTON GEN WH01X10240 Contact Us For Availability

View on Model

104

CONTROL BOARD ASM GEN WH12X10520 Contact Us For Availability

View on Model

105

WH02X10181 GE Screw ST3.5 x 11 Backorder GEN WH02X10181 $4.94

View on Model

107

WH02X10183 GE Screw ST4 13 Backorder GEN WH02X10183 $5.20

View on Model

112

WH02X10185 GE Screw ST4 25 Backorder GEN WH02X10185 $5.20

View on Model

113

WE04X21014 GE Washer Control Knob In Stock GEN WE04X21014 $16.29

View on Model

121

SOIL_SPEED_TEMP_BUTTON GEN WH12X10306 Contact Us For Availability

View on Model

128

WH41X10112 GE Siphon Pipe Backorder GEN WH41X10112 $5.20

View on Model

131

WH41X10155 GE Washer Bleach Dispenser Backorder GEN WH41X10155 $12.68

View on Model

132

WH01X10245 GE Level Drawer Latch Backorder GEN WH01X10245 $5.20

View on Model

134

DISPENSER DWR FRONT WW GEN WH41X10177 Contact Us For Availability

View on Model

135

DRAWER DISPENSER GEN WH41X10278 Contact Us For Availability

View on Model

136

WATER_INLET_PIPE GEN WH41X10118 Contact Us For Availability

View on Model

137

DISPENSER_SEAL GEN WH41X10119 Contact Us For Availability

View on Model

146

DISPENSER_VENT_HOSE GEN WH41X10122 Contact Us For Availability

View on Model

150

MAIN BOX DIVERTER ASM GEN WH41X10277 Contact Us For Availability

View on Model

151

MAIN INLET WATER HOSE GEN WH41X10156 Contact Us For Availability

View on Model

152

WH41X10157 GE Inlet Water Hose for Bleach Backorder GEN WH41X10157 $13.83

View on Model

153

WH41X10158 GE Hot Water Inlet Hose Backorder GEN WH41X10158 $14.80

View on Model

201

WH41X10301 GE EMI Filter Backorder GEN WH41X10301 $57.02

View on Model

203

WH13X10029 GE Washer 2-In-3 Out Water Valve In Stock GEN WH13X10029 $90.29

View on Model

204

WH05X10009 GE Washer Suspension Spring In Stock GEN WH05X10009 $18.63

View on Model

205

WH01X10251 GE Han R Spring Backorder GEN WH01X10251 $5.20

View on Model

212

TOP DECOR COVER WW GEN WH44X10174 Contact Us For Availability

View on Model

213

WIRE HARNESS GEN WH19X10050 Contact Us For Availability

View on Model

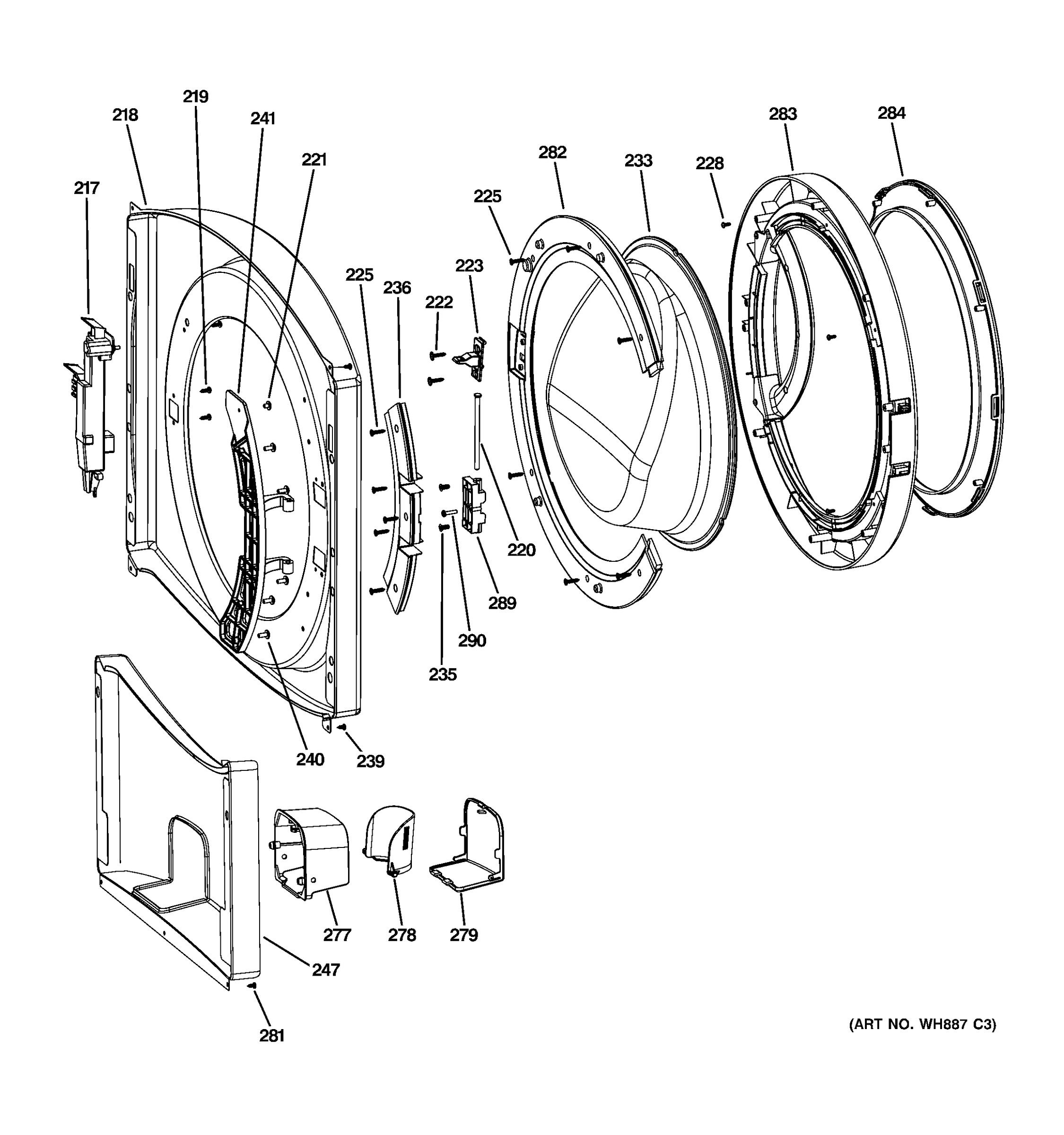

217

WH10X10006 GE Latch Lock In Stock GEN WH10X10006 $167.12

View on Model

218

FRONT PANEL WW GEN WH46X10149 Contact Us For Availability

View on Model

219

WH02X10189 GE Screw ST4 13 F05 Backorder GEN WH02X10189 $5.20

View on Model

220

HINGE DOOR SHORT PIN GEN WH01X10319 Contact Us For Availability

View on Model

222

WH02X10191 GE ST4 20 Screw Backorder GEN WH02X10191 $5.20

View on Model

223

DOOR PLUNGER GEN WH01X10356 Contact Us For Availability

View on Model

233

DOOR GLASS GEN WH46X10150 Contact Us For Availability

View on Model

235

SCREW_M5*12 GEN WH02X10194 Contact Us For Availability

View on Model

236

HINGE COVER GEN WH44X10182 Contact Us For Availability

View on Model

241

HINGE GEN WH01X10511 Contact Us For Availability

View on Model

247

SERVICE PANEL WW GEN WH46X10188 Contact Us For Availability

View on Model

249

WH23X10028 GE Washer Drain Pump In Stock GEN WH23X10028 $167.01

View on Model

252

INVERTER CONNECTORS SHIE GEN WH44X10177 Contact Us For Availability

View on Model

254

WH01X10261 GE Damper Pin Backorder GEN WH01X10261 $6.35

View on Model

256

LEG GEN WH46X10130 Contact Us For Availability

View on Model

260

INVERTER GEN WH12X10519 Contact Us For Availability

View on Model

262

WH01X10262 GE Drain Hose Catch Backorder GEN WH01X10262 $5.20

View on Model

264

WH01X10263 GE Washer Inside Drain Hose Backorder GEN WH01X10263 $5.20

View on Model

269

WH41X10126 GE Drain Hose Outside Backorder GEN WH41X10126 $37.09

View on Model

271

WH01X10265 GE Drain Hose Clamp Backorder GEN WH01X10265 $6.92

View on Model

273

WH01X10266 GE Drain Hose Coupling Backorder GEN WH01X10266 $7.12

View on Model

274

INSIDE_DRAIN_HOSE GEN WH41X10127 Contact Us For Availability

View on Model

276

SCREW ST4.2*11 GEN WH02X10203 Contact Us For Availability

View on Model

279

PUMP ACCESS DOOR WW GEN WH01X10357 Contact Us For Availability

View on Model

282

DOOR COVER ASM GEN WH46X10185 Contact Us For Availability

View on Model

283

DOOR FRAME - OUTER ASM GEN WH46X10236 Contact Us For Availability

View on Model

284

PROTECT COVER & RING GEN WH46X10127 Contact Us For Availability

View on Model

285

WH11X34741 GE Pump Filter In Stock GEN WH11X34741 $73.74

View on Model

286

WH41X10133 GE Drain Hose U-Shape Backorder GEN WH41X10133 $7.12

View on Model

288

WH02X10234 GE Screw M5 12 Backorder GEN WH02X10234 $5.20

View on Model

289

HINGE DOOR PLATE GEN WH01X10340 Contact Us For Availability

View on Model

301

WH02X10204 GE Nut M8 Backorder GEN WH02X10204 $5.20

View on Model

302

WH02X10205 GE Washer Backorder GEN WH02X10205 $5.20

View on Model

306

WH08X10049 GE Door Boot Seal Gasket Backorder GEN WH08X10049 $225.98

View on Model

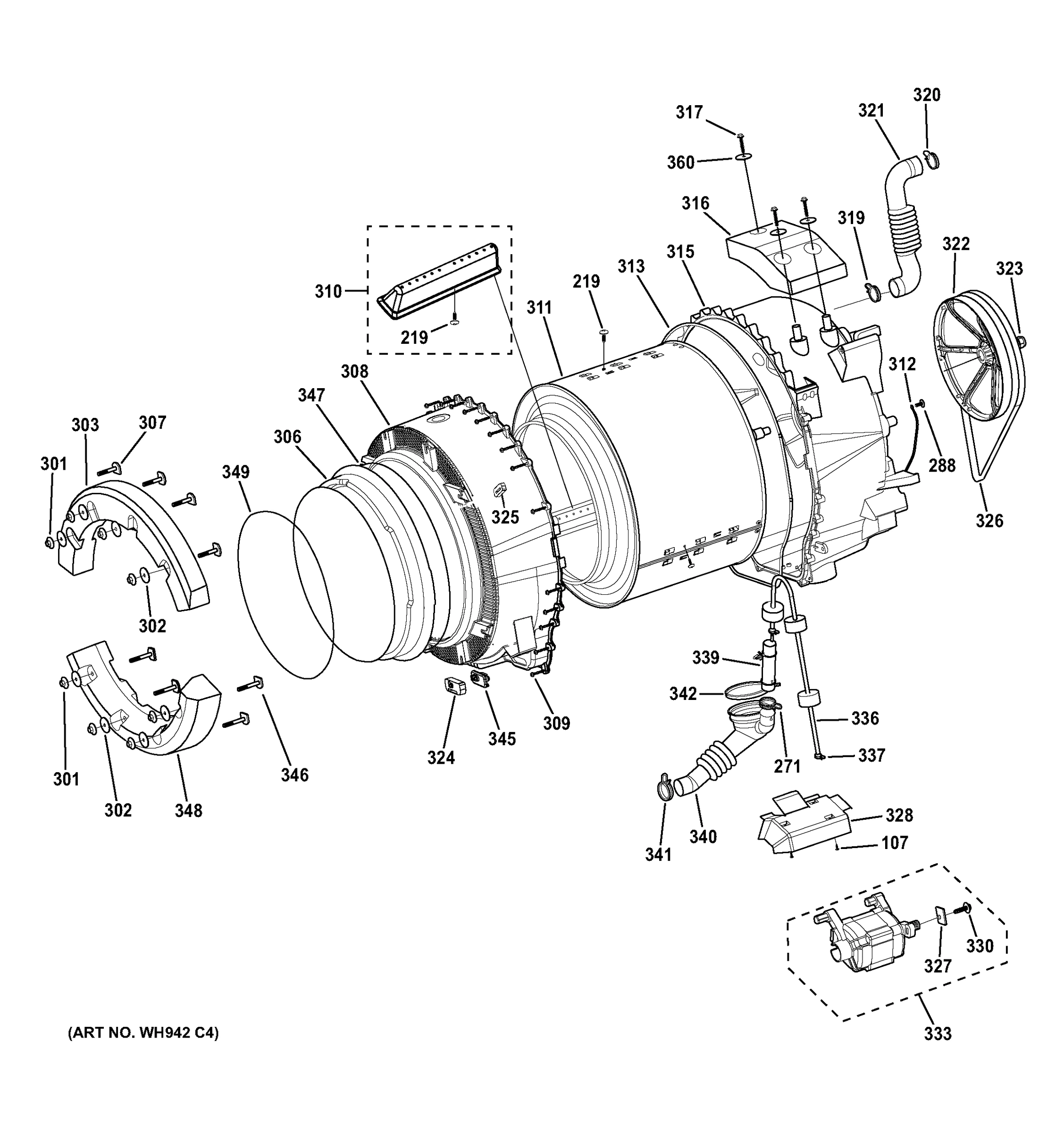

308

FRONT TUB GEN WH45X10101 Contact Us For Availability

View on Model

310

BAFFLE ASM GEN WH16X10079 Contact Us For Availability

View on Model

311

WH45X10142 GE Basket Assembly Backorder GEN WH45X10142 $634.30

View on Model

313

TUB_SEAL GEN WH08X10023 Contact Us For Availability

View on Model

315

REAR_TUB GEN WH45X10071 Contact Us For Availability

View on Model

316

COUNTERWEIGHT REAR GEN WH01X10268 Contact Us For Availability

View on Model

321

VENT_HOSE GEN WH41X10128 Contact Us For Availability

View on Model

322

DRIVE PULLEY KIT GEN WH07X10016 Contact Us For Availability

View on Model

323

NUT_M16 GEN WH02X10211 Contact Us For Availability

View on Model

326

DRIVE BELT GEN WH08X10048 Contact Us For Availability

View on Model

327

WH02X10212 GE Motor Backorder GEN WH02X10212 $5.20

View on Model

330

FLANGE_BOLT_M8*35 GEN WH02X10213 Contact Us For Availability

View on Model

333

WH20X10028 GE Motor Assembly Kit Backorder GEN WH20X10028 $391.95

View on Model

339

AIR_CHAMBER GEN WH41X10130 Contact Us For Availability

View on Model

340

DRAIN_HOSE GEN WH41X10131 Contact Us For Availability

View on Model

342

TUB DRAIN HOSE CLAMP GEN WH01X10276 Contact Us For Availability

View on Model

345

WH12X10351 GE Heater Thermistor Backorder GEN WH12X10351 $55.11

View on Model

347

WH01X10277 GE Washer Door Gasket Clamp In Stock GEN WH01X10277 $14.23

View on Model

349

WH01X10279 GE Boot Seal Retaining Ring Backorder GEN WH01X10279 $18.59

View on Model

999

KIT - SHIPPING BOLT GEN WH49X10047 Contact Us For Availability

View on Model

9999

WE25X10028 GE Washer Stacking Kit In Stock GEN WE25X10028 $86.70

View on Model

All Categories

Brands

Model GE GFWN1100L3WW Washer – Common Parts & Diagrams

Common parts from model GE GFWN1100L3WW Washer

Search result for :
