Model Electrolux GFU21M9AW3 FREEZER – Common Parts & Diagrams
01 - COVER

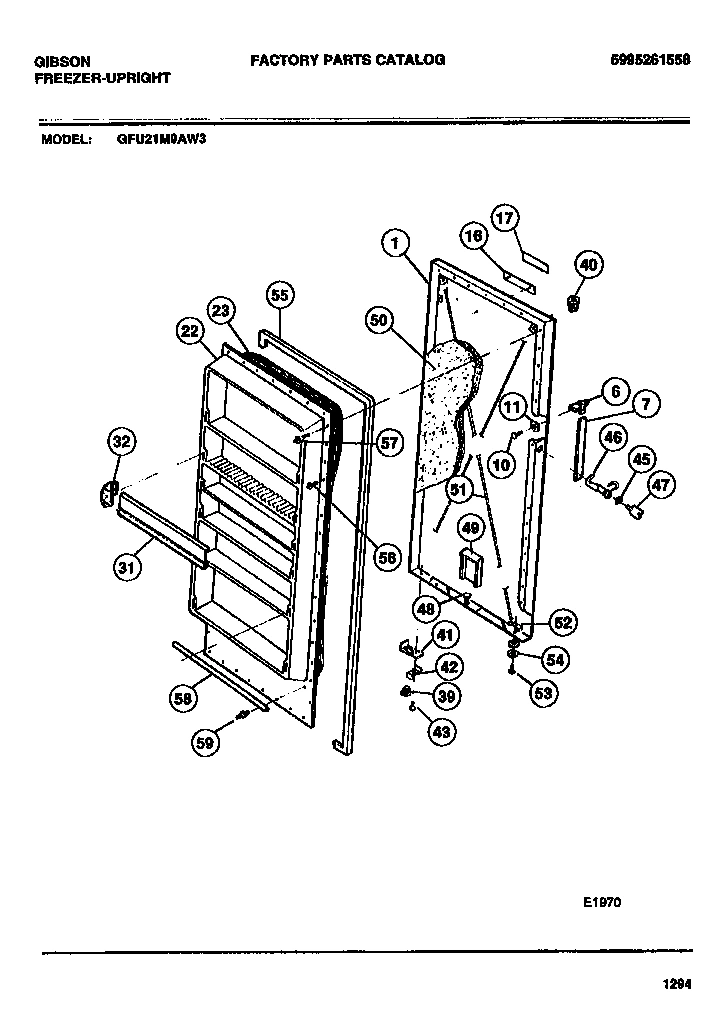

02 - DOOR
03 - CABINET
04 - LINER & UNIT
Common parts from model Electrolux GFU21M9AW3 FREEZER
*47922
SHIELD, BRACKET WCI 5303297075 Contact Us For Availability
*47923
WIRE HARNESS-ALARM WCI 5303286749 Contact Us For Availability
*47924
SHIELD-WIRES WCI 216159300 Contact Us For Availability
1
SUPPORT, FRONT RH (4) WCI 08067928 Contact Us For Availability
9
WCI 216109800 WCI 216109800 Contact Us For Availability
12
WCI 5306593887 WCI 5306593887 Contact Us For Availability
12
WCI 09949960 WCI 09949960 Contact Us For Availability
15
ADAPTER-DRAIN HOSE WCI 5303294374 Contact Us For Availability
15
WCI 5308010744 WCI 5308010744 Contact Us For Availability
19
SECOND SHELF WCI 216071100 Contact Us For Availability
23
SCREW TOP GRID WCI 216138900 Contact Us For Availability
24
WCI 5303210424 WCI 5303210424 Contact Us For Availability
26
WCI 216247400 WCI 216247400 Contact Us For Availability
32
WCI 5306594529 WCI 5306594529 Contact Us For Availability
32
WCI 5303212912 WCI 5303212912 Contact Us For Availability
33
SCREW WCI 5303272328 Contact Us For Availability
33
HINGE, TOP WCI 5303212935 Contact Us For Availability
34
NUT INSERT WCI 5303294372 Contact Us For Availability
35
SCREW-HINGE WCI 5303212937 Contact Us For Availability
35
WCI 216241500 WCI 216241500 Contact Us For Availability
36
RELAY WCI 216008900 Contact Us For Availability
37
WCI 5303206836 WCI 5303206836 Contact Us For Availability
40
CLAMP WCI 215012000 Contact Us For Availability
41
CLIP-LOCK WCI 216328000 Contact Us For Availability
42
SIGNAL LIGHT-SMBER WCI 5308002706 Contact Us For Availability
42
WCI 08016354 WCI 08016354 Contact Us For Availability
42
WCI 216323100 WCI 216323100 Contact Us For Availability
43
SWITCH WCI 5303017178 Contact Us For Availability
44
WCI 08016367 WCI 08016367 Contact Us For Availability
45
WCI 5300114366 WCI 5300114366 Contact Us For Availability
45
WCI 08016369 WCI 08016369 Contact Us For Availability
46
LOCK HOOK WCI 216323600 Contact Us For Availability
46
WCI 08016772 WCI 08016772 Contact Us For Availability
47
WCI 09950831 WCI 09950831 Contact Us For Availability
47
WCI 08037851 WCI 08037851 Contact Us For Availability
48
VALVE BREATHER (2) WCI 5309950074 Contact Us For Availability
49
WCI 5300128421 WCI 5300128421 Contact Us For Availability
50
INSULATION, DOOR WCI 5303007739 Contact Us For Availability
50
WCI 06594651 WCI 06594651 Contact Us For Availability
51
WIRE, ADJUSTING (2) WCI 08037986 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
53
SCREW, BRACKET (2) WCI 5300057906 Contact Us For Availability
53
WCI 5300125347 WCI 5300125347 Contact Us For Availability
54
WASHER, BRACKET (2) WCI 09950839 Contact Us For Availability
54
WIRING HARNESS WCI 216234300 Contact Us For Availability
55
WCI 3206261 WCI 3206261 Contact Us For Availability
56
WCI 06594680 WCI 06594680 Contact Us For Availability
56
CONTROL-TEMP WCI 216150400 Contact Us For Availability
57
WCI 5300136117 WCI 5300136117 Contact Us For Availability
57
SCREW, PANEL (24) WCI 216022800 Contact Us For Availability
57
SPACER-BREAKER (8) WCI 08037937 Contact Us For Availability
58
GASKET WCI 5308016356 Contact Us For Availability
58
WCI 216085900 WCI 216085900 Contact Us For Availability
59
WCI 216085800 WCI 216085800 Contact Us For Availability
59
RETAINER HARNESS (5) WCI 08037401 Contact Us For Availability
60
BREAKER HINGE WCI 216107501 Contact Us For Availability
61
WCI 216107602 WCI 216107602 Contact Us For Availability
62
WCI 08037931 WCI 08037931 Contact Us For Availability
63
LEVELING LEG ADJ. (4) WCI 205363701 Contact Us For Availability
63
WCI 5300052943 WCI 5300052943 Contact Us For Availability
72
DRY SHELF WCI 216077200 Contact Us For Availability
73
SUPPORT DRY SHELF (5) WCI 08016352 Contact Us For Availability
74
BASKET WCI 216076801 Contact Us For Availability
74
WCI 216008706 WCI 216008706 Contact Us For Availability
75
HANDLE-BASKET WCI 216153100 Contact Us For Availability
75
HOUSING COLD CONTROL WCI 5303288184 Contact Us For Availability
76
WCI 09950862 WCI 09950862 Contact Us For Availability
76
SHIELD-LIGHT (PLASTIC) WCI 5303292007 Contact Us For Availability
77
WCI 08003539 WCI 08003539 Contact Us For Availability
80
WCI 09950853 WCI 09950853 Contact Us For Availability
81
WCI 09948791 No Longer Available
91
WCI 5303209972 WCI 5303209972 Contact Us For Availability
× ![]()
