Model Electrolux GFU21M9AW1 FREEZER – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

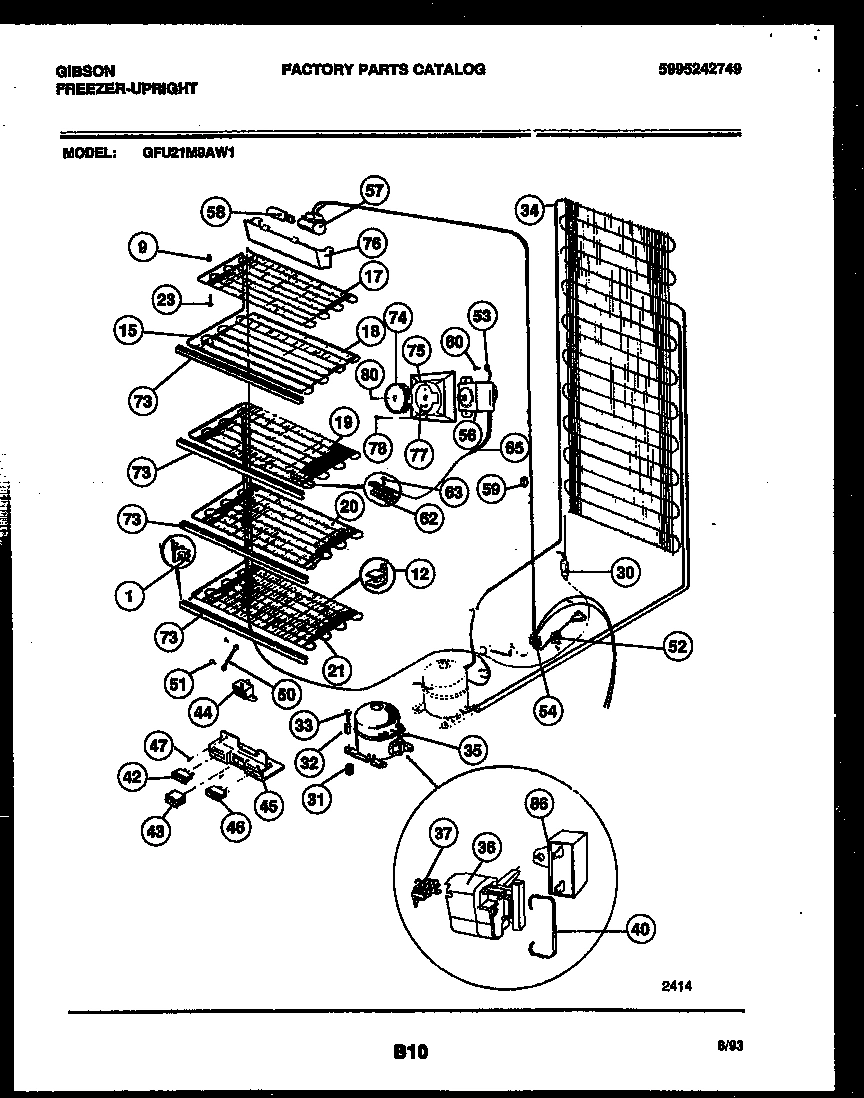

04 - SYSTEM AND ELECTRICAL PARTS
Common parts from model Electrolux GFU21M9AW1 FREEZER
*64488
SHIELD-WIRES WCI 216159300 Contact Us For Availability
9
WCI 216109800 WCI 216109800 Contact Us For Availability
12
WCI 5306593887 WCI 5306593887 Contact Us For Availability
12
WCI 09949960 WCI 09949960 Contact Us For Availability
14
WCI 06593405 WCI 06593405 Contact Us For Availability
15
ADAPTER-DRAIN HOSE WCI 5303294374 Contact Us For Availability
15
WCI 5308010744 WCI 5308010744 Contact Us For Availability
19
SECOND SHELF WCI 216071100 Contact Us For Availability
23
SCREW TOP GRID WCI 216138900 Contact Us For Availability
24
WCI 5303210424 WCI 5303210424 Contact Us For Availability
26
WCI 5303210383 WCI 5303210383 Contact Us For Availability
32
WCI 5306594529 WCI 5306594529 Contact Us For Availability
32
WCI 5303212912 WCI 5303212912 Contact Us For Availability
33
SCREW WCI 5303272328 Contact Us For Availability
33
HINGE, TOP WCI 5303212935 Contact Us For Availability
34
NUT INSERT WCI 5303294372 Contact Us For Availability
35
SCREW-HINGE WCI 5303212937 Contact Us For Availability
35
WCI 216241500 WCI 216241500 Contact Us For Availability
36
RELAY WCI 216008900 Contact Us For Availability
37
WCI 5303206836 WCI 5303206836 Contact Us For Availability
40
WCI 5306593364 WCI 5306593364 Contact Us For Availability
40
CLAMP WCI 215012000 Contact Us For Availability
41
REINFORCEMENT DR STOP WCI 5300091170 Contact Us For Availability
41
CLIP LOCK WCI 216013700 Contact Us For Availability
42
SIGNAL LIGHT-SMBER WCI 5308002706 Contact Us For Availability
42
WCI 08016354 WCI 08016354 Contact Us For Availability
42
WCI 216013600 WCI 216013600 Contact Us For Availability
43
WCI 08005520 WCI 08005520 Contact Us For Availability
43
SWITCH WCI 5303017178 Contact Us For Availability
44
LOCK-COMPLETE WCI 5303925107 Contact Us For Availability
44
WCI 08016367 WCI 08016367 Contact Us For Availability
45
WCI 5300114366 WCI 5300114366 Contact Us For Availability
45
WCI 08016369 WCI 08016369 Contact Us For Availability
45A
WCI 5303297075 WCI 5303297075 Contact Us For Availability
46
LOCK HOOK WCI 216013800 Contact Us For Availability
46
WCI 08016772 WCI 08016772 Contact Us For Availability
46A
WIRE HARNESS-ALARM (NON-ILLUSTRATED) WCI 5303286749 Contact Us For Availability
47
WCI 09950831 WCI 09950831 Contact Us For Availability
47
WCI 08037851 WCI 08037851 Contact Us For Availability
48
VALVE BREATHER (2) WCI 5309950074 Contact Us For Availability
49
WCI 5300128421 WCI 5300128421 Contact Us For Availability
50
INSULATION, DOOR WCI 5303007739 Contact Us For Availability
50
WCI 06594651 WCI 06594651 Contact Us For Availability
51
WIRE, ADJUSTING (2) WCI 08037986 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
53
SCREW, BRACKET (2) WCI 5300057906 Contact Us For Availability
53
WCI 5300125347 WCI 5300125347 Contact Us For Availability
54
WASHER, BRACKET (2) WCI 09950839 Contact Us For Availability
54
WIRING HARNESS WCI 216234300 Contact Us For Availability
56
WCI 06594680 WCI 06594680 Contact Us For Availability
56
CONTROL-TEMP WCI 216150400 Contact Us For Availability
57
WCI 5300136117 WCI 5300136117 Contact Us For Availability
57
SCREW, PANEL (24) WCI 216022800 Contact Us For Availability
57
SPACER-BREAKER (8) WCI 08037937 Contact Us For Availability
58
GASKET WCI 5308016356 Contact Us For Availability
58
WCI 216085900 WCI 216085900 Contact Us For Availability
59
WCI 216085800 WCI 216085800 Contact Us For Availability
59
RETAINER HARNESS (5) WCI 08037401 Contact Us For Availability
60
BREAKER HINGE WCI 216107501 Contact Us For Availability
61
WCI 216107601 WCI 216107601 Contact Us For Availability
62
WCI 08037931 WCI 08037931 Contact Us For Availability
63
LEVELING LEG (4) WCI 5303205540 Contact Us For Availability
63
WCI 5300052943 WCI 5300052943 Contact Us For Availability
72
DRY SHELF WCI 216077200 Contact Us For Availability
73
SUPPORT DRY SHELF (5) WCI 08016352 Contact Us For Availability
74
BASKET WCI 216076801 Contact Us For Availability
74
KNOB-CONTROL WCI 216008706 Contact Us For Availability
75
HANDLE-BASKET WCI 216153100 Contact Us For Availability
75
HOUSING COLD CONTROL WCI 5303288184 Contact Us For Availability
76
WCI 09950862 WCI 09950862 Contact Us For Availability
76
SHIELD-LIGHT (PLASTIC) WCI 5303292007 Contact Us For Availability
77
WCI 08003539 WCI 08003539 Contact Us For Availability
80
WCI 09950853 WCI 09950853 Contact Us For Availability
81
WCI 09948791 No Longer Available
83
SPACERS BASKET (4) WCI 5303285695 Contact Us For Availability
90
WCI 4309950066 WCI 4309950066 Contact Us For Availability
91
WCI 5303209972 WCI 5303209972 Contact Us For Availability
92
BUMPER (3) WCI 5300118003 Contact Us For Availability
× ![]()
