Model Electrolux GFU21M4AW3 FREEZER – Common Parts & Diagrams
01 - COVER
02 - DOOR

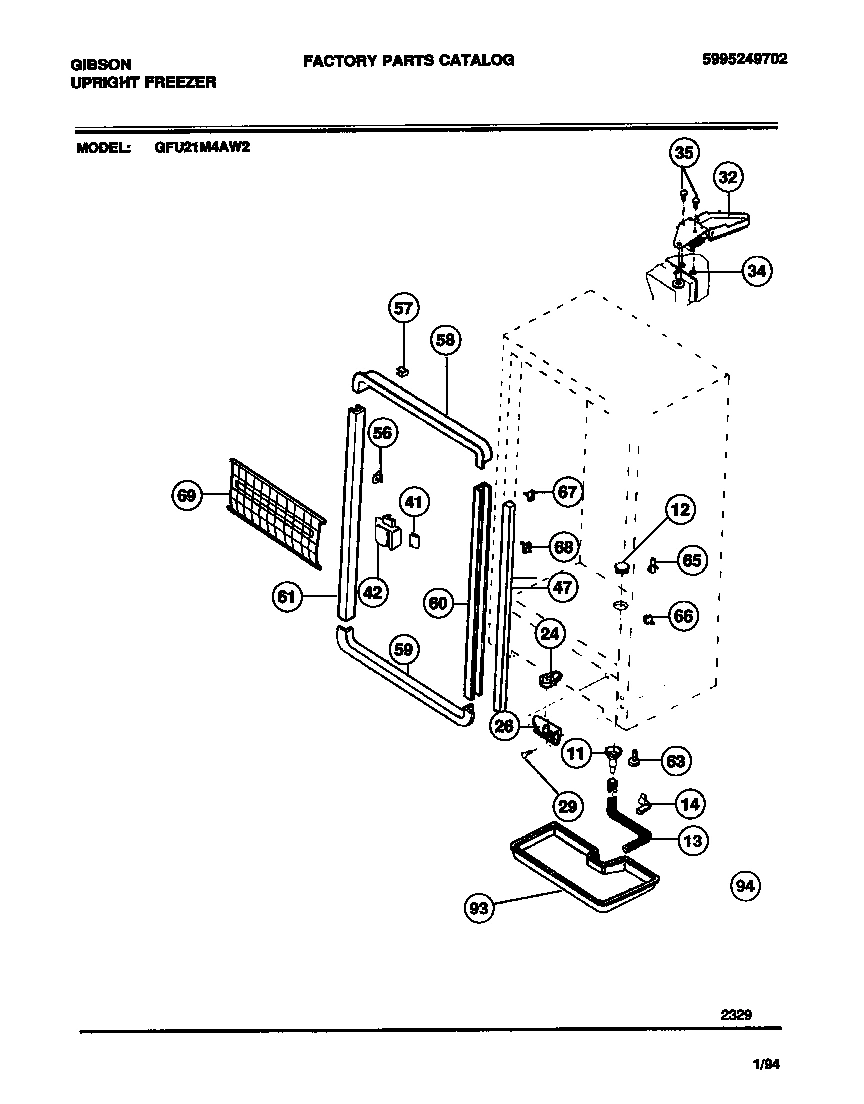

03 - CABINET

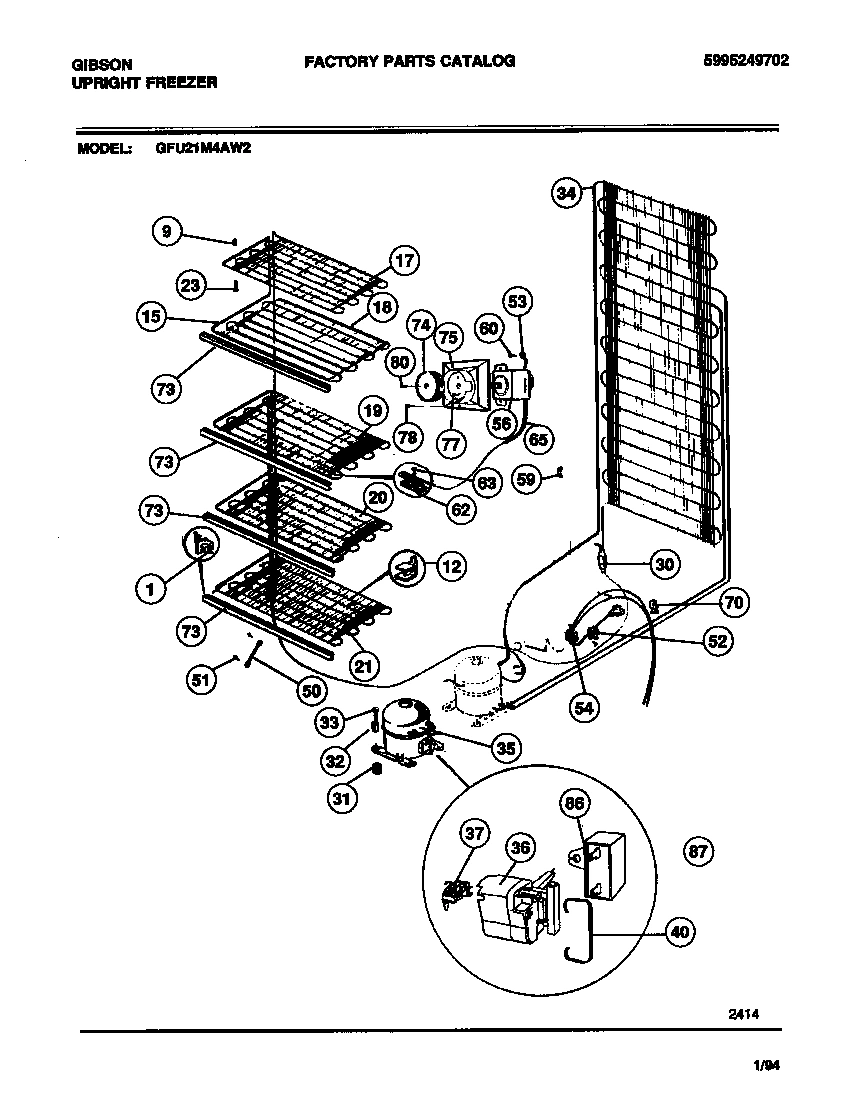

04 - LINER AND UNIT
Common parts from model Electrolux GFU21M4AW3 FREEZER
*48641
SPCR-TOP GRID REAR WCI 216225700 Contact Us For Availability
*48642
SHIELD-WIRING WCI 216159300 Contact Us For Availability
9
WCI 216109800 WCI 216109800 Contact Us For Availability
12
WCI 5306593887 WCI 5306593887 Contact Us For Availability
12
SUPPORT-REAR (8) WCI 216225600 Contact Us For Availability
15
WCI 5308010744 WCI 5308010744 Contact Us For Availability
19
SECOND SHELF WCI 216071100 Contact Us For Availability
23
SCREW-TOP GRID (3) WCI 216138900 Contact Us For Availability
24
WCI 5303210424 WCI 5303210424 Contact Us For Availability
26
WCI 5303210383 WCI 5303210383 Contact Us For Availability
32
SLEEVE (3) WCI 5306594529 Contact Us For Availability
32
WCI 5303212912 WCI 5303212912 Contact Us For Availability
33
SCREW (3) WCI 5303272328 Contact Us For Availability
33
HINGE, TOP WCI 5303212935 Contact Us For Availability
34
NUT INSERT WCI 5303294372 Contact Us For Availability
35
WCI 5303212937 WCI 5303212937 Contact Us For Availability
35
WCI 216241500 WCI 216241500 Contact Us For Availability
36
RELAY WCI 216008900 Contact Us For Availability
37
WCI 5303206836 WCI 5303206836 Contact Us For Availability
40
CLAMP, COVER WCI 215012000 Contact Us For Availability
41
CLIP LOCK WCI 216013700 Contact Us For Availability
42
WCI 08016354 WCI 08016354 Contact Us For Availability
42
WCI 216013600 WCI 216013600 Contact Us For Availability
47
WCI 09950831 WCI 09950831 Contact Us For Availability
48
VALVE BREATHER (2) WCI 5309950074 Contact Us For Availability
49
AIR DUCT BREATHER WCI 5303212700 Contact Us For Availability
50
INSULATION, DOOR WCI 5303007739 Contact Us For Availability
50
WCI 06594651 WCI 06594651 Contact Us For Availability
51
WIRE, ADJUSTING (2) WCI 08037986 Contact Us For Availability
51
WCI 08037851 WCI 08037851 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
53
SCREW, BRACKET (2) WCI 5300057906 Contact Us For Availability
53
WCI 5300125347 WCI 5300125347 Contact Us For Availability
54
WASHER, BRACKET (2) WCI 09950839 Contact Us For Availability
54
WCI 216234500 WCI 216234500 Contact Us For Availability
55
WCI 3206261 WCI 3206261 Contact Us For Availability
56
CONTROL TEMP WCI 216260400 Contact Us For Availability
56
WCI 06594680 WCI 06594680 Contact Us For Availability
57
SCREW, PANEL (24) WCI 216022800 Contact Us For Availability
58
GASKET-WHITE WCI 5308016356 Contact Us For Availability
58
WCI 216085900 WCI 216085900 Contact Us For Availability
59
RETAINER HARNESS (5) WCI 08037401 Contact Us For Availability
59
WCI 216085800 WCI 216085800 Contact Us For Availability
60
BREAKER HINGE WCI 216107500 Contact Us For Availability
61
WCI 216107601 WCI 216107601 Contact Us For Availability
62
WCI 08037931 WCI 08037931 Contact Us For Availability
63
LEVELING LEG ADJ. (4) WCI 205363701 Contact Us For Availability
63
WCI 5300052943 WCI 5300052943 Contact Us For Availability
65
WCI 06599973 WCI 06599973 Contact Us For Availability
66
WCI 06599975 WCI 06599975 Contact Us For Availability
67
WCI 06599974 WCI 06599974 Contact Us For Availability
68
WCI 06599976 WCI 06599976 Contact Us For Availability
69
WCI 216098300 WCI 216098300 Contact Us For Availability
70
WCI 06599553 WCI 06599553 Contact Us For Availability
74
KNOB-CONTROL WCI 216008602 Contact Us For Availability
75
HOUSING CONTROL WCI 5303288184 Contact Us For Availability
77
WCI 08003539 WCI 08003539 Contact Us For Availability
80
WCI 09950853 WCI 09950853 Contact Us For Availability
87
CLIP-CORD WCI 08016777 Contact Us For Availability
93
DRAIN PAN (NOT ORIGINAL EQUIPMENT-CUSTOMER PU WCI N/A Contact Us For Availability
94
ADAPTER HOSE WCI 216269500 Contact Us For Availability
× ![]()
