Model Electrolux GFU21D9FW0 FREEZER – Common Parts & Diagrams

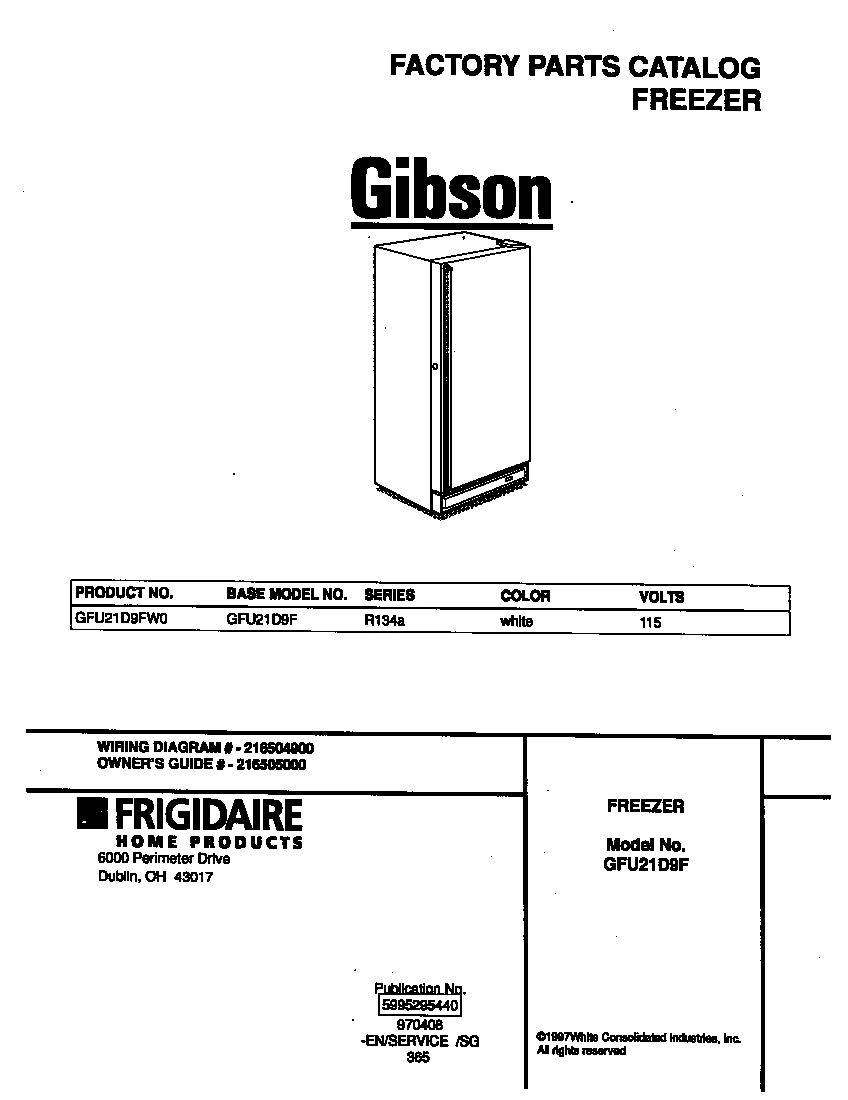

01 - COVER

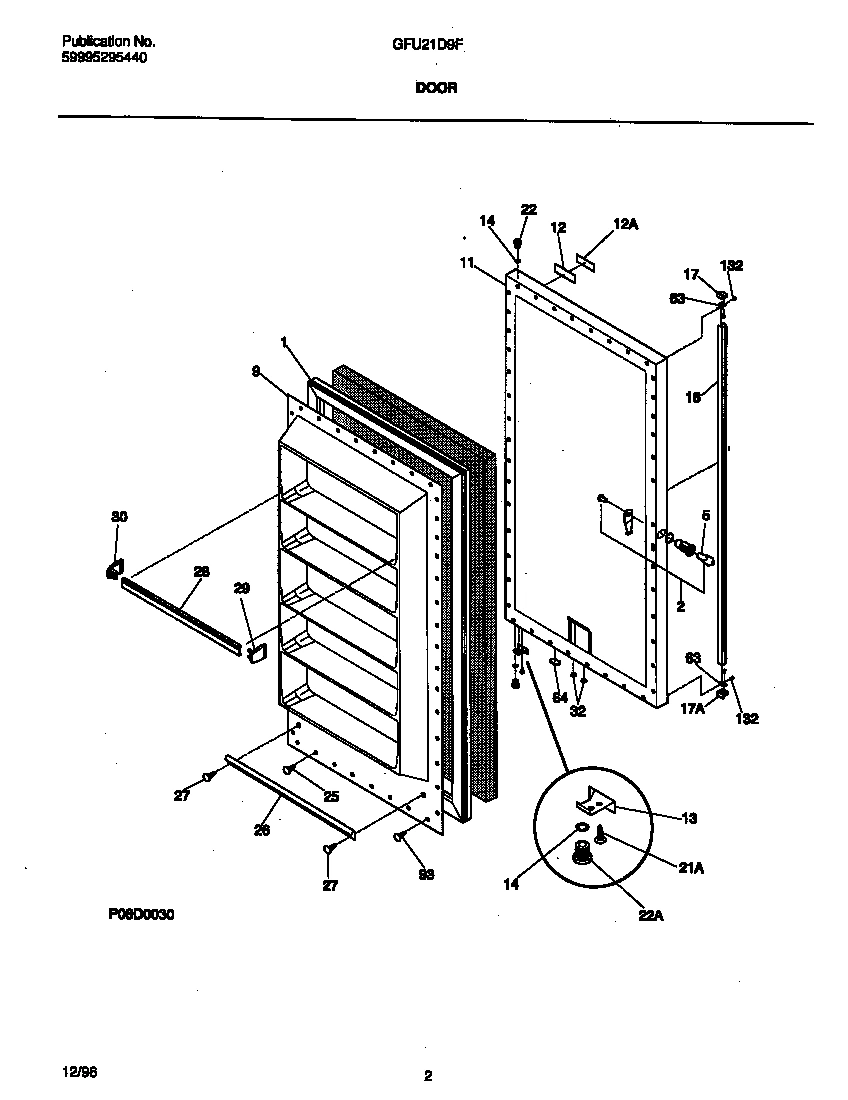

02 - DOOR

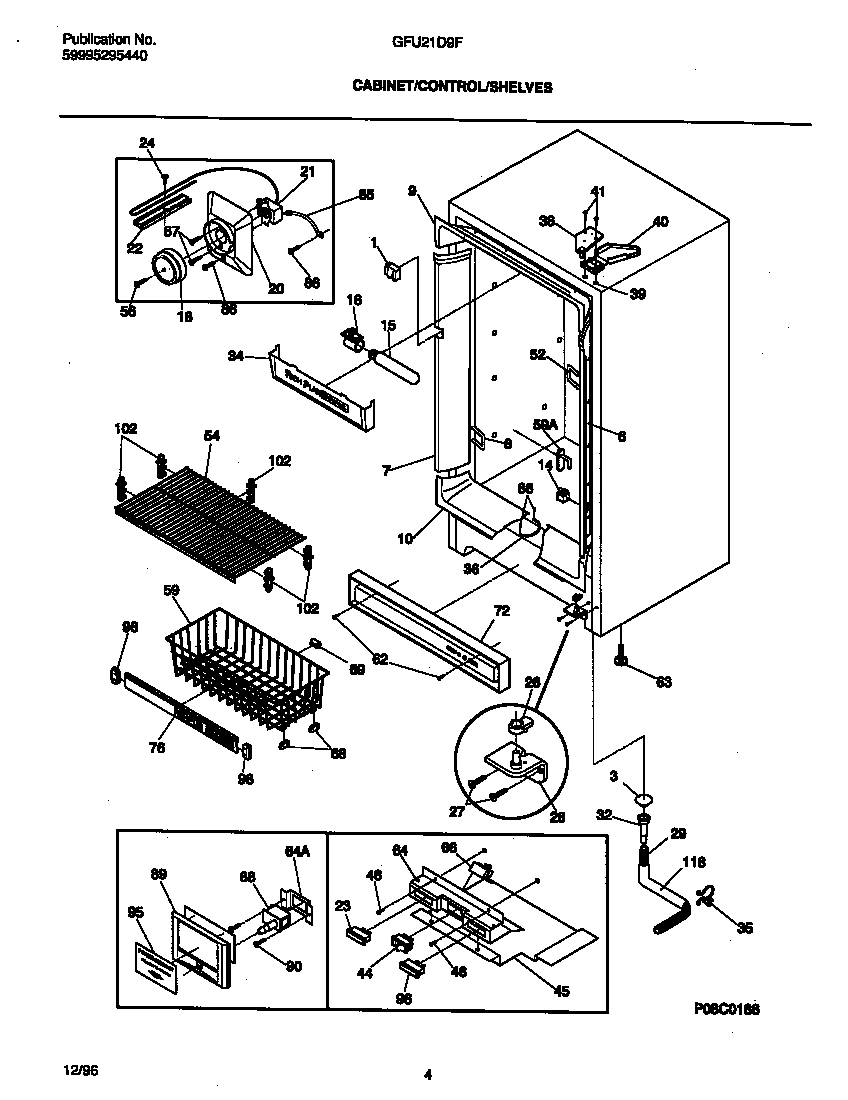

03 - CABINET/CONTROL/SHELVES

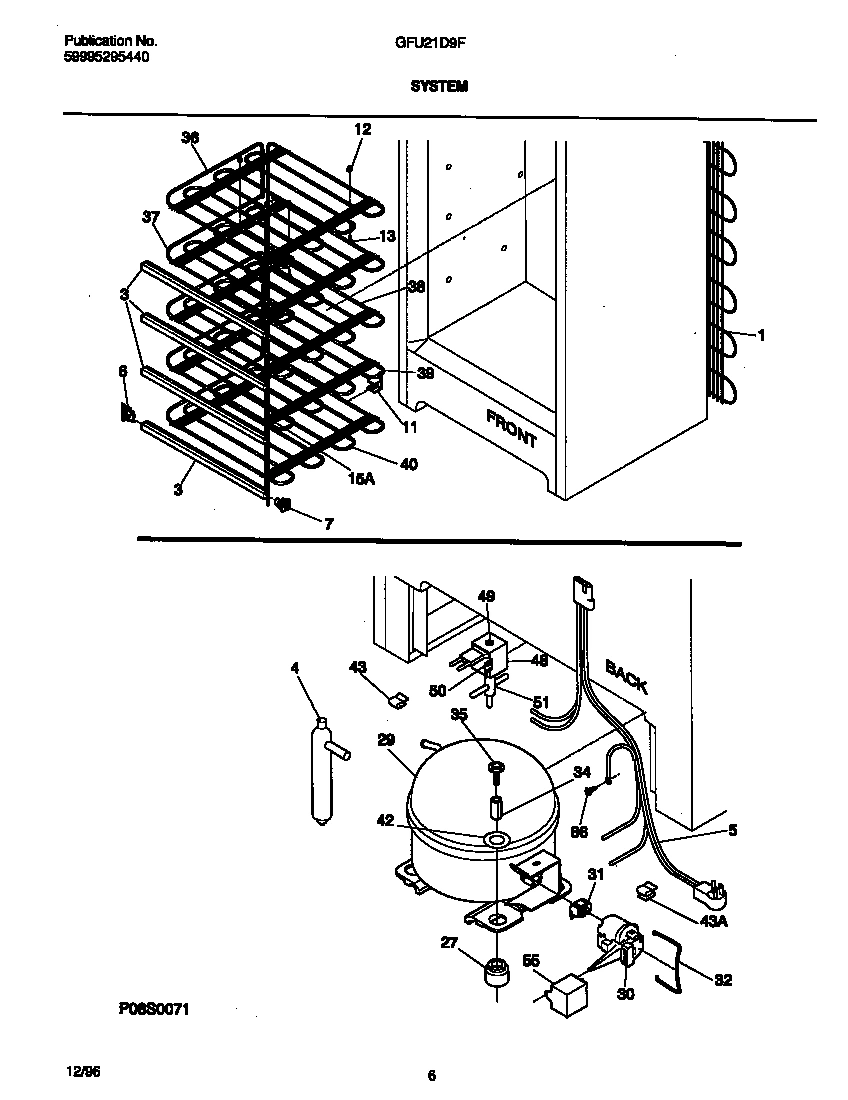

04 - SYSTEM
Common parts from model Electrolux GFU21D9FW0 FREEZER
*36480
INSULATION WCI 5303917276 Contact Us For Availability
*36485
WCI 5303208622 WCI 5303208622 Contact Us For Availability
1
GASKET DOOR WCI 3206261 Contact Us For Availability
1
WCI 216323100 WCI 216323100 Contact Us For Availability
5
WCI 216234400 WCI 216234400 Contact Us For Availability
6
WCI 216107501 WCI 216107501 Contact Us For Availability
7
WCI 216107602 WCI 216107602 Contact Us For Availability
8
WCI 216328000 WCI 216328000 Contact Us For Availability
9
WCI 216085900 WCI 216085900 Contact Us For Availability
10
WCI 216085800 WCI 216085800 Contact Us For Availability
11
WCI 216474600 WCI 216474600 Contact Us For Availability
12
WCI 216225700 WCI 216225700 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
13
WCI 216138900 WCI 216138900 Contact Us For Availability
15
WCI 216468300 WCI 216468300 Contact Us For Availability
16
SOCKET, LIGHT/LAMP WCI 5300136117 Contact Us For Availability
18
KNOB, TEMP CONTROL, BLUE WCI 216008706 Contact Us For Availability
20
WCI 5303288184 WCI 5303288184 Contact Us For Availability
21
WCI 216260300 WCI 216260300 Contact Us For Availability
22
CLAMP, CAP TUBE, COLD CONTROL WCI 08037931 Contact Us For Availability
23
WCI 5308002706 WCI 5308002706 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
26
RAMP, DOOR WCI 5303210424 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
30
END CAP-WIDE, RH WCI 216334200 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 216100104 WCI 216100104 Contact Us For Availability
32
VALVE-BREATHER, DOOR WCI 5309950074 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
34
SHIELD-LIGHT WCI 5303208964 Contact Us For Availability
35
SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
36
WCI 06594651 WCI 06594651 Contact Us For Availability
37
WCI 216160100 WCI 216160100 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
38
WCI 216071100 WCI 216071100 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
42
SPACER, COMPRESSOR WCI 5303298960 Contact Us For Availability
43
CLIP, COMPRESSOR WIRE WCI 05878556 Contact Us For Availability
43
WCI 09950610 WCI 09950610 Contact Us For Availability
44
WCI 5303017178 WCI 5303017178 Contact Us For Availability
45
WCI 5303298101 WCI 5303298101 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
48
WCI 3201514 WCI 3201514 Contact Us For Availability
49
WCI 3201513 WCI 3201513 Contact Us For Availability
50
WCI 5303297422 WCI 5303297422 Contact Us For Availability
51
WCI 5303210219 WCI 5303210219 Contact Us For Availability
52
RETAINER, WIRE, BREAKER WCI 08037401 Contact Us For Availability
54
WCI 216077200 WCI 216077200 Contact Us For Availability
56
WCI 09950853 WCI 09950853 Contact Us For Availability
59
WCI 09948791 No Longer Available
59
WCI 216076801 WCI 216076801 Contact Us For Availability
64
PLUG-BUTTON, BASE DOOR WCI 216403700 Contact Us For Availability
64
BRACKET WCI 08016369 Contact Us For Availability
64
WCI 216009200 WCI 216009200 Contact Us For Availability
66
BUZZER,ALARM WCI 08016367 Contact Us For Availability
72
WCI 216294414 WCI 216294414 Contact Us For Availability
76
WCI 216315500 WCI 216315500 Contact Us For Availability
85
WIRE-GROUND, TEMP CONTROL WCI 5300125347 Contact Us For Availability
87
SCREW WCI 08037849 Contact Us For Availability
88
WCI 216380500 WCI 216380500 Contact Us For Availability
89
WCI 216501000 WCI 216501000 Contact Us For Availability
90
SCREW, TH, 8-32 X 2-1/2 WCI 5303297123 Contact Us For Availability
95
WCI 5303299054 WCI 5303299054 Contact Us For Availability
96
LIGHT-SIGNAL,RED WCI 08016772 Contact Us For Availability
98
WCI 09950862 WCI 09950862 Contact Us For Availability
102
SUPPORT SHELF,ADJUSTABLE WCI 08016352 Contact Us For Availability
118
WCI 09948773 WCI 09948773 Contact Us For Availability
× ![]()
