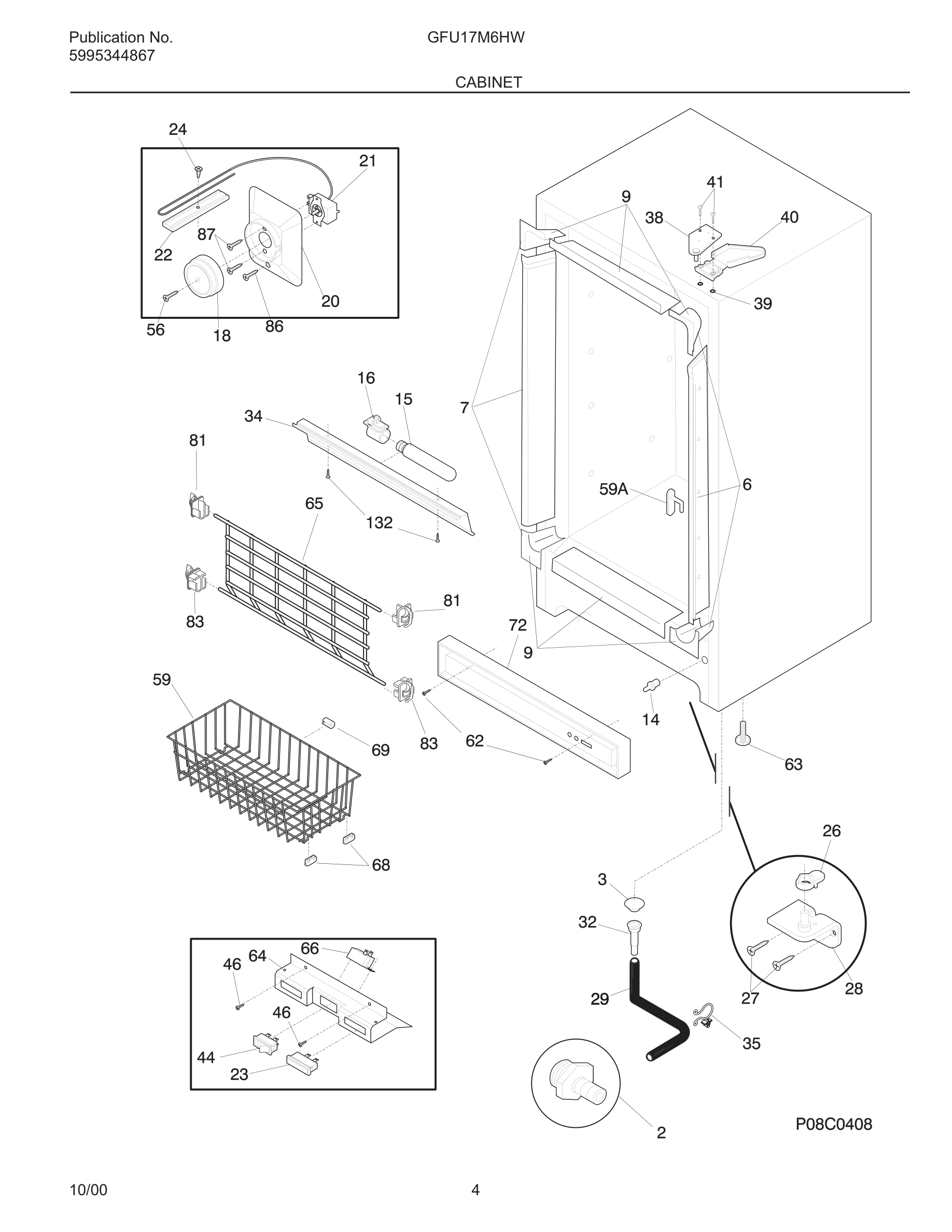

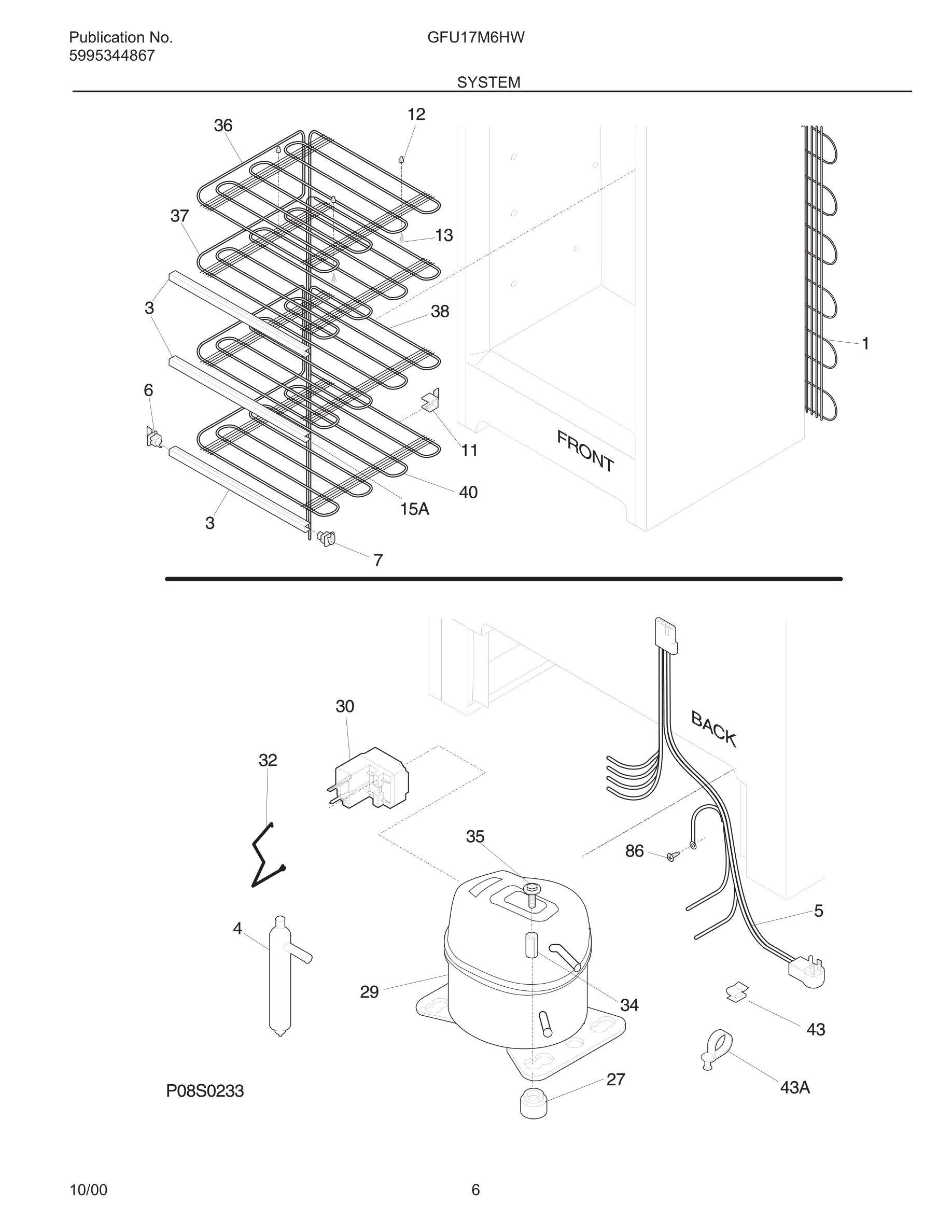

Model Gibson GFU17M6HW1 FREEZER – Common Parts & Diagrams

*
Insulation
Insulation WCI 5303925098 Contact Us For Availability
View on Model
*
Insulation,drain tube
Insulation,drain tube WCI 09948773 Contact Us For Availability
View on Model
2
Adapter-drain
Adapter-drain WCI 216269500 Contact Us For Availability
View on Model
3
Plug-drain,interior
Plug-drain,interior WCI 216502600 Contact Us For Availability
View on Model
5#
Harness,electrical ,ext
Harness,electrical ,ext WCI 216762600 Contact Us For Availability
View on Model
11
Support-rear shelf
Support-rear shelf WCI 216474600 Contact Us For Availability
View on Model
12
Grommet-spacer
Grommet-spacer WCI 216225700 Contact Us For Availability
View on Model
13
Door Stop
Door Stop WCI 08016354 Contact Us For Availability
View on Model
13
Screw,hex sems ,8-18AB x 1.00 ,evap
Screw,hex sems ,8-18AB x 1.00 ,evap WCI 216138900 Contact Us For Availability
View on Model
15A
Heat Exchanger
Heat Exchanger WCI 216401400 Contact Us For Availability
View on Model
16
Socket-light/lamp
Socket-light/lamp WCI 5300136117 Contact Us For Availability
View on Model
23
Light-signal,amber
Light-signal,amber WCI 5308002706 Contact Us For Availability
View on Model
26
Ramp,closer ,door
Ramp,closer ,door WCI 216503300 Contact Us For Availability
View on Model
30
Controller-regulator LP
Controller-regulator LP WCI 216649308 Contact Us For Availability
View on Model
32
Valve-breather
Valve-breather WCI 5309950074 Contact Us For Availability
View on Model
32
Clip-controller
Clip-controller WCI 216731900 Contact Us For Availability
View on Model
34
Sleeve-compressor
Sleeve-compressor WCI 5306594529 Contact Us For Availability
View on Model
35
Screw,Ind hex sems ,1/4-28 unfx ,compressor
Screw,Ind hex sems ,1/4-28 unfx ,compressor WCI 5303272328 Contact Us For Availability
View on Model
37#
Shelf-top evaporator
Shelf-top evaporator WCI 216070600 Contact Us For Availability
View on Model
38#
Shelf-middle evaporator
Shelf-middle evaporator WCI 216070700 Contact Us For Availability
View on Model
40
Cover-hinge
Cover-hinge WCI 5303212912 Contact Us For Availability
View on Model
41
Screw-top hinge
Screw-top hinge WCI 5303212937 Contact Us For Availability
View on Model
44#
Switch-rocker,SPST
Switch-rocker,SPST WCI 5303212703 Contact Us For Availability
View on Model
46
Screw,PH type AB ,8-32x1/2 ,wiring harness
Screw,PH type AB ,8-32x1/2 ,wiring harness WCI 08037851 Contact Us For Availability
View on Model
56
Screw-control knob,phillips ,4-40 x 3/8
Screw-control knob,phillips ,4-40 x 3/8 WCI 09950853 Contact Us For Availability
View on Model
59
Basket
Basket WCI 216154400 Contact Us For Availability
View on Model
59A
Stop-basket
Stop-basket WCI 09948791 No Longer Available
View on Model
64
Plug-button,base door
Plug-button,base door WCI 216403700 Contact Us For Availability
View on Model
64
Bracket
Bracket WCI 08016369 Contact Us For Availability
View on Model
65
Drop front
Drop front WCI 216443500 Contact Us For Availability
View on Model
66#
Buzzer,alarm
Buzzer,alarm WCI 216713700 Contact Us For Availability
View on Model
72
Shelf,tilt out ,wire
Shelf,tilt out ,wire WCI 216514100 Contact Us For Availability
View on Model
72
Grille/Kickplate
Grille/Kickplate WCI 216591120 Contact Us For Availability
View on Model
81
Support-drop front,top
Support-drop front,top WCI 216571000 Contact Us For Availability
View on Model
83
Support-drop front,btm
Support-drop front,btm WCI 216571100 Contact Us For Availability
View on Model
87
Screw
Screw WCI 08037849 Contact Us For Availability
View on Model
132
Screw,6-20AB x 3/8
Screw,6-20AB x 3/8 WCI 5303283898 Contact Us For Availability
View on Model
