Model Electrolux GFU17M4AW2 FREEZER – Common Parts & Diagrams

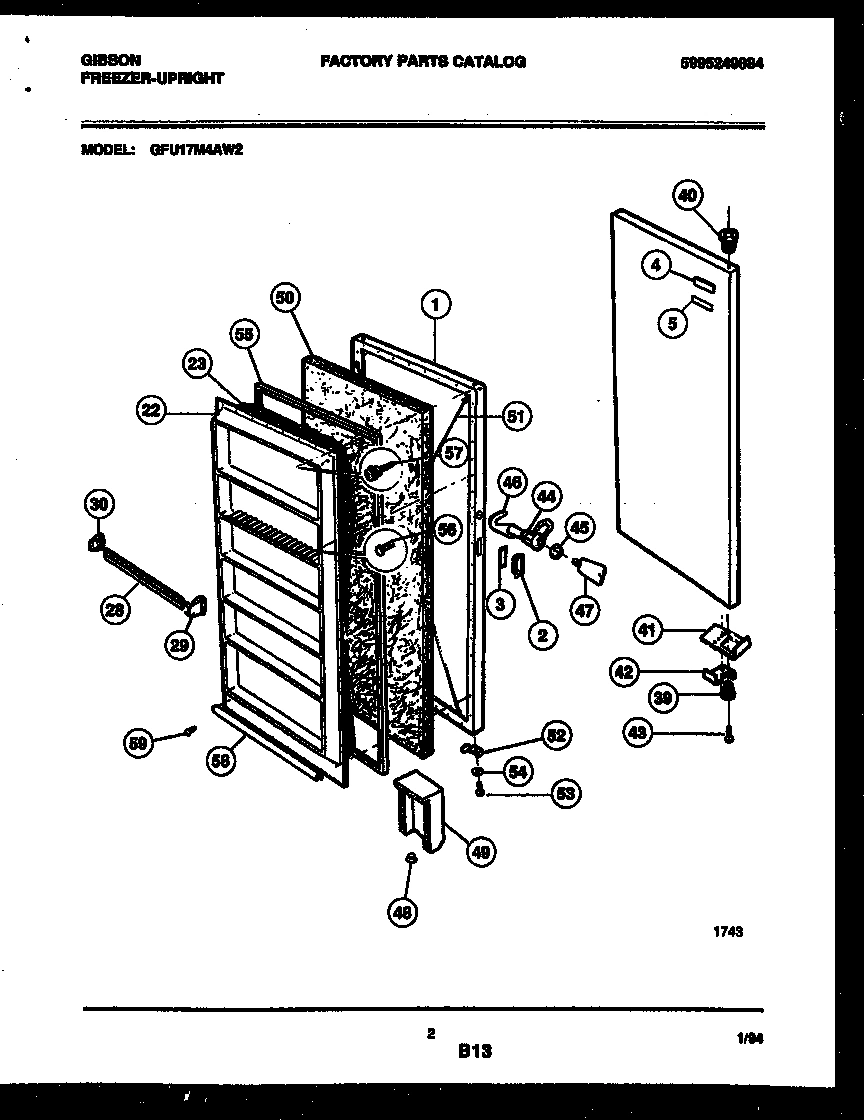

02 - DOOR PARTS

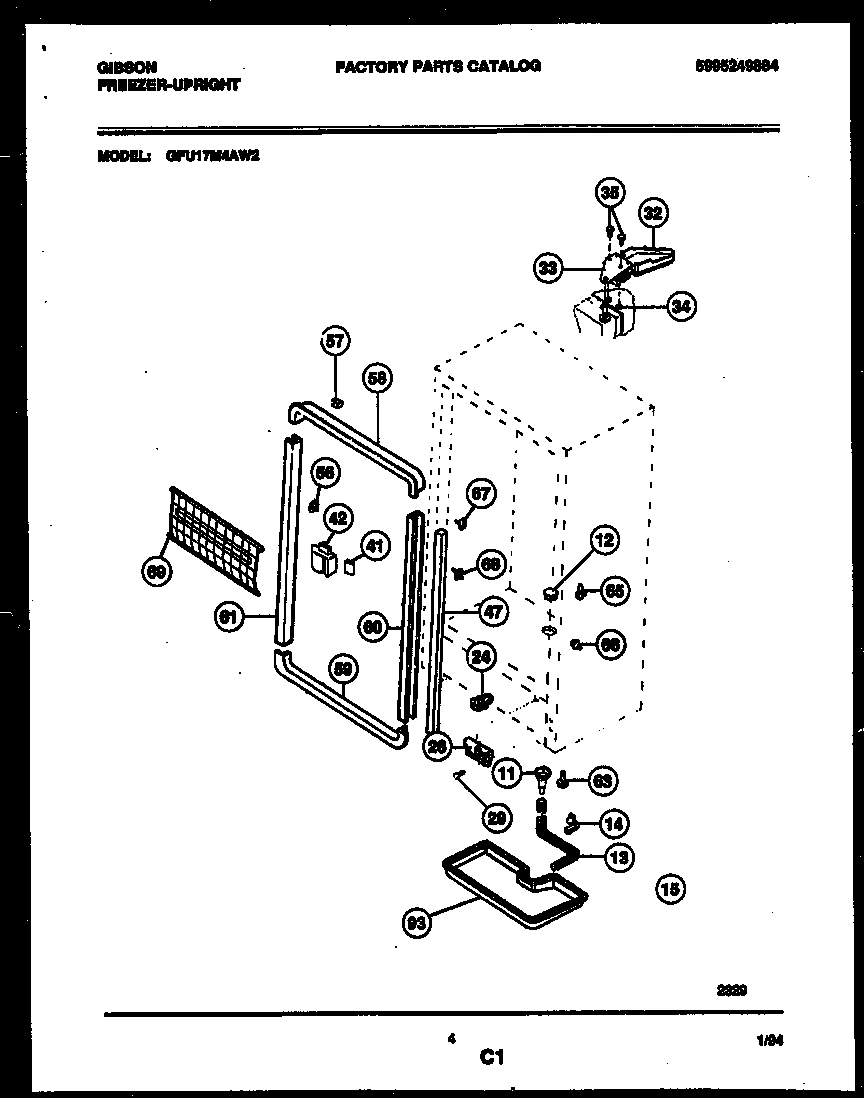

03 - CABINET PARTS

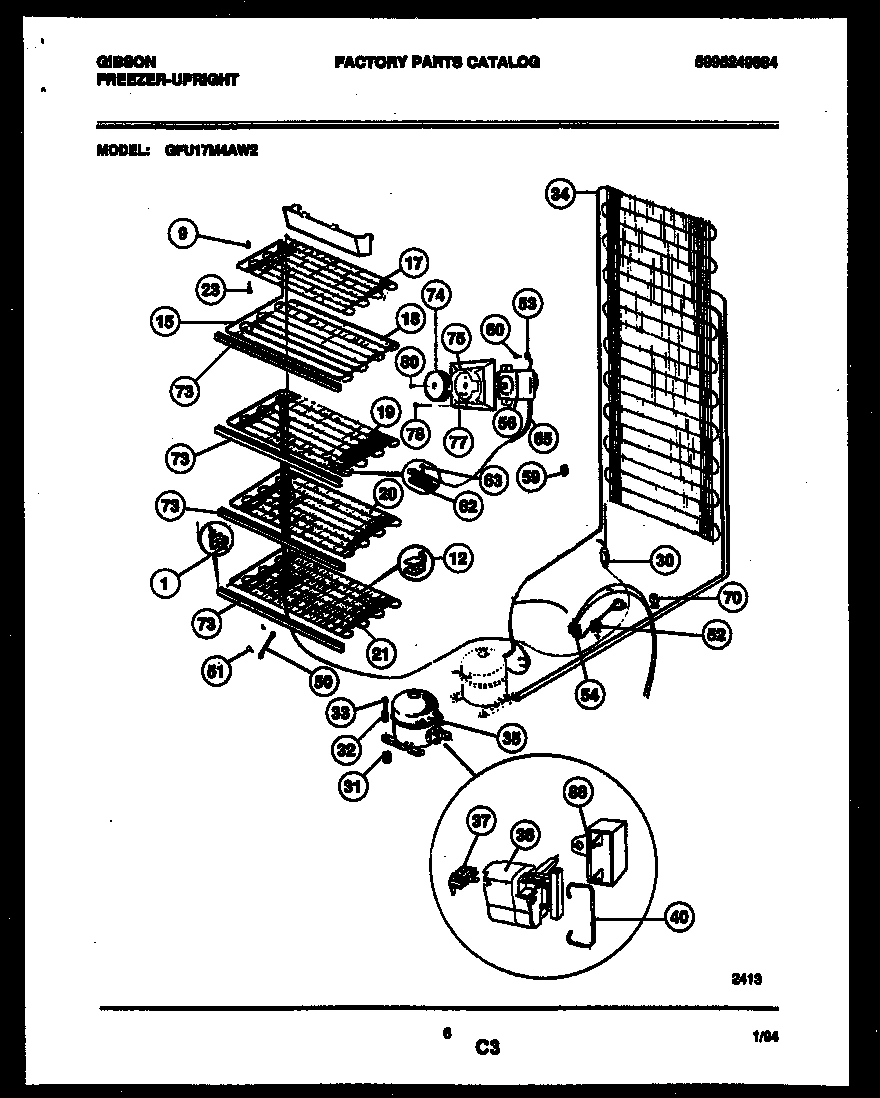

04 - SYSTEM AND ELECTRICAL PARTS
Common parts from model Electrolux GFU17M4AW2 FREEZER
9
SPCR-TOP GRID-FRONT (3) WCI 216225700 Contact Us For Availability
12
WCI 5306593887 WCI 5306593887 Contact Us For Availability
12
SUPPORT-REAR (8) WCI 216225600 Contact Us For Availability
13
WCI 2162696004 WCI 2162696004 Contact Us For Availability
15
ADAPTER-DRAIN HOSE WCI 5303294374 Contact Us For Availability
15
WCI 08010753 WCI 08010753 Contact Us For Availability
18
FIRST SHELF WCI 216070600 Contact Us For Availability
19
SECOND SHELF WCI 216070700 Contact Us For Availability
23
SCREW-TOP GRID (3) WCI 216138900 Contact Us For Availability
24
WCI 5303210424 WCI 5303210424 Contact Us For Availability
26
WCI 216247400 WCI 216247400 Contact Us For Availability
32
SLEEVE (3) WCI 5306594529 Contact Us For Availability
32
WCI 5303212912 WCI 5303212912 Contact Us For Availability
33
SCREW (3) WCI 5303272328 Contact Us For Availability
33
HINGE, TOP WCI 5303212935 Contact Us For Availability
34
NUT INSERT WCI 5303294372 Contact Us For Availability
35
WCI 5303212937 WCI 5303212937 Contact Us For Availability
35
WCI 216241500 WCI 216241500 Contact Us For Availability
36
RELAY WCI 216008900 Contact Us For Availability
37
WCI 5303206836 WCI 5303206836 Contact Us For Availability
40
CLAMP WCI 215012000 Contact Us For Availability
41
CLIP LOCK WCI 216013700 Contact Us For Availability
42
DOOR STOP WCI 08016354 Contact Us For Availability
42
WCI 216013600 WCI 216013600 Contact Us For Availability
44
LOCK-COMPLETE WCI 5303925107 Contact Us For Availability
45
WCI 5300114366 WCI 5300114366 Contact Us For Availability
46
LOCK HOOK WCI 216013800 Contact Us For Availability
47
WCI 09950831 WCI 09950831 Contact Us For Availability
48
VALVE BREATHER (2) WCI 5309950074 Contact Us For Availability
49
AIR DUCT BREATHER WCI 5303212700 Contact Us For Availability
50
INSULATION, DOOR WCI 5303007739 Contact Us For Availability
50
WCI 06594651 WCI 06594651 Contact Us For Availability
51
WIRE ADJUSTING (2) WCI 08037981 Contact Us For Availability
51
WCI 08037851 WCI 08037851 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
53
SCREW, BRACKET (2) WCI 5300057906 Contact Us For Availability
53
WCI 5300125347 WCI 5300125347 Contact Us For Availability
54
WASHER, BRACKET (2) WCI 09950839 Contact Us For Availability
54
WCI 216234500 WCI 216234500 Contact Us For Availability
55
WCI 3206256 WCI 3206256 Contact Us For Availability
56
CONTROL TEMP WCI 216260400 Contact Us For Availability
56
WCI 06594680 WCI 06594680 Contact Us For Availability
57
SCREW, PANEL (24) WCI 216022800 Contact Us For Availability
58
GASKET-WHITE WCI 5308016356 Contact Us For Availability
58
WCI 216085900 WCI 216085900 Contact Us For Availability
59
RETAINER HARNESS (5) WCI 08037401 Contact Us For Availability
59
WCI 216085800 WCI 216085800 Contact Us For Availability
60
WCI 216109000 WCI 216109000 Contact Us For Availability
61
WCI 216109101 WCI 216109101 Contact Us For Availability
62
WCI 08037931 WCI 08037931 Contact Us For Availability
63
LEVELING LEG ADJ. (4) WCI 205363701 Contact Us For Availability
63
WCI 5300052943 WCI 5300052943 Contact Us For Availability
65
WCI 06599973 WCI 06599973 Contact Us For Availability
66
WCI 06599975 WCI 06599975 Contact Us For Availability
67
WCI 06599974 WCI 06599974 Contact Us For Availability
68
WCI 06599976 WCI 06599976 Contact Us For Availability
69
WCI 216250300 WCI 216250300 Contact Us For Availability
70
WCI 06599553 WCI 06599553 Contact Us For Availability
74
WCI 216003602 WCI 216003602 Contact Us For Availability
75
HOUSING CONTROL WCI 5303288184 Contact Us For Availability
77
WCI 08003539 WCI 08003539 Contact Us For Availability
80
WCI 09950853 WCI 09950853 Contact Us For Availability
× ![]()
