Model Electrolux GFU16F7AW7 FREEZER – Common Parts & Diagrams

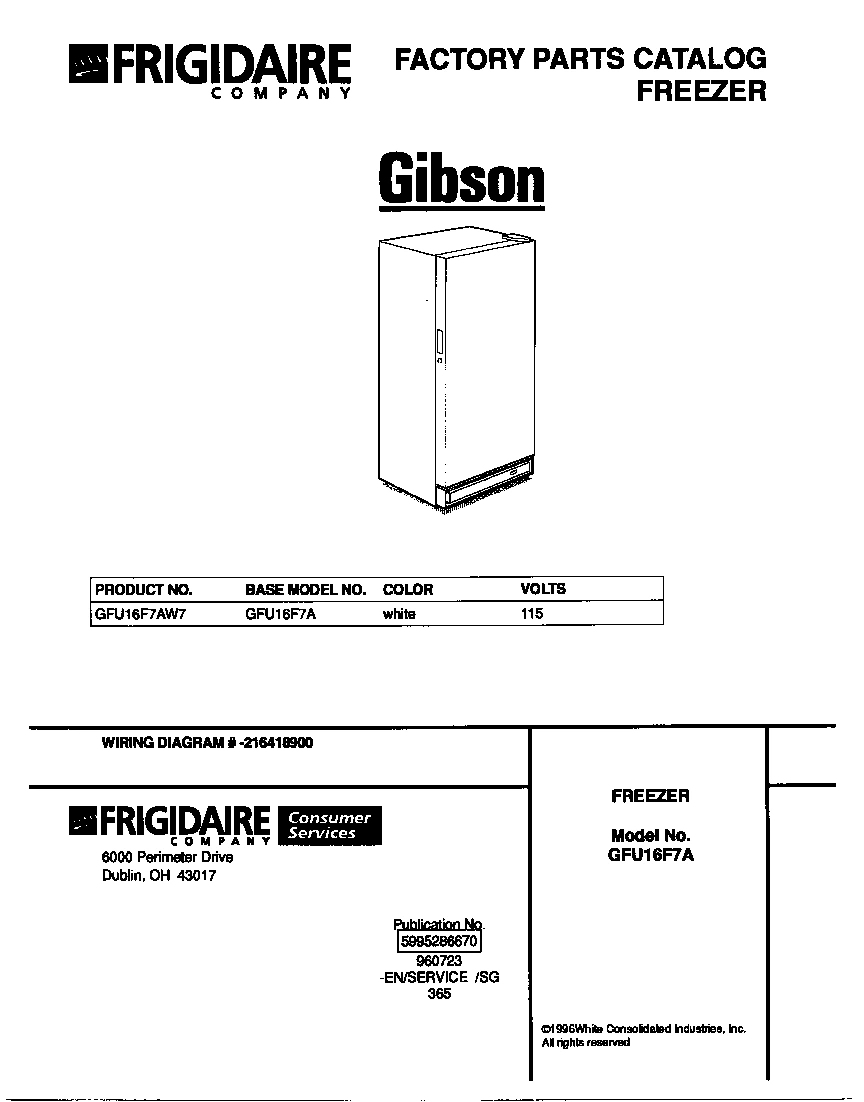

01 - COVER

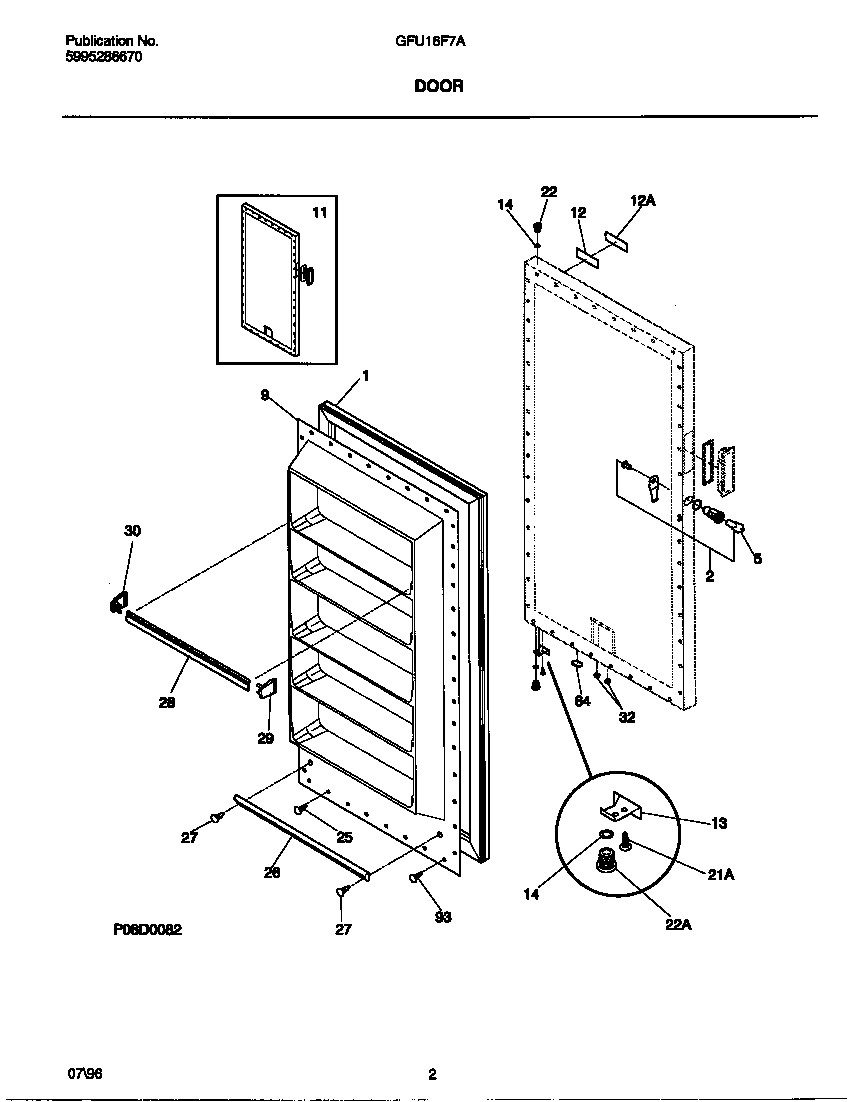

02 - DOOR

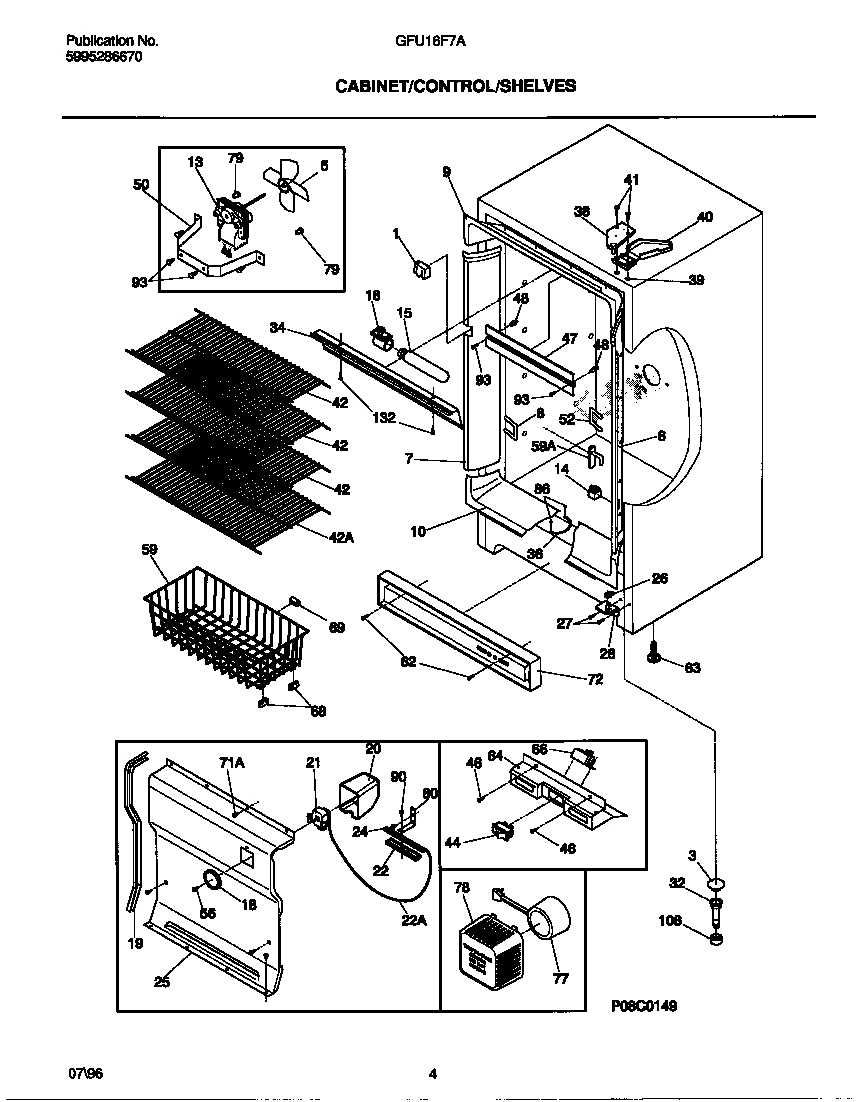

03 - CABINET/CONTROL/SHELVES

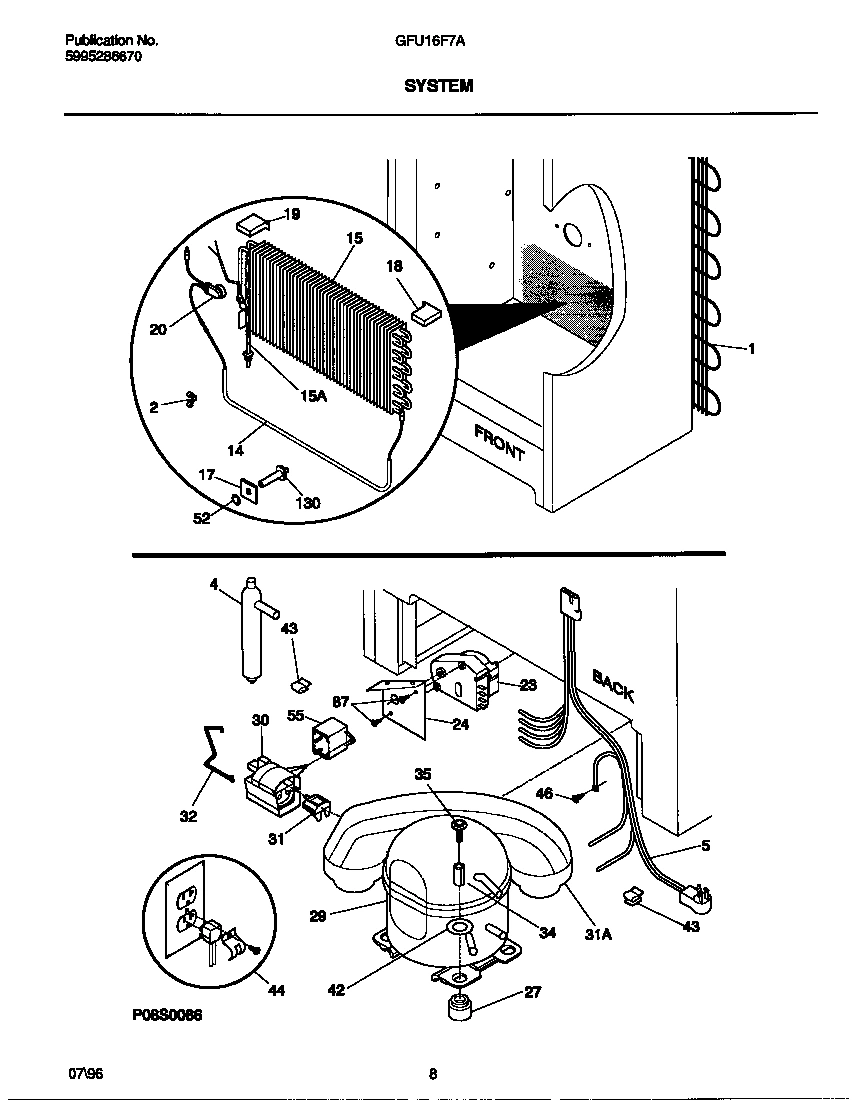

04 - SYSTEM

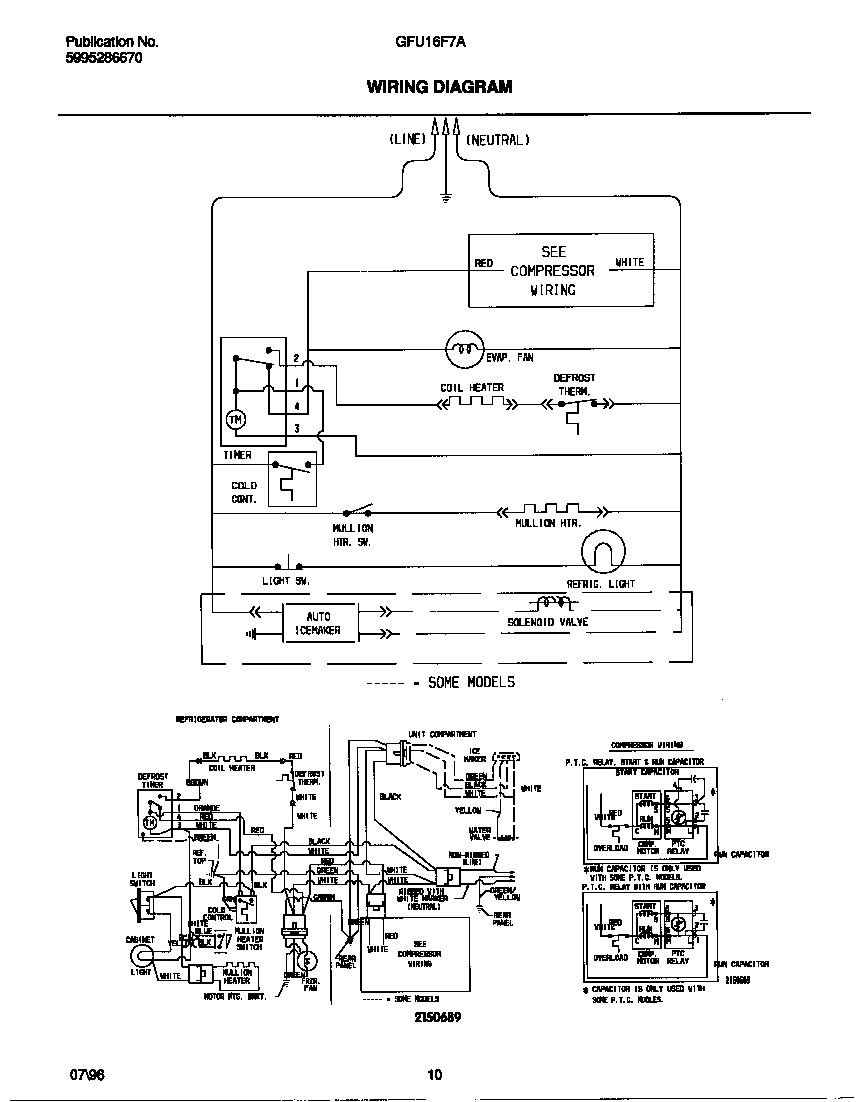

05 - WIRING DIAGRAM
Common parts from model Electrolux GFU16F7AW7 FREEZER
*29880
INSULATION WCI 5303917276 Contact Us For Availability
1
WCI 3206251 WCI 3206251 Contact Us For Availability
5
WCI 216426500 WCI 216426500 Contact Us For Availability
8
CLIP, U, LOCK WCI 216013700 Contact Us For Availability
9
WCI 216085900 WCI 216085900 Contact Us For Availability
10
WCI 216085800 WCI 216085800 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
15
WCI 216195900 No Longer Available
15
WCI 216385200 WCI 216385200 Contact Us For Availability
16
SOCKET, LIGHT/LAMP WCI 5300136117 Contact Us For Availability
17
WCI 06599546 WCI 06599546 Contact Us For Availability
18
WCI 216008801 WCI 216008801 Contact Us For Availability
18
WCI 06599531 WCI 06599531 Contact Us For Availability
19
WCI 216204900 WCI 216204900 Contact Us For Availability
19
WCI 3017674 WCI 3017674 Contact Us For Availability
20
WCI 216254500 WCI 216254500 Contact Us For Availability
20
WCI 216230300 WCI 216230300 Contact Us For Availability
21
WCI 216303500 WCI 216303500 Contact Us For Availability
22
WCI 05878562 WCI 05878562 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
24
WCI 08016580 WCI 08016580 Contact Us For Availability
25
WCI 216084100 WCI 216084100 Contact Us For Availability
26
RAMP, DOOR WCI 5303210424 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 216100104 WCI 216100104 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
34
WCI 216241601 WCI 216241601 Contact Us For Availability
35
SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
36
WCI 06594651 WCI 06594651 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
42
SHELF-BOTTOM, (1) WCI 216266801 Contact Us For Availability
42
WCI 216267001 WCI 216267001 Contact Us For Availability
42
SPACER, COMPRESSOR WCI 5303298960 Contact Us For Availability
43
WCI 09950610 WCI 09950610 Contact Us For Availability
44
WCI 5303017178 WCI 5303017178 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
47
WCI 5303288233 WCI 5303288233 Contact Us For Availability
48
WCI 08000456 WCI 08000456 Contact Us For Availability
50
BRACKET-MOTOR MTG FAN WCI 216394000 Contact Us For Availability
52
RETAINER, WIRE, BREAKER WCI 08037401 Contact Us For Availability
52
WCI 08013198 WCI 08013198 Contact Us For Availability
56
WCI 09950853 WCI 09950853 Contact Us For Availability
59
WCI 09948791 No Longer Available
64
PLUG-BUTTOM, BASE DOOR WCI 216403700 Contact Us For Availability
64
WCI 08016369 WCI 08016369 Contact Us For Availability
66
BUZZER,ALARM WCI 08016367 Contact Us For Availability
72
GRILLE/KICKPLATE WCI 216294415 Contact Us For Availability
77
WCI 5308037992 WCI 5308037992 Contact Us For Availability
78
WCI 3205349 WCI 3205349 Contact Us For Availability
80
WCI 06594601 WCI 06594601 Contact Us For Availability
87
SCREW WCI 08037849 Contact Us For Availability
90
SCREW, TH, 8-32 X 2-1/2 WCI 5303297123 Contact Us For Availability
108
WCI 216388600 WCI 216388600 Contact Us For Availability
130
WCI 06599544 WCI 06599544 Contact Us For Availability
132
WCI 5303283898 WCI 5303283898 Contact Us For Availability
× ![]()
