Model Electrolux GFU14M3GW2 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

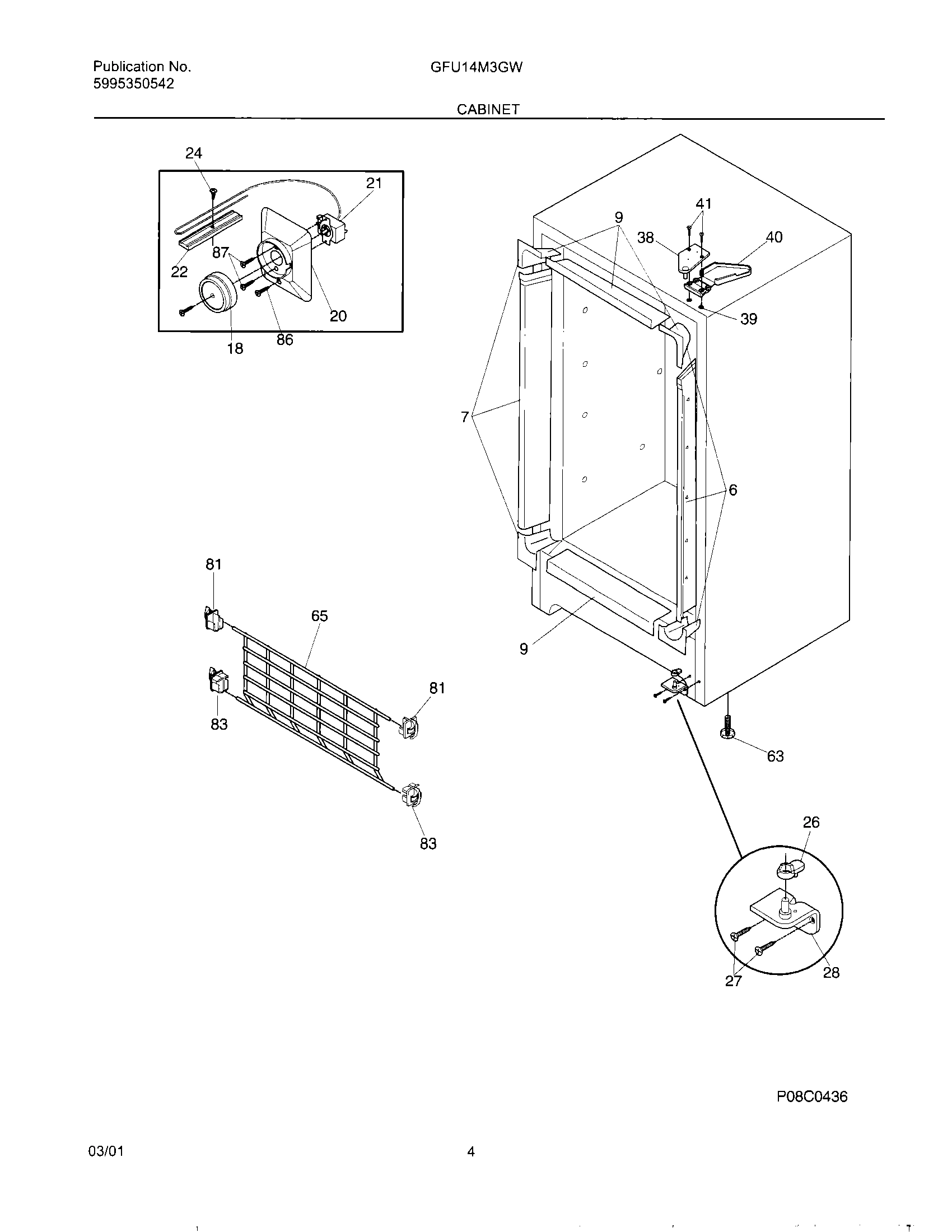

05 - CABINET

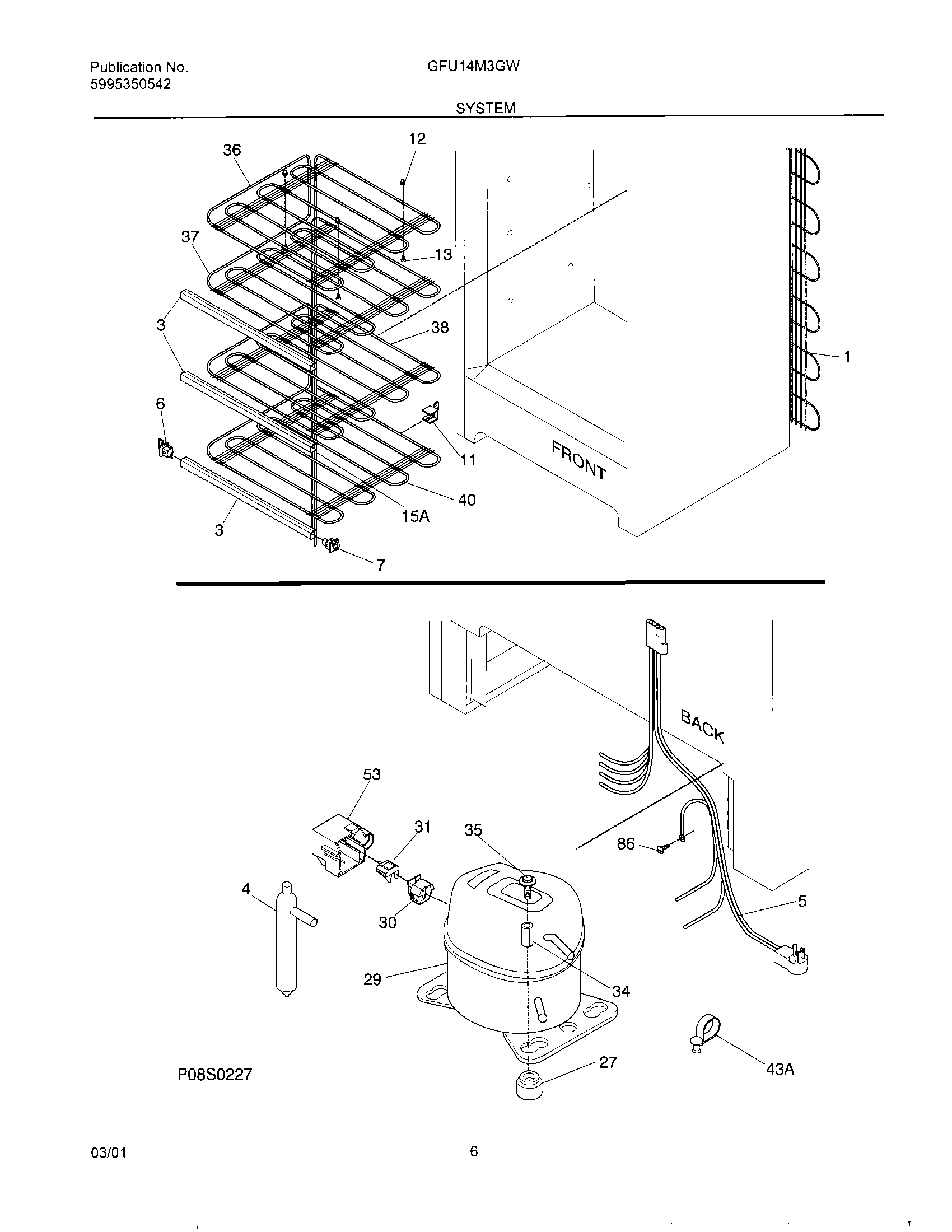

07 - SYSTEM
Common parts from model Electrolux GFU14M3GW2 FREEZER
5
WCI 216766100 WCI 216766100 Contact Us For Availability
11
WCI 216474600 WCI 216474600 Contact Us For Availability
12
WCI 216225700 WCI 216225700 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
13
WCI 216138900 WCI 216138900 Contact Us For Availability
15
WCI 216404900 WCI 216404900 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
26
RAMP, CLOSER DOOR WCI 216503300 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
31
WCI 216100116 WCI 216100116 Contact Us For Availability
32
WCI 5309950074 WCI 5309950074 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
35
SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
40
WCI 216070400 WCI 216070400 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
53
WCI 216347800 WCI 216347800 Contact Us For Availability
64
PLUG-BUTTON, BASE DOOR WCI 216403700 Contact Us For Availability
65
WCI 216447600 WCI 216447600 Contact Us For Availability
81
WCI 216571000 WCI 216571000 Contact Us For Availability
83
WCI 216571100 WCI 216571100 Contact Us For Availability
87
SCREW WCI 08037849 Contact Us For Availability
NI
INSULATION WCI 5303917276 Contact Us For Availability
NI
WCI 09948773 WCI 09948773 Contact Us For Availability
NI
SLEEVE-TUBE INSERT WCI 216502500 Contact Us For Availability
NI
RETAINER, WIRE, BREAKER WCI 08037401 Contact Us For Availability
× ![]()
