Model Gibson GFU14M3GW1 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

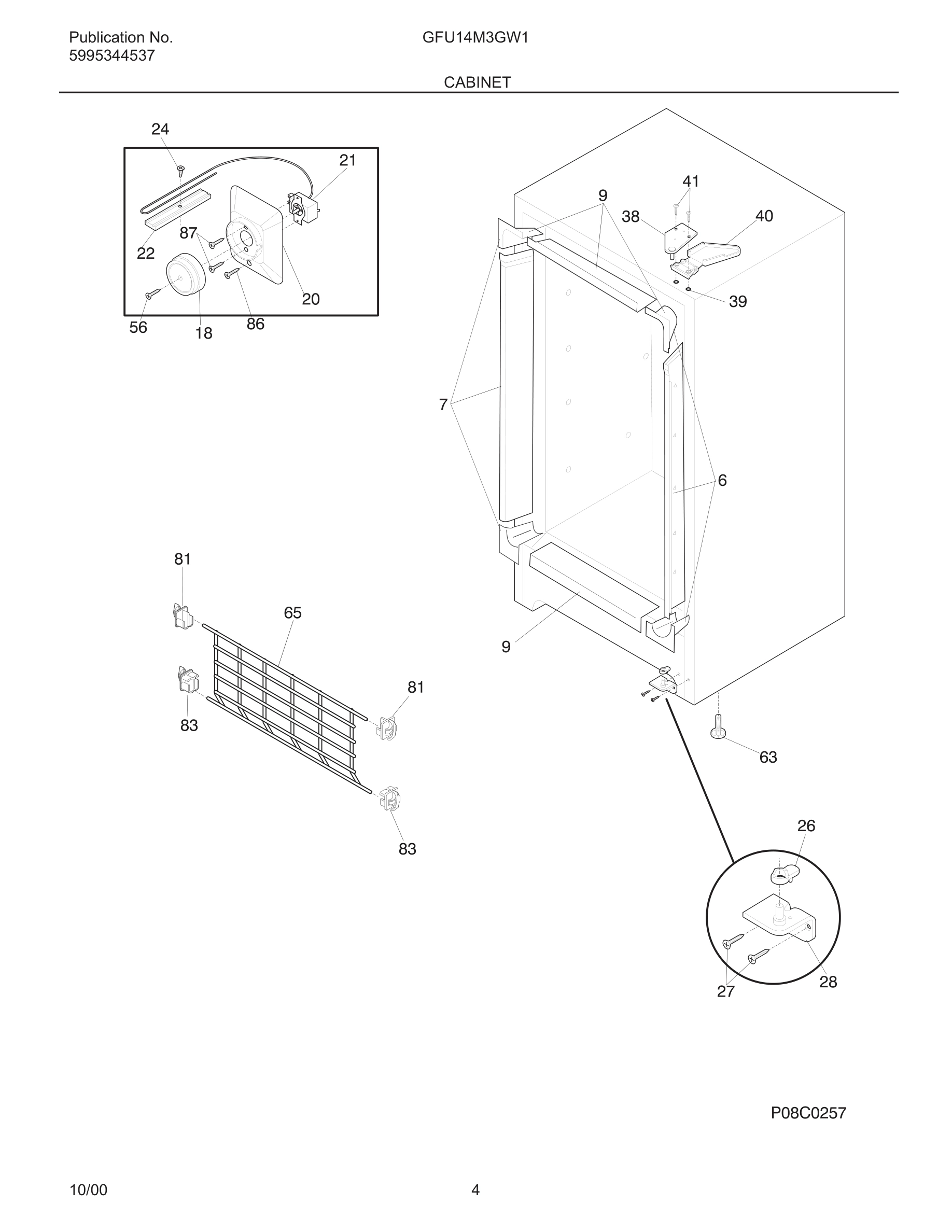

05 - CABINET

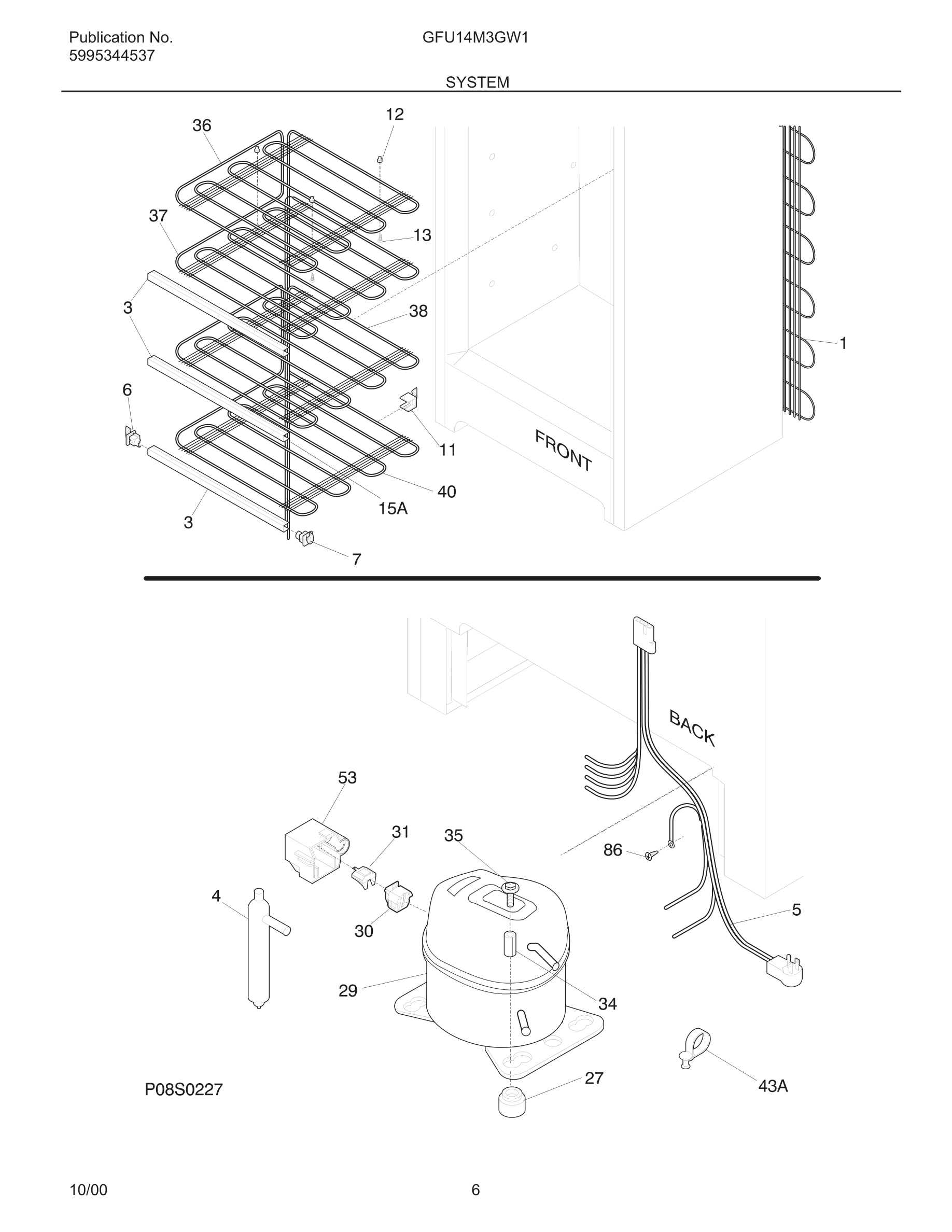

07 - SYSTEM

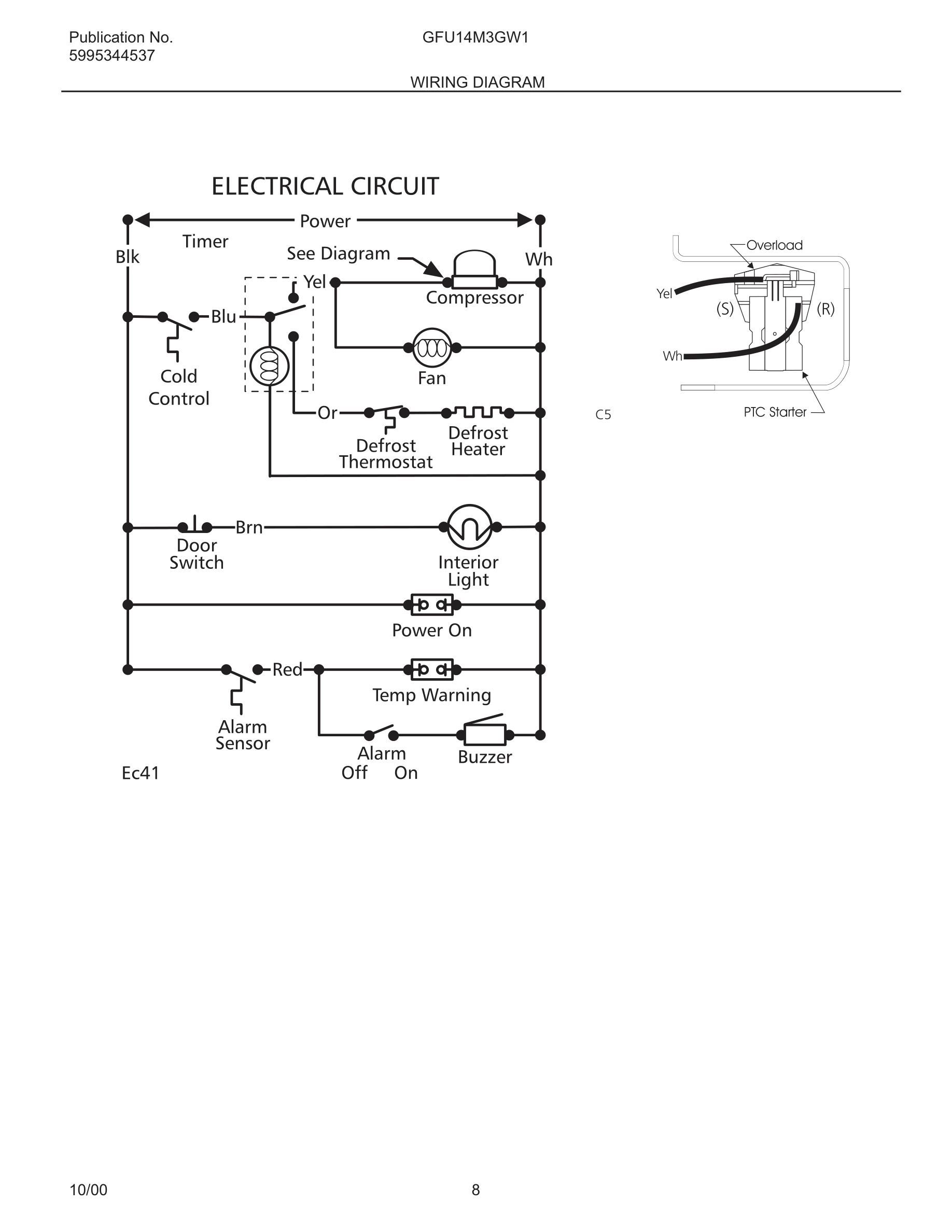

08 - WIRING DIAGRAM
Common parts from model Gibson GFU14M3GW1 FREEZER
*
Insulation WCI 5303925098 Contact Us For Availability
*
Insulation,drain tube WCI 09948773 Contact Us For Availability
*
Sleeve-tube insert WCI 216502500 Contact Us For Availability
*
Clip-cord WCI 05878556 Contact Us For Availability
*
Clip,cord WCI 09950610 Contact Us For Availability
5#
Harness-main WCI 216766100 Contact Us For Availability
7
Breaker Kit w/corners,lock catch WCI 216603800 Contact Us For Availability
9
Breaker Kit w/corners,28", top or bottom WCI 216603400 Contact Us For Availability
11
Support-rear shelf WCI 216474600 Contact Us For Availability
12
Grommet-spacer WCI 216225700 Contact Us For Availability
13
Door Stop WCI 08016354 Contact Us For Availability
13
Screw,hex sems ,8-18AB x 1.00 ,evap WCI 216138900 Contact Us For Availability
15A
Heat Exchanger WCI 216404900 Contact Us For Availability
18
Knob,temp control WCI 216591802 Contact Us For Availability
20
Cover-control housing WCI 5303288184 Contact Us For Availability
21
Control-temperature WCI 216620100 Contact Us For Availability
22
Clamp,cap tube ,cold control WCI 08037931 Contact Us For Availability
24
Screw-clamp,truss hd cr ,control WCI 5300052943 Contact Us For Availability
26
Ramp,closer ,door WCI 216503300 Contact Us For Availability
28
Hinge-bottom WCI 216247400 Contact Us For Availability
31
Overload Protector,factory instal WCI 216100116 Contact Us For Availability
32
Valve-breather WCI 5309950074 Contact Us For Availability
34
Sleeve-compressor WCI 5306594529 Contact Us For Availability
35
Screw,Ind hex sems ,1/4-28 unfx , compressor WCI 5303272328 Contact Us For Availability
38
Hinge-upper WCI 5303925086 Contact Us For Availability
39
Nut-insert,hinge WCI 5303294372 Contact Us For Availability
40
Cover-hinge WCI 5303212912 Contact Us For Availability
40#
Shelf-bottom evaporator WCI 216070400 Contact Us For Availability
41
Screw-top hinge WCI 5303212937 Contact Us For Availability
53
Cover terminal,cover-comp term WCI 216347800 Contact Us For Availability
56
Screw-control knob,phillips ,4-40 x 3/8 WCI 09950853 Contact Us For Availability
64
Plug-button,base door WCI 216403700 Contact Us For Availability
65
Drop front WCI 216447600 Contact Us For Availability
81
Support-drop front,top WCI 216571000 Contact Us For Availability
83
Support-drop front,btm WCI 216571100 Contact Us For Availability
87
Screw WCI 08037849 Contact Us For Availability
× ![]()
