Model GE GFSS6KKXBSS – Common Parts & Diagrams

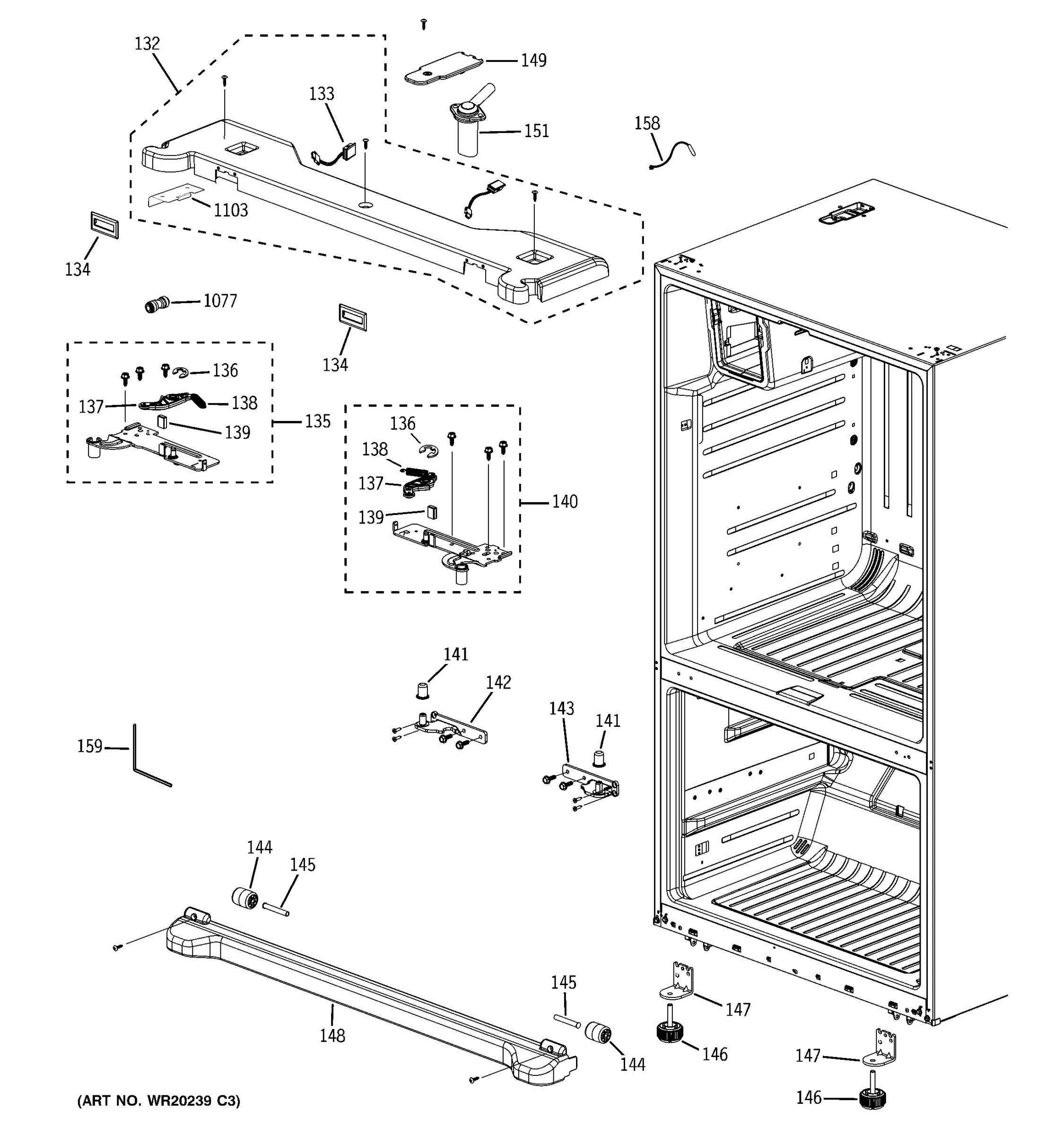

CASE PARTS

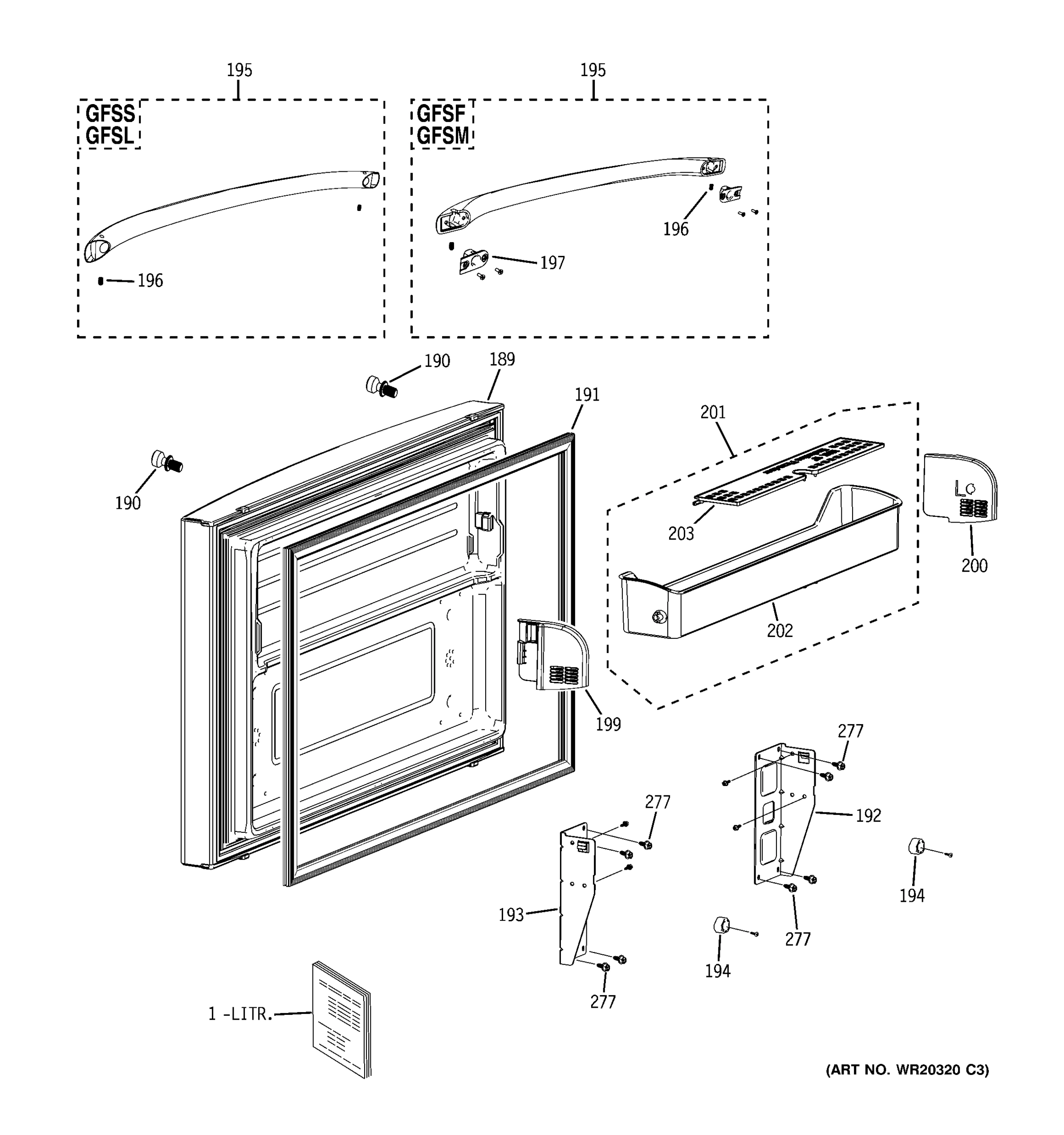

FREEZER DOOR

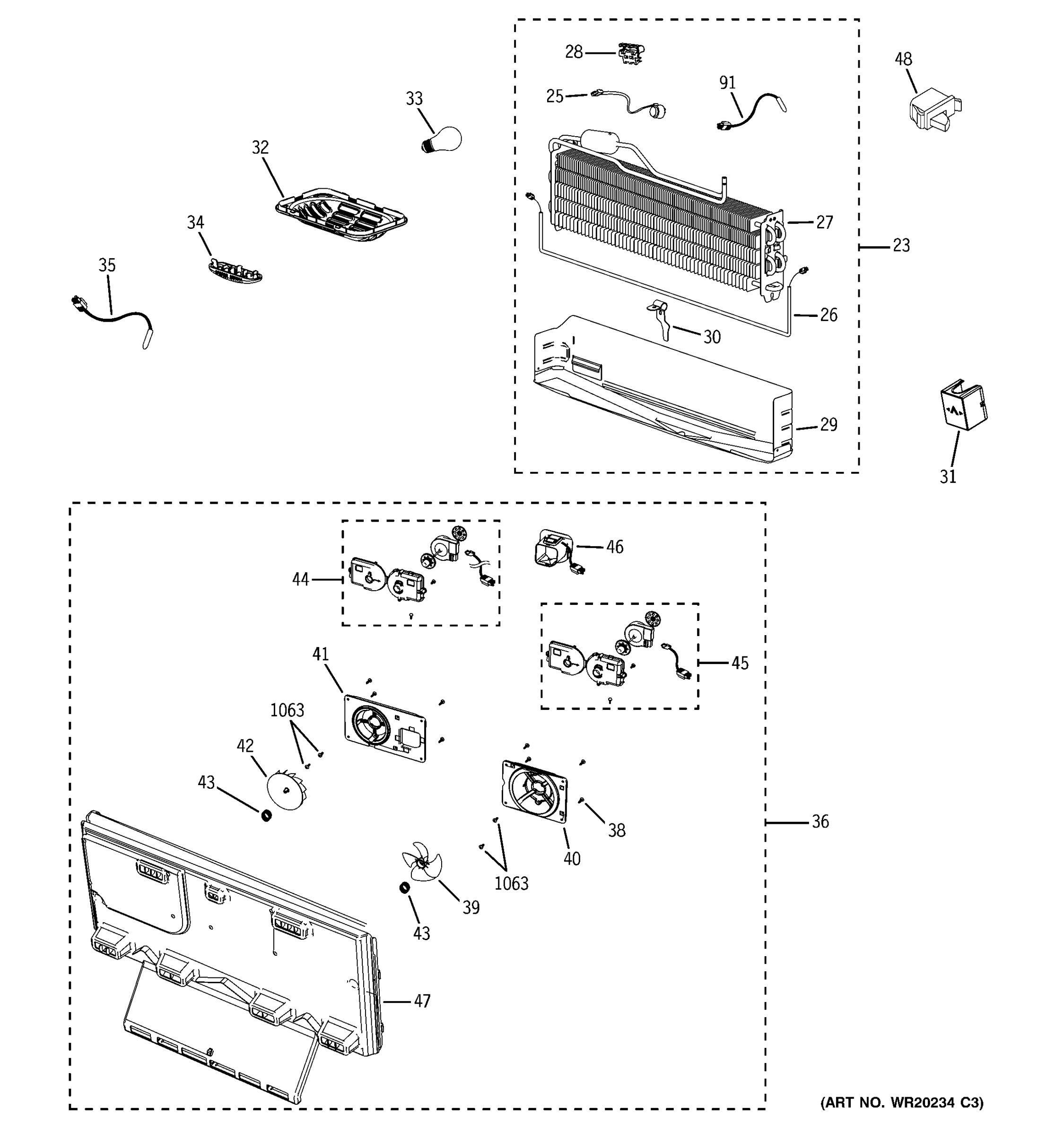

FREEZER SECTION

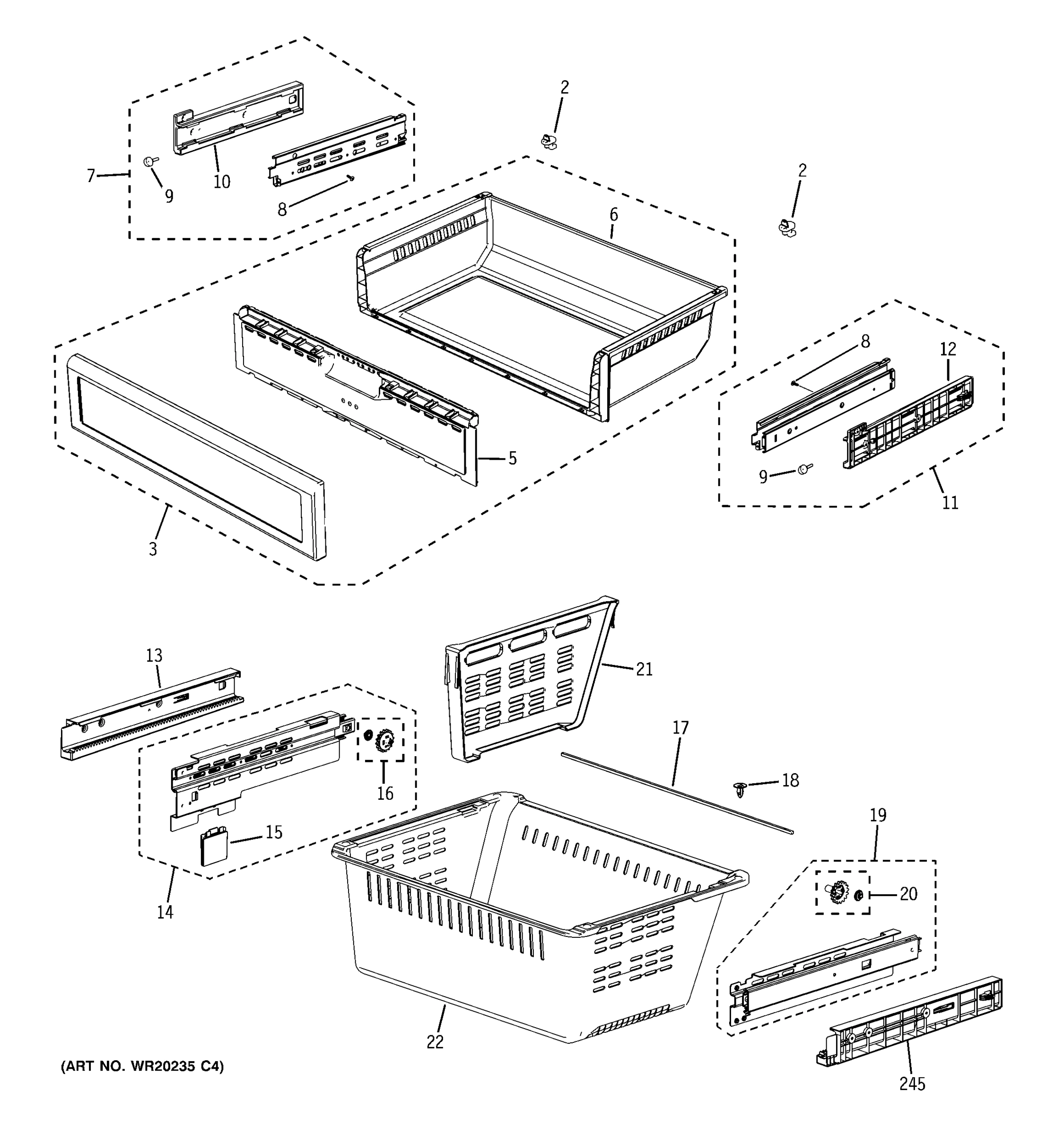

FREEZER SHELVES

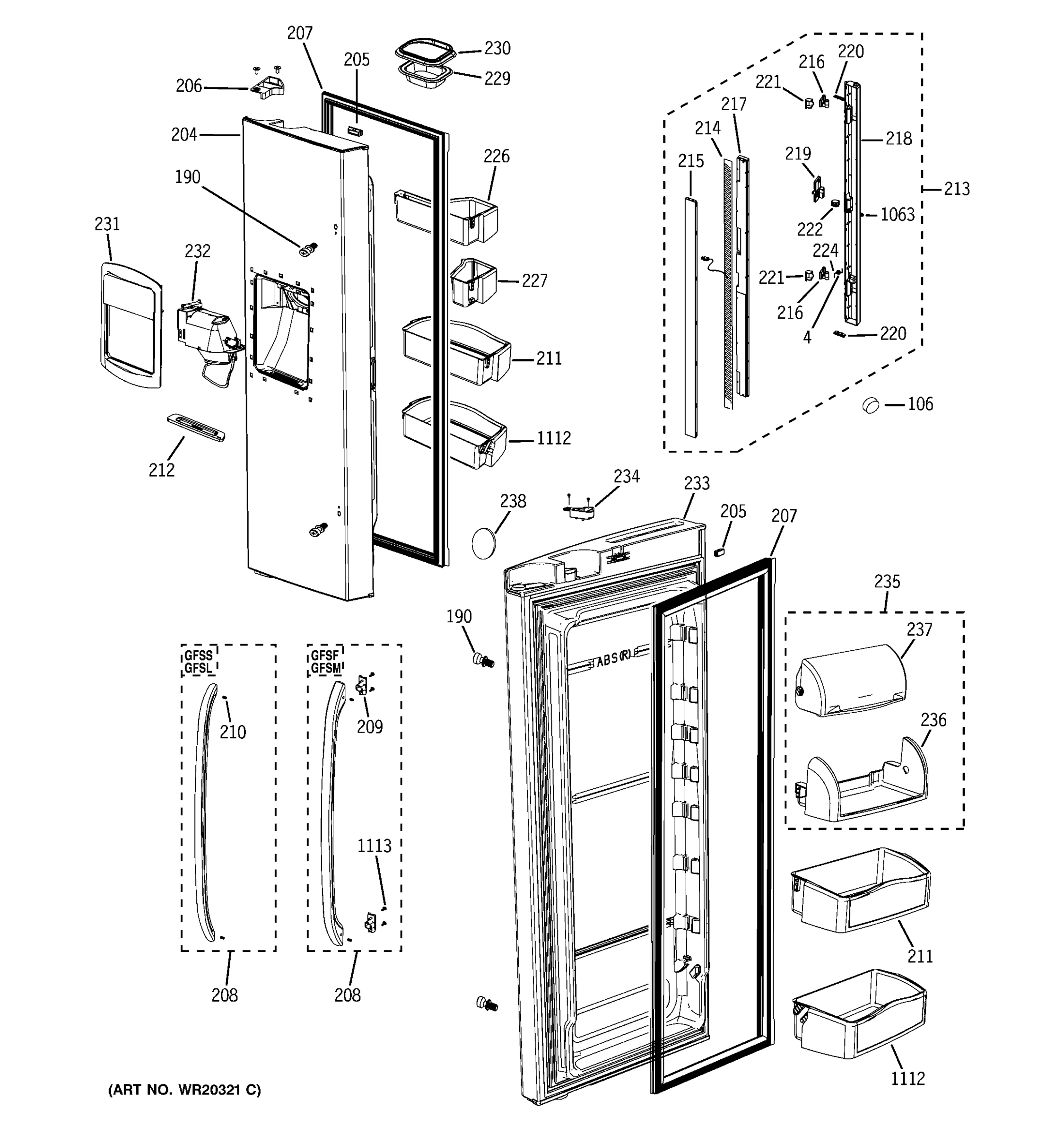

FRESH FOOD DOORS

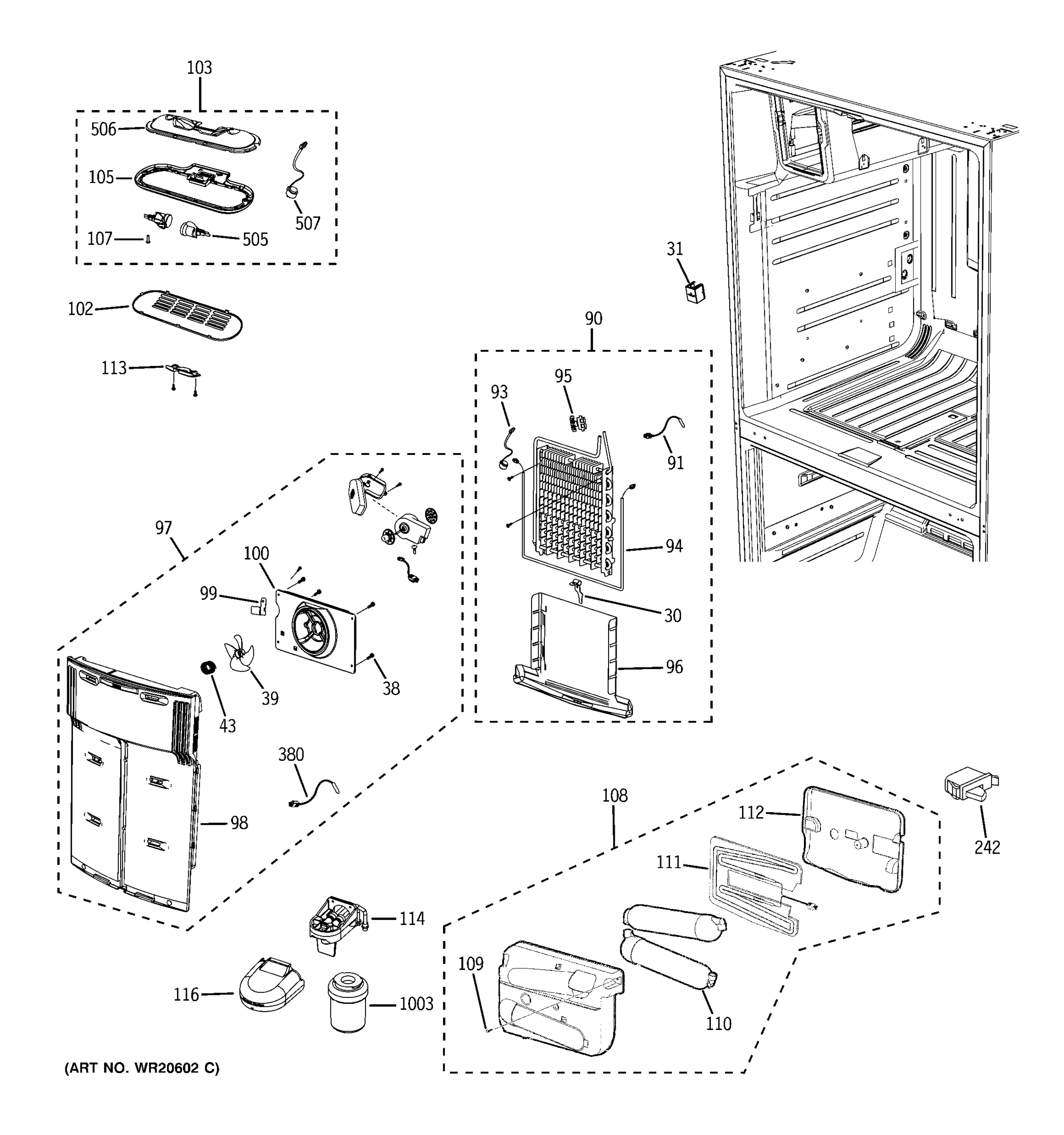

FRESH FOOD SECTION

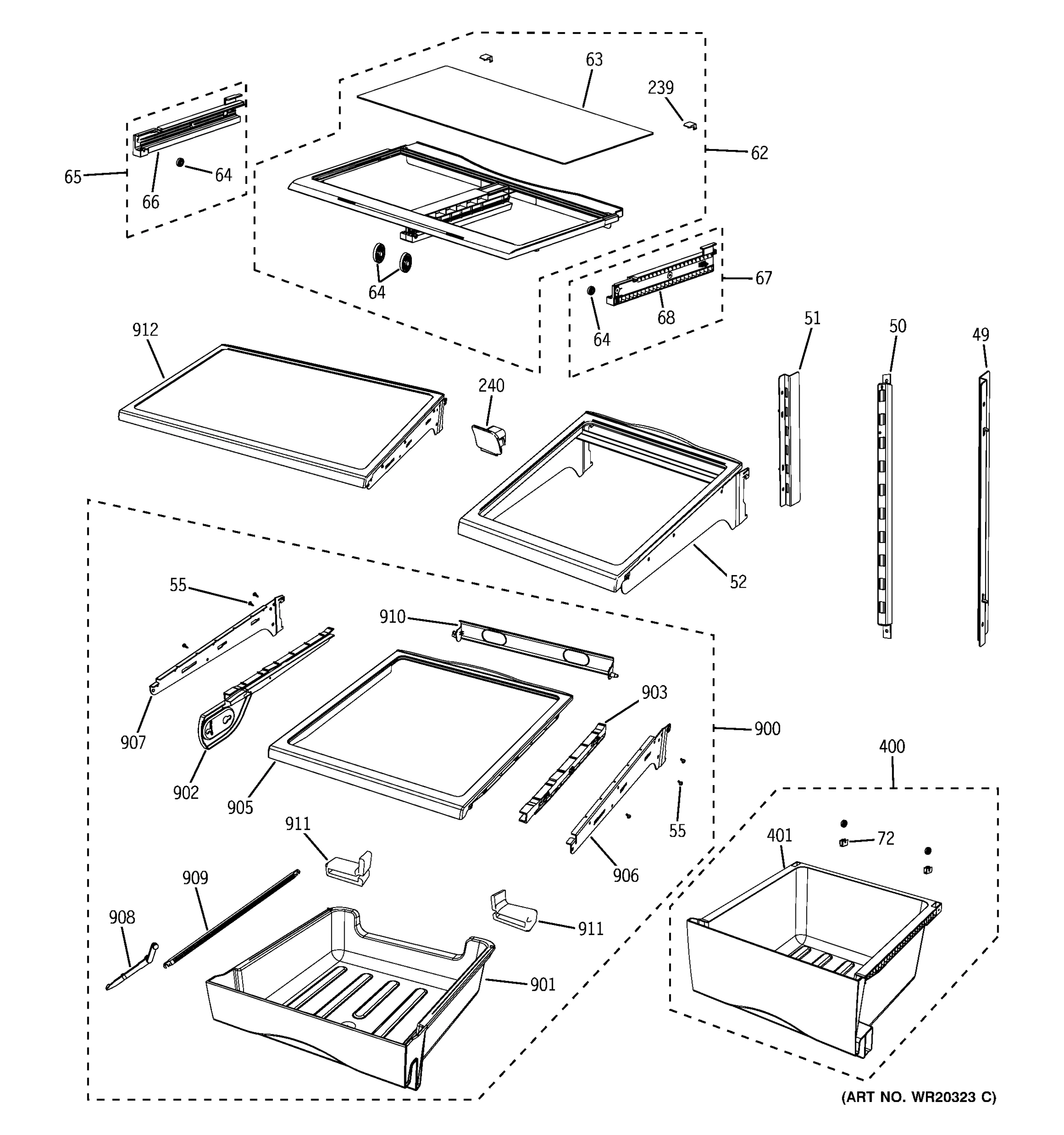

FRESH FOOD SHELVES

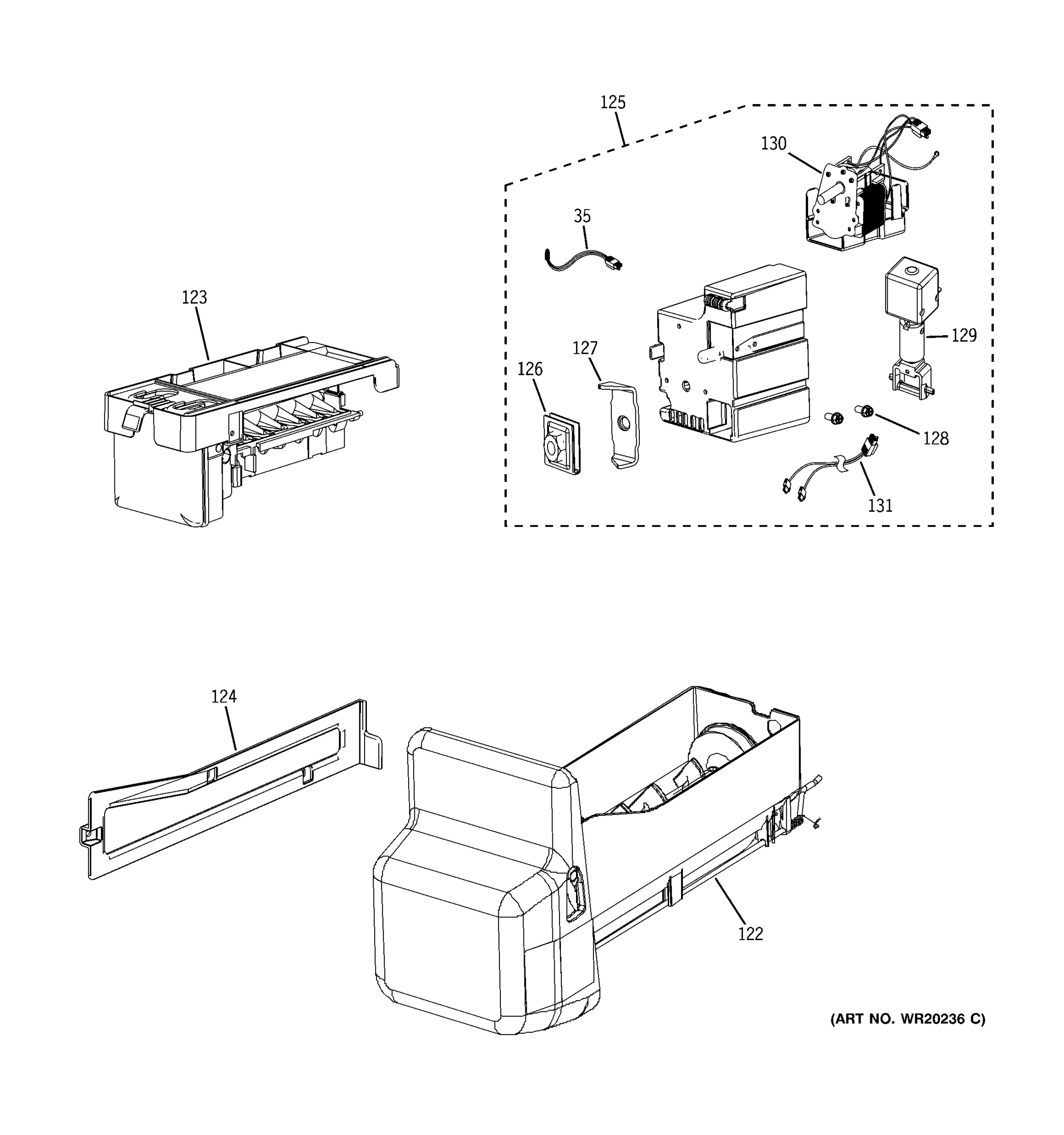

ICE MAKER & DISPENSER

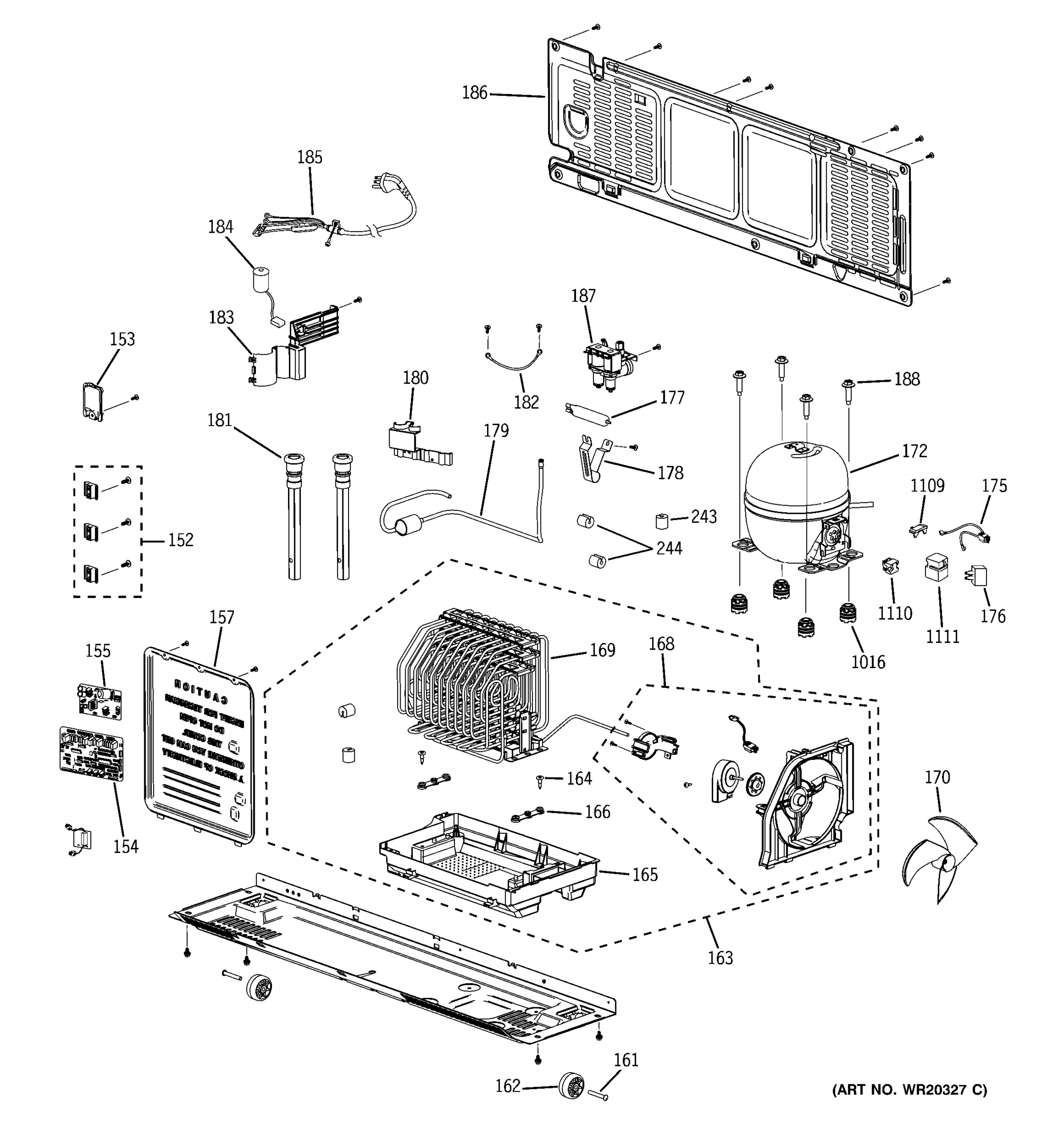

UNIT PARTS
Common parts from model GE GFSS6KKXBSS
2
GEN WR02X12615 GEN WR02X12615 Contact Us For Availability
4
GEN WR02X12650 GEN WR02X12650 Contact Us For Availability
5
GEN WR32X10675 GEN WR32X10675 Contact Us For Availability
11
GEN WR72X10263 GEN WR72X10263 Contact Us For Availability
12
GEN WR72X10264 GEN WR72X10264 Contact Us For Availability
14
GEN WR72X10265 GEN WR72X10265 Contact Us For Availability
16
GEN WR02X12742 GEN WR02X12742 Contact Us For Availability
19
GEN WR72X10266 GEN WR72X10266 Contact Us For Availability
20
GEN WR02X12743 GEN WR02X12743 Contact Us For Availability
22
GEN WR14X10245 GEN WR14X10245 Contact Us For Availability
23
GEN WR85X10109 GEN WR85X10109 Contact Us For Availability
25
GEN WR02X12591 GEN WR02X12591 Contact Us For Availability
26
GEN WR51X10104 GEN WR51X10104 Contact Us For Availability
27
GEN WR85X10096 GEN WR85X10096 Contact Us For Availability
30
DEFROST HEATER GEN WR51X10105 Contact Us For Availability
35
GEN WR23X10580 GEN WR23X10580 Contact Us For Availability
39
GEN WR60X10249 GEN WR60X10249 Contact Us For Availability
42
GEN WR60X10264 GEN WR60X10264 Contact Us For Availability
43
GEN WR01X10436 GEN WR01X10436 Contact Us For Availability
44
GEN WR60X10255 No Longer Available
46
GEN WR51X10106 GEN WR51X10106 Contact Us For Availability
47
GEN WR17X12388 GEN WR17X12388 Contact Us For Availability
48
GEN WR23X10589 GEN WR23X10589 Contact Us For Availability
52
GEN WR71X10808 GEN WR71X10808 Contact Us For Availability
64
GEN WR02X12640 GEN WR02X12640 Contact Us For Availability
65
GEN WR72X10267 GEN WR72X10267 Contact Us For Availability
66
GEN WR72X10268 GEN WR72X10268 Contact Us For Availability
67
GEN WR72X10269 GEN WR72X10269 Contact Us For Availability
68
GEN WR72X10270 GEN WR72X10270 Contact Us For Availability
93
GEN WR02X12592 GEN WR02X12592 Contact Us For Availability
94
HEATER METAL SHEATH GEN WR02X12603 Contact Us For Availability
95
GEN WR02X12620 GEN WR02X12620 Contact Us For Availability
96
GEN WR13X10601 GEN WR13X10601 Contact Us For Availability
98
GEN WR17X12552 GEN WR17X12552 Contact Us For Availability
108
GEN WR17X12739 GEN WR17X12739 Contact Us For Availability
111
GEN WR51X10117 GEN WR51X10117 Contact Us For Availability
113
GEN WR02X12746 GEN WR02X12746 Contact Us For Availability
124
GEN WR13X10574 GEN WR13X10574 Contact Us For Availability
125
GEN WR60X10298 GEN WR60X10298 Contact Us For Availability
126
GEN WR02X11957 GEN WR02X11957 Contact Us For Availability
129
GEN WR29X10077 GEN WR29X10077 Contact Us For Availability
130
GEN WR60X10299 GEN WR60X10299 Contact Us For Availability
132
GEN WR13X10549 GEN WR13X10549 Contact Us For Availability
133
GEN WR23X10587 GEN WR23X10587 Contact Us For Availability
136
GEN WR02X12604 GEN WR02X12604 Contact Us For Availability
140
ASM HINGE UPPER RIGHT GEN WR13X10547 Contact Us For Availability
141
GROMMET HINGE MIDDLE GEN WR02X12747 Contact Us For Availability
144
GEN WR02X13136 GEN WR02X13136 Contact Us For Availability
145
GEN WR02X12608 GEN WR02X12608 Contact Us For Availability
146
GEN WR02X12606 GEN WR02X12606 Contact Us For Availability
151
GEN WR02X12750 GEN WR02X12750 Contact Us For Availability
152
GEN WR02X12607 GEN WR02X12607 Contact Us For Availability
154
GEN WR55X10805 GEN WR55X10805 Contact Us For Availability
155
CIRCUIT BOARD ICE MAKER GEN WR55X10764 Contact Us For Availability
158
GEN WR23X10579 GEN WR23X10579 Contact Us For Availability
162
GEN WR02X13137 GEN WR02X13137 Contact Us For Availability
165
GEN WR87X10179 GEN WR87X10179 Contact Us For Availability
168
GEN WR60X10256 GEN WR60X10256 Contact Us For Availability
169
GEN WR84X10085 GEN WR84X10085 Contact Us For Availability
170
GEN WR60X10266 GEN WR60X10266 Contact Us For Availability
176
RUN CAPACITOR GEN WR08X10096 Contact Us For Availability
182
GEN WR23X10583 GEN WR23X10583 Contact Us For Availability
183
GEN WR13X10479 GEN WR13X10479 Contact Us For Availability
184
GEN WR62X10067 GEN WR62X10067 Contact Us For Availability
185
GEN WR23X10613 GEN WR23X10613 Contact Us For Availability
186
GEN WR17X12514 GEN WR17X12514 Contact Us For Availability
188
GEN WR01X10437 GEN WR01X10437 Contact Us For Availability
189
GEN WR78X12117 GEN WR78X12117 Contact Us For Availability
190
GEN WR02X12621 GEN WR02X12621 Contact Us For Availability
191
ASM GASKET DOOR FRE GEN WR24X10212 Contact Us For Availability
191
ASM GASKET DOOR FRE GEN WR24X10211 Contact Us For Availability
192
GEN WR13X10503 GEN WR13X10503 Contact Us For Availability
193
GEN WR13X10502 GEN WR13X10502 Contact Us For Availability
195
ASM HANDLE-FZ GEN WR12X10913 Contact Us For Availability
195
ASM HANDLE-FRE GEN WR12X10917 Contact Us For Availability
196
GEN WR01X10775 GEN WR01X10775 Contact Us For Availability
199
GEN WR02X12811 GEN WR02X12811 Contact Us For Availability
200
GEN WR02X12812 GEN WR02X12812 Contact Us For Availability
202
GEN WR02X12630 GEN WR02X12630 Contact Us For Availability
206
CAM AUTO CLOSE L GEN WR02X12666 Contact Us For Availability
207
ASM GASKET DOOR REF GEN WR24X10200 Contact Us For Availability
207
ASM GASKET DOOR REF GEN WR87X10169 Contact Us For Availability
208
ASM HANDLE-REF GEN WR12X10916 Contact Us For Availability
209
GEN WR02X12813 GEN WR02X12813 Contact Us For Availability
210
GEN WR01X10774 GEN WR01X10774 Contact Us For Availability
211
GEN WR21X10178 GEN WR21X10178 Contact Us For Availability
212
TRAY DISPENSER GEN WR13X10545 Contact Us For Availability
212
TRAY DISPENSER GEN WR13X10524 Contact Us For Availability
212
TRAY DISPENSER GEN WR13X10554 Contact Us For Availability
213
GEN WR02X12863 GEN WR02X12863 Contact Us For Availability
216
GEN WR13X10516 GEN WR13X10516 Contact Us For Availability
217
GEN WR02X12616 GEN WR02X12616 Contact Us For Availability
218
GEN WR82X10114 GEN WR82X10114 Contact Us For Availability
219
GEN WR13X10491 GEN WR13X10491 Contact Us For Availability
220
GASKET FRENCH GEN WR24X10196 Contact Us For Availability
221
GEN WR02X12643 GEN WR02X12643 Contact Us For Availability
222
GEN WR02X12645 GEN WR02X12645 Contact Us For Availability
224
GEN WR02X12651 GEN WR02X12651 Contact Us For Availability
229
GEN WR02X12646 GEN WR02X12646 Contact Us For Availability
231
GEN WR38X10423 GEN WR38X10423 Contact Us For Availability
231
GEN WR38X10421 GEN WR38X10421 Contact Us For Availability
231
GEN WR38X10424 GEN WR38X10424 Contact Us For Availability
232
GEN WR13X10736 GEN WR13X10736 Contact Us For Availability
232
GEN WR13X10735 GEN WR13X10735 Contact Us For Availability
233
GEN WR78X12219 GEN WR78X12219 Contact Us For Availability
233
GEN WR78X12214 GEN WR78X12214 Contact Us For Availability
234
CAM AUTO CLOSE R GEN WR02X12670 Contact Us For Availability
237
GEN WR22X10060 GEN WR22X10060 Contact Us For Availability
242
GEN WR23X10593 GEN WR23X10593 Contact Us For Availability
243
GROMMET-SUCT PIPE GEN WR02X12675 Contact Us For Availability
244
GROMMET-SUCT PIPE GEN WR02X12676 Contact Us For Availability
400
GEN WR32X10680 GEN WR32X10680 Contact Us For Availability
505
GEN WR02X12809 GEN WR02X12809 Contact Us For Availability
507
GEN WR02X12808 GEN WR02X12808 Contact Us For Availability
1016
GEN WR02X11915 GEN WR02X11915 Contact Us For Availability
1077
GEN WR02X12111 GEN WR02X12111 Contact Us For Availability
1110
GEN WR07X10111 GEN WR07X10111 Contact Us For Availability
1111
GEN WR02X11949 GEN WR02X11949 Contact Us For Availability
1112
DISPENCER GRILL RECESS GEN WR13X10607 Contact Us For Availability
1113
GEN WR01X10839 GEN WR01X10839 Contact Us For Availability
× ![]()
