Model GE GFSS6KEXDSS Refrigerator – Common Parts & Diagrams
CASE PARTS
FREEZER DOOR

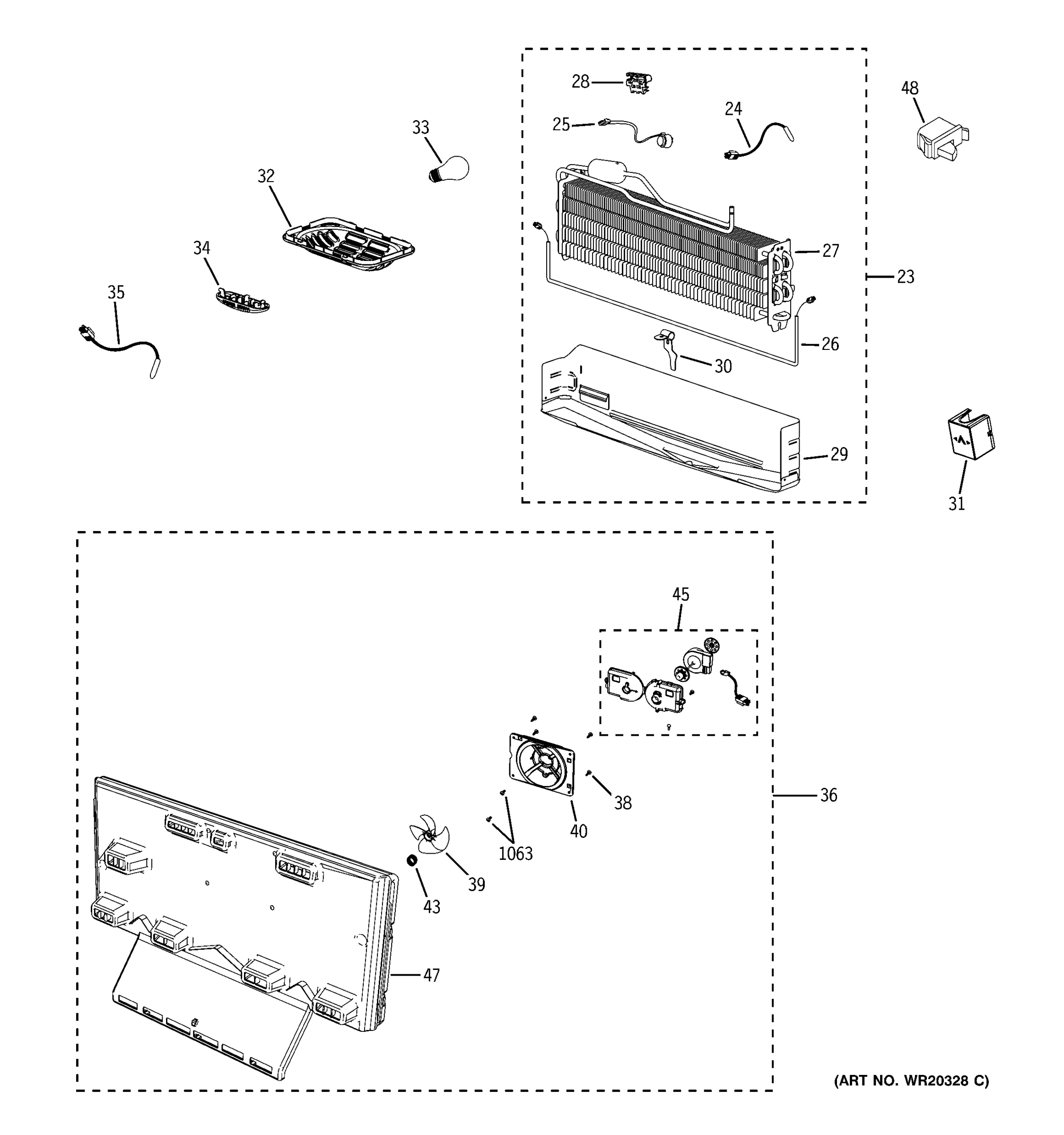

FREEZER SECTION

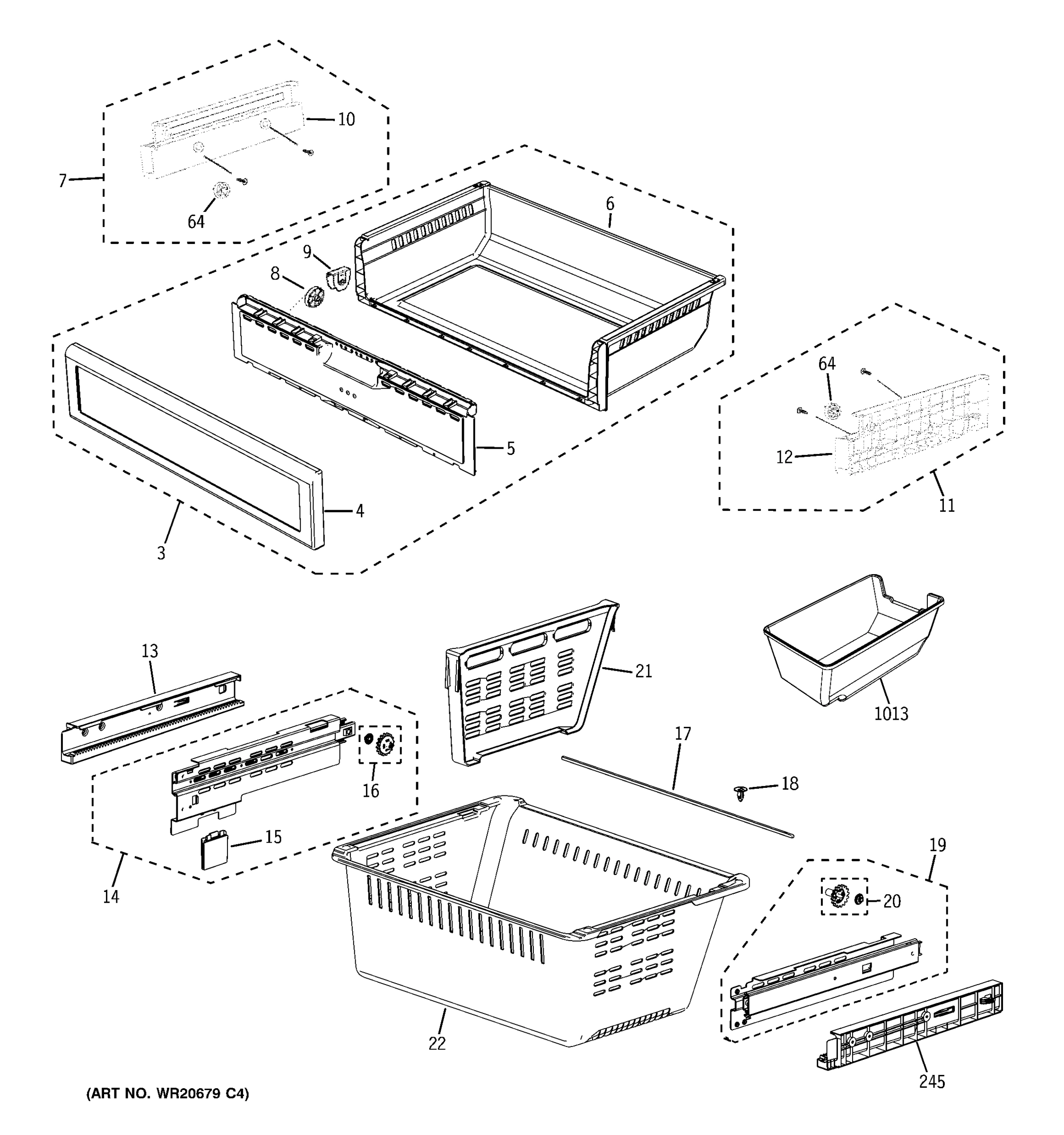

FREEZER SHELVES

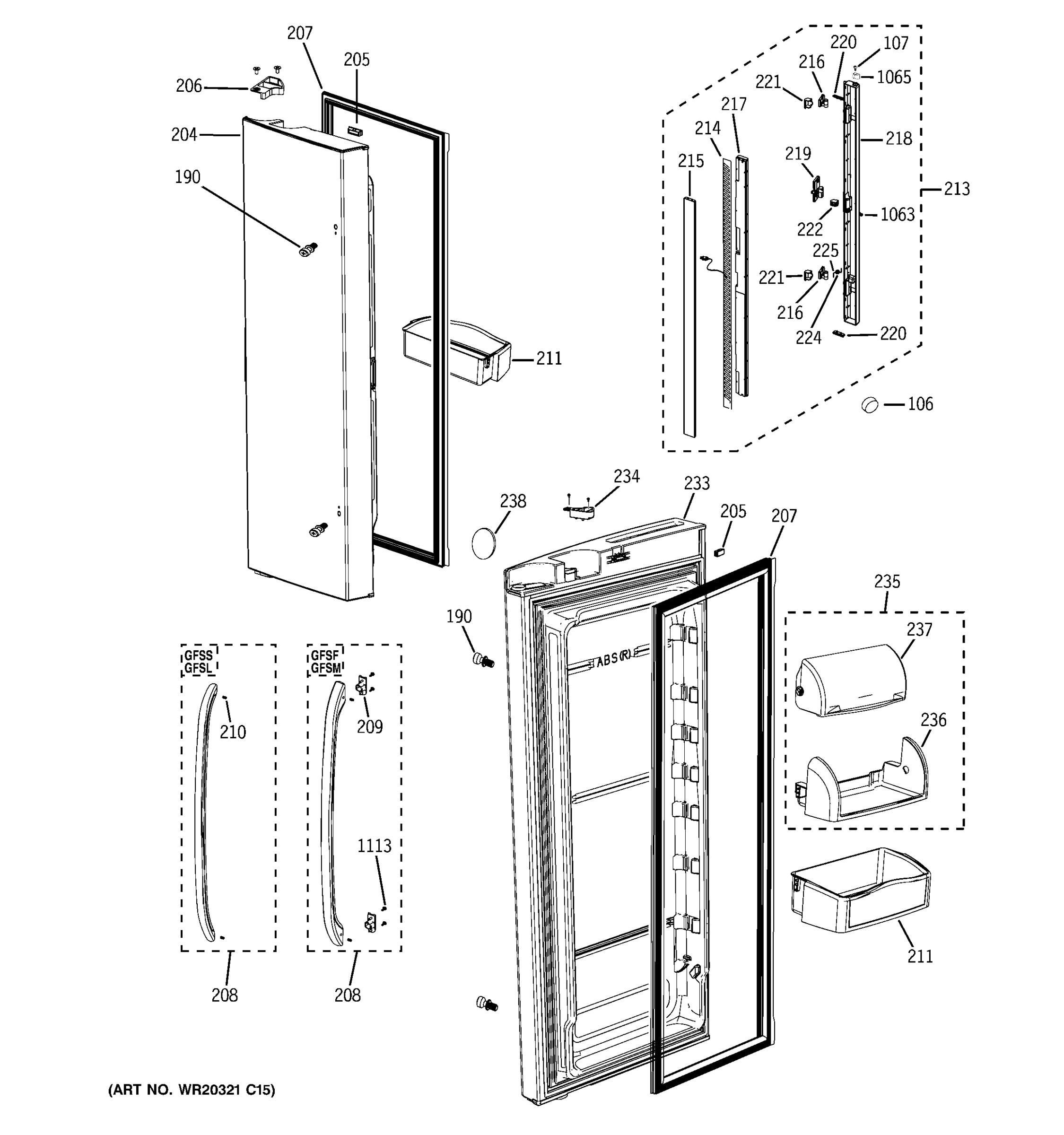

FRESH FOOD DOORS

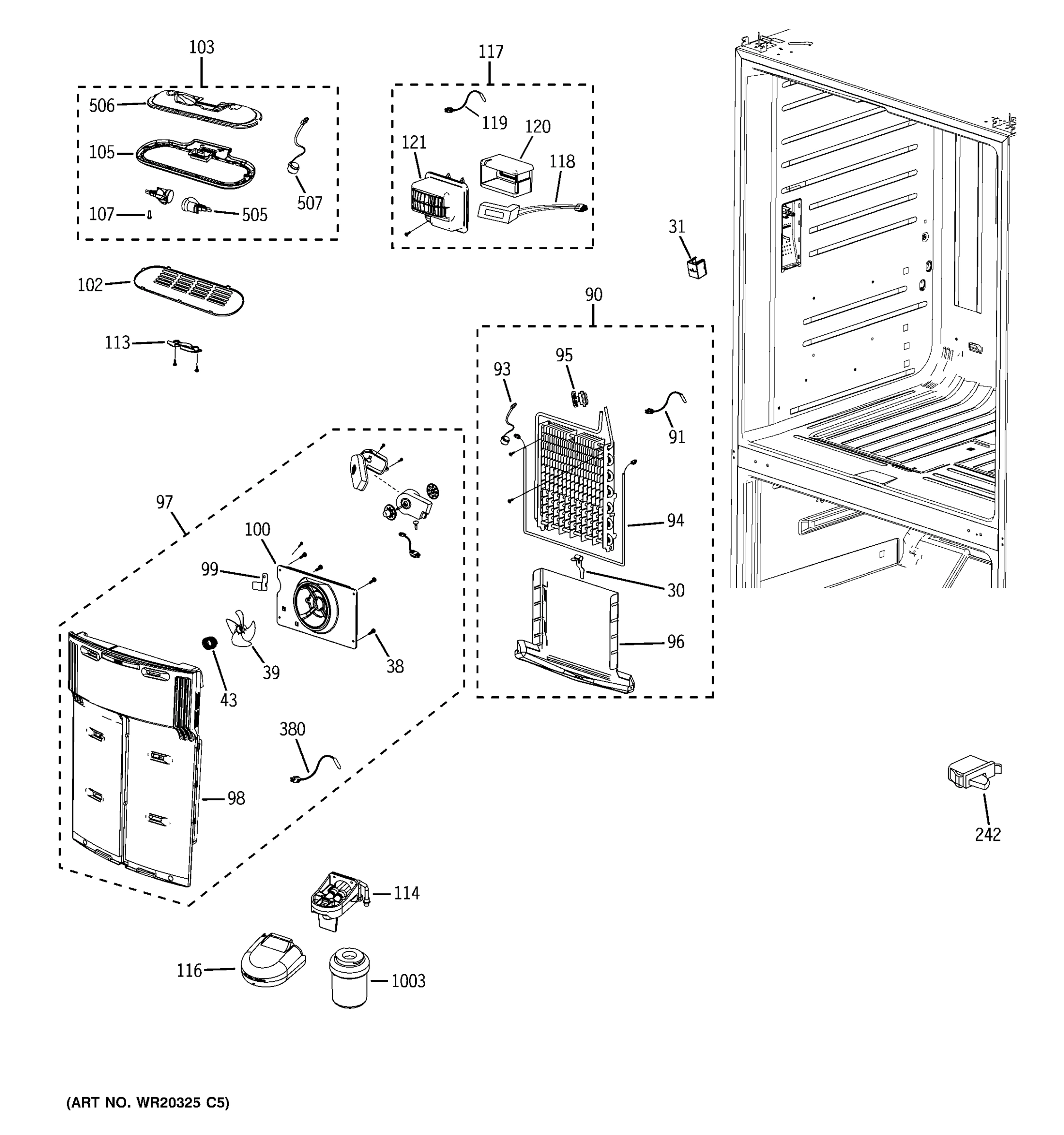

FRESH FOOD SECTION

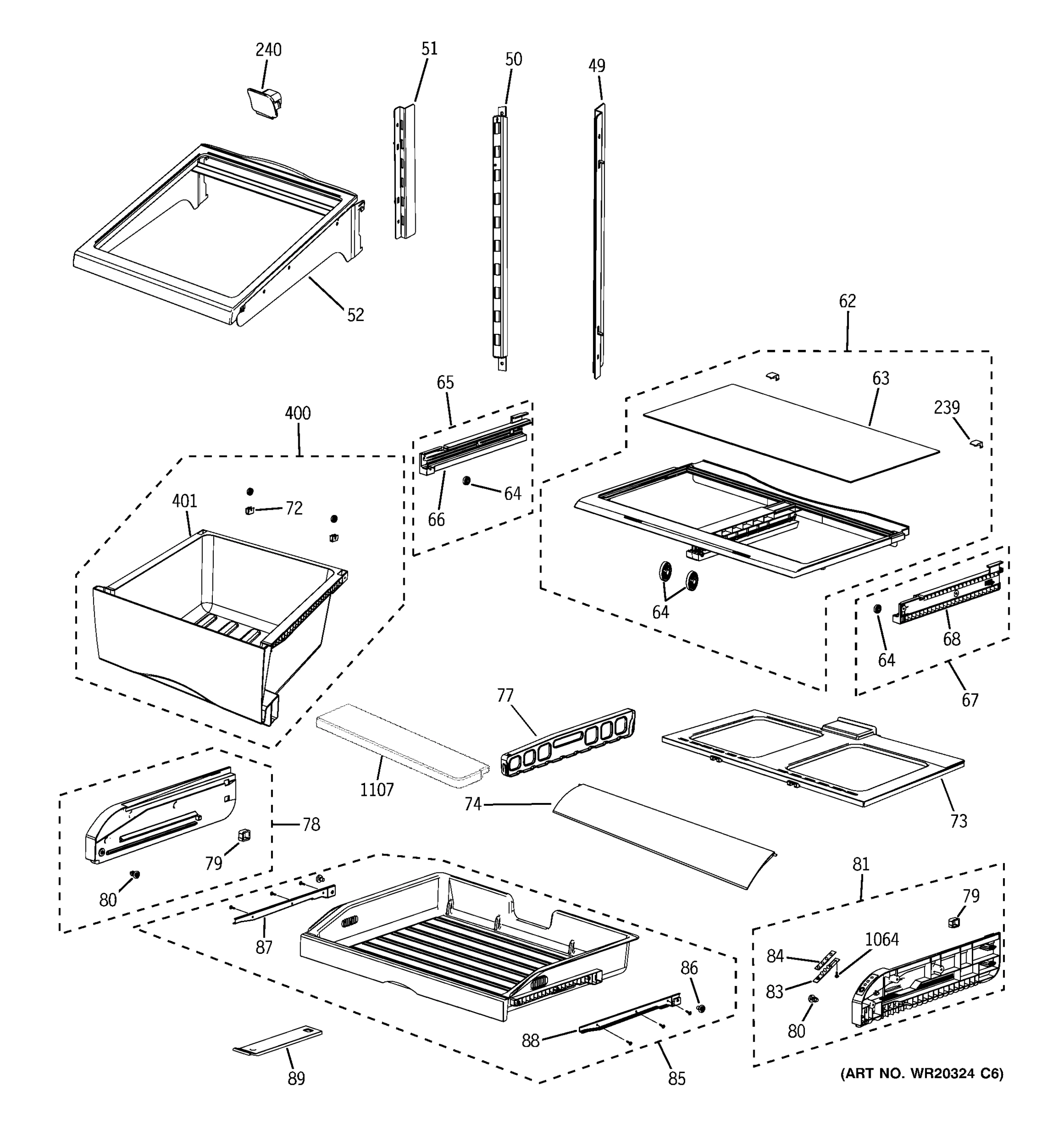

FRESH FOOD SHELVES

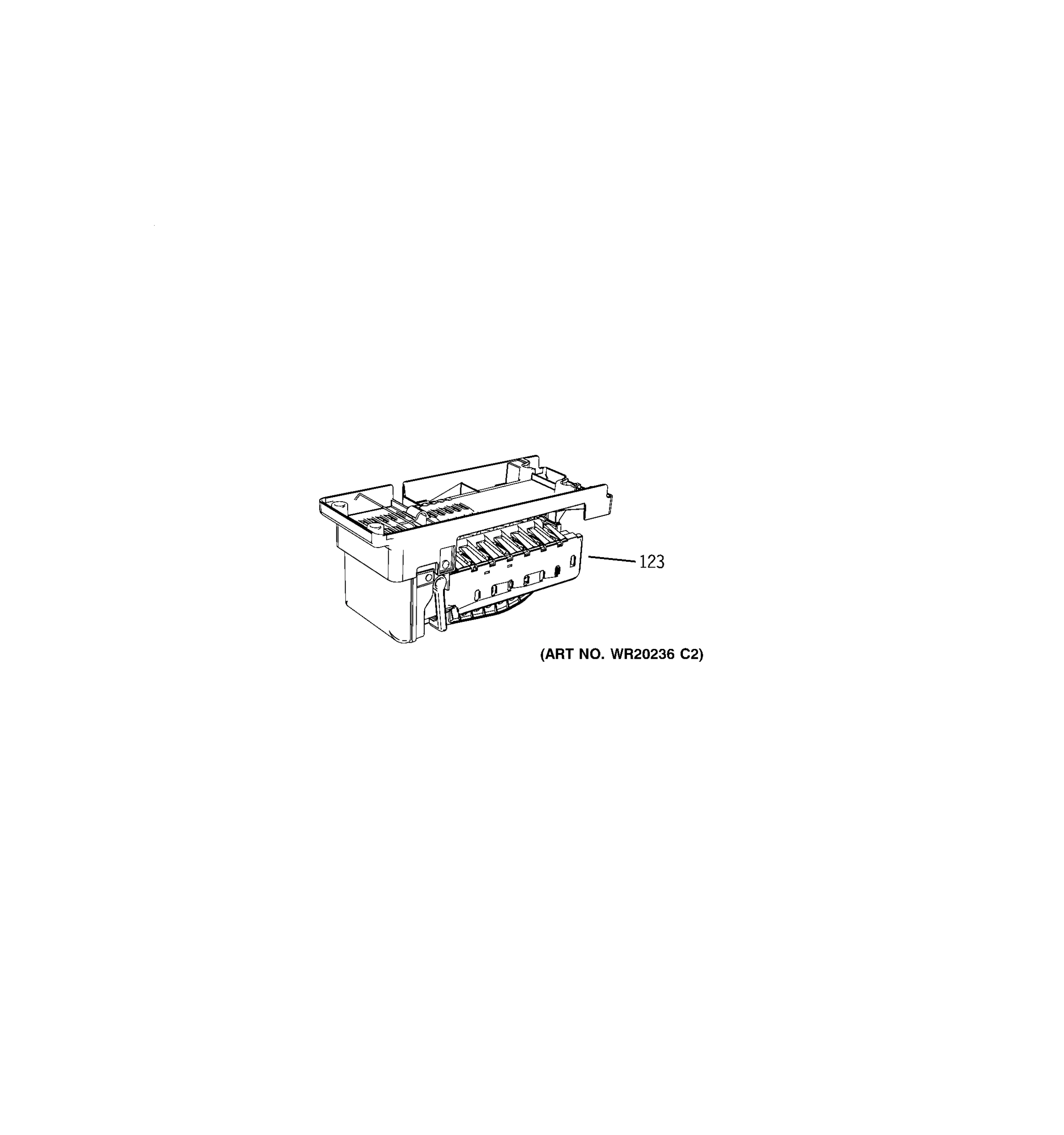

ICE MAKER & DISPENSER

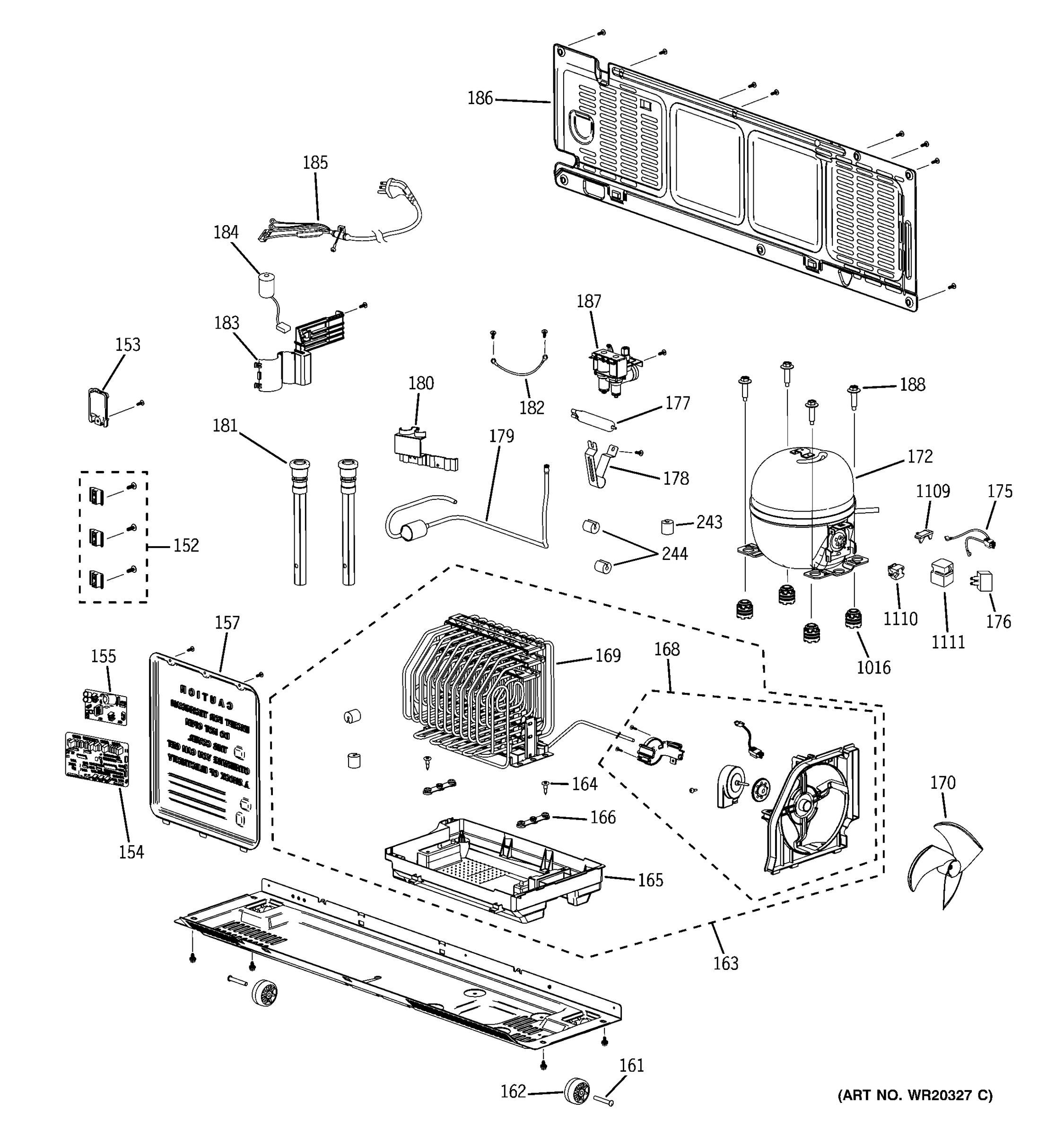

UNIT PARTS
Common parts from model GE GFSS6KEXDSS Refrigerator
5
GEN WR32X10675 GEN WR32X10675 Contact Us For Availability
16
GEN WR02X12742 GEN WR02X12742 Contact Us For Availability
20
GEN WR02X12743 GEN WR02X12743 Contact Us For Availability
23
GEN WR85X10111 GEN WR85X10111 Contact Us For Availability
24
GEN WR23X10621 GEN WR23X10621 Contact Us For Availability
25
GEN WR02X12591 GEN WR02X12591 Contact Us For Availability
26
GEN WR51X10104 GEN WR51X10104 Contact Us For Availability
30
DEFROST HEATER GEN WR51X10105 Contact Us For Availability
32
GEN WR13X10756 GEN WR13X10756 Contact Us For Availability
35
GEN WR23X10580 GEN WR23X10580 Contact Us For Availability
36
GEN WR17X12518 GEN WR17X12518 Contact Us For Availability
39
GEN WR60X10249 GEN WR60X10249 Contact Us For Availability
43
GEN WR01X10436 GEN WR01X10436 Contact Us For Availability
48
GEN WR23X10589 GEN WR23X10589 Contact Us For Availability
52
ASSY SHELF GLASS REF GEN WR71X10808 Contact Us For Availability
64
GEN WR02X12640 GEN WR02X12640 Contact Us For Availability
65
GEN WR72X10267 GEN WR72X10267 Contact Us For Availability
66
GEN WR72X10268 GEN WR72X10268 Contact Us For Availability
67
GEN WR72X10269 GEN WR72X10269 Contact Us For Availability
68
GEN WR72X10270 GEN WR72X10270 Contact Us For Availability
73
GEN WR71X10786 GEN WR71X10786 Contact Us For Availability
74
GEN WR32X10832 GEN WR32X10832 Contact Us For Availability
78
GEN WR72X10271 GEN WR72X10271 Contact Us For Availability
81
GEN WR72X10295 GEN WR72X10295 Contact Us For Availability
83
GEN WR55X10761 GEN WR55X10761 Contact Us For Availability
85
GEN WR32X10686 GEN WR32X10686 Contact Us For Availability
86
GEN WR02X13280 GEN WR02X13280 Contact Us For Availability
90
GEN WR85X10136 GEN WR85X10136 Contact Us For Availability
93
GEN WR02X12592 GEN WR02X12592 Contact Us For Availability
95
GEN WR02X12620 GEN WR02X12620 Contact Us For Availability
96
GEN WR13X10878 GEN WR13X10878 Contact Us For Availability
97
GEN WR60X10323 GEN WR60X10323 Contact Us For Availability
98
GEN WR17X12516 GEN WR17X12516 Contact Us For Availability
113
GEN WR02X12746 GEN WR02X12746 Contact Us For Availability
119
GEN WR23X10612 GEN WR23X10612 Contact Us For Availability
121
GEN WR13X10611 GEN WR13X10611 Contact Us For Availability
133
GEN WR23X10587 GEN WR23X10587 Contact Us For Availability
136
GEN WR02X12604 GEN WR02X12604 Contact Us For Availability
138
SPRING AUTO CLOSE GEN WR02X12619 Contact Us For Availability
140
ASM HINGE UPPER RIGHT GEN WR13X10547 Contact Us For Availability
141
GROMMET HINGE MIDDLE GEN WR02X12747 Contact Us For Availability
142
GEN WR13X10764 GEN WR13X10764 Contact Us For Availability
144
GEN WR02X13136 GEN WR02X13136 Contact Us For Availability
145
GEN WR02X12608 GEN WR02X12608 Contact Us For Availability
146
GEN WR02X12606 GEN WR02X12606 Contact Us For Availability
152
GEN WR02X12607 GEN WR02X12607 Contact Us For Availability
154
GEN WR55X11066 GEN WR55X11066 Contact Us For Availability
155
GEN WR55X10764 GEN WR55X10764 Contact Us For Availability
162
GEN WR02X13137 GEN WR02X13137 Contact Us For Availability
168
GEN WR60X10320 GEN WR60X10320 Contact Us For Availability
169
GEN WR84X10099 GEN WR84X10099 Contact Us For Availability
170
GEN WR60X10266 GEN WR60X10266 Contact Us For Availability
175
GEN WR23X10685 GEN WR23X10685 Contact Us For Availability
176
RUN CAPACITOR GEN WR08X10096 Contact Us For Availability
177
GEN WR86X10045 GEN WR86X10045 Contact Us For Availability
179
GEN WR86X10058 GEN WR86X10058 Contact Us For Availability
179
GEN WR86X10081 GEN WR86X10081 Contact Us For Availability
182
GEN WR23X10583 GEN WR23X10583 Contact Us For Availability
183
GEN WR13X10479 GEN WR13X10479 Contact Us For Availability
184
GEN WR62X10067 GEN WR62X10067 Contact Us For Availability
185
GEN WR23X10613 GEN WR23X10613 Contact Us For Availability
186
ASSY COVER-COMP GEN WR17X12514 Contact Us For Availability
187
GEN WR57X10094 GEN WR57X10094 Contact Us For Availability
188
GEN WR01X10437 GEN WR01X10437 Contact Us For Availability
189
GEN WR78X12117 GEN WR78X12117 Contact Us For Availability
190
GEN WR02X12621 GEN WR02X12621 Contact Us For Availability
191
ASM GASKET DOOR FRE GEN WR24X10212 Contact Us For Availability
191
ASM GASKET DOOR FRE GEN WR24X10211 Contact Us For Availability
192
GEN WR13X10502 GEN WR13X10502 Contact Us For Availability
193
GEN WR13X10503 GEN WR13X10503 Contact Us For Availability
195
ASM HANDLE-FZ GEN WR12X10913 Contact Us For Availability
195
ASM HANDLE-FRE GEN WR12X10917 Contact Us For Availability
196
GEN WR01X10775 GEN WR01X10775 Contact Us For Availability
199
GEN WR02X12811 GEN WR02X12811 Contact Us For Availability
200
GEN WR02X12812 GEN WR02X12812 Contact Us For Availability
202
GEN WR02X12630 GEN WR02X12630 Contact Us For Availability
206
CAM AUTO CLOSE L GEN WR02X12666 Contact Us For Availability
207
ASM GASKET DOOR REF GEN WR24X10200 Contact Us For Availability
207
ASM GASKET DOOR REF GEN WR87X10169 Contact Us For Availability
208
ASSY HANDLE-REF GEN WR12X10916 Contact Us For Availability
209
GEN WR02X12813 GEN WR02X12813 Contact Us For Availability
210
GEN WR01X10774 GEN WR01X10774 Contact Us For Availability
211
ASSY GUARD REF GEN WR21X10178 Contact Us For Availability
213
GEN WR02X12863 GEN WR02X12863 Contact Us For Availability
214
GEN WR55X10986 GEN WR55X10986 Contact Us For Availability
216
GEN WR13X10516 GEN WR13X10516 Contact Us For Availability
217
GEN WR02X12616 GEN WR02X12616 Contact Us For Availability
218
GEN WR82X10114 GEN WR82X10114 Contact Us For Availability
219
GEN WR13X10491 GEN WR13X10491 Contact Us For Availability
220
GASKET FRENCH GEN WR24X10196 Contact Us For Availability
221
GEN WR02X12643 GEN WR02X12643 Contact Us For Availability
222
GEN WR02X12645 GEN WR02X12645 Contact Us For Availability
224
GEN WR02X12651 GEN WR02X12651 Contact Us For Availability
225
GEN WR02X12650 GEN WR02X12650 Contact Us For Availability
233
GEN WR78X12219 GEN WR78X12219 Contact Us For Availability
233
GEN WR78X12214 GEN WR78X12214 Contact Us For Availability
234
CAM AUTO CLOSE R GEN WR02X12670 Contact Us For Availability
236
GUARD DAIRY GEN WR22X10060 Contact Us For Availability
242
GEN WR23X10593 GEN WR23X10593 Contact Us For Availability
243
GROMMET-SUCT PIPE GEN WR02X12675 Contact Us For Availability
244
GROMMET-SUCT PIPE GEN WR02X12676 Contact Us For Availability
401
GEN WR32X10682 GEN WR32X10682 Contact Us For Availability
505
GEN WR02X12809 GEN WR02X12809 Contact Us For Availability
507
THERMO BIMETAL-PROTECTOR GEN WR02X12808 Contact Us For Availability
1013
GEN WR17X12704 GEN WR17X12704 Contact Us For Availability
1016
GEN WR02X11915 GEN WR02X11915 Contact Us For Availability
1065
GEN WR01X10903 GEN WR01X10903 Contact Us For Availability
1102
GEN WR55X10988 GEN WR55X10988 Contact Us For Availability
1108
SCREW,TAPPING M4 GEN WR01X10598 Contact Us For Availability
1110
GEN WR07X10111 GEN WR07X10111 Contact Us For Availability
1111
GEN WR02X11949 GEN WR02X11949 Contact Us For Availability
1113
GEN WR01X10839 GEN WR01X10839 Contact Us For Availability
× ![]()
