Model GE GFSL6KKYCLS – Common Parts & Diagrams
FREEZER DOOR
FRESH FOOD DOORS

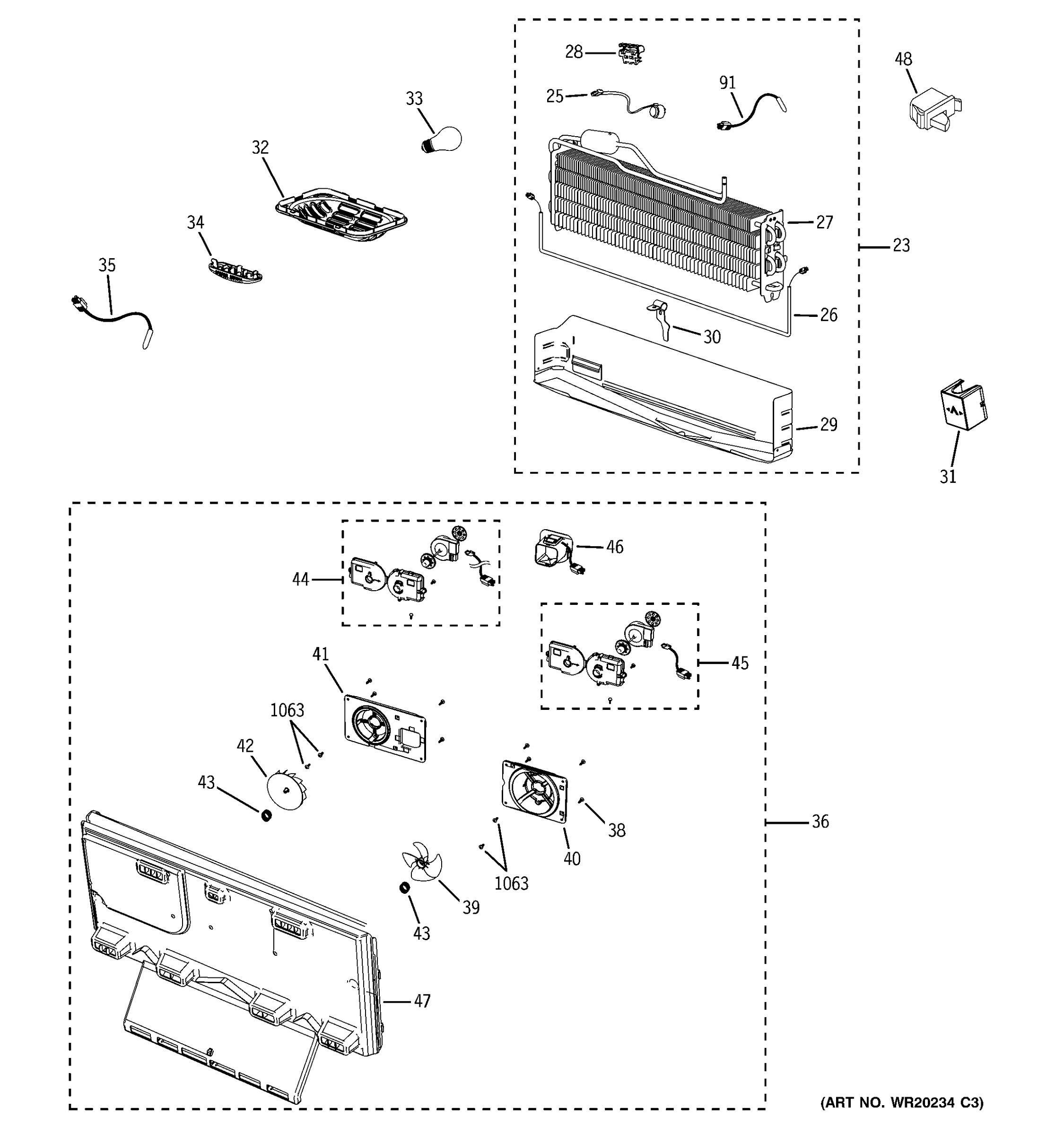

FREEZER SECTION

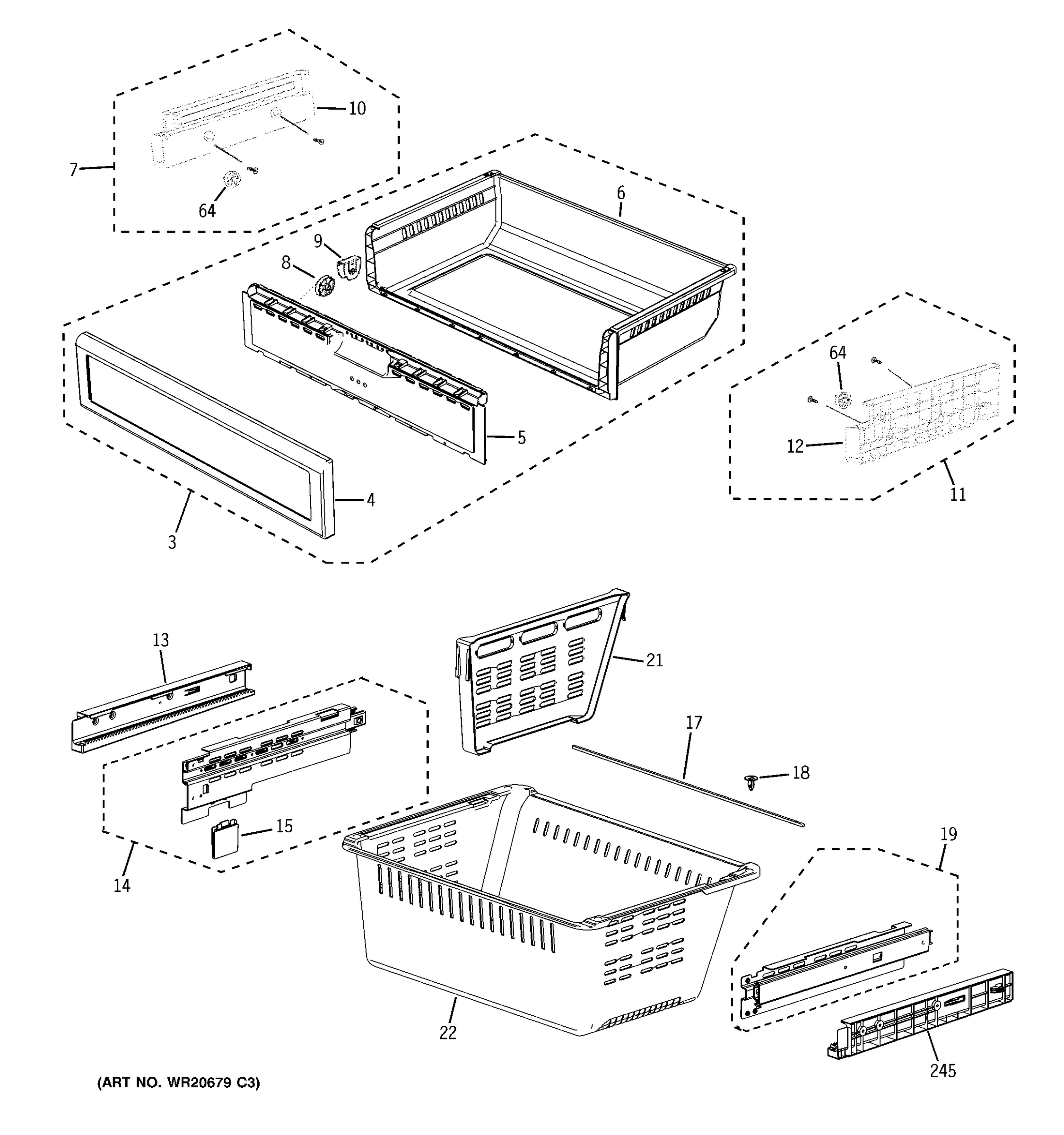

FREEZER SHELVES

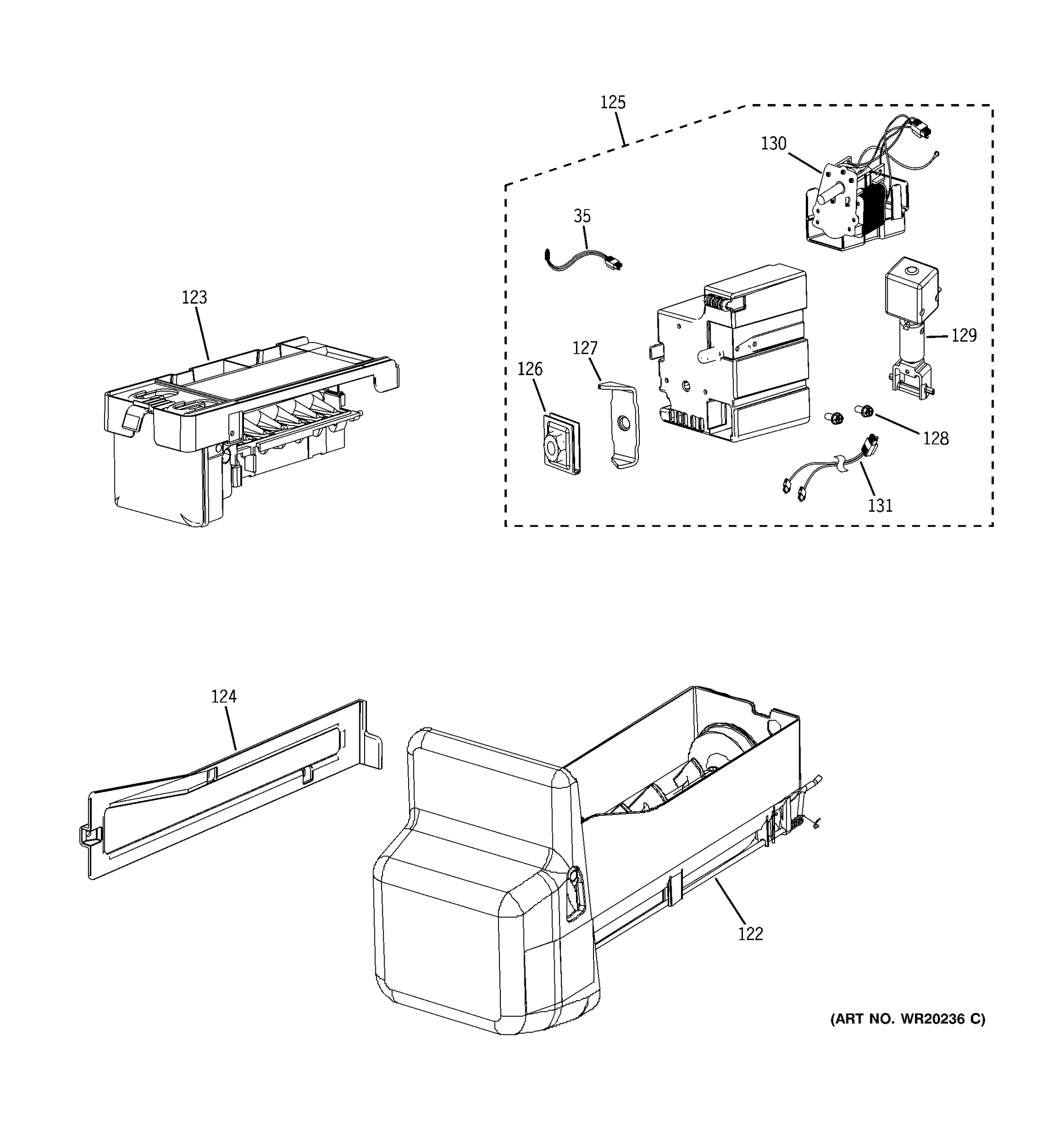

ICE MAKER & DISPENSER

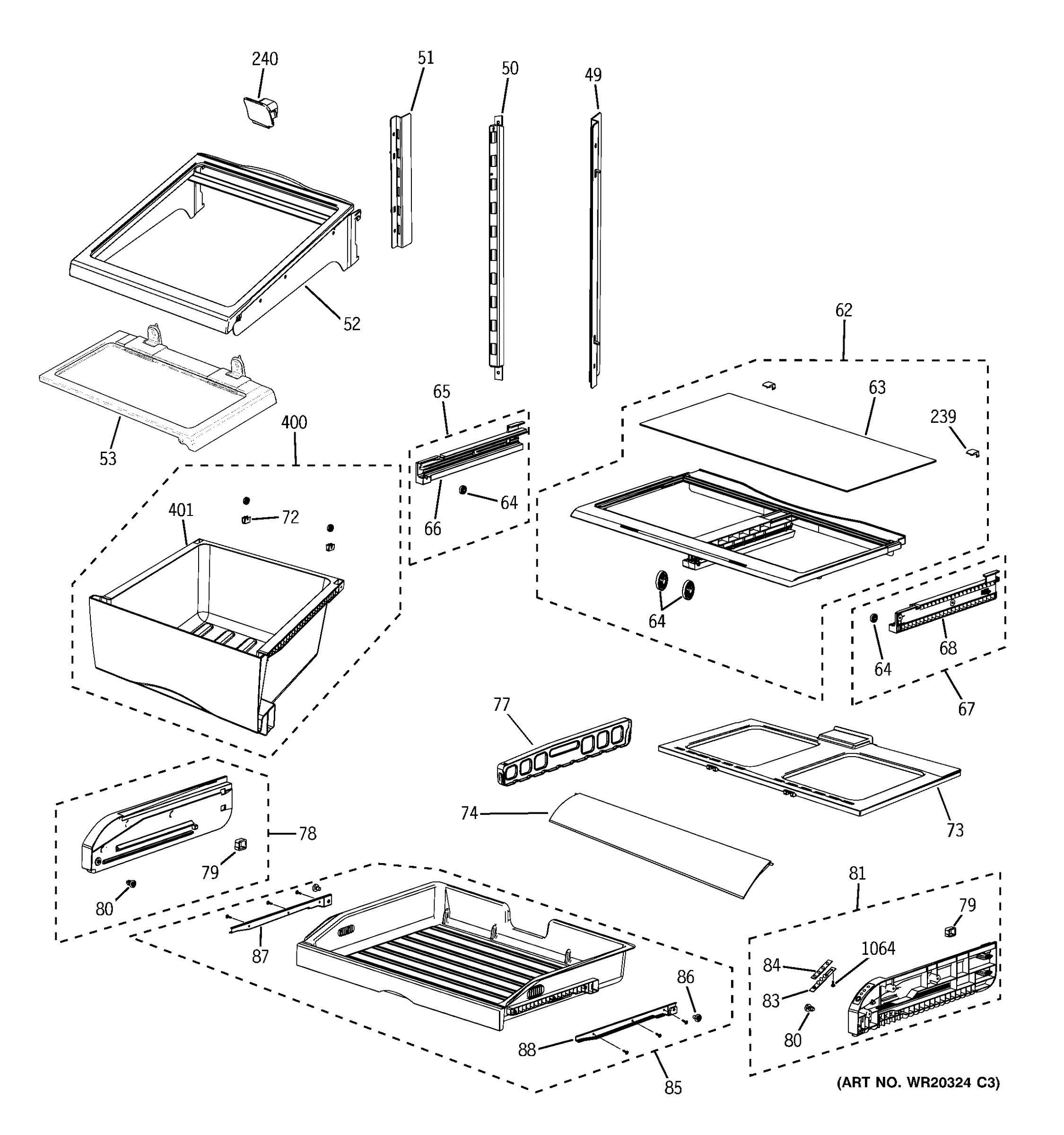

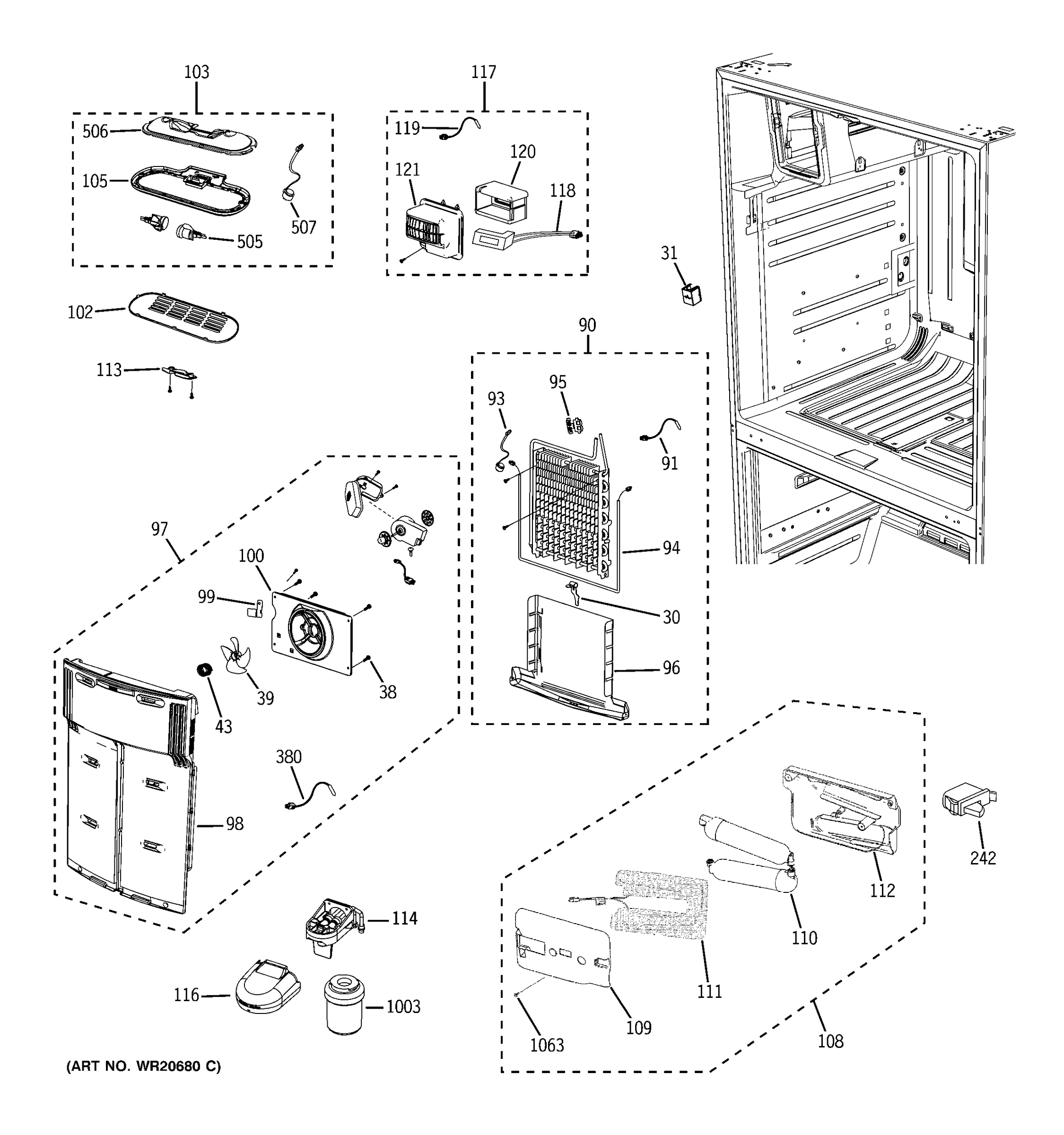

FRESH FOOD SECTION
FRESH FOOD SHELVES

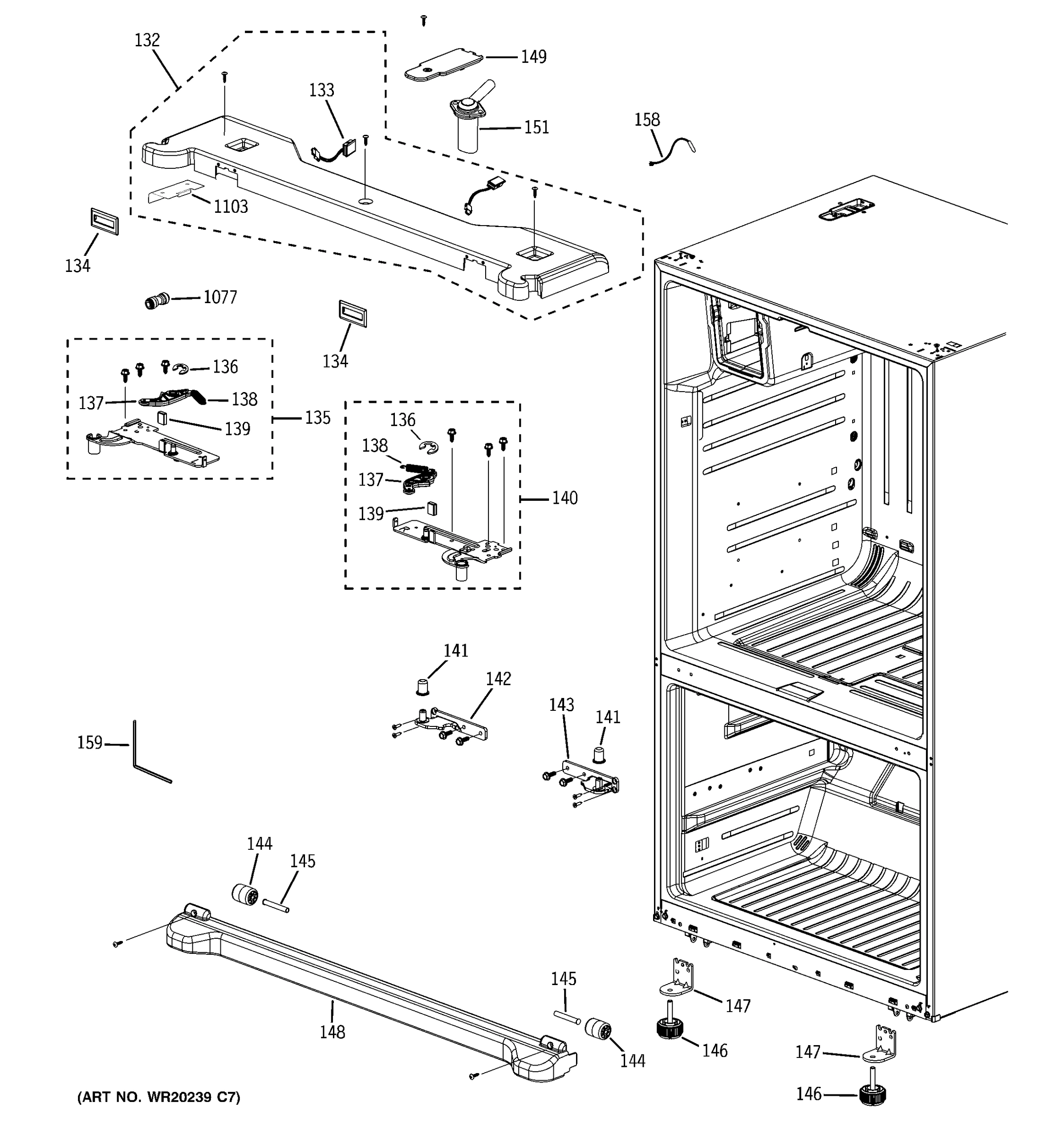

CASE PARTS

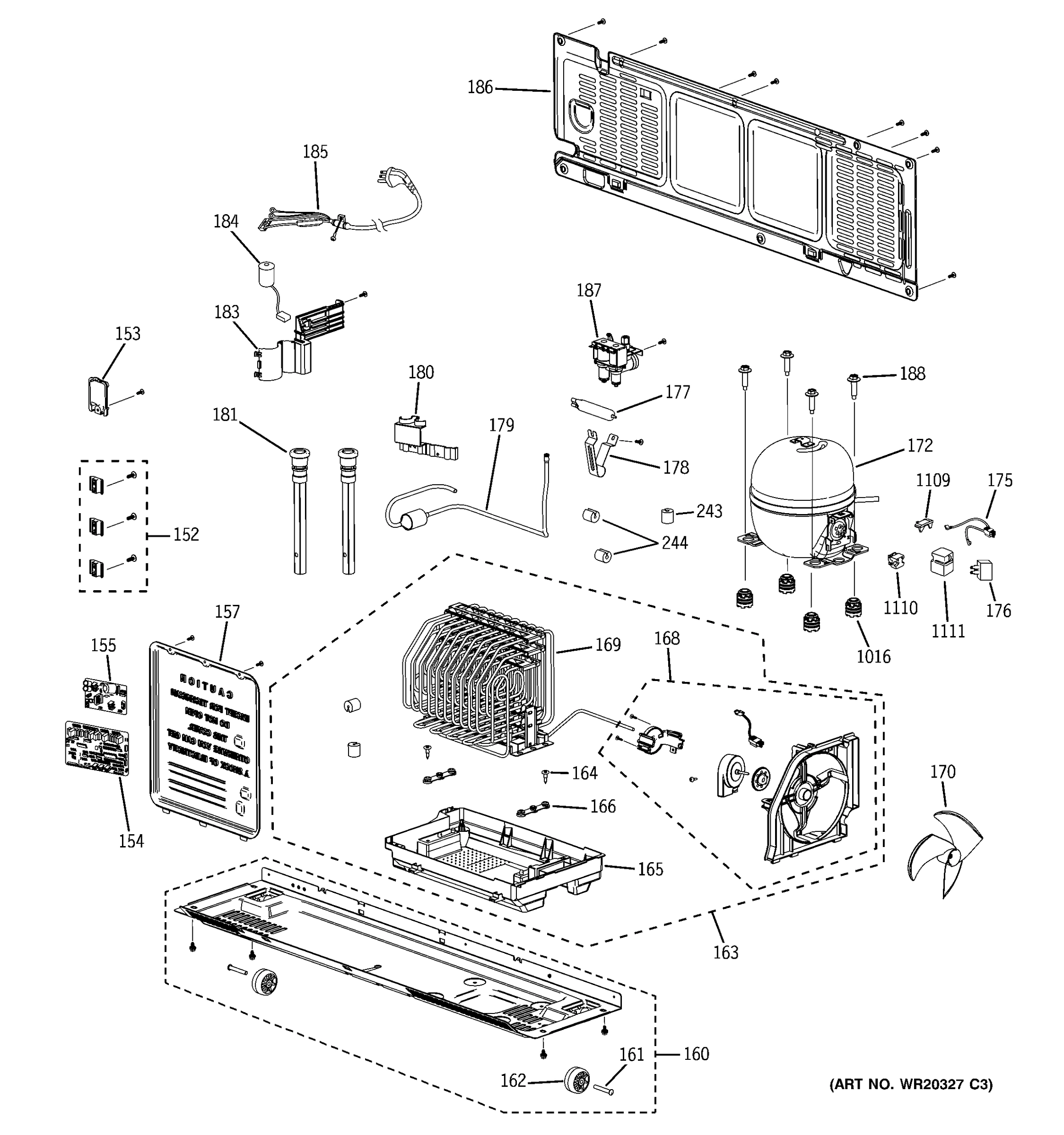

MACHINE COMPARTMENT
Common parts from model GE GFSL6KKYCLS
25
BIMETAL GEN WR02X12591 Contact Us For Availability
26
DEFROST HEATER FZ GEN WR51X10104 Contact Us For Availability
30
HEATER METAL SHEATH GEN WR51X10105 Contact Us For Availability
31
COVER-FIXER HOUSING,V GEN WR02X13268 Contact Us For Availability
35
SENSOR TEMP GEN WR23X10580 Contact Us For Availability
38
SCREW TAPPING GEN WR01X10769 Contact Us For Availability
39
FAN AX100W4CC T1 GEN WR60X10309 Contact Us For Availability
43
RETAINING SPRING FAN GEN WR01X10436 Contact Us For Availability
48
SWITCH DOOR FZ GEN WR23X10589 Contact Us For Availability
49
ANGLE-SHELF REF SIDE GEN WR72X10348 Contact Us For Availability
50
ANGLE-SHELF REF SIDE L GEN WR72X10347 Contact Us For Availability
51
ANGLE-SHELF REF MID GEN WR72X10359 Contact Us For Availability
52
ASM SHELF GLASS REF GEN WR71X10900 Contact Us For Availability
53
ASM SHELF REF FOLD GEN WR71X10870 Contact Us For Availability
64
ROLLER-FRE GEN WR02X13255 Contact Us For Availability
65
ASM RAIL-VEG L GEN WR72X10356 Contact Us For Availability
66
RAIL-VEG L GEN WR72X10349 Contact Us For Availability
67
ASM RAIL-VEG R GEN WR72X10357 Contact Us For Availability
68
RAIL-VEG R GEN WR72X10350 Contact Us For Availability
72
FIXER-ROLLER GEN WR02X13256 Contact Us For Availability
73
ASM SHELF-PANTRY GEN WR71X10899 Contact Us For Availability
74
ASM COVER-SLIDE PANTRY GEN WR32X10784 Contact Us For Availability
77
GUIDE-PANTRY GEN WR32X10774 Contact Us For Availability
78
ASM COVER-RAIL PANTRY L GEN WR72X10360 Contact Us For Availability
79
SUPPORT ROLLER PANTRY GEN WR02X12614 Contact Us For Availability
80
ASM-ROLLER A GEN WR02X13281 Contact Us For Availability
81
ASM COVER-RAIL PANTRY R GEN WR72X10361 Contact Us For Availability
83
PRINTED BOARD PANTRY GEN WR55X10761 Contact Us For Availability
84
CONTROL PANEL INLAY GEN WR55X10807 Contact Us For Availability
85
ASM CASE-PANTRY GEN WR32X10781 Contact Us For Availability
86
ASM-ROLLER B GEN WR02X13280 Contact Us For Availability
87
ASM RAIL-PANTRY L GEN WR72X10358 Contact Us For Availability
88
ASM RAIL-PANTRY R GEN WR72X10353 Contact Us For Availability
90
ASM EVAP-REF GEN WR85X10125 Contact Us For Availability
93
BIMETAL GEN WR02X12592 Contact Us For Availability
94
DEFROST HEATER GEN WR02X12603 Contact Us For Availability
95
FIXER-SENSOR GEN WR02X13254 Contact Us For Availability
96
PLATE-DRAIN REF GEN WR13X10780 Contact Us For Availability
97
ASM COVER-EVAP REF GEN WR13X10808 Contact Us For Availability
98
ASM COVER-EAVP REF SUB GEN WR17X12801 Contact Us For Availability
99
PLATE-HOUSING REF GEN WR02X13259 Contact Us For Availability
100
CASE-MOTOR REF GEN WR13X10784 Contact Us For Availability
102
COVER-LAMP REF GEN WR13X10794 Contact Us For Availability
103
ASM CASE LAMP-REF GEN WR13X10805 Contact Us For Availability
105
CASE-LAMP REF GEN WR13X10778 Contact Us For Availability
108
ASM-COVER WATER TANK GEN WR17X12739 Contact Us For Availability
109
COVER HEATER WATER TANK GEN WR51X10118 Contact Us For Availability
111
HEATER WATER TANK GEN WR51X10117 Contact Us For Availability
112
COVER-TANK WATER GEN WR13X10733 Contact Us For Availability
113
GUIDE-FRENCH GEN WR02X13253 Contact Us For Availability
116
COVER-WATER FILTER GEN WR13X10797 Contact Us For Availability
119
SENSOR TEMP PANTRY GEN WR23X10612 Contact Us For Availability
120
INSULATION-MOTOR DC DAMP GEN WR02X13263 Contact Us For Availability
121
COVER-MOTOR DC DAMPER GEN WR13X10796 Contact Us For Availability
124
COVER HARNESS ICE ROOM GEN WR13X10791 Contact Us For Availability
125
ASM-CASE AUGER MOTOR GEN WR60X10313 Contact Us For Availability
126
J-NUT GEN WR02X11957 Contact Us For Availability
127
PLATE-DRIVE AUGER GEN WR03X10008 Contact Us For Availability
128
SCREW-SPECIAL GEN WR02X11870 Contact Us For Availability
129
ASM VALVE SOLENOID GEN WR29X10093 Contact Us For Availability
130
MOTOR GEARED-AUGER GEN WR60X10299 Contact Us For Availability
131
ASM-WIRE HARNESS SUB(EM) GEN WR23X10674 Contact Us For Availability
132
ASM-TOP TABLE GEN WR13X10863 Contact Us For Availability
133
SWITCH REED ASM GEN WR23X10587 Contact Us For Availability
134
CAP-TOP TABLE GEN WR13X10800 Contact Us For Availability
135
ASM HINGE UPP-L GEN WR13X10864 Contact Us For Availability
136
C - CLIP GEN WR02X12604 Contact Us For Availability
137
ASM LEVER-AUTO CLOSE GEN WR02X13286 Contact Us For Availability
138
SPRING AUTO CLOASE GEN WR02X12619 Contact Us For Availability
138
SPRING ETC-AUTO CLOSE GEN WR02X13188 Contact Us For Availability
139
GROMMET LEVER GEN WR02X12632 Contact Us For Availability
140
ASM HINGE UPP-R GEN WR13X10804 Contact Us For Availability
141
GROMMET HINGE-MID,R GEN WR02X13265 Contact Us For Availability
142
ASM HINGE MID-L GEN WR13X10764 Contact Us For Availability
143
ASM HINGE MID-R GEN WR13X10765 Contact Us For Availability
144
FRONT WHEEL GEN WR02X13136 Contact Us For Availability
145
WHEEL AXLE GEN WR02X12608 Contact Us For Availability
146
FOOT-FRONT GEN WR02X13332 Contact Us For Availability
147
SUPPORT FOOT FRONT GEN WR02X12748 Contact Us For Availability
148
COVER-LEG FRONT GEN WR79X10057 Contact Us For Availability
149
ASM-COVER PIPE WATER GEN WR02X13282 Contact Us For Availability
151
ASM PIPE-WATER GEN WR02X13340 Contact Us For Availability
152
FIXER-HOSE GEN WR02X13250 Contact Us For Availability
153
COVER-TUBE FILTER GEN WR13X10790 Contact Us For Availability
154
PBA MAIN GEN WR55X10985 Contact Us For Availability
155
POWER SUPPLY BOARD GEN WR55X10764 Contact Us For Availability
157
ASM-COVER PCB PANEL GEN WR13X10801 Contact Us For Availability
158
SENSOR TEMP GEN WR23X10579 Contact Us For Availability
159
WRENCH GEN WR02X12649 Contact Us For Availability
160
ASM CHASSIS-COMP GEN WR17X12802 Contact Us For Availability
161
WHEEL AXLE GEN WR02X13154 Contact Us For Availability
162
REAR WHEEL GEN WR02X13137 Contact Us For Availability
163
ASM TRAY-DRAIN WATER GEN WR87X10218 Contact Us For Availability
164
SCREW SPECIAL GEN WR01X10773 Contact Us For Availability
165
TRAY-DRAIN WATER GEN WR30X10136 Contact Us For Availability
166
GROMMET CONDENSER GEN WR02X12635 Contact Us For Availability
168
ASM SUPPORT-CIRCUIT MOTO GEN WR60X10315 Contact Us For Availability
169
ASM PIPE-SPIRAL COND GEN WR84X10097 Contact Us For Availability
170
FAN-ASM GEN WR60X10312 Contact Us For Availability
175
ASM-HARNESS COMP GEN WR23X10685 Contact Us For Availability
176
OVERLOAD GEN WR08X10096 Contact Us For Availability
177
DRYER GEN WR86X10045 Contact Us For Availability
178
CLIP-DRYER GEN WR02X13260 Contact Us For Availability
179
ASM PIPE CONNECT-SUCTION GEN WR02X13285 Contact Us For Availability
180
FIXER-HOSE(VALVE) GEN WR02X13251 Contact Us For Availability
183
COVER-NOISE FILTER GEN WR13X10789 Contact Us For Availability
184
EMI NOISE FILTER GEN WR62X10067 Contact Us For Availability
185
POWER CORD GEN WR23X10613 Contact Us For Availability
186
ASM COVER-COMP GEN WR17X12803 Contact Us For Availability
188
BOLT COMPRESSOR GEN WR01X10437 Contact Us For Availability
190
FIXER HANDLE GEN WR02X12621 Contact Us For Availability
195
ASM HANDLE-FRE SS GEN WR12X10917 Contact Us For Availability
196
SCREW SET GEN WR01X10775 Contact Us For Availability
208
ASM HANDLE-REF SS GEN WR12X10916 Contact Us For Availability
209
BRACKET HANDLE REF(BMC) GEN WR02X12813 Contact Us For Availability
210
SCREW SET GEN WR01X10774 Contact Us For Availability
212
TRAY-DISPENSER GEN WR31X10066 Contact Us For Availability
213
ASM-FRENCH GEN WR02X13292 Contact Us For Availability
214
HEATER CORD-FRENCH GEN WR55X10986 Contact Us For Availability
220
GASKET FRENCH SS GEN WR24X10196 Contact Us For Availability
224
PIN FRENCH SPRING GEN WR02X12651 Contact Us For Availability
225
SPRING ETC FRENCH GEN WR02X12650 Contact Us For Availability
231
ASM-COVER DISPENSER GEN WR13X10832 Contact Us For Availability
239
FIXER-COVER VEG GEN WR02X13257 Contact Us For Availability
240
CAP-ANGLE GEN WR02X13273 Contact Us For Availability
242
SWITCH DOOR GEN WR23X10593 Contact Us For Availability
243
GROMMET-SUCT PIPE A GEN WR02X12675 Contact Us For Availability
244
GROMMET-SUCT PIPE B GEN WR02X12676 Contact Us For Availability
400
ASM CASE-VEG REF GEN WR32X10783 Contact Us For Availability
401
CASE-VEG REF GEN WR32X10776 Contact Us For Availability
505
LAMP HOLER-ASSY GEN WR02X12809 Contact Us For Availability
506
PLATE-LAMP REF GEN WR13X10781 Contact Us For Availability
507
BIMETAL GEN WR02X12808 Contact Us For Availability
1003
WATER FILTER REF CYST GEN GWF Contact Us For Availability
1016
GROMMET-COMP GEN WR02X11915 Contact Us For Availability
1064
SCREW-TAPPING GEN WR01X10520 Contact Us For Availability
1065
CAP-GUIDE FRENCH UPP GEN WR02X13279 Contact Us For Availability
1103
PLATE-TOP TABLE GEN WR13X10777 Contact Us For Availability
1110
OLP GEN WR07X10111 Contact Us For Availability
1111
COVER RELAY GEN WR02X13264 Contact Us For Availability
1113
