Model GE GFSL6KKYALS Refrigerator – Common Parts & Diagrams

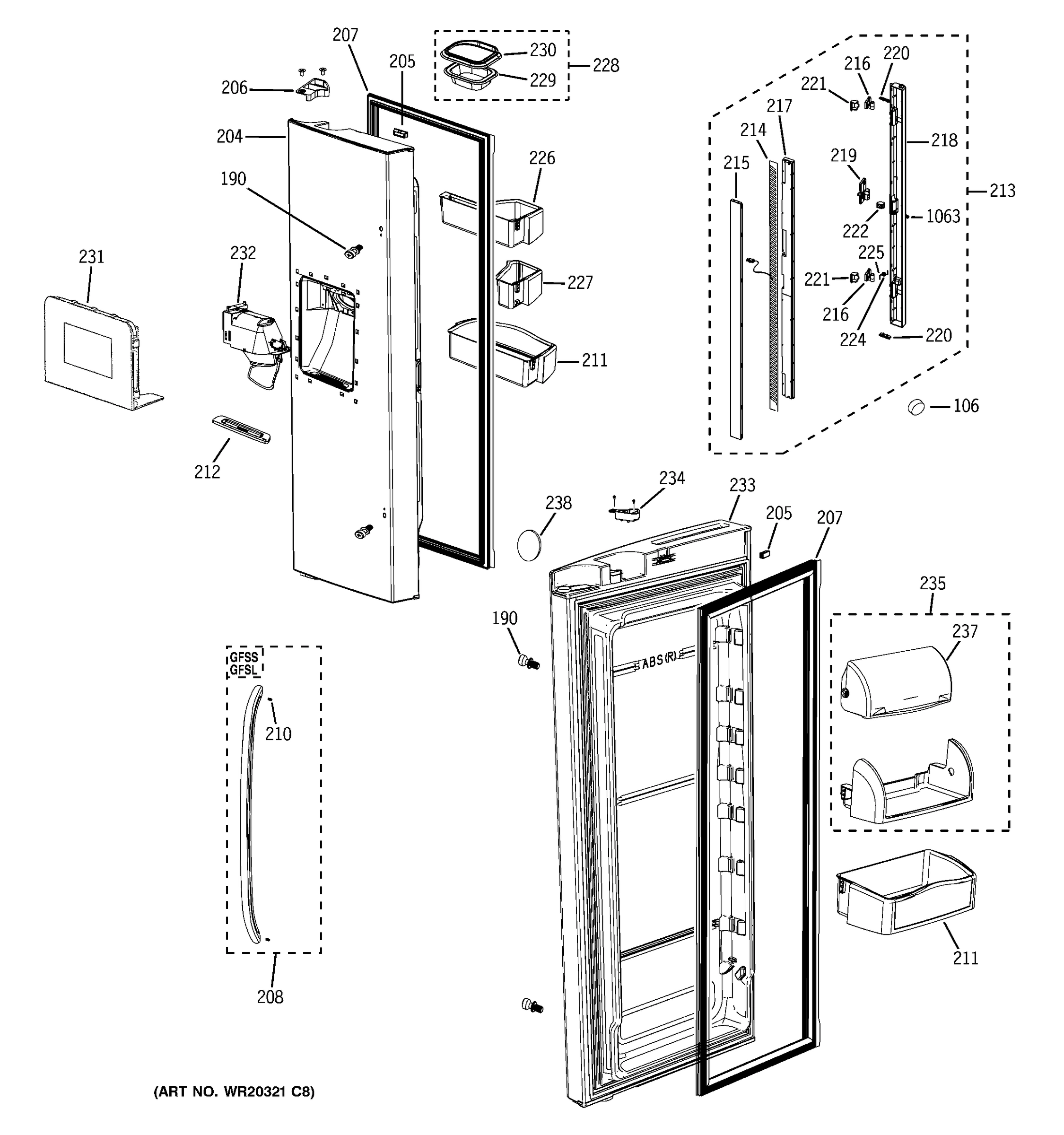

FREEZER DOOR

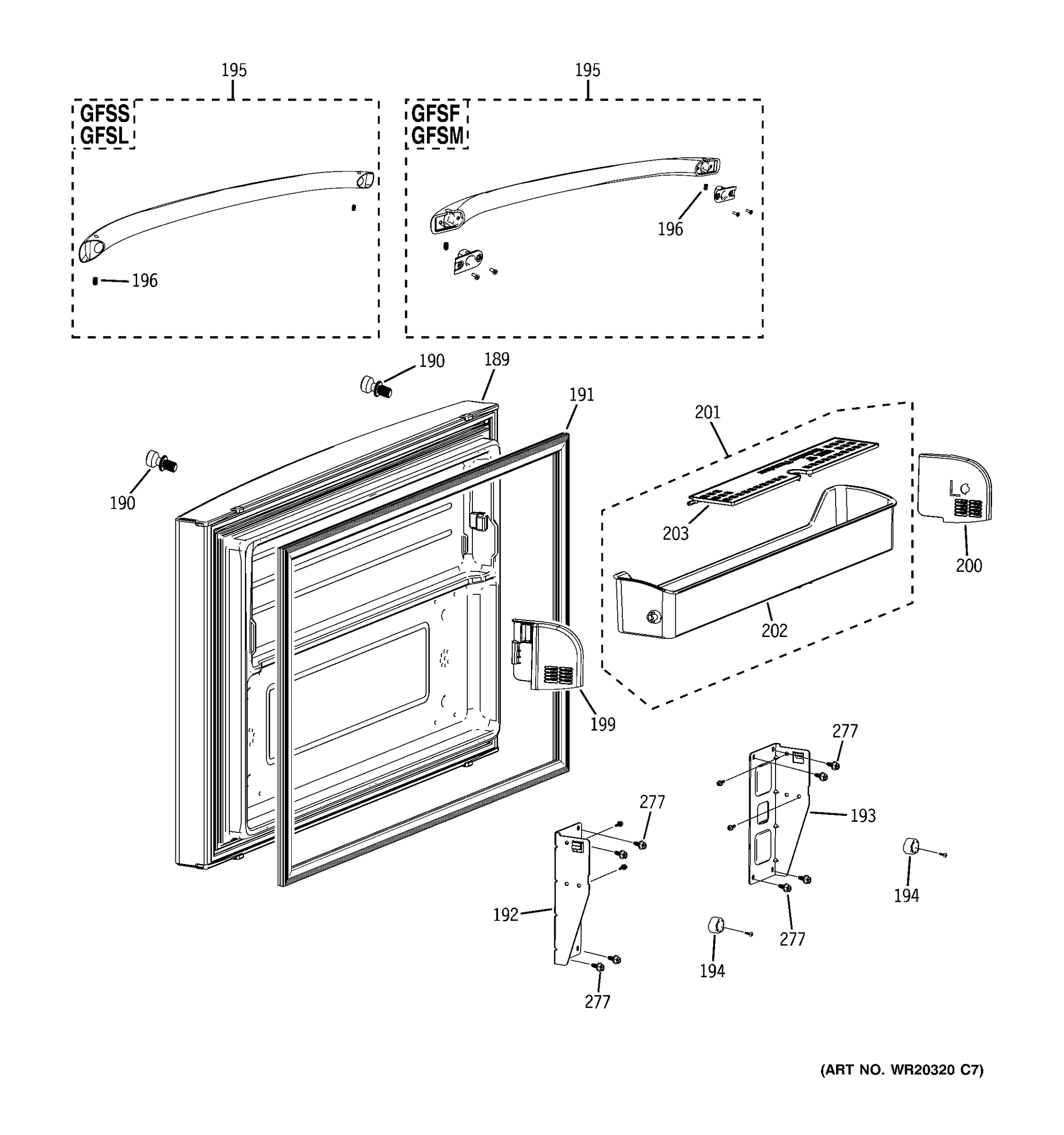

FRESH FOOD DOORS
FREEZER SECTION
FREEZER SHELVES
ICE MAKER & DISPENSER
FRESH FOOD SECTION
FRESH FOOD SHELVES
CASE PARTS
MACHINE COMPARTMENT
Common parts from model GE GFSL6KKYALS Refrigerator
2
HOLDER TRAY UPP FZ GEN WR02X12615 Contact Us For Availability
5
INNER COVER TRAY UPP GEN WR32X10675 Contact Us For Availability
11
ASM RAIL SLIDE UPP R GEN WR72X10263 Contact Us For Availability
12
HOLDER RAIL UPP RIGHT GEN WR72X10264 Contact Us For Availability
14
ASM RAIL SLIDE LOW L GEN WR72X10265 Contact Us For Availability
16
ASM GEAR L GEN WR02X12742 Contact Us For Availability
19
ASM RAIL SLIDE LOW R GEN WR72X10266 Contact Us For Availability
20
ASM GEAR R GEN WR02X12743 Contact Us For Availability
22
ASM TRAY DRAWER BOX GEN WR14X10245 Contact Us For Availability
23
ASM EVAPORATOR FZ GEN WR85X10109 Contact Us For Availability
25
BIMETAL GEN WR02X12591 Contact Us For Availability
26
DEFROST HEATER FZ GEN WR51X10104 Contact Us For Availability
27
EVAP FZ GEN WR85X10096 Contact Us For Availability
30
HEATER METAL SHEATH GEN WR51X10105 Contact Us For Availability
35
SENSOR TEMP GEN WR23X10627 Contact Us For Availability
36
ASM COVER-EVAP FRE ICE GEN WR13X10742 Contact Us For Availability
39
EVAP FAN BLADE GEN WR60X10249 Contact Us For Availability
42
EVAP BLADE BACKWARD GEN WR60X10264 Contact Us For Availability
43
RETAINING SPRING FAN GEN WR01X10436 Contact Us For Availability
44
EVAP MOTOR FZ LEFT GEN WR60X10255 No Longer Available
45
ASM MOTOR FRE GEN WR60X10301 Contact Us For Availability
46
ASM HEATER DUCT FZ GEN WR51X10106 Contact Us For Availability
47
EVAP COVER FZ GEN WR17X12388 Contact Us For Availability
48
SWITCH DOOR FZ GEN WR23X10589 Contact Us For Availability
52
UPPER SELF GLASS GEN WR71X10808 Contact Us For Availability
53
ASM SHELF REF FOLD GEN WR71X10870 Contact Us For Availability
64
VEG PAN ROLLER GEN WR02X12640 Contact Us For Availability
65
ASM RAIL VEG LEFT GEN WR72X10267 Contact Us For Availability
66
RAIL VEG LEFT GEN WR72X10268 Contact Us For Availability
67
ASM RAIL VEG RIGHT GEN WR72X10269 Contact Us For Availability
68
RAIL VEG RIGHT GEN WR72X10270 Contact Us For Availability
73
ASM SHELF PANTRY GEN WR71X10786 Contact Us For Availability
74
COVER-SLIDE PANTRY A GEN WR32X10684 Contact Us For Availability
78
ASM COVER PANTRY LEFT GEN WR72X10271 Contact Us For Availability
80
ASM ROLLER PANTRY GEN WR02X12660 Contact Us For Availability
81
ASM COVER-RAIL PANTRY R GEN WR72X10295 Contact Us For Availability
83
PRINTED BOARD PANTRY GEN WR55X10761 Contact Us For Availability
85
ASM CASE-PANTRY GEN WR32X10686 Contact Us For Availability
86
PANTRY PAN ROLLER GEN WR02X12659 Contact Us For Availability
93
BIMETAL GEN WR02X12592 Contact Us For Availability
94
DEFROST HEATER GEN WR02X12603 Contact Us For Availability
95
SENSOR CLAMP GEN WR02X12620 Contact Us For Availability
96
DRAIN TRAY EVAP GEN WR13X10601 Contact Us For Availability
108
ASM-COVER WATER TANK GEN WR17X12739 Contact Us For Availability
111
HEATER WATER TANK GEN WR51X10117 Contact Us For Availability
113
DOOR GUIDE GEN WR02X12746 Contact Us For Availability
119
SENSOR TEMP PANTRY GEN WR23X10612 Contact Us For Availability
121
DAMPER COVER FF GEN WR13X10611 Contact Us For Availability
124
IM HARNESS COVER GEN WR13X10574 Contact Us For Availability
125
ASM-CASE AUGER MOTOR GEN WR60X10298 Contact Us For Availability
126
J-NUT GEN WR02X11957 Contact Us For Availability
129
AUGUER MOTOR SOLENOID GEN WR29X10077 Contact Us For Availability
130
MOTOR GEARED-AUGER GEN WR60X10299 Contact Us For Availability
132
ASM CONTROL PANEL COVER GEN WR13X10549 Contact Us For Availability
133
SWITCH REED ASM GEN WR23X10587 Contact Us For Availability
136
C - CLIP GEN WR02X12604 Contact Us For Availability
140
ASM HINGE UPPER RIGHT SS GEN WR13X10547 Contact Us For Availability
141
GROMMET HINGLE MIDDLE GEN WR02X12747 Contact Us For Availability
144
FRONT WHEEL GEN WR02X13136 Contact Us For Availability
145
WHEEL AXLE GEN WR02X12608 Contact Us For Availability
146
FOOT FRONT GEN WR02X12606 Contact Us For Availability
151
ASM WATER LINE GEN WR02X12750 Contact Us For Availability
152
WATER LINE HOLDER GEN WR02X12607 Contact Us For Availability
155
POWER SUPPLY BOARD GEN WR55X10764 Contact Us For Availability
158
SENSOR TEMP GEN WR23X10579 Contact Us For Availability
162
REAR WHEEL GEN WR02X13137 Contact Us For Availability
165
TRAY DRAIN WATER GEN WR87X10179 Contact Us For Availability
168
ASM SUPPORT-CIRCUIT MOTO GEN WR13X10740 Contact Us For Availability
169
CONDENSER GEN WR84X10085 Contact Us For Availability
170
CONDENSER FAN BLADE GEN WR60X10266 Contact Us For Availability
176
OVERLOAD GEN WR08X10096 Contact Us For Availability
184
EMI NOISE FILTER GEN WR62X10067 Contact Us For Availability
190
FIXER HANDLE GEN WR02X12621 Contact Us For Availability
192
HANGER RAIL FRONT L GEN WR13X10502 Contact Us For Availability
193
HANGER RAIL FRONT R GEN WR13X10503 Contact Us For Availability
195
ASM HANDLE-FRE SS GEN WR12X10917 Contact Us For Availability
196
SCREW SET GEN WR01X10775 Contact Us For Availability
199
SUPPORT-GUARD FRE L GEN WR02X12811 Contact Us For Availability
200
SUPPORT-GUARD FRE R GEN WR02X12812 Contact Us For Availability
202
GUARD FRE GEN WR02X12630 Contact Us For Availability
206
CAM AUTO CLOSE L SS GEN WR02X12666 Contact Us For Availability
208
ASM HANDLE-REF SS GEN WR12X10916 Contact Us For Availability
210
SCREW SET GEN WR01X10774 Contact Us For Availability
211
DOOR BIN ASM UPPER GEN WR21X10178 Contact Us For Availability
212
TRAY-DISPENSER GEN WR31X10066 Contact Us For Availability
213
ASM FRENCH GEN WR02X12863 Contact Us For Availability
216
HINGE FRENCH GEN WR13X10516 Contact Us For Availability
217
CASE FRENCH GEN WR02X12616 Contact Us For Availability
218
INSULATION FRENCH GEN WR82X10114 Contact Us For Availability
219
COVER HEATER FRENCH GEN WR13X10491 Contact Us For Availability
220
GASKET FRENCH SS GEN WR24X10196 Contact Us For Availability
221
CAP CASE FRENCH GEN WR02X12643 Contact Us For Availability
222
CAP CASE FRENCH MID GEN WR02X12645 Contact Us For Availability
224
PIN FRENCH SPRING GEN WR02X12651 Contact Us For Availability
225
SPRING ETC FRENCH GEN WR02X12650 Contact Us For Availability
228
ASM CAP CHUTE ICE GEN WR02X12661 Contact Us For Availability
229
CAP CHUTE ICE GEN WR02X12646 Contact Us For Availability
242
SWITCH DOOR GEN WR23X10593 Contact Us For Availability
401
ASM CASE VEG PAN GEN WR32X10682 Contact Us For Availability
505
LAMP HOLER-ASSY GEN WR02X12809 Contact Us For Availability
507
BIMETAL GEN WR02X12808 Contact Us For Availability
1110
OLP GEN WR07X10111 Contact Us For Availability
1111
COVER RELAY GEN WR02X11949 Contact Us For Availability
× ![]()
