Model GE GFSF6KEXCWW Refrigerator – Common Parts & Diagrams

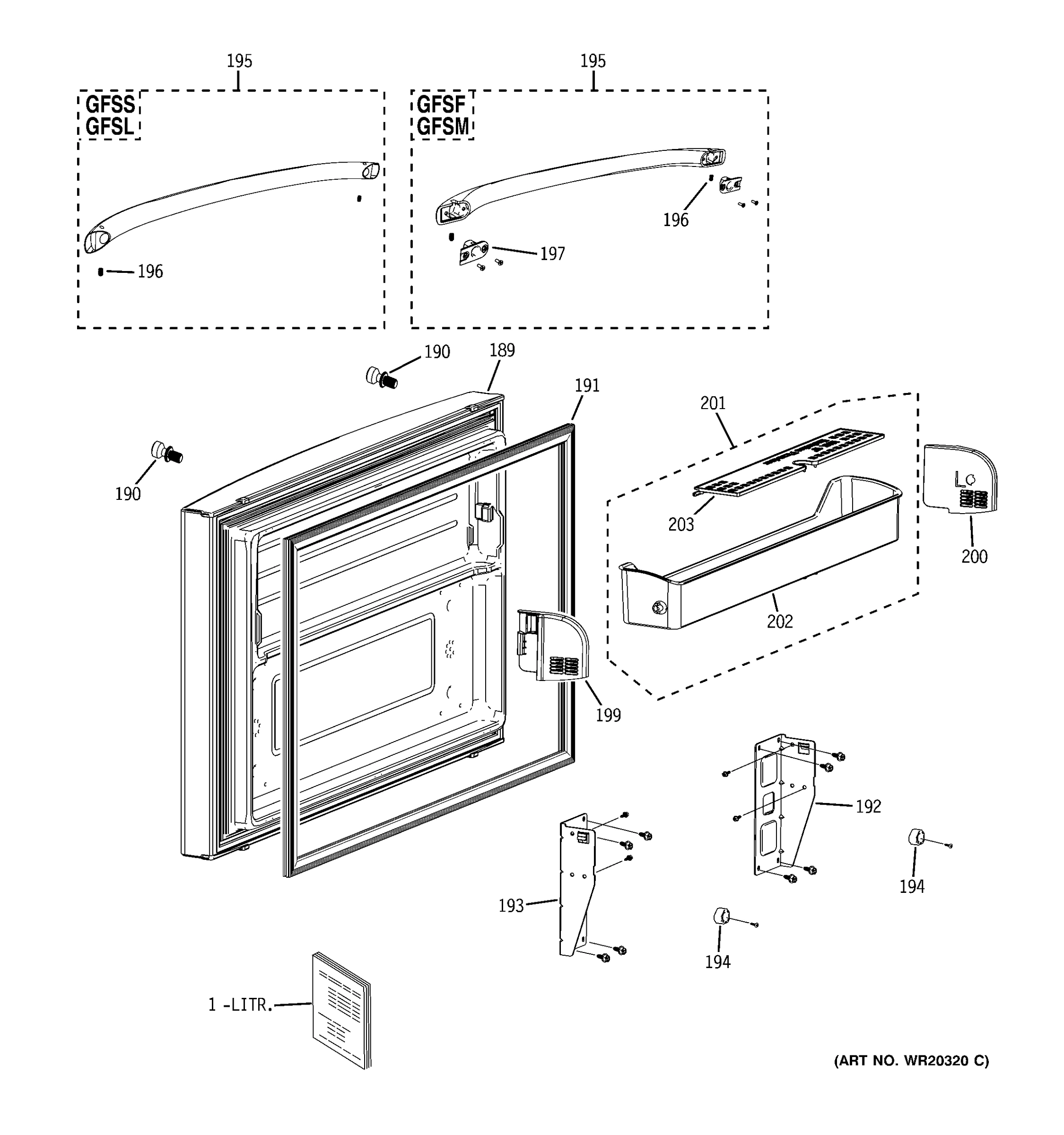

FREEZER DOOR

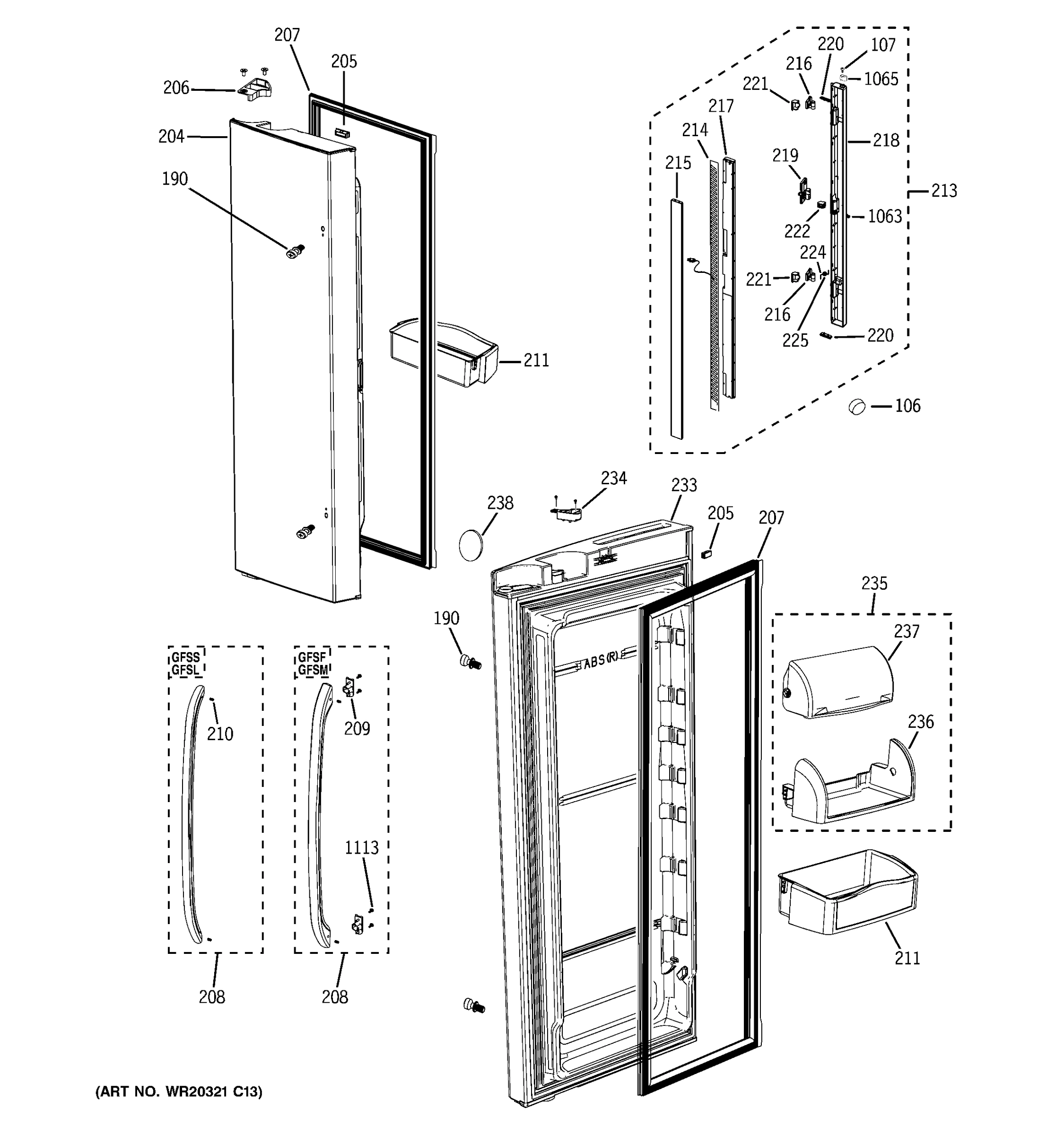

FRESH FOOD DOORS

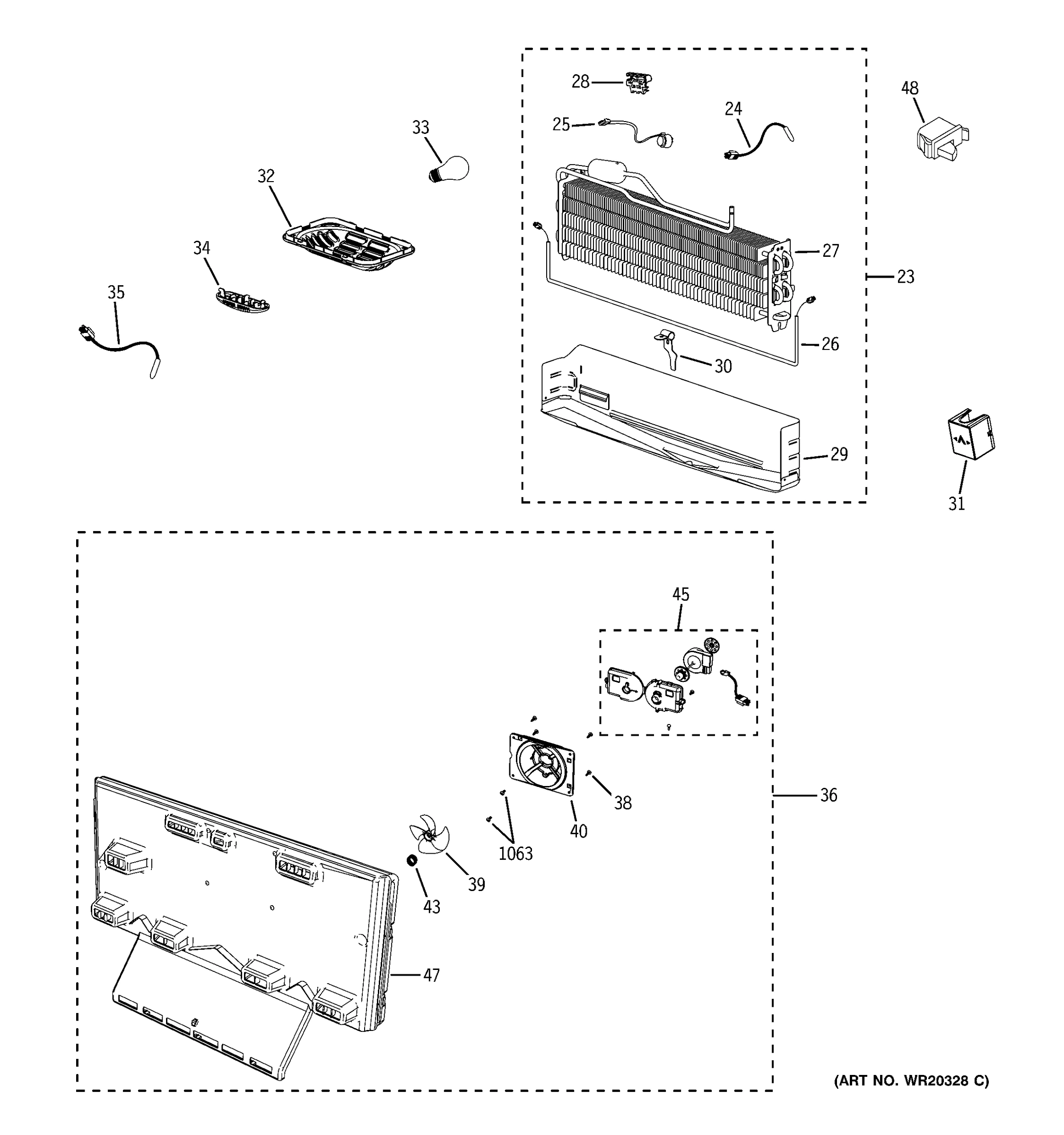

FREEZER SECTION

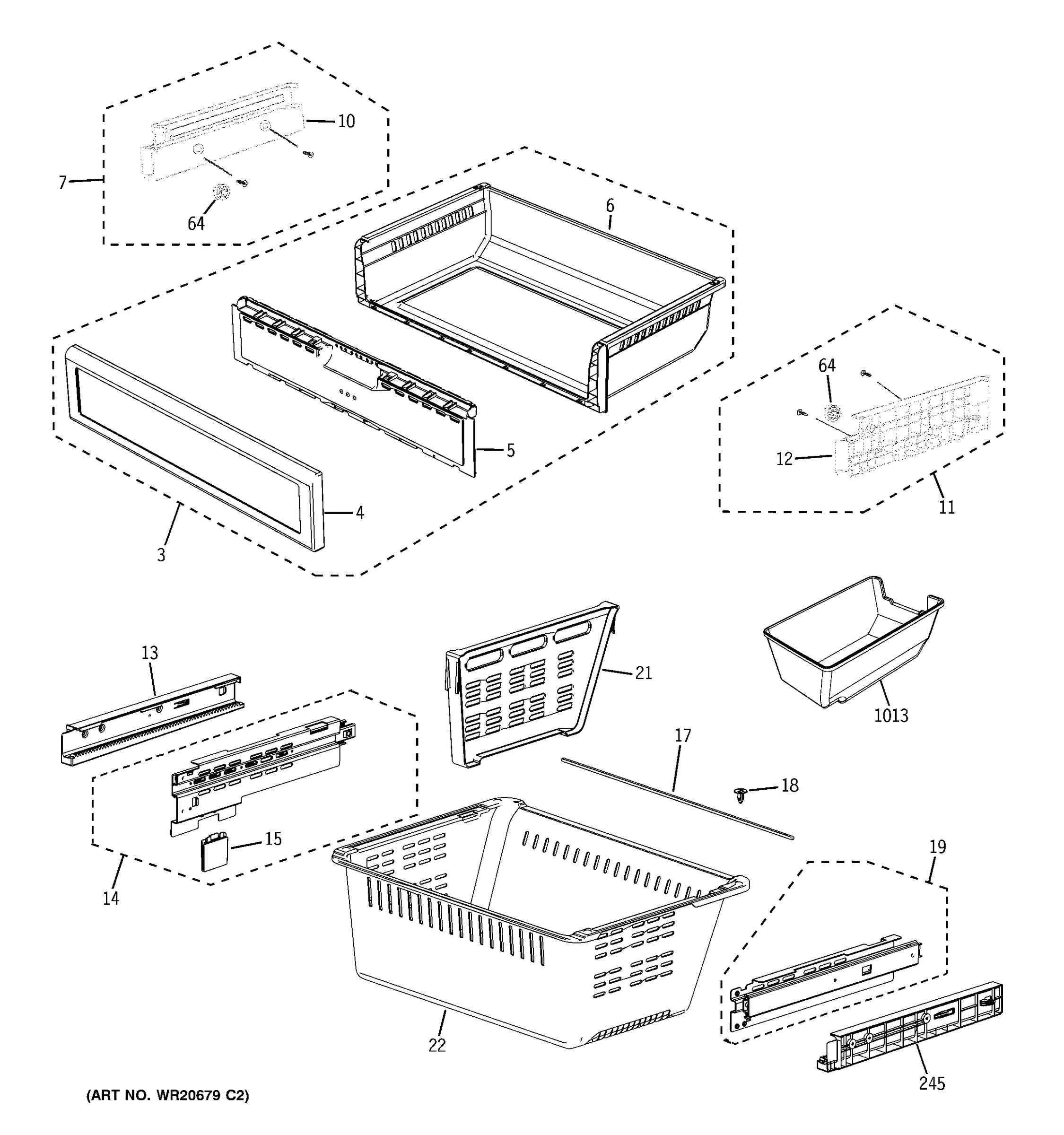

FREEZER SHELVES

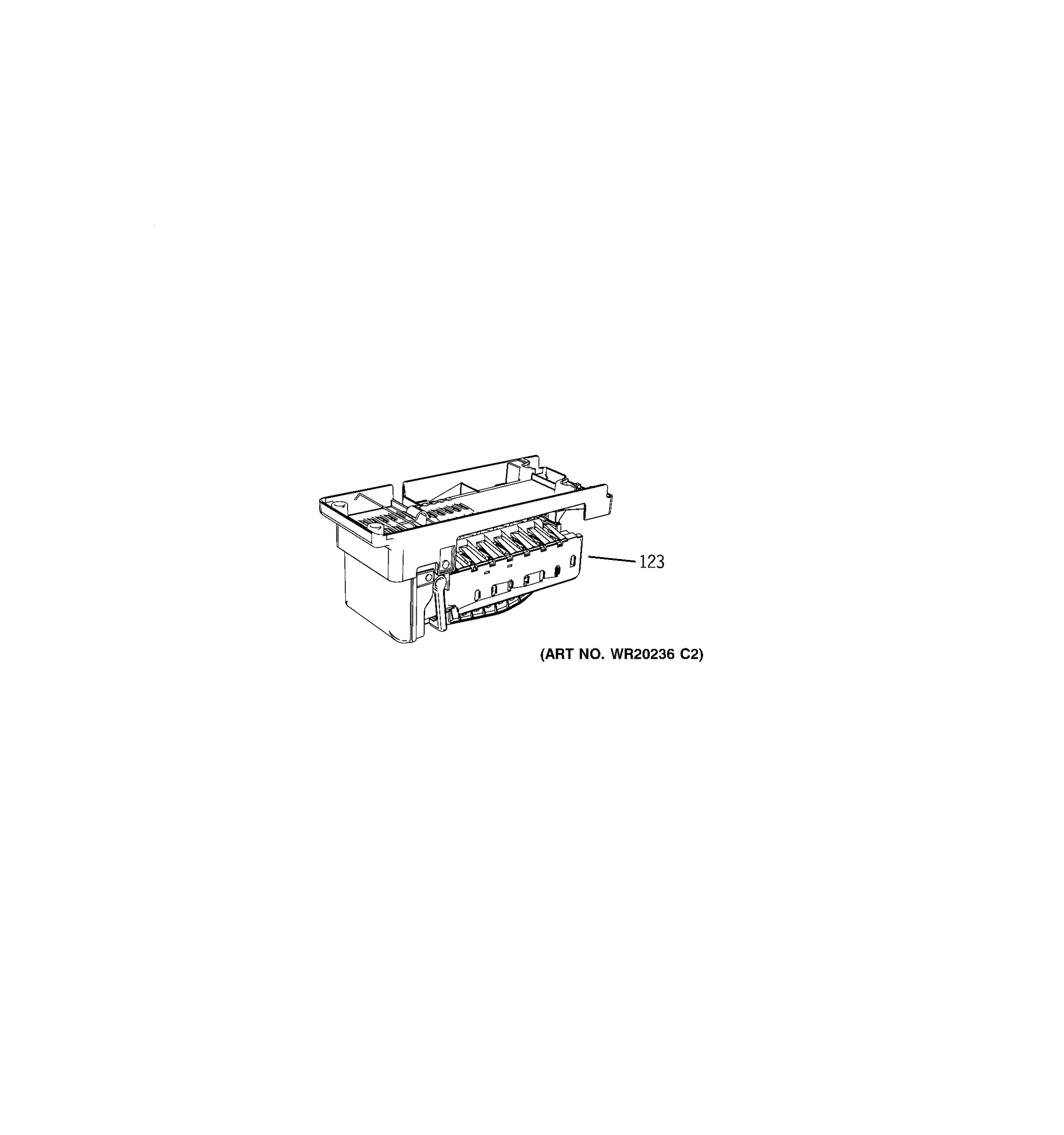

ICE MAKER & DISPENSER

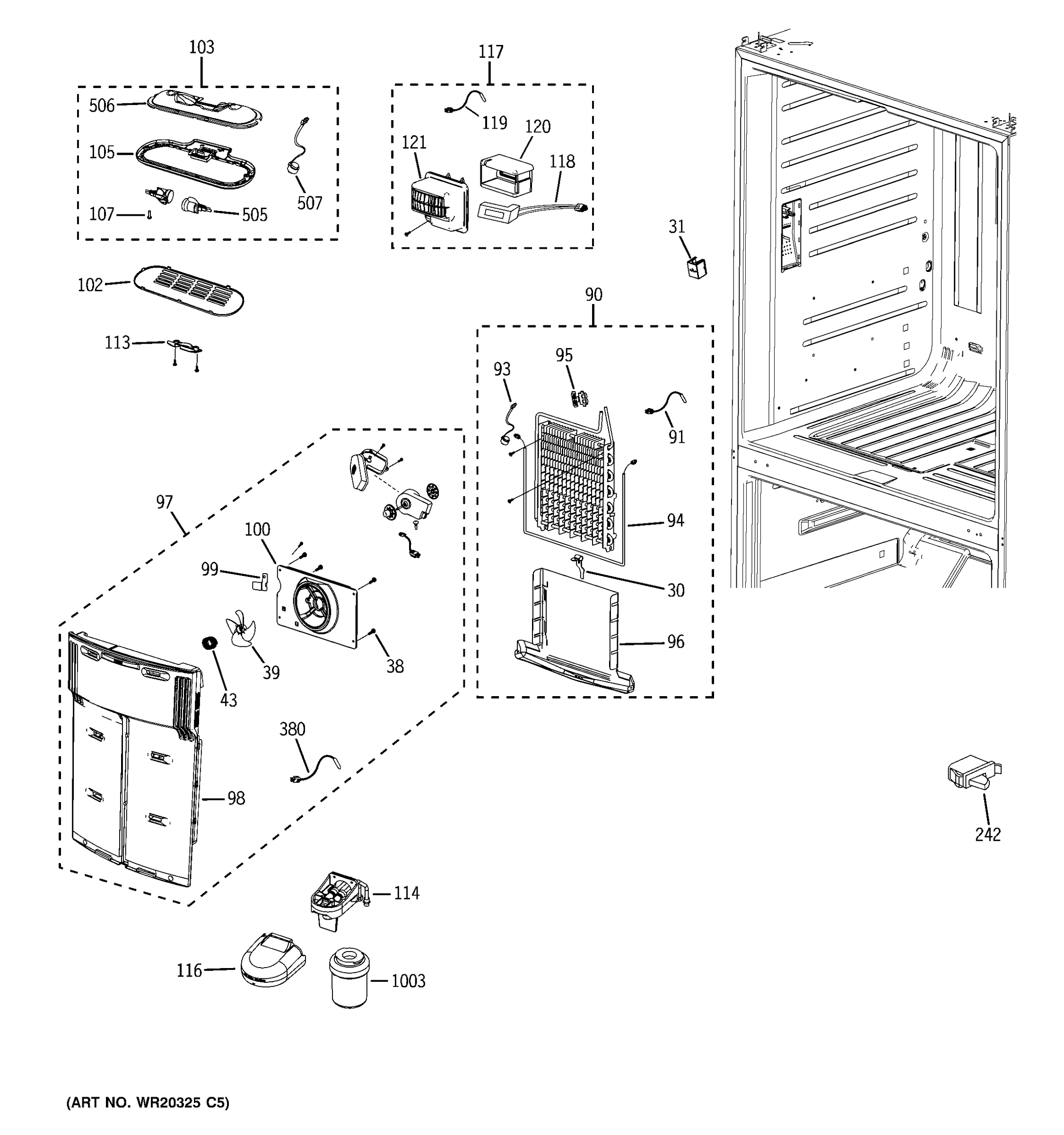

FRESH FOOD SECTION

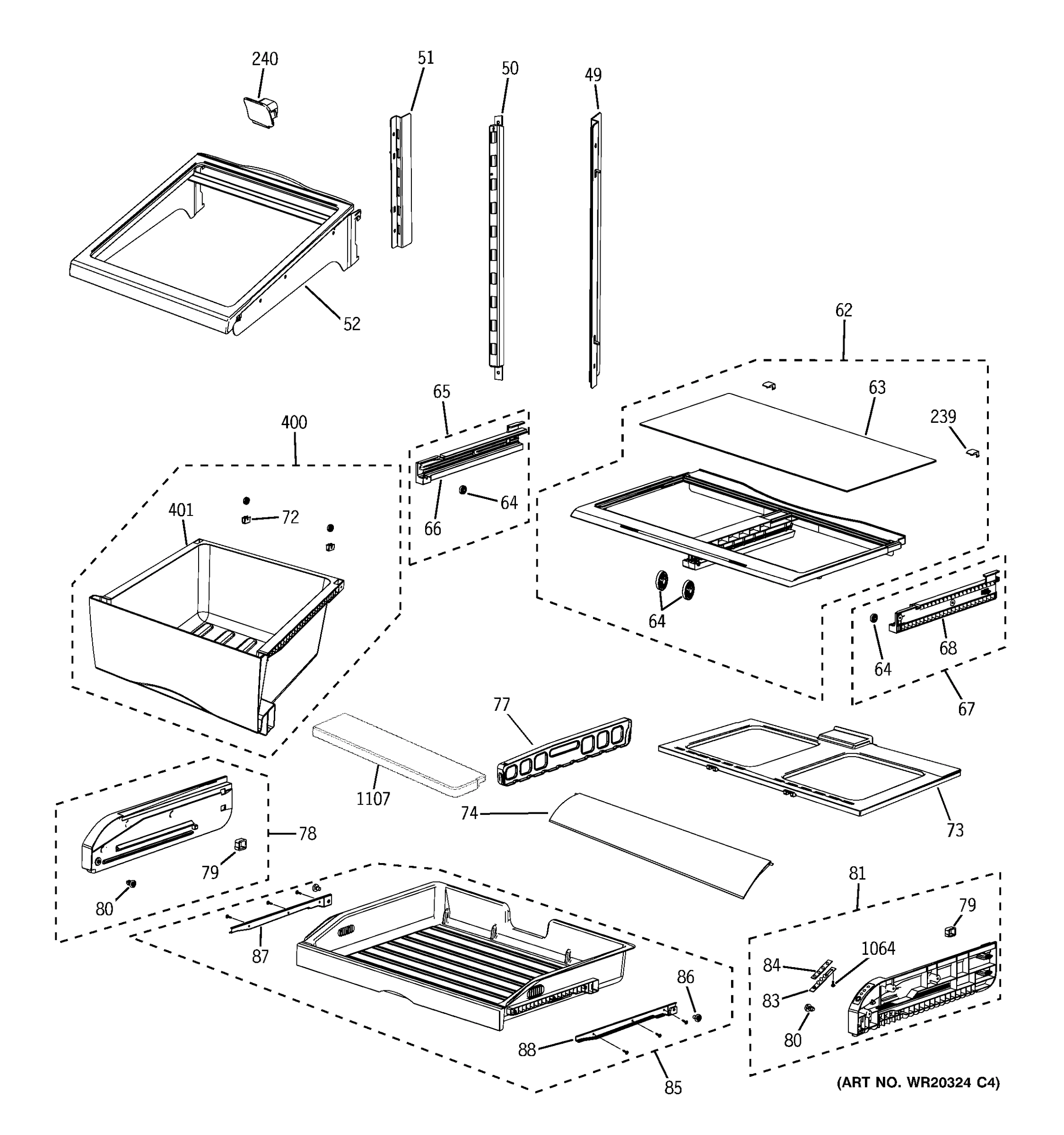

FRESH FOOD SHELVES

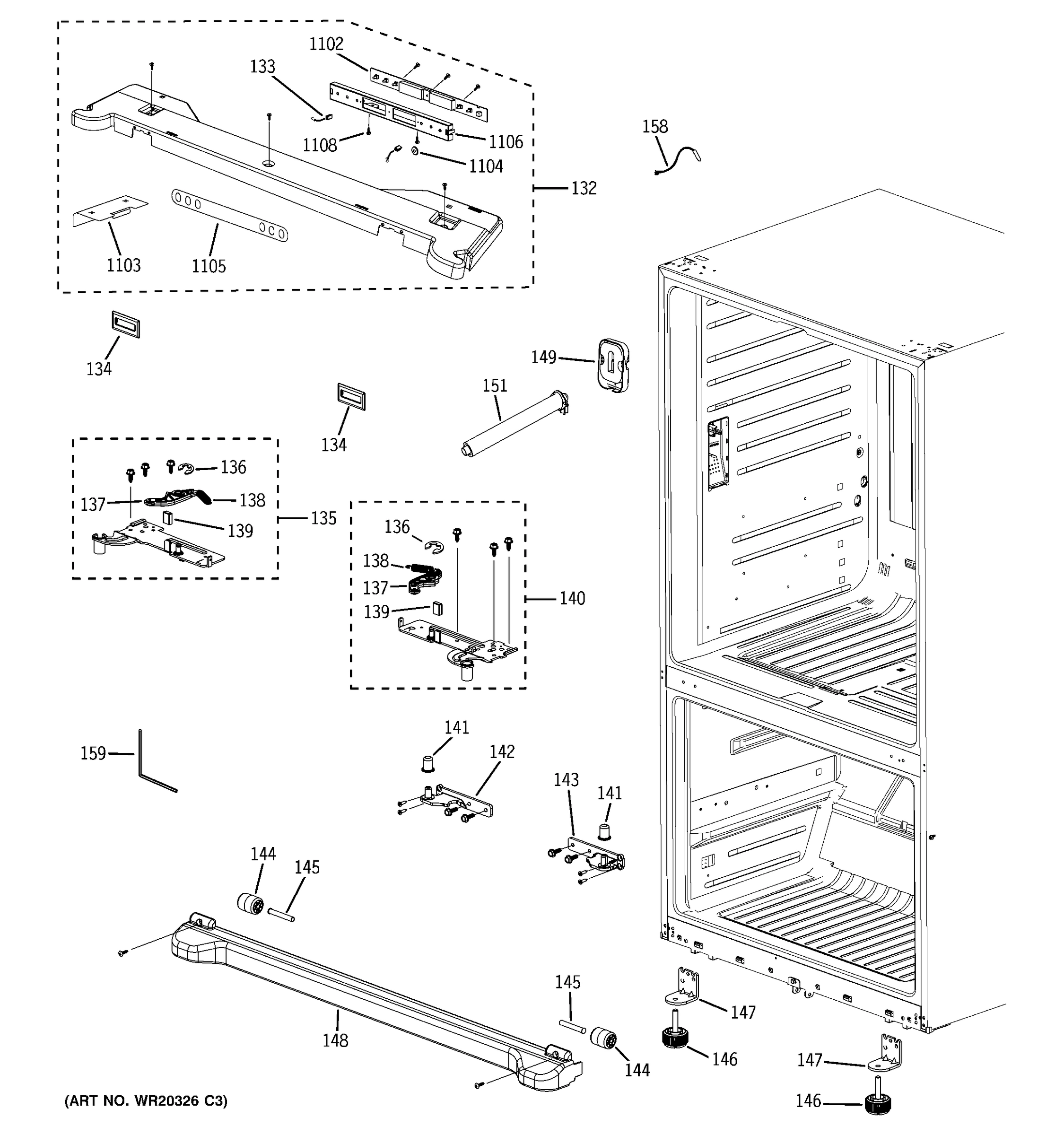

CASE PARTS

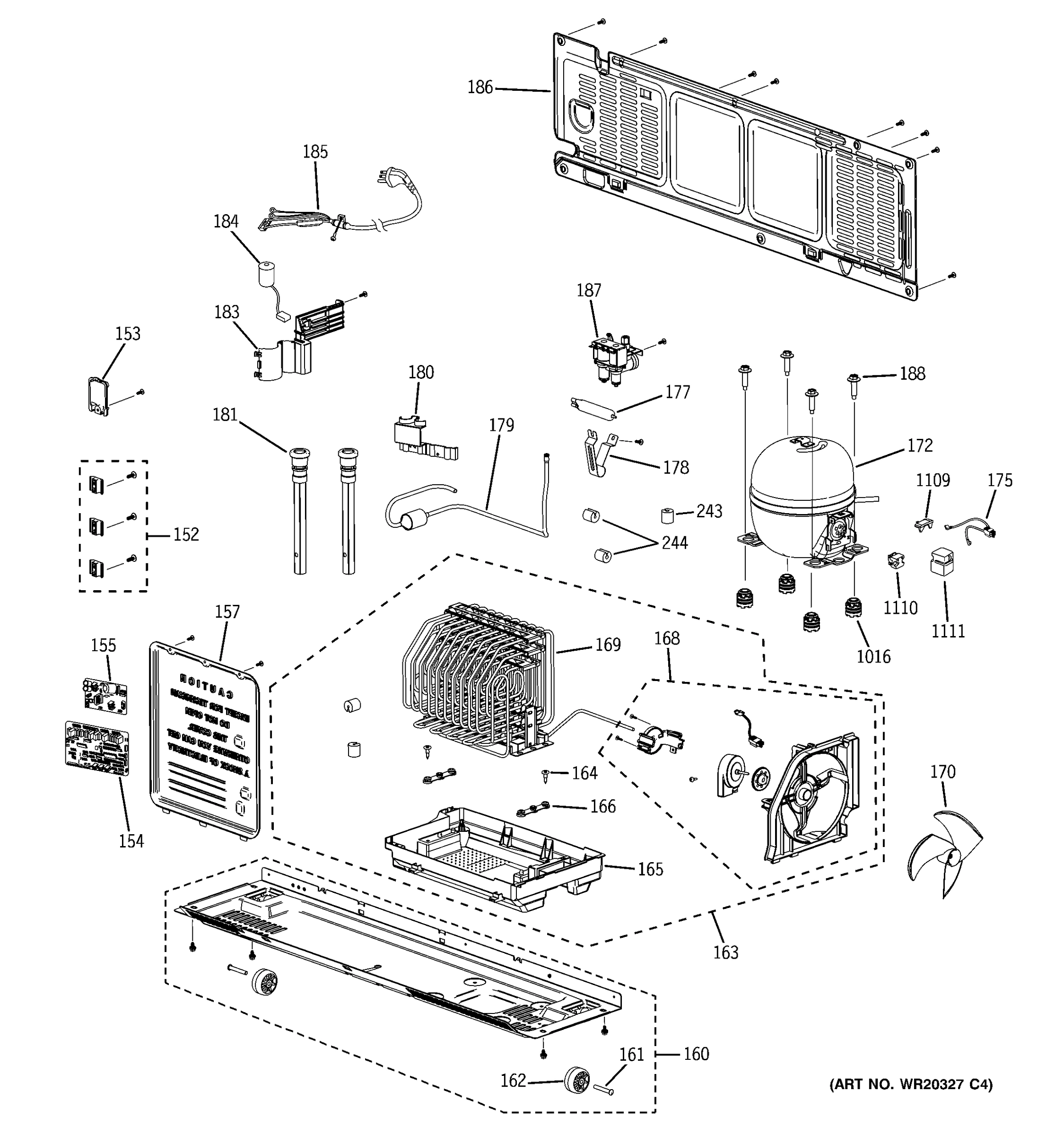

MACHINE COMPARTMENT
Common parts from model GE GFSF6KEXCWW Refrigerator
14
ASM RAIL-SLIDE LOW L GEN WR72X10355 Contact Us For Availability
15
SWITCH PRESSURE GEN WR23X10677 Contact Us For Availability
17
SHAFT GEAR GEN WR02X12637 Contact Us For Availability
18
CAP-HINGE HOLE GEN WR02X13274 Contact Us For Availability
19
ASM RAIL-SLIDE LOW R GEN WR72X10354 Contact Us For Availability
21
GUIDE-DRAWER BOX GEN WR21X10213 Contact Us For Availability
22
ASM TRAY-DRAWER BOX GEN WR14X10318 Contact Us For Availability
24
SENSOR ASSY GEN WR23X10621 Contact Us For Availability
25
BIMETAL GEN WR02X12591 Contact Us For Availability
26
DEFROST HEATER FZ GEN WR51X10104 Contact Us For Availability
30
HEATER METAL SHEATH GEN WR51X10105 Contact Us For Availability
31
COVER-FIXER HOUSING,V GEN WR02X13268 Contact Us For Availability
35
SENSOR TEMP GEN WR23X10580 Contact Us For Availability
38
SCREW TAPPING GEN WR01X10769 Contact Us For Availability
39
FAN AX100W4CC T1 GEN WR60X10309 Contact Us For Availability
43
RETAINING SPRING FAN GEN WR01X10436 Contact Us For Availability
48
SWITCH DOOR FZ GEN WR23X10589 Contact Us For Availability
49
ANGLE-SHELF REF SIDE GEN WR72X10348 Contact Us For Availability
50
ANGLE-SHELF REF MID GEN WR72X10364 Contact Us For Availability
51
ANGLE-SHELF REF SIDE L GEN WR72X10347 Contact Us For Availability
52
ASM SHELF GLASS REF GEN WR71X10900 Contact Us For Availability
64
ROLLER-FRE GEN WR02X13255 Contact Us For Availability
65
ASM RAIL-VEG L GEN WR72X10356 Contact Us For Availability
66
RAIL-VEG L GEN WR72X10349 Contact Us For Availability
67
ASM RAIL-VEG R GEN WR72X10357 Contact Us For Availability
68
RAIL-VEG R GEN WR72X10350 Contact Us For Availability
72
FIXER-ROLLER GEN WR02X13256 Contact Us For Availability
73
ASM SHELF-PANTRY GEN WR71X10899 Contact Us For Availability
74
ASM COVER-SLIDE PANTRY GEN WR32X10784 Contact Us For Availability
77
GUIDE-PANTRY GEN WR32X10774 Contact Us For Availability
78
ASM COVER-RAIL PANTRY L GEN WR72X10360 Contact Us For Availability
79
SUPPORT ROLLER PANTRY GEN WR02X12614 Contact Us For Availability
80
ASM-ROLLER A GEN WR02X13281 Contact Us For Availability
81
ASM COVER-RAIL PANTRY R GEN WR72X10361 Contact Us For Availability
83
PRINTED BOARD PANTRY GEN WR55X10761 Contact Us For Availability
84
CONTROL PANEL INLAY GEN WR55X10807 Contact Us For Availability
85
ASM CASE-PANTRY GEN WR32X10781 Contact Us For Availability
86
ASM-ROLLER B GEN WR02X13280 Contact Us For Availability
87
ASM RAIL-PANTRY L GEN WR72X10358 Contact Us For Availability
88
ASM RAIL-PANTRY R GEN WR72X10353 Contact Us For Availability
90
ASM EVAP-REF GEN WR85X10125 Contact Us For Availability
93
BIMETAL GEN WR02X12592 Contact Us For Availability
94
DEFROST HEATER GEN WR02X12603 Contact Us For Availability
95
FIXER-SENSOR GEN WR02X13254 Contact Us For Availability
96
PLATE-DRAIN REF GEN WR13X10780 Contact Us For Availability
97
ASM COVER-EVAP REF GEN WR13X10808 Contact Us For Availability
98
ASM COVER-EAVP REF SUB GEN WR17X12801 Contact Us For Availability
99
PLATE-HOUSING REF GEN WR02X13259 Contact Us For Availability
100
CASE-MOTOR REF GEN WR13X10784 Contact Us For Availability
102
COVER-LAMP REF GEN WR13X10794 Contact Us For Availability
103
ASM CASE LAMP-REF GEN WR13X10805 Contact Us For Availability
105
CASE-LAMP REF GEN WR13X10778 Contact Us For Availability
107
SCREW TAPPING GEN WR01X10772 Contact Us For Availability
113
GUIDE-FRENCH GEN WR02X13253 Contact Us For Availability
116
COVER-WATER FILTER GEN WR13X10797 Contact Us For Availability
119
SENSOR TEMP PANTRY GEN WR23X10612 Contact Us For Availability
120
INSULATION-MOTOR DC DAMP GEN WR02X13263 Contact Us For Availability
121
COVER-MOTOR DC DAMPER GEN WR13X10796 Contact Us For Availability
132
ASM-TOP TABLE GEN WR13X10819 Contact Us For Availability
133
SWITCH REED ASM GEN WR23X10587 Contact Us For Availability
134
CAP-TOP TABLE GEN WR13X10816 Contact Us For Availability
135
ASM HINGE UPP-L GEN WR13X10817 Contact Us For Availability
136
C - CLIP GEN WR02X12604 Contact Us For Availability
137
ASM LEVER-AUTO CLOSE GEN WR02X13301 Contact Us For Availability
138
SPRING AUTO CLOASE GEN WR02X12619 Contact Us For Availability
139
GROMMET LEVER GEN WR02X12632 Contact Us For Availability
140
ASM HINGE UPP-R GEN WR13X10818 Contact Us For Availability
141
GROMMET HINGE-MID,R GEN WR02X13265 Contact Us For Availability
142
ASM HINGE MID-L GEN WR13X10764 Contact Us For Availability
143
ASM HINGE MID-R GEN WR13X10765 Contact Us For Availability
144
FRONT WHEEL GEN WR02X13136 Contact Us For Availability
145
WHEEL AXLE GEN WR02X12608 Contact Us For Availability
146
FOOT-FRONT GEN WR02X13252 Contact Us For Availability
147
SUPPORT FOOT FRONT GEN WR02X12748 Contact Us For Availability
148
COVER-LEG FRONT GEN WR79X10056 Contact Us For Availability
149
ASM-COVER PIPE WATER GEN WR02X13296 Contact Us For Availability
151
ASM WATER LINE GEN WR02X12862 Contact Us For Availability
152
FIXER-HOSE GEN WR02X13250 Contact Us For Availability
153
COVER-TUBE FILTER GEN WR13X10790 Contact Us For Availability
154
PBA MAIN GEN WR55X10989 Contact Us For Availability
155
POWER SUPPLY BOARD GEN WR55X10764 Contact Us For Availability
157
ASM-COVER PCB PANEL GEN WR13X10801 Contact Us For Availability
158
SENSOR TEMP GEN WR23X10579 Contact Us For Availability
159
WRENCH GEN WR02X12649 Contact Us For Availability
160
ASM CHASSIS-COMP GEN WR17X12802 Contact Us For Availability
161
WHEEL AXLE GEN WR02X13154 Contact Us For Availability
162
REAR WHEEL GEN WR02X13137 Contact Us For Availability
163
ASM TRAY-DRAIN WATER GEN WR87X10214 Contact Us For Availability
164
SCREW SPECIAL GEN WR01X10773 Contact Us For Availability
165
TRAY-DRAIN WATER GEN WR30X10133 Contact Us For Availability
166
GROMMET CONDENSER GEN WR02X12635 Contact Us For Availability
168
ASM SUPPORT-CIRCUIT MOTO GEN WR60X10314 Contact Us For Availability
169
ASM PIPE-SPIRAL COND GEN WR84X10097 Contact Us For Availability
170
FAN-ASM GEN WR60X10312 Contact Us For Availability
175
ASSY-HARNESS COMP GEN WR23X10620 Contact Us For Availability
177
DRYER GEN WR86X10045 Contact Us For Availability
178
CLIP-DRYER GEN WR02X13260 Contact Us For Availability
179
ASM PIPE CONNECT-SUCTION GEN WR02X13285 Contact Us For Availability
180
FIXER-HOSE(VALVE) GEN WR02X13251 Contact Us For Availability
183
COVER-NOISE FILTER GEN WR13X10789 Contact Us For Availability
184
EMI NOISE FILTER GEN WR62X10067 Contact Us For Availability
185
POWER CORD GEN WR23X10613 Contact Us For Availability
186
ASM COVER-COMP GEN WR17X12803 Contact Us For Availability
187
VALVE WATER-ONE WAY FITT GEN WR57X10094 Contact Us For Availability
188
BOLT COMPRESSOR GEN WR01X10437 Contact Us For Availability
190
FIXER HANDLE GEN WR02X12621 Contact Us For Availability
196
SCREW SET GEN WR01X10775 Contact Us For Availability
209
BRACKET HANDLE REF(BMC) GEN WR02X12813 Contact Us For Availability
210
SCREW SET GEN WR01X10774 Contact Us For Availability
213
ASM-FRENCH GEN WR02X13302 Contact Us For Availability
214
HEATER CORD-FRENCH GEN WR55X10986 Contact Us For Availability
224
PIN FRENCH SPRING GEN WR02X12651 Contact Us For Availability
225
SPRING ETC FRENCH GEN WR02X12650 Contact Us For Availability
239
FIXER-COVER VEG GEN WR02X13257 Contact Us For Availability
240
CAP-ANGLE GEN WR02X13273 Contact Us For Availability
242
SWITCH DOOR GEN WR23X10593 Contact Us For Availability
243
GROMMET-SUCT PIPE A GEN WR02X12675 Contact Us For Availability
244
GROMMET-SUCT PIPE B GEN WR02X12676 Contact Us For Availability
245
COVER-RAIL LOW R GEN WR21X10214 Contact Us For Availability
400
ASM CASE-VEG REF GEN WR32X10783 Contact Us For Availability
401
CASE-VEG REF GEN WR32X10776 Contact Us For Availability
505
LAMP HOLER-ASSY GEN WR02X12809 Contact Us For Availability
506
PLATE-LAMP REF GEN WR13X10781 Contact Us For Availability
507
BIMETAL GEN WR02X12808 Contact Us For Availability
1003
WATER FILTER REF CYST GEN GWF Contact Us For Availability
1013
CASE-ICE CUBE GEN WR17X12807 Contact Us For Availability
1016
GROMMET-COMP GEN WR02X11915 Contact Us For Availability
1064
SCREW-TAPPING GEN WR01X10520 Contact Us For Availability
1065
CAP-GUIDE FRENCH UPP GEN WR02X13279 Contact Us For Availability
1102
PBA PANEL-LED GEN WR55X10988 Contact Us For Availability
1103
PLATE-TOP TABLE GEN WR13X10809 Contact Us For Availability
1104
BUTTON-CONTROL GEN WR02X13293 Contact Us For Availability
1105
INLAY-DISPLAY GEN WR55X10813 Contact Us For Availability
1106
CASE-PBA DISPLAY GEN WR55X10990 Contact Us For Availability
1107
SHELF-PANTRY SUB GEN WR71X10901 Contact Us For Availability
1108
SCREW,TAPPING GEN WR01X10598 Contact Us For Availability
1110
OLP GEN WR07X10111 Contact Us For Availability
1113
SCREW TAPPING GEN WR01X10839 Contact Us For Availability
× ![]()
