Model GE GFSF6KEXABB – Common Parts & Diagrams

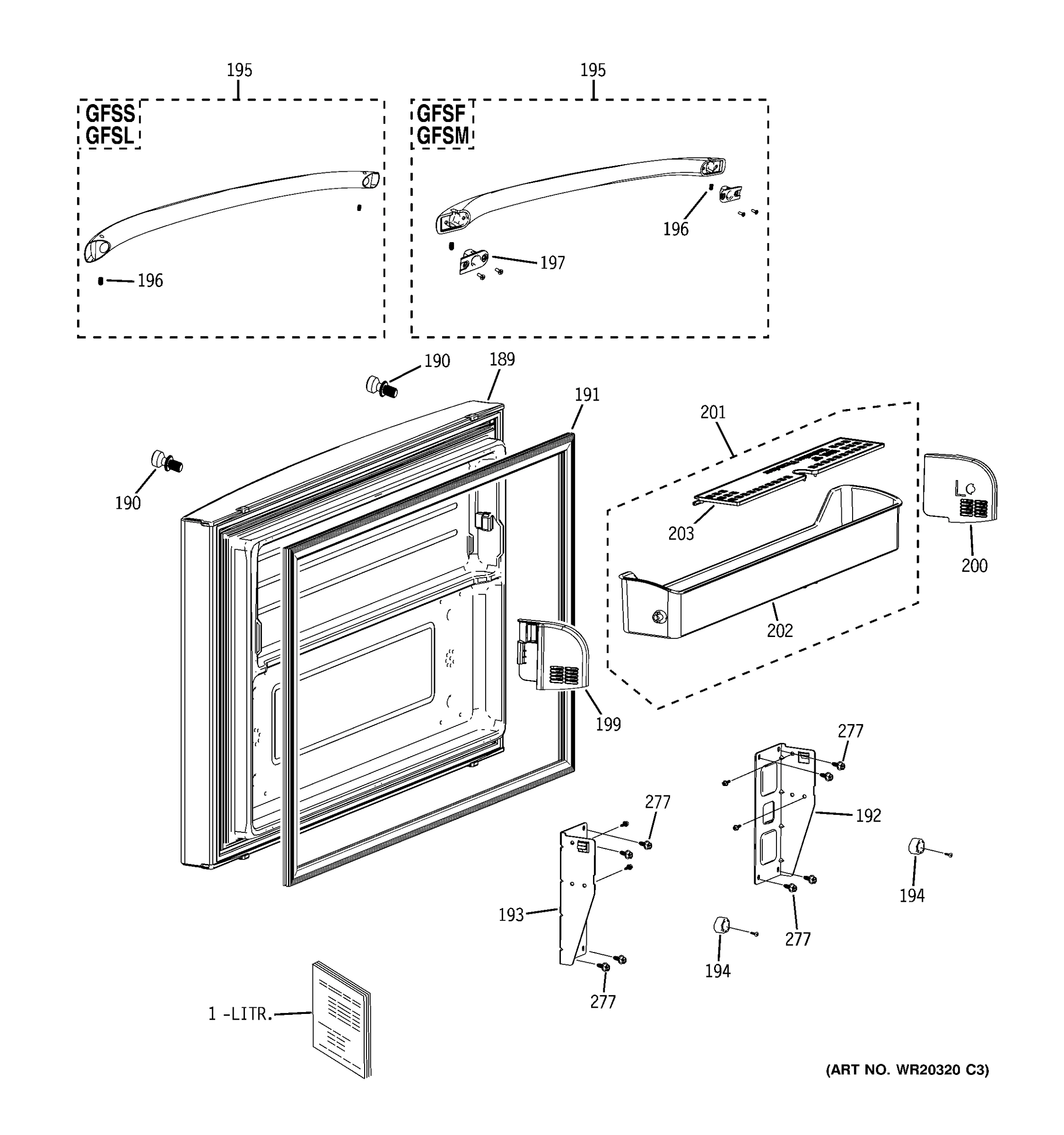

FREEZER DOOR

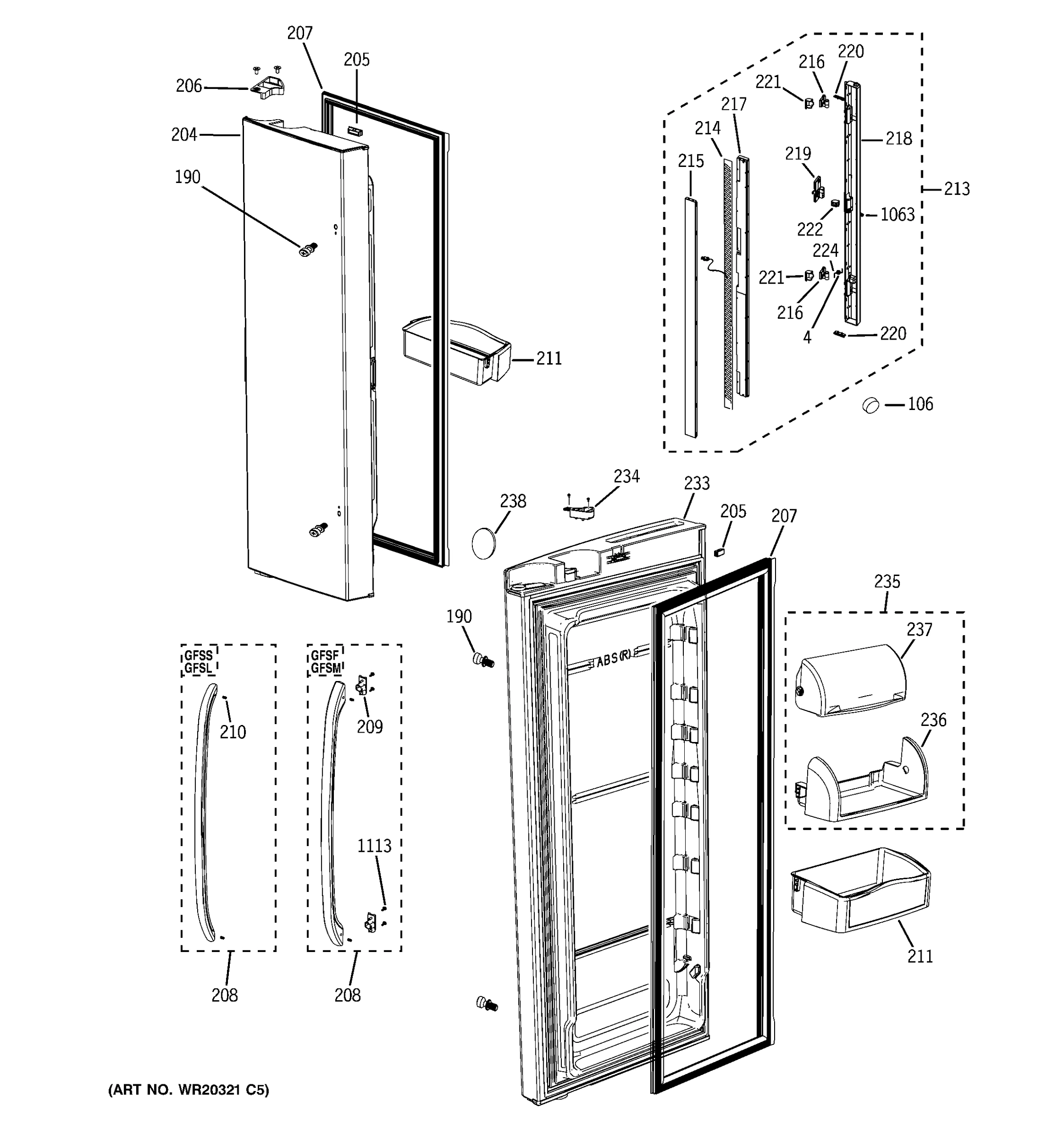

FRESH FOOD DOORS
FREEZER SECTION
FREEZER SHELVES
ICE MAKER & DISPENSER
FRESH FOOD SECTION
FRESH FOOD SHELVES
CASE PARTS
MACHINE COMPARTMENT
Common parts from model GE GFSF6KEXABB
2
HOLDER TRAY UPP FZ GEN WR02X12615 Contact Us For Availability
4
SPRING ETC FRENCH GEN WR02X12650 Contact Us For Availability
5
INNER COVER TRAY UPP GEN WR32X10675 Contact Us For Availability
11
ASM RAIL SLIDE UPP R GEN WR72X10263 Contact Us For Availability
12
HOLDER RAIL UPP RIGHT GEN WR72X10264 Contact Us For Availability
14
ASM RAIL SLIDE LOW L GEN WR72X10265 Contact Us For Availability
16
ASM GEAR L GEN WR02X12742 Contact Us For Availability
19
ASM RAIL SLIDE LOW R GEN WR72X10266 Contact Us For Availability
20
ASM GEAR R GEN WR02X12743 Contact Us For Availability
22
ASM TRAY DRAWER BOX GEN WR14X10245 Contact Us For Availability
23
ASM EVAP-FRE GEN WR85X10111 Contact Us For Availability
24
SENSOR ASSY GEN WR23X10621 Contact Us For Availability
25
BIMETAL GEN WR02X12591 Contact Us For Availability
26
DEFROST HEATER FZ GEN WR51X10104 Contact Us For Availability
30
HEATER METAL SHEATH GEN WR51X10105 Contact Us For Availability
35
SENSOR TEMP GEN WR23X10580 Contact Us For Availability
36
ASM EVAP FAN FZ GEN WR17X12518 Contact Us For Availability
39
EVAP FAN BLADE GEN WR60X10249 Contact Us For Availability
43
RETAINING SPRING FAN GEN WR01X10436 Contact Us For Availability
48
SWITCH DOOR FZ GEN WR23X10589 Contact Us For Availability
52
UPPER SELF GLASS GEN WR71X10808 Contact Us For Availability
64
VEG PAN ROLLER GEN WR02X12640 Contact Us For Availability
65
ASM RAIL VEG LEFT GEN WR72X10267 Contact Us For Availability
66
RAIL VEG LEFT GEN WR72X10268 Contact Us For Availability
67
ASM RAIL VEG RIGHT GEN WR72X10269 Contact Us For Availability
68
RAIL VEG RIGHT GEN WR72X10270 Contact Us For Availability
73
ASM SHELF PANTRY GEN WR71X10786 Contact Us For Availability
74
COVER-SLIDE PANTRY A GEN WR32X10684 Contact Us For Availability
78
ASM COVER PANTRY LEFT GEN WR72X10271 Contact Us For Availability
80
ASM ROLLER PANTRY GEN WR02X12660 Contact Us For Availability
81
ASM COVER-RAIL PANTRY R GEN WR72X10295 Contact Us For Availability
83
PRINTED BOARD PANTRY GEN WR55X10761 Contact Us For Availability
85
ASM CASE-PANTRY GEN WR32X10686 Contact Us For Availability
86
PANTRY PAN ROLLER GEN WR02X12659 Contact Us For Availability
93
BIMETAL GEN WR02X12592 Contact Us For Availability
94
DEFROST HEATER GEN WR02X12603 Contact Us For Availability
95
SENSOR CLAMP GEN WR02X12620 Contact Us For Availability
96
DRAIN TRAY EVAP GEN WR13X10601 Contact Us For Availability
110
ASM TANK WATER GEN WR17X12517 Contact Us For Availability
112
COVER TANK HEATER GEN WR51X10107 Contact Us For Availability
113
DOOR GUIDE GEN WR02X12746 Contact Us For Availability
119
SENSOR TEMP PANTRY GEN WR23X10612 Contact Us For Availability
121
DAMPER COVER FF GEN WR13X10611 Contact Us For Availability
133
SWITCH REED ASM GEN WR23X10587 Contact Us For Availability
136
C - CLIP GEN WR02X12604 Contact Us For Availability
138
SPRING AUTO CLOASE GEN WR02X12619 Contact Us For Availability
141
GROMMET HINGLE MIDDLE GEN WR02X12747 Contact Us For Availability
144
FRONT WHEEL GEN WR02X13136 Contact Us For Availability
145
WHEEL AXLE GEN WR02X12608 Contact Us For Availability
146
FOOT FRONT GEN WR02X12606 Contact Us For Availability
152
WATER LINE HOLDER GEN WR02X12607 Contact Us For Availability
154
MAIN CIRCUIT BOARD GEN WR55X10806 Contact Us For Availability
155
POWER SUPPLY BOARD GEN WR55X10764 Contact Us For Availability
158
SENSOR TEMP GEN WR23X10579 Contact Us For Availability
161
WHEEL AXLE GEN WR02X12605 Contact Us For Availability
162
REAR WHEEL GEN WR02X13137 Contact Us For Availability
165
TRAY DRAIN WATER GEN WR87X10179 Contact Us For Availability
168
ASM CONDENSER FAN GEN WR60X10256 Contact Us For Availability
169
CONDENSER GEN WR84X10085 Contact Us For Availability
170
CONDENSER FAN BLADE GEN WR60X10266 Contact Us For Availability
176
OVERLOAD GEN WR08X10096 Contact Us For Availability
184
EMI NOISE FILTER GEN WR62X10067 Contact Us For Availability
186
MACHINE TOP CPVER GEN WR13X10525 Contact Us For Availability
187
VALVE WATER-ONE WAY FITT GEN WR57X10094 Contact Us For Availability
190
FIXER HANDLE GEN WR02X12621 Contact Us For Availability
191
ASM GASKET DOOR FRE BB GEN WR24X10211 Contact Us For Availability
192
HANGER RAIL FRONT R GEN WR13X10503 Contact Us For Availability
193
HANGER RAIL FRONT L GEN WR13X10502 Contact Us For Availability
195
ASM HANDLE-FZ BB GEN WR12X10913 Contact Us For Availability
196
SCREW SET GEN WR01X10775 Contact Us For Availability
199
SUPPORT-GUARD FRE L GEN WR02X12811 Contact Us For Availability
200
SUPPORT-GUARD FRE R GEN WR02X12812 Contact Us For Availability
202
GUARD FRE GEN WR02X12630 Contact Us For Availability
207
ASM GASKET DOOR REF BK GEN WR24X10200 Contact Us For Availability
209
BRACKET HANDLE REF(BMC) GEN WR02X12813 Contact Us For Availability
210
SCREW SET GEN WR01X10774 Contact Us For Availability
211
DOOR BIN ASM UPPER GEN WR21X10178 Contact Us For Availability
216
HINGE FRENCH GEN WR13X10516 Contact Us For Availability
217
CASE FRENCH GEN WR02X12616 Contact Us For Availability
218
INSULATION FRENCH GEN WR82X10114 Contact Us For Availability
219
COVER HEATER FRENCH GEN WR13X10491 Contact Us For Availability
221
CAP CASE FRENCH GEN WR02X12643 Contact Us For Availability
222
CAP CASE FRENCH MID GEN WR02X12645 Contact Us For Availability
224
PIN FRENCH SPRING GEN WR02X12651 Contact Us For Availability
237
GUARD-DAIRY GEN WR22X10060 Contact Us For Availability
242
SWITCH DOOR GEN WR23X10593 Contact Us For Availability
401
ASM CASE VEG PAN GEN WR32X10682 Contact Us For Availability
505
LAMP HOLER-ASSY GEN WR02X12809 Contact Us For Availability
507
BIMETAL GEN WR02X12808 Contact Us For Availability
1013
ICE BUCKET GEN WR17X12704 Contact Us For Availability
1077
TUBE CONNECTOR GEN WR02X12111 Contact Us For Availability
1102
LED LIGHT MAINBOARD GEN WR55X10809 Contact Us For Availability
1108
SCREW,TAPPING GEN WR01X10598 Contact Us For Availability
1110
OLP GEN WR07X10111 Contact Us For Availability
1111
COVER RELAY GEN WR02X11949 Contact Us For Availability
1113
SCREW TAPPING GEN WR01X10839 Contact Us For Availability
× ![]()
