Model GE GFDS265GF1MC Dryer Gas – Common Parts & Diagrams

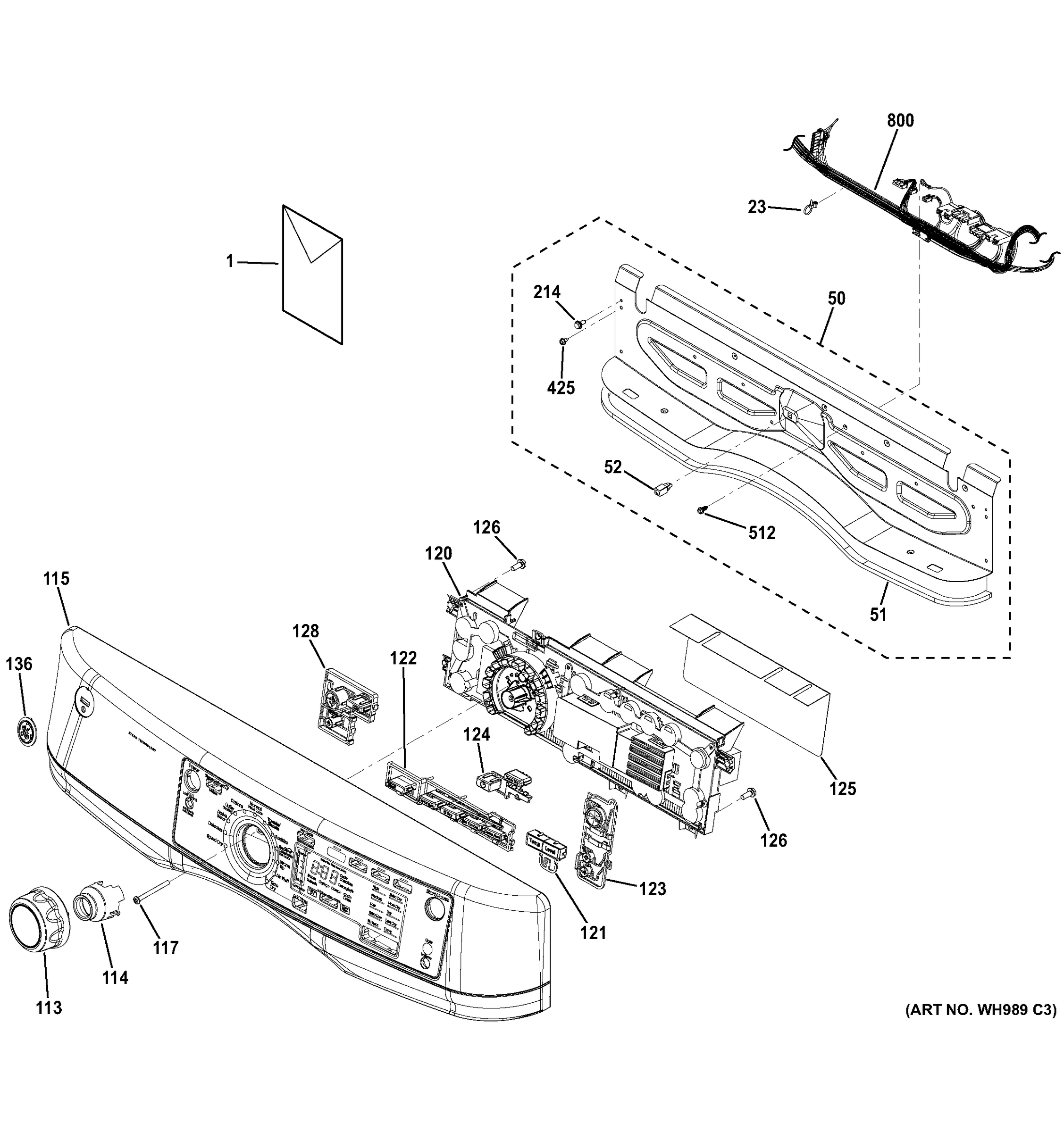

CONTROL PANEL

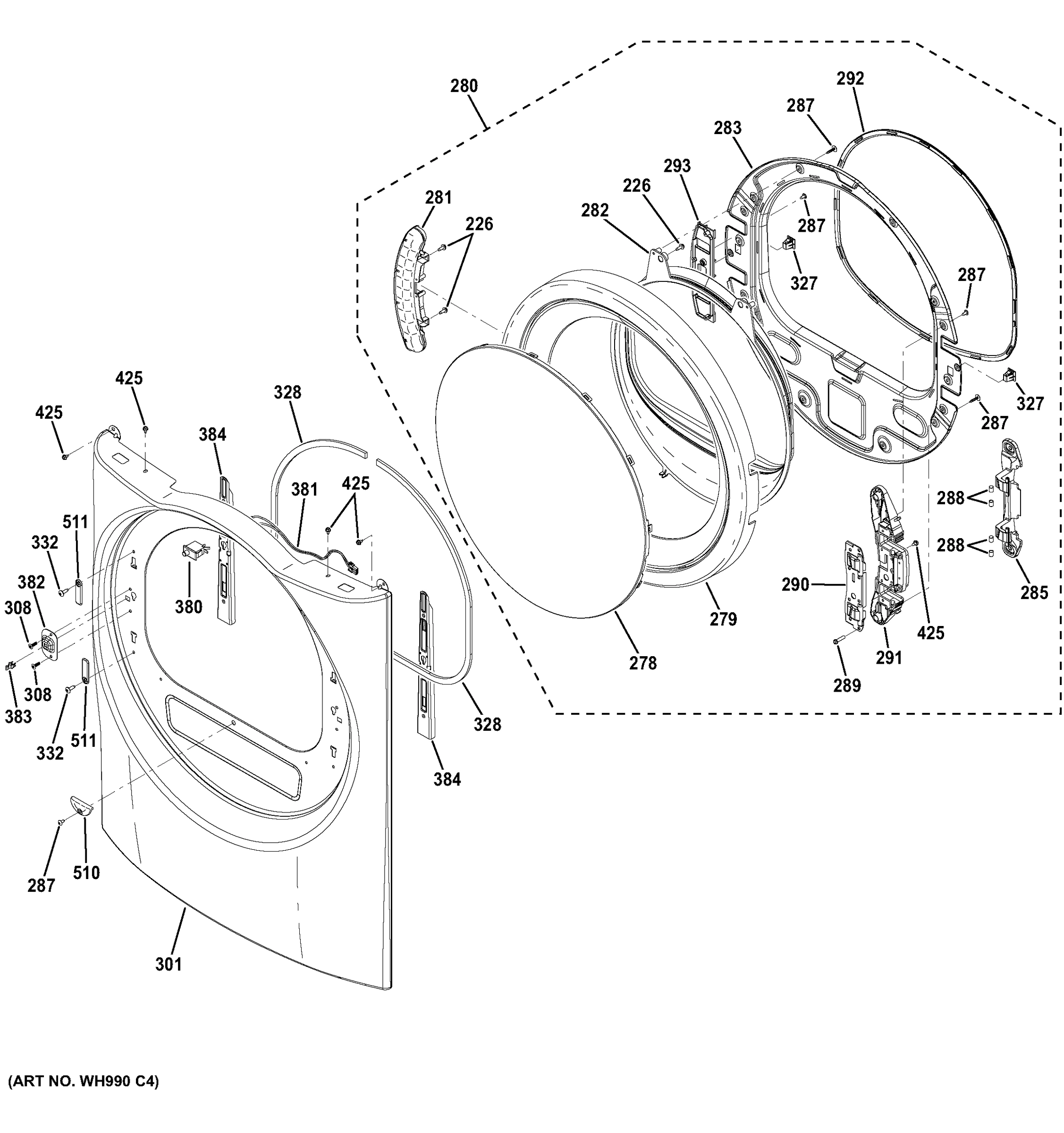

FRONT PANEL & DOOR
CABINET & TOP PANEL
DRUM
BLOWER & MOTOR
GAS VALVE & BURNER ASSEMBLY
Common parts from model GE GFDS265GF1MC Dryer Gas
52
GROMMET GEN WE01X10403 Contact Us For Availability
113
KNOB GEN WE01X10415 Contact Us For Availability
114
RETAINER KNOB GEN WH01X10743 Contact Us For Availability
117
SCR 8-18 AB PNP 2-1/8 S GEN WH02X10408 Contact Us For Availability
126
SCR 10-18 HI/LO HXW 1/2 GEN WR01X10619 Contact Us For Availability
136
BADGE GE GEN WE19M10949 Contact Us For Availability
190
STRAP MOTOR BRACKET GEN WE13X20689 Contact Us For Availability
191
SHIELD THERMOSTAT GEN WE02X20690 Contact Us For Availability
202
BRACKET DRIVE MOTOR GEN WE13X10051 Contact Us For Availability
204
STEEL HEX NUT GEN WE01X10372 Contact Us For Availability
206
SWITCH IDLER GEN WE04X10184 Contact Us For Availability
207
INLET RING ASM GEN WE14X10107 Contact Us For Availability
208
CLIP RESILIENT MOUNT GEN WE01X10376 Contact Us For Availability
210
SPRING IDLER GEN WE01X10374 Contact Us For Availability
212
SCR 4-24 AB PNP .682 SS GEN WE02X10105 Contact Us For Availability
213
PIVOT SHOULDER BOLT GEN WE01X10375 Contact Us For Availability
215
BELT DRIVE GEN WE12X10020 Contact Us For Availability
216
IDLER ASM (LH) GEN WE12X10018 Contact Us For Availability
217
IDLER ASM (RH) GEN WE12X10019 Contact Us For Availability
218
FAN SCROLL SUB ASM GEN WE14X20691 Contact Us For Availability
220
LEG LEVELING GEN WE02X20399 Contact Us For Availability
223
SEAL BLOWER GEN WE09X10026 Contact Us For Availability
225
FAN SEAL GEN WE09X10025 Contact Us For Availability
228
DUCT EXHAUST GEN WE14X10111 Contact Us For Availability
230
THERMOSTAT 2 GEN WE04X10190 Contact Us For Availability
238
SCR 10-16 AB 43WHEX 5/8 GEN WD02X10151 Contact Us For Availability
260
NOZZLE MIST GEN WE01X10394 Contact Us For Availability
261
COVER NOZZLE GEN WE01X10396 Contact Us For Availability
262
RETAINER COVER NOZZLE GEN WE01X10398 Contact Us For Availability
263
TUBE STEAM GEN WE01X10420 Contact Us For Availability
264
ELBOW STEAM GEN WE01X10395 Contact Us For Availability
265
VALVE STEAM GEN WE04X10186 Contact Us For Availability
277
STEEL HEX NUT GEN WE01X10393 Contact Us For Availability
278
PROTECT COVER DOOR GEN WH44X21159 Contact Us For Availability
280
DOOR ASM GEN WE10X10030 Contact Us For Availability
285
HINGE GEN WH01X10723 Contact Us For Availability
290
HINGE PLATE GEN WH01X10724 Contact Us For Availability
300
LINT SCREEN ASM GEN WE18X20428 Contact Us For Availability
308
SCREW HINGE COVER GEN WR01X10379 Contact Us For Availability
311
GRILL ASSEMBLY GEN WE18X10021 Contact Us For Availability
315
HARNESS ROD SENSOR GEN WE08X10087 Contact Us For Availability
318
FAN SEAL GEN WE09X10032 Contact Us For Availability
327
LATCH DOOR GEN WE01X10409 Contact Us For Availability
330
TRAP DUCT ASM GEN WE18X10022 Contact Us For Availability
332
SCR 10-32 B TRT-25 5/8 GEN WH02X10139 Contact Us For Availability
375
LAMP GEN WE04X10195 Contact Us For Availability
380
SWITCH DOOR GEN WE04X10180 Contact Us For Availability
382
BRACKET STRIKER GEN WE13X10053 Contact Us For Availability
383
STRIKER DOOR GEN WE01X10377 Contact Us For Availability
425
SCR 8-18 AB HXW 3/8 S GEN WE02X10106 Contact Us For Availability
501
WASHER BAFFLE GEN WE01X20693 Contact Us For Availability
503
DRUM ASSEMBLY GEN WE21X10026 Contact Us For Availability
507
THERMISTOR INLET GEN WE04X20252 Contact Us For Availability
509
BAFFLE GEN WE14X10112 Contact Us For Availability
512
SCR 10-32 GX HXW 7/16 S GEN WE02X10107 Contact Us For Availability
600
CHAMBER ASM GEN WE14X10113 Contact Us For Availability
602
THERMOSTAT 1 GEN WE04X10188 Contact Us For Availability
603
THERMOSTAT 1 GEN WE04X10187 Contact Us For Availability
604
SENSOR RADIENT GEN WE04X10189 Contact Us For Availability
605
BRACKET CHAMBER COMB. GEN WE13X10055 Contact Us For Availability
700
GAS VALVE GEN WE14X10109 Contact Us For Availability
701
BRACKET BURNER GEN WE13X10050 Contact Us For Availability
702
PIPE GAS ASM GEN WE01X10373 Contact Us For Availability
703
BURNER ASM GEN WE14X10110 Contact Us For Availability
704
IGNITER FLAT GEN WE04X10183 Contact Us For Availability
800
HARNESS MAIN GAS GEN WE08X10090 Contact Us For Availability
807
Y ADAPTER GEN WE01X10401 Contact Us For Availability
808
CAP GAS PIPE THREAD GEN WE01X10402 Contact Us For Availability
9998
CATALOG WE25X10033 GEN WE25X10033 Contact Us For Availability
9999
CATALOG WE25X10032 GEN WE25X10032 Contact Us For Availability
× ![]()
