Model GE GFD14ESSN2WW Dryer Electric – Common Parts & Diagrams
CONTROLS & BACKSPLASH
FRONT PANEL & DOOR

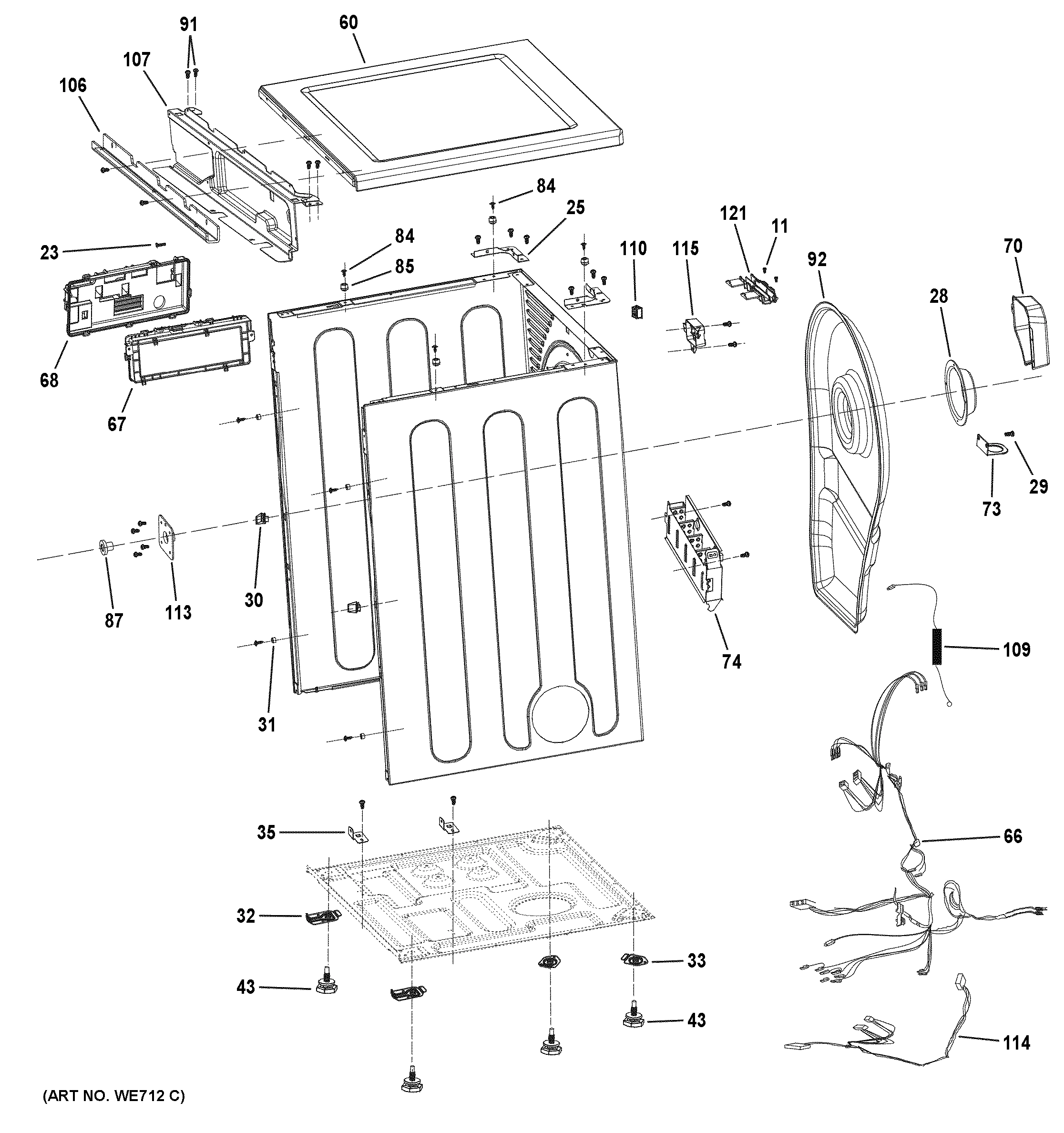

CABINET & TOP PANEL

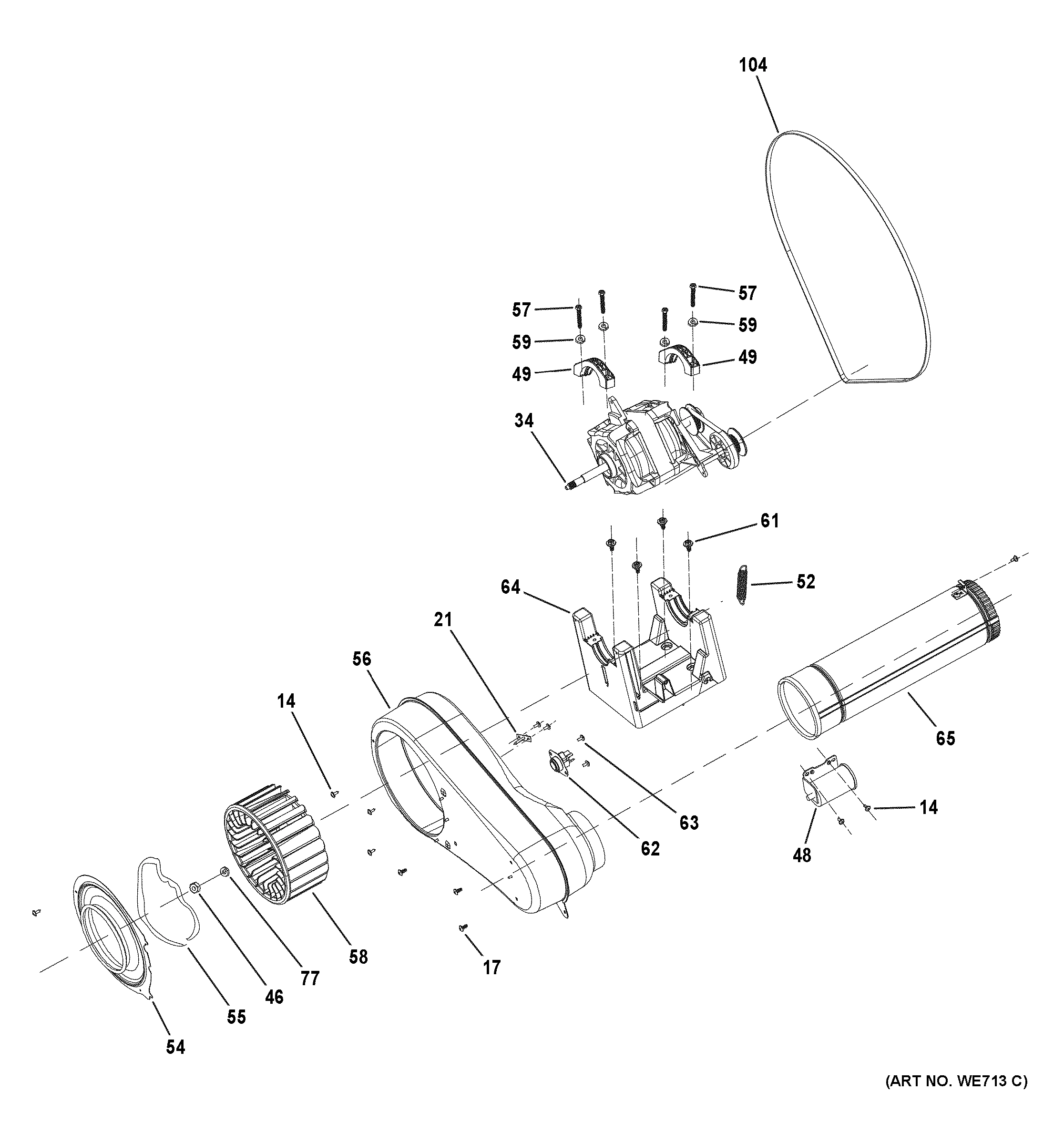

BLOWER & MOTOR ASSEMBLY

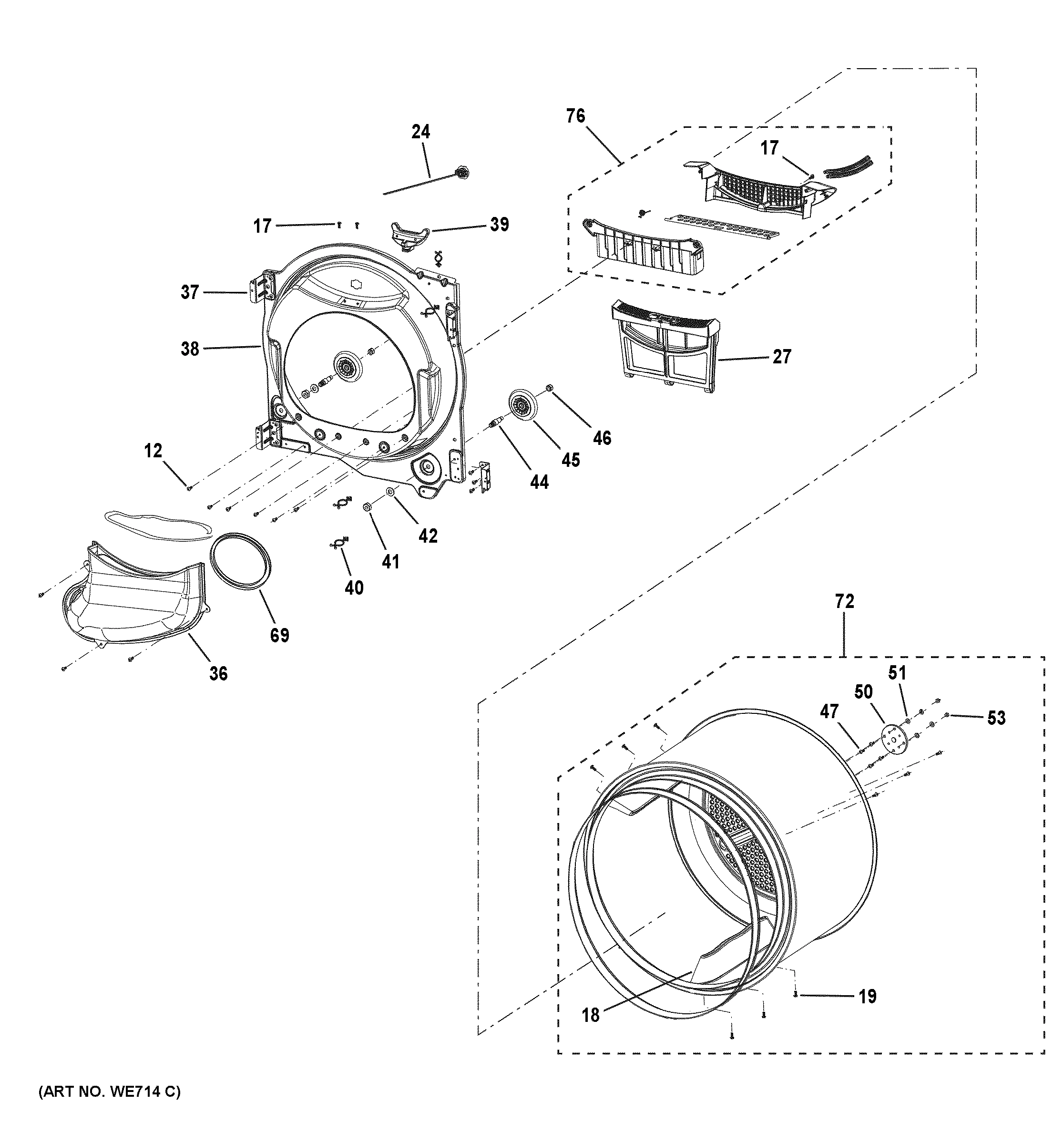

DRUM
Common parts from model GE GFD14ESSN2WW Dryer Electric
4
USER INTERFACE BOARD GEN WE22X28761 Contact Us For Availability
5
DRYER DOOR GEN WE10X28757 Contact Us For Availability
8
FRONT PANEL GEN WE13X28736 Contact Us For Availability
9
DOOR SWITCH GEN WE01X26341 Contact Us For Availability
12
FRONT PANEL SCREWS GEN WE02X26338 Contact Us For Availability
14
TOP FRONT BRACKET SCREW ST3.5*12 GEN WH02X26267 Contact Us For Availability
16
CONTROL PANEL GEN WE22X28745 Contact Us For Availability
17
SCREW GEN WH02X26247 Contact Us For Availability
18
DRUM BAFFLE FL DRYER 24VD GEN WE13X37917 Contact Us For Availability
19
SCREW GEN WE02X26576 Contact Us For Availability
21
OUTLET THERMISTER GEN WE04X26348 Contact Us For Availability
24
LAMP GEN WE11X27508 Contact Us For Availability
27
LINT FILTER GEN WE16X36119 Contact Us For Availability
34
MOTOR GEN WE03X28740 Contact Us For Availability
36
FRONT AIR DUCT GEN WE13X28735 Contact Us For Availability
37
FRONT DRUM SUPPORT BRACKET GEN WE13X28710 Contact Us For Availability
38
FRONT DRUM SUPPORT GEN WE13X28733 Contact Us For Availability
39
DRYING RACK HANGER GEN WE13X28737 Contact Us For Availability
40
FIXED-LINE CLIP GEN WE02X28699 Contact Us For Availability
41
NUT M10 GEN WE02X28700 Contact Us For Availability
42
NUT M10 GASKET GEN WE02X28702 Contact Us For Availability
44
DRUM WHEEL SUPPORT SHAFT GEN WE01X28721 Contact Us For Availability
45
DRUM WHEEL GEN WE21X26838 Contact Us For Availability
46
NUT M8 GEN WE02X28704 Contact Us For Availability
47
BOLT M6*14 GEN WE02X28697 Contact Us For Availability
48
CAPACITOR GEN WE01X26354 Contact Us For Availability
49
MOTOR BRACKET GEN WE13X28726 Contact Us For Availability
50
FLANGE PLATE GEN WE13X28725 Contact Us For Availability
51
FLAT GASKET GEN WE01X28719 Contact Us For Availability
52
SPRING GEN WE01X28759 Contact Us For Availability
53
NUT M6 GEN WE02X28707 Contact Us For Availability
54
VOLUTE END COVER GEN WE01X28758 Contact Us For Availability
55
GASKET GEN WE09X27688 Contact Us For Availability
56
BLOWER MOTOR COVER GEN WE13X28716 Contact Us For Availability
57
BOLT M5*25 GEN WE02X28698 Contact Us For Availability
58
BLOWER FAN GEN WE16X28729 Contact Us For Availability
59
MOTOR SPRING GEN WE02X28738 Contact Us For Availability
60
TOP PANEL GEN WE13X28732 Contact Us For Availability
61
BOLT M5*14 GEN WE02X28706 Contact Us For Availability
62
TEMPERATURE CONTROL GEN WE04X28741 Contact Us For Availability
63
CAPACITOR SCREWS GEN WH02X26927 Contact Us For Availability
64
MOTOR BRACKET GEN WE13X28727 Contact Us For Availability
65
EXHAUST PIPE GEN WE13X28734 Contact Us For Availability
66
MAIN HARNESS W/3 PRONG OULET GEN WE08X28730 Contact Us For Availability
67
CONTROL BOARD GEN WE04X27515 Contact Us For Availability
68
CONTROL BOARD COVER GEN WE01X27516 Contact Us For Availability
69
FRONT AIR DUCT GASKET GEN WE05X28708 Contact Us For Availability
70
TERMINAL BLOCK COVER GEN WE01X26404 Contact Us For Availability
72
DRUM ASSEMBLY GEN WE21X28743 Contact Us For Availability
73
POWER CORD CONDUIT BRACKET GEN WE13X28714 Contact Us For Availability
74
HEATER GEN WE11X28897 Contact Us For Availability
76
DUCT TRAP HOUSING GEN WE16X28747 Contact Us For Availability
77
CW BOLT TENSION WASHER GEN WH01X27132 Contact Us For Availability
84
TOP PANEL GUIDE PIN SCREW GEN WH02X26265 Contact Us For Availability
85
TOP PANEL GUIDE PIN GEN WH01X26264 Contact Us For Availability
86
HUMIDITY SENSOR AND HARNESS GEN WE01X26415 Contact Us For Availability
87

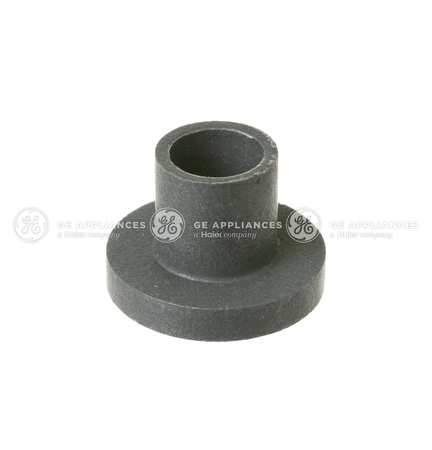

REAR BEARING GEN WE03X26413 Contact Us For Availability
91
GROUND SCREW GEN WH02X26236 Contact Us For Availability
92
BACK PANEL COVER GEN WE13X28717 Contact Us For Availability
96
HINGE SHEATH GEN WE10X26837 Contact Us For Availability
98
24" FRONTLOAD STACKING KIT GEN GFA24KITL Contact Us For Availability
104
BELT GEN WE12X26360 Contact Us For Availability
106
WATER CHANNEL GEN WE01X27779 Contact Us For Availability
107
CONTROL PANEL BRACKET GEN WE13X28711 Contact Us For Availability
108
DOOR SWITCH GEN WE01X27781 Contact Us For Availability
109
FUSE GEN WE01X27782 Contact Us For Availability
110
RJ45 CONNECTOR GEN WH19X28403 Contact Us For Availability
113

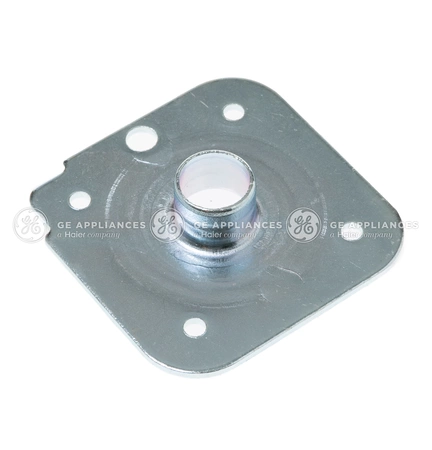

REAR DRUM BEARING SUPPORT GEN WE13X28718 Contact Us For Availability
115
OUTLET COVER GEN WE08X28520 Contact Us For Availability
121
FUSE HARNESS HOLDER GEN WE08X28521 Contact Us For Availability
× ![]()
