Model Electrolux GF980KXD5 RANGE – Common Parts & Diagrams

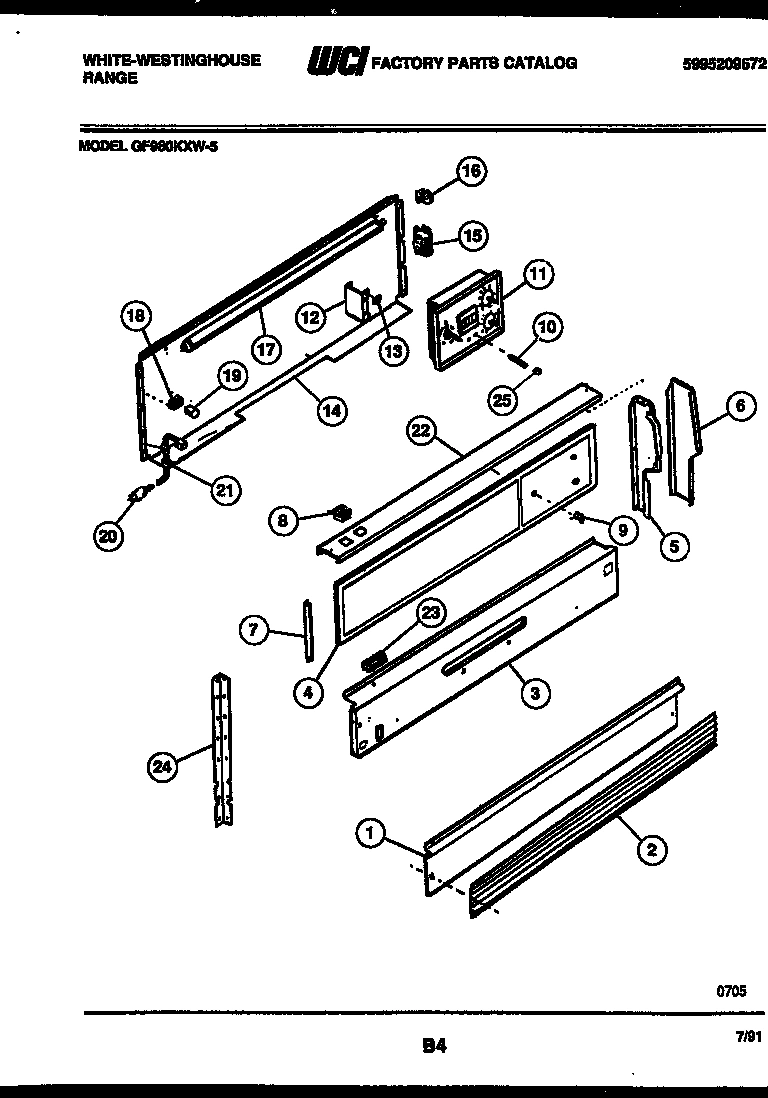

02 - BACKGUARD

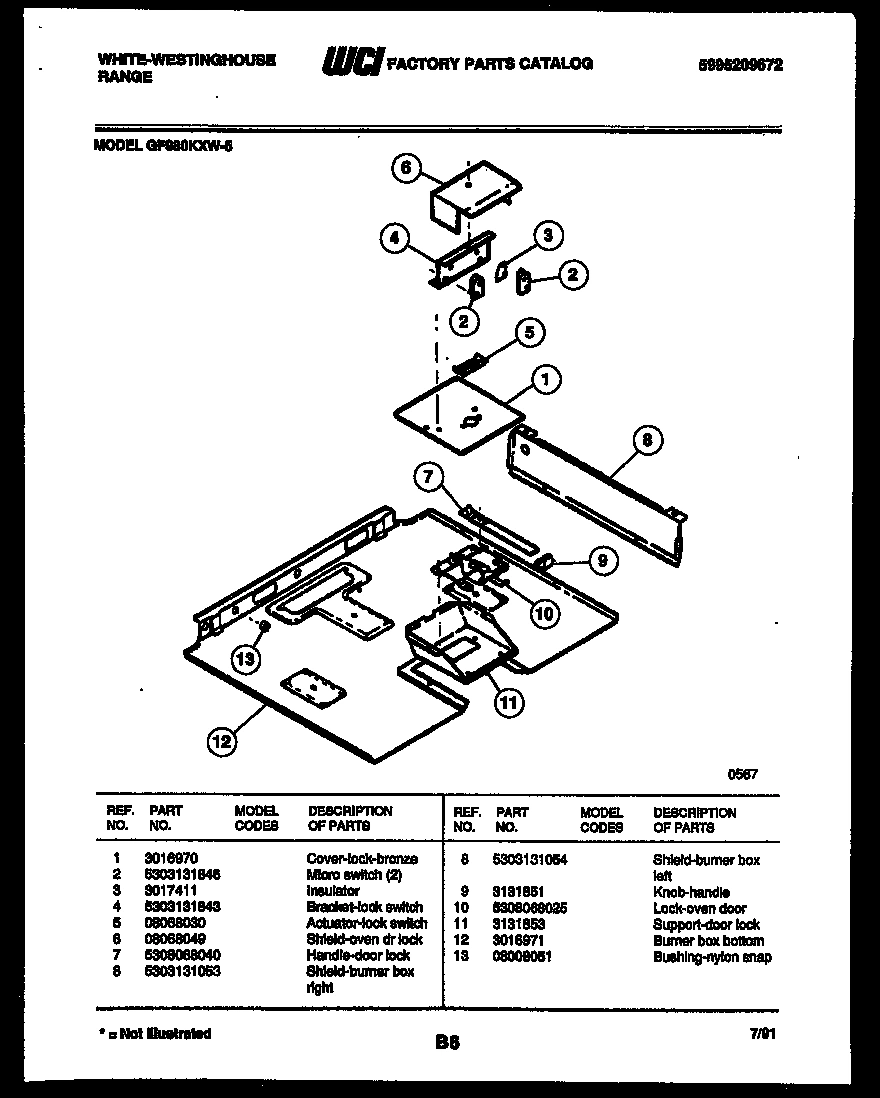

03 - BURNER BOX PARTS

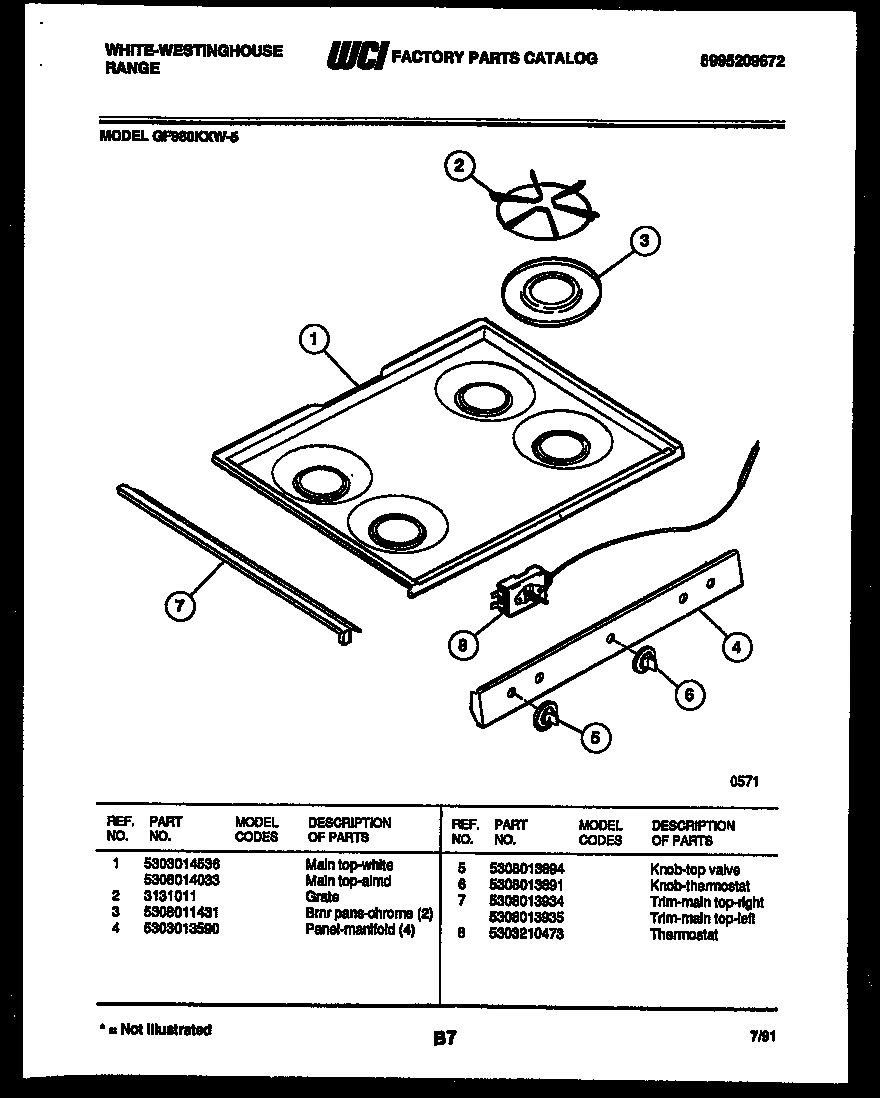

04 - COOKTOP PARTS

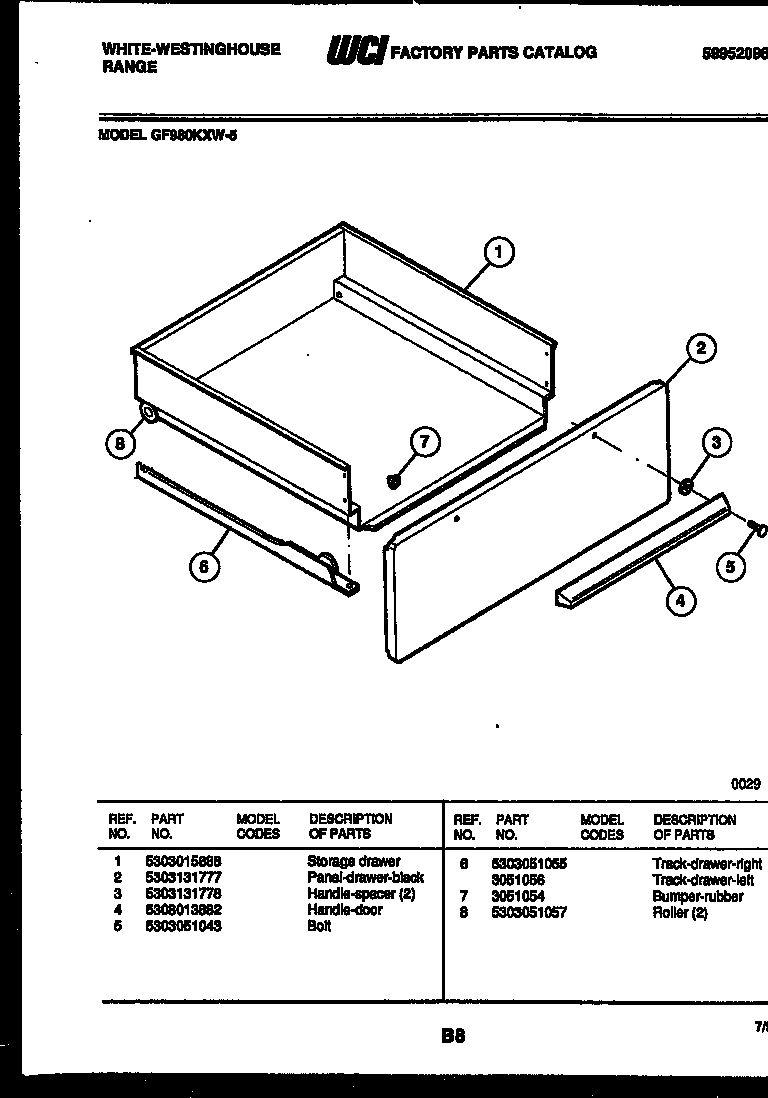

05 - DRAWER PARTS

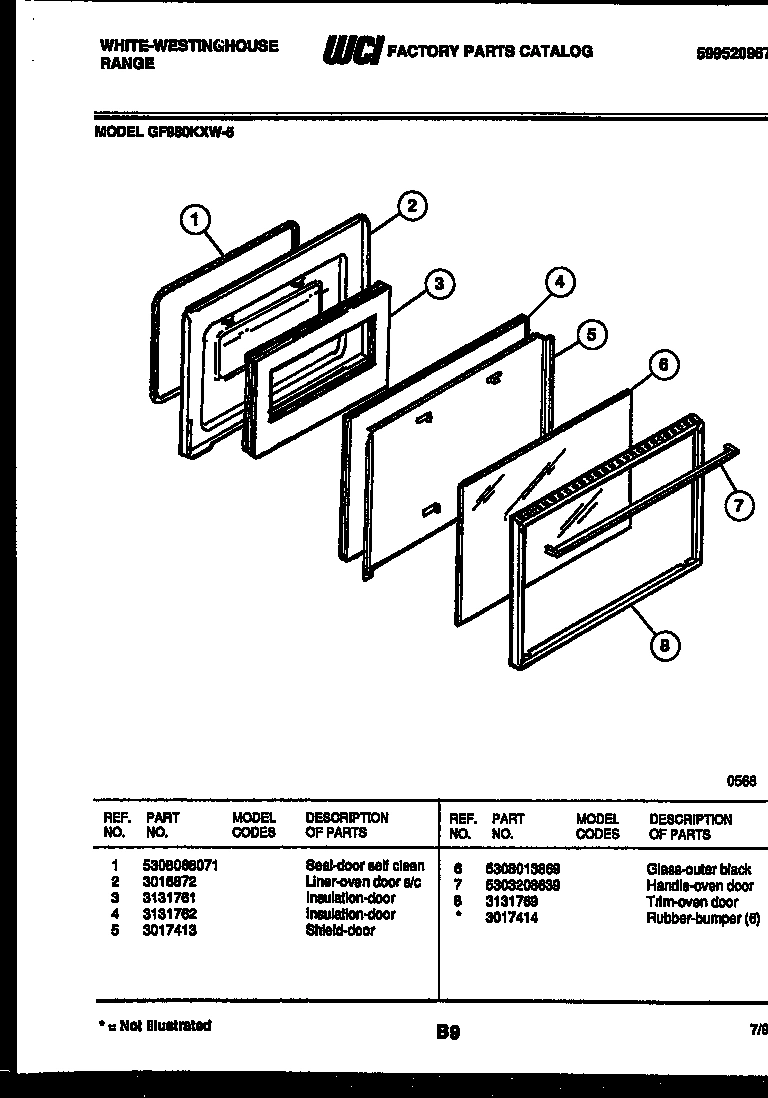

06 - DOOR PARTS

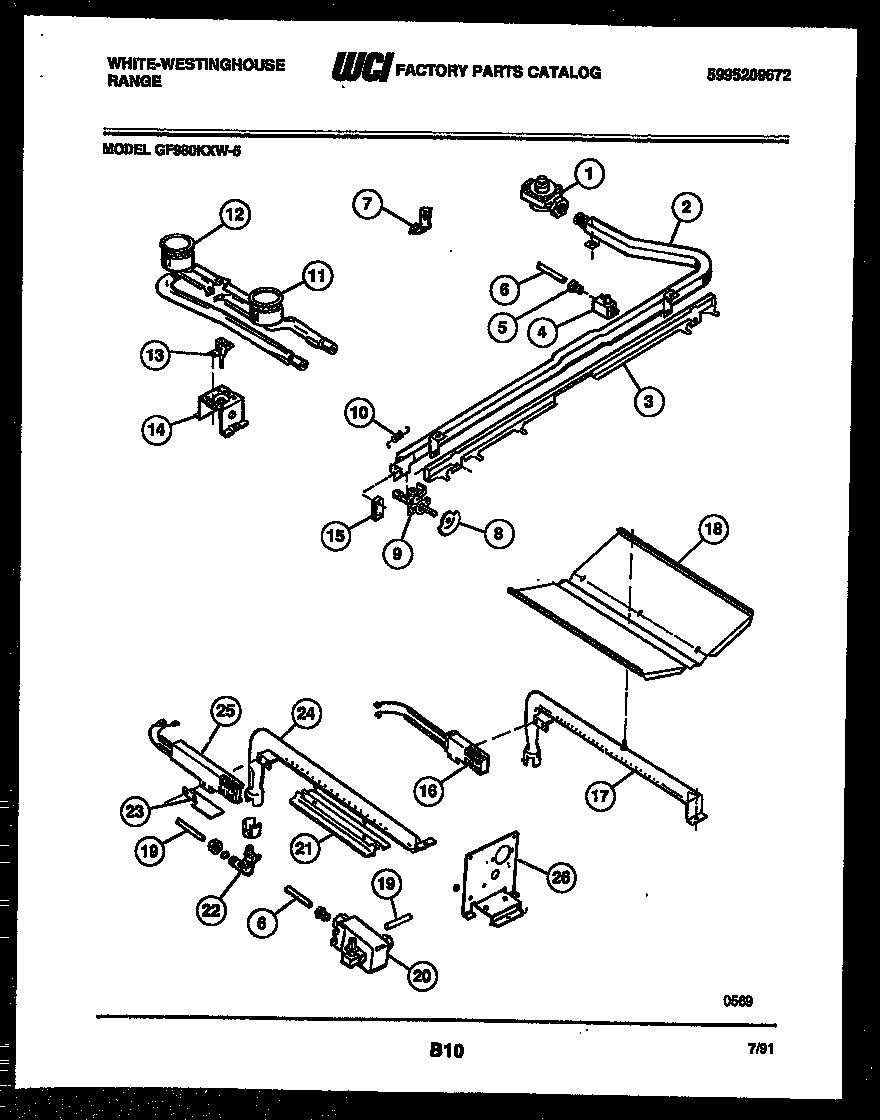

07 - BURNER, MANIFOLD AND GAS CONTROL

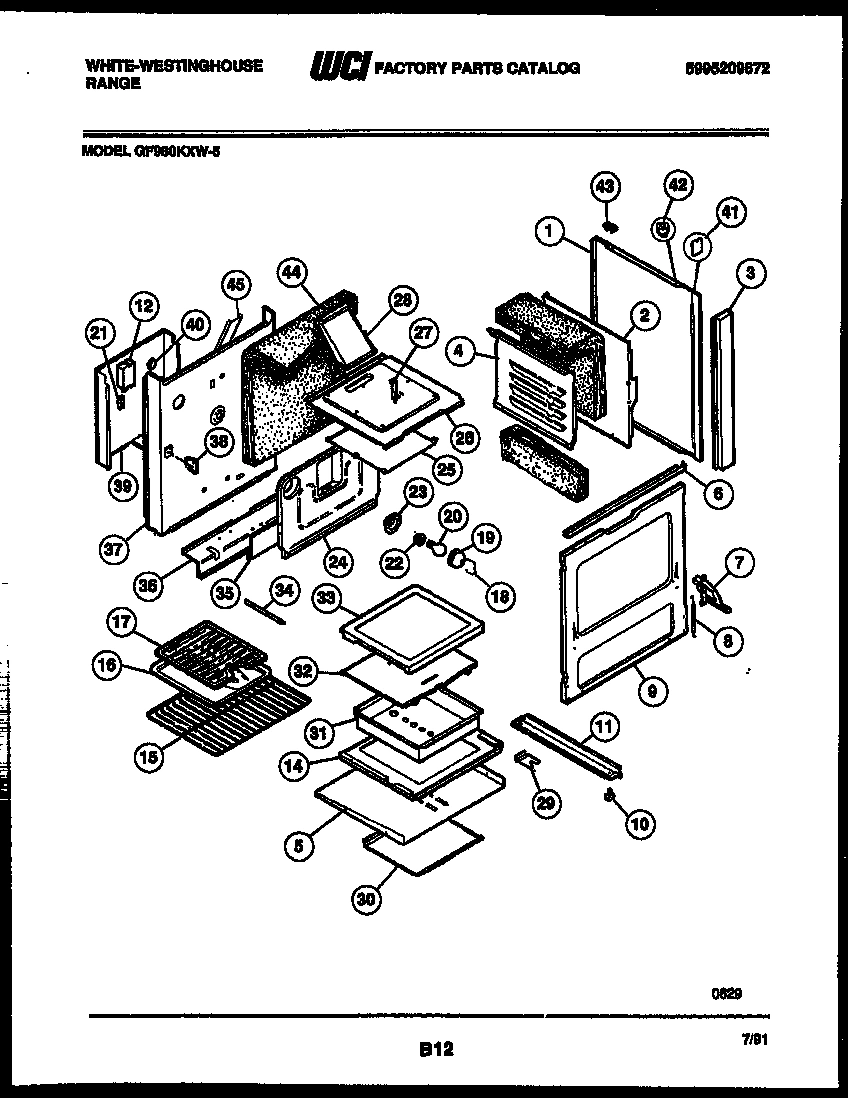

08 - BODY PARTS
Common parts from model Electrolux GF980KXD5 RANGE
*24252
RUBBER BUMPER (6) WCI 3017414 Contact Us For Availability
1
COVER LOCK BRONZE WCI 3016970 Contact Us For Availability
1
MAIN-TOP (ALMD) WCI 5308014033 Contact Us For Availability
1
STORAGE DRAWER WCI 5303015688 Contact Us For Availability
1
WCI 5308014619 WCI 5308014619 Contact Us For Availability
2
MICRO SWITCH (2) WCI 5303131846 Contact Us For Availability
2
GRATE WCI 3131011 Contact Us For Availability
2
PANEL-DRAWER-BLACK WCI 5303131777 Contact Us For Availability
2
LINER-OVEN DOOR S/C WCI 3016872 Contact Us For Availability
2
WCI 5308013906 WCI 5308013906 Contact Us For Availability
2
SHIELD SIDE HEAT (2) WCI 3131794 Contact Us For Availability
3
BRNR PANS-CHROME (2) WCI 5308011431 Contact Us For Availability
3
WCI 3017411 WCI 3017411 Contact Us For Availability
3
HANDLE-SPACER (2) WCI 5303131778 Contact Us For Availability
3
WCI 3131761 WCI 3131761 Contact Us For Availability
3
WCI 3131856 WCI 3131856 Contact Us For Availability
3
WCI 5308014088 WCI 5308014088 Contact Us For Availability
4
WCI 5303131843 WCI 5303131843 Contact Us For Availability
4
PANEL-MANIFOLD (4) WCI 5303013590 Contact Us For Availability
4
HANDLE-DOOR WCI 5308013882 Contact Us For Availability
4
WCI 3131762 WCI 3131762 Contact Us For Availability
4
WCI 5303131099 WCI 5303131099 Contact Us For Availability
4
LINER-RIGHT SIDE WCI 3016533 Contact Us For Availability
4A
LINER-LEFT SIDE WCI 3016534 Contact Us For Availability
5
WCI 08068030 WCI 08068030 Contact Us For Availability
5
WCI 5308013894 WCI 5308013894 Contact Us For Availability
5
SHIELD-DOOR WCI 3017413 Contact Us For Availability
5
NUT 3/8 LOXIT WCI 3131064 Contact Us For Availability
5
RETAINER - BTTM INSUL WCI 3131820 Contact Us For Availability
6
SHIELD - OVEN DR LOCK WCI 08068049 Contact Us For Availability
6
WCI 5308013891 WCI 5308013891 Contact Us For Availability
6
TRACK-DRAWER-RIGHT WCI 5303051055 Contact Us For Availability
6
WCI 5308013869 WCI 5308013869 Contact Us For Availability
6
WCI 08068028 WCI 08068028 Contact Us For Availability
6
SUPT-CONTROL PANEL WCI 3131811 Contact Us For Availability
6A
TRACK DRAWER LEFT WCI 3051056 Contact Us For Availability
7
WCI 5308068040 WCI 5308068040 Contact Us For Availability
7
WCI 5308013934 WCI 5308013934 Contact Us For Availability
7
WCI 3051054 WCI 3051054 Contact Us For Availability
7
HANDLE-OVEN DOOR WCI 5303208639 Contact Us For Availability
7
WCI 5300009126 WCI 5300009126 Contact Us For Availability
7A
WCI 5308013935 WCI 5308013935 Contact Us For Availability
7A
HINGE - OVEN DR LEFT WCI 3205894 Contact Us For Availability
8
SHIELD-BURNER BOX RIGHT WCI 5303131053 Contact Us For Availability
8
SHIELD-BURNER BOX LEFT WCI 5303131054 Contact Us For Availability
8
WCI 5303210473 WCI 5303210473 Contact Us For Availability
8
WCI 5303051057 WCI 5303051057 Contact Us For Availability
8
TRIM OVEN DOOR WCI 3131769 Contact Us For Availability
8
CAM-TOP BURNER (4) WCI 5303131859 Contact Us For Availability
8
SPRING-OVEN DR (2) WCI 5303009435 Contact Us For Availability
9
KNOB-CLOCK (3) WCI 5303131756 Contact Us For Availability
9
KNOB HANDLE WCI 3131851 Contact Us For Availability
9
VALVE-TOP BURNERS (4) WCI 3205761 Contact Us For Availability
9
FRAME-FRONT WCI 3205905 Contact Us For Availability
10
LIGHT-IND CLEAN WCI 3206088 Contact Us For Availability
10
WCI 5308068025 WCI 5308068025 Contact Us For Availability
10
SPRING - SLIDE BAR WCI 5303131096 Contact Us For Availability
11
BURNER-FRONT TOP (2) WCI 5303131080 Contact Us For Availability
11
WCI 5303017328 WCI 5303017328 Contact Us For Availability
11
WCI 3131853 WCI 3131853 Contact Us For Availability
11
BASE RAIL-RT WCI 5303210255 Contact Us For Availability
11A
BASE RAIL-LT WCI 5303210256 Contact Us For Availability
12
BURNER-REAR TOP (2) WCI 5303131079 Contact Us For Availability
12
WCI 5308007924 WCI 5308007924 Contact Us For Availability
12
WCI 3016971 WCI 3016971 Contact Us For Availability
13
SPEED-NUT (4) WCI 5308007925 Contact Us For Availability
13
WCI 08008051 WCI 08008051 Contact Us For Availability
13
IGNITER-TOP (2) WCI 3203971 Contact Us For Availability
14
WCI 3017486 WCI 3017486 Contact Us For Availability
14
SUPT - TOP BURNER (2) WCI 3203964 Contact Us For Availability
14
LINING - OVEN BOTTOM WCI 12055 Contact Us For Availability
15
RACK OVEN (2) WCI 5303015714 Contact Us For Availability
15
WCI 5303131832 WCI 5303131832 Contact Us For Availability
15
SWITCH-MICRO FRONT MTG WCI 5303131094 Contact Us For Availability
16
LAMPHOLDER - LEFT WCI 08016292 Contact Us For Availability
16
WCI 5303016973 WCI 5303016973 Contact Us For Availability
16A
LAMPHOLDER - RIGHT WCI 08016293 Contact Us For Availability
17
WCI 5308068058 WCI 5308068058 Contact Us For Availability
17
BURNER-OVEN BAKE WCI 5303131860 Contact Us For Availability
17
GRID-BROILER PAN WCI 5303017712 Contact Us For Availability
18
WCI 08068057 WCI 08068057 Contact Us For Availability
18
BAFFLE BAKE BURNER WCI 5308011508 Contact Us For Availability
18
RETAINER-OVEN LIGHT LENS WCI 5303205904 Contact Us For Availability
19
STARTER-FLUOR LIGHT WCI 5308068062 Contact Us For Availability
19
TUBE BROIL FEED WCI 3131866 Contact Us For Availability
20
CORD WCI 5303015249 Contact Us For Availability
20
VALVE-SAFETY WCI 5303017415 Contact Us For Availability
21
WCI 08008255 WCI 08008255 Contact Us For Availability
21
TERMINAL BOX WCI 5308007985 Contact Us For Availability
22
WCI 5308016294 WCI 5308016294 Contact Us For Availability
22
PIN ELBOW MIXER WCI 08011470 Contact Us For Availability
23
WCI 3051511 WCI 3051511 Contact Us For Availability
23
WCI 5308008071 WCI 5308008071 Contact Us For Availability
23
SHIELD IGNITER WCI 3131871 Contact Us For Availability
24
BRACE (2) WCI 5308013296 Contact Us For Availability
24
BURNER-BROILER WCI 5303210389 Contact Us For Availability
24
LINER OVEN BACK WCI 3200915 Contact Us For Availability
25
LENS-SIGNAL LIGHT WCI 5308006417 Contact Us For Availability
25
BAFFLE-OVEN BURNER WCI 3131803 Contact Us For Availability
26
WCI 3131802 WCI 3131802 Contact Us For Availability
27
WCI 3131800 WCI 3131800 Contact Us For Availability
28
VENT BOX ASSEMBLY WCI 3016877 Contact Us For Availability
29
WCI 3934059 WCI 3934059 Contact Us For Availability
30
SHIELD-STORAGE DRWR WCI 08068050 Contact Us For Availability
31
PAN-OVEN BURNER WCI 5308068046 Contact Us For Availability
32
BAFFLE OVEN BOTTOM WCI 3131823 Contact Us For Availability
33
WCI 3016975 WCI 3016975 Contact Us For Availability
34
WCI 3201170 WCI 3201170 Contact Us For Availability
35
COVER CONTROL VALVE WCI 08068039 Contact Us For Availability
36
SUPT - CONTROL VALVE WCI 3131831 Contact Us For Availability
37
WCI 3131833 WCI 3131833 Contact Us For Availability
38
Support,oven rear WCI 3051096 Contact Us For Availability
39
WCI 08068038 WCI 08068038 Contact Us For Availability
40
THERMOSTAT BAKE BROIL SELECT WCI 5303131839 Contact Us For Availability
41
CLIP-BACKSPLASH COVER WCI 3131791 Contact Us For Availability
42
GROMMET PLASTIC WCI 3051063 Contact Us For Availability
43
GROMMET-MAINTOP WCI 3205587 Contact Us For Availability
44
WCI 3131795 WCI 3131795 Contact Us For Availability
44A
WCI 3131840 WCI 3131840 Contact Us For Availability
45
CHANNEL - MAIN WIRE WCI 3131046 Contact Us For Availability
× ![]()
