Model Electrolux GF980KXD3 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BURNER BOX PARTS

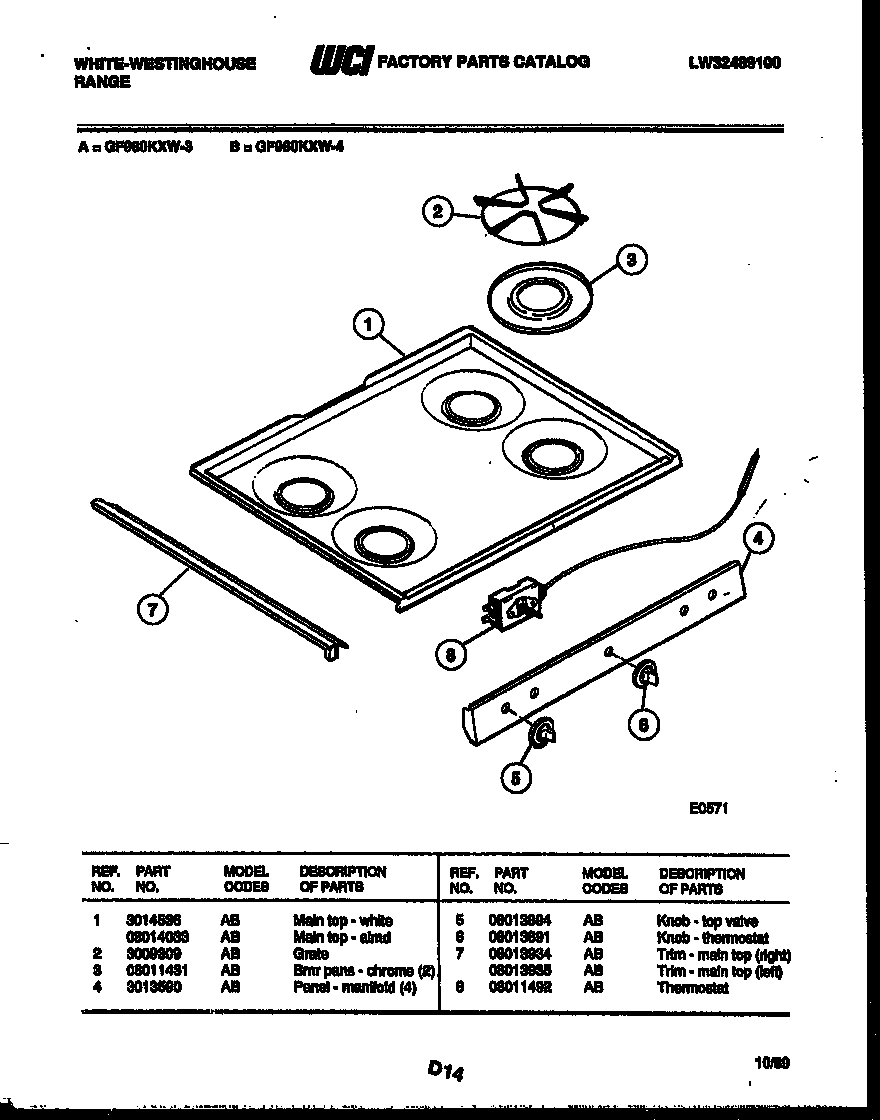

04 - COOKTOP PARTS

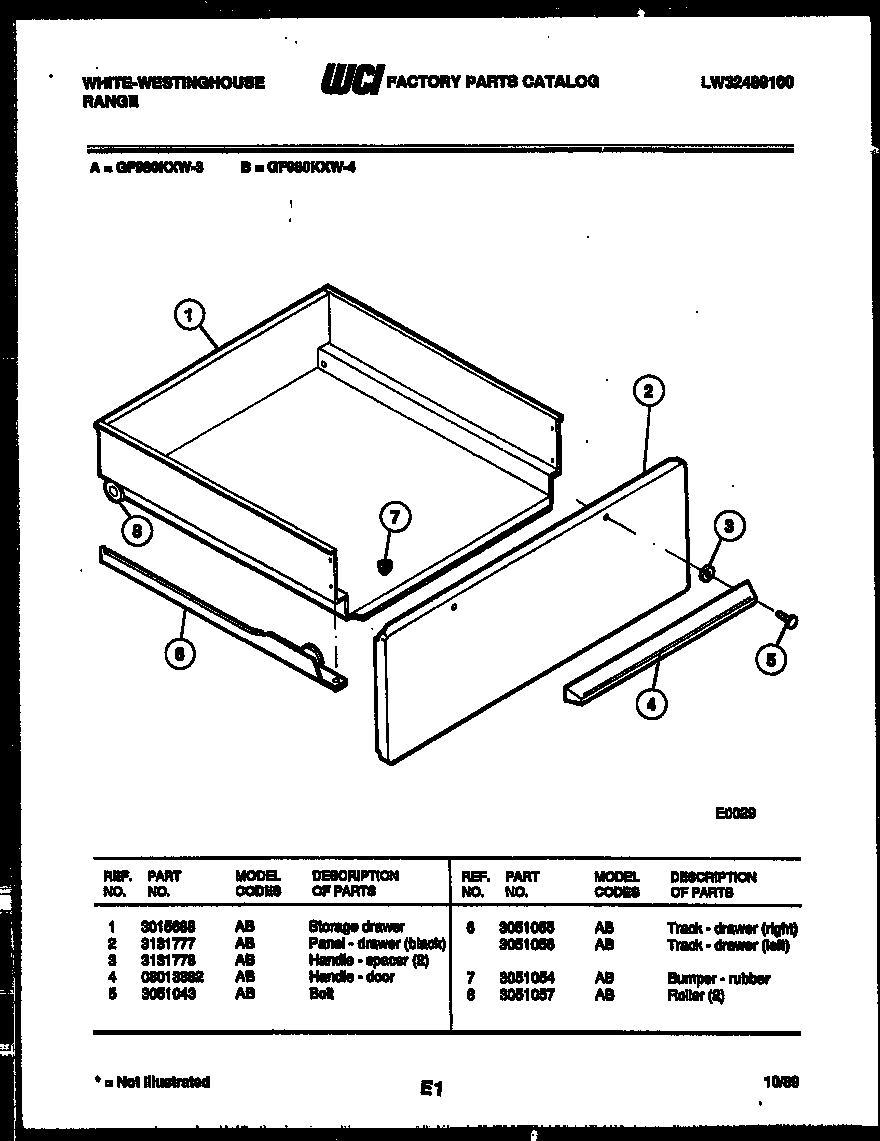

05 - DRAWER PARTS

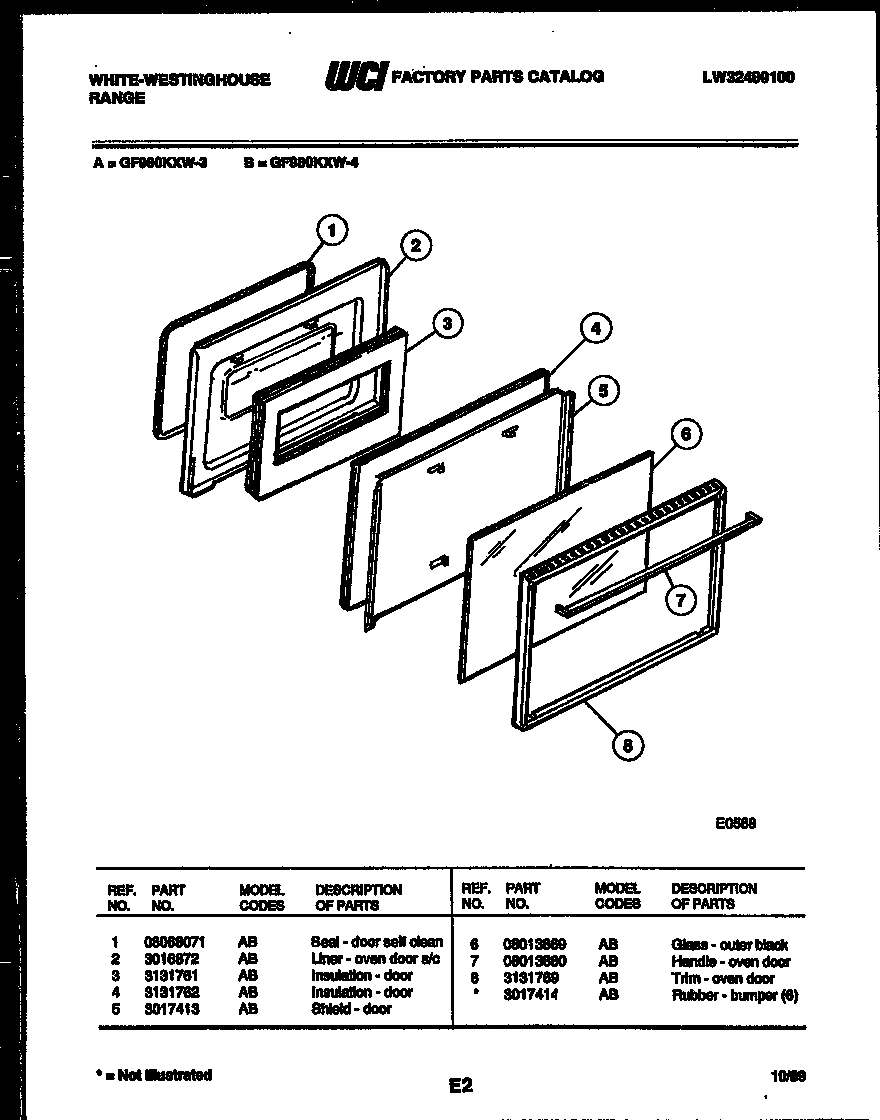

06 - DOOR PARTS

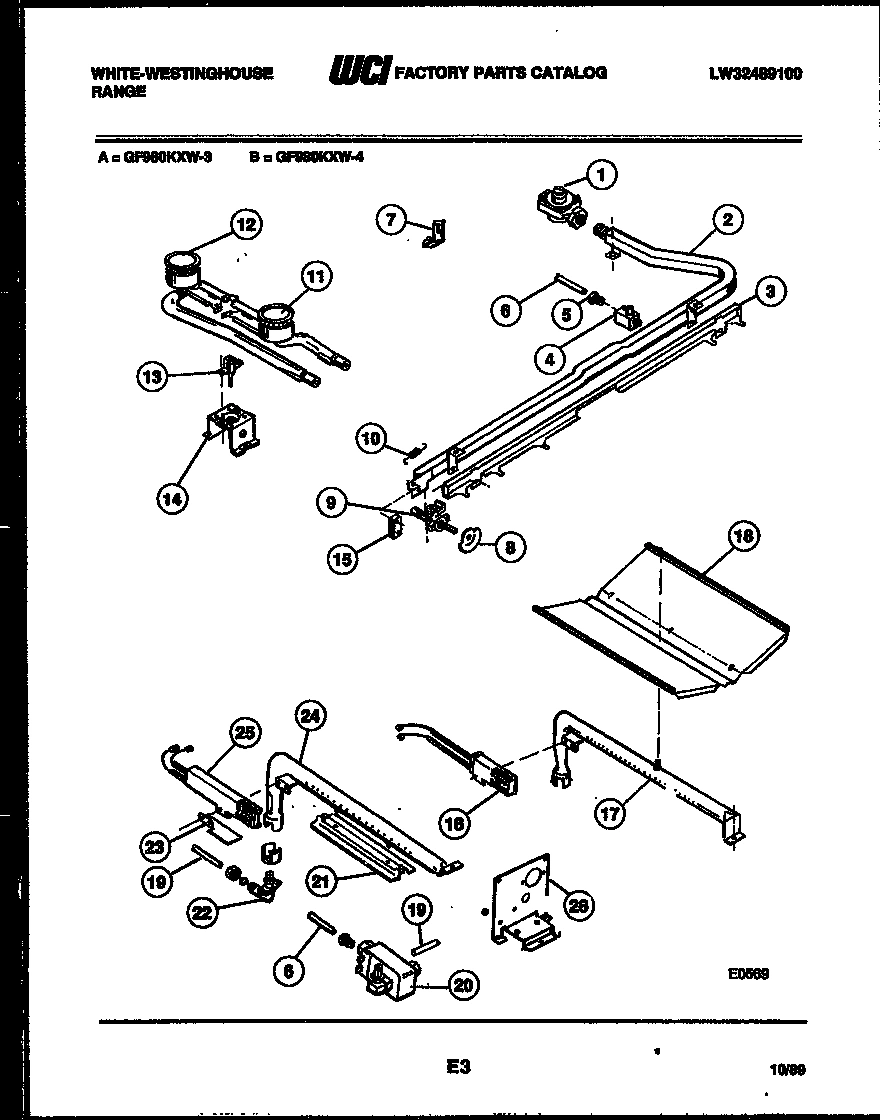

07 - BURNER, MANIFOLD AND GAS CONTROL

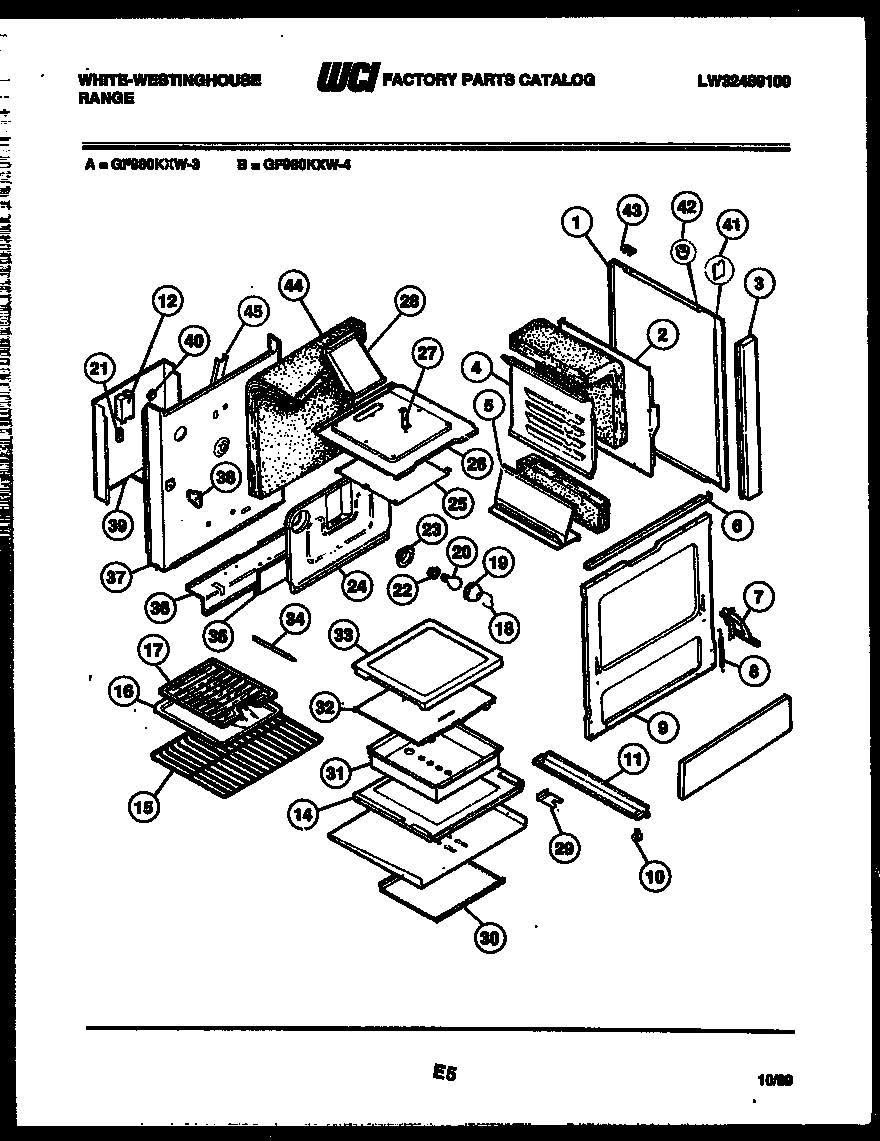

08 - BODY PARTS
Common parts from model Electrolux GF980KXD3 RANGE
*23668
SHIELD - OVEN DR LOCK WCI 08068049 Contact Us For Availability
*23672
RUBBER BUMPER (6) WCI 3017414 Contact Us For Availability
1
COVER LOCK BRONZE WCI 3016970 Contact Us For Availability
1
MAIN TOP (ALMD) WCI 08014033 Contact Us For Availability
1
WCI 3015688 WCI 3015688 Contact Us For Availability
1
WCI 08014619 WCI 08014619 Contact Us For Availability
2
WCI 3009482 WCI 3009482 Contact Us For Availability
2
MICRO SWITCH (2) WCI 3131846 Contact Us For Availability
2
GRATE WCI 3009309 Contact Us For Availability
2
PANEL DRAWER BLACK WCI 3131777 Contact Us For Availability
2
LINER-OVEN DOOR S/C WCI 3016872 Contact Us For Availability
2
WCI 08013906 WCI 08013906 Contact Us For Availability
2
SHIELD SIDE HEAT (2) WCI 3131794 Contact Us For Availability
3
WCI 3017485 WCI 3017485 Contact Us For Availability
3
WCI 3017411 WCI 3017411 Contact Us For Availability
3
BRNR PANS - CHROME (2) WCI 08011431 Contact Us For Availability
3
HANDLE SPACER (2) WCI 3131778 Contact Us For Availability
3
WCI 3131761 WCI 3131761 Contact Us For Availability
3
WCI 3131856 WCI 3131856 Contact Us For Availability
3
TRIM-BODY SIDE (2) WCI 08014088 Contact Us For Availability
4
WCI Q000301890 WCI Q000301890 Contact Us For Availability
4
BRACKET LOCK SWITCH WCI 3131843 Contact Us For Availability
4
PANEL MANIFOLD (4) WCI 3013590 Contact Us For Availability
4
HANDLE DOOR WCI 08013882 Contact Us For Availability
4
WCI 3131762 WCI 3131762 Contact Us For Availability
4
WCI 3131099 WCI 3131099 Contact Us For Availability
4
LINER-RIGHT SIDE WCI 3016533 Contact Us For Availability
4A
LINER-LEFT SIDE WCI 3016534 Contact Us For Availability
5
BRACKET - BACKGUARD RIGHT WCI 08007899 Contact Us For Availability
5
WCI 08068030 WCI 08068030 Contact Us For Availability
5
WCI 08013894 WCI 08013894 Contact Us For Availability
5
SHIELD-DOOR WCI 3017413 Contact Us For Availability
5
NUT 3/8 LOXIT WCI 3131064 Contact Us For Availability
5
RETAINER - BTTM INSUL WCI 3131820 Contact Us For Availability
5A
BRACKET - BACKGUARD LEFT WCI 08007900 Contact Us For Availability
6
END CAP - BACKGUARD LEFT WCI 08007909 Contact Us For Availability
6
WCI 08013891 WCI 08013891 Contact Us For Availability
6
TRACK DRAWER RIGHT WCI 3051055 Contact Us For Availability
6
GLASS-OUTER BLACK WCI 08013869 Contact Us For Availability
6
WCI 08068028 WCI 08068028 Contact Us For Availability
6
SUPT-CONTROL PANEL WCI 3131811 Contact Us For Availability
6A
END CAP - BACKGUARD RIGHT WCI 08007898 Contact Us For Availability
6A
TRACK DRAWER LEFT WCI 3051056 Contact Us For Availability
7
TRIM-BACKGUARD GL (2) WCI 3009472 Contact Us For Availability
7
WCI 08068040 WCI 08068040 Contact Us For Availability
7
TRIM - MAIN TOP (RIGHT) WCI 08013934 Contact Us For Availability
7
WCI 3051054 WCI 3051054 Contact Us For Availability
7
WCI 08013880 WCI 08013880 Contact Us For Availability
7
WCI 9126 WCI 9126 Contact Us For Availability
7A
TRIM - MAIN TOP (LEFT) WCI 08013935 Contact Us For Availability
7A
HINGE - OVEN DR LEFT WCI 3205894 Contact Us For Availability
8
SHIELD - BURNER BOX RIGHT WCI 3131053 Contact Us For Availability
8
WCI 08011492 WCI 08011492 Contact Us For Availability
8
WCI 3051057 WCI 3051057 Contact Us For Availability
8
TRIM OVEN DOOR WCI 3131769 Contact Us For Availability
8
CAM-TOP BURNER (4) WCI 3131859 Contact Us For Availability
8
SPRING - OVEN DR (2) WCI 3009435 Contact Us For Availability
8A
SHIELD - BURNER BOX LEFT WCI 3131054 Contact Us For Availability
9
KNOB CLOCK (3) WCI 3131756 Contact Us For Availability
9
KNOB HANDLE WCI 3131851 Contact Us For Availability
9
VALVE-TOP BURNERS (4) WCI 3205761 Contact Us For Availability
9
FRAME-FRONT WCI 3205905 Contact Us For Availability
10
LIGHT - IND CLEAN (2) WCI 08950022 Contact Us For Availability
10
WCI 08068025 WCI 08068025 Contact Us For Availability
10
WCI 3131096 WCI 3131096 Contact Us For Availability
10
LEG LEVELER (4) WCI 3051080 Contact Us For Availability
11
WCI 3017328 WCI 3017328 Contact Us For Availability
11
WCI 3131853 WCI 3131853 Contact Us For Availability
11
BURNER FRONT TOP (2) WCI 3131080 Contact Us For Availability
11
RAIL - BASE (2) WCI 08068047 Contact Us For Availability
12
BRACKET - CLOCK MTG WCI 08007924 Contact Us For Availability
12
WCI 3016971 WCI 3016971 Contact Us For Availability
12
BURNER REAR TOP (2) WCI 3131079 Contact Us For Availability
13
WCI 08007925 WCI 08007925 Contact Us For Availability
13
WCI 08008051 WCI 08008051 Contact Us For Availability
13
IGNITER - TOP (2) WCI 3202375 Contact Us For Availability
14
WCI 3017486 WCI 3017486 Contact Us For Availability
14
SUPT - TOP BURNER (2) WCI 3016870 Contact Us For Availability
14
LINING - OVEN BOTTOM WCI 12055 Contact Us For Availability
15
WCI 3131832 WCI 3131832 Contact Us For Availability
15
SWITCH-MICRO FRONT MTG WCI 3131094 Contact Us For Availability
15
WCI 3015714 WCI 3015714 Contact Us For Availability
16
LAMPHOLDER - LEFT WCI 08016292 Contact Us For Availability
16
PAN-BROILER WCI 3016973 Contact Us For Availability
16A
LAMPHOLDER - RIGHT WCI 08016293 Contact Us For Availability
17
BULB - FLUORESCENT WCI 08068058 Contact Us For Availability
17
WCI 3131860 WCI 3131860 Contact Us For Availability
18
WCI 08068057 WCI 08068057 Contact Us For Availability
18
WCI 08011508 WCI 08011508 Contact Us For Availability
18
RETAINER OVEN LIGHT LENS WCI 3205904 Contact Us For Availability
19
STARTER - FLUOR LIGHT WCI 08068062 Contact Us For Availability
19
TUBE BROIL FEED WCI 3131866 Contact Us For Availability
20
WCI 3017410 WCI 3017410 Contact Us For Availability
20
WCI 3017415 WCI 3017415 Contact Us For Availability
21
WCI 08008255 WCI 08008255 Contact Us For Availability
21
TERMINAL BOX WCI 08007985 Contact Us For Availability
22
TRIM - BACKGUARD WCI 08016294 Contact Us For Availability
22
PIN ELBOW MIXER WCI 08011470 Contact Us For Availability
23
WCI 3051511 WCI 3051511 Contact Us For Availability
23
WCI 08008071 WCI 08008071 Contact Us For Availability
23
SHIELD IGNITER WCI 3131871 Contact Us For Availability
24
WCI 08013296 WCI 08013296 Contact Us For Availability
24
WCI 3131873 WCI 3131873 Contact Us For Availability
24
LINER OVEN BACK WCI 3200915 Contact Us For Availability
25
WCI 08006417 WCI 08006417 Contact Us For Availability
25
BAFFLE - OVEN BURNER WCI 08011509 Contact Us For Availability
26
WCI 3131802 WCI 3131802 Contact Us For Availability
27
WCI 3131800 WCI 3131800 Contact Us For Availability
28
VENT BOX ASSEMBLY WCI 3016877 Contact Us For Availability
29
WCI 3934059 WCI 3934059 Contact Us For Availability
30
SHIELD-STORAGE DRWR WCI 08068050 Contact Us For Availability
31
WCI 08068046 WCI 08068046 Contact Us For Availability
32
WCI 08068032 WCI 08068032 Contact Us For Availability
33
WCI 3016975 WCI 3016975 Contact Us For Availability
34
WCI 32011070 WCI 32011070 Contact Us For Availability
35
COVER CONTROL VALVE WCI 08068039 Contact Us For Availability
36
SUPT - CONTROL VALVE WCI 3131831 Contact Us For Availability
37
WCI 3131833 WCI 3131833 Contact Us For Availability
38
Support,oven rear WCI 3051096 Contact Us For Availability
39
WCI 08068036 WCI 08068036 Contact Us For Availability
40
THERMOSTAT BAKE BROIL SELECT WCI 3131839 Contact Us For Availability
41
CLIP-BACKSPLASH COVER WCI 3131791 Contact Us For Availability
42
GROMMET PLASTIC WCI 3051063 Contact Us For Availability
43
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
44
WCI 3131795 WCI 3131795 Contact Us For Availability
44A
WCI 3131840 WCI 3131840 Contact Us For Availability
45
CHANNEL - MAIN WIRE WCI 3131046 Contact Us For Availability
× ![]()
