Model Electrolux GF980KXD0 RANGE – Common Parts & Diagrams

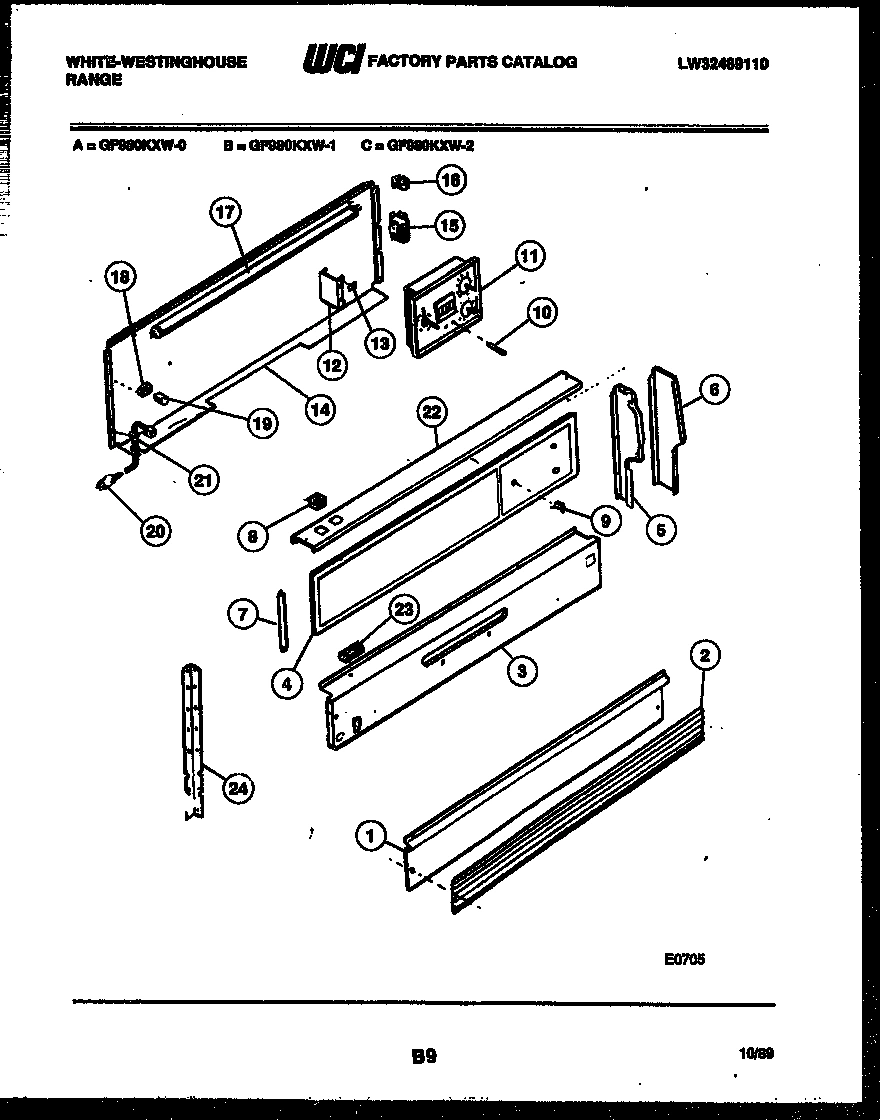

02 - BACKGUARD

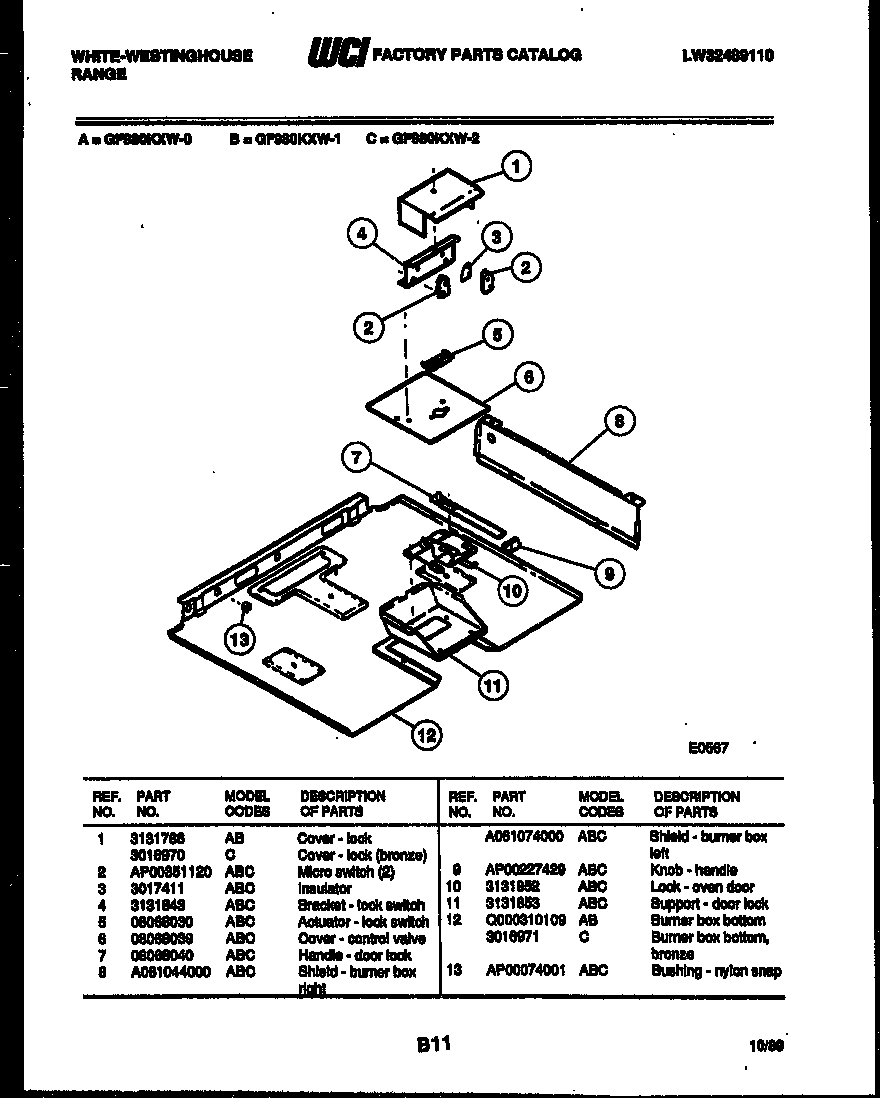

03 - BURNER BOX PARTS

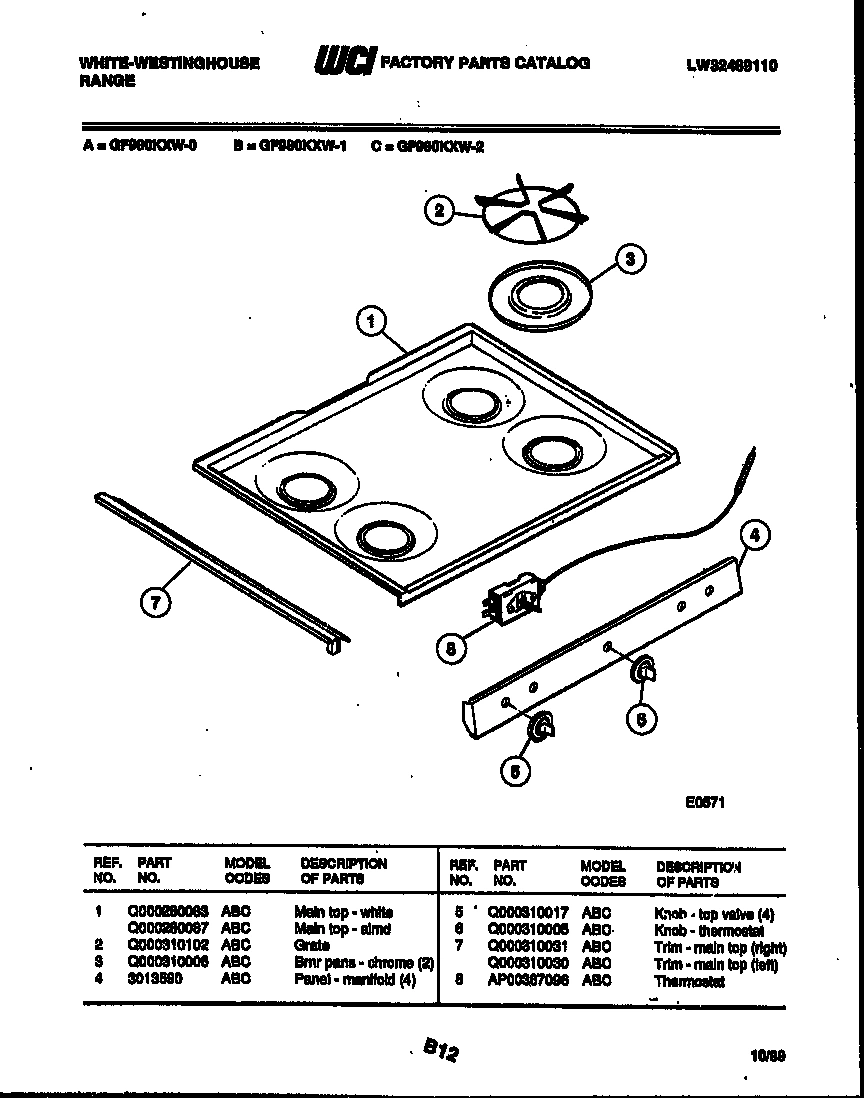

04 - COOKTOP PARTS

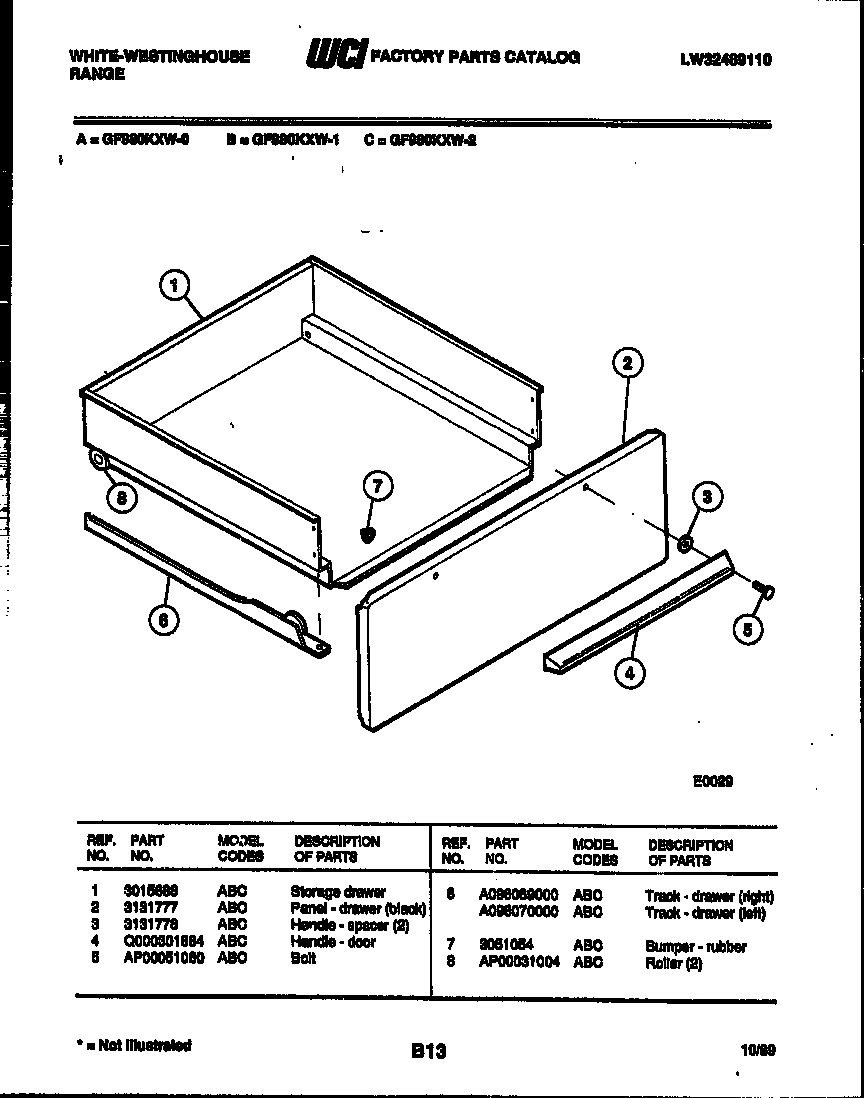

05 - DRAWER PARTS

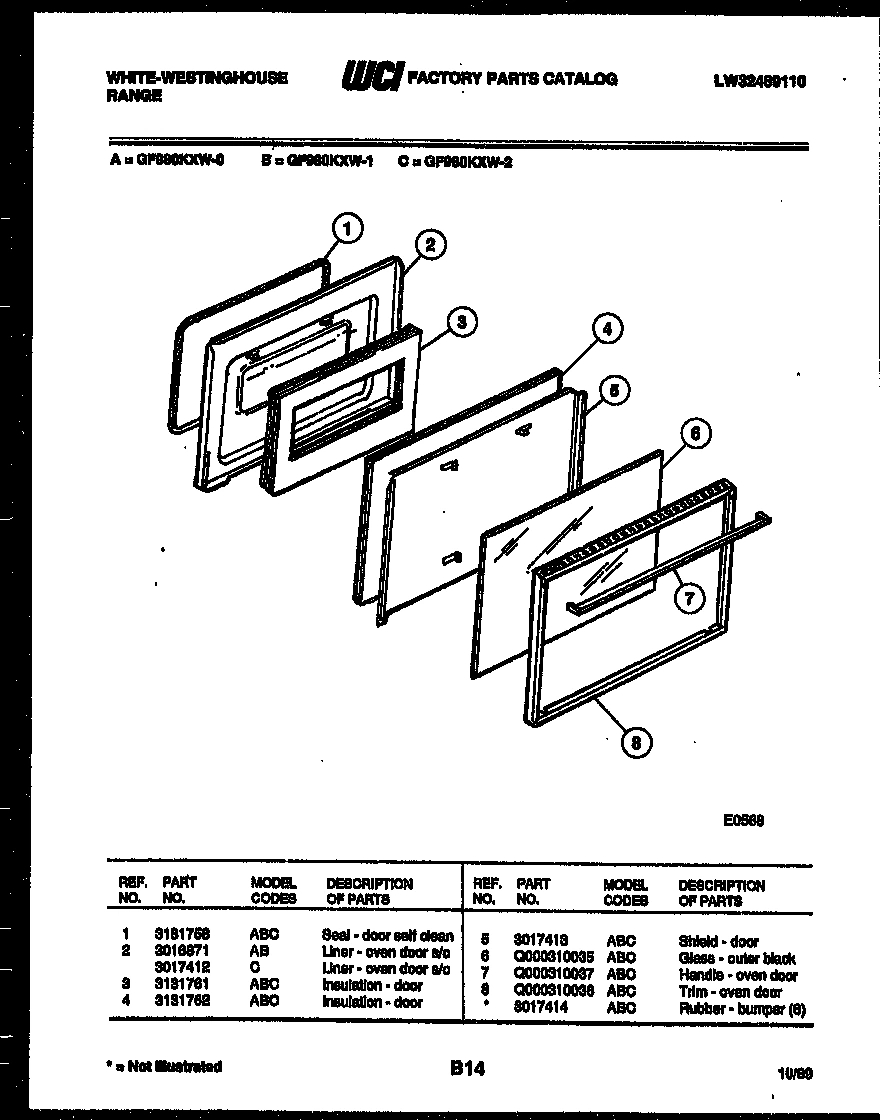

06 - DOOR PARTS

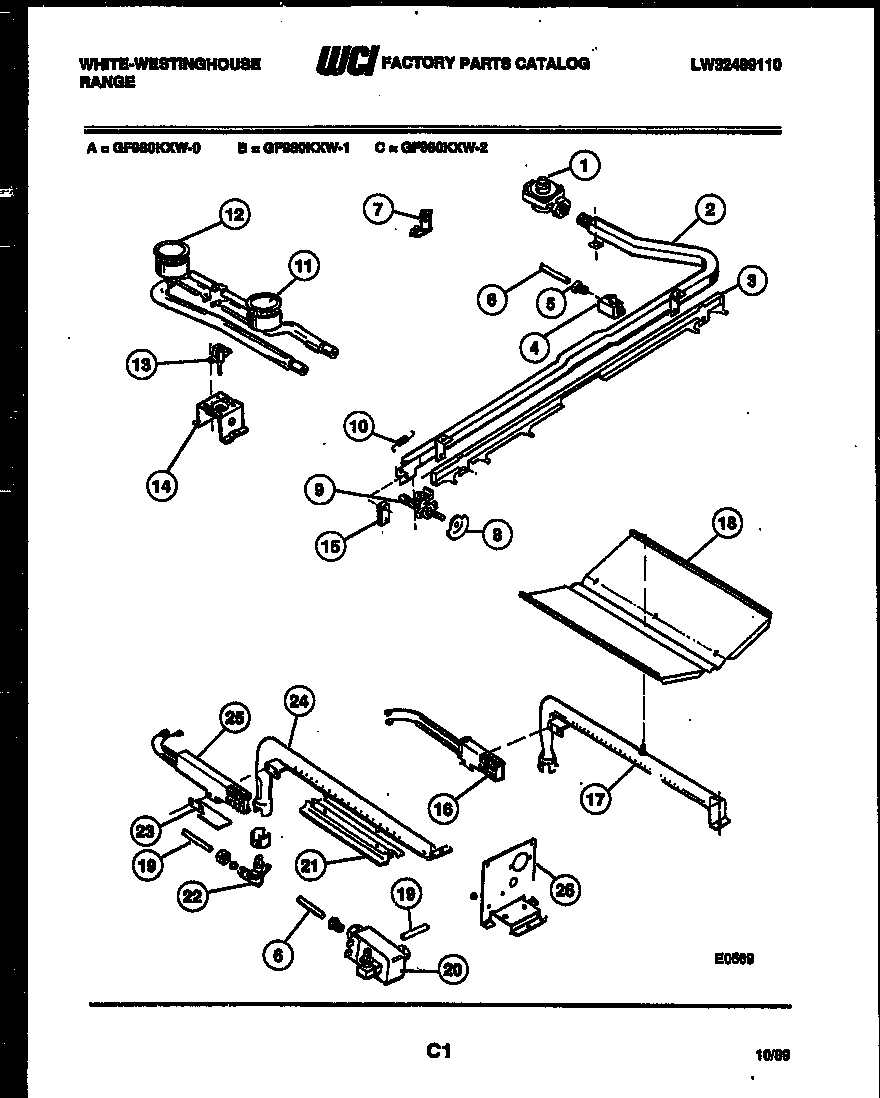

07 - BURNER, MANIFOLD AND GAS CONTROL

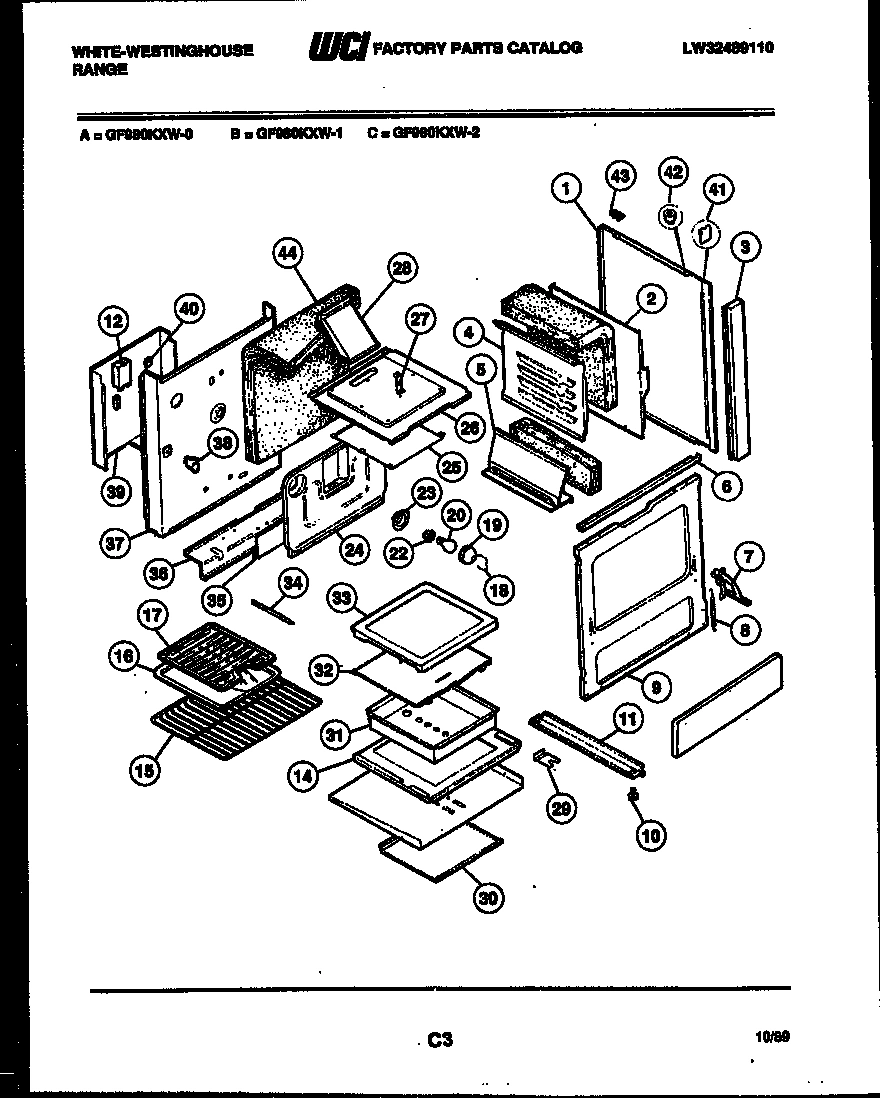

08 - BODY PARTS
Common parts from model Electrolux GF980KXD0 RANGE
*10192
RUBBER BUMPER (6) WCI 3017414 Contact Us For Availability
1
WCI AP00375260 WCI AP00375260 Contact Us For Availability
1
COVER-LOCK WCI 3131786 Contact Us For Availability
1
MAIN TOP - ALMD WCI Q000280087 Contact Us For Availability
1
WCI 3015688 WCI 3015688 Contact Us For Availability
1
WCI 08014619 WCI 08014619 Contact Us For Availability
2
WCI 3009482 WCI 3009482 Contact Us For Availability
2
WCI AP00351120 WCI AP00351120 Contact Us For Availability
2
GRATE WCI Q000310102 Contact Us For Availability
2
PANEL DRAWER BLACK WCI 3131777 Contact Us For Availability
2
WCI 3016871 WCI 3016871 Contact Us For Availability
2
WCI Q000301855 WCI Q000301855 Contact Us For Availability
2
SHIELD SIDE HEAT (2) WCI 3131794 Contact Us For Availability
3
WCI 3017485 WCI 3017485 Contact Us For Availability
3
WCI 3017411 WCI 3017411 Contact Us For Availability
3
BRNR PANS - CHROME (2) WCI Q000310006 Contact Us For Availability
3
HANDLE SPACER (2) WCI 3131778 Contact Us For Availability
3
WCI 3131761 WCI 3131761 Contact Us For Availability
3
WCI Q000301857 WCI Q000301857 Contact Us For Availability
3
WCI Q000310079 WCI Q000310079 Contact Us For Availability
4
WCI Q000301890 WCI Q000301890 Contact Us For Availability
4
BRACKET LOCK SWITCH WCI 3131843 Contact Us For Availability
4
PANEL MANIFOLD (4) WCI 3013590 Contact Us For Availability
4
HANDLE - DOOR WCI Q000301884 Contact Us For Availability
4
WCI 3131762 WCI 3131762 Contact Us For Availability
4
WCI AP00385174 WCI AP00385174 Contact Us For Availability
4
LINER-RIGHT SIDE WCI 3131796 Contact Us For Availability
4A
LINER-LEFT SIDE WCI 3131797 Contact Us For Availability
5
WCI 08068030 WCI 08068030 Contact Us For Availability
5
KNOB - TOP VALVE (4) WCI Q000310017 Contact Us For Availability
5
SHIELD-DOOR WCI 3017413 Contact Us For Availability
5
NUT - 3/8 LOXIT WCI AP00269017 Contact Us For Availability
5
RETAINER - BTTM INSUL WCI 3131820 Contact Us For Availability
5A
WCI A010854000 WCI A010854000 Contact Us For Availability
5A
WCI A018055000 WCI A018055000 Contact Us For Availability
6
WCI AP00375348 WCI AP00375348 Contact Us For Availability
6
COVER CONTROL VALVE WCI 08068039 Contact Us For Availability
6
WCI Q000310005 WCI Q000310005 Contact Us For Availability
6
TRACK - DRAWER (RIGHT) WCI A096069000 Contact Us For Availability
6
WCI Q000310035 WCI Q000310035 Contact Us For Availability
6
WCI 3131863 WCI 3131863 Contact Us For Availability
6A
WCI AP00375349 WCI AP00375349 Contact Us For Availability
6A
TRACK - DRAWER (LEFT) WCI A096070000 Contact Us For Availability
7
TRIM-BACKGUARD GL (2) WCI 3009472 Contact Us For Availability
7
WCI 08068040 WCI 08068040 Contact Us For Availability
7
WCI Q000310031 WCI Q000310031 Contact Us For Availability
7
WCI 3051054 WCI 3051054 Contact Us For Availability
7
WCI Q000310037 WCI Q000310037 Contact Us For Availability
7
CLIP - CAPILLARY (2) WCI AP00091011 Contact Us For Availability
7
HINGE-OVEN DR RIGHT WCI A096068000 Contact Us For Availability
7A
WCI Q000310030 WCI Q000310030 Contact Us For Availability
8
SHIELD-BURNER BOX RIGHT WCI A061044000 Contact Us For Availability
8
WCI AP00367096 WCI AP00367096 Contact Us For Availability
8
ROLLER (2) WCI AP00031004 Contact Us For Availability
8
WCI Q000310036 WCI Q000310036 Contact Us For Availability
8
CAM - TOP BURNER (4) WCI Q000301875 Contact Us For Availability
8
SPRING - OVEN DR (2) WCI AP00339038 Contact Us For Availability
8A
SHIELD-BURNER BOX LEFT WCI A061074000 Contact Us For Availability
9
KNOB - CLOCK (3) WCI AP00227361 Contact Us For Availability
9
WCI AP00227429 WCI AP00227429 Contact Us For Availability
9
VALVE-TOP BURNERS (4) WCI Q000301870 Contact Us For Availability
9
FRAME-FRONT WCI 3131812 Contact Us For Availability
10
LIGHT - IND CLEAN (2) WCI AP00287030 Contact Us For Availability
10
LOCK-OVEN DOOR WCI 3131852 Contact Us For Availability
10
WCI Q000301869 WCI Q000301869 Contact Us For Availability
10
LEG-LEVELER (4) WCI Q000310108 Contact Us For Availability
11
WCI 3017328 WCI 3017328 Contact Us For Availability
11
WCI 3131853 WCI 3131853 Contact Us For Availability
11
BURNER-FRONT TOP (2) WCI Q002500101 Contact Us For Availability
11
RAIL BASE (2) WCI A098373000 Contact Us For Availability
12
WCI A018057000 WCI A018057000 Contact Us For Availability
12
WCI Q000310109 WCI Q000310109 Contact Us For Availability
12
BURNER-REAR TOP (2) WCI Q002500102 Contact Us For Availability
13
SPEED - NUT (4) WCI AP00267022 Contact Us For Availability
13
BUSHING-NYLON SNAP WCI AP00074001 Contact Us For Availability
13
IGNITER TOP (2) WCI 3016869 Contact Us For Availability
14
WCI 3017486 WCI 3017486 Contact Us For Availability
14
SUPT - TOP BURNER (2) WCI Q000310070 Contact Us For Availability
14
LINING-OVEN BOTTOM WCI 3131821 Contact Us For Availability
15
WCI AP00025002 WCI AP00025002 Contact Us For Availability
15
SWITCH-MICRO FRONT MTG WCI Q000301874 Contact Us For Availability
15
WCI 3015714 WCI 3015714 Contact Us For Availability
16
WCI Q000310100 WCI Q000310100 Contact Us For Availability
16
WCI A053008001 WCI A053008001 Contact Us For Availability
16A
WCI Q000310101 WCI Q000310101 Contact Us For Availability
17
WCI AP00067008 WCI AP00067008 Contact Us For Availability
17
WCI 3131860 WCI 3131860 Contact Us For Availability
17
WCI AP043003001 WCI AP043003001 Contact Us For Availability
18
BASE STARTER WCI Q000310106 Contact Us For Availability
18
RETAINER-OVEN LIGHT LENS WCI 3131810 Contact Us For Availability
19
WCI Q000310105 WCI Q000310105 Contact Us For Availability
19
TUBE BROIL FEED WCI 3131866 Contact Us For Availability
20
WCI 3017410 WCI 3017410 Contact Us For Availability
20
WCI 3017415 WCI 3017415 Contact Us For Availability
21
WCI AP00312003 WCI AP00312003 Contact Us For Availability
21
WCI 08011509 WCI 08011509 Contact Us For Availability
22
WCI Q000310104 WCI Q000310104 Contact Us For Availability
22
WCI AP00279042 WCI AP00279042 Contact Us For Availability
23
WCI AP00042003 WCI AP00042003 Contact Us For Availability
23
WCI A061077000 WCI A061077000 Contact Us For Availability
24
WCI A016029000 WCI A016029000 Contact Us For Availability
24
WCI AP00072029 WCI AP00072029 Contact Us For Availability
24
WCI 3131804 WCI 3131804 Contact Us For Availability
25
WCI A00901100 WCI A00901100 Contact Us For Availability
26
WCI A074055000 WCI A074055000 Contact Us For Availability
26
WCI 3131802 WCI 3131802 Contact Us For Availability
27
WCI A018080000 WCI A018080000 Contact Us For Availability
28
VENT BOX ASSEMBLY WCI 3016877 Contact Us For Availability
29
WCI 3131041 WCI 3131041 Contact Us For Availability
30
WCI 3131819 WCI 3131819 Contact Us For Availability
31
WCI 3131822 WCI 3131822 Contact Us For Availability
32
PLATE - OVEN BAFFLE WCI 08011508 Contact Us For Availability
33
WCI 3131824 WCI 3131824 Contact Us For Availability
34
SHIELD-CAPILLARY BULB WCI 3016976 Contact Us For Availability
35
COVER-CONTROL VALVE WCI 3131830 Contact Us For Availability
36
SUPT - CONTROL VALVE WCI A074076000 Contact Us For Availability
37
WCI 08068031 WCI 08068031 Contact Us For Availability
38
WCI A074060000 WCI A074060000 Contact Us For Availability
39
WCI 3131835 WCI 3131835 Contact Us For Availability
40
THERMOSTAT BAKE BROIL SELECT WCI 3131839 Contact Us For Availability
41
CLIP-BACKSPLASH COVER WCI 3009582 Contact Us For Availability
42
WCI AP00172002 WCI AP00172002 Contact Us For Availability
43
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
44
WCI 3131795 WCI 3131795 Contact Us For Availability
44A
WCI 3131840 WCI 3131840 Contact Us For Availability
× ![]()
