Model Electrolux GF980HXF2 RANGE – Common Parts & Diagrams

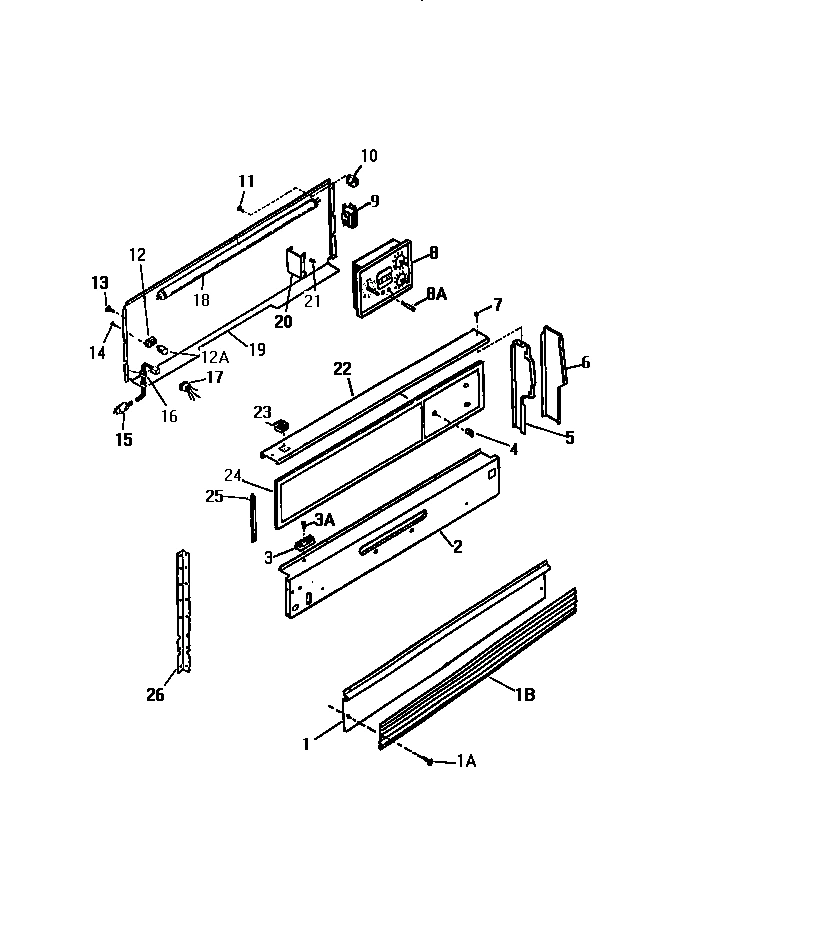

02 - BACKGUARD

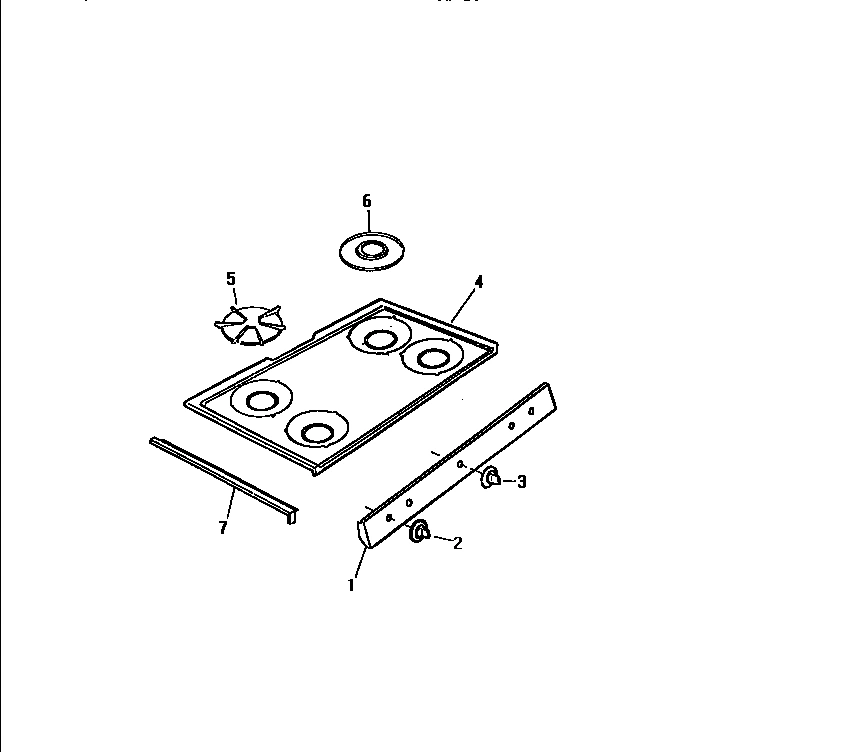

03 - TOP, CONTROL PANEL

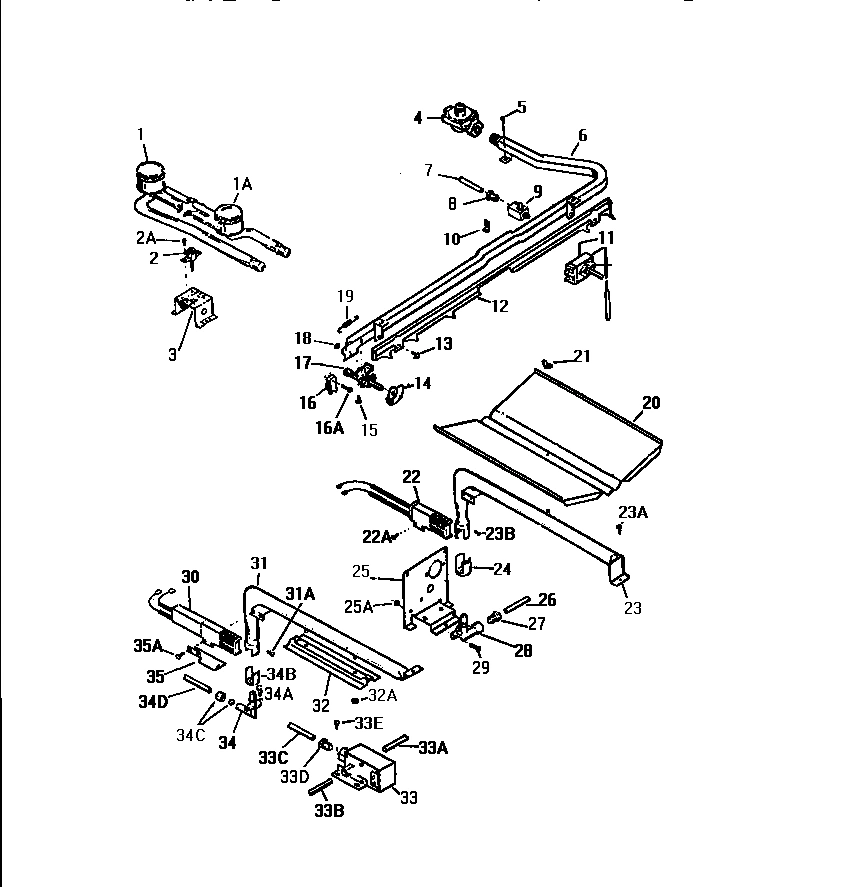

04 - BURNER ASSEMBLY

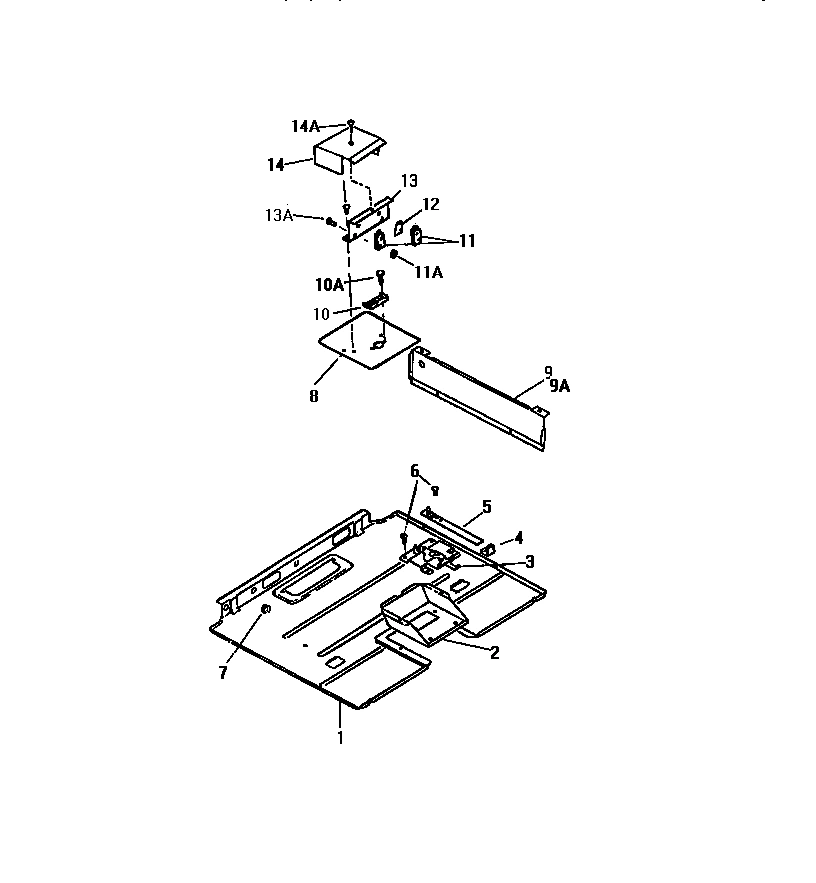

05 - BURNER PANEL

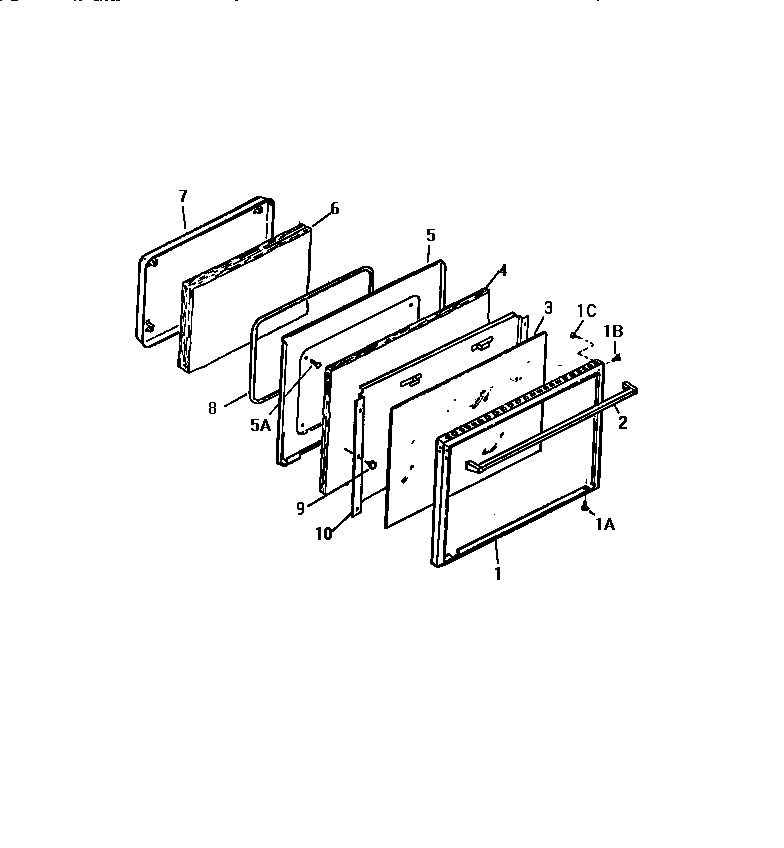

06 - DOOR

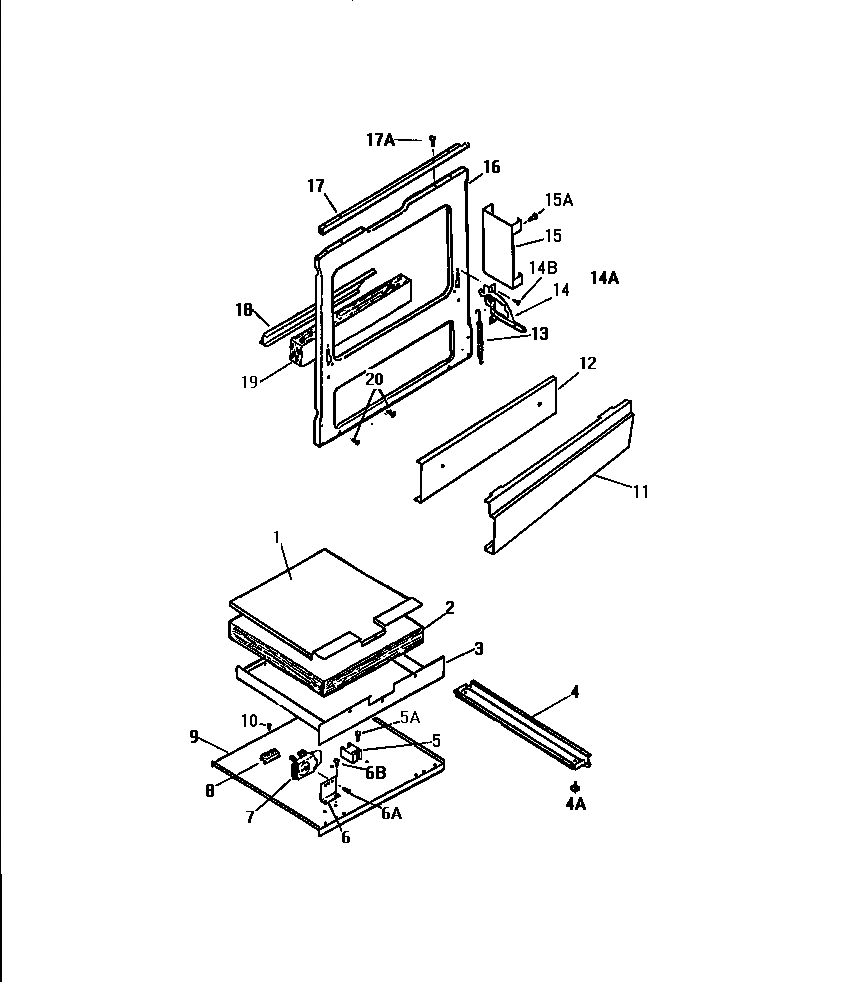

07 - FRAME, SERVICE PANEL, BASE

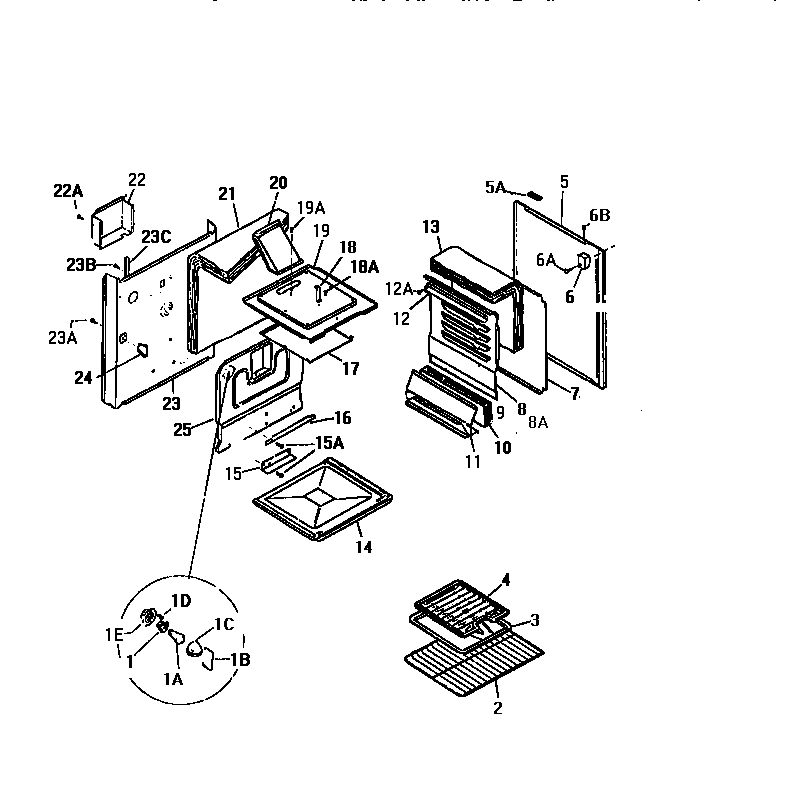

08 - BODY, SIDE PANELS
Common parts from model Electrolux GF980HXF2 RANGE
1
WCI AP375260 WCI AP375260 Contact Us For Availability
1
WCI Q280099 WCI Q280099 Contact Us For Availability
1
WCI Q301365 WCI Q301365 Contact Us For Availability
1
WCI Q310109 WCI Q310109 Contact Us For Availability
1
WCI Q310036 WCI Q310036 Contact Us For Availability
1
WCI A78002000 WCI A78002000 Contact Us For Availability
1
WCI Q310061 WCI Q310061 Contact Us For Availability
1A
WCI Q310056 WCI Q310056 Contact Us For Availability
1A
BURNER, FRONT WCI Q301861 Contact Us For Availability
1A
SCREW WCI AP053033 Contact Us For Availability
1A
WCI Q63749 WCI Q63749 Contact Us For Availability
1B
WCI Q301892 WCI Q301892 Contact Us For Availability
1B
RETAINING WIRE WCI K1325529 Contact Us For Availability
1C
SCREW WCI AP057025 Contact Us For Availability
1E
WCI Q310063 WCI Q310063 Contact Us For Availability
2
WCI A52018000 WCI A52018000 Contact Us For Availability
2
KNOB, BURNER WCI Q310017 Contact Us For Availability
2
IGNITOR WCI Q301863 Contact Us For Availability
2
WCI A7407500 WCI A7407500 Contact Us For Availability
2
WCI Q310037 WCI Q310037 Contact Us For Availability
2
INSULATION WCI AP207057 Contact Us For Availability
2
RACK WCI AP301046 Contact Us For Availability
3
WCI Q310005 WCI Q310005 Contact Us For Availability
3
SUPPORT WCI Q301866 Contact Us For Availability
3
LATCH, OVEN DOOR WCI AP239001 Contact Us For Availability
3
WCI Q310035 WCI Q310035 Contact Us For Availability
3
SERVICE DRAWER, BOTTOM WCI A11066000 Contact Us For Availability
3
PAN WCI A53008001 Contact Us For Availability
4
KNOB (3) WCI AP227361 Contact Us For Availability
4
WCI Q280084 WCI Q280084 Contact Us For Availability
4
KNOB WCI AP227429 Contact Us For Availability
4
WCI Q310033 WCI Q310033 Contact Us For Availability
4
BASE RAIL WCI A98373000 Contact Us For Availability
4
GRID WCI A43003001 Contact Us For Availability
4A
LEVELING LEG WCI Q310108 Contact Us For Availability
5
WCI A18054000 WCI A18054000 Contact Us For Availability
5
WCI Q310102 WCI Q310102 Contact Us For Availability
5
WCI Q301913 WCI Q301913 Contact Us For Availability
5
WCI A98369000 WCI A98369000 Contact Us For Availability
5
MODULE WCI Q301950 Contact Us For Availability
5
SIDE PANEL, LH & RH, COFFEE WCI Q301943 Contact Us For Availability
5A
BRACKET, LH (NON-ILLUSTRATED) WCI A18055000 Contact Us For Availability
5A
WCI Q301831 WCI Q301831 Contact Us For Availability
6
WCI AP375349 WCI AP375349 Contact Us For Availability
6
CHROME BOWL WCI Q310006 Contact Us For Availability
6
WCI Q301855 WCI Q301855 Contact Us For Availability
6
WCI Q310032 WCI Q310032 Contact Us For Availability
6
WCI A18081000 WCI A18081000 Contact Us For Availability
6
PAD, CORNER (2) WCI Q310084 Contact Us For Availability
6A
END CAP, LH (NON-ILLUSTRATED) WCI AP375348 Contact Us For Availability
6A
SCREW WCI AP049001 Contact Us For Availability
6B
WCI AP172002 WCI AP172002 Contact Us For Availability
7
SCREW WCI AP056004 Contact Us For Availability
7
WCI Q310030 WCI Q310030 Contact Us For Availability
7
WCI AP074001 WCI AP074001 Contact Us For Availability
7
PANEL I.D. WCI A98368000 Contact Us For Availability
7
TIMER, CLEAN WCI AP371002 Contact Us For Availability
7
WCI A6107600 WCI A6107600 Contact Us For Availability
7A
TRIM, PLATFORM, RH (NON-ILLUSTRATED) WCI Q310031 Contact Us For Availability
8
TERMINAL, BLOCK WCI AP042003 Contact Us For Availability
8
WCI AP095183 WCI AP095183 Contact Us For Availability
8
LOCK NUT WCI AP269017 Contact Us For Availability
8
COVER, LATCH WCI A32141000 Contact Us For Availability
8
SEAL, DOOR WCI AP326054 Contact Us For Availability
8
LINING, SIDE, RH WCI A51137000 Contact Us For Availability
8A
INDICATOR LIGHT (2) WCI AP287030 Contact Us For Availability
8A
LINING, SIDE, LH WCI A51138000 Contact Us For Availability
9
WCI AP025002 WCI AP025002 Contact Us For Availability
9
VALVE WCI AP385174 Contact Us For Availability
9
HEAT SHIELD-RH WCI A61044000 Contact Us For Availability
9
WCI Q310034 WCI Q310034 Contact Us For Availability
9
BOTTOM WCI A11069000 Contact Us For Availability
9A
WCI A6107400 WCI A6107400 Contact Us For Availability
10
WCI Q310100 WCI Q310100 Contact Us For Availability
10
CLIP, CAP. TUBE WCI AP091011 Contact Us For Availability
10
WCI A2001000 WCI A2001000 Contact Us For Availability
10
WCI Q310038 WCI Q310038 Contact Us For Availability
10
SCREW WCI AP051022 Contact Us For Availability
10
INSULATION WCI AP207061 Contact Us For Availability
10A
LAMP HOLDER, LH (NON-ILLUSTRATED) WCI Q310101 Contact Us For Availability
11
THERMOSTAT WCI AP367096 Contact Us For Availability
11
SWITCH, MICRO WCI AP351120 Contact Us For Availability
11
SERVICE PANEL, COFFEE WCI Q301953 Contact Us For Availability
11
RETAINER WCI A98370000 Contact Us For Availability
11A
NUT WCI AP265009 Contact Us For Availability
12
WCI Q310106 WCI Q310106 Contact Us For Availability
12
SLIDE BAR WCI Q301867 Contact Us For Availability
12
INSULATOR WCI AP208012 Contact Us For Availability
12
WCI Q301851 WCI Q301851 Contact Us For Availability
12
SHIELD WCI A61075000 Contact Us For Availability
12A
WCI Q310105 WCI Q310105 Contact Us For Availability
13
BRACKET WCI A18082000 Contact Us For Availability
13
SPRING WCI AP339042 Contact Us For Availability
13
INSULATION WCI AP207055 Contact Us For Availability
13A
SCREW WCI AP051046 Contact Us For Availability
14
WCI Q310103 WCI Q310103 Contact Us For Availability
14
CAM, VALVE WCI Q301875 Contact Us For Availability
14
WCI Q301912 WCI Q301912 Contact Us For Availability
14
HINGE, RH WCI A96068000 Contact Us For Availability
14
LINING, BOTTOM WCI A51103002 Contact Us For Availability
15
WCI A99233000 WCI A99233000 Contact Us For Availability
15
WCI Q310002 WCI Q310002 Contact Us For Availability
15
RETAINER WCI A57020000 Contact Us For Availability
15
BRACKET WCI A18083000 Contact Us For Availability
16
WCI AP312003 WCI AP312003 Contact Us For Availability
16
WCI Q301874 WCI Q301874 Contact Us For Availability
16
FRAME WCI A98374000 Contact Us For Availability
16
SUPPORT WCI A74055000 Contact Us For Availability
16A
SCREW WCI AP055031 Contact Us For Availability
17
HARNESS WCI A99228000 Contact Us For Availability
17
VALVE WCI Q301870 Contact Us For Availability
17
WCI A74064000 WCI A74064000 Contact Us For Availability
17
WCI A9011000 WCI A9011000 Contact Us For Availability
18
WCI AP067008 WCI AP067008 Contact Us For Availability
18
RETAINER WCI A98371000 Contact Us For Availability
18
BRACKET WCI A18080000 Contact Us For Availability
19
WCI A47027000 WCI A47027000 Contact Us For Availability
19
WCI Q301869 WCI Q301869 Contact Us For Availability
19
INSULATION WCI AP207056 Contact Us For Availability
19
LINING, TOP WCI A51135000 Contact Us For Availability
20
WCI A18057000 WCI A18057000 Contact Us For Availability
20
SCREW WCI Q301839 Contact Us For Availability
20
BAFFLE WCI A09010000 Contact Us For Availability
20
BOX, VENT WCI A92049000 Contact Us For Availability
21
CLIP WCI AP267022 Contact Us For Availability
21
WING NUT WCI AP269004 Contact Us For Availability
21
INSULATION WCI AP207054 Contact Us For Availability
22
WCI Q310104 WCI Q310104 Contact Us For Availability
22
WCI Q310040 WCI Q310040 Contact Us For Availability
23
SWITCH WCI Q310098 Contact Us For Availability
23
BURNER, BAKE WCI AP072028 Contact Us For Availability
23
WCI A5081000 WCI A5081000 Contact Us For Availability
23B
SCREW WCI AP051056 Contact Us For Availability
23B
SCREW WCI AP325005 Contact Us For Availability
23C
CHANNEL WCI Q310003 Contact Us For Availability
24
WCI Q301890 WCI Q301890 Contact Us For Availability
24
SUPPORT WCI A74060000 Contact Us For Availability
25
WCI A82056000 WCI A82056000 Contact Us For Availability
25
SUPPORT WCI A74054000 Contact Us For Availability
25
WCI Q310078 WCI Q310078 Contact Us For Availability
26
BRACK, LH & RH WCI Q301891 Contact Us For Availability
27
NUT WCI AP269033 Contact Us For Availability
28
MIXER WCI AP279043 Contact Us For Availability
31
BURNER, BROIL WCI AP072029 Contact Us For Availability
31A
WCI AP325006 WCI AP325006 Contact Us For Availability
32
BAFFLE WCI A09005000 Contact Us For Availability
32A
NUT WCI AP265008 Contact Us For Availability
33
VALVE WCI AP385188 Contact Us For Availability
33B
TUBING WCI AP377127 Contact Us For Availability
33C
WCI Q301868 WCI Q301868 Contact Us For Availability
33D
NUT WCI AP269040 Contact Us For Availability
34
MIXER WCI AP279042 Contact Us For Availability
34B
SHUTTER WCI AP330001 Contact Us For Availability
34C
NUT & FERRULE WCI AP269016 Contact Us For Availability
34D
TUBING WCI AP377128 Contact Us For Availability
35
SHIELD WCI A61077000 Contact Us For Availability
× ![]()
