Model Electrolux GF970HXH0 RANGE – Common Parts & Diagrams

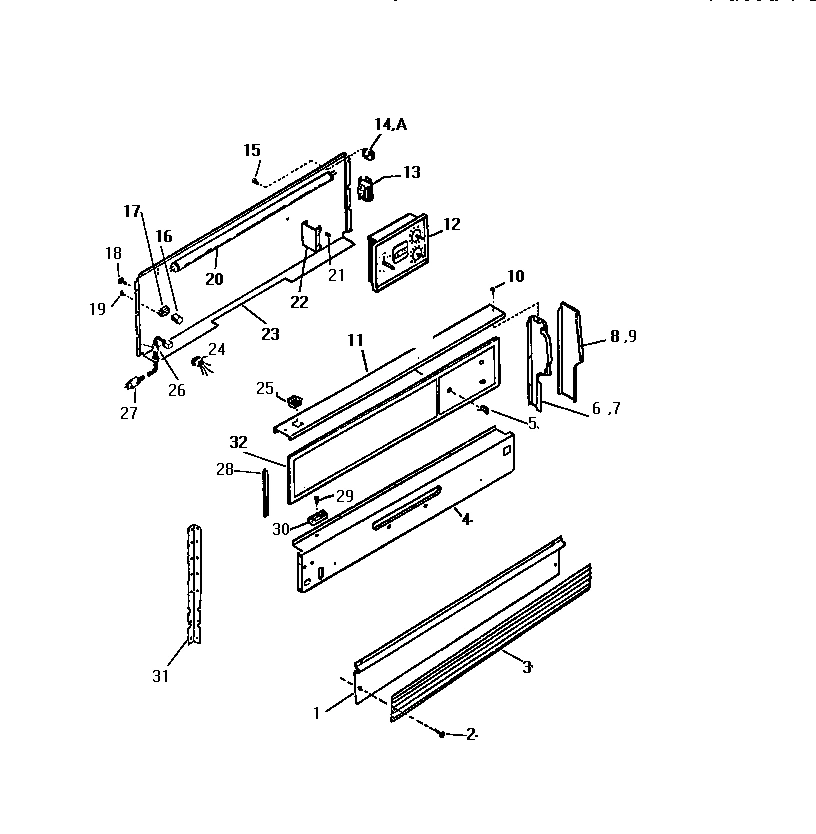

02 - BACKGUARD

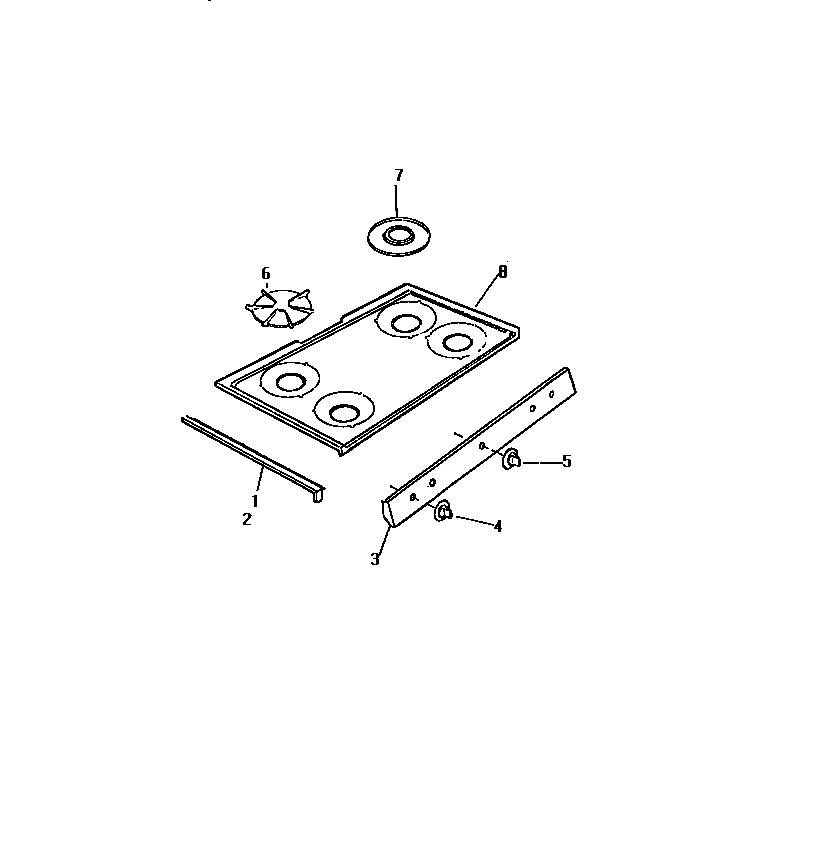

03 - TOP, CONTROL PANEL

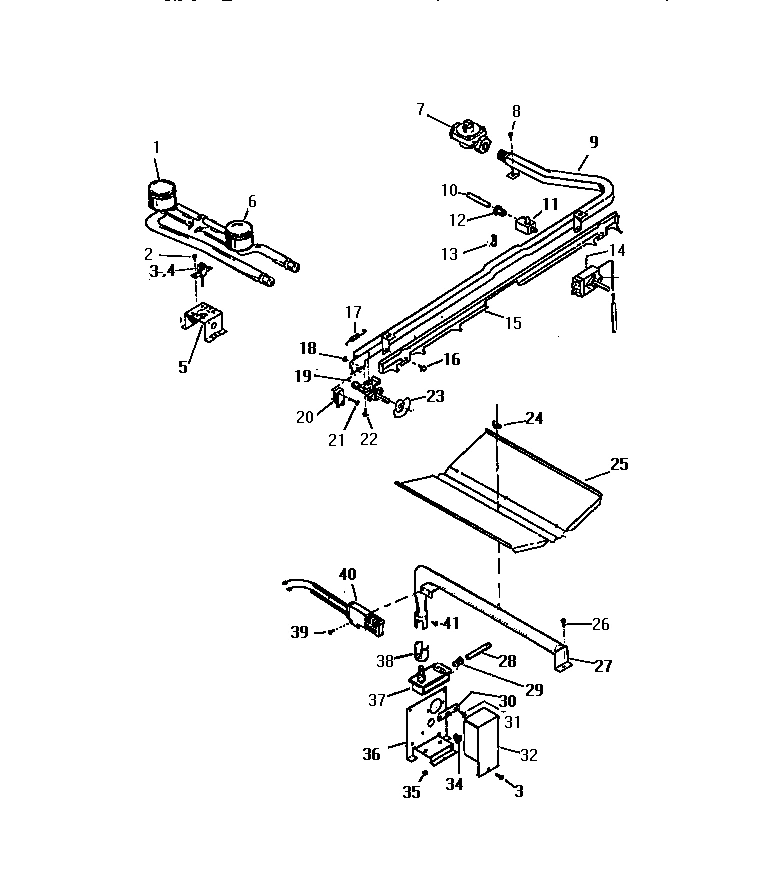

04 - BURNER ASSEMBLY

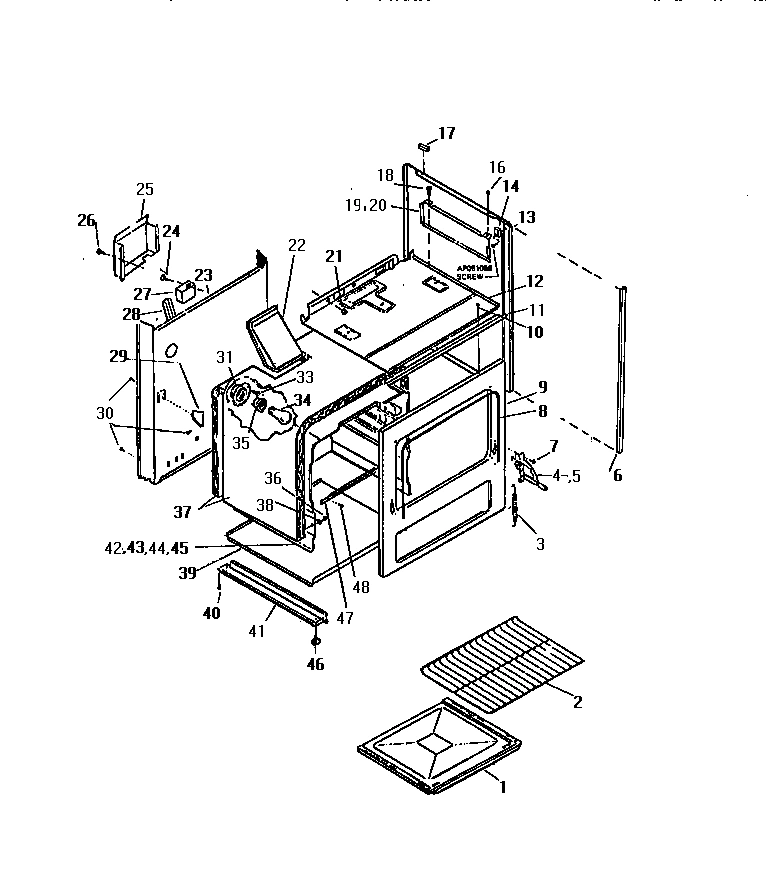

05 - BODY

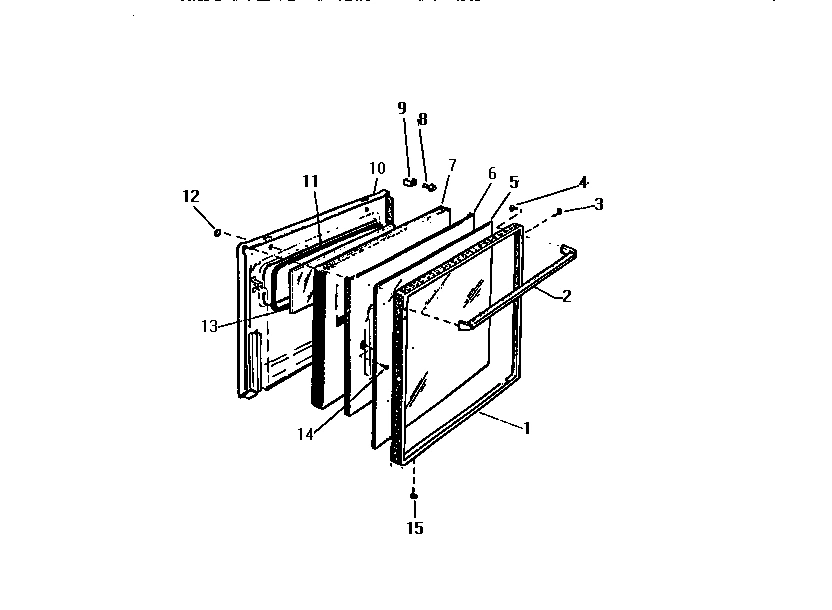

06 - DOOR

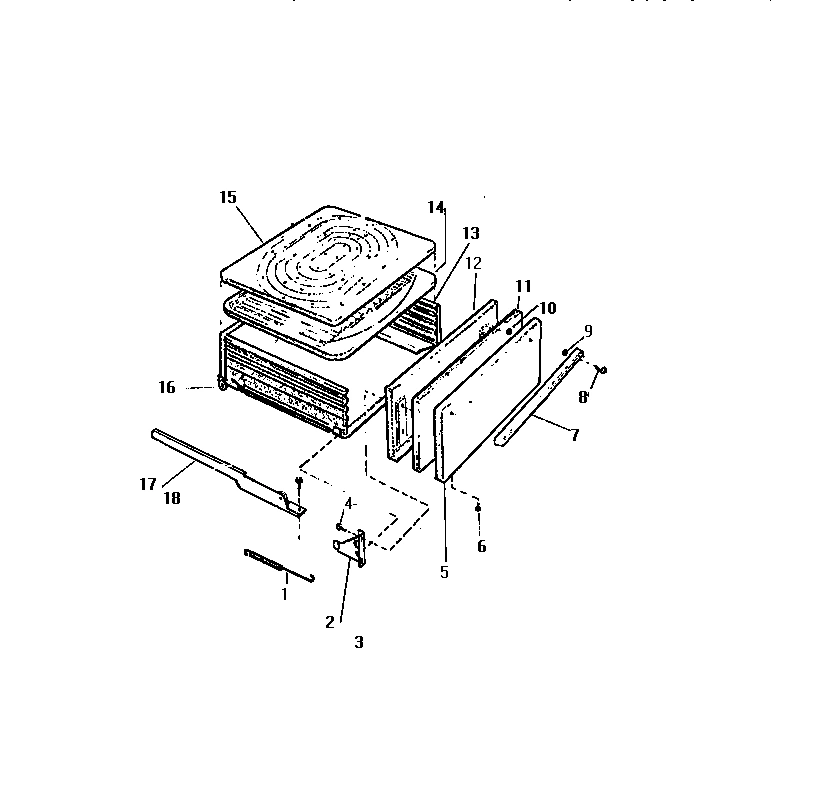

07 - BROILER DRAWER
Common parts from model Electrolux GF970HXH0 RANGE
1
WCI AP375260 WCI AP375260 Contact Us For Availability
1
WCI Q310030 WCI Q310030 Contact Us For Availability
1
BURNER, REAR WCI Q301865 Contact Us For Availability
1
WCI Q301977 WCI Q301977 Contact Us For Availability
1
WCI Q301938 WCI Q301938 Contact Us For Availability
1
SPRING WCI AP339050 Contact Us For Availability
2
WCI Q310056 WCI Q310056 Contact Us For Availability
2
WCI Q310031 WCI Q310031 Contact Us For Availability
2
RACK WCI AP301046 Contact Us For Availability
2
WCI Q301935 WCI Q301935 Contact Us For Availability
2
HINGE-LH WCI A46011000 Contact Us For Availability
3
WCI Q301892 WCI Q301892 Contact Us For Availability
3
WCI Q280099 WCI Q280099 Contact Us For Availability
3
WCI Q301862 WCI Q301862 Contact Us For Availability
3
SPRING WCI AP339042 Contact Us For Availability
3
HINGE-RH WCI A46010000 Contact Us For Availability
4
WCI A52018000 WCI A52018000 Contact Us For Availability
4
KNOB, BURNER WCI Q310017 Contact Us For Availability
4
WCI Q301864 WCI Q301864 Contact Us For Availability
4
HINGE ASSY-RH WCI A96068000 Contact Us For Availability
5
KNOB (3) WCI AP227361 Contact Us For Availability
5
WCI Q310004 WCI Q310004 Contact Us For Availability
5
SUPPORT WCI Q301866 Contact Us For Availability
5
WCI Q301934 WCI Q301934 Contact Us For Availability
5
OUTER PANEL WCI A98349005 Contact Us For Availability
6
WCI A18054000 WCI A18054000 Contact Us For Availability
6
WCI AP16505 WCI AP16505 Contact Us For Availability
6
BURNER, FRONT WCI Q301861 Contact Us For Availability
6
SCREW WCI AP051056 Contact Us For Availability
6
WCI Q310079 WCI Q310079 Contact Us For Availability
6
SHIELD WCI A61080000 Contact Us For Availability
7
WCI A18055000 WCI A18055000 Contact Us For Availability
7
CHROME BOWL WCI Q310006 Contact Us For Availability
7
INSULATION WCI AP207038 Contact Us For Availability
7
WCI Q301884 WCI Q301884 Contact Us For Availability
8
WCI AP375349 WCI AP375349 Contact Us For Availability
8
WCI Q280086 WCI Q280086 Contact Us For Availability
8
SEAL WCI AP326052 Contact Us For Availability
8
WCI Q301937 WCI Q301937 Contact Us For Availability
9
WCI AP375348 WCI AP375348 Contact Us For Availability
9
WCI Q301855 WCI Q301855 Contact Us For Availability
9
WCI Q301967 WCI Q301967 Contact Us For Availability
9
WCI Q301936 WCI Q301936 Contact Us For Availability
9
WCI Q61664 WCI Q61664 Contact Us For Availability
10
SCREW WCI AP056004 Contact Us For Availability
10
NUT WCI AP265008 Contact Us For Availability
10
WCI Q301930 WCI Q301930 Contact Us For Availability
11
WCI AP375263 WCI AP375263 Contact Us For Availability
11
VALVE WCI AP385174 Contact Us For Availability
11
WCI A74076000 WCI A74076000 Contact Us For Availability
11
SEAL WCI AP326048 Contact Us For Availability
11
WCI Q138829 WCI Q138829 Contact Us For Availability
12
WCI Q310080 WCI Q310080 Contact Us For Availability
12
WCI Q301107 WCI Q301107 Contact Us For Availability
12
PLUG WCI AP075019 Contact Us For Availability
12
WCI Q301882 WCI Q301882 Contact Us For Availability
13
WCI AP0525002 WCI AP0525002 Contact Us For Availability
13
CLIP, CAP. TUBE WCI AP091011 Contact Us For Availability
13
BODY PANEL, WHEAT WCI Q301945 Contact Us For Availability
13
WCI AP161230 WCI AP161230 Contact Us For Availability
13
WCI Q301881 WCI Q301881 Contact Us For Availability
14
WCI AP231011 WCI AP231011 Contact Us For Availability
14
WCI Q301858 WCI Q301858 Contact Us For Availability
14
PAD, CORNER (2) WCI Q310084 Contact Us For Availability
14
BOLT WCI AP051052 Contact Us For Availability
14
PAN, BROIL WCI A53002000 Contact Us For Availability
14A
LAMPHOLDER, RH WCI AP231009 Contact Us For Availability
15
WCI Q301857 WCI Q301857 Contact Us For Availability
15
SCREW WCI AP053033 Contact Us For Availability
15
GRID, BROIL WCI A43001000 Contact Us For Availability
16
WCI Q301839 WCI Q301839 Contact Us For Availability
16
WCI AP172002 WCI AP172002 Contact Us For Availability
16
ROLLER WCI AP031004 Contact Us For Availability
17
WCI Q301869 WCI Q301869 Contact Us For Availability
17
WCI Q301831 WCI Q301831 Contact Us For Availability
17
WCI A9607000 WCI A9607000 Contact Us For Availability
18
NUT WCI AP265009 Contact Us For Availability
18
TRACK ASSY.-RH WCI A96069000 Contact Us For Availability
19
VALVE WCI Q301870 Contact Us For Availability
19
HEAT SHELD, RH WCI A61044000 Contact Us For Availability
20
WCI AP067008 WCI AP067008 Contact Us For Availability
20
WCI Q301874 WCI Q301874 Contact Us For Availability
20
HEAT SHIELD-LH WCI A61074000 Contact Us For Availability
21
CLIP WCI AP267022 Contact Us For Availability
21
SCREW WCI AP055031 Contact Us For Availability
21
WCI AP074001 WCI AP074001 Contact Us For Availability
22
WCI A18057000 WCI A18057000 Contact Us For Availability
22
WCI Q310002 WCI Q310002 Contact Us For Availability
22
VENT BOXC WCI A92049000 Contact Us For Availability
23
WCI Q310081 WCI Q310081 Contact Us For Availability
23
CAM, VALVE WCI Q301875 Contact Us For Availability
23
WCI A5087000 WCI A5087000 Contact Us For Availability
24
HARNESS WCI Q301969 Contact Us For Availability
24
WING NUT WCI AP269004 Contact Us For Availability
25
WCI AP351107 WCI AP351107 Contact Us For Availability
25
BAFFLE WCI A9010000 Contact Us For Availability
25
COVER, MODULE WCI A32137000 Contact Us For Availability
26
WCI AP312003 WCI AP312003 Contact Us For Availability
27
WCI Q310083 WCI Q310083 Contact Us For Availability
27
BURNER WCI AP072025 Contact Us For Availability
27
WCI Q301950 WCI Q301950 Contact Us For Availability
28
WCI A82056000 WCI A82056000 Contact Us For Availability
28
WCI Q301867 WCI Q301867 Contact Us For Availability
28
WCI Q310003 WCI Q310003 Contact Us For Availability
29
NUT WCI AP269017 Contact Us For Availability
29
SUPPORT WCI A7406000 Contact Us For Availability
30
WCI AP042033 WCI AP042033 Contact Us For Availability
30
TERMINAL BLOCK WCI AP042025 Contact Us For Availability
31
BRACE, LH & RH WCI Q301891 Contact Us For Availability
31
WCI Q310063 WCI Q310063 Contact Us For Availability
32
WCI Q310082 WCI Q310082 Contact Us For Availability
32
VALVE COVER WCI A32130000 Contact Us For Availability
34
WCI Q63749 WCI Q63749 Contact Us For Availability
35
WCI Q310061 WCI Q310061 Contact Us For Availability
36
SUPPORT WCI A74054000 Contact Us For Availability
36
WCI AP051045 WCI AP051045 Contact Us For Availability
37
WCI Q301871 WCI Q301871 Contact Us For Availability
37
INSULATION WCI Q134234 Contact Us For Availability
38
SHUTTER WCI AP330001 Contact Us For Availability
38
WCI AP391021 WCI AP391021 Contact Us For Availability
39
SCREW WCI AP051046 Contact Us For Availability
39
PANEL, BOTTOM WCI A11069000 Contact Us For Availability
41
SCREW WCI AP325005 Contact Us For Availability
41
BASE RAIL WCI A98373000 Contact Us For Availability
42
OVEN WRAPPER PANEL, RH WCI Q301979 Contact Us For Availability
43
OVEN WRAPPER PANEL, LH WCI Q301980 Contact Us For Availability
44
WCI Q301981 WCI Q301981 Contact Us For Availability
45
OVEN WRAPPER PANEL, BACK WCI Q310062 Contact Us For Availability
46
WCI Q310108 WCI Q310108 Contact Us For Availability
47
SUPPORT, BOTTOM WCI A74055000 Contact Us For Availability
× ![]()
