Model Electrolux GF950NW2 RANGE – Common Parts & Diagrams

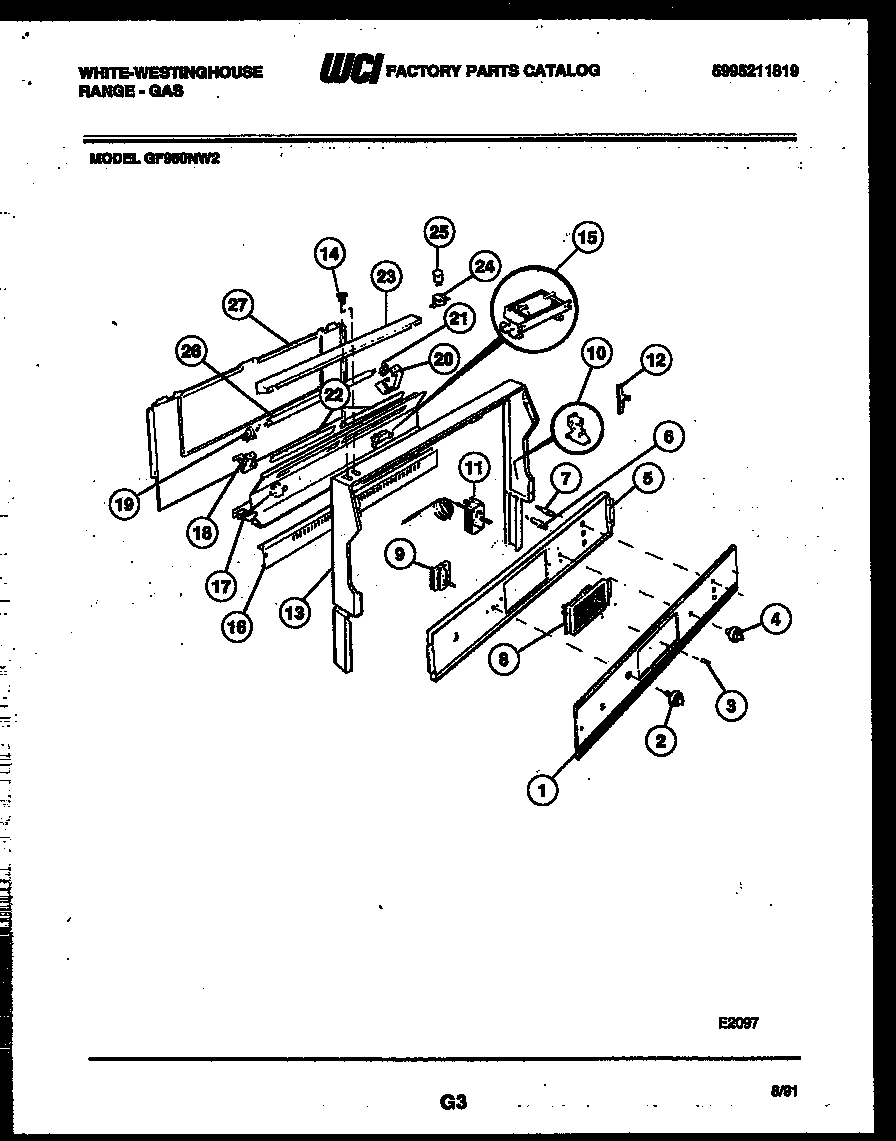

02 - BACKGUARD

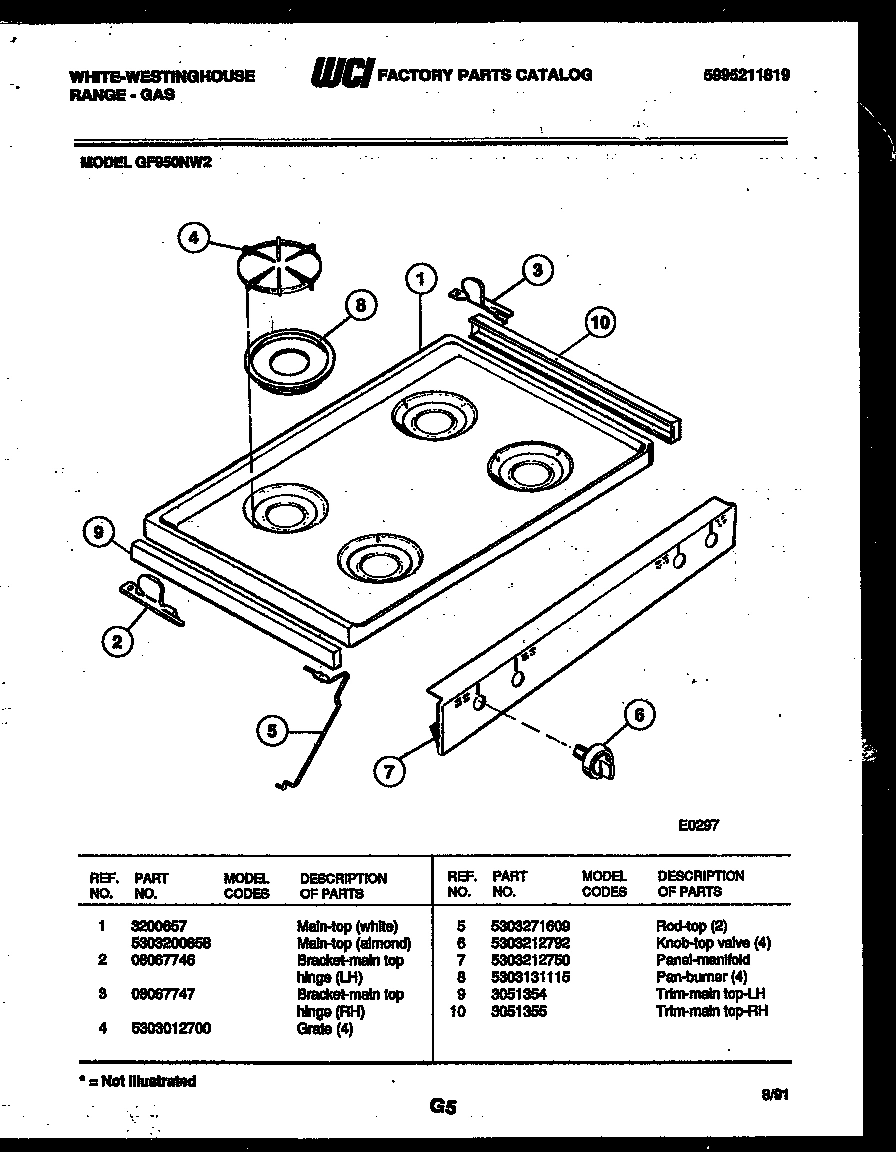

03 - COOKTOP PARTS

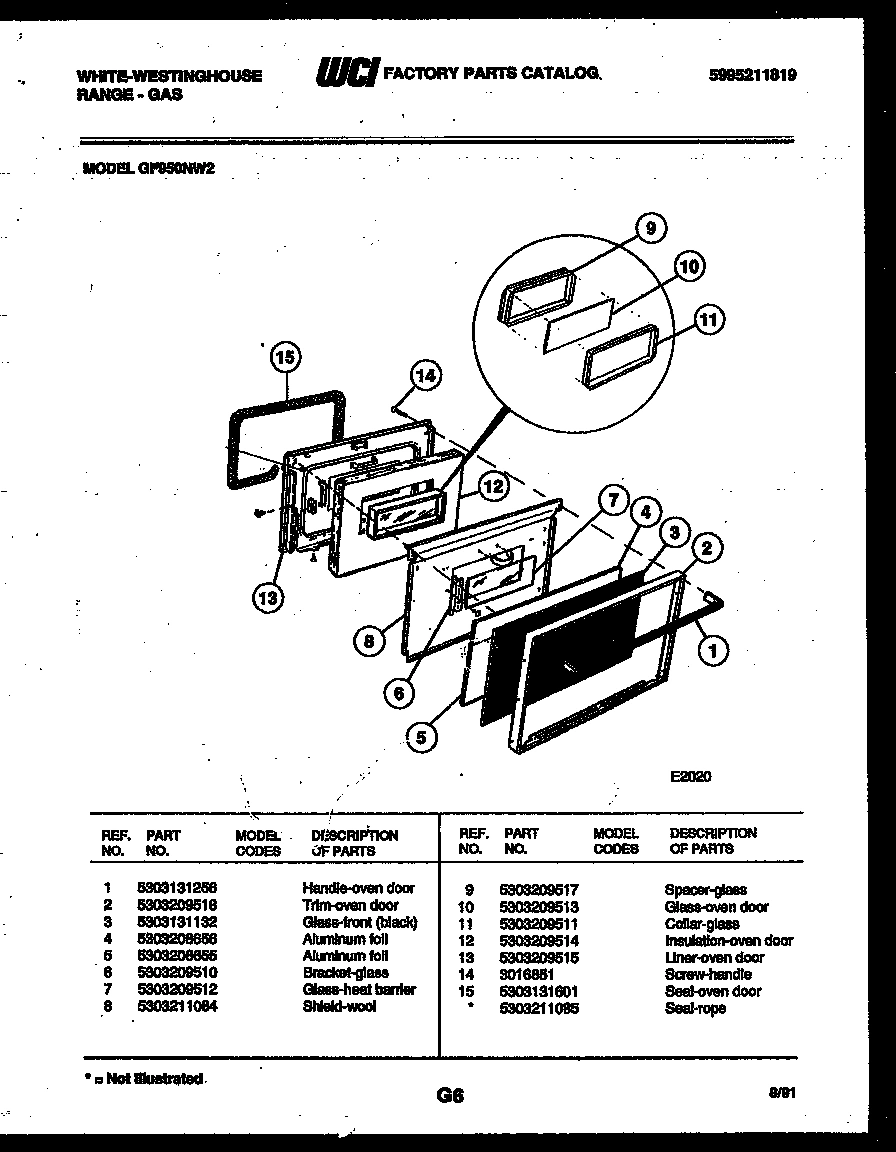

04 - DOOR PARTS

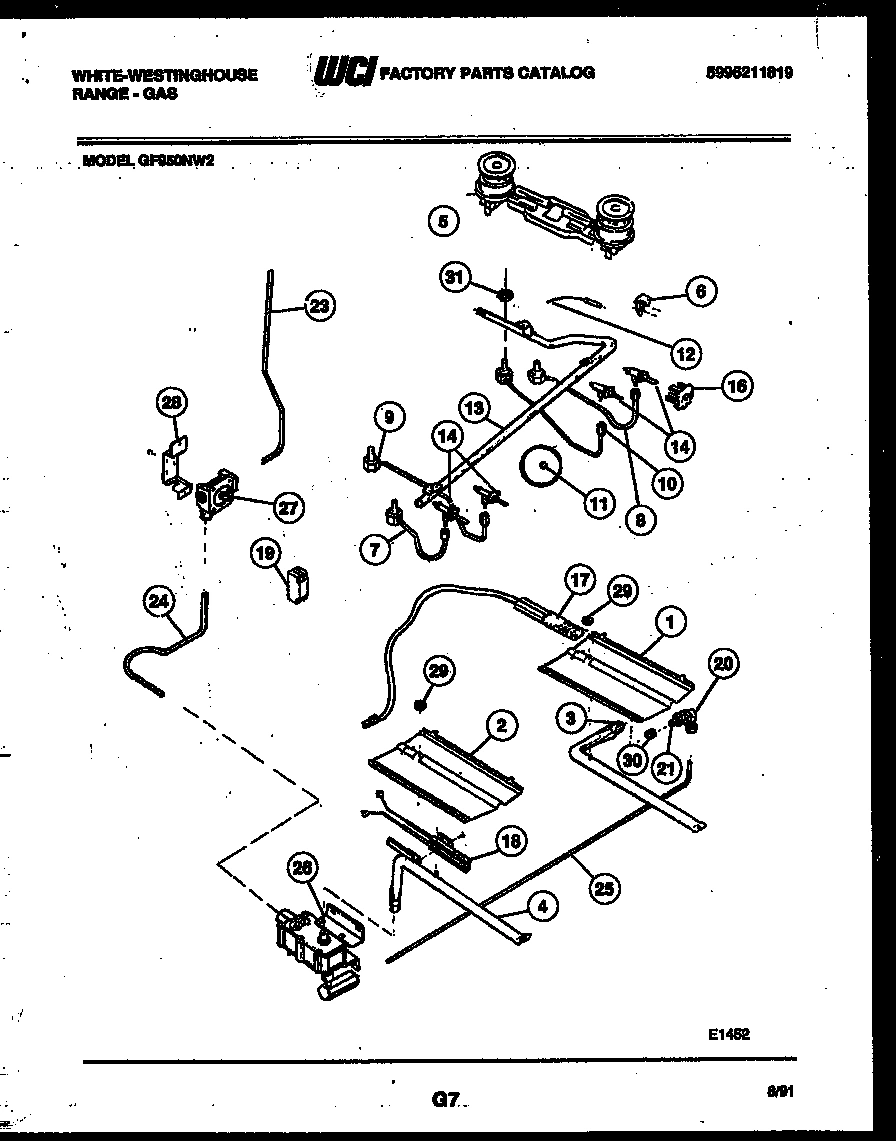

05 - BURNER, MANIFOLD AND GAS CONTROL

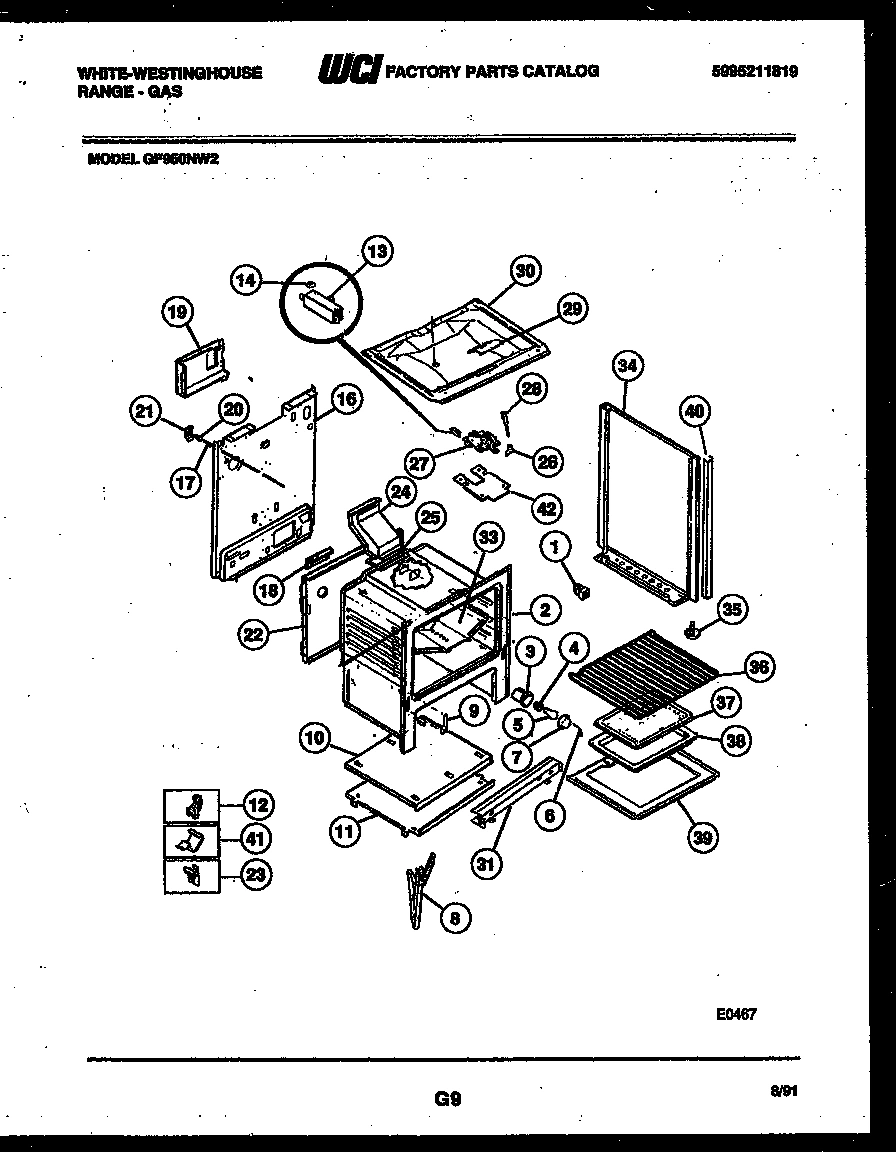

06 - BODY PARTS

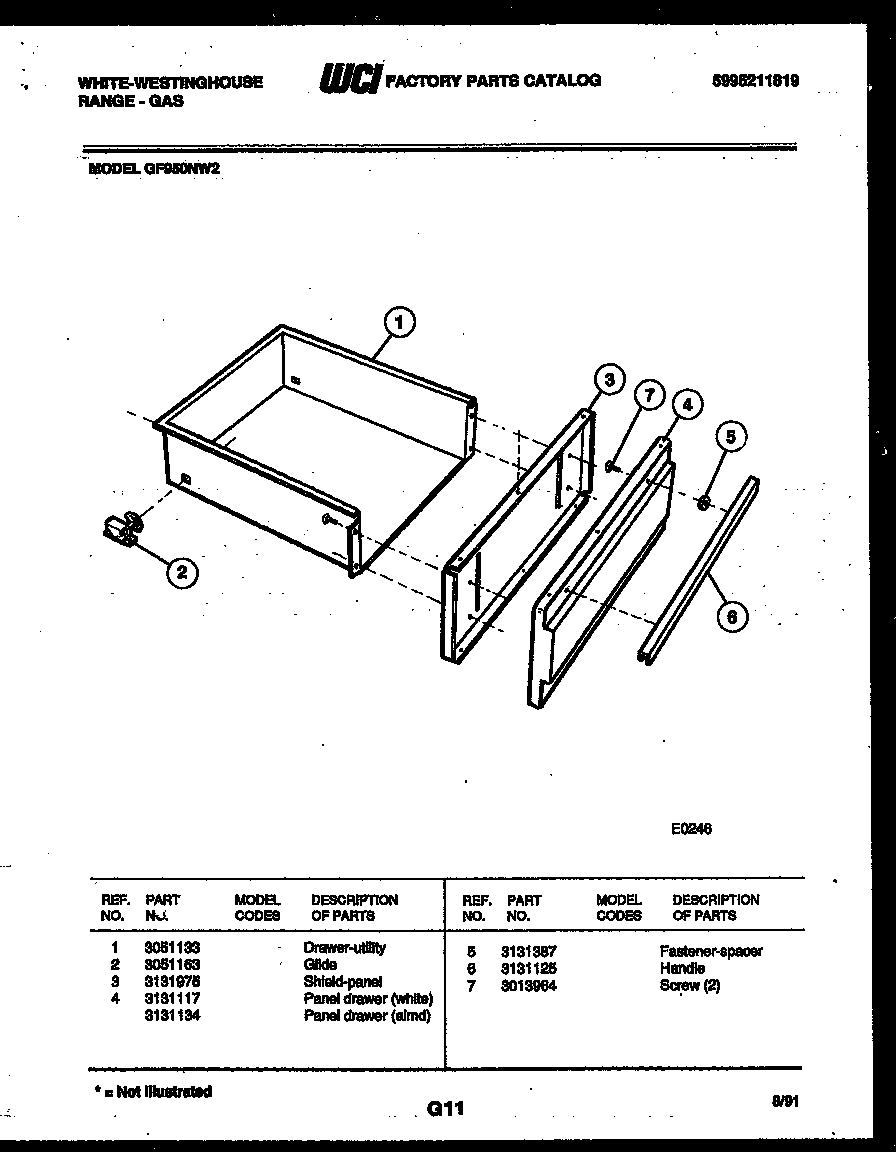

07 - DRAWER PARTS
Common parts from model Electrolux GF950NW2 RANGE
*52311
WCI 5303211085 WCI 5303211085 Contact Us For Availability
*52315
BRACKET-BURNER MTG (2) WCI 3200277 Contact Us For Availability
*52323
INSULATION-TOP WCI 3131304 Contact Us For Availability
*52323
WCI 3200834 WCI 3200834 Contact Us For Availability
*52323
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 3200657 WCI 3200657 Contact Us For Availability
1
WCI 5303131256 WCI 5303131256 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
BRACKET-MAIN TOP HINGE LH WCI 08067746 Contact Us For Availability
2
WCI 5303209518 WCI 5303209518 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
BRACKET-MAIN TOP HINGE RH WCI 08067747 Contact Us For Availability
3
WCI 5303131132 WCI 5303131132 Contact Us For Availability
3
WCI 3131975 WCI 3131975 Contact Us For Availability
4
ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3131117 WCI 3131117 Contact Us For Availability
5
ROD-TOP (2) WCI 5303271609 Contact Us For Availability
5
BURNER-TOP-DOUBLE WCI 5303131147 Contact Us For Availability
5
FASTENER, SPACER WCI 3131387 Contact Us For Availability
6
WCI 5303212792 WCI 5303212792 Contact Us For Availability
6
BRACKET-GLASS WCI 5303209510 Contact Us For Availability
6
WIRE, GLASS RETAINER WCI 3204483 Contact Us For Availability
6
WCI 3131125 WCI 3131125 Contact Us For Availability
7
GLASS-HEAT BARRIER WCI 5303209512 Contact Us For Availability
7
WCI 5303212750 WCI 5303212750 Contact Us For Availability
7
WCI 5303271041 WCI 5303271041 Contact Us For Availability
8
WCI 316007002 No Longer Available
8
WCI 5303211064 WCI 5303211064 Contact Us For Availability
8
WCI 5303271044 WCI 5303271044 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
WCI 3051354 WCI 3051354 Contact Us For Availability
9
WCI 5303209517 WCI 5303209517 Contact Us For Availability
9
WCI 5303271042 WCI 5303271042 Contact Us For Availability
10
WCI 3051355 WCI 3051355 Contact Us For Availability
10
WCI 5303209513 WCI 5303209513 Contact Us For Availability
10
WCI 5303271043 WCI 5303271043 Contact Us For Availability
10
WCI 5303270104 WCI 5303270104 Contact Us For Availability
11
WCI 5303209511 WCI 5303209511 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
SHIELD-WOOL WCI 08067992 Contact Us For Availability
12
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
12
BASE IGNITOR (2) WCI 3200276 Contact Us For Availability
13
WCI 5303209515 WCI 5303209515 Contact Us For Availability
13
WCI 5303271375 WCI 5303271375 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
14
WCI 3016851 WCI 3016851 Contact Us For Availability
14
VALVE-TOP-3 POS (4) WCI 5303271046 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14A
STUD SPACER WCI 08067978 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
18
BRACKET-FL MTG (LH) WCI 3131576 Contact Us For Availability
19
RECEPTACLE-FL LIGHT (LH) WCI 3051223 Contact Us For Availability
19
WCI 3131590 WCI 3131590 Contact Us For Availability
20
BRACKET-FL MTG (RH) WCI 3131577 Contact Us For Availability
20
WCI 5303208640 WCI 5303208640 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
RECEPTACLE-FL LIGHT (RH) WCI 3051222 Contact Us For Availability
21
WCI 3131358 WCI 3131358 Contact Us For Availability
21
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
22
GLASS-WORK LIGHT WCI 3131145 Contact Us For Availability
22
WCI 08067991 WCI 08067991 Contact Us For Availability
23
WCI 3201738 WCI 3201738 Contact Us For Availability
23
TUBE-ALUM W/ FIT (REGUL/MANIFOLD PIPE) WCI 5303208495 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
RECEPTACLE-STATER WCI 3204842 Contact Us For Availability
24
TUBE-ALUM W/ FIT (VALVE/REGULATOR) WCI 5303208494 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25
WCI 3206218 WCI 3206218 Contact Us For Availability
25
TUBE-ALUM W/ FIT (VALVE/MIXER) WCI 5303208493 Contact Us For Availability
25A
SHIELD, BI METAL LATCH WCI 3131593 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
WCI 3131275 WCI 3131275 Contact Us For Availability
26
WCI 3203218 WCI 3203218 Contact Us For Availability
26A
WASHER-REPAIR (NON-ILLUSTRATED) WCI 3131737 Contact Us For Availability
27
WCI 5303015453 WCI 5303015453 Contact Us For Availability
27
WCI 5303279360 WCI 5303279360 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
SPUD-50 WCI 08068015 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
NUT, SPECIAL WCI 3013279 Contact Us For Availability
31
WCI 5303271047 WCI 5303271047 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
34
WCI 5303269519 WCI 5303269519 Contact Us For Availability
34A
WCI 5303269518 WCI 5303269518 Contact Us For Availability
35
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
WCI 5303212540 WCI 5303212540 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
39C
WCI 3204582 WCI 3204582 Contact Us For Availability
39E
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39F
WCI 08068018 WCI 08068018 Contact Us For Availability
40
TRIM-VERTICAL BODYSIDE WCI 5303051326 Contact Us For Availability
42
WCI 3131314 WCI 3131314 Contact Us For Availability
42
WCI 3203529 WCI 3203529 Contact Us For Availability
× ![]()
