Model Electrolux GF830HXW0 RANGE – Common Parts & Diagrams

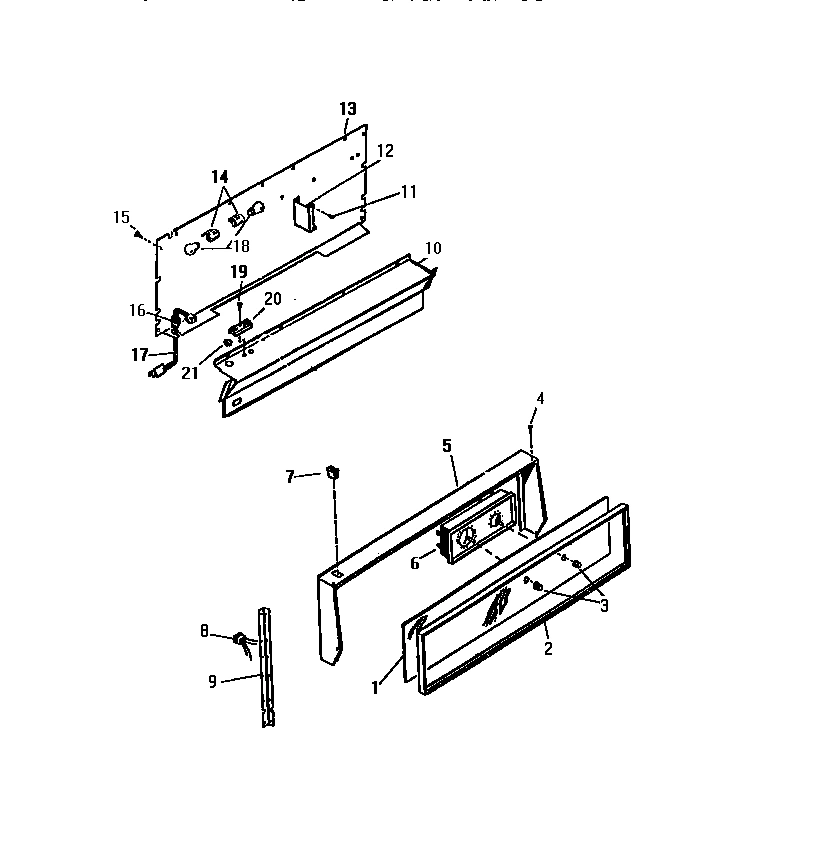

02 - BACKGUARD

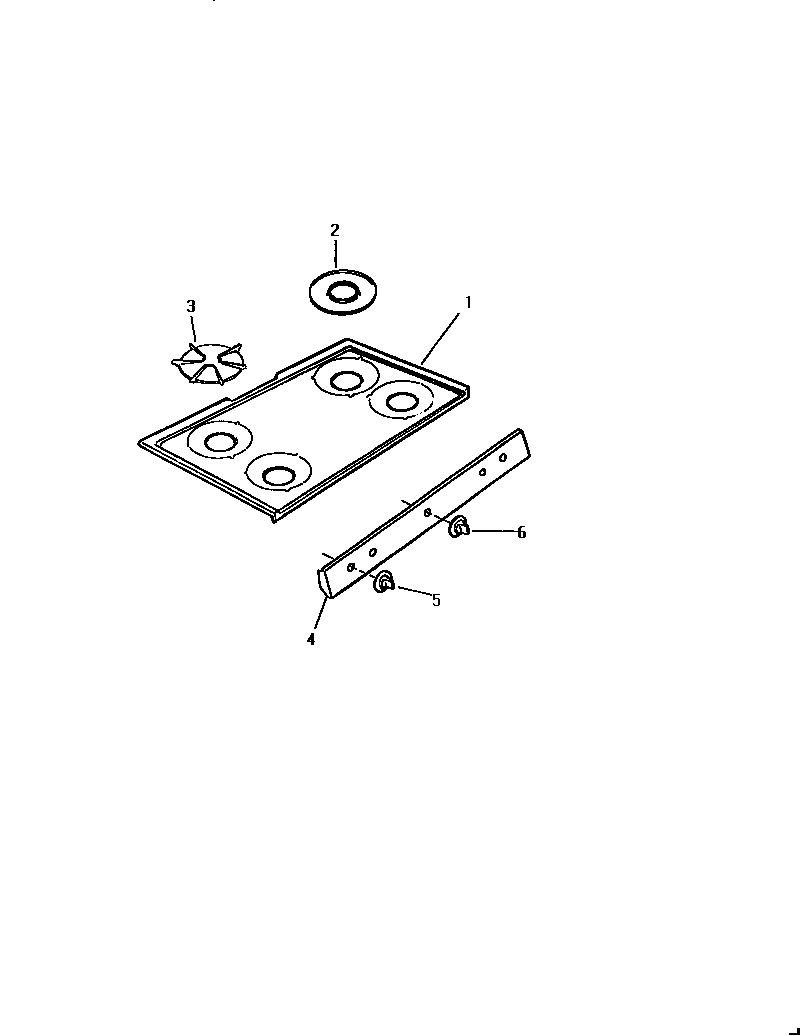

03 - TOP, CONTROL PANEL

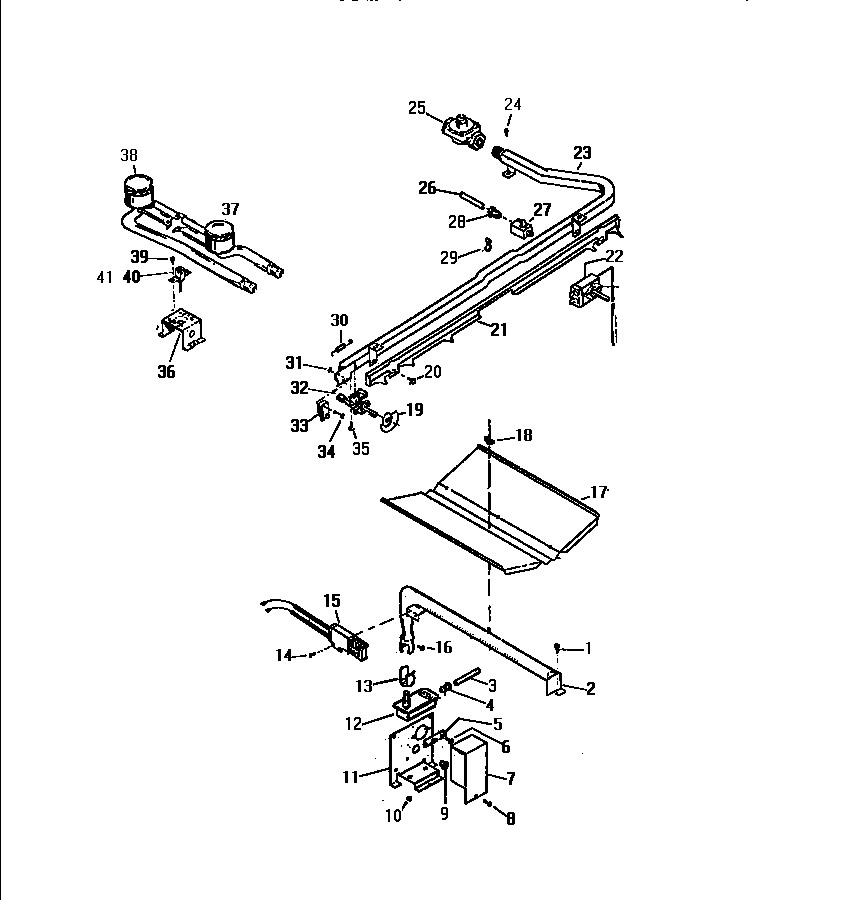

04 - BURNER ASSEMBLY

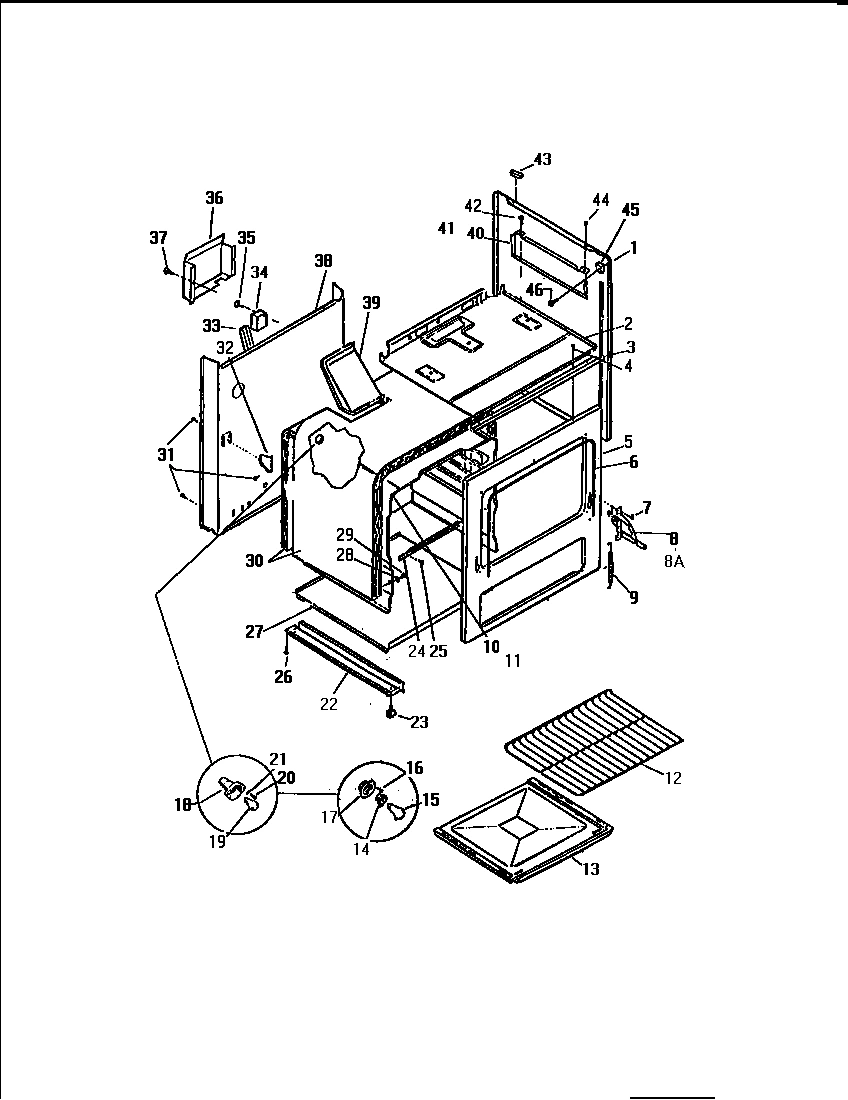

05 - BODY

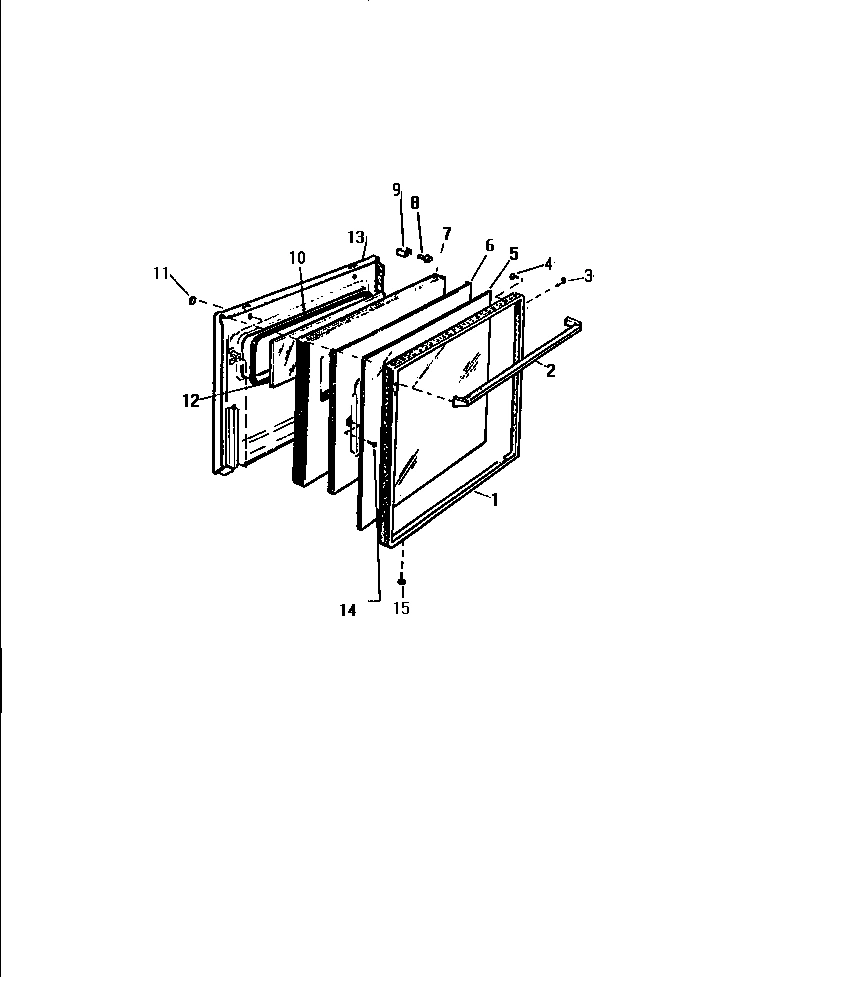

06 - DOOR

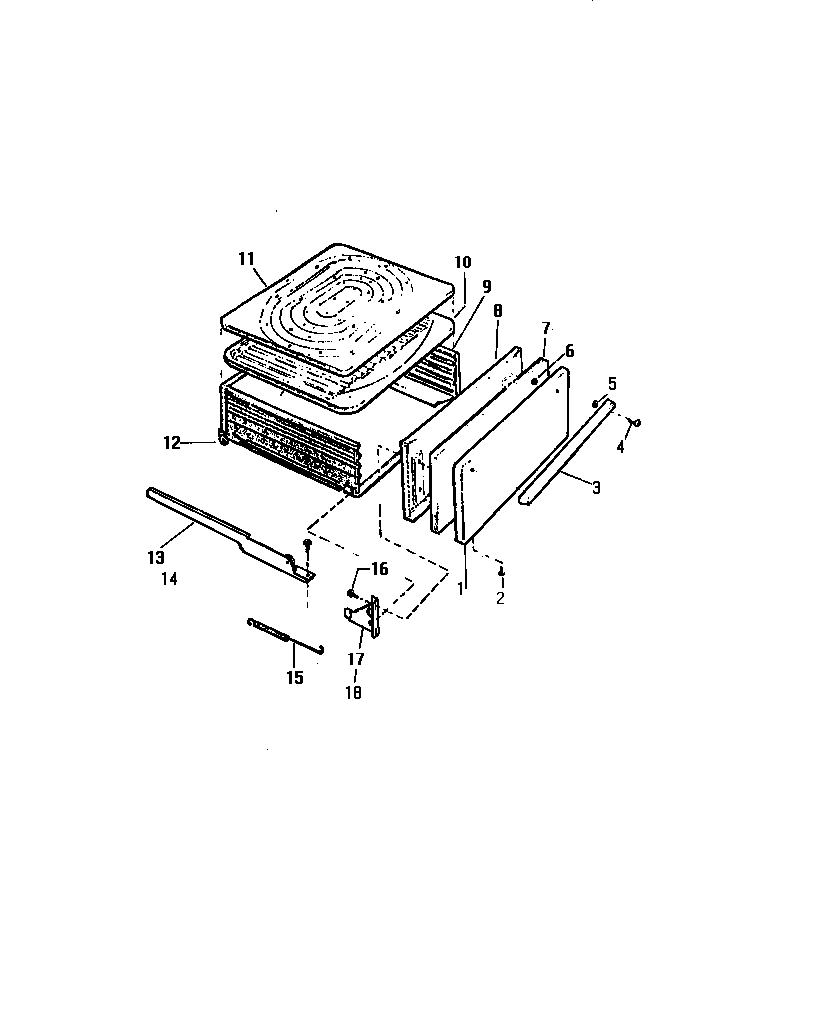

07 - BROILER DRAWER
Common parts from model Electrolux GF830HXW0 RANGE
1
WCI Q301908 WCI Q301908 Contact Us For Availability
1
WCI Q280083 WCI Q280083 Contact Us For Availability
1
BODY PANEL, WHITE WCI Q301942 Contact Us For Availability
1
WCI Q301938 WCI Q301938 Contact Us For Availability
1
OUTER PANEL DRAWER, WHITE WCI A98349000 Contact Us For Availability
2
TRIM WCI AP375273 Contact Us For Availability
2
WCI Q310006 WCI Q310006 Contact Us For Availability
2
BURNER WCI AP072025 Contact Us For Availability
2
WCI Q301968 WCI Q301968 Contact Us For Availability
2
WCI Q301935 WCI Q301935 Contact Us For Availability
3
KNOB, TIMER (2) WCI AP227361 Contact Us For Availability
3
GRATE WCI AP165005 Contact Us For Availability
3
WCI A74076000 WCI A74076000 Contact Us For Availability
3
WCI Q301884 WCI Q301884 Contact Us For Availability
4
SCREW WCI AP056004 Contact Us For Availability
4
WCI Q280099 WCI Q280099 Contact Us For Availability
4
SCREW WCI AP057025 Contact Us For Availability
5
FRAME WCI A39065000 Contact Us For Availability
5
KNOB, BURNER WCI Q280097 Contact Us For Availability
5
TERMINAL BLOCK WCI AP042025 Contact Us For Availability
5
WCI Q301967 WCI Q301967 Contact Us For Availability
5
WCI Q301934 WCI Q301934 Contact Us For Availability
5
WCI Q61664 WCI Q61664 Contact Us For Availability
6
TIMER WCI Q301904 Contact Us For Availability
6
WCI Q310004 WCI Q310004 Contact Us For Availability
6
NUT WCI AP265008 Contact Us For Availability
6
SEAL WCI AP326052 Contact Us For Availability
6
SHIELD WCI A61080000 Contact Us For Availability
7
SWITCH, LIGHT WCI AP351106 Contact Us For Availability
7
VALVE COVER WCI A32130000 Contact Us For Availability
7
INSULATION WCI AP207038 Contact Us For Availability
7
WCI Q138829 WCI Q138829 Contact Us For Availability
8
HARNESS WCI Q301969 Contact Us For Availability
8
HINGE ASSY-RH WCI A96068000 Contact Us For Availability
8
WCI Q301937 WCI Q301937 Contact Us For Availability
8
WCI Q301882 WCI Q301882 Contact Us For Availability
9
BRACE RH & LH WCI Q301891 Contact Us For Availability
9
WCI AP074001 WCI AP074001 Contact Us For Availability
9
SPRING WCI AP339042 Contact Us For Availability
9
WCI Q301936 WCI Q301936 Contact Us For Availability
9
WCI Q301881 WCI Q301881 Contact Us For Availability
10
WCI Q301909 WCI Q301909 Contact Us For Availability
10
OVEN WRAPPER PANELS, RH WCI Q301971 Contact Us For Availability
10
SEAL WCI AP326048 Contact Us For Availability
10
PAN, BROIL WCI A53002000 Contact Us For Availability
10A
OVEN WRAPPER PANELS, LH WCI Q301972 Contact Us For Availability
10B
OVEN WRAPPER PANELS, TOP WCI Q301973 Contact Us For Availability
10C
WCI Q301978 WCI Q301978 Contact Us For Availability
11
CLIP WCI AP267022 Contact Us For Availability
11
SUPPORT WCI A74054000 Contact Us For Availability
11
PLUG WCI AP075019 Contact Us For Availability
11
GRID, BROIL WCI A43001000 Contact Us For Availability
12
WCI Q301963 WCI Q301963 Contact Us For Availability
12
WCI Q301871 WCI Q301871 Contact Us For Availability
12
RACK WCI AP301046 Contact Us For Availability
12
WCI AP161230 WCI AP161230 Contact Us For Availability
12
ROLLER WCI AP031004 Contact Us For Availability
13
WCI Q301897 WCI Q301897 Contact Us For Availability
13
SHUTTER WCI AP330001 Contact Us For Availability
13
WCI Q301977 WCI Q301977 Contact Us For Availability
13
WCI Q301930 WCI Q301930 Contact Us For Availability
13
TRACK ASSY.-LH WCI A96070000 Contact Us For Availability
14
RECEPTACLE WCI AP189238 Contact Us For Availability
14
SCREW WCI AP051046 Contact Us For Availability
14
BOLT WCI AP051052 Contact Us For Availability
14
TRACK ASSY.-RH WCI A96069000 Contact Us For Availability
15
SCREW WCI AP053033 Contact Us For Availability
15
SPRING WCI AP339050 Contact Us For Availability
16
WCI AP312003 WCI AP312003 Contact Us For Availability
16
SCREW WCI AP325005 Contact Us For Availability
16
SCREW WCI AP051056 Contact Us For Availability
17
WCI Q301901 WCI Q301901 Contact Us For Availability
17
BAFFLE WCI A9010000 Contact Us For Availability
17
WCI A43011000 WCI A43011000 Contact Us For Availability
18
WING NUT WCI AP269004 Contact Us For Availability
18
WCI K1312472 WCI K1312472 Contact Us For Availability
18
HINGE-RH WCI A46010000 Contact Us For Availability
19
WCI Q63749 WCI Q63749 Contact Us For Availability
19
SCREW WCI AP051022 Contact Us For Availability
19
WCI A22002000 WCI A22002000 Contact Us For Availability
20
BLOCK, TERMINAL WCI AP042003 Contact Us For Availability
20
WCI Q301839 WCI Q301839 Contact Us For Availability
20
SCREW WCI AP325009 Contact Us For Availability
21
BUSHING WCI AP074003 Contact Us For Availability
21
WCI Q301857 WCI Q301857 Contact Us For Availability
22
WCI Q301858 WCI Q301858 Contact Us For Availability
22
BASE RAIL WCI A98373000 Contact Us For Availability
23
WCI Q301855 WCI Q301855 Contact Us For Availability
23
LEG WCI AP059009 Contact Us For Availability
24
SUPPORT, BOTTOM WCI A74055000 Contact Us For Availability
26
WCI Q301867 WCI Q301867 Contact Us For Availability
27
VALVE WCI AP385174 Contact Us For Availability
27
PANEL, BOTTOM WCI A11069000 Contact Us For Availability
28
LOCK NUT WCI AP269017 Contact Us For Availability
28
WCI AP391021 WCI AP391021 Contact Us For Availability
29
CLIP, CAP. TUBE WCI AP091011 Contact Us For Availability
29
WCI AP051045 WCI AP051045 Contact Us For Availability
30
WCI Q301869 WCI Q301869 Contact Us For Availability
30
INSULATION WCI Q134234 Contact Us For Availability
31
NUT WCI AP265009 Contact Us For Availability
32
WCI Q301873 WCI Q301873 Contact Us For Availability
32
SUPPORT, REAR OVEN WCI A74060000 Contact Us For Availability
33
WCI Q301874 WCI Q301874 Contact Us For Availability
33
WCI Q310003 WCI Q310003 Contact Us For Availability
34
SCREW WCI AP055031 Contact Us For Availability
34
WCI Q301950 WCI Q301950 Contact Us For Availability
35
WCI Q310002 WCI Q310002 Contact Us For Availability
36
SUPPORT WCI Q301866 Contact Us For Availability
36
COVER, MODULE WCI A32137000 Contact Us For Availability
37
BURNER, FRONT WCI Q301861 Contact Us For Availability
38
BURNER, REAR WCI Q301865 Contact Us For Availability
38
WCI A5087000 WCI A5087000 Contact Us For Availability
39
WCI A92049000 WCI A92049000 Contact Us For Availability
40
WCI Q301862 WCI Q301862 Contact Us For Availability
40
WCI A64044000 WCI A64044000 Contact Us For Availability
41
WCI Q301864 WCI Q301864 Contact Us For Availability
41
HEAT SHIELD-LH WCI A61074000 Contact Us For Availability
43
WCI Q301831 WCI Q301831 Contact Us For Availability
44
WCI AP172002 WCI AP172002 Contact Us For Availability
45
PAD, CORNER (2) WCI Q310084 Contact Us For Availability
× ![]()
