Model Electrolux GF830HXV3 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP

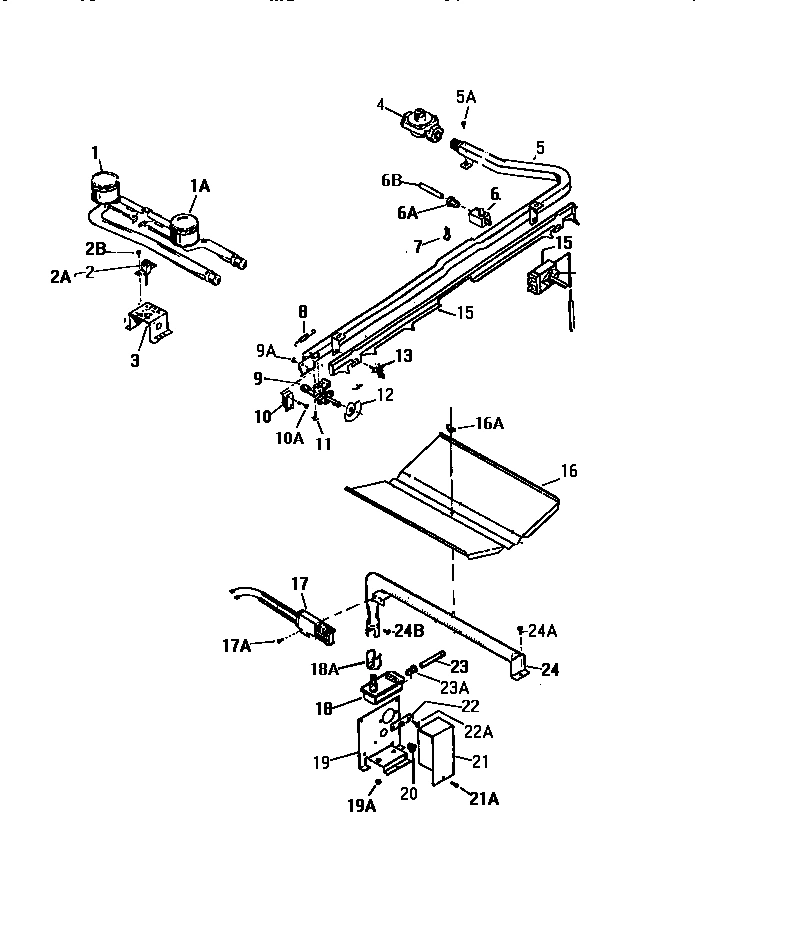

04 - BURNER ASSEMBLY

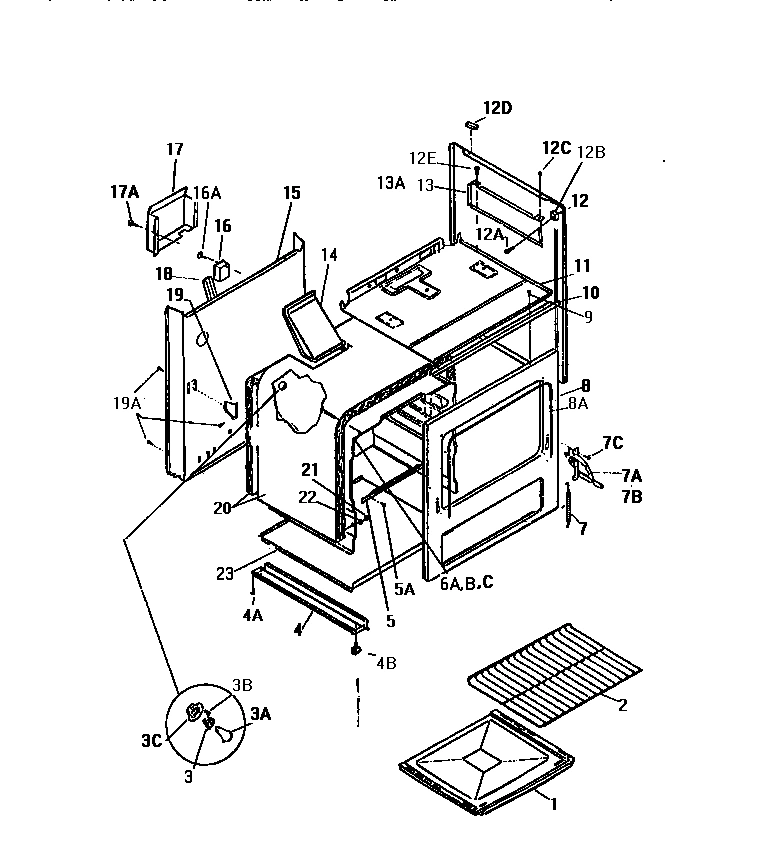

05 - OVEN CAVITY & BODY

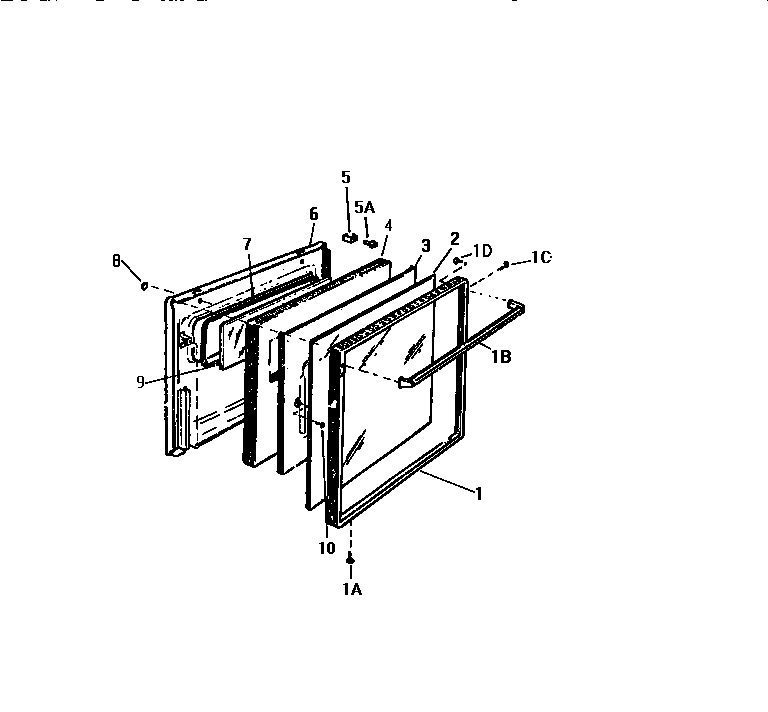

06 - DOOR

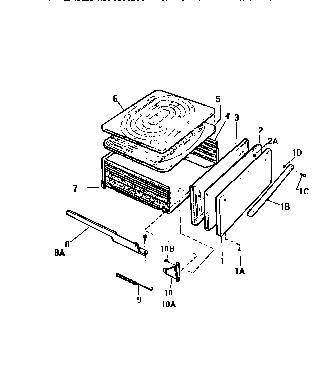

07 - BROILER DRAWER
Common parts from model Electrolux GF830HXV3 RANGE
1
WCI Q301908 WCI Q301908 Contact Us For Availability
1
WCI Q280099 WCI Q280099 Contact Us For Availability
1
BURNER, REAR WCI Q301865 Contact Us For Availability
1
WCI Q301977 WCI Q301977 Contact Us For Availability
1
WCI Q301938 WCI Q301938 Contact Us For Availability
1
OUTER PANEL DRAWER, FR. AVOCADO WCI A98349002 Contact Us For Availability
1A
BURNER, FRONT WCI Q301861 Contact Us For Availability
1A
SCREW WCI AP053033 Contact Us For Availability
1B
WCI Q301935 WCI Q301935 Contact Us For Availability
1B
WCI Q301884 WCI Q301884 Contact Us For Availability
1D
SCREW WCI AP057025 Contact Us For Availability
1D
WCI Q61664 WCI Q61664 Contact Us For Availability
2
TRIM WCI AP375273 Contact Us For Availability
2
KNOB, BURNER WCI Q280097 Contact Us For Availability
2
WCI Q301862 WCI Q301862 Contact Us For Availability
2
RACK WCI AP301046 Contact Us For Availability
2
WCI Q301934 WCI Q301934 Contact Us For Availability
2
WCI Q138829 WCI Q138829 Contact Us For Availability
2A
WCI Q301864 WCI Q301864 Contact Us For Availability
2A
NUT WCI AP265008 Contact Us For Availability
3
TIMER WCI Q301904 Contact Us For Availability
3
WCI Q310004 WCI Q310004 Contact Us For Availability
3
SUPPORT WCI Q301866 Contact Us For Availability
3
WCI Q310061 WCI Q310061 Contact Us For Availability
3
SHIELD WCI A61080000 Contact Us For Availability
3
WCI Q301882 WCI Q301882 Contact Us For Availability
3A
KNOB, TIMER (2) WCI AP227361 Contact Us For Availability
3A
WCI Q63749 WCI Q63749 Contact Us For Availability
3C
WCI Q310063 WCI Q310063 Contact Us For Availability
4
WCI Q310099 WCI Q310099 Contact Us For Availability
4
WCI Q310102 WCI Q310102 Contact Us For Availability
4
BASE RAIL WCI A98373000 Contact Us For Availability
4
INSULATION WCI AP207038 Contact Us For Availability
4
WCI Q301881 WCI Q301881 Contact Us For Availability
4A
SCREW WCI AP056004 Contact Us For Availability
4B
LEG WCI AP059009 Contact Us For Availability
5
WCI Q310098 WCI Q310098 Contact Us For Availability
5
BOWL, BURNER (CHROME) WCI Q310006 Contact Us For Availability
5
WCI Q301855 WCI Q301855 Contact Us For Availability
5
SUPPORT, BOTTOM WCI A74055000 Contact Us For Availability
5
WCI Q301936 WCI Q301936 Contact Us For Availability
5
PAN, BROIL WCI A53002000 Contact Us For Availability
5A
WCI Q301937 WCI Q301937 Contact Us For Availability
6
HARNESS WCI Q301969 Contact Us For Availability
6
PLATFORM, FR. AVOCADO WCI Q280085 Contact Us For Availability
6
VALVE WCI AP385174 Contact Us For Availability
6
OVEN WRAPPER PANELS, RH SIDE WCI Q301971 Contact Us For Availability
6
WCI Q301930 WCI Q301930 Contact Us For Availability
6
GRID, BROIL WCI A43001000 Contact Us For Availability
6A
LOCK NUT WCI AP269017 Contact Us For Availability
6A
OVEN WRAPPER PANELS, LH SIDE WCI Q301972 Contact Us For Availability
6B
OVEN WRAPPER PANELS, TOP WCI Q301973 Contact Us For Availability
6C
OVEN WRAPPER PANELS, BACK WCI Q310085 Contact Us For Availability
7
BRACE RH & LH WCI Q301891 Contact Us For Availability
7
CLIP, CAP. TUBE WCI AP091011 Contact Us For Availability
7
SPRING WCI AP339042 Contact Us For Availability
7
SEAL WCI AP326048 Contact Us For Availability
7
ROLLER WCI AP031004 Contact Us For Availability
7A
HINGE ASSY-RH WCI A96068000 Contact Us For Availability
8
WCI Q301909 WCI Q301909 Contact Us For Availability
8
WCI Q301869 WCI Q301869 Contact Us For Availability
8
WCI Q301967 WCI Q301967 Contact Us For Availability
8
PLUG WCI AP075019 Contact Us For Availability
8
TRACK ASSY.-LH WCI A96070000 Contact Us For Availability
8A
SEAL WCI AP326052 Contact Us For Availability
8A
TRACK ASSY.-RH WCI A96069000 Contact Us For Availability
9
WCI Q301963 WCI Q301963 Contact Us For Availability
9
WCI Q301873 WCI Q301873 Contact Us For Availability
9
WCI AP161230 WCI AP161230 Contact Us For Availability
9
SPRING WCI AP339050 Contact Us For Availability
9A
CLIP WCI AP267022 Contact Us For Availability
9A
NUT WCI AP265009 Contact Us For Availability
10
WCI Q301897 WCI Q301897 Contact Us For Availability
10
WCI Q301874 WCI Q301874 Contact Us For Availability
10
WCI A74076000 WCI A74076000 Contact Us For Availability
10
BOLT WCI AP051052 Contact Us For Availability
10
HINGE-LH WCI A46011000 Contact Us For Availability
10A
SCREW WCI AP055031 Contact Us For Availability
10A
HINGE-RH WCI A46010000 Contact Us For Availability
10B
SCREW WCI AP051056 Contact Us For Availability
11
RECEPTACLE WCI AP189238 Contact Us For Availability
11
WCI Q310002 WCI Q310002 Contact Us For Availability
11
WCI Q301968 WCI Q301968 Contact Us For Availability
12
WCI AP312003 WCI AP312003 Contact Us For Availability
12
WCI A22002000 WCI A22002000 Contact Us For Availability
12
BODY PANEL, FR. AVOCADO WCI Q301944 Contact Us For Availability
12B
PAD, CORNER (2) WCI Q310084 Contact Us For Availability
12C
WCI AP172002 WCI AP172002 Contact Us For Availability
12D
WCI Q301831 WCI Q301831 Contact Us For Availability
13
WCI Q301901 WCI Q301901 Contact Us For Availability
13
WCI Q301839 WCI Q301839 Contact Us For Availability
13
HEAT SHIELD-RH WCI A61044000 Contact Us For Availability
13A
HEAT SHIELD-LH WCI A61074000 Contact Us For Availability
14
BLOCK, TERMINAL WCI AP042003 Contact Us For Availability
14
WCI Q301857 WCI Q301857 Contact Us For Availability
14
WCI A92049000 WCI A92049000 Contact Us For Availability
14A
BUSHING WCI AP074003 Contact Us For Availability
14B
WCI AP51022 WCI AP51022 Contact Us For Availability
15
WCI Q301858 WCI Q301858 Contact Us For Availability
15
WCI A5087000 WCI A5087000 Contact Us For Availability
16
BAFFLE WCI A9010000 Contact Us For Availability
16
WCI Q301950 WCI Q301950 Contact Us For Availability
16A
WING NUT WCI AP269004 Contact Us For Availability
17
COVER, MODULE WCI A32137000 Contact Us For Availability
17A
SCREW WCI AP051046 Contact Us For Availability
18
WCI Q301871 WCI Q301871 Contact Us For Availability
18
WCI Q310003 WCI Q310003 Contact Us For Availability
18A
SHUTTER WCI AP330001 Contact Us For Availability
19
SUPPORT WCI A74054000 Contact Us For Availability
19
SUPPORT, REAR OVEN WCI A74060000 Contact Us For Availability
20
WCI AP074001 WCI AP074001 Contact Us For Availability
20
INSULATION WCI Q134234 Contact Us For Availability
21
VALVE COVER WCI A32130000 Contact Us For Availability
21
WCI AP051045 WCI AP051045 Contact Us For Availability
22
TERMINAL BLOCK WCI AP042025 Contact Us For Availability
22
WCI AP391021 WCI AP391021 Contact Us For Availability
23
WCI Q301867 WCI Q301867 Contact Us For Availability
23
PANEL, BOTTOM WCI A11069000 Contact Us For Availability
23A
NUT WCI AP269033 Contact Us For Availability
24
BURNER WCI AP072025 Contact Us For Availability
24B
SCREW WCI AP325005 Contact Us For Availability
× ![]()
