Model Electrolux GF790HXD0 RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

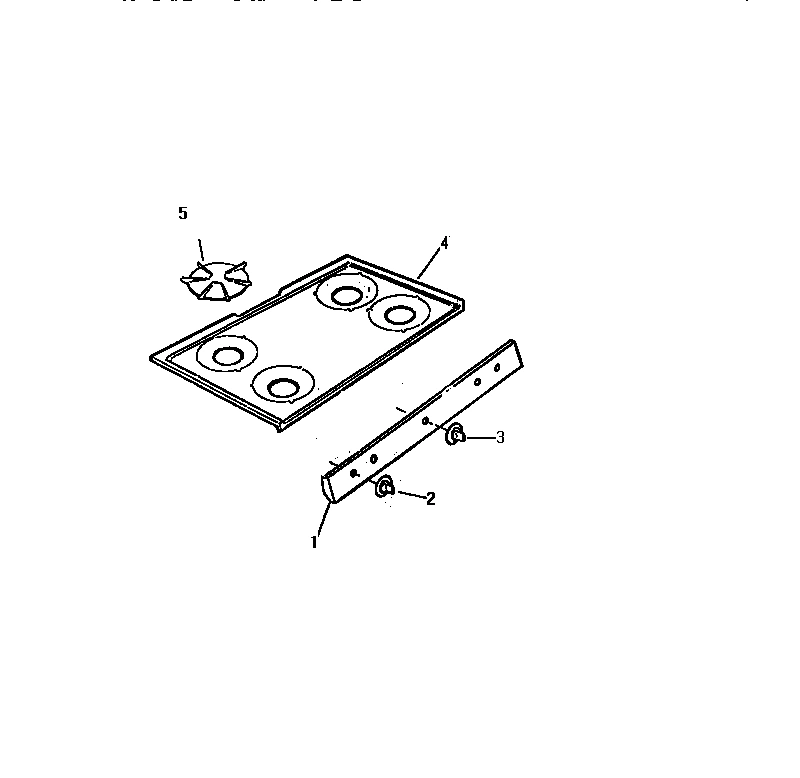

03 - TOP, CONTROL PANEL

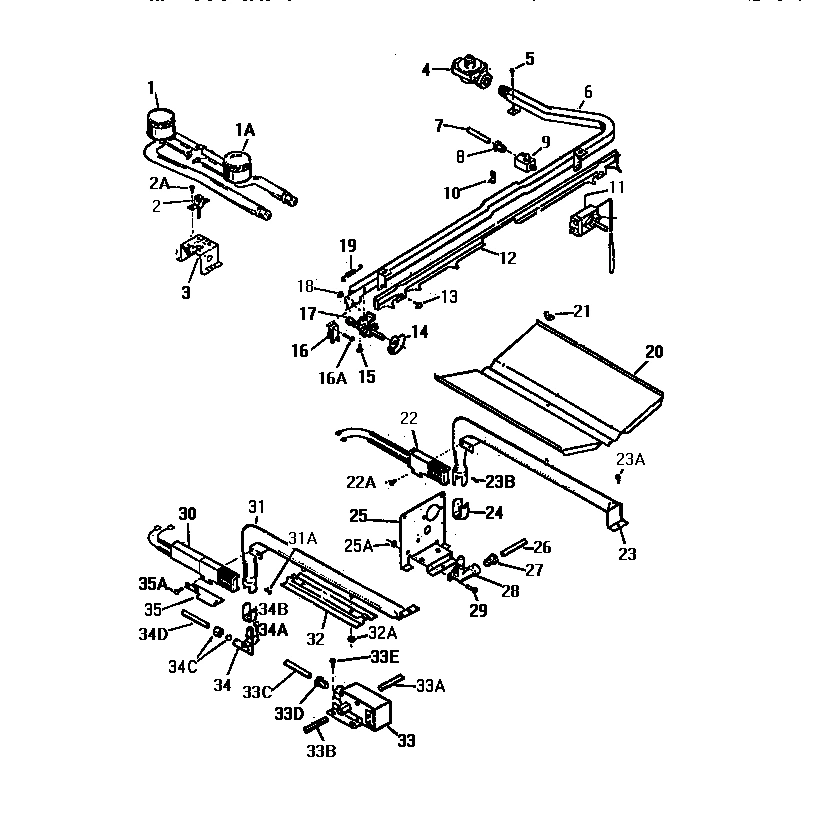

04 - BURNER ASSEMBLY

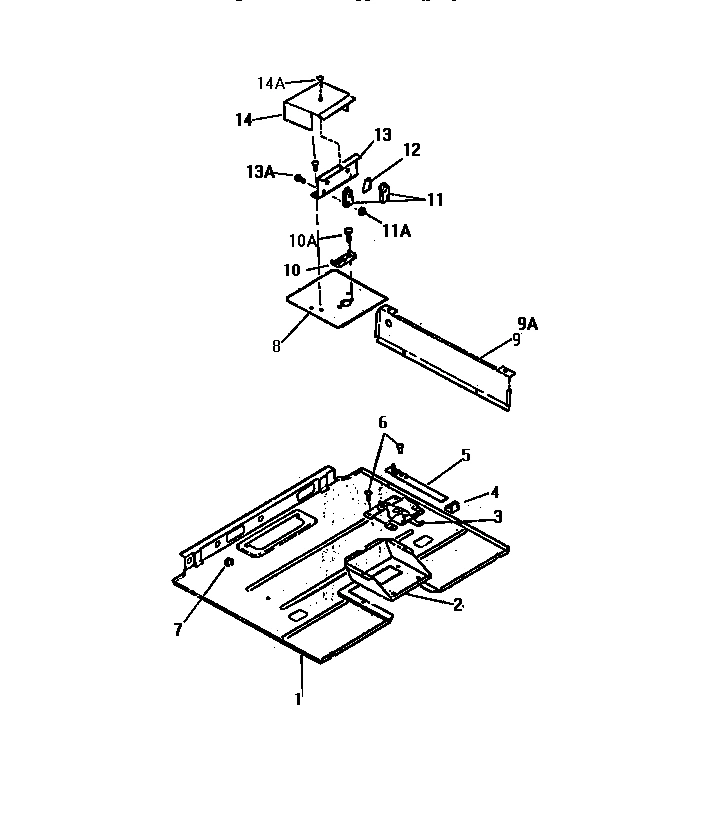

05 - BURNER PANEL

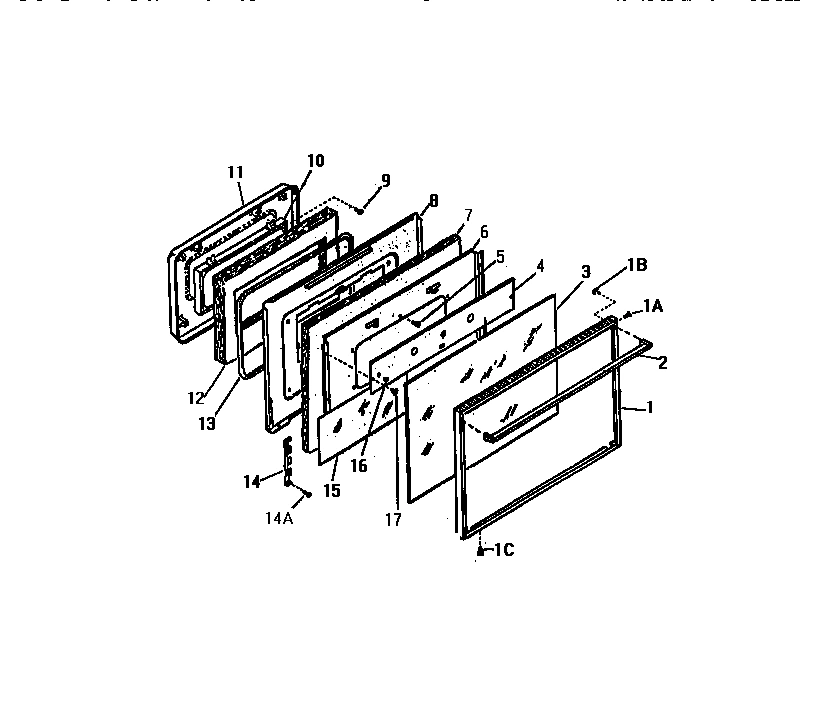

06 - DOOR

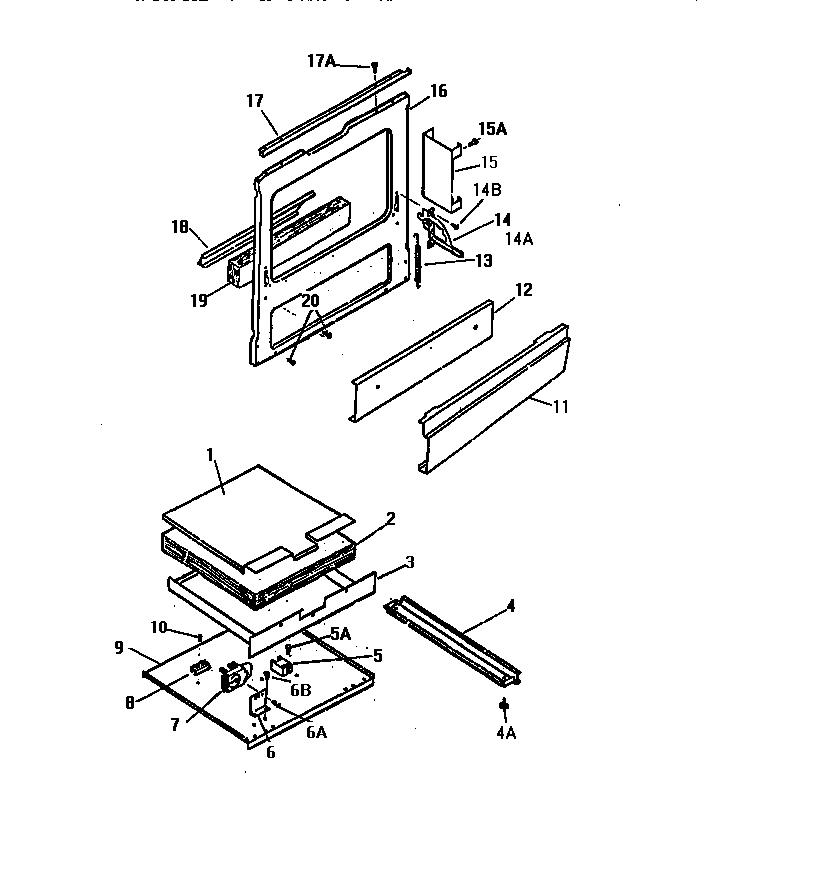

07 - FRAME, SERVICE PANEL, BASE

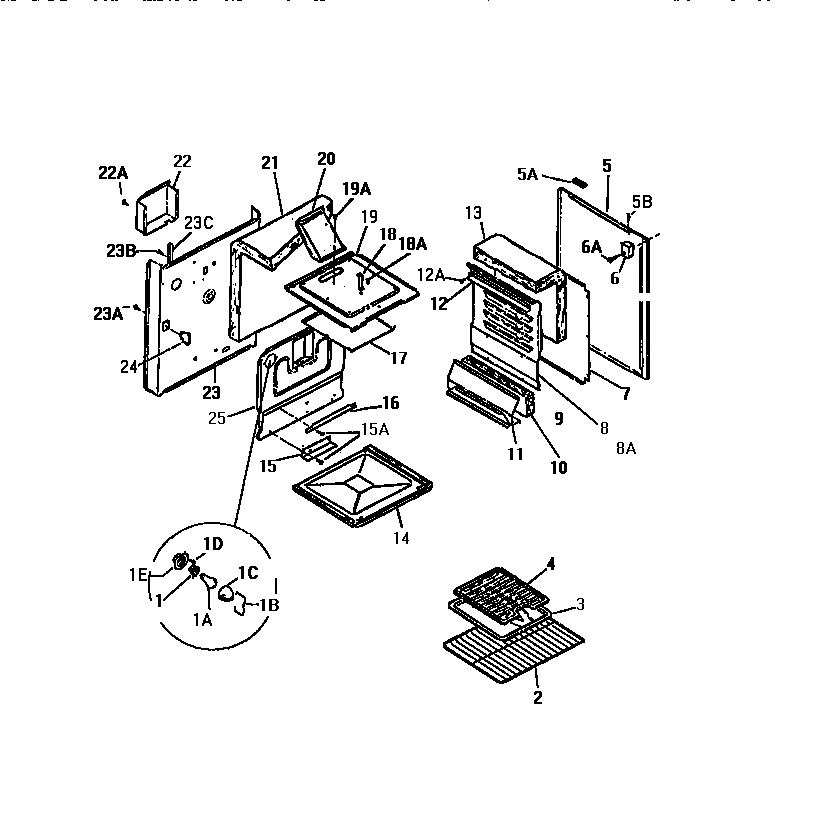

08 - OVEN & BODY
Common parts from model Electrolux GF790HXD0 RANGE
1
WCI Q301905 WCI Q301905 Contact Us For Availability
1
WCI Q280099 WCI Q280099 Contact Us For Availability
1
BURNER, REAR WCI Q301865 Contact Us For Availability
1
WCI Q301904 WCI Q301904 Contact Us For Availability
1
WCI Q310036 WCI Q310036 Contact Us For Availability
1
WCI A78002000 WCI A78002000 Contact Us For Availability
1
WCI Q310061 WCI Q310061 Contact Us For Availability
1A
BURNER, FRONT WCI Q301861 Contact Us For Availability
1A
WCI Q63749 WCI Q63749 Contact Us For Availability
1B
SCREW WCI AP057025 Contact Us For Availability
1B
RETAINING WIRE WCI K1325529 Contact Us For Availability
1C
SCREW WCI AP053033 Contact Us For Availability
1E
WCI Q310063 WCI Q310063 Contact Us For Availability
2
TRIM WCI AP375273 Contact Us For Availability
2
KNOB, BURNER WCI Q280097 Contact Us For Availability
2
IGNITOR WCI Q301863 Contact Us For Availability
2
SUPPORT, LATCH WCI A74075000 Contact Us For Availability
2
WCI Q310037 WCI Q310037 Contact Us For Availability
2
INSULATION WCI AP207057 Contact Us For Availability
2
RACK WCI AP301046 Contact Us For Availability
3
KNOB, TIMER WCI AP227361 Contact Us For Availability
3
WCI Q310005 WCI Q310005 Contact Us For Availability
3
SUPPORT WCI Q301866 Contact Us For Availability
3
LATCH, OVEN DOOR WCI AP239001 Contact Us For Availability
3
WCI Q310093 WCI Q310093 Contact Us For Availability
3
SERVICE DRAWER, BOTTOM WCI A11066000 Contact Us For Availability
3
PAN WCI A53008001 Contact Us For Availability
4
WCI Q301902 WCI Q301902 Contact Us For Availability
4
WCI Q280087 WCI Q280087 Contact Us For Availability
4
KNOB WCI AP227429 Contact Us For Availability
4
WCI Q310092 WCI Q310092 Contact Us For Availability
4
BASE RAIL WCI A98373000 Contact Us For Availability
4
GRID WCI A43003001 Contact Us For Availability
4A
SCREW WCI AP056004 Contact Us For Availability
4A
WCI AP059009 WCI AP059009 Contact Us For Availability
5
WCI Q301911 WCI Q301911 Contact Us For Availability
5
GRATE WCI AP165005 Contact Us For Availability
5
WCI Q301913 WCI Q301913 Contact Us For Availability
5
WCI Q310091 WCI Q310091 Contact Us For Availability
5
MODULE WCI Q301950 Contact Us For Availability
5
SIDE PANEL, LH & RH, ALMOND WCI Q301946 Contact Us For Availability
5A
WCI Q301831 WCI Q301831 Contact Us For Availability
5B
WCI AP172002 WCI AP172002 Contact Us For Availability
6
WCI Q310028 WCI Q310028 Contact Us For Availability
6
WCI Q301855 WCI Q301855 Contact Us For Availability
6
WCI Q310090 WCI Q310090 Contact Us For Availability
6
WCI A18081000 WCI A18081000 Contact Us For Availability
6
PAD, CORNER (2) WCI Q310084 Contact Us For Availability
6A
WCI Q310029 WCI Q310029 Contact Us For Availability
6A
SCREW WCI AP049001 Contact Us For Availability
7
WCI Q301893 WCI Q301893 Contact Us For Availability
7
WCI AP074001 WCI AP074001 Contact Us For Availability
7
WCI Q310033 WCI Q310033 Contact Us For Availability
7
TIMER, CLEAN WCI AP371002 Contact Us For Availability
7
SHIELD WCI A61076000 Contact Us For Availability
8
WCI Q301801 WCI Q301801 Contact Us For Availability
8
TERMINAL, BLOCK WCI AP042003 Contact Us For Availability
8
LOCK NUT WCI AP269017 Contact Us For Availability
8
COVER, LATCH WCI A32141000 Contact Us For Availability
8
WCI Q310089 WCI Q310089 Contact Us For Availability
8
LINING, SIDE, RH WCI A51137000 Contact Us For Availability
8A
LINING, SIDE, LH WCI A51138000 Contact Us For Availability
9
WCI Q301909 WCI Q301909 Contact Us For Availability
9
VALVE WCI AP385174 Contact Us For Availability
9
HEAT SHIELD-RH WCI A61044000 Contact Us For Availability
9
BOTTOM WCI A11069000 Contact Us For Availability
9A
HEAT SHIELD-LH WCI A61074000 Contact Us For Availability
10
CLIP WCI AP267022 Contact Us For Availability
10
SCREW WCI AP051022 Contact Us For Availability
10
CLIP, CAP. TUBE WCI AP091011 Contact Us For Availability
10
WCI A2001000 WCI A2001000 Contact Us For Availability
10
WCI Q310097 WCI Q310097 Contact Us For Availability
10
INSULATION WCI AP207061 Contact Us For Availability
11
WCI Q301963 WCI Q301963 Contact Us For Availability
11
THERMOSTAT WCI AP367096 Contact Us For Availability
11
SWITCH, MICRO WCI AP351120 Contact Us For Availability
11
WCI Q310088 WCI Q310088 Contact Us For Availability
11
WCI Q301956 WCI Q301956 Contact Us For Availability
11
RETAINER WCI A98370000 Contact Us For Availability
11A
NUT WCI AP265009 Contact Us For Availability
12
WCI Q301897 WCI Q301897 Contact Us For Availability
12
WCI Q301857 WCI Q301857 Contact Us For Availability
12
INSULATOR WCI AP208012 Contact Us For Availability
12
WCI Q310032 WCI Q310032 Contact Us For Availability
12
WCI Q301951 WCI Q301951 Contact Us For Availability
12
SHIELD WCI A61075000 Contact Us For Availability
13
BRACKET WCI A18082000 Contact Us For Availability
13
SEAL WCI AP326054 Contact Us For Availability
13
SPRING WCI AP339042 Contact Us For Availability
13
INSULATION WCI AP207055 Contact Us For Availability
13A
SCREW WCI AP051046 Contact Us For Availability
14
WCI AP312003 WCI AP312003 Contact Us For Availability
14
WCI A22002000 WCI A22002000 Contact Us For Availability
14
WCI Q301912 WCI Q301912 Contact Us For Availability
14
WCI Q310096 WCI Q310096 Contact Us For Availability
14
HINGE, RH WCI A96068000 Contact Us For Availability
14
LINING, BOTTOM WCI A51103002 Contact Us For Availability
14A
WCI AP051053 WCI AP051053 Contact Us For Availability
15
WCI Q301899 WCI Q301899 Contact Us For Availability
15
WCI Q310002 WCI Q310002 Contact Us For Availability
15
WCI Q310095 WCI Q310095 Contact Us For Availability
15
RETAINER WCI A57020000 Contact Us For Availability
15
BRACKET WCI A18083000 Contact Us For Availability
16
BUSHING WCI AP074003 Contact Us For Availability
16
WCI Q301874 WCI Q301874 Contact Us For Availability
16
WCI Q310034 WCI Q310034 Contact Us For Availability
16
FRAME WCI A98374000 Contact Us For Availability
16
SUPPORT WCI A74055000 Contact Us For Availability
16A
SCREW WCI AP055031 Contact Us For Availability
17
WCI Q301873 WCI Q301873 Contact Us For Availability
17
WCI Q310094 WCI Q310094 Contact Us For Availability
17
WCI A74064000 WCI A74064000 Contact Us For Availability
17
WCI A9011000 WCI A9011000 Contact Us For Availability
18
RETAINER WCI A98371000 Contact Us For Availability
18
BRACKET WCI A18080000 Contact Us For Availability
19
WCI Q301869 WCI Q301869 Contact Us For Availability
19
INSULATION WCI AP207056 Contact Us For Availability
19
LINING, TOP WCI A51135000 Contact Us For Availability
20
SCREW WCI Q301839 Contact Us For Availability
20
BAFFLE WCI A09010000 Contact Us For Availability
20
BOX, VENT WCI A92049000 Contact Us For Availability
21
WING NUT WCI AP269004 Contact Us For Availability
21
INSULATION WCI AP207054 Contact Us For Availability
22
WCI Q310040 WCI Q310040 Contact Us For Availability
23
BURNER, BAKE WCI AP072028 Contact Us For Availability
23
WCI A5081000 WCI A5081000 Contact Us For Availability
23B
SCREW WCI AP051056 Contact Us For Availability
23C
CHANNEL WCI Q310003 Contact Us For Availability
24
SUPPORT WCI A74060000 Contact Us For Availability
25
SUPPORT WCI A74054000 Contact Us For Availability
25
WCI Q310078 WCI Q310078 Contact Us For Availability
27
NUT WCI AP269033 Contact Us For Availability
28
MIXER WCI AP279043 Contact Us For Availability
31
BURNER, BROIL WCI AP072029 Contact Us For Availability
31A
SCREW WCI AP325005 Contact Us For Availability
32
BAFFLE WCI A09005000 Contact Us For Availability
32A
NUT WCI AP265008 Contact Us For Availability
33
VALVE WCI AP385188 Contact Us For Availability
33B
TUBING WCI AP377127 Contact Us For Availability
33C
WCI Q301868 WCI Q301868 Contact Us For Availability
33D
WCI AP268040 WCI AP268040 Contact Us For Availability
34
MIXER WCI AP279042 Contact Us For Availability
34B
SHUTTER WCI AP330001 Contact Us For Availability
34C
NUT & FERRULE WCI AP269016 Contact Us For Availability
34D
TUBING WCI AP377128 Contact Us For Availability
35
SHIELD WCI A61077000 Contact Us For Availability
× ![]()
